-1- User Manual NetTop II Mini PC HI12&HI12B 1. Product Specifications Item Description Intel Atom D510 1.66GHz CPU CPU Cache 1MB RAM DDR2 667/800 1GB/2GB (Option) Storage 2.5'' SATA 160/250GB HDD Graphics nVidia ION2 with 512MB RAM LAN Built-in Ethernet supporting 10/100/1000 Mbps WIFI Built-in WIFI supporting IEEE 802.11 b/g/n I/O VGA x1, HDMI x1, RJ45x 1, 4 x USB 2.0 Ports, Audio-In x1, Line Out x1 Power AC 100~240V 50/60Hz,19v~3.42A 65W Monitor Supplied separately Keyboard/Mouse Supplied separately Dimensions 19.3(L) X 14.8(W) X 2.2(H) cm Weight 530g Operating System Pre-installed with FREE DOS; Supports Win7/Vista/WinXP ® Name: QINGBANG ELECTRON (SHENZHEN) CO.,LTD. Add: Foreign trade Industrial workshop， The fifth Industrial Zone， Nanshan District Shenzhen. - 2- Important information for your safety and comfort Please read these instructions carefully before using the product and save for future reference. y Ensure that the Mini-PC is turned off and disconnected from the mains supply before cleaning y Do not use liquid or aerosol cleaners, a damp cloth should suffice y Insert the power connector into the Mini PC before plugging the mains cable into the AC power outlet. y When you need to disconnect power to the equipment, unplug the power cord from the AC power outlet before removing the power connector from the Mini PC. 2. Product Overview Features No. Item Description 1 Power Switch and Power Indication light The power switch allows you to switch the Mini PC ON or OFF. The light will glow when the power is on 2 HDD Activity Indicator Light will glow when the hard disk is in use 3 VGA port To connect to a VGA monitor 4 HDMI port To connect to an HDMI monitor 5 Rear USB 2.0 Ports To connect to USB devices 6 LAN Port To connect to an Ethernet LAN cable 7 DC Input To connect the power supply 8 Audio out jack To connect to headphones or speakers Name: QINGBANG ELECTRON (SHENZHEN) CO.,LTD. Add: Foreign trade Industrial workshop， The fifth Industrial Zone， Nanshan District Shenzhen. - 3- 9 Microphone in jack To connect to a microphone or other audio source 10 Front USB2.0 Ports (remove cover) To connect to USB devices. Name: QINGBANG ELECTRON (SHENZHEN) CO.,LTD. Adn trade Industrial workshop， The fifth Industrial Zone， Nanshan District Shenzhen. - 4- d: Foreig 3. Mini PC Setup and Connections To attach the Desktop Stand (1). Feed the thumb screw provided through the hole in the base of the stand (2). Align stand with the base of the Mini PC (3). Hand tighten the screw To connect to a VGA display Connect the VGA monitor or other display device to the 15 pin D-Sub connector found on the rear of the unit. To connect to an HDMI display / TV Connect the HDMI monitor or other display device to the HDMI connector found on the rear of the unit. To connect to a DVI display (1). Connect the HDMI to DVI adapter included with the Mini PC to the HDMI port found at the rear of the unit. (2). Connect the DVI monitor to the female DVI port on the adapter. To connect USB devices Connect USB devices to the USB 2.0 ports found both at the rear of the unit and under the cover on the front of the unit. Name: QINGBANG ELECTRON (SHENZHEN) CO.,LTD. Add: Foreign trade Industrial workshop， The fifth Industrial Zone， Nanshan District Shenzhen. - 5- To connect to the network Connect the Ethernet cable from your network switch / router to the RJ45 LAN connector found at the back of the unit. To connect the power adapter Connect the power connector from the supplied power supply to the DC – In connector found on the rear of the unit BEFORE attaching the mains power cable to an AC outlet. To connect speakers or headphones Connect the 3.5mm audio cable to the Audio Out jack found at the rear of the unit. To connect a microphone or other audio source Connect the 3.5mm audio cable to the Line In jack found at the rear of the unit. Name: QINGBANG ELECTRON (SHENZHEN) CO.,LTD. Add: Foreign trade Industrial workshop， The fifth Industrial Zone， Nanshan District Shenzhen. - 6- 4. Changing Boot Device Priority (To install another Operating System for example) By default, the Mini PC is set to boot into DOS from its own internal hard disk drive. In order to install a different operating system (Linux or Windows 7 ® for example) you first need to change the boot device priority in the BIOS to ensure that the Mini PC will try to boot from the USB CD drive / HDD / pen drive where the new operating system installation files reside. 1. Power on the computer and press <DEL> immediately to enter the BIOS setup utility. 2. Go to <Boot> page and choose “Boot Device Priority” Name: QINGBANG ELECTRON (SHENZHEN) CO.,LTD. Add: Foreign trade Industrial workshop， The fifth Industrial Zone， Nanshan District Shenzhen. - 7- 3. Set the ‘1 st Drive’ to be your attached USB CD/DVD/HDD device. This will automatically set the internal HDD to be the 2 nd Drive. 4. Go to the <Exit> page and choose ‘Save Changes and Exit’. After the Mini PC reboots it will try to boot from your chosen drive before the internal HDD allowing the installation of another Operating System for example. Additional device drivers required for some Microsoft® Operating Systems can be found on the USB Pen Drive included with your Mini PC. Name: QINGBANG ELECTRON (SHENZHEN) CO.,LTD. Add: Foreign trade Industrial workshop， The fifth Industrial Zone， Nanshan District Shenzhen. - 8- Note: Some older Operating Systems do not support AHCI mode. If the Operating System you try to install does not see the HDD as a valid destination, please go to the <Advanced> page in the BIOS Setup Utility, choose “SATA Configuration” page and set “SATA Controller Mode” to “SATA Mode”. 5. Warnings y Do not use this product near water or a heat source such as a radiator. y Do not place this product on an unstable stand or surface. If the product falls, it could be seriously damaged. y The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA SizeProject Name Rev Date:Sheetof Title : Engineer: A3 154Tuesday, June 29, 2010 PEGATRON CORPORATION BLOCK DIAGRAM 1.00 IPPPV-DCN Maple_Feng SizeProject Name Rev Date:Sheetof Title : Engineer: A3 154Tuesday, June 29, 2010 PEGATRON CORPORATION BLOCK DIAGRAM 1.00 IPPPV-DCN Maple_Feng SizeProject Name Rev Date:Sheetof Title : Engineer: A3 154Tuesday, June 29, 2010 PEGATRON CORPORATION BLOCK DIAGRAM 1.00 IPPPV-DCN Maple_Feng PEGATRON DT-MB RESTRICTED SECRET TIGERPOINT-PCI 25 MHz +5VSB & +3P3VSB +1P8V_DUAL & VTT_DDR VCORE CONTROLLE VCORE DRIVER SPI ROM 1Mb AMI +1P05V_CORE & +1P5V_CORE 100MHz 200 MHz CAD Note: 96MHz Channel A DDR2 667/800 TITLE 23 SATA CONNECTOR PINEVIEW-D_CPU/LVDS/ICH CHANGE HISTORY 06 28 SPI FLASH 08 PINEVIEW-D_DDR2 CLOCKS DISTRIBUTION 12 LED & FAN & SW 34 POWER SEQUENCE BLOCK DIAGRAM FRONT AUDIO CONNECTOR 18 07 29 WLAN AW-NU10324 27 03 SUPER I/O - ITE8770 PINEVIEW-D_POWER TIGERPOINT-HOST/SATA 31 20 RTC / SM BUS 10 21 32 19 22 44 DDR2 SLOT 33 RTL 8111E/8105E 09 01 LAN CONNECTOR 14 05 02 SIGNAL & RESET MAP PAGE TIGERPOINT-POWER/GND ECN CONTROL TABLE 26 POWER DISTRIBUTION PINEVIEW-D_VGA/MISC REALTEK ALC662 AZALIA CODEC 04 POWER FLOW TIGERPOINT-LPC/AUDIO/LAN/SMB/MISC 13 CK505 USB HEADER CONNECTOR TIGERPOINT-DMI/PCIE/USB 25 17 16 15 11 30 35 36 DC-IN UVP OVP & 19VSB 15W 25MHz Super I/O INTEGRATED VGA PORT PINEVIEW-D_DMI/GND DDR2 TERMINATION A LPC BUS LPC DEBUG / SCREW HOLE EMI 37 38 40 43 42 41 **************** SATA BUS Serial ATAII 48MHz 96 MHz ****************** 14.318 MHz 33MHz High-Speed USB Intel Pineview-D processor 1.1V / 1.8V_DUAL REGULATOR Default component footprint is SMD 0402 type. Difference footprint show on schematics. 166/200MHz Tigerpoint 4 ports INTEL DMI LINK Single Channel DDR2 MEMORY x 1 Slots I = Installed Part. NI = Not Installed Part. PROTO = PROTO Phase Only. 17 x 17 mm CLOCK 166/200 MHz CK-505 100 MHz 360 BGA 45 46 47 48 TSSOP56 SLG8XP548 IPPPV-DCG-DCN Rev:1.00 Realtek ALC662 IDT CV194D AUDIO Codec 48MHz VRD 11 on Board DC/SC 14MHz 22 x 22 mm 24MHz Ethernet 10/100/1G ITE8770 33MHz SPI BUS PHY AZALIA LINK 480Mb/s 400MHz 33MHz RTL 8111E/RTL 8105E N10 Express 559 BGA MAIN POWER & 5V_DUAL 39 49 50 51 52 Nauru 2.0 PCI-E 4x1 Nvidia N11M-GE1 GT218-ION HDMI D-SUB GPU 480Mb/s WLAN AW-NU103 48MHz ****************** 53 54 55 N11M N11M DDR3 N11M DisplayPort1 N11M DisplayPort2 N11M IFPE Interface(HDMI) N11M XTAL,ROM,SPDIF,JTAG N11M NVVDD & FBVDD/Q N11M GPU/MEM N11M Thermal protection Modify 2010/04/20 ******************

9/5/2006- 3 - 3. Block diagram

深圳市华标检测技术服务有限公司 Bontek Compliance Testing Laboratory Co., Ltd DATE: October 27, 2012 Dear TCB Section of Timco Engineering, Inc., Thank you for cooperation. I would like to submit a FCC new application of SAPPHIRE TECHNOLOGY LIMITED./FCC ID: QPK-EDGEHD by your TCB Approval today. Best Regards, Bontek Compliance Testing Laboratory Co., Ltd. Tony Wu/General Manager

SAPPHIRE TECHNOLOGY LIMITED FCC ID: QPK-EDGEHD POWER OF ATTORNEY October 29, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Bontek Compliance Testing Laboratory Ltd.(Tony Wu) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Bontek Compliance Testing Laboratory Ltd. (Tony Wu) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act.We, SAPPHIRE TECHNOLOGY LIMITED are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, SAPPHIRE TECHNOLOGY LIMITED Sam Lee, Project Manager

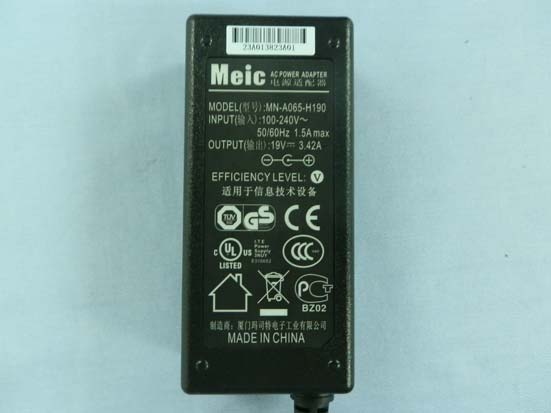

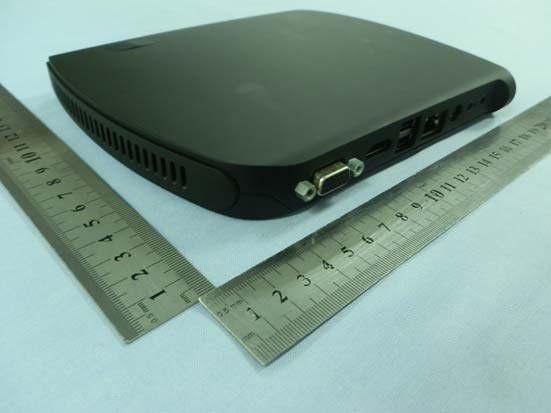

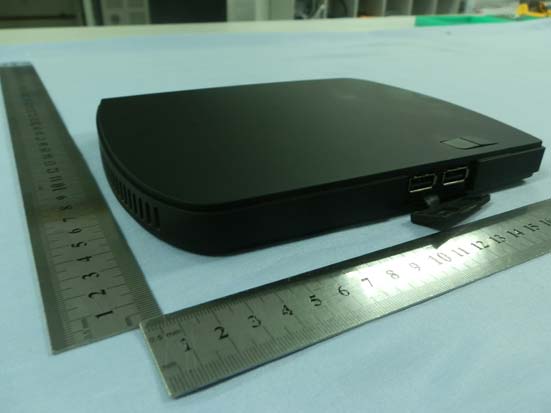

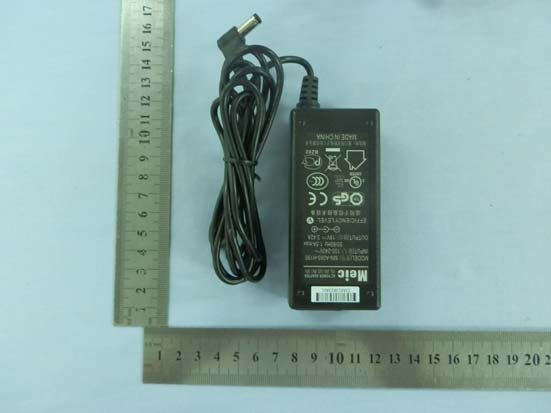

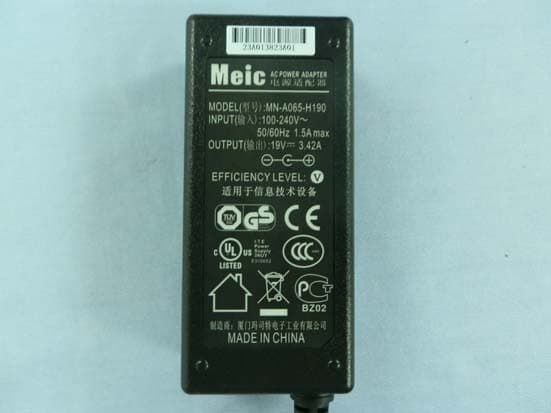

EUT EXTERNAL PHOTOGRAPHS EUT –View EUT –Front View EUT –Side View EUT –Side View EUT –Adapter View

FCC ID Label Location FCC ID Label Location

FCC ID Label Sample for FCC ID: QPK-EDGEHD SAPPHIRE TECHNOLOGY LIMITED Product: NETTOP FCC ID: QPK-EDGEHD Model: EDGE HD FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for ANY interference, for example RADIO or TV interference, caused by unauthorized modifications to this equipment. Such modifications could void the user’ authority to operate the equipment. SAPPHIRE TECHNOLOGY LIMITED product: NETTOP FCC ID: QPK-EDGEHD Model: EDGE HD2 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for ANY interference, for example RADIO or TV interference, caused by unauthorized modifications to this equipment. Such modifications could void the user’ authority to operate the equipment.

Internal Photographs EUT –Uncovered View EUT –Mainboard View EUT –Mainboard View EUT –RAM View EUT –RAM View EUT –HDD View EUT –Fan View EUT –Wifi Module View EUT –Wifi Module View

Operation description This device uses the AMD E450 for the central processor, IO the adopted E71080E IC ，ALC662 is audio IC which connect the line out connector and mic in. connector. 88e8059 is Gigabit Ethernet IC which onboard RJ45 connector. The Part of the USB interface, two 2.0 and two 3.0,3.0 use AMS1042 drive. Machine using the 19V DC adapter powered by 78d12 get 12v, +5 by RT82D6B, +3.3 to each part of the work.

9/5/2006- 1 - AW-NU103 IEEE 802.11b/g/n USB Wireless Module Datasheet Version draft 0.5 Document release Date Modification initials Approved Version 0.1 2009/02/19 Initial release Benson Eric Lee Version 0.2 2009 /03/11 Update Pin define / certification Country Benson Eric Lee Version 0.3 2009/09/09 Update RF label Mandy Ray Lee Version 0.4 2009/09/10 Update,mechanical drawing pin 1 Location Steve Chang Ray Lee Version 0.5 2009/11/26 Update RF label Stephanie Ray Lee 9/5/2006- 2 - 1. Introduction AzureWave Technologies, Inc. introduces the pioneer of the IEEE 802.11b/g/n USB wireless module ---AW-NU103. The AW-NU103 USB wireless module is a highly integrated wireless local area network (WLAN) solution to let users enjoy the digital content through the latest wireless technology without using the extra cables and cords. It enables a high performance, cost effective, low power, compact solution that easily fits onto one side of a USB. Compliant with the IEEE 802.11b/g/n standard, the AW-NU103 uses Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), BPSK, QPSK, CCK and QAM baseband modulation technologies. A high level of integration and full implementation of the power management functions specified in the IEEE 802.11 standard minimize system power requirements by using AW-NU103. Longer Range and Faster Speed Comparing to 802.11g technology, 802.11n draft 3.0 standard make big improvement on speed and range. It Increases wireless range by up to 2 times and reduces dead spots in coverage area. The data rate can up to 150Mbps data rate. 2. Features USB. Compliant with IEEE802.11n standard 1 antennas to support 1(Transmit) × ×× × 1(Receive) technology High speed wireless connection up to 150Mbps Low power consumption and high performance Enhanced wireless security 9/5/2006- 3 - 3. Block diagram 9/5/2006- 4 - 4. General Specifications Model Name AW-NU103 Product Description USB wireless module WLAN Standard IEEE 802.11 b/g/n, Wi-Fi compliant Host Interface USB Major Chipset Realtek RTL8191SU (MAC/Baseband/Radio) Dimension 27.29x19.69 X 2.7 mm Weight 3.8 g Antenna Connector Hirose U.FL-R-SMT 1: TX / RX 2: N/A Operating Conditions Voltage 3.3V +/- 5% Temperature Operating: 0~80 o C Storage: -10~85 o C; Electrical Specifications Frequency Range 2.4 GHz ISM Bands 2.412-2.472 GHz, 2.484 GHz Modulation 802.11 g/n: OFDM 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps) Output Power 802.11b: 12 dBm +/-1 dBm (11Mbps) 802.11g: 12 dBm +/- 1dBm (54Mbps) 802.11n: 10 dBm +/- 1dBm (HT20 MCS7) 10 dBm +/- 1dBm (HT40 MCS7) Receive Sensitivity 802.11b: less than -76 dBm (11Mbps) 802.11g: less than -68 dBm (54Mbps) 802.11n: less than -61 dBm at HT40 MCS7 less than -64 dBm at HT20 MCS7 Data Rates 802.11b: 11,5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802.11n: up to 300Mbps Operating Range Open Space: 300 M Indoor: 100 M (The transmission speed may vary according to the environment) Security
WEP 64-bit and 128-bit encryption
WPA(Wi-Fi Protected Access)
WPA2(Wi-Fi Protected Access) Operating System Compatibility Windows XP/Vista/win 7 9/5/2006- 5 - Regulatory FCC / CE / NCC , please refer regulatory list 4-1. Power Consumption @3.3V Continue TX Power: (11b= 12 dBm, 11g= 12dBm, 11n HT20= 10dBm HT40= 10ddBm)+/-1dBm In Idle mode: typically 252 mA / In WLAN Disable: typically 0 mA In 802.11B mode MCS index Data rate Power Consumption Unit TX 1 Mbps (LP) 348 mA TX 11Mbps (LP) 326 mA TX 1Mbps (SP) 346 mA TX 11Mbps (SP) 324 mA In 802.11G mode MCS index Data rate Power Consumption Unit TX 6 Mbps 343 mA TX 54Mbps 302 mA In 802.11N mode (HT20) MCS index Data rate Power Consumption Unit 1 6.5Mbps 336 mA 7 65Mbps 298 mA In 802.11N mode (HT40) MCS index Data rate Power Consumption Unit 1 13Mbps 333 mA 7 135Mbps 293 mA 9/5/2006- 6 - 5. Electrical Characteristics 5-1. Absolute Maximum Ratings Symbol Parameter Max. Rating Unit V dd33 Maximum I/O supply voltage 3.135 to 3.465 V RF in Maximum RF input (reference to 50 Ω) +10 dBm T store Storage temperature TBD °C 5-2. Connector Pin-out Definitions Pin number Name Type Description 1 GND Power Ground 2 USB_D+ I/O USB Differential signal 3 USB_D- I/O USB Differential signal 4 LED Output LED indicator for radio activity; Low Active. 5 HW_DIS Input WLAN disable control – Low Active 6 +3.3V Power 3.3V Power input 7 +3.3V Power 3.3V Power input 8 GND Power Ground 9 NC Not use 10 NC Not use 9/5/2006- 7 - 6. Mechanical Dimensions 7. RF label

55 44 33 22 11 D D C C B B A A PEGATRON DT-MB RESTRICTED SECRET NOTE: Length:0.5"(max) NOTE: Length:0.2"(max) IPDIPDIPDIPDIPDIPD For EMI Change to 8.2K ohm by PNV-D PDG R1.5 IPDIPD FrontWLAN IPDIPD Rear R1.03 DMI_COMP USBRBIAS PCIE_TXP4_CPCIE_TXN4_C PCIE_TXN1_CPCIE_TXP1_C ICH_OC7#ICH_OC6# GND +1P5V_CORE GND +3P3VSB +3P3VSB +3P3VSB +3P3VSB CK_48M_USB 9 CK_100M_DMI# 9 CK_100M_DMI 9 DMI_TXP0 14 DMI_RXP0 14 DMI_TXN0 14 DMI_RXN0 14 DMI_RXN1 14 DMI_TXP1 14 DMI_RXP1 14 DMI_TXN1 14 DMI_RXN2 14 DMI_TXP2 14 DMI_RXP2 14 DMI_TXN2 14 DMI_RXN3 14 DMI_TXP3 14 DMI_RXP3 14 DMI_TXN3 14 USBP2+ 33 USBP2- 33 G98_RXP1 47 G98_RXN1 47 G98_TXP1 47 G98_TXN1 47 OC01# 33 OC02# 33 USBP3+ 33 USBP3- 33 USBP4+ 24 USBP4- 24 USBP0- 33 USBP0+ 33 USBP1+ 33 USBP1- 33 LAN_PE1_RXN6 25 LAN_PE1_RXP6 25 LAN_PE1_TXN6 25 LAN_PE1_TXP6 25 Size Project Name Rev Date: Sheet of Title : Engineer: A3 20 54 Tuesday, September 11, 2012 PEGATRON CORPORATION TPT-DMI/PCIE/USB 1.00 IPPPT-GE Shawn Yu Size Project Name Rev Date: Sheet of Title : Engineer: A3 20 54 Tuesday, September 11, 2012 PEGATRON CORPORATION TPT-DMI/PCIE/USB 1.00 IPPPT-GE Shawn Yu Size Project Name Rev Date: Sheet of Title : Engineer: A3 20 54 Tuesday, September 11, 2012 PEGATRON CORPORATION TPT-DMI/PCIE/USB 1.00 IPPPT-GE Shawn Yu SR1111K I 12 SR1101K I 12 PCI-EDMI USB SU1BTIGERPOINT_D DMI2TXN U23 DMI1TXN T24 DMI1TXP T25 DMI2RXN T19 OC0# D4 OC2# D3 OC3# D2 OC1# C5 OC4# E5 OC[5]#/GPIO29 E6 OC[6]#/GPIO30 C2 DMI_CLKP W24 DMI_CLKN W23 DMI_IRCOMP J22 DMI_ZCOMP H24 PETp4 N24 PETn4 N25 PERp4 P18 PERn4 P17 PETp3 M21 PETn3 L22 PERp3 L24 PERn3 L23 PETp2 K25 PETn2 K24 PERp2 M19 PERn2 M18 PETp1 J24 PETn1 J23 PERp1 K22 PERn1 K21 DMI3TXP V23 DMI3TXN V24 DMI3RXP V20 DMI2TXP U24 DMI2RXP T18 DMI1RXP T20 DMI1RXN T21 DMI0TXP P20 DMI0TXN P21 DMI0RXP R24 DMI0RXN R23 CLK48 F4 USBRBIAS# G3 USBRBIAS G2 OC[7]#/GPIO31 C3 USBP7P N2 USBP7N N1 USBP6P M5 USBP6N M6 USBP5P L3 USBP5N L2 USBP4P K2 USBP4N K1 USBP3P K5 USBP3N K6 USBP2P J3 USBP2N J2 USBP1P H2 USBP1N H3 USBP0P H6 USBP0N H7 DMI3RXN V21 SR1071K I 12 SR1061K I 12 SR1924.91% I 12 SC14 0.1UF/16V X7R 10% I 1 2 SC13 0.1UF/16V X7R 10% I 1 2 CKC1010PF/50VNPO 5%NI 12 SC15 0.1UF/16V X7R 10% I 1 2 SC25 0.1UF/16V X7R 10% I 1 2 SR2422.61% I 12 55 44 33 22 11 D D C C B B A A PEGATRON DT-MB RESTRICTED SECRET NUT P/N:1308-006T000 USBPP4USBPN4 W LAN_POW USBPN4USBPP4 USBPP4 USBPN4 +3P3VSB GND GND GND GND GND GND +5VSB GND USBP4- 20 USBP4+ 20 HW _DIS 34 Size Project Name Rev Date: Sheet of Title : Engineer: A3 24 54 Tuesday, September 11, 2012 PEGATRON CORPORATION PCI EXPRESS X1 1.00 IPPPT-GE Shawn Yu Size Project Name Rev Date: Sheet of Title : Engineer: A3 24 54 Tuesday, September 11, 2012 PEGATRON CORPORATION PCI EXPRESS X1 1.00 IPPPT-GE Shawn Yu Size Project Name Rev Date: Sheet of Title : Engineer: A3 24 54 Tuesday, September 11, 2012 PEGATRON CORPORATION PCI EXPRESS X1 1.00 IPPPT-GE Shawn Yu RN4387A 0Ohm 5%I 1 2 ML390OHM/100MHz/370mANI 14 23 L880Ohm/100Mhz/2AI 2 1 N_W LAN1 A40M20-42C1AS I CH1 VN CH2 CH3 VP CH4 MU3 CM1213_04SO NI 123 456 RN4387B 0Ohm 5%I 3 4 LCB2810UF/6.3VX5R 10%Imx_c0805 12 P84 W TOB_CON_8P I 8 8 7 7 6 6 5 5 4 4 3 3 2 2 1 1 GND1 9 GND2 10 LCB290.1UF/16VX7R 10%I 12 N_W LAN2 A40M20-42C1AS I 55 44 33 22 11 D D C C B B A A WLAN ＆ ＆＆＆ GT218 On board LAN Note:Pin32If without use this pin,please PU to +3P3VSB Please close the short pin to SIO change 3P3VSB_1 to 3P3VSB change 10Kohm to 1Kohm Ted: 10/14 take off 3VSBSW# IT8770E P/N: 020I-0017000 R1.02 R1.02 R3.00 SIO_VIN6 SIO_PCICLK SIO_AVCC SIO_VIN5SIO_VIN4SIO_VIN1 SIO_CLKINSIO_CLKIN SIO_VIN3 SIO_VREF SIO_VCORE GP10 GP10_N HW _DIS_N SIO_CLKIN SIO_SYS_3VSB +3P3V +3P3VSB +3P3VSB +3P3V +3P3V +3P3V +3VA +3P3VSB +3P3VSB +3VA +3P3VSB +3VA +BATT +3P3VSB +3P3VSB +3P3V +VCORE +3P3V +1P5V_DUAL +3P3V +5V +3P3VSB +3P3V +3P3V +3P3V +3P3VSB +3VA +3P3VSB +3P3V GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND +5VSB GND GND +3P3VSB +3P3VSB +3P3V 3VSB_EN 42 PW ROK 11,22,39 RSMRST# 22 PW RBTN# 36 SB_PW RBTN# 22,39 SLP_S4# 12,22,39,41,44 SLP_S3# 22,41 FAN_PW M 36 FAN_TACH 36 LAD0 22,38 LAD1 22,38 LAD2 22,38 LAD3 22,38 PLED 36 KBDRST# 21,39 A20GATE 21 CK_33M_SIO 9 TRD_CPU_P 10TRD_CPU_N 10 PLTRST# 11,22,39 LFRAME# 22,38 SIO_PME# 22 SERIRQ 21 PCIE_RST# 25,47,55 PS_ON# 41,45 HW _DIS 24 CK_48M_SIO 9 Size Project Name Rev Date: Sheet of Title : Engineer: A3 34 54 Tuesday, September 11, 2012 PEGATRON CORPORATION SIO-IT8770E 1.00 IPPPT-GE Shawn Yu Size Project Name Rev Date: Sheet of Title : Engineer: A3 34 54 Tuesday, September 11, 2012 PEGATRON CORPORATION SIO-IT8770E 1.00 IPPPT-GE Shawn Yu Size Project Name Rev Date: Sheet of Title : Engineer: A3 34 54 Tuesday, September 11, 2012 PEGATRON CORPORATION SIO-IT8770E 1.00 IPPPT-GE Shawn Yu O2C51UF/10VI 12 RN4366D 10KOhm 5% I 7 8 O2R244.7KI 12 O2C80.1UF/16VI 12 O2C260.1UF/16VI 12 O2C20.022UF/16VX7R 10%I RN4367D 10KOhm 5% I 7 8 O2R321KNI 12 RN4366C 10KOhm 5% I 5 6 O2R2 33 OHM5% I O2R610KNI 12 O2C191UF/10VI 12 O2R201KOhm1%I 12 RN4367B 10KOhm 5% I 3 4 O2R404.7KI 12 O2C121UF/10VI 12 SCB3110PF/50VNPO 5%NI 12 O2R331KNI 12 O2R4810K1%I 12 O2R411KOhm1%I 12 O2R84.7KI 12 O2C70.1UF/16VI 12 O2R1710KI 12 O2C132200PF/50VX7R 10%I 12 O2R22 10K NI 1 2 O2R237.15KOHM1%I 12 O2R474.7KNI 12 O2C180.1UF/16VI 12 L3420 120Ohm/100Mhz/0.6A I 2 1 O2R710KI 12 O2R4510KI 12 O2C111UF/10VI 12 O2C90.1UF/16VI 12 O2C110UF/6.3VMLCC/+/-20%I 12 RN4367C 10KOhm 5% I 5 6 O2R3910KI 12 O2R3410KI 12 O2R4 0 I 1 2 O2R194.7K I 1 2 B C E 1 23 O2Q1PMBS3904I O2R4410KI 12 RN4368D 10KOhm 5% I 7 8 U3601IT8770EI CTS1# 2 VCORE_GD 4 FAN_TAC1 5 FAN_CTL1 6 FAN_TAC2/GP52 7 FAN_CTL2/GP51 8 GNDD 26 GP23 10 GP22 11 +5VSB_CTRL 9 AMDTSI_D 27 PWRGD 38 +SYS_3VSB 31 PCIRST2#/GP11 12 3VSB1 13 VCORE_EN 3 LRESET# 15 SERIRQ 16 LFRAME# 17 LAD0 18 LAD1 19 LAD2 20 LAD3 21 KRST# 22 GA20 23 PCICLK 24 CLKIN 25 VLDT_EN 57 PECI/AMDTSI_C 28 3VSB2 29 VBAT 30 SUSB# 32 PWRON#/GP44 33 PME#/GP54 34 PANSWH#/GP43 35 PSON#/GP42 36 SUSC#/GP53 37 3VSBSW#/GP40 39 KDAT/GP61 40 KCLK/GP60 41 MDAT/GP57 42 MCLK/GP56 43 PCIRST3#/GP10 44 RSMRST#/GP55 45 GNDA 46…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA USBPP1 USBPN3 USBPP2 USBPN2 USBPP2 USBPN0 USBPP0 USBPN1 USBPP3 USBPN3 USBPP3 USBPN0 USBPP0 USBPP1 USBPN1 USBPN2 +5V_DUAL +5V_USB45+SBV02 +5VSB +5VSB GND GND GND GND GND GND +5V_DUAL +5V_USB01+SBV01 GND GNDGND GND GND GND +SBV01 GNDGNDGND +SBV02 GNDGNDGND OC02#20 USBP0-20 USBP1-20 USBP0+20 USBP1+20 USBP3-20 USBP2-20 USBP3+20 USBP2+20 OC01#20 SizeProject Name Rev Date:Sheetof Title : Engineer: A3 3354Tuesday, June 29, 2010 PEGATRON CORPORATION USB HEADER CONN. 1.00 IPPPV-DCN Maple_Feng <CORE DESIGN> SizeProject Name Rev Date:Sheetof Title : Engineer: A3 3354Tuesday, June 29, 2010 PEGATRON CORPORATION USB HEADER CONN. 1.00 IPPPV-DCN Maple_Feng <CORE DESIGN> SizeProject Name Rev Date:Sheetof Title : Engineer: A3 3354Tuesday, June 29, 2010 PEGATRON CORPORATION USB HEADER CONN. 1.00 IPPPV-DCN Maple_Feng <CORE DESIGN> PEGATRON DT-MB RESTRICTED SECRET USB 2.0 USB 2.0 R1.02 1 4 2 3 ML1 90OHM/100MHz/370mA NI ML1 90OHM/100MHz/370mA NI 1 2 C186 0.1UF/16V I C186 0.1UF/16V I 1 4 2 3 ML6 90OHM/100MHz/370mA NI ML6 90OHM/100MHz/370mA NI 1 2 C196 10UF/6.3V X5R 10% I C196 10UF/6.3V X5R 10% I 1 2 LR17 4.7K 5% I LR17 4.7K 5% I 12 RN4128A 0Ohm 5% I RN4128A 0Ohm 5% I 1 2 LR18 2.2K I LR18 2.2K I 12 F21.1A/6VIF21.1A/6VI 12 RN4127A 0Ohm 5% I RN4127A 0Ohm 5% I 34 RN4127B 0Ohm 5% I RN4127B 0Ohm 5% I 12 RN4126A 0Ohm 5% I RN4126A 0Ohm 5% I 34 RN4126B 0Ohm 5% I RN4126B 0Ohm 5% I 1 2 + CE6 100UF/6.3V TAN/Lf_T=1000hrs_85C/+/-20% I + CE6 100UF/6.3V TAN/Lf_T=1000hrs_85C/+/-20% I 1 4 2 3 ML2 90OHM/100MHz/370mA NI ML2 90OHM/100MHz/370mA NI 1 4 2 3 ML5 90OHM/100MHz/370mA NI ML5 90OHM/100MHz/370mA NI 34 RN4128B 0Ohm 5% I RN4128B 0Ohm 5% I 1 2 C197 0.1UF/16V I C197 0.1UF/16V I 1 2 C194 0.1UF/16V I C194 0.1UF/16V I 1 2 C181 0.1UF/16V I C181 0.1UF/16V I 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 P_GND1 9 P_GND2 10 GND1 11 GND2 12 J13 USB_CON_2X4P IJ13 USB_CON_2X4P I 12 RN4125A 0Ohm 5% I RN4125A 0Ohm 5% I 1 2 34 5 6 CH1 VN CH2CH3 VP CH4 MU2 CM1213_04SO NI CH1 VN CH2CH3 VP CH4 MU2 CM1213_04SO NI 1 2 3 4 5 6 VCC D- D+ GND P_GND1 P_GND2 J11 USB_CON_1X4P I VCC D- D+ GND P_GND1 P_GND2 J11 USB_CON_1X4P I 1 2 3 4 5 6 VCC D- D+ GND P_GND1 P_GND2 J12 USB_CON_1X4P I VCC D- D+ GND P_GND1 P_GND2 J12 USB_CON_1X4P I 1 2 + CE4 100UF/6.3V TAN/Lf_T=1000hrs_85C/+/-20% I + CE4 100UF/6.3V TAN/Lf_T=1000hrs_85C/+/-20% I 34 RN4125B 0Ohm 5% I RN4125B 0Ohm 5% I 1 2 LR38 4.7K 5% I LR38 4.7K 5% I 21 L3 80Ohm/100Mhz/2A I L3 80Ohm/100Mhz/2A I 21 L1 80Ohm/100Mhz/2A I L1 80Ohm/100Mhz/2A I 1 2 C198 10UF/6.3V X5R 10% I C198 10UF/6.3V X5R 10% I 1 2 LR39 2.2K I LR39 2.2K I 1 2 34 5 6 CH1 VN CH2CH3 VP CH4 MU1 CM1213_04SO NI CH1 VN CH2CH3 VP CH4 MU1 CM1213_04SO NI 1 2 C195 10UF/6.3V X5R 10% I C195 10UF/6.3V X5R 10% I 1 2 C199 10UF/6.3V X5R 10% I C199 10UF/6.3V X5R 10% I 12 F11.1A/6VIF11.1A/6VI 5 5 4 4 3 3 2 2 1 1 DD CC BB AA BA VVSYNC R_DDCA_DATA VHSYNC +5V_VGA_CONN+5V_VGA_L+5V_VGA R_DDCA_DATA VHSYNC VVSYNC BLUE GREEN R_DDCA_CLK R_DDCA_CLK R_DDCA_DATAVVSYNC GREEN BLUERED VHSYNC RDDCA_CLKRDDCA_CLK VHSYNC_OBVHSYNC_OB RED VVSYNC_OB RDDCA_DATARDDCA_DATARDDCA_DATARDDCA_DATARDDCA_DATARDDCA_DATA BA GA RA R_DDCA_CLK +5V GNDGNDGNDGND GND GNDGND GNDGND GND GNDGND GNDGND GND GNDGNDGND GND GND GND GNDGND +5V +3P3V +5V +5V GND GND GND GND +5V_HDMI_C VGA_HSYNC11,50 VGA_VSYNC11,50 VGA_RED11,50 VGA_GREEN11,50 VGA_BLUE11,50 DDCA_CLK11,52 DDCA_DATA11,52 SizeProject Name Rev Date:Sheetof Title : Engineer: A3 1854Tuesday, June 29, 2010 PEGATRON CORPORATION VGA PORT 1.00 IPPPV-DCN Maple_Feng SizeProject Name Rev Date:Sheetof Title : Engineer: A3 1854Tuesday, June 29, 2010 PEGATRON CORPORATION VGA PORT 1.00 IPPPV-DCN Maple_Feng SizeProject Name Rev Date:Sheetof Title : Engineer: A3 1854Tuesday, June 29, 2010 PEGATRON CORPORATION VGA PORT 1.00 IPPPV-DCN Maple_Feng PEGATRON DT-MB RESTRICTED SECRET VR6,VR7 NI and VU1,VU2,VR8,VR9 I for EA issue VR8, VR9 = 10 ohm (CRB) NOTE: Place there VGA filter components within 500 mils of the VGA connector R1.03 1 2 VC10 470PF/50V X7R 10% NI VC10 470PF/50V X7R 10% NI 2 1 D8307 SS14 I D8307 SS14 I G S D 32 1 Q4 2N7002 I G S D 32 1 Q4 2N7002 I 1 2 VC4 3.3PF/50V NPO 0.25PF NI VC4 3.3PF/50V NPO 0.25PF NI 12 VR9 10 OHM 5% I VR9 10 OHM 5% I 1 2 34 5 6 CH1 VN CH2CH3 VP CH4 U72 CM1213_04SO NI CH1 VN CH2CH3 VP CH4 U72 CM1213_04SO NI 1 2 VC12 3.3PF/50V NPO 0.25PF NI VC12 3.3PF/50V NPO 0.25PF NI 1 2 VR4 150 1% I VR4 150 1% I G S D 32 1 Q2 2N7002 I G S D 32 1 Q2 2N7002 I 1 2 VR1 150 1% I VR1 150 1% I 12 VF1 1.1A/6V I VF1 1.1A/6V I 12 VL4 0 VP mx_r0603 VL4 0 VP mx_r0603 1 2 VC9 3.3PF/50V NPO 0.25PF I VC9 3.3PF/50V NPO 0.25PF I 1 2 VR21 200K I VR21 200K I 1 2 VC3 3.3PF/50V NPO 0.25PF I VC3 3.3PF/50V NPO 0.25PF I 1 2 VCB2 0.1UF/16V NI VCB2 0.1UF/16V NI 1 2 VR20 200K I VR20 200K I 1 2 VC13 470PF/50V X7R 10% NI VC13 470PF/50V X7R 10% NI 12 RN4383A 4.7K I RN4383A 4.7K I 1 2 VC11 3.3PF/50V NPO 0.25PF NI VC11 3.3PF/50V NPO 0.25PF NI 78 RN4383D 4.7K I RN4383D 4.7K I 1 2 VC5 5.6PF/50V NPO 0.25PF I VC5 5.6PF/50V NPO 0.25PF I 21 VL5 0.068UH/300mA I mx_l0603 VL5 0.068UH/300mA I mx_l0603 12 VR8 10 OHM 5% I VR8 10 OHM 5% I 1 2 CB206 0.1UF/16V Y5V I 0402 CB206 0.1UF/16V Y5V I 0402 1 2 VR19 2.2K I VR19 2.2K I OE# 1 A 2 GND 3 Vcc 5 Y 4 VU1 74AHCT1G125 I VU1 74AHCT1G125 I 1 2 VR2 150 1% I VR2 150 1% I VL10 0 Ohm5% NIVL10 0 Ohm5% NI 1 2 VC1 3.3PF/50V NPO 0.25PF NI VC1 3.3PF/50V NPO 0.25PF NI 21 VL8 80Ohm/100Mhz/2A I mx_l0805 VL8 80Ohm/100Mhz/2A I mx_l0805 12 VR5 100 I VR5 100 I 21 VL7 0.068UH/300mA I mx_l0603 VL7 0.068UH/300mA I mx_l0603 VL9 0 Ohm5% NIVL9 0 Ohm5% NI 10 9 8 7 6 3 15 14 13 12 11 2 4 5 1 16 17 CON1701 D_SUB_15P3R I CON1701 D_SUB_15P3R I 21 VL3 0.068UH/300mA I mx_l0603 VL3 0.068UH/300mA I mx_l0603 34 RN4383B 4.7K I RN4383B 4.7K I 1 2 VR18 2.2K I VR18 2.2K I 56 RN4383C 4.7K I RN4383C 4.7K I 12 VR3 100 I VR3 100 I OE# 1 A 2 GND 3 Vcc 5 Y 4 VU2 74AHCT1G125 I VU2 74AHCT1G125 I 12 VL6 0 VP mx_r0603 VL6 0 VP mx_r0603 1 2 VC8 5.6PF/50V NPO 0.25PF I VC8 5.6PF/50V NPO 0.25PF I 1 2 VC6 3.3PF/50V NPO 0.25PF I VC6 3.3PF/50V NPO 0.25PF I 12 VL2 0 VP mx_r0603 VL2 0 …

Text truncated - open the document above for the full version.

Test Report of FCC CFR 47 Part 15 Subpart B On Behalf of SAPPHIRE TECHNOLOGY LIMITED Product description: NETTOP Model No.: EDGE HD Supplementary Model: EDGE HD2 FCC ID: QPK-EDGEHD Prepared for: SAPPHIRE TECHNOLOGY LIMITED Unit 1909 – 1919, 19/F., Tower 2, Grand Central Plaza, 138 Shatin Rural Committee Road, Shatin, N.T., Hong Kong Prepared by: Bontek Compliance Testing Laboratory Co., Ltd 1/F, Block East H-3, OCT Eastern Ind. Zone, Qiaocheng East Road, Nanshan, Shenzhen, China Tel: 86-755-86337020 Fax: 86-755-86337028 Report No.: BCT12JR-1841E-2 Issue Date: October 25, 2012 Test Date: October 18~25, 2012 Test by: Reviewed By: Vincent Jiang Kevin Chi TABLE OF CONTENTS 1. GENERAL INFORMATION........................................................................................................................ 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................. 3 1.2 TEST STANDARDS................................................................................................................................... 4 1.3 TEST FACILITY........................................................................................................................................ 4 2. SYSTEM TEST CONFIGURATION ........................................................................................................... 5 2.1 EUT CONFIGURATION............................................................................................................................. 5 2.2 EUT EXERCISE....................................................................................................................................... 5 …
