QPL100Transceiver


            ! "#












  i Thank you for purchasing the Everyday Wireless Model 100 UHF FM Data Transceiver. Before proceeding with the equipment installation, it is imperative that you read the following pages of notices and precautions. In order to ensure your equipment installation complies with FCC specifications and fulfills all warranty-related obligations, read comprehensively the IMPORTANT USER NOTICES and PRECAUTIONS sections below. IMPORTANT USER NOTICES ∑ FCC WARNING: This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. ∑ FCC RF Exposure Requirements: The antenna included with the Model 100 Transceiver must be installed to provide a separation distance of at least 20 centimeters from all persons, must not be co- located or operating in conjunction with any other antenna or transmitter, and must not exceed the antenna gain specified in the Antenna Use description below. Failure to observe these restrictions will result in exceeding the FCC RF exposure limits. ∑ Antenna Use: The AU2-UHF antenna is included with the shipment of each Model 100 Transceiver. DO NOT use any other antenna with the Model 100 Transceiver or modify the antenna / coaxial cabling without first consulting with Everyday Wireless or an Everyday Wireless qualified service organization. The included AU2-UHF antenna is a quarter-wave, omni directional antenna with 3 dBi of gain, and integral GPS antenna. The RG-58 UHF coaxial cable line has a minimum loss of 1.0 dB. ∑ Accessories: The accessories supplied with the Model 100 GPS transceiver are specifically designed for the Model 100. Use of other accessories may severely degrade performance or even damage the transceiver, and will void the warranty. ∑ Component Access: There are no service accessory parts inside the transceiver. Do not try to open the transceiver without prior approval from Everyday Wireless. Opening the transceiver will void the warranty. ∑ Service: Only qualified service personnel must install or repair equipment. PRECAUTIONS ∑ Do not modify the transceiver for any reason. ∑ Do not expose the transceiver to long periods of direct sunlight, nor place it near heating appliances. ∑ The Model 100 UHF FM Transceiver transmits data in the 450-470 MHz frequency band, which is regulated in the United States by the FCC. Because the FCC grants access to specific frequencies, and can grant access by multiple users to the same frequency, system performance may be affected by the presence of other nearby users of the frequency used by the owner of this transceiver. ∑ The United States Government is responsible for the operation, accuracy, and continued operation of the Global Positioning System (GPS). Accuracy and position fixes (latitude, longitude and altitude) can be affected by alterations made to the GPS satellites by the U. S. Government. Accuracy is subject to ii change in accordance with the U. S. Department of Defense civil GPS user policy and Federal Radio- navigation Plan. Positional accuracy and time to fix time can also be affected by poor view caused by obstructions such as tall buildings, heavy foliage, and large cliffs or other obstructions where GPS satellite signals are blocked and poor satellite geometry conditions result. DISCLAIMER AND LIMITATION OF LIABILITY ∑ Under no circumstances shall Everyday Wireless be responsible for any loss of data or any special, incidental, consequential, or indirect damages howsoever caused. Everyday Wireless assumes no responsibility for any damage or loss caused by deletion of data as a result of user error, malfunction, or repairs. ∑ Everyday Wireless LLC assumes no responsibility for any damages or loss resulting from the use of this product and user guide. Everyday Wireless LLC assumes no responsibility for any loss or claims by third parties that may arise through the use of this system. ∑ The contents of this User Guide are provided “as is”, except as required by applicable laws, no warranties of any kind, either express or implied, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this user guide. Everyday Wireless reserves the right to revise this user guide or withdraw it at any time without prior notice. Everyday Wireless reserves the right to make changes and improvements to any of the products described in this user guide. iii CONTENTS Section 1 – Introduction ......................................................................................................................... 1 1.1 Product Description and Basic Operation................................................................................. 1 1.2 Technical Specifications ........................................................................................................... 2 Section 2 – Receiving, Inspection, and Installation ............................................................................. 3 2.1 Packing Contents and Inspection.............................................................................................. 3 2.2 Installation ................................................................................................................................ 3 Section 3 – Maintenance......................................................................................................................... 6 3.1) Maintenance Concept ............................................................................................................... 6 3.2) Preventive Maintenance Requirements ................…

Text truncated - open the document above for the full version.





















































June 3, 2004 Federal Communications Commission Authorization and Evaluation Division Compliance with Part 90.203(e) and Part 90.203(j)(3) To Whom It May Concern, The Everyday Wireless Model 100 transceiver complies with Part 90.203(e), which reads: “Except as provided in paragraph (g) of this section, transmitters designed to operate above 25 MHz shall not be certificated for use under this part if the operator can program and transmit on frequencies, other than those programmed by the manufacturer, service or maintenance personnel, using the equipment’s external operation controls.” Everyday Wireless certifies that there are no user controls on the Model 100 that would allow the user to adjust the frequency on which the unit is transmitting. Further, the Everyday Wireless Model 100 transceiver complies with Part 90.203(j)(3), which reads: “Applications for part 90 certification of transmitters designed to operate on frequencies in the 150-174 MHz and or 421-512 MHz bands, received on or after February 14, 1997, must include a certification that the equipment meets a spectrum efficiency standard of one voice channel per 12.5 kHz of channel bandwidth. Additionally, if the equipment is capable of transmitting data, has transmitter output power greater than 500mW, and has a channel bandwidth of more than 6.25 kHz, the equipment must be capable of supporting a minimum data rate of 4,800 bits per second per 6.25 kHz of channel bandwidth.” Everyday Wireless certifies that the Model 100 has no voice channel, transmits data only, and is capable of supporting a minimum data rate of 4,800 bits per second per 6.25 kHz of channel bandwidth. Sincerely, Josef K. Winkler President





















































October 18, 2004 Ms. Sharon Hoffman TIMCO Engineering 849 N.W. State Road 45 Newberry, Florida 32669 Dear Sharon: As we have discussed, the Everyday Wireless Model 100 transceiver is a data only radio that bursts data at a duty cycle of 1% or less. This duty cycle is set by firmware at the time of manufacture, and the user does not have access to such adjustments. Please contact me should you need further clarification. Sincerely, Josef K. Winkler President





















































June 2, 2004 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QPL100 To Whom It May Concern, Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics File Name: Model 100 Schematics.pdf Functional Diagram File Name: Model 100 Functional Diagram.pdf Circuit Operational Description/ Tuning Procedure File Name: Model 100 Operational Description/Tuning Procedure.pdf Parts List File Name: Model 100 Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Josef K. Winkler President

























  !"#$%&# '() *(+%,
  " -.  !

! +" !"
(

/ ! !!


! " " (  0123(13
#% 4-*53++'

Scale 2:1 (actual size 1.5” wide x 1.25” tall) Scale 1:1 Description of Information Shown Company Name Company Location Unit Model Number Voltage / Current / Manufacture Location _________________________________ FCC ID _________________________________ FCC Rules compliance statement _________________________________ Manufacturer Unit Identifier Serial Number Bar Code Serial Number LOCATION ON BOX The label will be located on the side face plate on the opposite side from the power connector and antenna jack. Size shown to approximate scale (perspective creates minor relative size distortion). 1.75” 1.25” 5.00” 1.50”

9/14/2004 Page 1 of 2 FCCID: QPL100 RF exposure exhibit FCC RF Exposure Requirements General information : FCCID: QPL100 Modulation: FM Device category: Mobile / Part 2.1091 Environment: General Population/Uncontrolled Exposure Antenna: The manufacturer does not specify any antenna to be used with this device. This device has provisions for operation in a vehicle. Configuration Antenna p/n Type Max. Gain (dBi) Passenger car - - 3 Operating configuration and exposure conditions: The conducted output power is 46.5dBm = 45 Watt for the band 450-470MHz. The duty cycle is typically 0.2% for a 20 msec in a 10 second period. For the purpose of this evaluation, a maximum duty cycle of 1% is considered. The duty cycle is set by protocol firmware at the time of manufacture. The user does not have access to such adjustments. - Vehicle Operation: The maximum antenna gain that can be used is 3dBi. A coaxial cable of the type RG174 has a loss of at least 3dB for a length of 15 feet. Yet - no cable loss was considered for this evaluation. MPE Calculation : The minimum separation distance is calculated as follows: The limit for general population/uncontrolled exposure environment is 0.3mW/cm2 for the worst-case frequency below 1500MHz, which is for 450MHz. 9/14/2004 Page 2 of 2 FCCID: QPL100 Channel Frequency: 450MHz Max. Antenna Gain (dBi) / Minimum Cable Loss (dB) Minimum Separation Distance 3dBi / 0dB - - Freq (MHz) Power Conducted (W) Duty Cycle (%) (cm) (cm) (cm) 470 45 1 (F2D) 15.4 - - - - - - - - Conclusion: The device complies with the MPE requirements when installed at a separation distance of 16cm between the antenna, including any radiating structure, and any persons when normally operated.

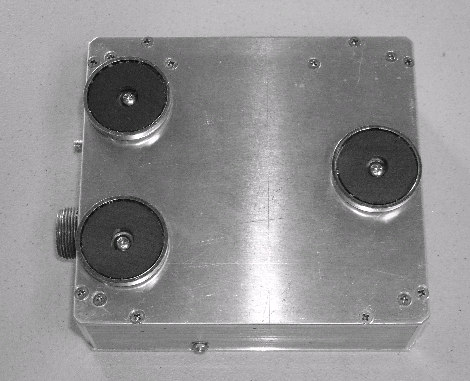

APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: T:\E\EverydayWireless_\716UT4\716UT4TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST FOR PART 90 UHF DEVICE APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 TEST REPORT: PAGE 1...........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2...........TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3...........MODULATION CHARACTERISTICS OCCUPIED BANDWIDTH PAGE 4...........OCCUPIED BANDWIDTH CONTINUED PAGE 5...........OCCUPIED BANDWIDTH PLOTS PAGE 6...........SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 7...........FIELD STRENGTH OF SPURIOUS EMISSIONS METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 8...........FREQUENCY STABILITY PAGE 9-10........TRANSIENT FREQUENCY STABILITY PAGE 11..........TRANSIENT FREQUENCY RESPONSE PLOTS – 12.5 kHz PAGE 12-15.......LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: TEST REPORT 2 CONFIDENTIALITY REQUEST LETTER FCC ID LABEL SAMPLE AND SKETCH OF LOCATION SCHEMATIC BLOCK DIAGRAM OPERATIONAL DESCRIPTION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS TUNING PROCEDURE PARTS LIST RF EXPOSURE INFORMATION SPECTRUM EFFICIENCY LETTER USE’S MANUAL TEST SET UP PHOTOGRAPH APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: T:\E\EverydayWireless_\716UT4\716UT4TestReport.doc PAGE #: 1 of 15 GENERAL INFORMATION REQUIRED FOR TYPE ACCEPTANCE 2.1033 EVERYDAY WIRELESS LLC will sell the FCC ID: QPL100 (c)(1)(2) VHF transceiver in quantity, for use under FCC RULES PART 22 & 90. 2.1033 (c) TECHNICAL DESCRIPTION 2.1033 (3) User Manual – Included in the Exhibits. 2.1033 (4) Type of Emission: 11K2F1D For 12.5 kHz For 25KHz & 12kHz Bn = 2M + 2DK M = 9600 Bits per second D = 850 kHz (Peak Deviation) K = 1 Bn = 2(9600/2) + 2(825)(1) = 9600 + 1650 = 11.25k ALLOWED AUTHORIZED BANDWIDTH = 20.00 kHz. For 12.5 kHz ALLOWED AUTHORIZED BANDWIDTH = 11.25 kHz. 90.209(b)(5) 2.1033 (5) Frequency Range: 450-470 MHz (6) Power Range and Controls: There are NO user Power controls. (7) Maximum Output Power Rating: 0.5 Watts, into a 50 ohm resistive load. (8) DC Voltages and Current into Final Amplifier: INPUT POWER: (13.6V)(7.83A) = 106.49 Watts (9) Tune-up procedure. The tune-up procedure is given in the Exhibits. 2.1033 (10) Complete Circuit Diagrams: The circuit diagram is included in the Exhibits. The block diagram is included in the Exhibits. (11) Function of each electron tube or semiconductor device or other active circuit device is included in the Exhibits. APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: T:\E\EverydayWireless_\716UT4\716UT4TestReport.doc PAGE #: 2 of 15 (8) Instruction book. The instruction manual is Included in the Exhibits. (9) Description of all circuitry and devices provided For determining and stabilizing frequency is included in the circuit description in the users manual. 2.1033(c) (11) A photograph or drawing of the equipment identification label is shown in the Exhibits. 2.1033(c) (12) Photographs of the equipment of sufficient clarity to reveal equipment construction and layout and label location are shown in the Exhibits. 2.1033(c) (13) For equipment employing digital modulation, a detail description of the modulation technique. This UUT uses FSK to modulate the transmitter. 2.1033(c) (14) data required for 2.1046 to 2.1057 See Below 2.1046(a) RF power output . RF power is measured by connecting a 50-ohm, resistive wattmeter to the RF output connector. With a nominal battery voltage of 13.6 VDC, and the transmitter properly adjusted the RF output measures: POWER OUTPUT OUTPUT POWER: 45 Watts METHOD OF MEASURING RF POWER OUTPUT APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: T:\E\EverydayWireless_\716UT4\716UT4TestReport.doc PAGE #: 3 of 15 2.1047(a) Voice Modulation characteristics: NOT APPLICABLE, F1 type of emission. 2.1049 Audio Low Pass Filter This UUT does not have a low pass filter. 2.1049 Occupied bandwidth: 90.210(c,) For transmitters that are not equipped with an audio low pass filter pursuant to S90.211 (b), the power of any emission must be attenuated below the unmodulated carrier output power as follows; (1) On any frequency removed from the center of the authorized bandwidth by a displacement frequency (fd in kHz) of more than 5 kHz but not more than10 kHz: At least 83 log (fd/5) dB; (2) ON any frequency removed from the center of the authorized bandwidth by a displacement frequency (fd in kHz) of more than 10 kHz, but not more than 250% of the authorized bandwidth: At least 29 log(fd2/11)dB or 50 dB, whichever is the lesser attenuation; (3) On any frequency removed from the center of the authorized bandwidth by more than 250% of the authorized bandwidth: At least 43 + 10 log(Po)dB. 90.210(d) Emission Mask D - 12.5 kHz channel bandwidth equipment. For transmitters designed to operate with a 12.5 kHz channel bandwidth, any emission must be attenuated below the power (P) of the highest emission contained within the authorized bandwidth as follows: (1) On any frequency from the center of the authorized bandwidth f0 to 5.625 kHz removed from f0: Zero dB. (2) On any frequency from the center of the authorized bandwidth by a displacement frequency (fd in kHz) of more than 5.625 kHz but no more than 12.5 kHz: At least 7.27 (fd - 2.88 kHz) dB. (3) On any frequency removed from the center of the authorized bandwidth by a displacement frequency (fd in kHz) of more than 12.5 kHz: At least 50 + 10 log (P) dB or 70 dB, whichever is the lesser attenuation. APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: T:\E\EverydayWireless_\716UT4\716UT4TestReport.doc PAGE #: 4 of 15 Radiotelephone Transmitter with Modulation Limiter Test procedure: TIA/EIA-603 para 2.2.11 , with the exception that various tones were used. Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT Transmitter under Test Coupler 50 ohm Resistive Wattmeter Spectrum Analyzer Audio Oscillator APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: T:\E\EverydayWireless_\716UT4\716UT4TestReport.doc PAGE #: 5 …

Text truncated - open the document above for the full version.

APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: C:\EverydayWireless\2.1051TestReport.doc Page 1 of 8 This is to certify that TUV Labs performed conducted and radiated spurious emissions testing on EVERYDAY WIRELESS LLC FCC ID: QPL100. The test results attached in the following test report demonstrate that the EVERYDAY WIRELESS LLC FCC ID: QPL100 meets the conducted and radiated spurious emission requirements as specified by Part 90.210 emission specifications. Steve O’Steen TUV Labs APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: C:\EverydayWireless\2.1051TestReport.doc Page 2 of 8 2.1051 Spurious emissions at antenna terminals (conducted): Data provided below shows the level of conducted spurious responses. REQUIREMENTS: Emissions must be 50 + 10log(Po) dB below the mean power output of the transmitter. For 12.5 kHz: 50 + 10log(45) = 66.53 dBc EMISSION dB BELOW FREQUENCY MHz CARRIER 450 0 900 86.42 1350 123.92 1800 124.0 2250 104.30 2700 97.44 3150 133.86 3600 145.68 4050 140.74 4500 104.62 463.7 0 927.4 88.6 1391.1 123.79 1854.8 139.59 2318.5 102.05 2782.2 107.08 3245.9 116.10 3709.6 135.75 4173.3 121.90 4637 101.18 470 0 940 87.87 1410 122.0 1880 125.46 2350 102.09 2820 111.22 3290 130.86 3760 136.25 4230 133.98 4700 107.85 APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: C:\EverydayWireless\2.1051TestReport.doc Page 3 of 8 Method of Measuring Conducted Spurious Emissions METHOD OF MEASUREMENT: The transmitter under test was programmed to generate a continuous wave (CW) carrier signal at peak power to measure carrier and harmonic conducted emissions. The output of the transmitter was connected to a standard load and from the standard load through a pre-selector filter of the HP model E7405A spectrum analyzer used. The spectrum was scanned from 0 to at least the 10 th harmonic of the fundamental. The measurements were made in accordance with standard TIA/EIA-603. The measurements were made at TUV Labs located at 762 Park Ave, Youngsville, NC 27596. TEST EQUIPMENT USED: - HP E7405A Spectrum Analyzer, Cal due date: 8/6/05 - 10 dB Attenuator - Eagle Tuneable Notch Filter, Model 230NFNF (250 – 850 MHz) TRANSMITTER UNDER TEST HP SPECTRUM ANALYZER E7405A NOTCH FILTER 10dB ATTENUATOR APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: C:\EverydayWireless\2.1051TestReport.doc Page 4 of 8 2.1053 Field strength of spurious emissions: NAME OF TEST: RADIATED SPURIOUS EMISSIONS (450 MHz) REQUIREMENTS: Emissions must be 50 + 10log(Po) dB below the mean power output of the transmitter. 50 + 10log(45) = 66.53 dBc TEST DATA: Emission Frequency MHz Ant. Polarity Corrected EUT Signal Reading Coax Loss (dB) Substitution Antenna (dBd) dB Below Carrier (dBc) 450.00 0 46.00 0 0 0 900.00 H -36.90 3.38 1.21 85.07 1350.00 V -40.33 3.44 5.79 83.98 1800.00 V -44.66 4.08 6.48 88.26 2250.00 V -29.63 4.62 6.91 73.34 2700.00 V -35.62 5.08 7.30 79.40 3150.00 V -36.58 5.54 7.48 80.64 3600.00 H -29.62 5.90 7.66 73.86 4050.00 V -46.31 6.27 7.43 91.15 4500.00 H -37.92 6.62 8.96 81.58 APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: C:\EverydayWireless\2.1051TestReport.doc Page 5 of 8 2.1053 Field strength of spurious emissions: NAME OF TEST: RADIATED SPURIOUS EMISSIONS (463.7 MHz) REQUIREMENTS: Emissions must be 50 + 10log(Po) dB below the mean power output of the transmitter. 50 + 10log(45) = 66.53 dBc TEST DATA: Emission Frequency MHz Ant. Polarity Corrected EUT Signal Reading Coax Loss (dB) Substitution Antenna (dBd) dB Below Carrier (dBc) 463.70 0 45.93 0 0 0 927.40 H -37.10 3.41 1.23 85.21 1391.10 H -46.6 3.51 5.92 90.12 1854.80 V -38.43 4.15 6.50 82.0 2318.50 V -25.46 4.71 7.01 69.09 2782.20 V -33.18 5.12 7.32 76.91 3245.90 V -36.10 5.59 7.56 80.06 3709.60 H -35.47 6.03 7.55 79.88 4173.30 V -36.13 6.30 7.85 80.51 4637.00 H -36.76 6.75 8.82 80.62 APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: C:\EverydayWireless\2.1051TestReport.doc Page 6 of 8 2.1053 Field strength of spurious emissions: NAME OF TEST: RADIATED SPURIOUS EMISSIONS (470 MHz) REQUIREMENTS: Emissions must be 50 + 10log(Po) dB below the mean power output of the transmitter. 50 + 10log(45) = 66.53 dBc TEST DATA: Emission Frequency MHz Ant. Polarity Corrected EUT Signal Reading Coax Loss (dB) Substitution Antenna (dBd) dB Below Carrier (dBc) 470.00 0 46.01 0 0 0 940.00 V -39.20 3.44 1.06 87.59 1410.00 H -44.19 3.54 6.00 87.74 1880.00 V -40.30 4.20 6.51 84.0 2350.00 V -26.01 4.77 7.05 69.74 2820.00 H -28.66 5.21 7.26 72.62 3290.00 H -30.10 5.58 7.55 74.14 3760.00 H -31.88 5.99 7.5 76.38 4230.00 H -35.26 6.46 8.04 79.69 4700.00 H -39.74 6.88 8.76 83.87 APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: C:\EverydayWireless\2.1051TestReport.doc Page 7 of 8 Method of Measuring Radiated Spurious Emissions METHOD OF MEASUREMENTS: The tabulated data shows the results of the radiated field strength emissions test. The spectrum was scanned from 30 MHz to at least the tenth harmonic of the fundamental. This test was conducted per TIA/EIA STANDARD 603 using the substitution method. Measurements were made in the semi- anechoic RF test area at TUV Labs located at 762 Park Ave, Youngsville, NC 27596. TEST EQUIPMENT USED: - HP E7405A Spectrum Analyzer, Cal due date: 8/6/05 - HP 83630A Signal Generator, Cal due date: 8/5/05 APPLICANT: EVERYDAY WIRELESS LLC FCC ID: QPL100 REPORT #: C:\EverydayWireless\2.1051TestReport.doc Page 8 of 8 RADIATED TEST SET UP PHOTOGRAPH
