CONFIDENTIALITY REQUEST FOR FCCID:QQ2-GAOFDM900 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. WaveIP Ltd. would like the following documents regarding this submission for FCC ID: QQ2-GAOFDM900 to be kept confidential. 1. Pages 1 of 5 of document GA OFDM 900_Radio_Scheme 2. Pages 1 of document GA OFDM 900_Clock_Tree 3. Pages 1 of document GA OFDM 900_Power_Tree. 4. Pages 1 to 41 of document GA OFDM 900_user_guide. The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Company Name: WaveIP Ltd. Technical Contact: Michael Dayan Phone: 972-4-9937333 ext. 121 Fax: 972-4-9592614 Email: [email protected] Address: 1 Tavor Building P.O.B 335 Yokneam 20692, Israel 1/1
Internal External Picture for GAOFDM900 3/4 Internal External Picture for GAOFDM900 4/4

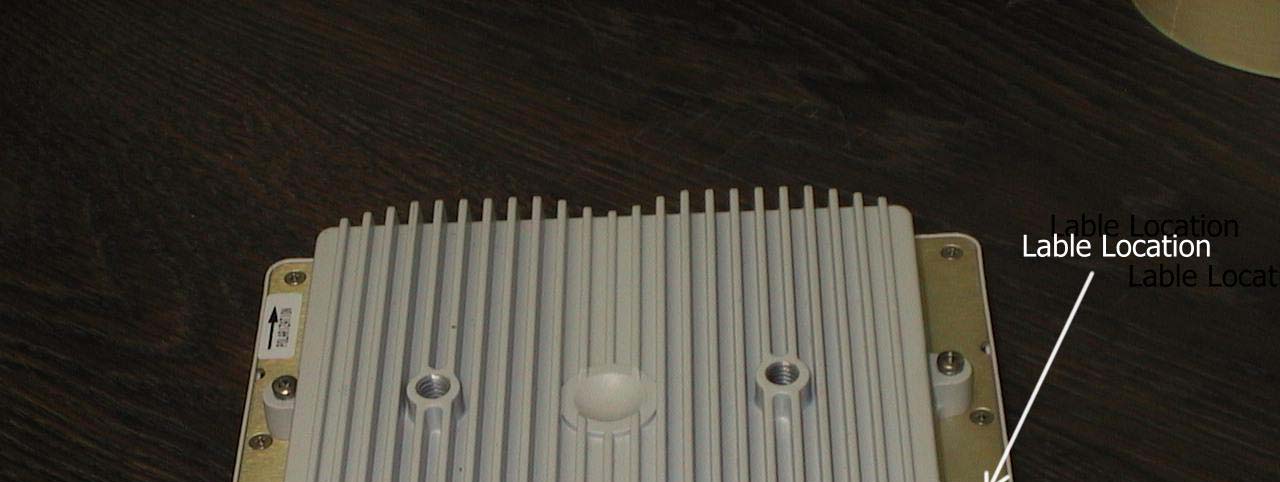

Lable ARTWORK FCCID:QQ2-GAOFDM900 LOCATION OF LABLE ON TEST ITEM 1/1
Internal External Picture for GAOFDM900 FCC ID: QQ2-GAOFDM900 Subject: Internal & External pictures for GigAccess 900 FCC ID:QQ2-GAOFDM900 1/4 Internal External Picture for GAOFDM900 2/4
Subject: Operational Description FCCID GAofdm900 1/3 2/3 3/3
Antenna Information 1/7 Antenna Information Antenna Type-MTI-262002 Back Side Antenna Type-MTI-262002 Front Side 2/7 Antenna Information Antenna Type-MA-1S91-T2 Back Side Antenna Type-MA-1S91-T2 Front Side 3/7 Antenna Information Antenna Type-MTI-262001 Back Side Antenna Type-MTI-262001 Front Side 4/7 Antenna Information Antenna Type-MTI-263006 Back Side Antenna Type-MTI-263006 Front Side 5/7 Antenna Information Antenna Type-Omni HG908U 6/7 Antenna Information Antenna Type-Omni HG908U 7/7
FCC ID: QQ2-GAOFDM900 Subject: Environmental evaluation and Exposure limit according to FCC CFR 47 §15.247(b)(5) and §1.1307, §1.1310 Limit for power density for general population /uncontrolled exposure is 0.618 mW/cm² (for 928MHz) The Power density: P (mW/cm²)= P T /4π R² where P T is the maximum transmitted power, which is equal to the transmitter output power 26.22 dBm plus the maximum antenna gain 12.5 dBi, the maximum equivalent isotropically radiated power EIRP is: P R = P T + antenna gain = 26.22 dBm + 12.5dBi = 38.72 dBm = 7.45W Hence, according to 15.247(b)(4) the maximum transmitted power shall be reduced below the limit stated in 15.247(b)(3) by: Power Limit Correction factor = (maximum antenna gain dBi - 6 dB) dB In our case the transmitted power shall be reduced below: Power Limit Correction factor = 12.5 dBi - 6 dBi = 6.5 dB P Limit1 = P Limit - Power Limit Correction factor = 30 dBm – 6.5 dB = 23.5 dBm Power Reduction factor = P T – P Limit1 = 26.22 dBm – 23.5 dBm = 2.72 dB P T1 = P T – Power Reduction factor = 26.22 dBm – 2.72 dB = 23.5 dBm Corrected radiated P R = 23.5 dBm + 12.5dBi = 36 dBm = 4 W The minimum safe distance “R” where RF exposure does not exceed FCC permitted limit is 17.5 cm. R=sqrt (P R / 0.618 mW/cm² *4π)= sqrt (4000/7.77)= 22.6 cm The actual Safety distance shall be Not less than 30 cm 1/1
Ga-ofdm-900 WaveIP EMI Test Report EMC/30020FC05115 1 /124 REV ∆ Description Sheet Effected Date Drawn Checked A 01.09.05 D.Lanuel S.Cohen B 9 02.10.05 D.Lanuel S.Cohen EMC Laboratory Manufactured by WaveIP Ltd. EMC Test Report According FCC Part 15 Requirements SEP 2005 Function/Title Name Signatur e Date Prepared b Test Engineer D.Lanuel 02.10.05 Checked by Test Engineer D.Lanuel 02.10.05 Approved by EMC Lab. Manager S.Cohen 02.10.05 Ga-ofdm-900 WaveIP EMI Test Report EMC/30020FC05115 2/124 Table of Contents Para Page 1 GENERAL INFORMATION........................................................................................................... 3 2 TEST SUMMARY AND SIGNATURES........................................................................................... 4 3 EUT DESCRIPTION..................................................................................................................... 5 4 OCCUPIED BANDWIDTH FOR DSSS SYSTEM ACCORDING TO 15.247(A) (2)........................... 6 5 MAXIMUM PEAK OUTPUT POWER TEST ACCORDING 15.247(B) (3)........................................ 8 6 OUT OF BAND CONDUCTED EMISSION TEST ACCORDING T0 15.247(C)............................... 11 7 RADIATED EMISSION IN RESTRICTED BANDS TEST ACCORDING 15.247(C), 15.205 AND 15.209 ........................................................................................................................................... 13 8 PEAK POWER SPECTRAL DENSITY OF DSSS ACCORDING 15.247D........................................ 19 9 UNINTENTIONAL RADIATED EMISSION TEST ACCORDING TO 15.109.................................. 21 10 CONDUCTED EMISSION TEST ACCORDING TO 15.207.15.107........................................... 23 11 PLOTS................................................................................................................................... 26 12 CORRECTION FACTORS..................................................................................................... 122 13 ABBREVIATIONS AND ACRONYMS.................................................................................... 124 Ga-ofdm-900 WaveIP EMI Test Report EMC/30020FC05115 3/124 1 GENERAL Information a. Description of equipment under test Equipment Under Test: Ga-ofdm-900 FCCID: QQ2-GAOFDM900 Manufacturer: WaveIP. Serial Numbers: 00-50C21CCE27 Mode of Operation: TX MODE Operating frequency: 902-928MHZ Year of Manufacture: 2005 b. Applicant Information: Applicant: WaveIP Ltd. Applicant Address TAVOR Building YOKNEAM Telephone: +972-4-9937333 FAX: +972-4-9592614 The testing was observed by: Yoram Singer Following applicant's personnel: Yoram Singer c. Test Performance: Date of reception for testing: 09.08.05 Dates of testing 09.08.05 - 10.08.05 Test Laboratory Location TADIRAN EMC LAB, Hashoftim 26 Holon 58102 ISRAEL Tel: 972-3-5574476 Fax: 972-3- 5575320 Applicable EMC Specification: Federal Communication Commission (FCC), Code of Federal Regulations 47, FCC Docket 89-103, Part 15: Radio Frequency Devices, Sections 15.109, 15.209 & 15.207, 15.205, 15.247. Ga-ofdm-900 WaveIP EMI Test Report EMC/30020FC05115 4 /124 2 Test Summary and Signatures. TADIRAN EMC Laboratory has completed testing of E.U.T in accordance with the requirements of the FCC 15.247 The E.U.T was found to comply with the requirements of the FCC Part 15.247 Regulations given below Test Description Specificat ion Refere nce Date of Testi ng Test Repo rt Para grap h Compliance PASS/FAIL Occupied 6db bandwidth 15.247 (a) (2) 09/08/0 5 4 PASS Max peak output power 15.247 (b) (3) 09/08/0 5 5 PASS Out of band Conducted emission 15.247 (c) 09/08/0 5 6 PASS Spurious emission radiated In Restricted band 15.209 15.20 5(a ,c) 09/08/0 5 7 PASS Peak power spectral density 15.247 (d) 09/08/0 5 8 PASS Unintentional radiated emission 15.109 09/08/0 5 9 PASS Conducted emission 15.207 09/08/0 5 10 pass a. Test performed by: Mr. D. Lanuel Test Engineer b. Test Report prepared by: Mr. D. Lanuel Test Engineer c. Test Report Approved by: Mr. Samuel Cohen EMC Lab. Manager Ga-ofdm-900 WaveIP EMI Test Report EMC/30020FC05115 5 /124 3 EUT Description a. General Model Number(s): Ga-ofdm-900 Brief Description (Purpose of Device): GigAccess TM 900 is WaveIP’s wireless point-to-point and point-to-multipoint broadband communication system. The basic subsystem is composed of a single sector, which consists of an AU (Access Unit) and up to 128 SUs (Subscriber Units). Each sector is a stand-alone communication network operating on a star topology with a gateway to the WAN, which allows two-way communication between the SUs and the WAN via the AU. A Sector may be divided into sub sectors, which are consecutive to the SUs within the sector. b. E.U.T Test Configuration EUT test configuration is shown in figure bellow AC Power Source EUT Laptop Antenn Adapter a c. n description (1) Transmit 30dbm-912MHz (2) Transmit 30dbm-915MHz (3) Transmit 30dbm-918MHz (4) Standby (5) Transmitter Power Source Adapter 220VAC/12VDC E.U.T Mode of Operatio Ga-ofdm-900 WaveIP EMI Test Report EMC/30020FC05115 6 /124 4 Occupied Bandwidth for DSSS System According to 15.247(a) (2) E.U.T: Ga-ofdm-900 S/N: 0050C21CCE27 Test Method: ANSI 63.4 Date: 09/08/05 Relative Humidity: 26% Ambient Temperature: 22c Air Pressure: 1047hpa Testing Engineer: D.Lanuel Date 16/08/05 a. Test Results Summary & Conclusions The E.U.T was found in compliance with OCCUPIED BANDWIDTH b. Limits of bandwidth The test unit shall meet the limits of Table 4.b Table 4.b Limits For Bandwidth Operating Frequency (MHz) Minimum allowed bandwidth 902 - 928 ≥500KHz for 6dbc c. Test Results Table 4.c Bandwidth Test Result Frequency (MHz) Min Bandwidth (MHz) Bandwidth Max Limit(KHz) Plot Results PASS/ FAIL 912 17.87 Plot-1 PASS 915 17.37 Plot-2 PASS 918 17.42 ≥500KHz Plot-3 PASS d. Test Instrumentation and Equipment Table 4.d Test Instrumentation and Equipment Item Model Manufacturer Next Date Calibration Spectrum Analyzer 8593E HP 31/01/06 Broadband Antenna BTA-L FRA…
