QQRBSMR10W80

Coverage Solutions Corporation

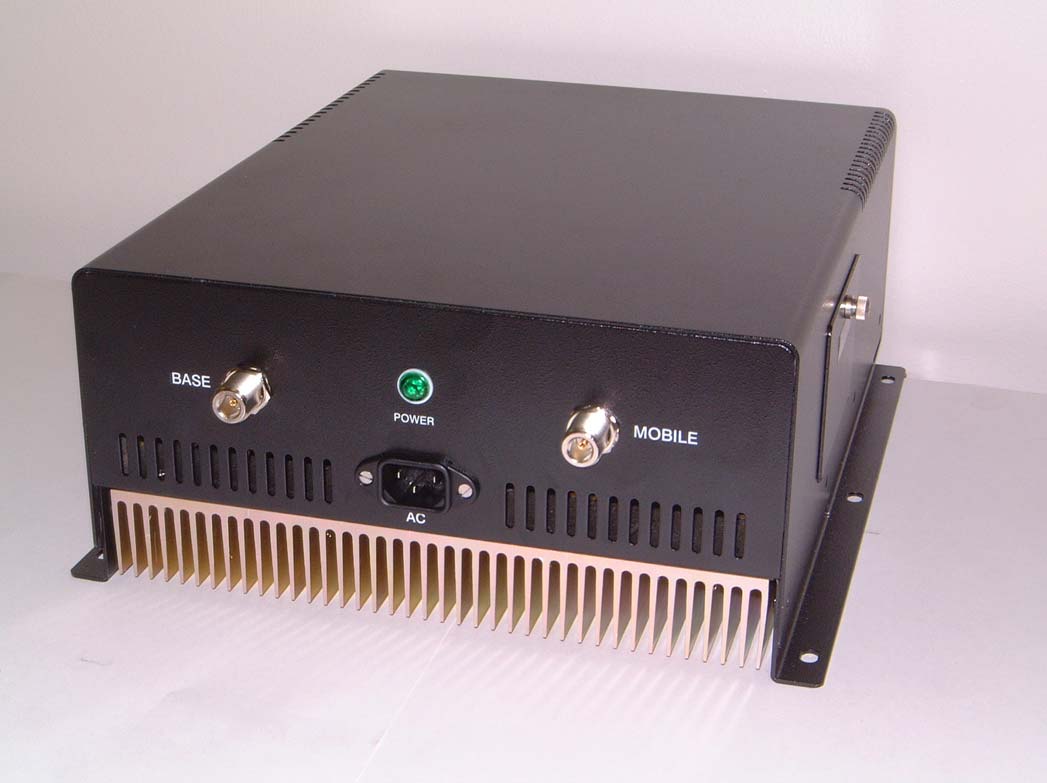

Bi-directional Amplifier

Click to zoom

Application Details

Equipment Class: AMP - Amplifier
Date of Grant: Jan 13, 2003
Application Purpose: Original Equipment
Date of Application: Jan 13, 2003
Equipment Note: Bi-directional Amplifier
Frequency Range: 851.00000000 - 866.00000000
Company: Coverage Solutions Corporation
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

Internal Photos

Parts List/Tune Up Info

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	9	851 MHz - 866 MHz	2 W	D7W	Amp

Confidentiality

Long Term

Grant Notes

Downlink (indoor) grant conditions � The antenna used for this transmitter is to be fixed-mounted on indoor permanent structures providing a separation distance of at least 20 cm from all persons during normal operation. The maximum radiated output power must satisfy the MPE Categorical Exclusion Requirements of �2.1091. RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3). The maximum allowed antenna gain is 2.6 dBi with a minimum of 1 dB cable loss for MPE compliance. Uplink (outdoor) grant conditions � The antenna used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3). The power outputs listed are the maximum composite total. Frequency stability is dependant on the repeated licensed unit.
