QQXEB-G60UGPRS GSM Phone

Operating InstructionsEB-G60U Digital Cellular Phone Before operating this equipment please read these instructions completely. Important Information i Important Information We, Matsushita Mobile Communications Development of Europe Ltd, declare, that the EB-G60 conforms with the essential and other relevant requirements of the directive 1999/5/EC. A declaration of conformity to this effect can be found at http://www.panasonicmobile.com/support Important Information ii THIS PANASONIC PHONE (MODEL EB-G60U) MEETS THE EU REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radio-frequency (RF) energy recommended by The Council of the European Union. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines were developed by independent scientific organisations through periodic and thorough evalu- ation of scientific studies. The limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for mobile phones employs a unit of measure- ment known as the Specific Absorption Rate, or SAR. The SAR limit rec- ommended by The Council of the European Union is 1.6 W/kg.* Tests for SAR have been conducted using standard operating positions with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a base station antenna, the lower the power output. Before a phone model is available for sale to the public, compliance with the European R&TTE directive must be shown. This directive includes as one essential requirement the protection of the health and the safety for the user and any other person. The SAR value for this model phone, when tested for use at the ear, for compliance against the standard was 1.0 W/kg averaged over a 10g mass. While there may be differ- ences between the SAR levels of various phones and at various positions, they all meet the EU requirements for RF exposure. * The SAR limit for mobile phones used by the public is 1.6 watts/ kilogram (W/kg) averaged over ten grams of tissue. The limit incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. SAR values may vary depending on national re- porting requirements and the network band. Important Information iii FCC RF Exposure Requirements: For body-worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used with COMPAL accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. SAR standard limit is 1.6 W/kg RF exposure FCC Tests for SAR are conducted using standard operating positions specified by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operation can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. (Body-worn measurements may differ among phone models,depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. Important Information iv For body worn operation, to maintain compliance with FCC RF exposure guidelines, use only accessories that contain no metal- lic components and provide a separation distance of 15mm (0.6 inches) to the body. Use of other accessories may violate FCC RF exposure guidelines and should be avoided. Health and Safety Information FCC Exposure to Radio Frequency (RF) Signals Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Com- munications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards previously set by both U.S. and interna- tional standards bodies: This EUT has been shown to be capable of compliance for local- ized specific absorption rate (SAR) for uncontrolled environment/ general population exposure limits specified in ANSI/IEEE Std. C95. 1-1992 and had been tested in accordance with the measure- ment procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). Ministry of Health (Canada), Safety Code 6. The standards in- clude a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure stan- dard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg *. Important Information v * In the U.S. and Canada, the SAR limit for mobile phones used by the …

Text truncated - open the document above for the full version.

COMPAL COMMUNICATIONS, INC. ADDRESS: CABLE ADDRESS: 7F, NO. 319, Sec. 4, PaTeh Road, TEL: 2528-8198 Taipei (105), Taiwan, R.O.C. FAX: 2748-7533 Date Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Compal Communications Inc. FCC ID: QQXEB-G60U FCC Part 15 Certification Gentlemen, In accordance with 0.459 of CFR 47, Compal Communications Inc. hereby requests confidentiality of all Block Diagrams, Circuit Diagrams, Parts List, Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Compal Communications Inc. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Compal Communications Inc. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely,

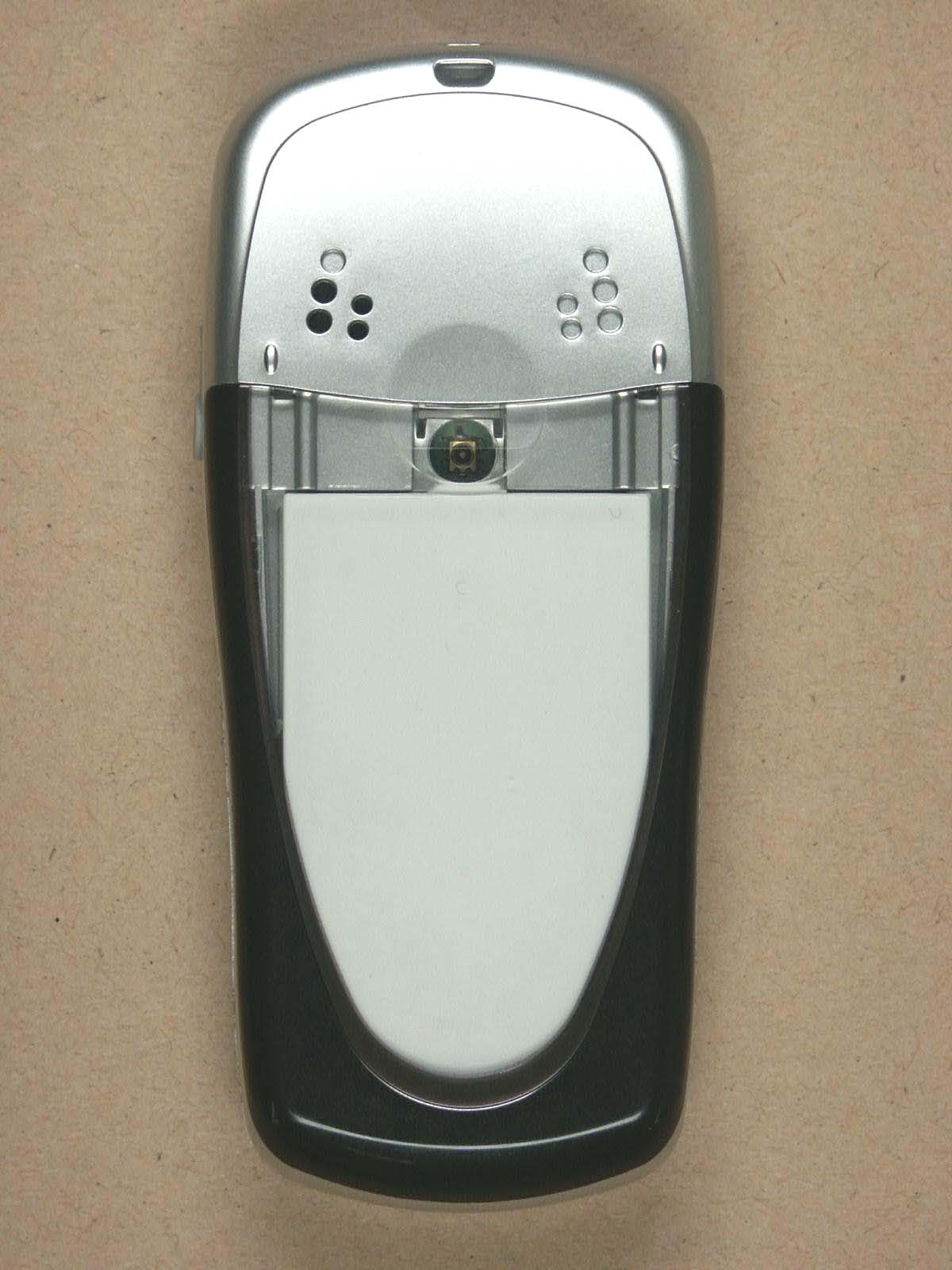

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G6D203010016-T-47Page 1 of 13 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G6D203010016-T-47Page 2 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G6D203010016-T-47Page 3 of 13

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G6D203010016-T-47Page 4 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G6D203010016-T-47Page 5 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G6D203010016-T-47Page 6 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G6D203010016-T-47Page 7 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G6D203010016-T-47Page 8 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G6D203010016-T-47Page 9 of 13

Panasonic EB-G60U TUNING PROCEDURE 1 TUNING PROCEDURE 1. GSM850 AGC Measurement (g-magic) 2. GSM850 AFC Measurement (AFC default value/slope) 3. GSM850 APC Measurement 4. Write GSM850 data into flash memory 5. PCS AGC Measurement (g-magic) 6. PCS AFC Measurement (AFC default value/slope) 7. PCS APC Measurement 8. Write PCS data into flash memory 2 AGC CALIBRATION (G-MAGIC) AGC – Automatic Gain Control 2 _ _ 10 magicg AGClevelInput PM ++= () () 2 200 4585 10 600 ++−= dBdBm Ö – Ö Ö 3 AFC CALIBRATION AFC – Automatic Frequency Control Frequency Plan CX74017 4 Conexant – Preliminary 101992A Proprietary Specifications and Information Are Subject to Change April 8, 2002 Table 3. Tx GSM850 (1 of 3) Channel D1 = 9,10,11 or 12 Tx Freq (F TX) (MHz) UHF LO (FVCO) (MHz) TxIF (MHz) Total N N (Main Divider) FN (Modulo) 128 11 824.2 1359.930 82.420 101.1100000 101 461373 129 11 824.4 1360.260 82.440 101.1353846 101 567844 130 11 824.6 1360.590 82.460 101.1607692 101 674315 131 11 824.8 1360.920 82.480 101.1861538 101 780786 132 11 825.0 1361.250 82.500 101.2115385 101 887257 133 11 825.2 1361.580 82.520 101.2369231 101 993727 134 11 825.4 1361.910 82.540 101.2623077 101 1100198 135 9 825.6 1393.200 103.200 103.6692308 103 2806957 136 9 825.8 1393.538 103.225 103.6951923 103 2915848 137 9 826.0 1393.875 103.250 103.7211538 103 3024738 138 9 826.2 1394.213 103.275 103.7471154 103 3133629 139 9 826.4 1394.550 103.300 103.7730769 103 3242520 140 9 826.6 1394.888 103.325 103.7990385 103 3351410 141 9 826.8 1395.225 103.350 103.8250000 103 3460301 142 9 827.0 1395.563 103.375 103.8509615 103 3569191 143 9 827.2 1395.900 103.400 103.8769231 103 3678082 144 9 827.4 1396.238 103.425 103.9028846 103 3786973 145 9 827.6 1396.575 103.450 103.9288462 103 3895863 146 9 827.8 1396.913 103.475 103.9548077 103 4004754 147 9 828.0 1397.250 103.500 103.9807692 103 4113644 148 9 828.2 1397.588 103.525 104.0067308 104 28231 149 9 828.4 1397.925 103.550 104.0326923 104 137121 150 9 828.6 1398.263 103.575 104.0586538 104 246012 151 9 828.8 1398.600 103.600 104.0846154 104 354903 152 9 829.0 1398.938 103.625 104.1105769 104 463793 153 9 829.2 1399.275 103.650 104.1365385 104 572684 154 9 829.4 1399.613 103.675 104.1625000 104 681574 155 9 829.6 1399.950 103.700 104.1884615 104 790465 156 9 829.8 1400.288 103.725 104.2144231 104 899356 157 9 830.0 1400.625 103.750 104.2403846 104 1008246 158 9 830.2 1400.963 103.775 104.2663462 104 1117137 159 9 830.4 1401.300 103.800 104.2923077 104 1226027 160 9 830.6 1401.638 103.825 104.3182692 104 1334918 161 11 830.8 1370.820 83.080 101.9476923 101 3974910 162 11 831.0 1371.150 83.100 101.9730769 101 4081380 163 11 831.2 1371.480 83.120 101.9984615 101 4187851 164 11 831.4 1371.810 83.140 102.0238462 102 100018 165 11 831.6 1372.140 83.160 102.0492308 102 206489 166 11 831.8 1372.470 83.180 102.0746154 102 312960 167 11 832.0 1372.800 83.200 102.1000000 102 419430 168 11 832.2 1373.130 83.220 102.1253846 102 525901 169 11 832.4 1373.460 83.240 102.1507692 102 632372 CX74017 Frequency Plan 101992A Conexant – Preliminary 5 April 8, 2002 Proprietary Specifications and Information Are Subject to Change Table 3. Tx GSM850 (2 of 3) Channel D1 = 9,10,11 or 12 Tx Freq (F TX) (MHz) UHF LO (FVCO) (MHz) TxIF (MHz) Total N N (Main Divider) FN (Modulo) 170 11 832.6 1373.790 83.260 102.1761538 102 738843 171 11 832.8 1374.120 83.280 102.2015385 102 845314 172 11 833.0 1374.450 83.300 102.2269231 102 951784 173 9 833.2 1406.025 104.150 104.6557692 104 2750496 174 9 833.4 1406.363 104.175 104.6817308 104 2859386 175 9 833.6 1406.700 104.200 104.7076923 104 2968277 176 9 833.8 1407.038 104.225 104.7336538 104 3077167 177 9 834.0 1407.375 104.250 104.7596154 104 3186058 178 9 834.2 1407.713 104.275 104.7855769 104 3294948 179 9 834.4 1408.050 104.300 104.8115385 104 3403839 180 9 834.6 1408.388 104.325 104.8375000 104 3512730 181 9 834.8 1408.725 104.350 104.8634615 104 3621620 182 9 835.0 1409.063 104.375 104.8894231 104 3730511 183 9 835.2 1409.400 104.400 104.9153846 104 3839401 184 9 835.4 1409.738 104.425 104.9413462 104 3948292 185 9 835.6 1410.075 104.450 104.9673077 104 4057183 186 9 835.8 1410.413 104.475 104.9932692 104 4166073 187 9 836.0 1410.750 104.500 105.0192308 105 80660 188 9 836.2 1411.088 104.525 105.0451923 105 189550 189 9 836.4 1411.425 104.550 105.0711538 105 298441 190 9 836.6 1411.763 104.575 105.0971154 105 407331 191 9 836.8 1412.100 104.600 105.1230769 105 516222 192 9 837.0 1412.438 104.625 105.1490385 105 625113 193 9 837.2 1412.775 104.650 105.1750000 105 734003 194 9 837.4 1413.113 104.675 105.2009615 105 842894 195 9 837.6 1413.450 104.700 105.2269231 105 951784 196 9 837.8 1413.788 104.725 105.2528846 105 1060675 197 11 838.0 1382.700 83.800 102.8615385 102 3613554 198 11 838.2 1383.030 83.820 102.8869231 102 3720025 199 11 838.4 1383.360 83.840 102.9123077 102 3826496 200 11 838.6 1383.690 83.860 102.9376923 102 3932967 201 11 838.8 1384.020 83.880 102.9630769 102 4039437 202 11 839.0 1384.350 83.900 102.9884615 102 4145908 203 11 839.2 1384.680 83.920 103.0138462 103 58075 204 11 839.4 1385.010 83.940 103.0392308 103 164546 205 11 839.6 1385.340 83.960 103.0646154 103 271017 206 11 839.8 1385.670 83.980 103.0900000 103 377487 207 11 840.0 1386.000 84.000 103.1153846 103 483958 208 11 840.2 1386.330 84.020 103.1407692 103 590429 209 11 840.4 1386.660 84.040 103.1661538 103 696900 210 11 840.6 1386.990 84.060 103.1915385 103 803371 211 11 840.8 1387.320 84.080 103.2169231 103 909841 212 11 841.0 1387.650 84.100 103.2423077 103 1016312 Frequency Plan CX74017 6 Conexant – Preliminary 101992A Proprietary Specifications and Information Are Subject to Change April 8, 2002 Table 3. Tx GSM850 (3 of 3) Channel D1 = 9,10,11 or 12 Tx Freq (F TX) (MHz) UHF LO (FVCO) (MHz) TxIF (MHz) Total N N (Main Divider) FN (Modulo) 213 9 841.2 1419.525 105.150 105.6942308 105 2911815 214 9 841.4 1419.863 105.175 105.7201923 105 3020705 215 9 841.6 1420.200 105.200 105.7461538 105 3129596 216 9 8…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G6D203010016-E-17 SAR ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-E-17Page 1 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4 Manufacturer 1.5Application details 1.6Test item 1.7Test results 1.8Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Definitions 2.5Measurement system description 2.6Test system specification 2.7Measurement procedure 2.8Reference points 2.9Test positions 2.10Measurement uncertainty 3Tissue and system verification 3.1Tissue verification 3.2System verification 4Test Results 5References 6Appendix ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-E-17Page 2 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 28.04.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 28.04.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-E-17Page 3 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax: +49 33631 888 660 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96-30 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: Compal Communications Inc. Street: 7F, 319, Sec. 4, Pa-Teh Road Town: Taipei (105) Country: Taiwan, R.O.C. Telephone: +886-2-2528-8198 Fax: +886-2-2748-7547 Contact: Ms. Cinthy Kuo Telephone: +886-2-2528-8198 1.4Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-E-17Page 4 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5Application details Date of receipt of application: 10.02.2003 Date of receipt of test item: 10.02.2003 Date of test: 24.04.2003 1.6Test item FCC ID: QQXEB-G60U Description of test item: GPRS Dual-Band (GSM850/PCS1900) Handset Phase II+ Type identification: EB-G60U Serial number: without;Identical prototype Device category: PCT(Licensed PCS Body Worn Transmitter) Technical data GSM850PCS TX Frequency range: 824,2 - 848,8 MHz1850,2 - 1909,8 MHz RX Frequency range: 869,2 - 893,8 MHz1930,2 - 1989,8 MHz Max. Conducted RF output power : 31,7 dBm31,2 dBm Power supply : 3,7 DC rechargeable battery Antenna Tx: integral Antenna RX: integral Additional information: Tx and Rx. antenna are the same. 1.7Test Results Max. SAR Measurement: 0.446 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-E-17Page 5 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8Test standards Standards: - ANSI/IEEE Std C95.1-1992 - IEEE Std. 1528-200X (Draft 6.5, January 2002) FCC Rule Part(s): - § 2.1093 - FCC OET Bulletin 65, Supplement C, Edition 01-01 2Technical test 2.1Summary of test results EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment (e.g. ambient temperature, air velocity, relative humidity, and body insulation) and those that characterize the individual (e.g. age, gender, activity l…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G6D203010016-T-28 SAR ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-T-28Page 1 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4 Manufacturer 1.5Application details 1.6Test item 1.7Test results 1.8Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Definitions 2.5Measurement system description 2.6Test system specification 2.7Measurement procedure 2.8Reference points 2.9Test positions 2.10Measurement uncertainty 3Tissue and system verification 3.1Tissue verification 3.2System verification 4Test Results 5References 6Appendix ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-T-28Page 2 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 29.04.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 29.04.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-T-28Page 3 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax: +49 33631 888 660 1.2.2Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96-30 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3Details of approval holder Name: Compal Communications Inc. Street: 7F, 319, Sec. 4, Pa-Teh Road Town: Taipei (105) Country: Taiwan, R.O.C. Telephone: +886-2-2528-8198 Fax: +886-2-2748-7547 Contact: Ms. Cinthy Kuo Telephone: +886-2-2528-8198 1.4Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-T-28Page 4 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5Application details Date of receipt of application: 10.02.2003 Date of receipt of test item: 10.02.2003 Date of test: 06.03.2003 - 25.05.2003 1.6Test item FCC ID: QQXEB-G60U Description of test item: GPRS Dual-Band (GSM850/PCS1900) Handset Phase II+ Type identification: EB-G60U Serial number: without;Identical Prototype Device category: PCE(Licensed Portable Transmitter Held to Ear) Technical data GSM850PCS TX Frequency range: 824,2 - 848,8 MHz1850,2 - 1909,8 MHz RX Frequency range: 869,2 - 893,8 MHz1930,2 - 1989,8 MHz Max. Conducted RF output power : 31,7 dBm31,2 dBm Power supply : 3,7 V DC rechargeable battery Antenna Tx: integral Antenna RX: integral Additional information: Tx and Rx. antenna are the same. 1.7Test Results Max. SAR Measurement: 0.522 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, January 2002). ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-T-28Page 5 of 23 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8Test standards Standards: - ANSI/IEEE Std C95.1-1992 - IEEE Std. 1528-200X (Draft 6.5, January 2002) FCC Rule Part(s): - § 2.1093 - FCC OET Bulletin 65, Supplement C, Edition 01-01 2Technical test 2.1Summary of test results EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment (e.g. ambient temperature, air velocity, relative humidity, and body insulation) and those that characterize the individual (e.g. a…

Text truncated - open the document above for the full version.

PA for normal operation over the power range Vbat(V) Pout(dBm) Icc(A) GSM850 PCS Model name: EB-G60U FCC ID: QQXEB-G60U

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: QQXEB-G60U Test report no.: G6D203010016-T-47 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-T-47Page 1 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 6.1 Test Procedure 6.2 Test Results 7 Audio Filter Characteristics, FCC 22.915(d) 7.1 Test Procedure 7.2 Test Results 8 Emission Limitations, , FCC 2.1049 8.1 Test Procedure 8.2 Test Results 9 Occupied Bandwidth FCC 22.917(b)(d); FCC 2.1049 9.1 Test Procedure 9.2 Test Results 10 Emission in Receiver Critical Band FCC 22.917(f) 10.1Test Procedure 10.2Test results 11 Out of Band Emissions at Antenna Terminals , FCC 2.1051, FCC 22.917(e), FCC 22.917(f), 24.238(a) 11.1. Test Procedure 11.2. Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-T-47Page 2 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 12 Field Strength of Spurious Radiation, FCC 2.1053, 24.236 13.1 Test Procedure 12.2 Test Results 13 Line Conducted Emissions, FCC 15.207 13.1 Test Procedure 13.2 Test Results 14 Frequency Stability vs Temperature, FCC 2.1055, 22.355, 24.235 14.1 Test Procedure 14.2 Test Equipment 15 Frequency Stability vs Voltage, FCC 2.1055, 22.355, 24.235 15.1 Test Procedure 15.2 Test Equipment ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-T-47Page 3 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample posseses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 14.03.2003F. Schulz DateETS-Lab.NameSignature Technical responsibility for area of testing: 14.03.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G6D203010016-T-47Page 4 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-RE…
