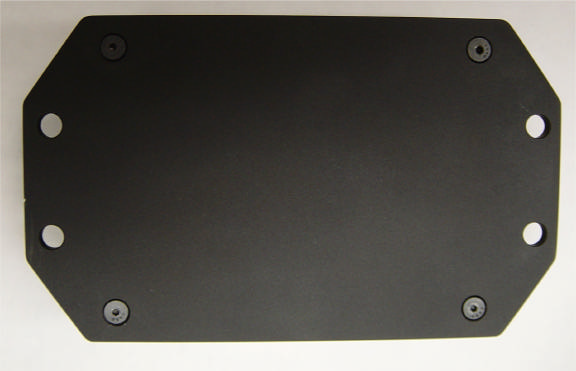

Confidential FCC ID: QQZCDMA2000AGENT Top View Confidential FCC ID: QQZCDMA2000AGENT Bottom View

FCC ID: QQZCDMA2000AGENT This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Confidential FCC ID: QQZCDMA2000AGENT

1365 Adams Court, Menlo Park, CA 94025 Coleman Technologies, Inc., Model: CDMA2000AGenT FCC ID: QQZCDMA2000AGENT RF Exposure Information The CTI device, FCC ID: QQZCDMA2000AGENT is designed for use in a vehicle. It is categorized as a mobile device used at least 20 cm from a user or nearby persons in normal operation. As stated in the test report, the maximum ERP/EIRP (average values) are: In the band 824-849 MHz: ERP = 28.9 dBm or 0.78 W In the band 1850-1910 MHz: EIRP = 28.5 dBm or 0.71 W According to the FCC 2.1091, the device is categorically excluded from routine environmental evaluation for RF exposure. The MPE does not exceed the Limit for MPE for Occupational/Uncontrolled Exposures. The calculated MPE at 20 cm is: 2.54 W/m 2 = 0.254 mW/cm 2 - in the band 824 - 849 MHz 1.41 W/m 2 = 0.141 mW/cm 2 - in the band 1850 - 1910 MHz Therefore, the device is in compliance with the FCC requirements. For the antenna installation instructions and transmitter operating requirements, see the “Manual”.

1365 Adams Court, Menlo Park, CA 94025 Coleman Technologies, Inc., Model: CDMA2000AGenT FCC ID: QQZCDMA2000AGENT Date of Test: November 10 to 12, 2002 Report # 30349051 2 of 31 FCC Part 22 & 24 TABLE OF CONTENTS 1.0 Introduction..................................................................................................................... 4 1.1 Test Summary .................................................................................................................. 4 1.2 Product Description ......................................................................................................... 5 1.3 Test Configuration ........................................................................................................... 6 1.4 Related Submittal(s) Grants ............................................................................................. 6 2.0 RF Power Output ............................................................................................................ 7 2.1 Test Procedure .................................................................................................................7 2.2 Test Equipment ................................................................................................................ 7 2.3 Test Results...................................................................................................................... 7 3.0 Radiated Power ............................................................................................................. 14 3.1 Test Procedure ............................................................................................................... 14 3.2 Test Result .....................................................................................................................14 4.0 Occupied Bandwidth .................................................................................................... 15 4.1 Test Procedure ............................................................................................................... 15 4.2 Test Equipment .............................................................................................................. 15 4.3 Test Results....................................................................................................................15 5.0 Out of Band Emissions at Antenna Terminals........................................................... 18 5.1 Test Procedure ............................................................................................................... 18 5.2 Test Equipment .............................................................................................................. 18 5.3 Test Results....................................................................................................................18 6.0 Field Strength of Spurious Radiation ......................................................................... 19 6.1 Test Procedure ............................................................................................................... 19 6.2 Test Equipment .............................................................................................................. 19 6.3 Test Results....................................................................................................................19 7.0 Line Conducted Emissions ........................................................................................... 20 7.1 Test Procedure ............................................................................................................... 20 7.2 Test Equipment .............................................................................................................. 20 7.3 Test Results....................................................................................................................20 8.0 Frequency Stability vs Temperature........................................................................... 21 8.1 Test Procedure ............................................................................................................... 21 8.2 Test Equipment .............................................................................................................. 21 8.3 Test Results....................................................................................................................22 9.0 Frequency Stability vs Voltage .................................................................................... 23 1365 Adams Court, Menlo Park, CA 94025 Coleman Technologies, Inc., Model: CDMA2000AGenT FCC ID: QQZCDMA2000AGENT Date of Test: November 10 to 12, 2002 Report # 30349051 3 of 31 FCC Part 22 & 24 9.1 Test Procedure ............................................................................................................... 23 9.2 Test Equipment .............................................................................................................. 23 9.3 Test Results....................................................................................................................23 10.0 List of test Equipment .................................................................................................. 24 11.0 Miscellaneous Comments ............................................................................................. 25 11.0 Document History ......................................................................................................... 26 12.0 Appendix A – Radiated Emissions Test Data........................................................... 27 13.0 Appendix B - Out of Band Emissions.......................................................................... 31 1365 Adams Court, Menlo Park, CA 94025 Coleman Technologies, Inc., Model: CDMA2000AGenT FCC ID: QQZCDMA2000AGENT Date of Test: November 10 to 12, 2002 Report # 30349051 4 of 31 FCC Part 22 & 24 1.0 Introduction 1.1 Test Summary FCC RULE DESCRIPTION OF…

Text truncated - open the document above for the full version.

13.0 Appendix B - Out of Band Emissions Out of Band Emissions at Antenna Terminals Cellular Band Plot Number Description 5.1a - 5.1f Low Channel, 825.25 MHz 5.2a - 5.2f Middle Channel, 836.5 MHz 5.3a - 5.3f High Channel, 847.75 MHz PCS Band Plot Number Description 5.4a - 5.4f Low Channel, 1851.25 MHz 5.5a - 5.5f Middle Channel, 1880 MHz 5.6a - 5.6g High Channel, 1908.75 MHz Emission in Base Frequency Range Plot Number Description 5.7a Low Channel, 825.25 MHz 5.7b Middle Channel, 836.5 MHz 5.7c High Channel, 847.75 MHz
