QSP-CDP24-00Cordless Data Phone

USERGUIDE WelcomeYour purchaseThank you for purchasing the Olympia Cordless Data Phone (CDP). As you will have already realised, this system is much more than just a cordless digital phone; it is a complete Bluetooth™ data network thatincorporates a telecommunications system consisting of a base station that can accommodate up to 7handsets (one of which can be a Bluetooth™ headset).O This phone system's facilities are available and can be used when connectedto a single line. Important safety instructionsI THIS EQUIPMENT IS NOT DESIGNED FOR MAKING EMERGENCY TELEPHONE CALLSWHEN THE MAINS POWER FAILS. ALTERNATIVE ARRANGEMENTS SHOULD BEMADE FOR ACCESS TO EMERGENCY SERVICES. Intended connection warningThis product is intended for connection to analogue public switched telephone networks and privateswitchboards in the United Kingdom, the European Union and the United States of America.Safety informationOnly use the power supply included with the CDP. Using an unauthorised power supply will invalidateyour guarantee and may damage the telephone.For the handset, use only approved Nickel Metal Hydride (NiMH) re-chargeable batteries. Never useother batteries or conventional alkaline batteries. They could lead to a short circuit or destroy the batterycasing. Recommended batteries should have a power rating of at least 700mAh 1.2V. Do not open the base station or handset (other than to change the batteries). This could expose you tohigh voltages or other risks.Radio signals transmitted between the handset & base may cause interference to hearing aids.This product should not be used near emergency / intensive care medical equipment and should not beused by people with pacemakers.Never dispose of batteries in a fire. There is a serious risk of explosion and / or the release of highly toxicchemicals. CleaningSimply clean the handset and base with a damp (not wet) cloth, or an anti-static wipe. Never usehousehold polish, as this will damage the product. Never use a dry cloth as this may cause a staticshock.Target performance specification • Talk Time up to 7 Hours • Standby time up to 7 Days • Range Indoors up to 50 metres (depending on construction) • Range outdoors up to 300 metres USER Page 2 www.olympia-life.com GUIDE Welcome FCC InformationFCC Part 68This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the exterior ofthe cabinet of this equipment is a label that contains, among other information, a product identifier in the formatUS:QSPTM00BCDP24 If requested, this number must be provided to the telephone company. • ACTA Registration Number: US:QSPTM00BCDP24 • Ringer Equivalence Number (REN): 0 • RPC Code: QSP • Service Order Code (SOC Code): 9.0F • USOC Jack Type: RJ11 A FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to beconnected to the telephone network or premises wiring using a compatible modular jack that is Part 68 compliant.See Installation Instructions for details.The REN is used to determine the quantity of devices that may be connected to the telephone line. Excessive RENs onthe telephone line may result in the devices not ringing in response to an incoming call. Typically, the sum of RENsshould not exceed five (5.0). To be certain of the number of devices that may be connected to a line (as determinedby the total RENs) contact the local telephone company.If this equipment Olympia CDP 2.4 causes harm to the telephone network, the telephone company will notify you inadvance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephonecompany will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint withthe FCC if you believe it is necessary.The telephone company may make changes to its facilities, equipment, operations or procedures that could affect theoperation of the equipment. If this happens the telephone company will provide advance notice so you can make thenecessary modifications to maintain uninterrupted service. If trouble is experienced with this equipment Olympia CDP 2.4, for repair or warranty information, please contact WaveIndustries, 333 S.E. 2nd Avenue, Portland Oregon 97214 USA. If the equipment is causing harm to the telephonenetwork, the telephone company may request that you disconnect the equipment until the problem is resolved.Connection to party line service is subject to state tariffs. (Contact the state public utility commission, public servicecommission or corporation commission for information.) FCC Part 15This equipment complies with Part 15 of the Federal Communications Commission (FCC) rules for theUnited States of America. Operation is subject to the following two conditions:1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. I Changes or modifications to this unit not expressly approved by the partyresponsible for compliance could void the users authority to operate this equipment. This equipment has been tested and found to comply with part 15 of the FCC rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which canbe determined by turning the phone off and on, the user is encouraged to try and correct the interference by one ormore of the following measures:1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment & receiver. 3. Connect the equipment into an outlet or on a circu…

Text truncated - open the document above for the full version.

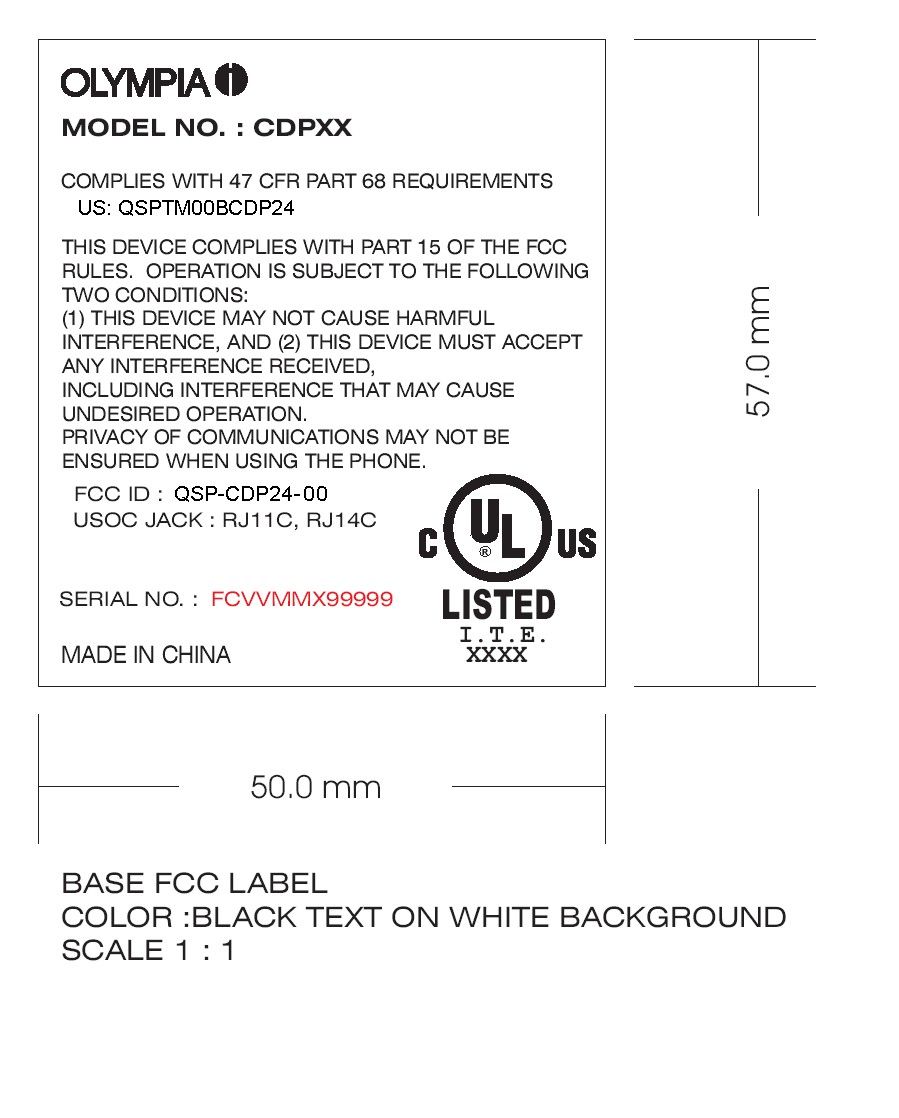

Statement demonstrating that the requirements of Section 15.214 (d) have been met Mansella Ltd Stafford House 33-39 Station Road Aldershot Hampshire GU11 1BA United Kingdom Name: Wahed Dewan This is covered by Bluetooth security: 1. Each CDP handset and base is assigned a unique 48 bit long Bluetooth address. 2. Each handset and bases are 'paired' in Bluetooth speak creating a secure voice link between HS and BS. 3. The pairing process is accompanied by the use of a 4 digit (i.e. 10,000 possibilities) PIN number. This PIN number is combined with the BT address to create a 128bit link key (2^128 combinations!), which is different each time a voice link is established. Reference: Bluetooth V1.1 specification on security (Part B Chapter 14).

07/02/2003 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: QSP-CDP24-00 It is requested that the following information is to be held confidential on behalf of Mansella Ltd FCC Rules Part 0.459 refers. Schematics 3 Files 7,4 & 5 pages respectively BOM 4 Files 1 page each This information if disclosed would result in substantial competitive harm and is therefore not available in the public domain Yours sincerely Mr S. Ward

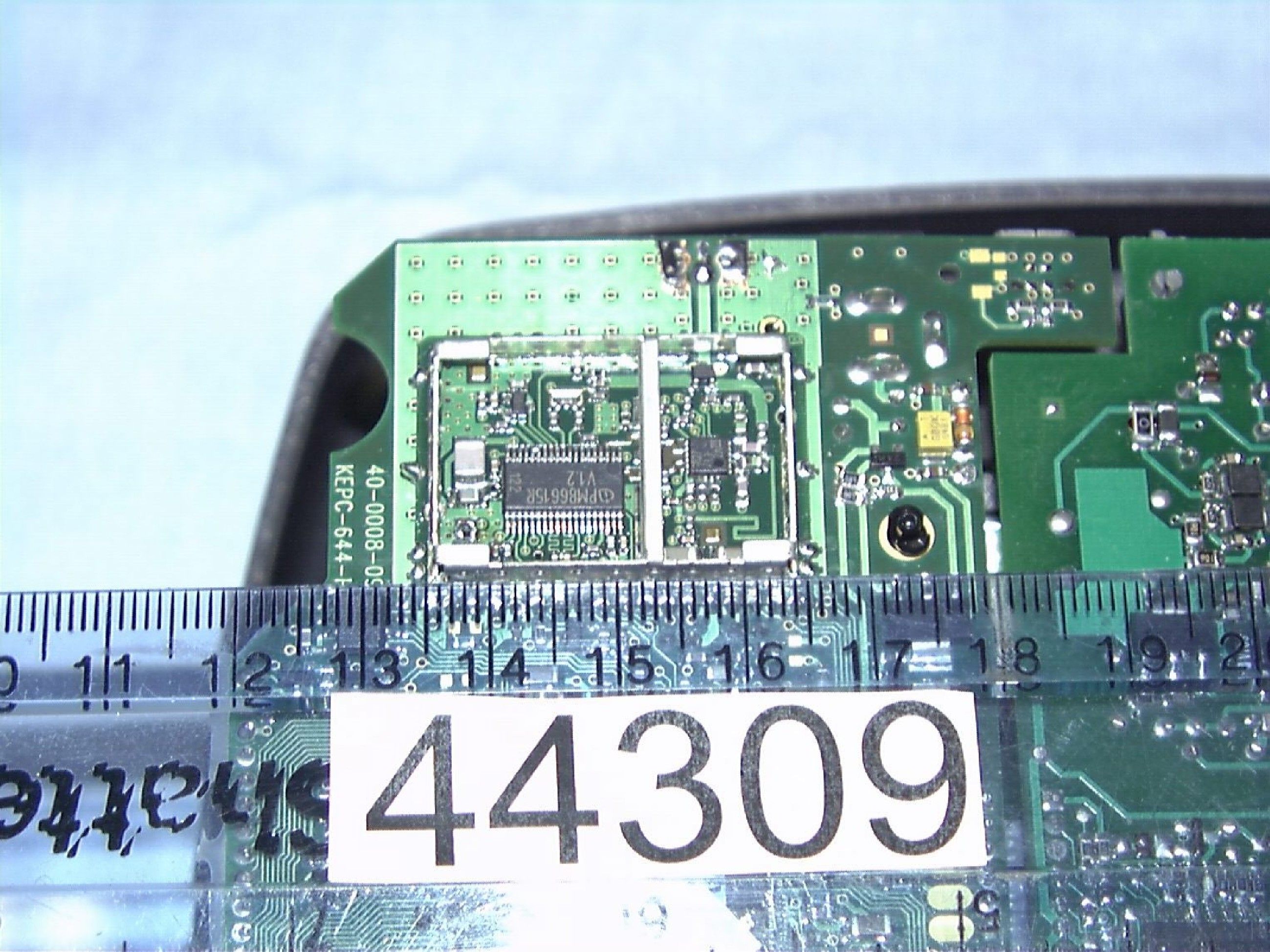

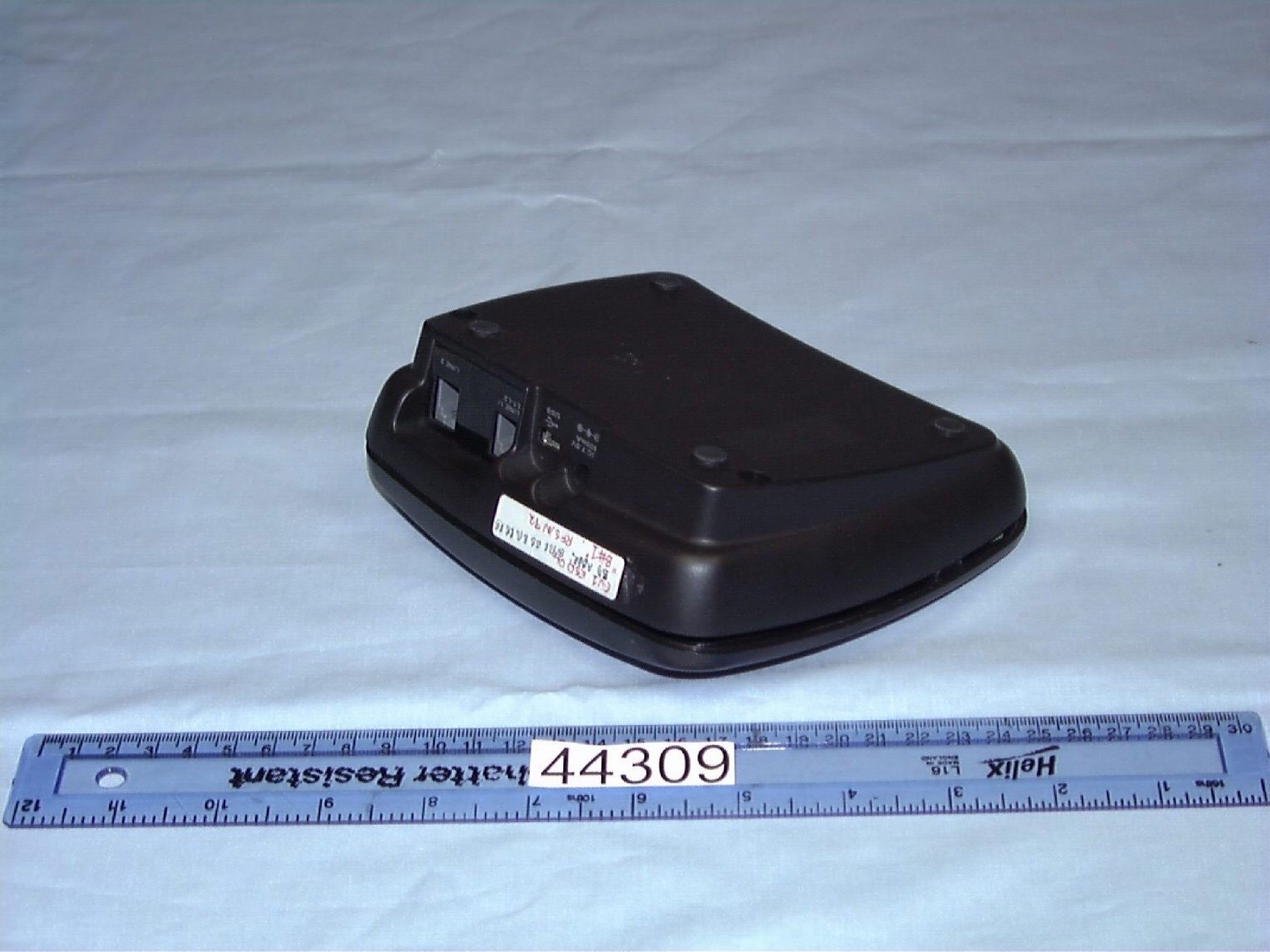

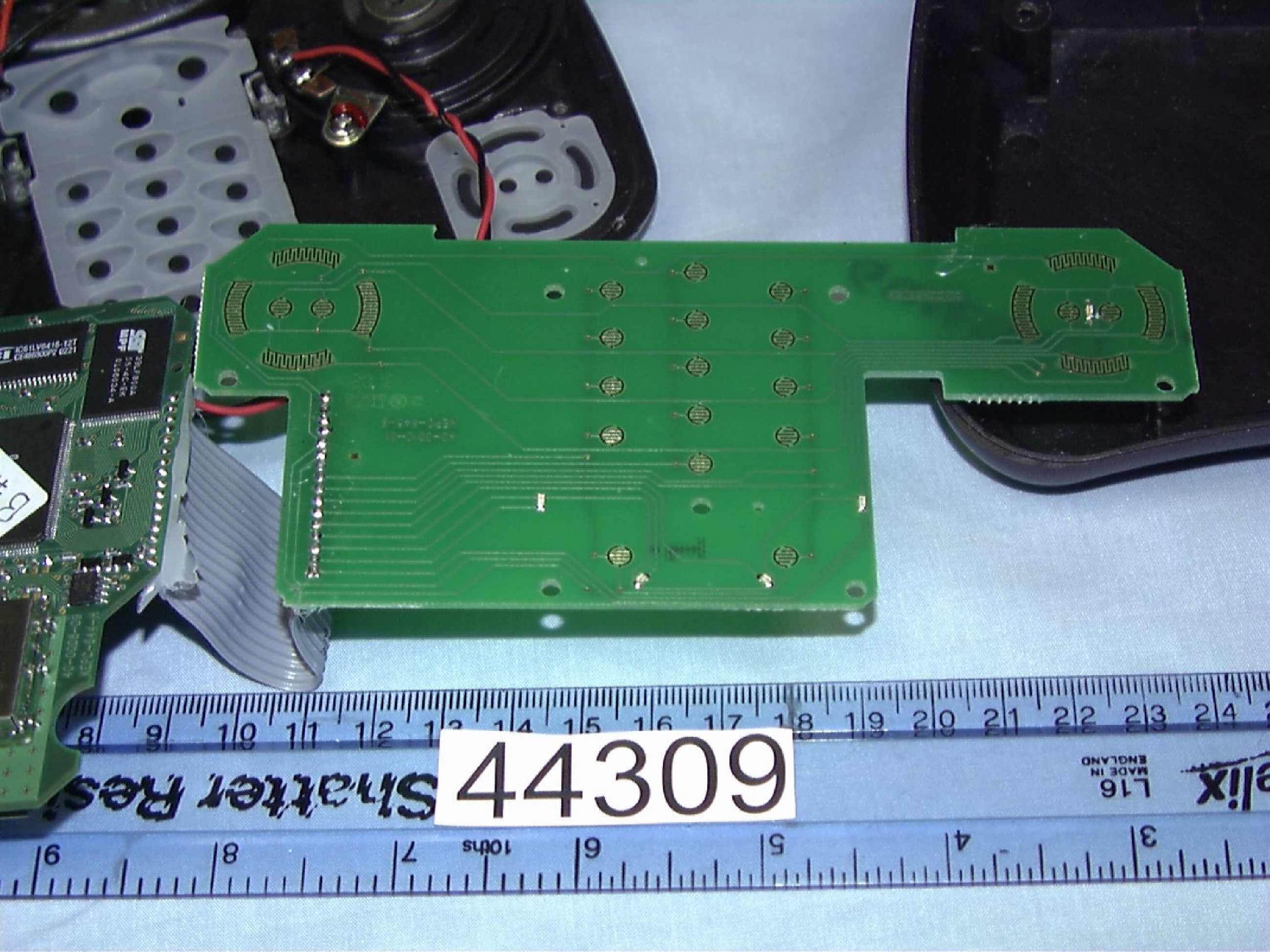

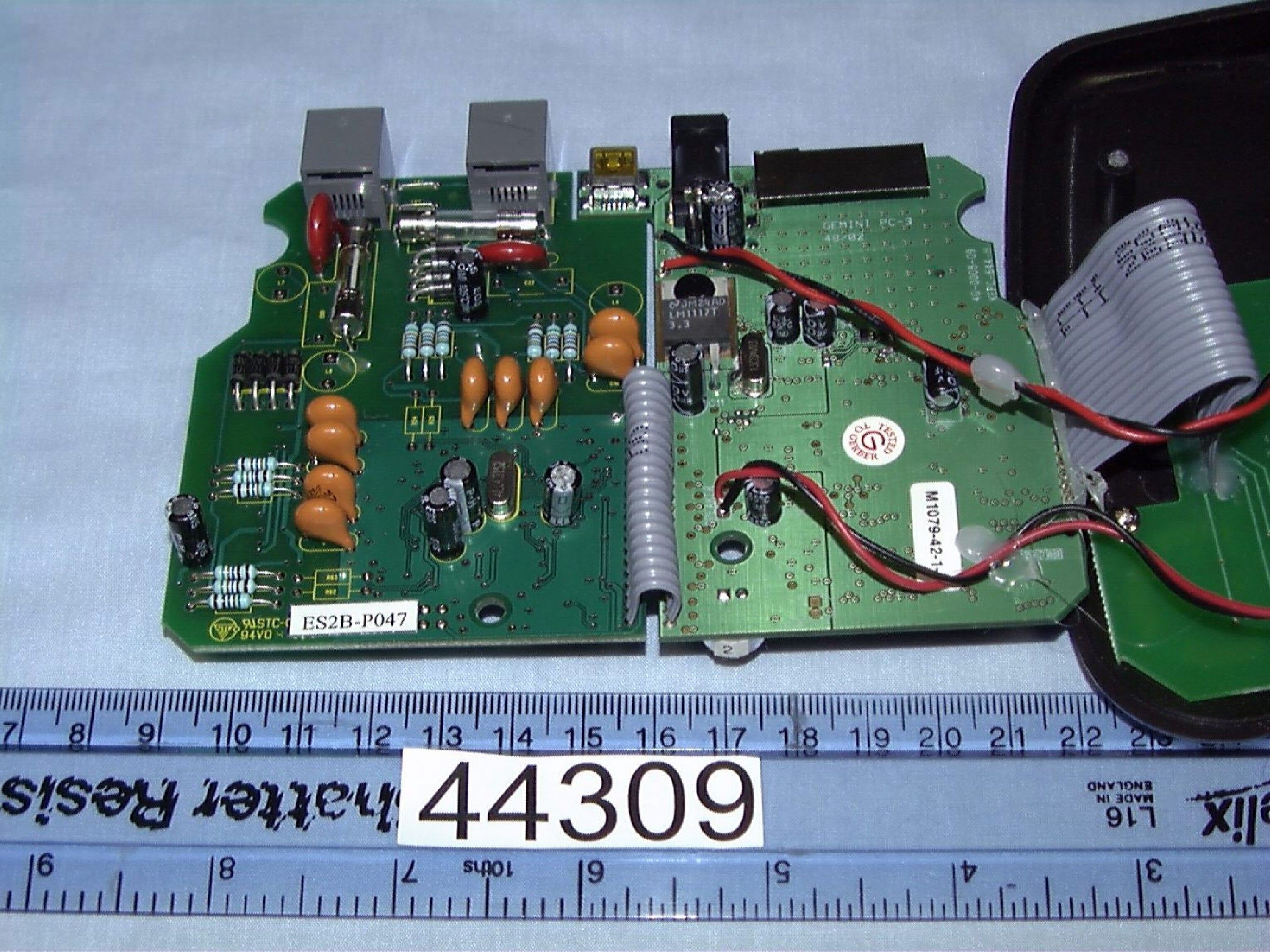

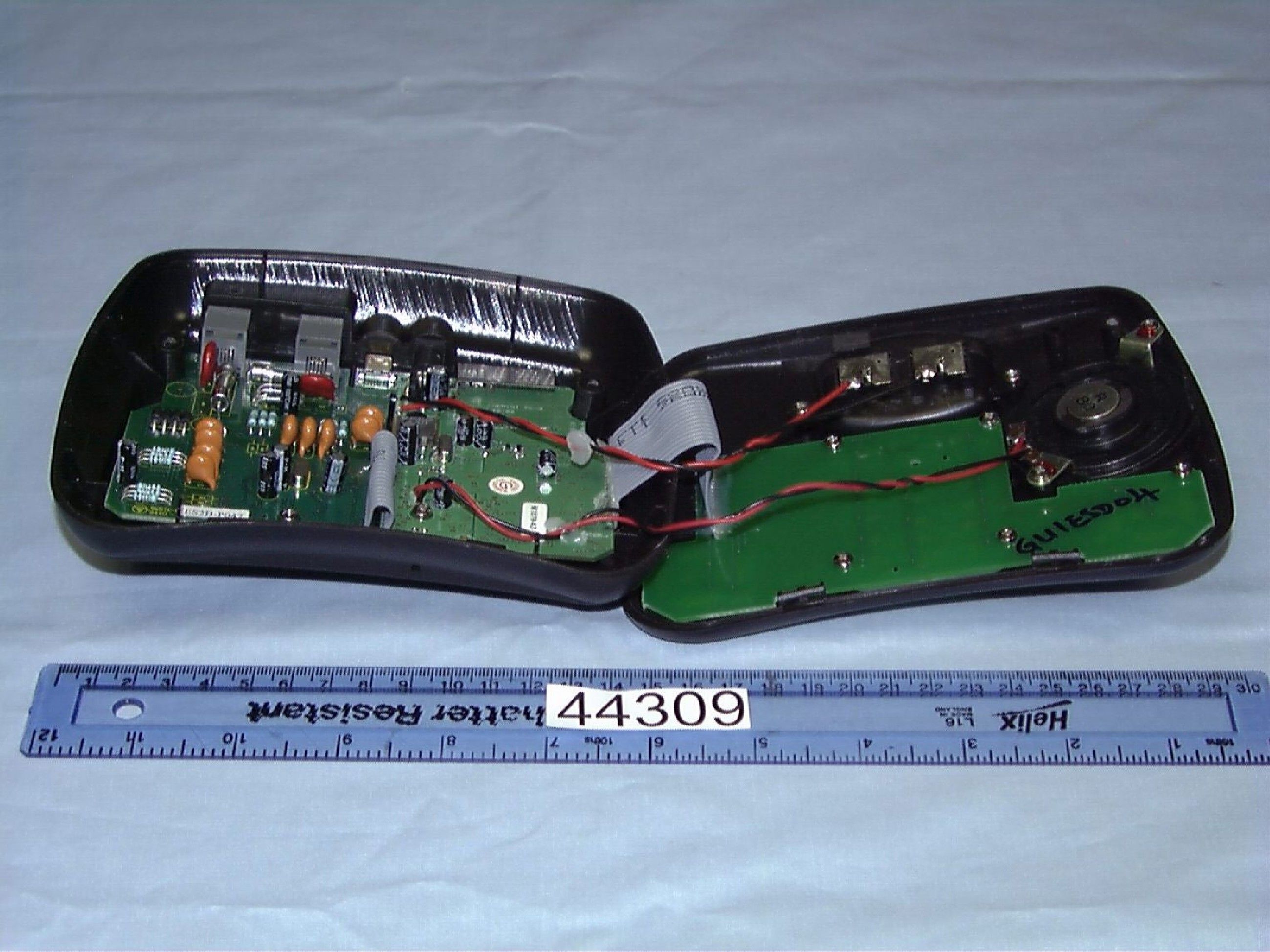

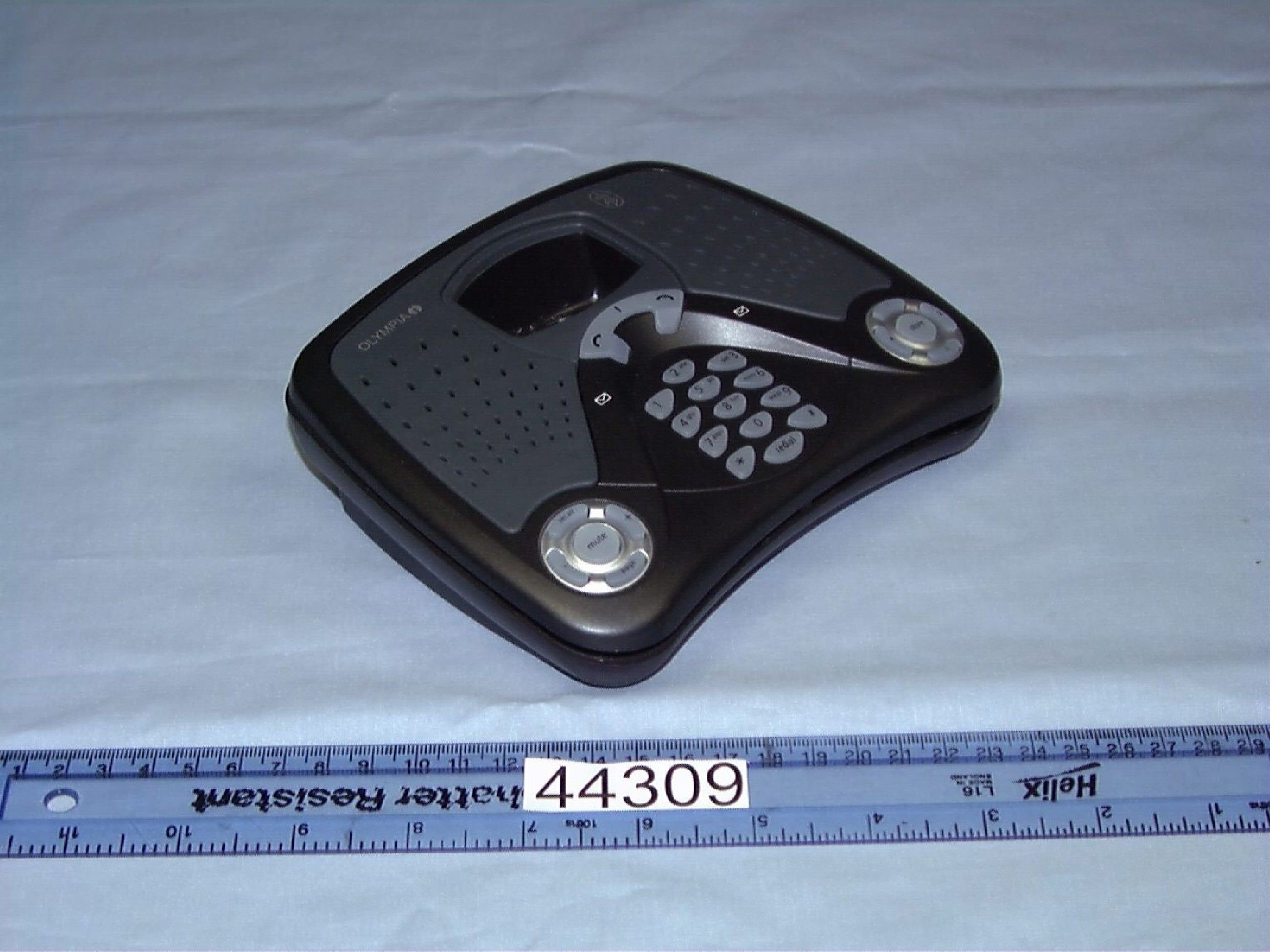

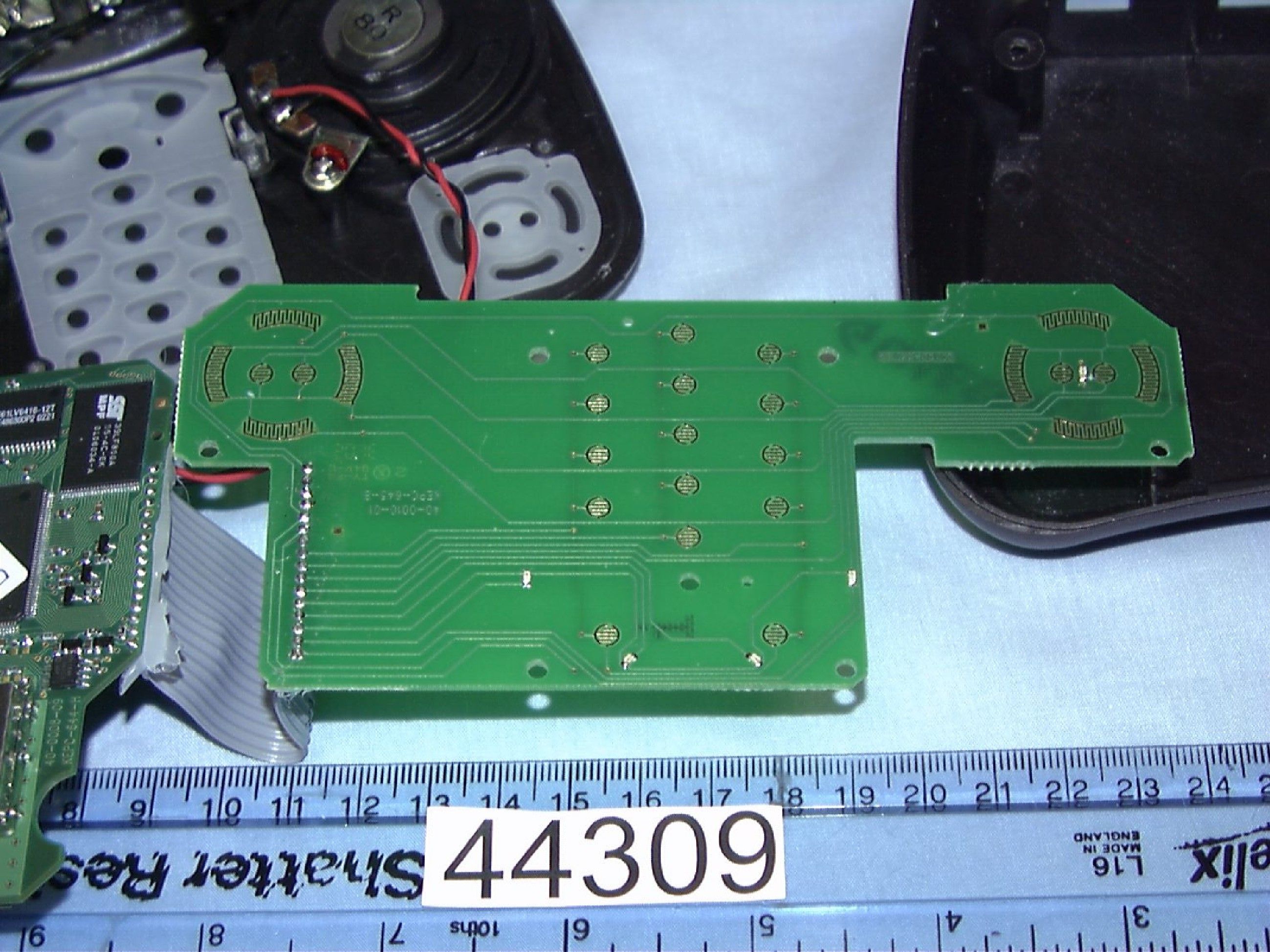

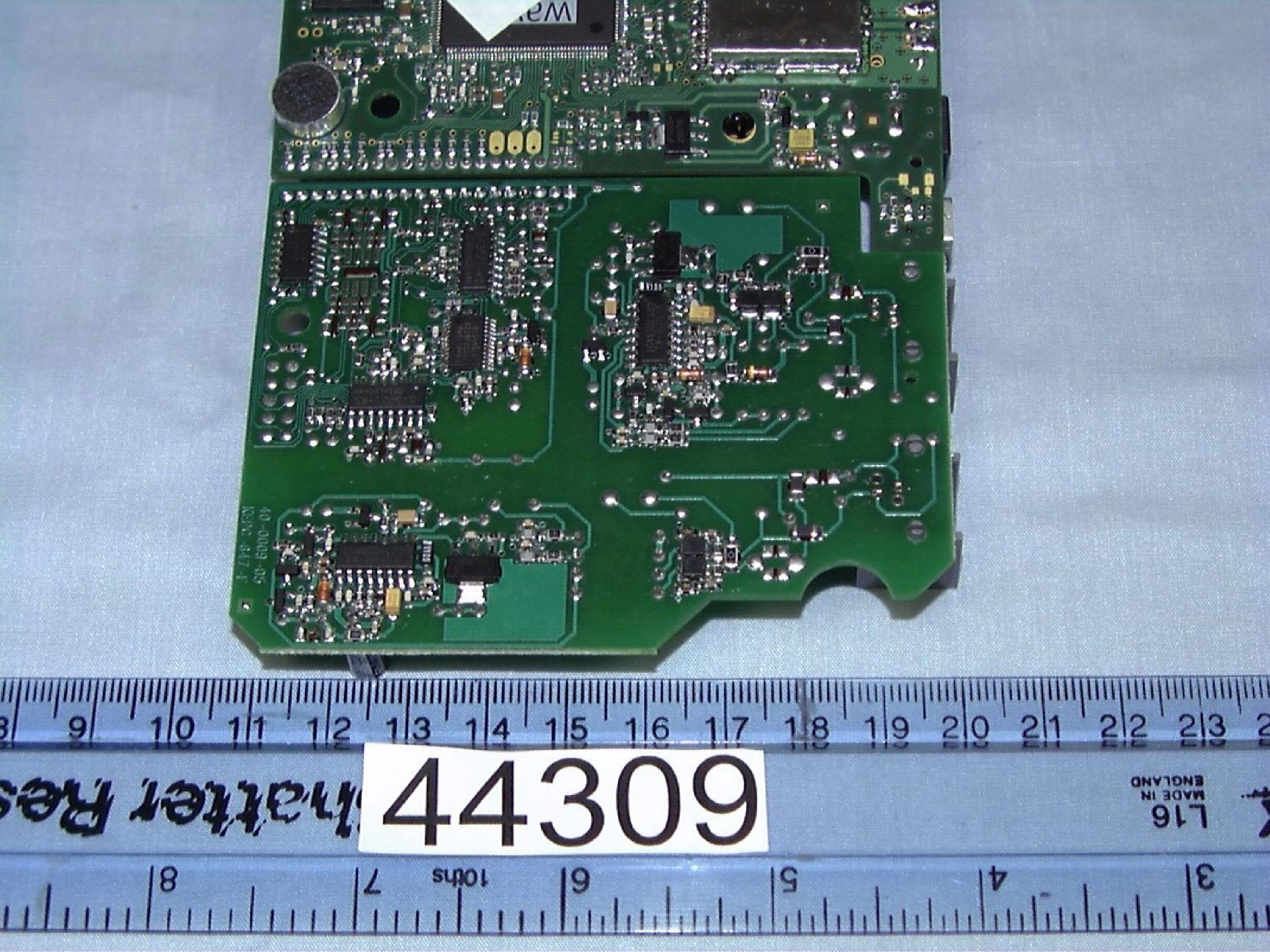

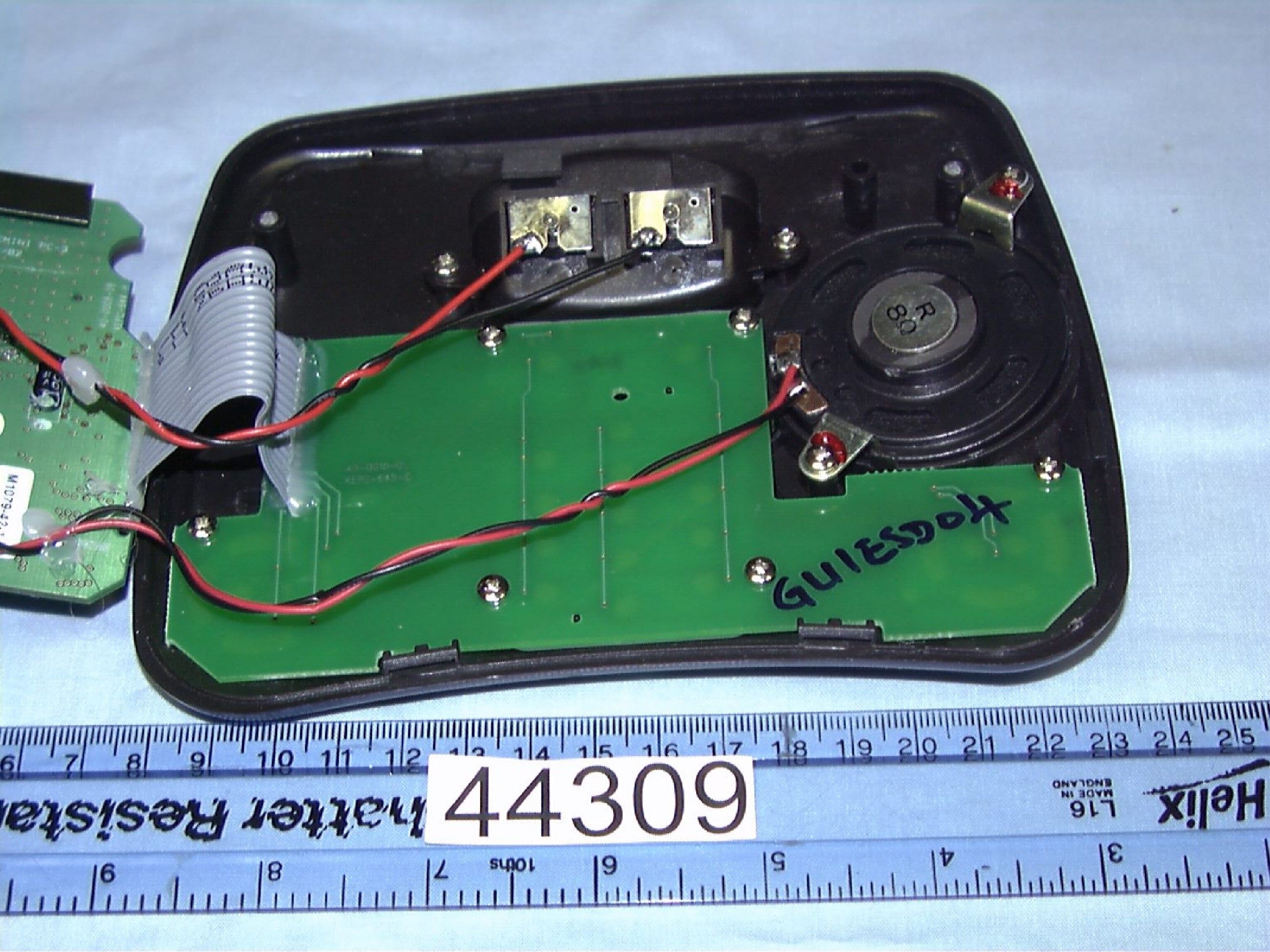

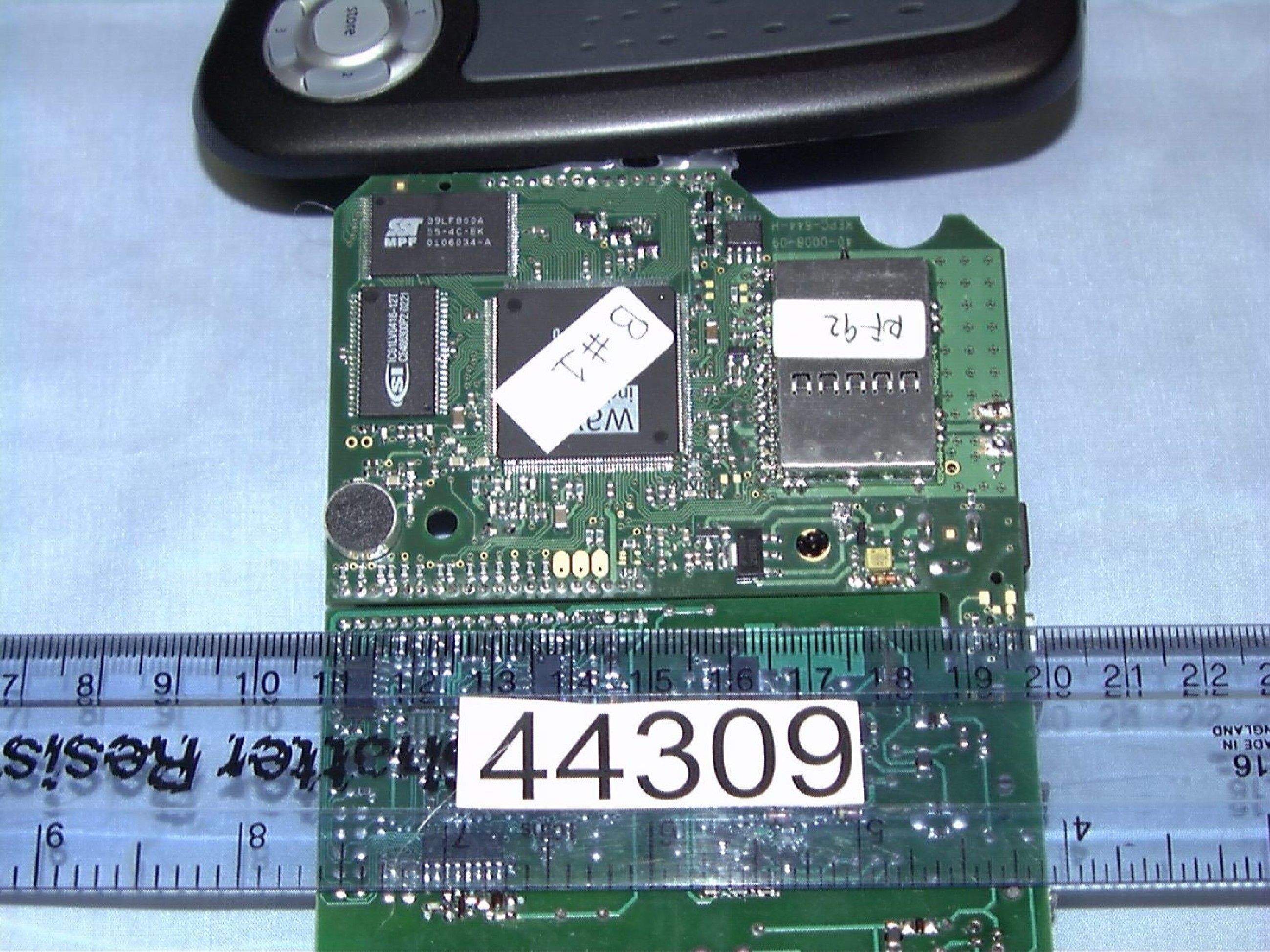

Operational Description for the Olympia DCP201Cordless Dataphone Introduction The CDP (Cordless Dataphone) is a cordless telephone with a built in modem and USB capability. The CDP is a combined wireless voice and data product using high power Bluetooth V1.1 wireless standard for worldwide operation. The base station can have up to 4 handsets registered. Using USB to Bluetooth interface ( otherwise known as a USB dongle), wireless web surfing can be performed with the base using the built in V90 modem. Also some PDAs that have Bluetooth capability can be used for wireless web surfing with the CDP base. Here is a list of features for the CDP. Telephony and Data Features : • Integrated 56k V.90 data modem for high speed data transmission over telephone line. • USB device data connector via micro connector in basestation and each handset. • Half duplex high quality speakerphone integrated in the basestation. • Half duplex high quality speakerphone integrated in each handset. • Full numeric keypad in basestation for stand alone operation • Three party conference feature. • Caller Line ID, FSK Types 1 and 2 and DTMF. • DTMF dialling. Cordless Telephony features: • Handset to handset intercom. • Up to four handsets on air simultaneously (two line version), three handsets (single line version). • Up to seven Bluetooth devices can operate simultaneously with the system. • Up to 50 devices can be registered for operation with the system. • Indoor range better than 50 m under typical conditions. • Outdoor range better than 300m under typical conditions. • Internal antenna in both basestation and handset • Powered from 3 rechargeable AAA 700 mAh NiMH batteries • Talk time > 7 hours • Standby time > 7 days • Small size: handset weight < 140 grams. Handset User Interface Features: • Full graphic LCD screen, 108 by 60 pixels, capable of displaying 4 icons (16x16) with a line (14 chars) of description and 4 rows of 14 characters (9x7). • Menu and icon driven operation. • Four languages included – English, German, Spanish and French. Further languages may be down loaded via connection to a web site. • Basestation public phonebook with 100 name and number entries • Handset phonebook with 40 name and number entries • 20 Number redial list (Tx and Rx calls) • 20 Number missed call list • Ten user selectable ring tones • PC Windows TM hosted phonebook and product configuration application software. Here is a diagram showing the usage scenarios. CDP Base Station Description The base station is designed around an ASIC designed by Wave Research, the ML1000. This has integrated processor, USB interface, RF interface, IO ports, serial port, and audio interface for microphone and loud speakers and SPI bus. A 13MHz crystal provides the main oscillator for the ML1000. Power is provided to the base station by an external mains adapter providing 7.5Vdc. This is fed into a 3.3Vdc voltage regulator supplying the all circuitry in the base station, with the exception of the battery charger that is powered directly from the 7.5Vdc input. The battery charger provides a constant current source to external charger contacts for the handset cradle. The RF module is based around an Infineon Bluetooth RF chipset. The ML1000 has a dedicated RF interface for this RF circuit. There is an internal antenna built in the base station. The telephone line interface circuit consists of two separate PSTN line interfaces, line 1 and line 2, with line 1 including a V90 modem, which is connected to the ML1000 by a serial interface. An IOM interface is used between the ML1000 and the telephone interfaces, line 1 and line 2. The program memory for the ML1000 is a flash memory device. There is external SRAM for use with the processor in the ML1000. An EEPROM is used for the configuration of the base station. Also is used to store telephone number memories. The base station also has a built in speaker phone. The audio interface on the ML1000 is used for the analog inputs and outputs to the microphone and loudspeaker. The keyboard interface is made through a digital IO interface to the ML1000. The USB connection is made by a mini B USB connector directly to the ML1000. The USB interface is used to download phone book information from a PC to the base station. CDP Handset Description Like the base station the handset is designed around an ASIC designed by Wave Research, the ML1000. This has integrated processor, USB interface, RF interface, IO ports, serial port, and audio interface for microphone and loud speakers and SPI bus. A 13MHz crystal provides the main oscillator for the ML1000. Power is provided to the handset by three AAA Nickel Metal Hydride rechargeable batteries. The batteries feed the RF circuitry directly and a 3.1Vdc voltage regulator supplying the all the remaining circuitry in the handset. There is a battery charger circuit taking charger current from the constant current source in the base station via the charge contacts. The RF module is based around an Infineon Bluetooth RF chipset. The ML1000 has a dedicated RF interface for this RF circuit. There is an internal antenna built in the handset. The program memory for the ML1000 is a flash memory device. There is external SRAM for use with the processor in the ML1000. An EEPROM is used for the configuration of the handset. Also is used to store telephone number memories. The handset has a microphone and earpiece receiver for normal telephony and a loudspeaker for hands free operation. The audio interface on the ML1000 is used for the analog inputs and outputs to the microphone, earpiece and loudspeaker. The keyboard interface is made through a digital IO interface to the ML1000. There is a dot matrix LCD that is controlled by the SPI bus. The USB connection is made by a mini B USB connector directly to the ML1000. The USB interface is used to download phone book information from a PC to the handset. Steve Ward Hardware Team Leader Wave Research

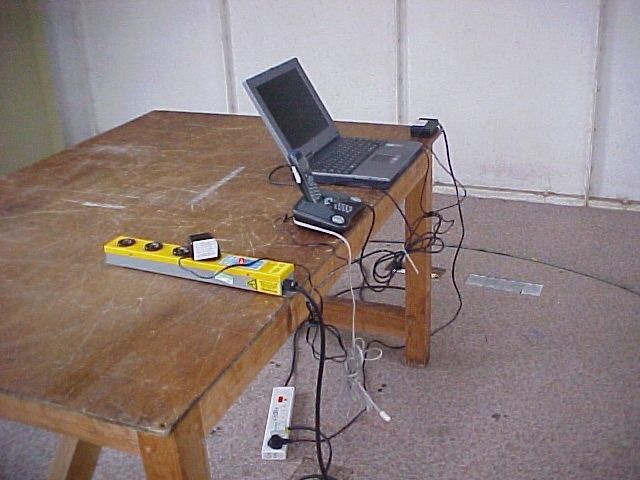

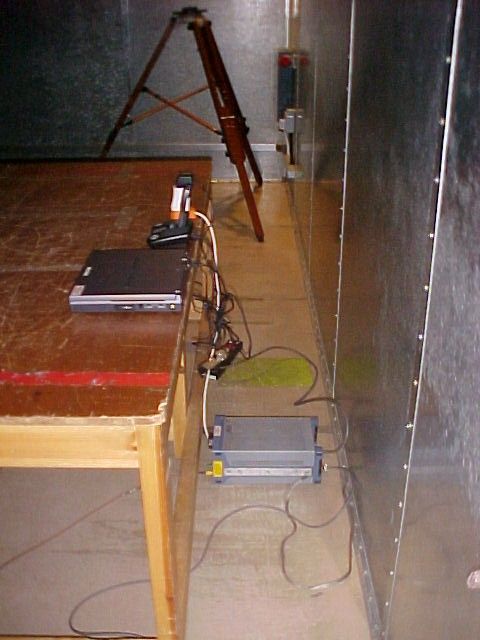

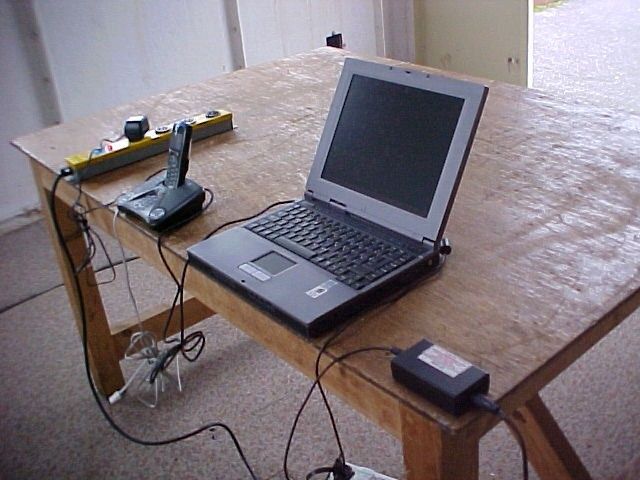

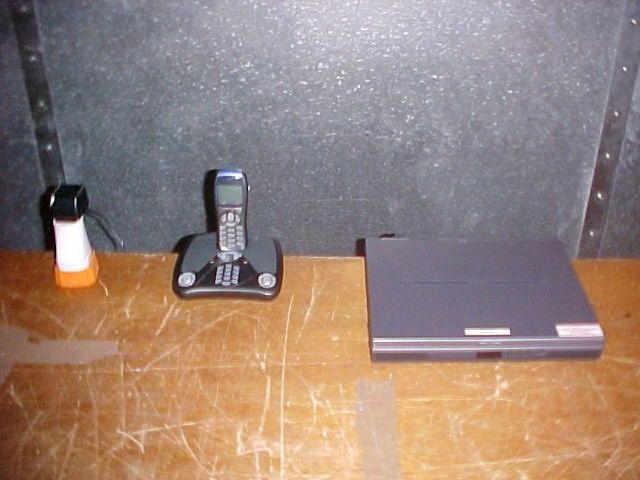

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Mansella Ltd. CDP Basestation To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.247 Test Report Serial No: RFI/MPTB1/RP44309JD05A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: pp Tested By: Release Version No: PDF01 Issue Date: 17 February 2003 Test Dates: 09 December 2002 to 18 December 2002 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44309JD05A Operations Department Page 2 of 112 Issue Date: 17 February 2003 Test Of: Mansella Ltd. CDP Basestation To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.247 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44309JD05A Operations Department Page 3 of 112 Issue Date: 17 February 2003 Test Of: Mansella Ltd. CDP Basestation To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.247 Table of Contents 1. Client Information..........................................................................................................4 2. Equipment Under Test (EUT) .......................................................................................5 3. Test Specification, Methods And Procedures ............................................................9 4. Deviations From The Test Specification ...................................................................11 5. Operation Of The EUT During Testing ......................................................................12 6. Summary Of Test Results...........................................................................................13 7. Measurements, Examinations And Derived Results................................................14 8. Measurement Uncertainty ..........................................................................................29 Appendix 1. Test Equipment Used ................................................................................30 Appendix 2. Measurement Methods ..............................................................................32 Appendix 3. Test Configuration Drawings....................................................................41 Appendix 4. Graphical Test Results ..............................................................................45 RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44309JD05A Operations Department Page 4 of 112 Issue Date: 17 February 2003 Test Of: Mansella Ltd. CDP Basestation To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.247 1. Client Information Company Name: Mansella Limited Address: Stafford House 33 - 39 Station Road Aldershot Hants G11 1BA Contact Name: Mr Wahed Dewan RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44309JD05A Operations Department Page 5 of 112 Issue Date: 17 February 2003 Test Of: Mansella Ltd. CDP Basestation To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.247 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Olympia Model Name or Number: CDP-24 201 (Base Station) Unique Type Identification: CDP-24 *Serial Number: B#1 Country of Manufacture: China Date of Receipt: 09 December 2002 * Radiated RF Sample Brand Name: Olympia Model Name or Number: CDP-24 201 (Base Station) Unique Type Identification: CDP-24 *Serial Number: B#3 Country of Manufacture: China Date of Receipt: 09 December 2002 * Conducted RF Sample Brand Name: Olympia Model Name or Number: MB132-075040 Unique Type Identification: 120 V AC Power Supply Serial Number: None stated by client Country of Manufacture: China Date of Receipt: 09 December 2002 RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44309JD05A Operations Department Page 6 of 112 Issue Date: 17 February 2003 Test Of: Mansella Ltd. CDP Basestation To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.247 Identification Of Equipment Under Test (EUT) (Continued) Brand Name: Giant Model Name or Number: EM-USB0004 Unique Type Identification: USBAM to Mini USBBM Cable Serial Number: None stated by client Country of Manufacture: China Date of Receipt: 09 December 2002 Brand Name: Giant Model Name or Number: None stated by client Unique Type Identification: 2m RJ11 Telephone Cable Serial Number: None stated by client Country of Manufacture: China Date of Receipt: 09 December 2002 RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44309JD05A Operations Department Page 7 of 112 Issue Date: 17 February 2003 Test Of: Mansella Ltd. CDP Basestation To: FCC Part 15 Subpart C: 2001 (Intentional Radiators) Section 15.247 2.2. Description Of EUT The equipment under test is a Cordless Data Phone (CDP) that is a cordless telephone with a built-in modem and USB capability. The CDP is a combined wireless voice and data product using the high power Bluetooth V1.1 wireless standard for worldwide operation. 2.3. Modifications Incorporated In EUT The EUT has not been modified from what is described by the Model Number and Unique Type Identification stated above. 2.4. Additional Informat…

Text truncated - open the document above for the full version.
