QSP-CDP24-1-01Cordless Data Phone

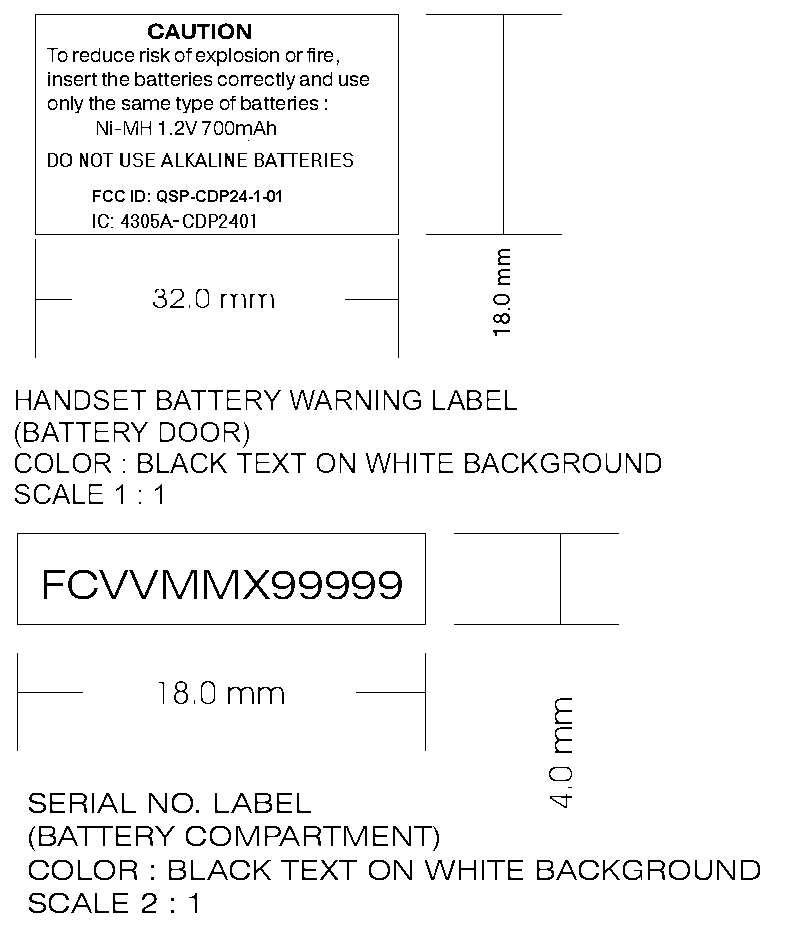

USERGUIDE WelcomeYour purchaseThank you for purchasing the Olympia Cordless Data Phone (CDP). As you will have already realised, this system is much more than just a cordless digital phone; it is a complete Bluetooth™ data network thatincorporates a telecommunications system consisting of a base station that can accommodate up to 7handsets (one of which can be a Bluetooth™ headset).O This phone system's facilities are available and can be used when connectedto a single line. Important safety instructionsI THIS EQUIPMENT IS NOT DESIGNED FOR MAKING EMERGENCY TELEPHONE CALLSWHEN THE MAINS POWER FAILS. ALTERNATIVE ARRANGEMENTS SHOULD BEMADE FOR ACCESS TO EMERGENCY SERVICES. Intended connection warningThis product is intended for connection to analogue public switched telephone networks and privateswitchboards in the United Kingdom, the European Union and the United States of America.Safety informationOnly use the power supply included with the CDP. Using an unauthorised power supply will invalidateyour guarantee and may damage the telephone.For the handset, use only approved Nickel Metal Hydride (NiMH) re-chargeable batteries. Never useother batteries or conventional alkaline batteries. They could lead to a short circuit or destroy the batterycasing. Recommended batteries should have a power rating of at least 700mAh 1.2V. Do not open the base station or handset (other than to change the batteries). This could expose you tohigh voltages or other risks.Radio signals transmitted between the handset & base may cause interference to hearing aids.This product should not be used near emergency / intensive care medical equipment and should not beused by people with pacemakers.Never dispose of batteries in a fire. There is a serious risk of explosion and / or the release of highly toxicchemicals. CleaningSimply clean the handset and base with a damp (not wet) cloth, or an anti-static wipe. Never usehousehold polish, as this will damage the product. Never use a dry cloth as this may cause a staticshock.Target performance specification • Talk Time up to 7 Hours • Standby time up to 7 Days • Range Indoors up to 50 metres (depending on construction) • Range outdoors up to 300 metres USER Page 2 www.olympia-life.com GUIDE Welcome FCC InformationFCC Part 68This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the exterior ofthe cabinet of this equipment is a label that contains, among other information, a product identifier in the formatUS:QSPTM00BCDP24 If requested, this number must be provided to the telephone company. • ACTA Registration Number: US:QSPTM00BCDP24 • Ringer Equivalence Number (REN): 0 • RPC Code: QSP • Service Order Code (SOC Code): 9.0F • USOC Jack Type: RJ11 A FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to beconnected to the telephone network or premises wiring using a compatible modular jack that is Part 68 compliant.See Installation Instructions for details.The REN is used to determine the quantity of devices that may be connected to the telephone line. Excessive RENs onthe telephone line may result in the devices not ringing in response to an incoming call. Typically, the sum of RENsshould not exceed five (5.0). To be certain of the number of devices that may be connected to a line (as determinedby the total RENs) contact the local telephone company.If this equipment Olympia CDP 2.4 causes harm to the telephone network, the telephone company will notify you inadvance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephonecompany will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint withthe FCC if you believe it is necessary.The telephone company may make changes to its facilities, equipment, operations or procedures that could affect theoperation of the equipment. If this happens the telephone company will provide advance notice so you can make thenecessary modifications to maintain uninterrupted service. If trouble is experienced with this equipment Olympia CDP 2.4, for repair or warranty information, please contact WaveIndustries, 333 S.E. 2nd Avenue, Portland Oregon 97214 USA. If the equipment is causing harm to the telephonenetwork, the telephone company may request that you disconnect the equipment until the problem is resolved.Connection to party line service is subject to state tariffs. (Contact the state public utility commission, public servicecommission or corporation commission for information.) FCC Part 15This equipment complies with Part 15 of the Federal Communications Commission (FCC) rules for theUnited States of America. Operation is subject to the following two conditions:1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. I Changes or modifications to this unit not expressly approved by the partyresponsible for compliance could void the users authority to operate this equipment. This equipment has been tested and found to comply with part 15 of the FCC rules. These limits are designed toprovide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which canbe determined by turning the phone off and on, the user is encouraged to try and correct the interference by one ormore of the following measures:1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment & receiver. 3. Connect the equipment into an outlet or on a circu…

Text truncated - open the document above for the full version.

Statement demonstrating that the requirements of Section 15.214 (d) have been met Mansella Ltd Stafford House 33-39 Station Road Aldershot Hampshire GU11 1BA United Kingdom Name: Wahed Dewan This is covered by Bluetooth security: 1. Each CDP handset and base is assigned a unique 48 bit long Bluetooth address. 2. Each handset and bases are 'paired' in Bluetooth speak creating a secure voice link between HS and BS. 3. The pairing process is accompanied by the use of a 4 digit (i.e. 10,000 possibilities) PIN number. This PIN number is combined with the BT address to create a 128bit link key (2^128 combinations!), which is different each time a voice link is established. Reference: Bluetooth V1.1 specification on security (Part B Chapter 14).

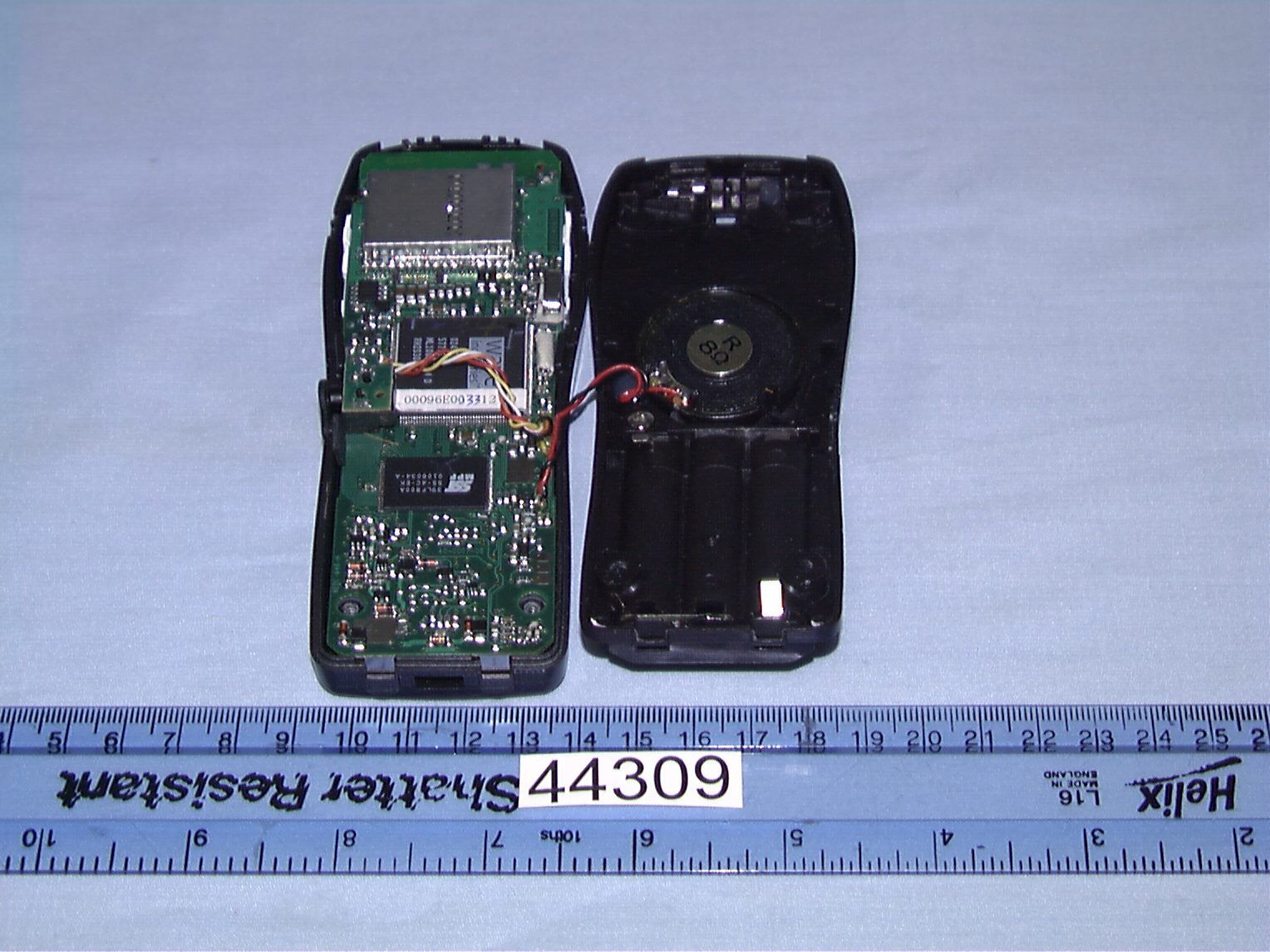

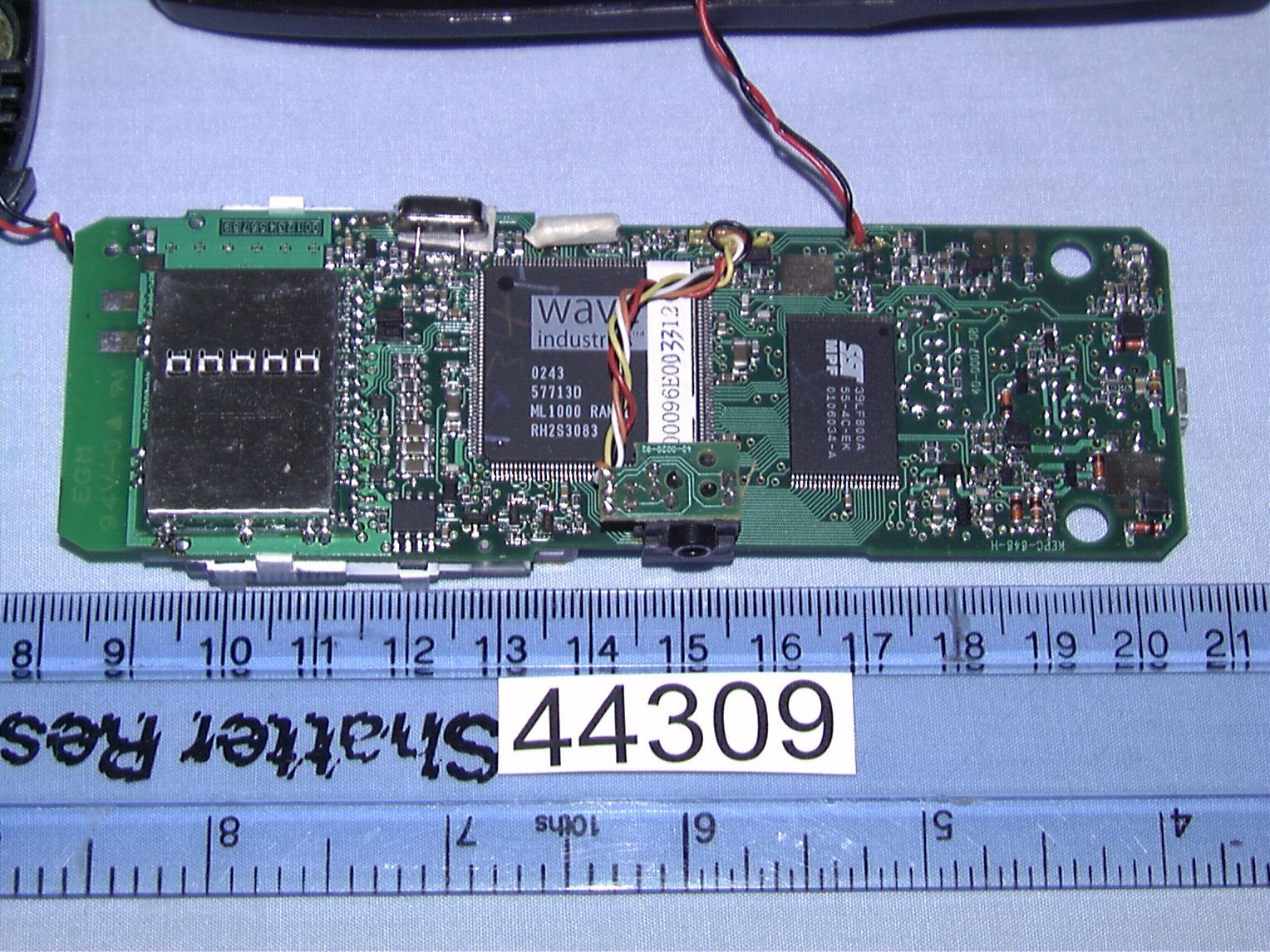

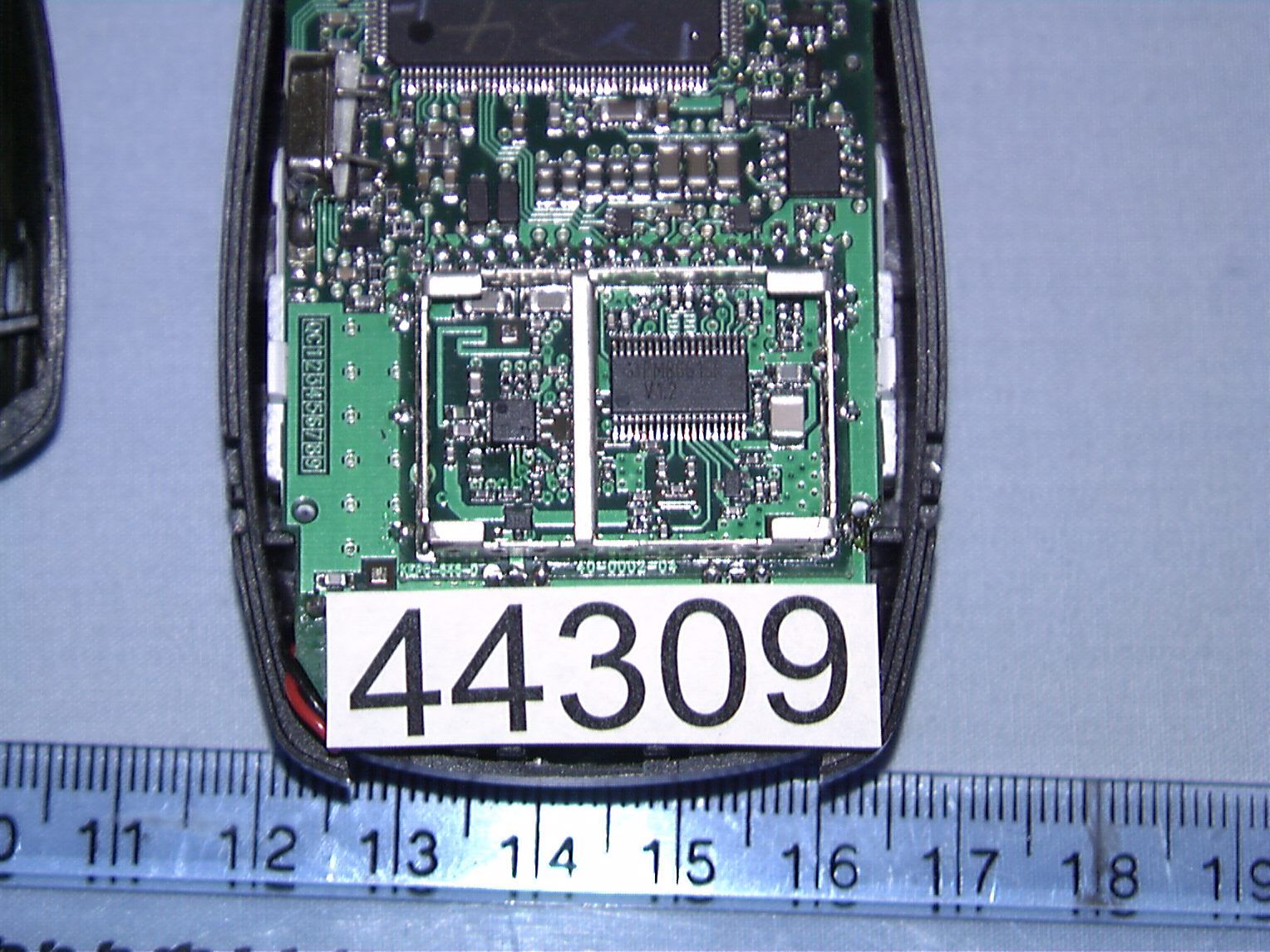

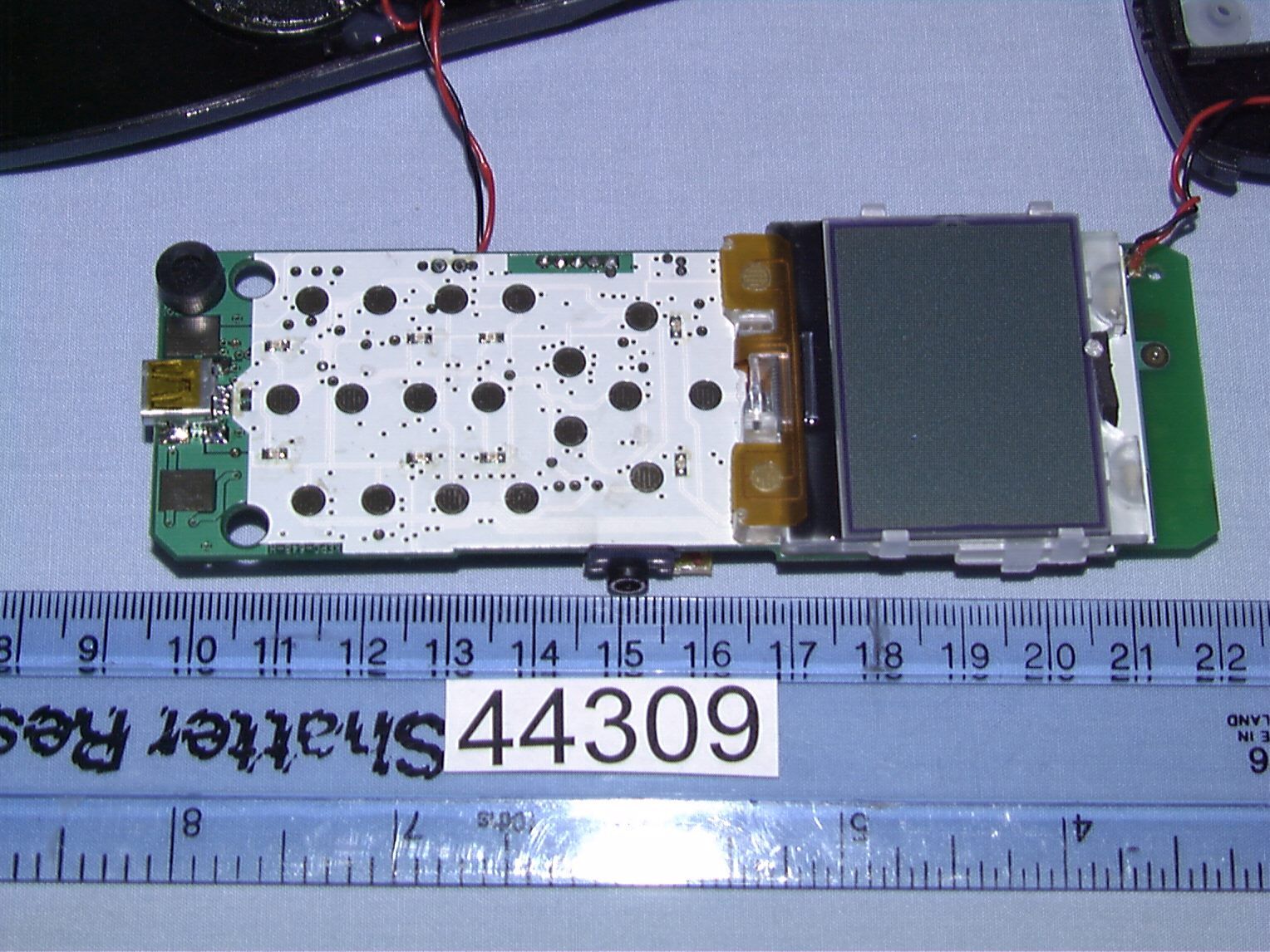

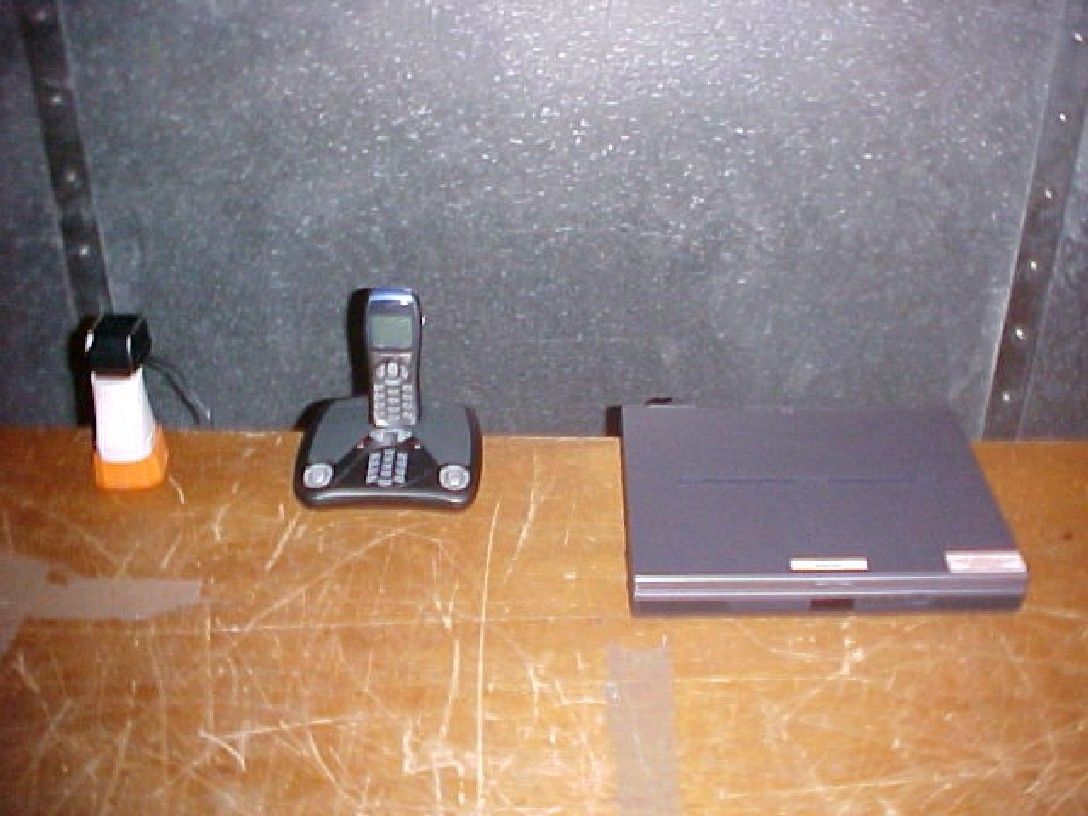

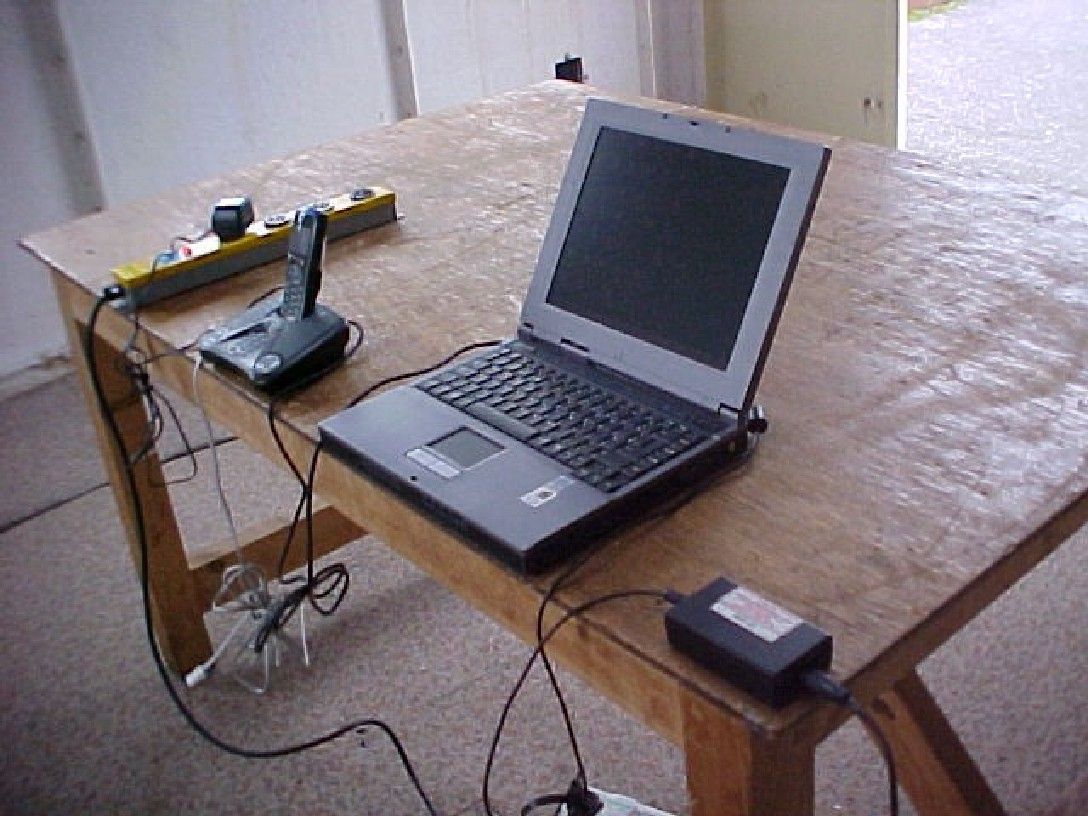

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test of: Mansella Ltd. CDP 24 Bluetooth Cordless Data Phone Handset To: OET Bulletin 65 Supplement C: (2001-01) Measurements were performed on the DASY4 System Test Report Serial No: RFI/SARB3/RP45014JD06A Supersedes Test Report Serial No: RFI/SARB1/RP45014JD06A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: p.p. Tested By: Release Version No: PDF01 Issue Date: 29 September 2003 Test Dates: 09 July 2003 It should be noted that the standard, OET Bulletin 65 Supplement C: (2001-01) is not listed on RFIs current UKAS schedule and is therefore “not UKAS accredited”. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB3/RP45014JD06A Operations Department Page 2 of 32 Issue Date: 29 September 2003 Test Of: Mansella Ltd. CDP 24 Bluetooth Cordless Data Phone Handset To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB3/RP45014JD06A Operations Department Page 3 of 32 Issue Date: 29 September 2003 Test Of: Mansella Ltd. CDP 24 Bluetooth Cordless Data Phone Handset To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Client Information..............................................................................................................4 2. Equipment Under Test (EUT) ...........................................................................................5 3. Test Specification, Methods And Procedures ................................................................8 4. Deviations From The Test Specification .........................................................................9 5. Operation Of The EUT During Testing ..........................................................................10 6. Summary Of Test Results...............................................................................................11 7. SAR Measurement System.............................................................................................14 8. SAR Safety Limits ...........................................................................................................15 9. Details of SAR Evaluation ..............................................................................................16 10. Evaluation Procedures .................................................................................................17 11. System Validation .........................................................................................................18 12. Simulated Tissues.........................................................................................................19 13. Tissue Parameters ........................................................................................................20 14. DASY4 Systems Specifications ...................................................................................21 15. Validation results – 2450 MHz ......................................................................................22 16. Measurement Uncertainty ............................................................................................23 Appendix 1. Test Equipment Used ....................................................................................25 Appendix 2. SAR Distribution Scans.................................................................................26 Appendix 3. Test Configuration Photographs..................................................................27 Appendix 4. Calibration Data .............................................................................................29 Appendix 5. Photographs of EUT ......................................................................................31 Test Report Serial No: RFI/SARB3/RP45014JD06A Supersedes Test Report Serial Nos: RFI/SARB1/RP45014JD06A and RFI/SARB2/RP45014JD06A. RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB3/RP45014JD06A Operations Department Page 4 of 32 Issue Date: 29 September 2003 Test Of: Mansella Ltd. CDP 24 Bluetooth Cordless Data Phone Handset To: OET Bulletin 65 Supplement C: (2001-01) 1. Client Information 1.1. Client Details Company Name: Mansella Ltd. Address: Stafford House 33-39 Station Road Aldershot Hamsphire GU11 1BA Contact Name: Mr W Dewan 1.2. Test Laboratory Company Name: Radio Frequency Investigation Ltd. Address: Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ. Contact Name: Mr J Lomako RADIO FREQUENCY INVESTIGATION LTD. TEST REPORT S.No. RFI/SARB3/RP45014JD06A Operations Department Page 5 of 32 Issue Date: 29 September 2003 Test Of: Mansella Ltd. CDP 24 Bluetooth Cordless Data Phone Handset To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name Olympia Model Name or Number CDP Handset Unique Type Identification BB04AAAA04 IMEI Number None stated Battery Serial Number GP70AAAH3BX FCC ID: QSP-CDP24-1-01 Country Of Manufacture China Date Of Receipt 08 July 2003 2.2. Modifications Incorporated In EUT The client has stated that the EUT has not …

Text truncated - open the document above for the full version.

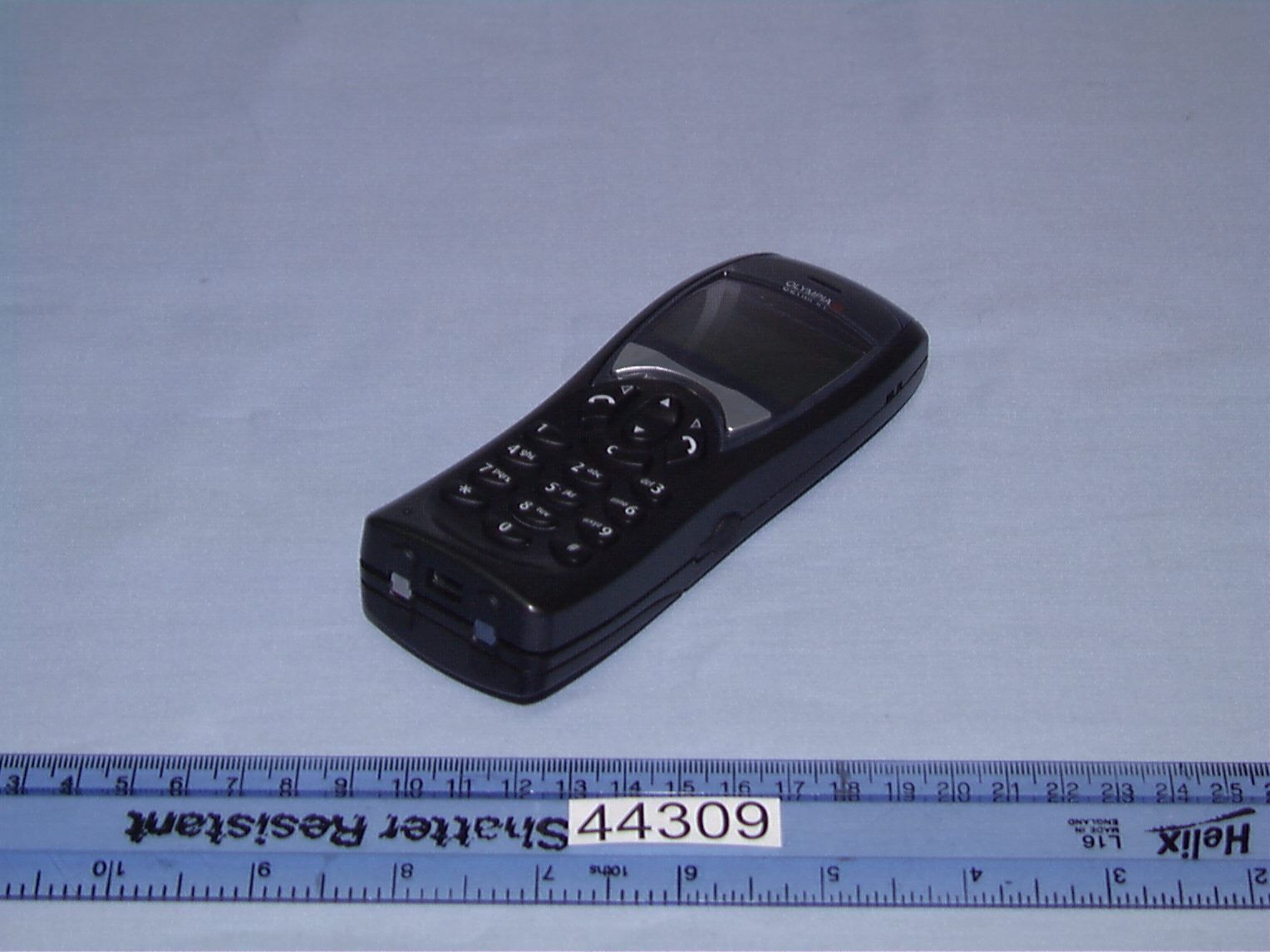

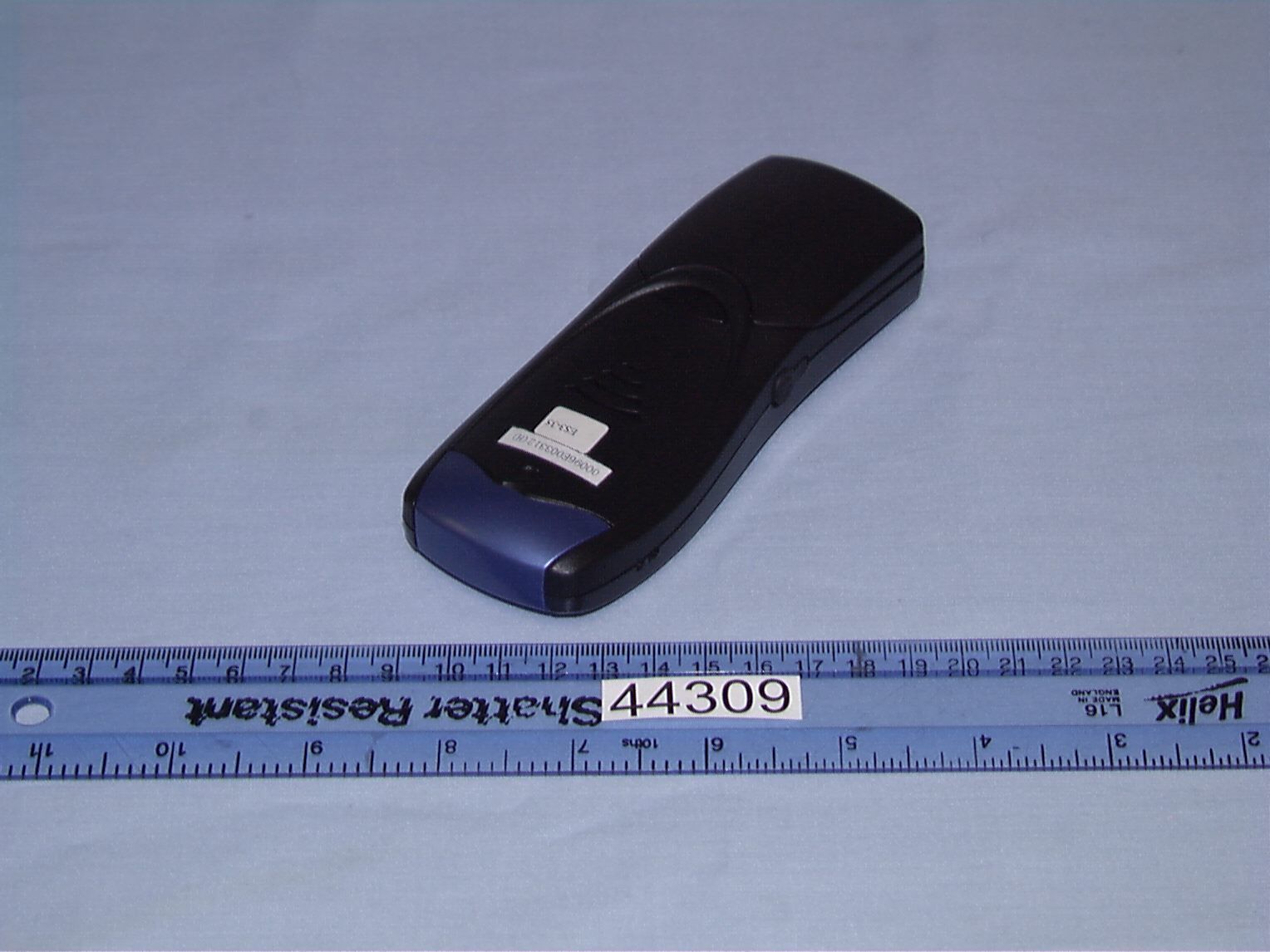

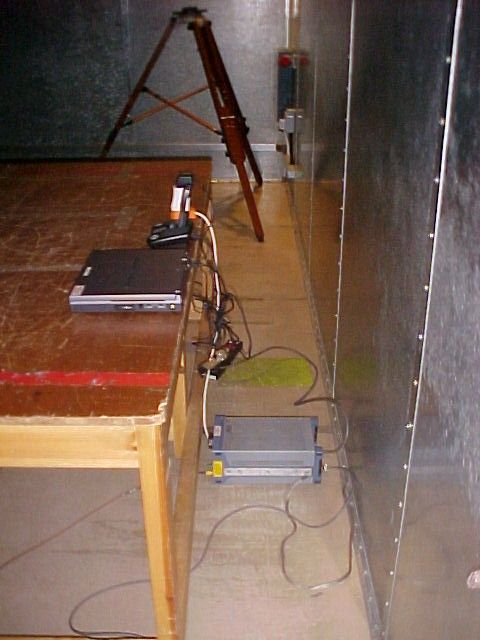

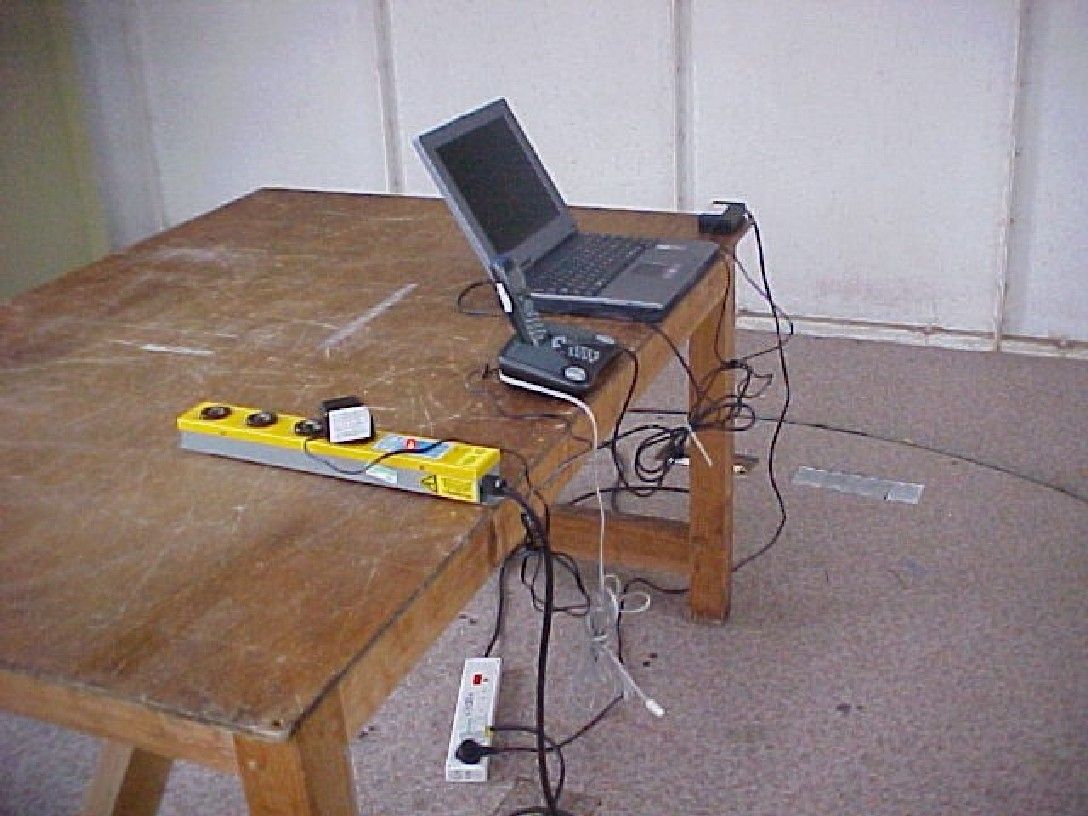

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Mansella Ltd. CDP 24 Bluetooth Cordless Data Phone Handset To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Section 15.247 Test Report Serial No: RFI/MPTB2/RP45014JD05A Superseded Test Report Serial No: RFI/MPTB1/RP45014JD05A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By: Release Version No: PDF01 Issue Date: 30 September 2003 Test Dates: 24 June 2003 to 18 July 2003 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB2/RP45014JD05A Operations Department Page 2 of 70 Issue Date: 30 September 2003 Test Of: Mansella Ltd. CDP 24 Bluetooth Cordless Data Phone Handset To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Section 15.247 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB2/RP45014JD05A Operations Department Page 3 of 70 Issue Date: 30 September 2003 Test Of: Mansella Ltd. CDP 24 Bluetooth Cordless Data Phone Handset To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Section 15.247 Table of Contents 1. Client Information..........................................................................................................4 2. Equipment Under Test (EUT) .......................................................................................5 3. Test Specification, Methods And Procedures ............................................................8 4. Deviations From The Test Specification ...................................................................10 5. Operation Of The EUT During Testing ......................................................................11 6. Summary Of Test Results...........................................................................................12 7. Measurements, Examinations And Derived Results................................................13 8. Measurement Uncertainty ..........................................................................................54 Appendix 1. Test Equipment Used ................................................................................55 Appendix 2. Measurement Methods ..............................................................................57 Appendix 3. Test Configuration Drawings....................................................................67 Test Report Serial No: RFI/MPTB2/RP45014JD05A Superseded Test Report Serial No: RFI/MPTB1/RP45014JD05A RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB2/RP45014JD05A Operations Department Page 4 of 70 Issue Date: 30 September 2003 Test Of: Mansella Ltd. CDP 24 Bluetooth Cordless Data Phone Handset To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Section 15.247 1. Client Information Company Name: Mansella Ltd. Address: Stafford House 33-39 Station Road Aldershot Hampshire GU11 1BA UK Contact Name: Mr Wahed Dewan RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB2/RP45014JD05A Operations Department Page 5 of 70 Issue Date: 30 September 2003 Test Of: Mansella Ltd. CDP 24 Bluetooth Cordless Data Phone Handset To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Section 15.247 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) 2.1.1. Radiated RF Sample Brand Name: Olympia Model Name or Number: Data Phone Handset Unique Type Identification: CDP 24 Serial Number: HS#04 FCC ID Number: QSP-CDP24-1-01 Country of Manufacture: China Date of Receipt: 24 June 2003 2.1.2. Conducted RF Sample Brand Name: Olympia Model Name or Number: Data Phone Handset Unique Type Identification: CDP 24 Serial Number: HS#03 FCC ID Number: QSP-CDP24-1-01 Country of Manufacture: China Date of Receipt: 24 June 2003 2.2. Description Of EUT The equipment under test is a Cordless Data Phone (CDP) that is a cordless telephone with a built-in modem and USB capability. The CDP is a combined wireless voice and data product using the high power Bluetooth V1.1 wireless standard for worldwide operation. 2.3. Modifications Incorporated In EUT The EUT has not been modified from what is described by the Model Number and Unique Type Identification stated above. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB2/RP45014JD05A Operations Department Page 6 of 70 Issue Date: 30 September 2003 Test Of: Mansella Ltd. CDP 24 Bluetooth Cordless Data Phone Handset To: FCC Part 15 Subpart C: 2002 (Intentional Radiators) Section 15.247 2.4. Additional Information Related To Testing Power Supply Requirement: (AC Battery Charger) 3 x 1.2V AAA NiMH Cells Intended Operating Environment: Domestic Use Equipment Category: Portable Type of Unit: Cordless Telephone Weight: 140 g Dimensions: 130 x 53 x 25 mm Interface Ports: Mini B USB Port Highest Declared Generated Frequency within the EUT. 2.480 GHz Transmit Frequency Range Tested 2.402 GHz to 2.480 GHz Receive Frequency Range Tested 2.402 GHz to 2.480 GHz Maximum Measured Output Power (EIRP) 18.5 dBm RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB2/RP45014JD05A Operations Department Page 7 of 70 Issue Date: 30 September 2003 Test Of: Mansella Ltd. CDP 24 Bluetoot…
