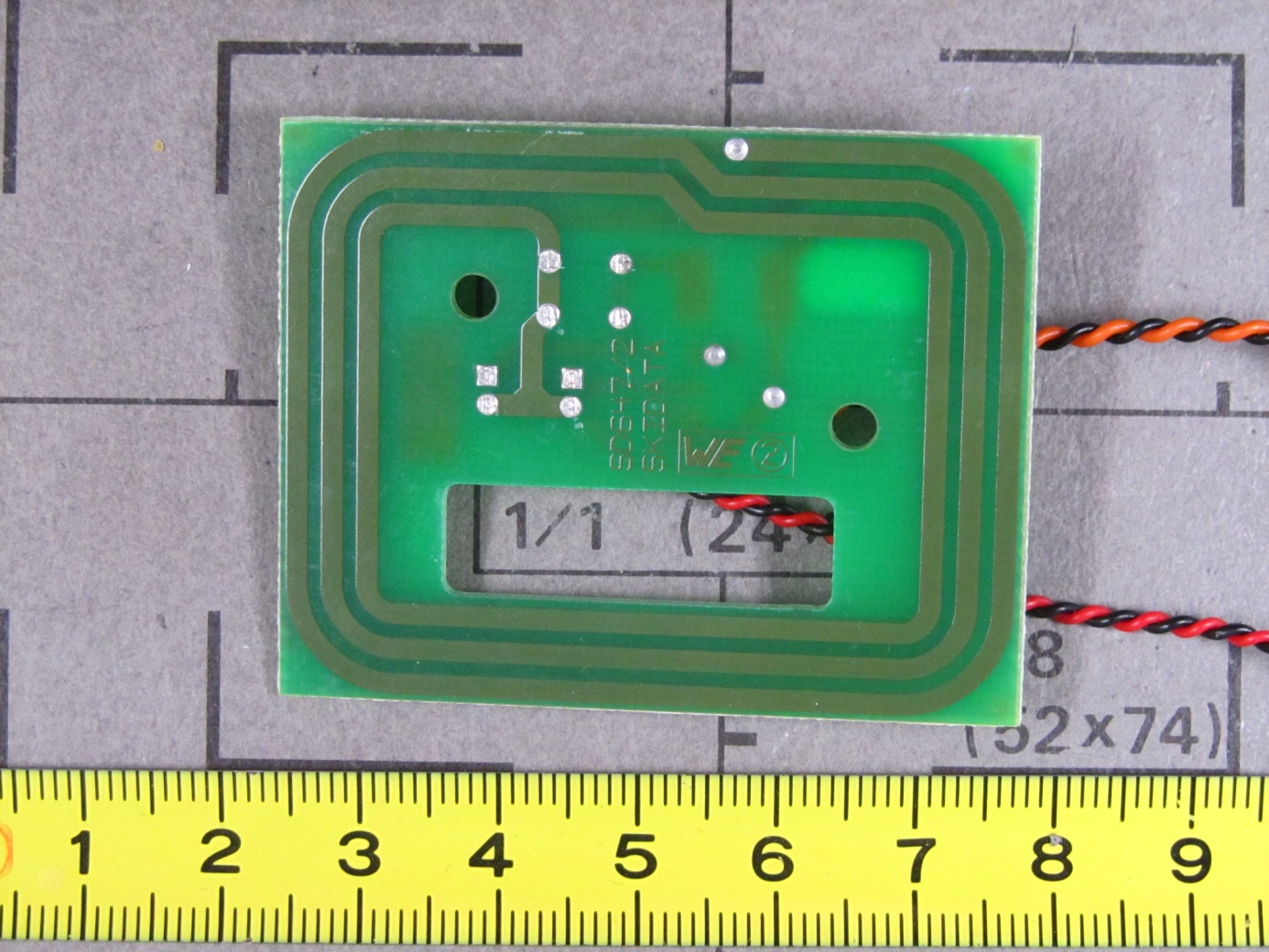

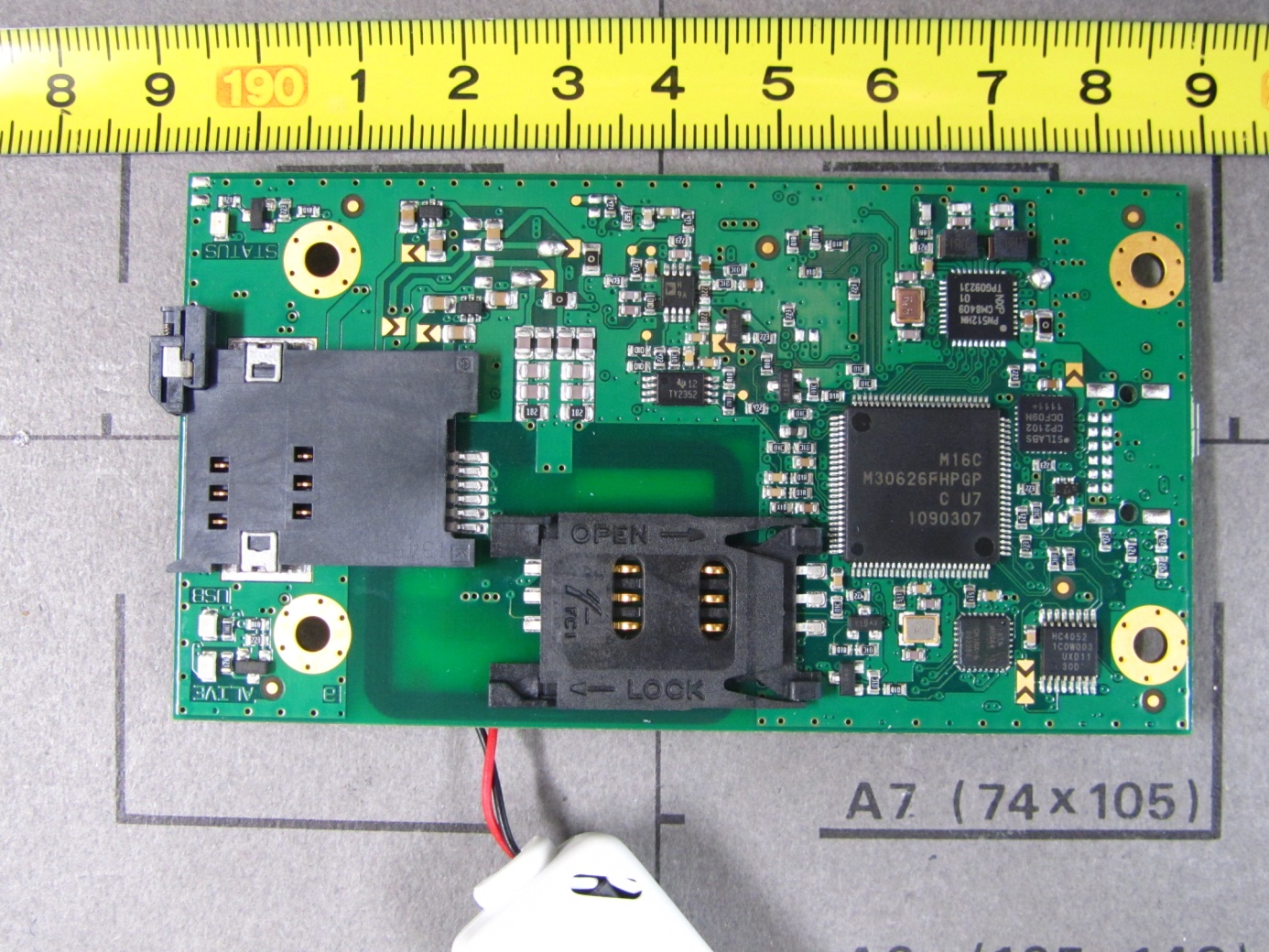

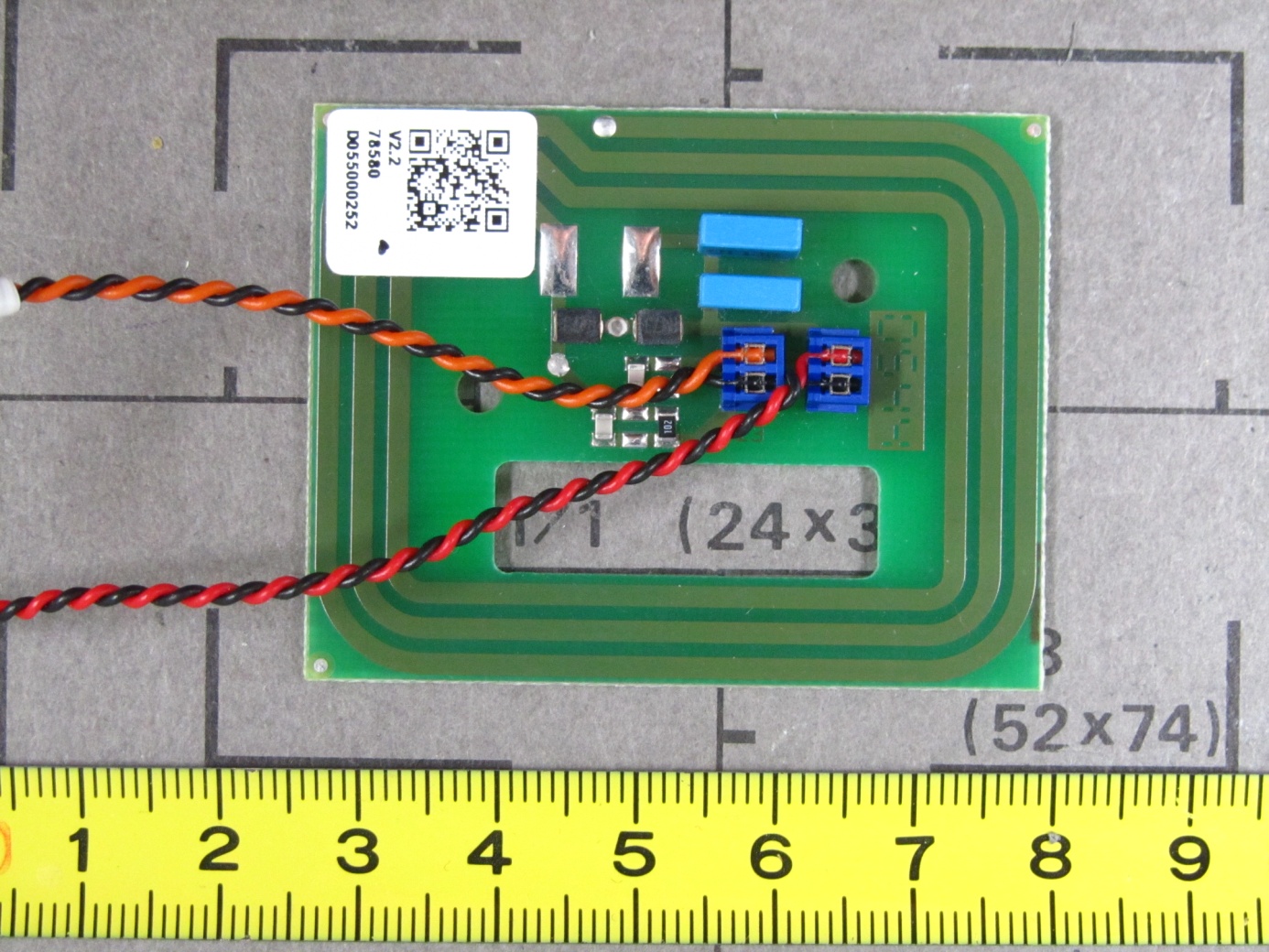

QSS-SD805RFID Reader module sd805

Picture may vary from actual product Coder Light OPOS is the ideal solution for advance ticket sale! SKIDATA's entry level model for new users of ticket printers. This compact, economically priced device im- prints and encodes tickets in one go. This coder can be placed anywhere • Thanks to its compact design, this coder is easy to integrate and install. Coder Light OPOS also fits into your advance ticket office. • The new power pack does not need a fan, therefore it is small and silent. Thanks to the long power cable, the power pack does not need to be placed near the coder. Convenient and reliable • Additional advantage for the production of RFID tickets: Before it is issued, the produced ticket is read for control purposes. • Coder Light OPOS provides maximum reliability, because it contains hardly any moving parts. It can easily be cleaned and maintained by the operator. Enhance the appeal of your destination • Because more tickets are sold in advance via Coder Light OPOS, waiting time at pay stations in the skiing area is reduced. • With the option to buy tickets in advance, your customers get right to the slopes without delay and can fully enjoy their skiing pleasure. One printer for all media • All barcode and 13.56 MHz tickets of the current SKIDATA portfolio can be processed. In addition, there is a recessed antenna for the RFID data carriers KeyWristBand ISO and Swatch Snowpass 13 MHz. • Thanks to the USB interface, the coder can be connected to most PCs. Coder Light ‘OPOS’ 95 (3.740") 132 (5.197") 168 (6.614")161 (6.339") © 2011 SKIDATA AG. All rights reserved. The content provided herein is subject to change and possible editorial errors. Country-specific versions may vary. SKIDATA ® is a registered trademark of SKIDATA AG in the USA, the European Union and other countries. Terms and conditions of the authorized SKIDATA distributor apply. The operator is fully responsible for compliance with any legal provisions applicable to the operation of the products. • RFID data carriers are imprinted, encoded and verified in one go • Low noise emission in the office (57 dBA during the printing procedure) • Requires little maintenance • Easy cleaning by means of special cleaning card; no tools required Properties • Desktop unit with external power pack and USB connector • Internal RFID antenna for tickets inserted at the front • External RFID antenna with data carrier rest • Barcode imprint for tickets inserted at the front • Ticket imprint 48 mm x 48 mm / 1.89" x 1.89" with a resolution of 200 DPI • Custom defined bitmaps can be printed Technical Specifications DimensionsPrinter: 161 mm x 132 mm x 168 mm / 6.34" x 5.2" x 6.61" (w x h x d) Power pack: 85 mm x 41 mm x 170 mm / 3.37" x 1.61" x 6.69" (w x h x d) WeightPrinter: 1.55 kg (3.2 lbs); power pack: 0.9 kg (2 lbs) Power supplyExternal desktop power pack 24 V DC with wide input range, silent (no fan) Power consumptionmax.180 W Temperature range10 °C to 35 °C (+50 °F to +95 °F), 25–80 % humidity (non condensing) Enclosure colorRAL 9007 (Gray Aluminium), SKIDATA Yellow (approximates Pantone 114U) Data carriers (ISO 15693) keycard iso, keycard iso-dual, keycard-eco iso-dual, keyticket iso-dual, keycard unlimited, keycard basic, keyticket iso-dual, keyticket light, KeyWristBand ISO, Swatch Snowpass 13 MHz RFID Tags: (ISO 15693) EM 4036/4034/4233, Texas Instruments Tag IT HF-I 2k, Infineon my-d ® SRF55V02P, NXP ICode SLI-S Barcode data carriersTL360, TK Unlimited Barcode formatInterleaved 2/5 crosswise (only imprint, no control reading) InterfacesUSB 2.0 compatible USB driverXP(e)/W2000/SRV2003/Vista (x86 only), W7(e)/W2k8R2 (x86+x64) Time for imprint3.5 s Time for RFID encoding and imprint 7 s Volume of the printer during operation max. 57 dBA during the production of tickets Ticket feedmanual Declarations / Certifications CE, FCC, IC, C-Tick SKIDATA AG • Untersbergstraße 40 • A-5083 Grödig/Salzburg [t] +43 6246 888-0 • [f] +43 6246 888-7 • [e] [email protected] [w] www.skidata.com • Version 1.6 • 27.03.2012 all dimensions in mm

TÜV SÜD Product Service GmbH • Äußere Frühlingstr. 45 • 94315 Straubing • Deutschland Trade Register Munich HRB 85742 HypoVereinsbank Munich Acc. No. 48 852 211 Bank Code 700 202 70 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers (Chairman) Management: Joachim Birnthaler (CEO) Dr. Jens Butenandt (Managing Director) Tel: 09421-5522-0 Fax: 09421-5522-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Straubing Branch Äußere Frühlingstraße 45 94315 Straubing Germany PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D-32825 Blomberg Long/Short term Confidentiality Request 2012-09-18 FCC ID: QSS-SD805 To whom it may concern, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby request long- term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Tune-Up Info Operational Description In addition we hereby request the following exhibits contained in this application to be tempo- rarily (short-term confidentilality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Test Setup Photos Internal Photos Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and pro- vide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this applica- tion. Thank you for your attention in this matter. TÜV SÜD Product Service GmbH Johann Roidt Laboratory Manager

TÜV SÜD Product Service GmbH • Äußere Frühlingstr. 45 • 94315 Straubing • Germany Trade Register Munich HRB 85742 HypoVereinsbank Munich Acc. No. 48 852 211 Bank Code 700 202 70 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Supervisory Board: Dirk Eilers (Chairman) Management: Joachim Birnthaler (CEO) Dr. Jens Butenandt (Managing Director) Tel: 09421-5522-0 Fax: 09421-5522-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Straubing Branch Äußere Frühlingstraße 45 94315 Straubing Germany PHOENIX TESTLAB GmbH Product Certification Königswinkel 10 D-32825 Blomberg RE: PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL October 8, 2012 To Whom It May Concern: We, on behalf of the applicant Skidata AG, Untersbergstraße 40, 5083 Grödig, Austria, hereby request for part 15 unlicensed modular transmitter approval of our device, described as follows: Brand name: SKIDATA Model name: sd805 FCC ID: QSS-SD805 In FCC Public Notice DA 00-1407 released June 26, 2000 there are eight numbered require- ments that our device complies with: 1. The modular transmitter must have its own shielding. No shielding required – Limited Modular Approval 2. The modular transmitter must have buffered modulation/data inputs Compliant (see block diagram and schematics) 3. The modular transmitter must have its own power supply regulation Compliant (see block diagram and schematics) 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c The module is mounted solely by the applicant and only with this antenna, so additional adher- ence has been abandoned 5. The modular transmitter must be tested in a stand-alone configuration Compliant 6. The modular transmitter must be labelled with its own FCC ID number Compliant, the module is labelled with its own FCC ID. In addition the host device is labelled with “contains FCC ID QSS-SD805”. Seite 2 von 2 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. Compliant, the module complies with the appropriate FCC regulations as documented in the test report 8. The modular transmitter must comply with any applicable RF exposure requirements. N/A, the module subject to § 15.225 is exempted from the RF Exposure requirements TÜV SÜD Product Service GmbH Johann Roidt Laboratory Manager

SKIDATA AG Untersbergstrasse 40 A-5083 Grödig / Salzburg SKIDATA AG • Untersbergstraße 40 • A-5083 Grödig/Salzburg • Tel +43 6246 888-0 • Fax +43 6246 888-7 • www.skidata.com E-Mail [email protected] • UID-Nr. ATU34880607 • FN 59669 z Landesgericht Salzburg • ARA Lizenz-Nr 7415 • DVR Nr. 0343013 PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D-32825 Blomberg FCC ID QSS-SD805 IC:6215A-SD805 To Whom It May Concern: Please be advised that SKIDATA AG authorizes TÜV SÜD Product Service GmbH, Mr. Johann Roidt, to act on our behalf, until otherwise notified, for applications submitted to PHOENIX TEST-LAB GmbH (PTL). Thank you for your attention to this matter. Date: 2012-08-06 Signatory Printed Name: Christoph Sonderegger

FCC ID QSS-SD805 IC: 6215A-SD805 FCC ID QSS-SD805 IC: 6215A-SD805 FCC ID QSS-SD805 IC: 6215A-SD805 FCC ID QSS-SD805 IC: 6215A-SD805 FCC ID QSS-SD805 IC: 6215A-SD805 FCC ID QSS-SD805 IC: 6215A-SD805

FCC ID QSS-SD805 IC: 6215A-SD805 FCC ID QSS-SD805 IC: 6215A-SD805 FCC ID QSS-SD805 IC: 6215A-SD805 FCC ID QSS-SD805 IC: 6215A-SD805 FCC ID QSS-SD805 IC: 6215A-SD805 FCC ID QSS-SD805 IC: 6215A-SD805

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Straubing HRB 9302 V.A.T. DE 131457658 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Managing Director: Johann Roidt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de/senton TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 69575-03950-1 (Edition 1) Applicant: SKIDATA AG Type of equipment: Inductive RFID Module Type designation: sd805 Order No.: 785750 Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.225 Industry Canada Radio Standards Specifications RSS-GEN Issue 3, Sections 7.2.2, 7.2.4 and 7.2.5 and RSS-210 Issue 8, Section A2.6 (Category I Equipment) April 26, 2012 Page 1 of 63 TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de/senton Test Report No. 69575-03950-1 (Edition 1) Page 2 of 63 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 4 3 Identification of the Test Laboratory ............................................................................... 5 4 Summary ........................................................................................................................ 6 5 Operation Mode and Configuration of EUT .................................................................... 7 6 Measurement Procedures .............................................................................................. 8 6.1 Bandwidth Measurements ........................................................................................ 8 6.2 Conducted AC Powerline Emission ......................................................................... 9 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 11 6.4 Radiated Emission in Fully or Semi Anechoic Room ............................................. 13 6.5 Radiated Emission at Alternative Test Site ............................................................ 15 6.6 Carrier Frequency Stability ..................................................................................... 17 7 Photographs Taken During Testing .............................................................................. 19 8 Test Results ................................................................................................................. 26 8.1 Occupied Bandwidth .............................................................................................. 28 8.2 Bandwidth of the Emission ..................................................................................... 32 8.3 Designation of Emissions ....................................................................................... 34 8.4 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 35 8.5 Spectrum Mask ...................................................................................................... 37 8.6 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 39 8.7 Radiated Emission Measurement 30 MHz to 1 GHz ............................................. 42 8.8 Carrier Frequency Stability ..................................................................................... 43 8.9 Exposure of Humans to RF Fields ......................................................................... 46 9 Referenced Regulations ............................................................................................... 48 10 Test Equipment List with Calibration Data .................................................................... 50 11 Revision History ........................................................................................................... 51 Annex A Charts taken during testing .............................................................................. 52 TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de/senton Test Report No. 69575-03950-1 (Edition 1) Page 3 of 63 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : sd805 Parts 2 : sd805: Reader module sd682: Greates antenna sd647: Smalles antenna Serial number(s): D113400087 Manufacturer: SKIDATA AG Type of equipment: Inductive RFID Module Version: As received FCC ID: Additional parts/accessories: Technical data of EUT Application frequency range: 13.110 - 14.010 MHz Frequency range: 13.56 MHz Operating frequency: 13.56 MHz Type of modulation: ASK Pulse train: --- Pulse width: --- Number of RF-channels: 1 Channel spacing: --- Designation of emissions 3 : 10K0A1D Type of antenna: External antenna Size/length of antenna: sd682: 152 x 156 mm sd647: 52 x 40 mm Connection of antenna: detachable not detachable Type of power supply: DC supply Specifications for power supply: nominal voltage: 5.00 V minimum voltage: 4.25 V maximum voltage: 5.75 V 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. 3 Also known as "Class of Emission". TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de/senton Test Report No. 69575-03950-1 (Edition 1) Page 4 of 63 Pages 2 Administrative Data Application details Applicant (full address): SKIDATA AG Untersbergstraße 40 5083 Grödig Österreich Contact person: Herr Christoph Sonderegger Order number: 785750 Receipt of EUT:…

Text truncated - open the document above for the full version.

TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Ski Data AG – sd805 – FCC ID QSS-SD805 - IC:6215A-SD805 Test Setup Photographs Page 1 of 6 Pages Test setup for conducted DC powerline emission measurement TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Ski Data AG – sd805 – FCC ID QSS-SD805 - IC:6215A-SD805 Test Setup Photographs Page 2 of 6 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Ski Data AG – sd805 – FCC ID QSS-SD805 - IC:6215A-SD805 Test Setup Photographs Page 3 of 6 Pages Test setup for radiated emission measurement (fully anechoic room) TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Ski Data AG – sd805 – FCC ID QSS-SD805 - IC:6215A-SD805 Test Setup Photographs Page 4 of 6 Pages Test setup for radiated emission measurement (fully anechoic room) TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Ski Data AG – sd805 – FCC ID QSS-SD805 - IC:6215A-SD805 Test Setup Photographs Page 5 of 6 Pages Test setup for radiated emission measurement (alternate test site) TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.de Ski Data AG – sd805 – FCC ID QSS-SD805 - IC:6215A-SD805 Test Setup Photographs Page 6 of 6 Pages Test setup for radiated emission measurement (alternate test site)
