QT2T-RX10YOUNGGarage Door Opener

EXTERNAL PHOTO 1. Front 2. Rear

YOUNG Electronics Corp. GARAGE DOOR OPENER MODEL : T-RX10TOUNG FCC ID : QT2T-RX10YOUNG Caution : This device complies with part 15 of the FCC Rules

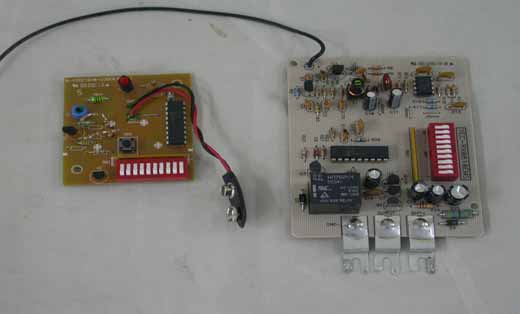

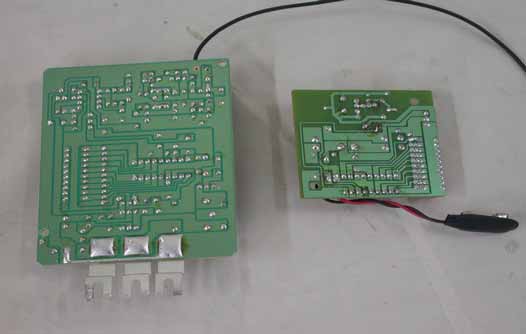

INTERNAL PHOTO 1. MAIN BOARD 1.1 Front 1.2 Rear 1.3 SETUP

YOUNG Electronics Corp. FCC ID QT2T-RX10YOUNG -Operational description- The Garage Door Opener Remote Command Unit is designed for general purpose remote control functions. The transmitter/receiver provides ten manually operated pushbutton which send a fixed code upon depression. The transmitter may be paired with various Link receiver modules to accommodate a variety of common periodic remote Control functions. -Setting the address- In order to allow the formation of unique Transmitter/receiver relationships the transmitters address may be selected using internal DIP switches. There is DIP switches at front cover.

Compliance Test Report for FCC Company name Address Telephone Product name Model No. Serial No. Test date Test location Standard □ Class A ■ Class B Test resultOK □ Class A ■ Class B Test resultOK Tested by Reviewed by Abbreviation * Note - This is certified that the above mentioned producs have been tested for the sample provided by client - No part of this document may be duplicated or reproduced by any means without the express written permission of the Estech Co., Ltd. Report Number : ESTF150407-002 , Web : www. estech. co. kr Page 1 of 14 Report NumberESTF150407-002 Manufacturer Country of origin Applicant Product 2004.7.19 GARAGE DOOR OPENER T-RX10YOUNG NONE YOUNG Electronics Corp. KOREA Date of issue ESTECH. Co., Ltd. 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea Test item ■ Conducted Emission ■ Radiated Emission FCC PART 15 2002 , ANSI C 63.4 2001 2004.7.13 OK, Pass = Passed, Fail = Failed, N/A = not applicable YOUNG Electronics Corp. 609-2, HYOSUNG-DONG, KAEYANG-KU, INCHEON, KOREA 82-32-554-5347 Measurement facility registration number Senior Engineer J.M. Yang Director T.K. Lee 94696 (Signature) (Signature) 3 4 5 6 8 8 8 9 10 10 10 11 12 14 Appendix 1. Spectral diagram Appendix 2. Phorographs of EUT in side PCB Appendix 3. Block diagram of EUT Appendix 4. CARRIER BANDWIDTH DATA Appendix 5. Curcuit diagram Report Number : ESTF150407-002 , Web : www. estech. co. kr Page 2 of 14 5. Measurement of radiated emission ............................................................... 5.1 Measurement e quipment ........................................................................ Contents 1. Laboratory Information ................................................................................. 2. Description of EUT ....................................................................................... 3. Test Standards ............................................................................................. 4. Measurement condition ................................................................................. 5.2 Environmental conditions ........................................................................ 5.3 Test data ................................................................................................ 7. Photographs of test setup ........................................................................... 8. Photogra phs of EUT .................................................................................... 6. Measurement of conducted emission ............................................................ 6.1 Measurement e quipment ........................................................................ 6.2 Environmental conditions ........................................................................ ... 6.3 Test data ................................................................................................ 1. Laboratory Information 1.1 General 1.2 Test Lab. Corporation Name : ESTECH Co. Ltd Head Office : 3 rd Fl., Chungdam Bldg., 119-1 Chungdam-dong Kangnam-gu , Seoul, Korea (Safety & Telecom. Test Lab) EMC Test Lab : 58-1 Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 1.3 Official Qualification(s) FCC : Filed Laboratory at Federal Communications Commission This EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards and is tested in accordance with the measurement procedures as indicated in this report. ESTECH attests to accuracy of test data. All measurement reported herein were performed by ESTECH Co., Ltd. ESTECH assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Report Number : ESTF150407-002 , Web : www. estech. co. kr Page 3 of 14 2. Description of EUT 2.1 Summary of Equipment Under Test Product: Model Number : Serial Number : Manufacturer : Country of origin : Rating : Receipt Date : 2.2 General descriptions of EUT KOREA RX RECEIVER:24VDC TX Transmitter:9Vdc Battery 2004.6.29 GARAGE DOOR OPENER T-RX10YOUNG NONE YOUNG Electronics Corp. Report Number : ESTF150407-002 , Web : www. estech. co. kr Page 4 of 14 Output Frequency Output Power-37dBm 300 MHz 3. Test Standards Test Standard : FCC PART 15 (2002) Test Method : ANSI C 63.4 (2001) This standard sets forth uniform methods of measurement of radio-frequency (RF) signals and noise emitted from both unintentional and intentional emitters of RF energy in the frequency range 9 kHz to 40 GHz. Methods for the measurement of radiated and AC power-line conducted radio noise are covered and may be applied to any such equipment unless otherwise specified by individual equipment requirements. These methods cover measurement of certain decides that deliberately radiate energy, such as intentional emitters, but does not cover licensed transmitters. This standard is not intended for certification/approval of avionic equipment or for industrial, scientific, and medical (ISM) equipment These method apply to the measurement of individual units or systems comprised of multiple units This Standard sets out the regulations under which an intentional, unintentional, or incidental radiator may be operated without an individual license. It also contains the technical specifications, administrative requirements and other conditions relating to the marketing of Part 15 devices. Report Number : ESTF150407-002 , Web : www. estech. co. kr Page 5 of 14 4. Measurement Condition 4.1 EUT Operation. 4.2 Configuration and Peripherals * The EUT was in the following operation mode during all testing * The operational conditions of the EUT was determined by the manufacturer according to the typical use of the EUT with respect to the expected hightest level of emission * Using TX / RX Commnuication between receiver Report Number : ESTF150407-002 , Web : www. estech. co. kr Page 6 of 14 4.3 EUT and Support equipment Equipment N…

Text truncated - open the document above for the full version.

TEST SETUP PHOTO 1. Conducted Emission setup photo 1.1. Front 1.2. Rear 2. Radiated Emission setup photo 2.1 Front 2.2. Rear
