QTH17017" TFT LCD TV & PC Monitor

Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 4 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 6 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 7 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 8 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 9 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 10 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 11 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 12 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 13 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 14 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 15 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 16 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X

Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 17 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 18 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 19 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 20 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 21 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 22 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 23 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 24 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 25 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 26 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 27 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 28 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 29 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 30 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 31 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 32 of 32 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC Information FCC Part 15.105 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential Installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions. May cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experience radio / TV technician for help FCC Part 15.21 Changes or modifications not expressly approved by the party responsible for compliance Could void the user`s authority to operate the equipment

Appendix E. Block Diagram ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885 Korea 1 of 1 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X

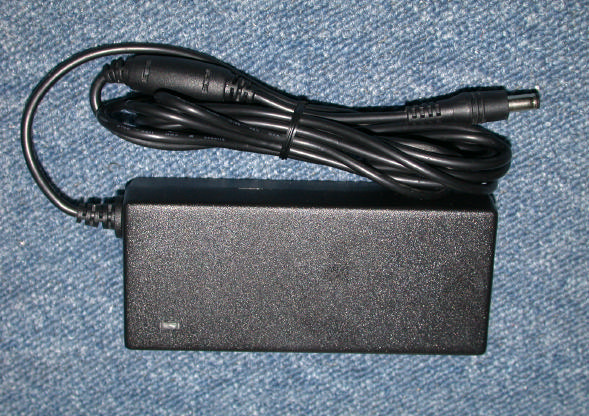

Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 5 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 5 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 5 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 4 of 5 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 5 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X

Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 1 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier (FCC ID: QTH170 ) and compliance statement are marked in the product label. T3 DIGITAL CO., LTD. Product: LCD TV MONITOR Model: LN170X FCC ID: QTH170 Power: Flow 100-240V, 60Hz/50Hz DC 12V/3.5A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) This device must accept any interference received including inference that may cause undesired operation. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label Here

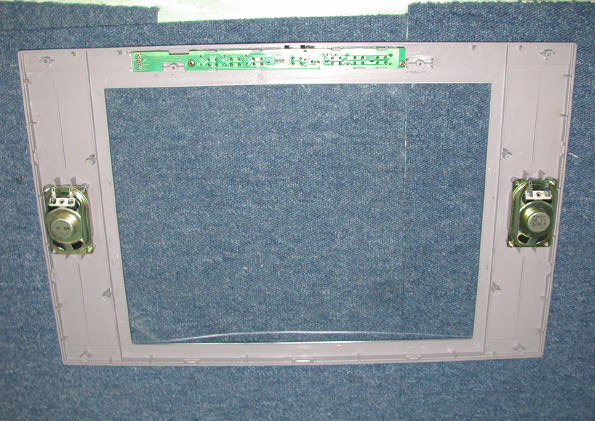

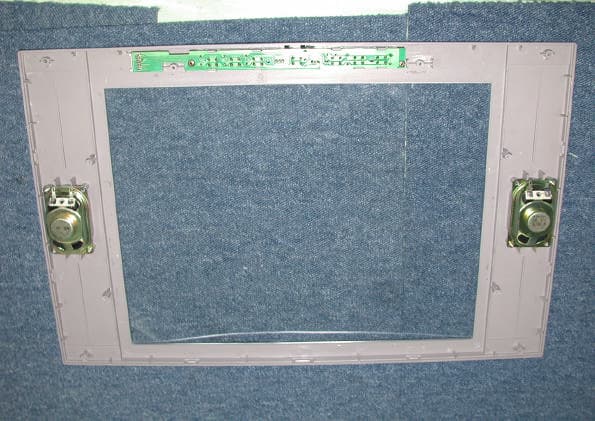

Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 12 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14 Inside view of LCD MONITOR Inside view of LCD MONITOR Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 12 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14 Component side view of LCD Panel Solder side view of LCD Panel Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 12 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14 Component side view of Front Key board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 4 of 12 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14 Solder side view of Front Key board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 12 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14 Component side view of Inverter board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 6 of 12 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14 Solder side view of Inverter board

Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 7 of 12 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14 Component side view of TUNER board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 8 of 12 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14 Solder side view of TUNER board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 9 of 12 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14 Component side view of Connector board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 10 of 12 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14 Solder side view of Connector board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 11 of 12 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14 Component side view of Main board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 12 of 12 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date: October 14 Solder side view of Main board

ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 20 FCC ID : QTH170 Report No: E03.1014.FCC.514N Issue of Date: October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X 2.1 Equipment Description The Equipment Under Test (EUT) is the T3 DIGITAL CO., LTD. / LCD TV MONITOR/ LN170X Please refer to Users manual 2.2 General Specification l Chassis Type : Plastic & Metal Cover l List of Each OSC. Or X-Tal. Freq. (>=1MHz) : X-TAL – 12.0MHz, 14.31818MHz, 27.0MHz l Chipset Brand & Part No. : T0947SXH – trumpion, AD9884A – ANALOG DEVICES, K4S161622D – SAMSUNG : t3810BV – trumpion, STV2310-4 – ST, TEA6425 – ST, TDA7440D – ST l Number of Layers : Main board – 4Layers, Inverter board – 4 Layers, Front board – 2 Layers l Visible Screen size : 337.92mm (H) X 270.336mm (V) l Pixel Range : 0.264(H) X 0.264(V) l Number of Pixel : 1280 X 1024 Pixels l Luminance of White : 270 cd / m2 l Type : a-si TFT-LCD (Liquid Crystal Display) l Viewing Angle : Hor (L:70, R:70), Ver (L:60, R:60) l H. V Frequency : H - 30~79.98KHz (Auto set), V – 56~75Hz (Auto set) l Displayable color : 16.2M Color l Input signal : Analog 0.7Vpp Positive (75 ) l Video signal : NTSC, PAL/SECAM l Audio signal : MONO l Video type : CVBS, S-VHS, COMPOSITE VIDEO l Separate Sync Signal : TTL Level Positive or Negative l Composite Sync Signal : TTL Level Positive of Negative l Green Video+Composite : Composite Sync: Vp-p Negative (Video 0.7Vp-p positive) l Voltage Use : Flow 100-240V, 60Hz/50Hz DC 12V/3.5A l On Working regularity : Maximum 45W l At safe mode : Under 3W

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT VERIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This LCD TV MONITOR, Model LN170X has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : Unintentional Radiators. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Name : Yo han, park Title : Chief Engineer & Lab.Manager E-RAE Testing Laboratory Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea PRODUCT : LCD TV MONITOR MODEL/TYPE NO : LN170X FCC ID : QTH170 APPLICANT : T3 DIGITAL CO., LTD. 150-812 3 rd Fl, Sungwon bld, 651 Daerim-3Dong, Youngdungpo-Gu, Seoul, Korea Attn. : Woo-Jin, Oh / Executive Director FCC CLASSIFICATION : Part 15 Class B Unintentional Radiators Computing Device Peripheral (JBP) FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : N/A TEST REPORT No. : E03.1014. FCC.514N DATES OF TEST : October 12~14, 2003 DATES OF ISSUE : October 14, 2003 TEST LABORATORY : ETL Inc ( FCC Registration Number : 95422) 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 20 FCC ID : QTH170 Report No: E03.1014.FCC.514N Issue of Date: October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual Appendix G. Schematics ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 20 FCC ID : QTH170 Report No: E03.1014.FCC.514N Issue of Date: October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : LCD TV MONITOR l Model Number : LN170X l FCC Identifier : QTH170 l S/N : N/A l Modulation : N/A l FCC Rule Part(s) : Part 15 Subpart B Unintentional Radiators l Test Procedure : ANSI C63.4-1992 l FCC Classification : Part 15 Class B Unintentional Radiators Computing Device Peripheral (JBP) l Dates of Tests : October 12~14, 2003 l Place of Tests : ETL Inc EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E03.1014.FCC.514N Applicant Name : T3 DIGITAL CO., LTD. Address : 150-812 3 rd Fl, Sungwon bld, 651 Daerim-3Dong, Youngdungpo-Gu, Seoul, Korea Attention : Woo-Jin, Oh / Executive Director ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 4 of 20 FCC ID : QTH170 Report No: E03.1014.FCC.514N Issue of Date: October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the T3 DIGITAL CO., LTD., Model: LN170X ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 20 FCC ID : QTH170 Report No: E03.1014.FCC.514N Issue of Date: October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X 2.1 Equipment Description The Equipment Under Test (EUT) is the T3 DIGITAL CO., LTD. / LCD TV MONITOR/ LN170X Please refer to Users manual 2.2 General Specification l Chassis Type : Plastic & Metal Cover l List of Each OSC. Or X-Tal. Freq. (>=1MHz) : X-TAL – 12.0MHz, 14.31818MHz, 27.0MHz l Chipset Brand & Part No. : T0947SXH – trumpion, AD9884A – ANALOG DEVICES, K4S161622D – SAMSUNG : t3810BV – trumpion, STV2310-4 – ST, TEA6425 – ST, TDA7440D – ST l Number of Layers : Main board – 4Layers, Inverter board – 4 Layers, Front board – 2 Layers l Visible Screen size : 337.92mm (H) X 270.336mm (V) l Pixel Range : 0.264(H) X 0.264(V) l Number of P…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 2 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 2 FCC ID : QTH170 Report No:E03.1014.FCC.514N Issue of Date : October 14, 2003 T3 DIGITAL CO., LTD. LCD TV MONITOR Model : LN170X Conducted Emission Test Setup
