QTHLN150X15'' TFT LCD TV/MONITOR

Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 4 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 6 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 7 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 8 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 9 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 10 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 11 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 12 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 13 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 14 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 15 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix F. Users Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 16 of 16 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X FCC Information FCC Part 15.105 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential Installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions. May cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experience radio / TV technician for help FCC Part 15.21 Changes or modifications not expressly approved by the party responsible for compliance Could void the user`s authority to operate the equipment

Appendix E. Block Diagram ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885 Korea 1 of 1 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X

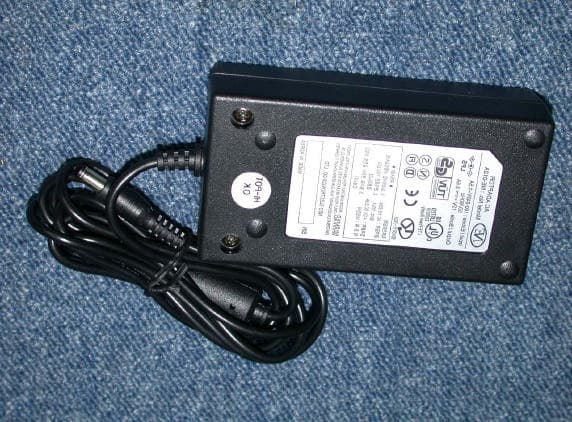

Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 4 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 4 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 4 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 4 of 4 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X

Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 1 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier (FCC ID : QTHLN150X ) and compliance statement are marked in the product label. T3 DIGITAL CO., LTD. Product: 15” TV MONITOR Model: LN150X FCC ID: QTHLN150X This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) This device must accept any interference received including inference that may cause undesired operation. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925)

Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 8 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 Inside view of LCD TV MONITOR Component side view of TUNER/Audio board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 8 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 Solder side view of TUNER/Audio board Component side view of Inverter board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 8 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 Solder side view of Inverter board Component side view of Front key board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 4 of 8 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 Solder side view of Front key board Component side view of LCD Panel Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 8 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 Solder side view of LCD Panel Component side view of AC/DC ADAPTER Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 6 of 8 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 Solder side view of AC/DC ADAPTER Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 7 of 8 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 Component side view of Main board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 8 of 8 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 Solder side view of Main board

ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 18 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X 2.1 Equipment Description The Equipment Under Test(EUT) is the T3 DIGITAL CO., LTD. / 15” TV MONITOR/ LN150X Please refer to Users manual 2.2 General Specification l Chassis Type : Plastic & Metal Cover l List of Each OSC. Or X-Tal. Freq. (>=1MHz) : X-TAL – 24.576MHz, 14.3181MHz, 12.0MHz l Chipset Brand & Part No. : SCL8884-100 – SCL, SAA7114H – PHILIPS, ASI310 – AURORA l Number of Layers : Main board – 4Layers, Tuner/Audio board – 2 Layers : Inverter board – 4 Layers, Front board – 2 Layers l LCD : Screen Size – 15 inch (Diagonal Length) : Visible Screen Size – 304.1(H) X 228.1(V) (15 Inch diagonal) : Pixel Range – 0.297(H) X 0.297(W) : Type – a-si TFT-LCD (Liquid Crystal Display) : Visual Angle – Upper70/Lower70/Left55/Right55 l Sync : Horizontal Frequency – 30~60KHz (Auto Set) : Vertical Frequency – 56~75Hz (Auto Set) l Color Display : Displayable color – 16.7M Color l Input Signal : Input Signal – Analog 0.7Vpp Positive (75 ) l Video Signal : Video Signal – NTSC : Audio Signal – MONO / STEREO : Video Type – CVBS, S-VHS, COMPOSITE VIDEO l Sync Signal : Separate Sync Signal – TTL LEVEL POSITIVE OR NEGATIVE : Composite Sync Signal – TTL LEVEL POSITIVE OR NEGATIVE : Green Video + Composite – Composite Sync: Vp-p Negative l Power / Voltage : Flow 100-240V, 60/50Hz DC12V/3A l Consumption : Regular – Maximum 33W, Safe – under 3W ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 6 of 18 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X l Movement Condition : Temperature> -20 ~ 40 : Humidity – 10% ~ 95% l Size : Excluding BASE – 440 X 55 X 298 : Including BASE – 518 X 280 X 466 l Weight : Net – 5.7kg (11 Ibs) : Gross – 6.8kg (15.4 Ibs)

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This 15” TV MONITOR, Model LN150X has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : Unintentional Radiators. I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Name : Yo han, park Title : Chief Engineer & Lab.Manager E-RAE Testing Laboratory Inc. 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea PRODUCT : 15” TV MONITOR MODEL/TYPE NO : LN150X FCC ID : QTHLN150X APPLICANT : T3 DIGITAL CO., LTD. 150-812 3 rd Fl, Sungwon bld, 651 Daerim-3Dong, Youngdungpo-Gu, Seoul, Korea Attn. : Ha-Seop, Lee / Executive Director FCC CLASSIFICATION : Part 15 Class B Unintentional Radiators Computing Device Peripheral (JBP) FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : T3 DIGITAL TEST REPORT No. : E03.0106. FCC.014N DATES OF TEST : January 4~6, 2003 DATES OF ISSUE : January 6, 2003 TEST LABORATORY : ETL Inc ( FCC Registration Number : 95422) 584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 18 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual Appendix G. Schematics ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 18 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : 15” TV MONITOR l Model Number : LN150X l FCC Identifier : QTHLN150X l S/N : N/A l Modulation : N/A l FCC Rule Part(s) : Part 15 Subpart B Unintentional Radiators l Test Procedure : ANSI C63.4-1992 l FCC Classification : Part 15 Class B Unintentional Radiators Computing Device Peripheral (JBP) l Dates of Tests : January 4 ~ 6, 2003 l Place of Tests : ETL Inc EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E03.0106.FCC.014N Applicant Name : T3 DIGITAL CO., LTD. Address : 150-812 3 rd Fl, Sungwon bld, 651 Daerim-3Dong, Youngdungpo-Gu, Seoul, Korea Attention : Ha-Seop, Lee / Executive Director ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 4 of 18 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the T3 DIGITAL CO., LTD., Model : LN150X ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 18 FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date: January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X 2.1 Equipment Description The Equipment Under Test(EUT) is the T3 DIGITAL CO., LTD. / 15” TV MONITOR/ LN150X Please refer to Users manual 2.2 General Specification l Chassis Type : Plastic & Metal Cover l List of Each OSC. Or X-Tal. Freq. (>=1MHz) : X-TAL – 24.576MHz, 14.3181MHz, 12.0MHz l Chipset Brand & Part No. : SCL8884-100 – SCL, SAA7114H – PHILIPS, ASI310 – AURORA l Number of Layers : Main board – 4Layers, Tuner/Audio board – 2 Layers : Inverter board – 4 Layers, Front board – 2 Layers l LCD : Screen Size – 15 inch (Diagonal Length) : Visible Screen Size – 304.1(H) X 228.1(V) (15 Inch diagonal) : Pixel Range – 0.297…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, FCC ID : QTHLN150X Report No:E03.0106.FCC.014N Issue of Date : January 6, 2003 T3 DIGITAL CO., LTD. 15” TV MONITOR Model : LN150X Conducted Emission Test Setup
