QUQ433816Weather Station Transmitter

Silcon Innoproducts Ltd.
Weather Station Transmitter - FCC ID QUQ433816 - Silcon Innoproducts Ltd.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Sep 06, 2005
Application Purpose
Original Equipment
Date of Application
Sep 06, 2005
Equipment Note

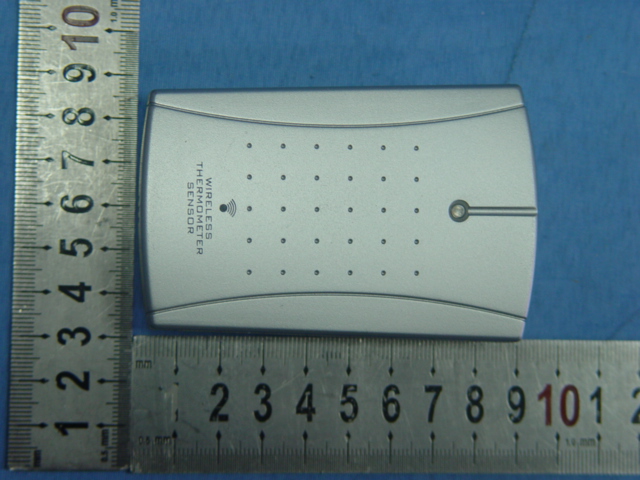

Weather Station Transmitter
Frequency Range
433.92000000 - 433.92000000
Company
Silcon Innoproducts Ltd.
Country
Hong Kong

Documents & Files

Select a file to view

Users Manual

β†—

Block Diagram

β†—

External Photos

β†—

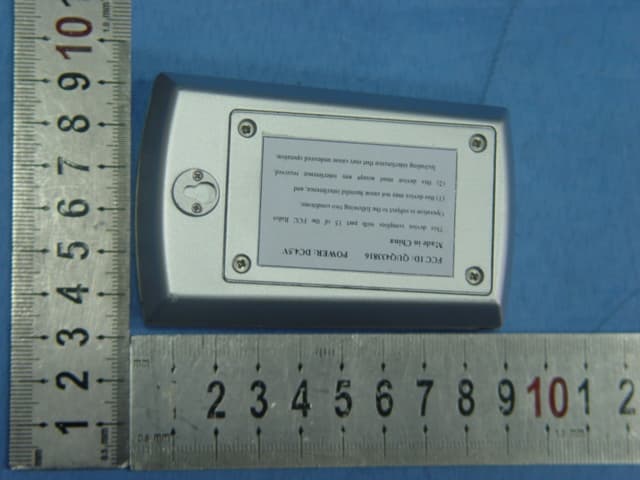

ID Label/Location Info

β†—
β†—

Internal Photos

β†—

Operational Description

β†—

Schematics

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

ID Label/Location Info

FCC ID: QUQ433816 POWER: DC4.5V Made in China This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, Including interference that may cause undesired operation. FCC MARKING/LABEL FOR PART15 30mm 30mm

Operational Description

Operation Descriptions: Tx logical block Rx logical block Tx operated descriptions: Typically, the EX201RTH unit is a simple transmitter. The MCU controller operates in D.C. 4.5 voltage as well as it does not get any harmful interference. Periodically, the MCU controller gets the pressure, temperature and humidity signaling from the T&H sensor. Then the signals are converted to D.C. signaling by MCU controller. The D.C. signals also are modulated by RF 433.92MHz frequency and send to LC filter to filter-out the unwanted signals. Finally, the signaling is transmitted from antenna. Rx operated descriptions: The receiver is operated in D.C. 3.0 voltage. After the receiver gets the signaling from antenna, the signals will be filtered out the unwanted signals by LC filter. Then they will be de-modulated by localized RF 433.92MHz frequency and then they are fed into the MCU controlled for decoding as pressure, temperature and humidity information. Finally, the MCU will gather the time, pressure and temperature & humidity information and then display on the LCD display.

Test Report

Page 1 of 25 FCC ID: QUQ433816 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20051395 FCC CERTIFICATION On Behalf of Silcon InnoProducts Limited Transmitter Model No.: EX201RTH FCC ID: QUQ433816 Prepared for : Silcon InnoProducts Limited Address : C1, 6/F., Hongkong Industrial Centre, 489-491 Castle Peak Road, Kowloon, Hongkong Prepared by : ACCURATE TECHNOLOGY CO. LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20051395 Date of Test : August 23, 2005 Date of Report : August 25 , 2005 Page 2 of 25 FCC ID: QUQ433816 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20051395 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility ......................................................................................................................4 1.3. Measurement Uncertainty.........................................................................................................................4 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 5 3. THE FIELD STRENGTH OF RADIATION EMISSION ............................................................ 6 3.1. Block Diagram of Test Setup....................................................................................................................6 3.2. The Field Strength of Radiation Emission Measurement Limits..............................................................6 3.3. Configuration of EUT on Measurement ...................................................................................................7 3.4. Operating Condition of EUT ....................................................................................................................7 3.5. Test Procedure ..........................................................................................................................................7 3.6. The Field Strength of Radiation Emission Measurement Results ............................................................8 4. OCCUPIED BANDWIDTH .............................................................................................................9 4.1. Block Diagram of Test Setup....................................................................................................................9 4.2. The Bandwidth of Emission Limit According To Section 15.231(c) .......................................................9 4.3. EUT Configuration on Measurement .....................................................................................................10 4.4. Operating Condition of EUT ..................................................................................................................10 4.5. Test Procedure ........................................................................................................................................10 4.6. Measurement Result ...............................................................................................................................11 5. AVERAGE FACTOR MEASUREMENT .................................................................................... 12 5.1. Block Diagram of Test Setup..................................................................................................................12 5.2. Average factor Measurement ..................................................................................................................12 5.3. EUT Configuration on Measurement .....................................................................................................13 5.4. Operating Condition of EUT ..................................................................................................................13 5.5. Test Procedure ........................................................................................................................................13 5.6. Measurement Result ...............................................................................................................................14 APPENDIX I ( TEST CURVES) (10pages) Page 3 of 25 FCC ID: QUQ433816 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20051395 Test Report Certification Applicant : Silcon InnoProducts Limited Manufacturer : Silcon InnoProducts Limited EUT Description : Transmitter (A) MODEL NO.: EX201RTH (B) SERIAL NO.: N/A (C) POWER SUPPLY: DC 4.5V (β€œAAA” battery Type3) Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C Section 15.231: 2004 & ANSI C63.4: 2003 The device described above is tested by ACCURATE TECHNOLOGY CO. LTD to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C Section 15.231 limits. The measurement results are contained in this test report and ACCURATE TECHNOLOGY CO. LTD is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the Equipment Under Test (EUT) is to be technically compliant with the FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of ACCURATE TECHNOLOGY CO. LTD. Date of Test : August 23, 2005 Prepared by : (Engineer) Reviewer : (Quality Manager) Approved & Authorized Signer : (Manager) Page 4 of 25 FCC ID: QUQ433816 ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20051395 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : Transmitter Model Number : EX201RTH Power Supply : DC 4.5V (β€œAAA” battery Type3) Memo : This submittal is transmitter of Weat…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Ben Lau(Admin.)
[email protected]85227440813Fax: 85227440222

Test Firm

Accurate Technology Co., Ltd.Sean Liu
[email protected]86-755-26503291Fax: 86-755-26503396

Technical Specifications

#Rule PartsFrequency RangePower Output
115C433.92 MHz - 433.92 MHz-

Other Applications from Silcon Innoproducts Ltd.

Wireless Caller ID clock - FCC ID QUQSILEX503TR - Silcon Innoproducts Ltd.
QUQSILEX503TR

Wireless Caller ID clock

Aug 16, 2004

Equipment Class

DSC - Part 15 Security/Remote Control Transmitter

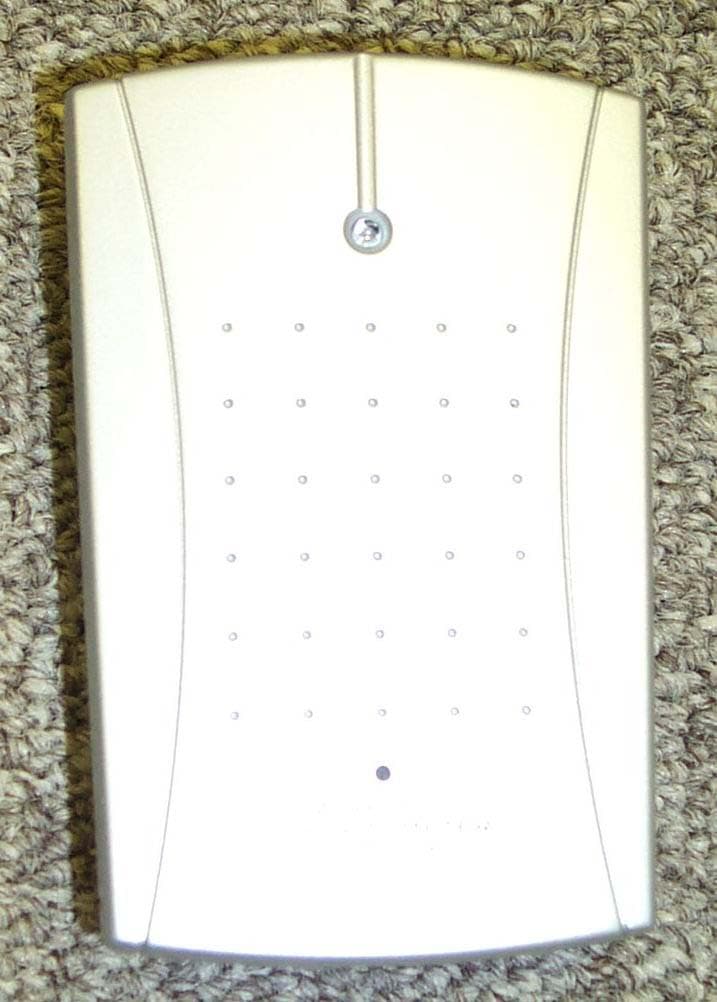

Outddor Thermometer Transmitter - FCC ID QUQSILEX201TR - Silcon Innoproducts Ltd.
