QUQSILEX503TRWireless Caller ID clock

Silcon Innoproducts Ltd.

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Aug 16, 2004
Application Purpose: Original Equipment
Date of Application: Aug 16, 2004
Equipment Note: Wireless Caller ID clock
Frequency Range: 433.92000000 - 433.92000000
Company: Silcon Innoproducts Ltd.
Country: Hong Kong

Documents & Files

Select a file to view

Users Manual

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

Qty/set: QC/IQC Ref.: "*" Approved: Issue Date: Description: Scale: Finish: Format: A4 Material: Drawing No.: Do not scale drawing Unless otherwise specified: All dimensions are in mm & 3rd angle projection Drawn: Date: Checked: Model No.: Part No.: X.XX 0.05 Angles 0.5Angles 1 Tolerances: X.X 0.1 BLOCK DIAGRAM CALLER ID DECODE CONTROL SIGNAL ENCODE POWER SUPPLY RF433.92MHZ MODULATION LC FILTER ANT TO TELEPHONE UNIT LINE IN KEYBOARD

External Photos

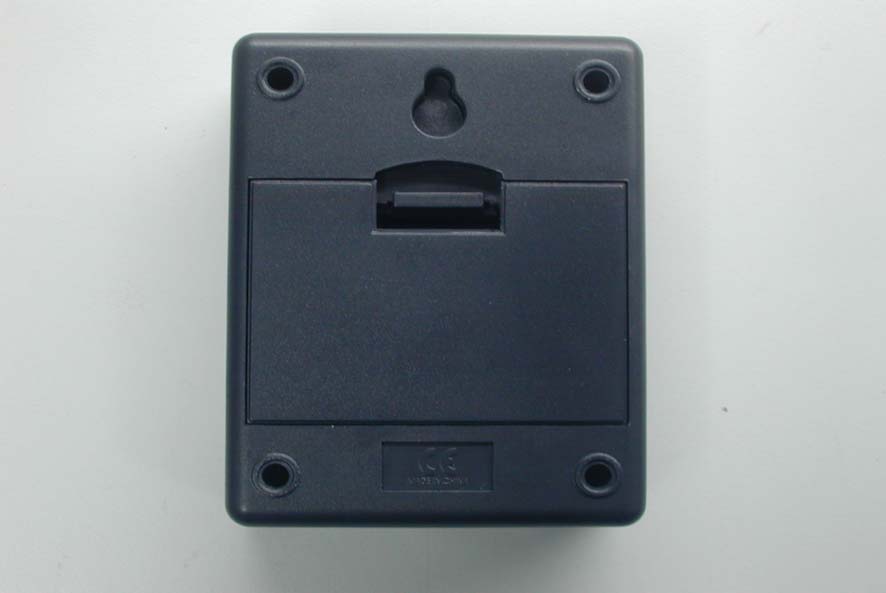

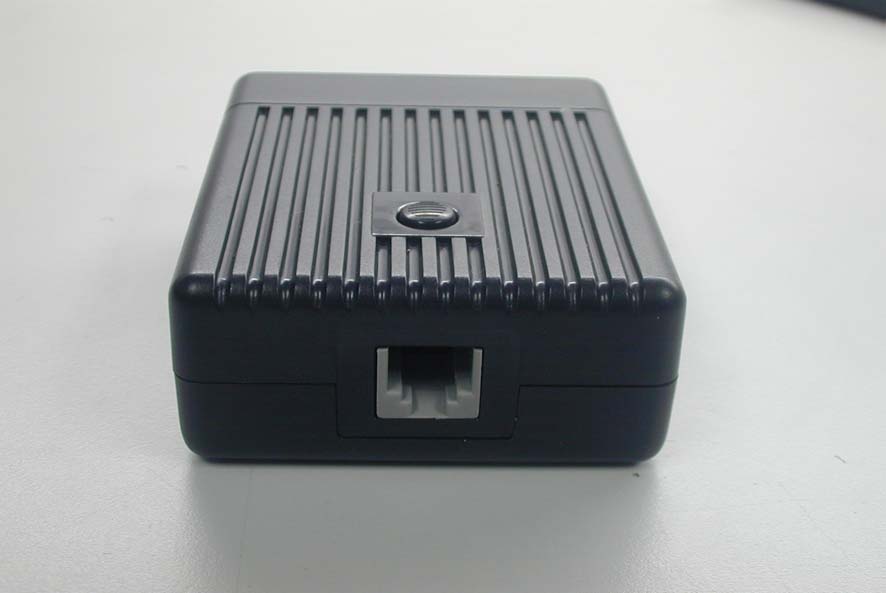

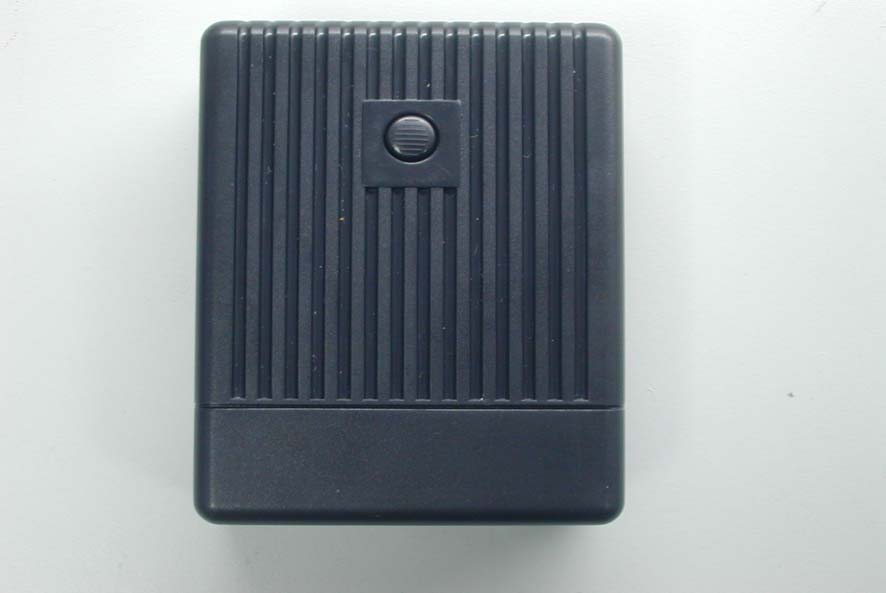

Report No: ER/2004/70009 ID: QUQSILEX503TR Issue Date: Jul. 26, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT Report No: ER/2004/70009 ID: QUQSILEX503TR Issue Date: Jul. 26, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Front View of EUT Back View of EUT Report No: ER/2004/70009 ID: QUQSILEX503TR Issue Date: Jul. 26, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Top View of EUT Bottom View of EUT

ID Label/Location Info

FCC ID LABEL FORMAT AND LOCATION Applicant: Silcon Innoproducts Ltd. FCC ID: QUQSILEX503TR FCC ID: QUQSILEX503TR This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Internal Photos

Report No: ER/2004/70009 ID: QUQSILEX503TR Issue Date: Aug. 16, 2004 ILAC MRA APPENDIX 3 INTERNAL OF EUT Internal of EUT – Open Internal of EUT – 1 Internal of EUT – 2 Internal of EUT – back 3 Internal of EUT (RF Module) – 4 Internal of EUT (RF Module) – 5

Operational Description

Operation Description I. Abstract This product is one kind of the electricity data code recognition system that connects on the telephone system. Those data received in telephone information after coded by micro controller, sent out through the 433.92MHz (ASK) radio transmitter. Those signals received through the receiver which includes a clock, connecting to the microprocessor, decoding and displayed in the LCD monitor. II. Transmitter (EX503TR): The transmitter part is connected to the Public Switched Telephone Network through the telephone line coupling. When receiving the telephone through electrical signal receiver and decoder decoding, then through micro controller and code electric circuit and through one of its outlet output. This outlet modulated by a 433.92MHz modulation then processes to filter antenna to launch. When a call is coming, sending data 3S (see fig.1). In this period of time, if there is another coming calling, it will not transmit a new data. After sending data A, if there is a call in section B, the data will be sent 30 seconds later. Fig.1 III. Receiver: It receives the radio reception part of the clock. After receiving the code, feeds this data into the clock on micro controller and the decoding circuit. When the micro controller receives this data, it will decode this data and display through the LCD monitor.

Schematics

YYQ 2004-06-12 Page NO:1/4 /L6 YYQ 2004-06-12 Page NO:2/4

Test Report

Report No: ER/2004/70009 ID: QUQSILEX503TR Issue Date: Aug. 16, 2004 Page: 1 of 32 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product name: Wireless Caller ID clock Model Name: EX503TR FCC ID: QUQSILEX503TR REPORT NO: ER/2004/70009 ISSUE DATE: Jul. 26, 2004 FCC Rule Part: 15.231(e) Prepared for Silcon Innoproducts Ltd. Rm C1, 6/F., Block C, HongKong Industrial Centre 489-491 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No: ER/2004/70009 ID: QUQSILEX503TR Issue Date: Aug. 16, 2004 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA VERIFICATION OF COMPLIANCE Applicant: Silcon Innoproducts Ltd. Rm C1, 6/F., Block C, HongKong Industrial Centre 489-491 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong Product Description: Wireless Caller ID clock FCC ID Number: QUQSILEX503TR Brand Name: N/A Model No.: EX503TR Model Difference: N/A File Number: ER/2004/70009 Date of test: Jul. 10, 2004 ~ Jul 25, 2004 Date of receive: Jul. 10, 2004 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2001) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.231(e). The test results of this report relate only to the tested sample identified in this report. Test By: Date Jul. 26, 2004 Alex Hsieh Approved By Date Jul. 26, 2004 Vincent Su Report No: ER/2004/70009 ID: QUQSILEX503TR Issue Date: Aug. 16, 2004 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Version Version No. Date 01 Aug. 16, 2004 Report No: ER/2004/70009 ID: QUQSILEX503TR Issue Date: Aug. 16, 2004 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 1361 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ILAC MRA Table of Contents 1. GENERAL INFORMATION ........................................................................................... 6 1.1 PRODUCT DESCRIPTION................................................................................................................... 6 1.2 RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................. 6 1.3 TEST METHODOLOGY....................................................................................................................... 6 1.4 TEST FACILITY................................................................................................................................. 6 2. SYSTEM TEST CONFIGURATION .............................................................................. 7 2.1 EUT CONFIGURATION...................................................................................................................... 7 2.2 EUT EXERCISE................................................................................................................................. 7 2.3 TEST PROCEDURE............................................................................................................................. 7 2.4 LIMITATION...................................................................................................................................... 8 2.5 CONFIGURATION OF TESTED SYSTEM............................................................................................ 10 3. SUMMARY OF TEST RESULTS ................................................................................. 11 4. DESCRIPTION OF TEST MODES .............................................................................. 11 5. CONDUCTED EMISSIONS TEST (NOT APPLY IN THE REPORT) ................. 12 5.1 MEASUREMENT PROCEDURE: ........................................................................................................ 12 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 12 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................... 12 5.4 MEASUREMENT RESULT: ............................................................................................................... 12 6. RADIATED EMISSION TEST ...................................................................................... 13 6.1…
