*** USER’S MANUAL *** FCC ID : QUYMODULEWH01 The Federal Communication Commission Statement This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: - - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced Radio/TV technician for help. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that change or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1 This device may not cause harmful interference and 2 This device must accept any interference received, including interference that may cause undesired operation. The antenna used for this transmitter must not be collocated or operation in conjunction with any other antenna or transmitter. Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. D D o o c c u u m m e e n n t t f f o o r r W W i i F F i i p p r r o o d d u u c c t t Version 0.9 Sep. 2012 © Initio 2012. All right reserved. Copying prohibited This document is confidential 1 User Manual For Android Rev. 0.9 D D o o c c u u m m e e n n t t f f o o r r W W i i F F i i p p r r o o d d u u c c t t Version 0.9 Sep. 2012 © Initio 2012. All right reserved. Copying prohibited This document is confidential 2 Section 1 Getting Start - Download WiFi Huber App 1. Download App from Google play 1. 開啟 [play商店] 程式，進入商店主畫面 Pic 1. You can use the Keyword WiFiHuber, to search the WiFiHuber App, then download & install it.. D D o o c c u u m m e e n n t t f f o o r r W W i i F F i i p p r r o o d d u u c c t t Version 0.9 Sep. 2012 © Initio 2012. All right reserved. Copying prohibited This document is confidential 3 Section 2 Connect WiFi The major step to connect WiFi Huber, is similar as general AP router, you can search SSID form smart handheld device's setup App. The operation step is as following: Select the Setup App icon to enable setup App, as the following Pic 2 2.按手機主畫面的 [設定] Pict 2 3. Choose the WiFi & Internet item, as Pic 3 3.開啟 無線與網路 D D o o c c u u m m e e n n t t f f o o r r W W i i F F i i p p r r o o d d u u c c t t Version 0.9 Sep. 2012 © Initio 2012. All right reserved. Copying prohibited This document is confidential 4 Pic 3 Select Wi-Fi setup item, you need to enable Wi-Fi function and then to select SSID, WiFiHuber. When you choose the WiFiHuber SSID, you will see the negotiation process, your smart handheld device will get IP address from WiFiHuber device, then it will see the connected status, if it is successful. Reference Pic 4. 4. 再開啟Wi-Fi設定，選擇要連接的網路，之後再按返回鍵回手機主頁 D D o o c c u u m m e e n n t t f f o o r r W W i i F F i i p p r r o o d d u u c c t t Version 0.9 Sep. 2012 © Initio 2012. All right reserved. Copying prohibited This document is confidential 5 Pic. 4 D D o o c c u u m m e e n n t t f f o o r r W W i i F F i i p p r r o o d d u u c c t t Version 0.9 Sep. 2012 © Initio 2012. All right reserved. Copying prohibited This document is confidential 6 Section 3 Enable App If you had successfully installed the App, then you will see the WiFiHuber App ICON as following: Pic 5 Touch the App, then you can enable the WiFiHuber. Welcome to WiFi Huber, if you enable the App, then you will see the main frame as Pic 6 D D o o c c u u m m e e n n t t f f o o r r W W i i F F i i p p r r o o d d u u c c t t Version 0.9 Sep. 2012 © Initio 2012. All right reserved. Copying prohibited This document is confidential 7 Pic 6 In Green rectangle box, you will see the storage device's label in upper side, and you also can fine the 5 function pages as following: : It is a WiFiHuber storage icon, when you select the function page, then you can operate the file/directory. If you touch the 1. Directory: You can enter the directory and we can display the contain. 2. File: if the file's contain is supported, for example, general JPG photo file, then you can get the picture on the screen. Pic 7 D D o o c c u u m m e e n n t t f f o o r r W W i i F F i i p p r r o o d d u u c c t t Version 0.9 Sep. 2012 © Initio 2012. All right reserved. Copying prohibited This document is confidential 8 : It is a handheld device local file operation function page. When you apply the function, you will see the file/direct with your device. The WiFiHuber provide friendly function, the general popular file sorting function. It can automatically sort the WiFi storage, including, Audio, Video and Photo. User, he or she can get those service by the following function page. : User can get all of the supported audio file format file stored within WiFi Storage when she or he touch the ICON, as in following Pic 8. D D o o…

Text truncated - open the document above for the full version.

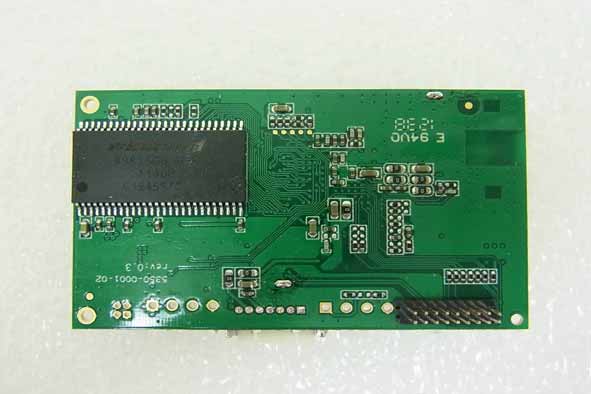

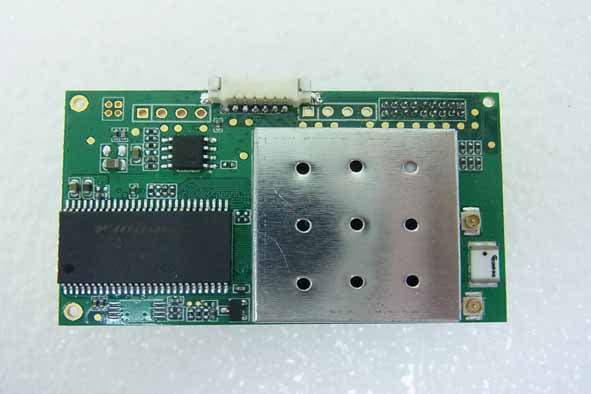

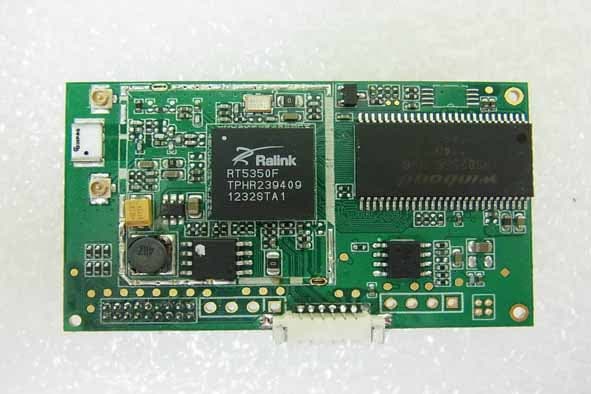

FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164FC APPENDIX 2 PHOTOGRAPHS OF EUT FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164FC EUT – 1 EUT – 2 FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164FC EUT – 3

FCCID Label Location/Sample Label Location FCC ID: QUYMODULEWH01

FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164FC APPENDIX 2 PHOTOGRAPHS OF EUT FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164FC EUT – 1 EUT – 2 FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164FC EUT – 3

-1 of 5- FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164MPE Maximum Permissible Exposure (MPE) Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density -2 of 5- FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164MPE Maximum Permissible Exposure (MPE) Evaluation 802.11 b mode Conducted Power result: 802.11b Cable loss = 0 Output Power Limit CH Frequency (MHz) Detector (dBm) PK AV (dBm) (dBm) 1 2412 19.22 16.84 30 6 2437 19.14 16.78 11 2462 19.21 16.81 MPE Prediction (802.11b) with the max antenna gain 4 dBi Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 19.22 (dBm) Max imu m p eak ou tp ut p ow er at an ten na in pu t terminal: 8 3. 56 03 01 82 (mW) Duty cycle: 100 (%) Maximu m Pav : 8 3. 56 03 01 82 (mW) Antenna gain (typical): 3 (dBi) M aximum an ten na g ain : 1 .9 95 26 23 15 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2412 (MHz) MPE limit f or uncontrolled ex po sure at pred iction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.0331857 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.033 mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 at 2412MHz. -3 of 5- FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164MPE 802.11 g mode Conducted Power result: 802.11g Cable loss = 0 Output Power Limit CH Frequency (MHz) Detector (dBm) PK AV (dBm) (dBm) 1 2412 22.88 13.58 30 6 2437 22.54 13.12 11 2462 23.05 13.84 MPE Prediction (802.11g) with the max antenna gain 4 dBi Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23.05 (dBm) Maximum peak output power at antenna input terminal: 201.8366364 (mW) Duty cycle: 100 (%) Maximu m Pav : 2 01 .8 36 63 64 (mW) Antenna gain (typical): 3 (dBi) M aximum an ten na g ain : 1 .9 95 26 23 15 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit f or uncontrolled ex po sure at pred iction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.0801586 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.080 mW/cm2. This is below the uncontrolled exposure limit of 1 mW/cm2 at 2462MHz. -4 of 5- FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164MPE 802.11 N 20MHz mode Conducted Power result: 802.11N 20MHz Cable loss = 0 Output Power Limit CH Frequency (MHz) Detector (dBm) PK AV (dBm) (dBm) 1 2412 23.14 14.11 30 6 2437 23.07 14.02 11 2462 23.24 14.17 MPE Prediction (802.11n_20M) with the max antenna gain 4 dBi Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23.24 (dBm) Maximum peak output power at antenna input terminal: 210.862815 (mW) Duty cycle: 100 (%) Maximu m Pav : 2 10 .8 62 81 5 (mW) Antenna gain (typical): 3 (dBi) M aximum an ten na g ain : 1 .9 95 26 23 15 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit f or uncontrolled ex po sure at pred iction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.0837434 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.084 mW/cm2. This is below the uncontrolled exposure limit of 1 mW/cm2 at 2462MHz. -5 of 5- FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164MPE 802.11 N 40MHz mode Conducted Power result: 802.11N 40MHz Cable loss = 0 Output Power Limit CH Frequency (MHz) Detector (dBm) PK AV (dBm) (dBm) 3 2422 23.22 14.21 30 6 2437 23.14 14.15 9 2452 23.08 14.10 MPE Prediction (802.11n_40M) with the max antenna gain 4 dBi Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 23.22 (dBm) Maximum peak output power at antenna input terminal: 209.8939884 (mW) Duty cycle: 100 (%) Maximu m Pav : 2 09 .8 93 98 84 (mW) Antenna gain (typical): 3 (dBi) M aximum an ten na g ain : 1 .9 95 26 23 15 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2422 (MHz) MPE limit f or uncontrolled ex po sure at pred iction 1 (mW/cm2) Power density at predication frequency at 20 (cm) 0.0833586 (mW/cm^2) Measurement Result The …

Text truncated - open the document above for the full version.

Page: 1 of 93 TEST REPORT of FCC Part 15 Subpart C New Application; Class I PC; Class II PC Full Modular Approval Product : WiFiHuber Brand: Trend Model: Module_WH_01 Model Difference: N/A FCC ID: QUYMODULEWH01 FCC Rule Part: §15.247, Cat: DTS Applicant: Trend Electronics Co., Ltd. Address: 4F-3, No. 17, Lane 77, Sec. 2, Zhongshan N, Road Tai- pei City Taiwan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW1036; TAF: 0997; IC: IC4067B-3; *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-12LR164FC Issue Date : 2012/11/01 Test results given in this report apply only to the specific sample(s) tested and are traceable to nation- al or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product en- dorsement by TAF, NVLAP or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 87- FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164FC VERIFICATION OF COMPLIANCE Applicant: Trend Electronics Co., Ltd. Product Description: WiFiHuber Brand Name: Trend Model No.: MODULE_WH_01 Model Difference: N/A FCC ID: QUYMODULEWH01 Date of test: 2012/10/12 ~ 2012/10/31 Date of EUT Received: 2012/10/12 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2012/11/01 Dion Chang / Engineer Prepared By: Date: 2012/11/01 Gigi Yeh / Specialist Approved By: Date: 2012/11/01 Vincent Su / Technical Manager -3 of 87- FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164FC Version Version No. Date Description 00 2012/11/01 Initial creation of document -4 of 87- FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164FC Table of Contents 1 GENERAL INFORMATION .................................................................................................... 6 1.1 Related Submittal(s) / Grant (s) ..................................................................................................... 7 1.2 Test Methodology .......................................................................................................................... 7 1.3 Test Facility .................................................................................................................................... 7 1.4 Special Accessories ........................................................................................................................ 7 1.5 Equipment Modifications ............................................................................................................... 7 2 SYSTEM TEST CONFIGURATION ....................................................................................... 8 2.1 EUT Configuration ........................................................................................................................ 8 2.2 EUT Exercise ................................................................................................................................. 8 2.3 Test Procedure ................................................................................................................................ 8 2.4 Configuration of Tested System ..................................................................................................... 9 3 SUMMARY OF TEST RESULTS .......................................................................................... 10 4 DESCRIPTION OF TEST MODES ....................................................................................... 10 5 CONDUCTED EMISSION TEST........................................................................................... 11 5.1 Standard Applicable: .................................................................................................................... 11 5.2 Measurement Equipment Used: ................................................................................................... 11 5.3 EUT Setup: ................................................................................................................................... 11 5.4 Measurement Procedure: ............................................................................................................. 12 5.5 Measurement Result: ................................................................................................................... 12 6 PEAK /AVERAGE UTPUT POWER MEASUREMENT .................................................... 15 6.1 Standard Applicable: .................................................................................................................... 15 6.2 Measurement Equipment Used: ................................................................................................... 16 6.3 Test Set-up: .................................................................................................................................. 16 6.4 Measurement Procedure: ............................................................................................................. 16 6.5 Measurement Result: ................................................................................................................... 17 7 6dB Bandwidth(EBW) .......................................…

Text truncated - open the document above for the full version.

FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164FC APPENDIX 1 PHOTOGRAPHS OF SET UP FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164FC Radiated Emission Set up Photo FCC ID: QUYMODULEWH01 International Standards Laboratory Report Number: ISL-12LR164FC Conducted Emission Set up Photo
