QV2-SMD-53200TXRemote Control Transmitter
SMD-Funksteuerungs GmbH

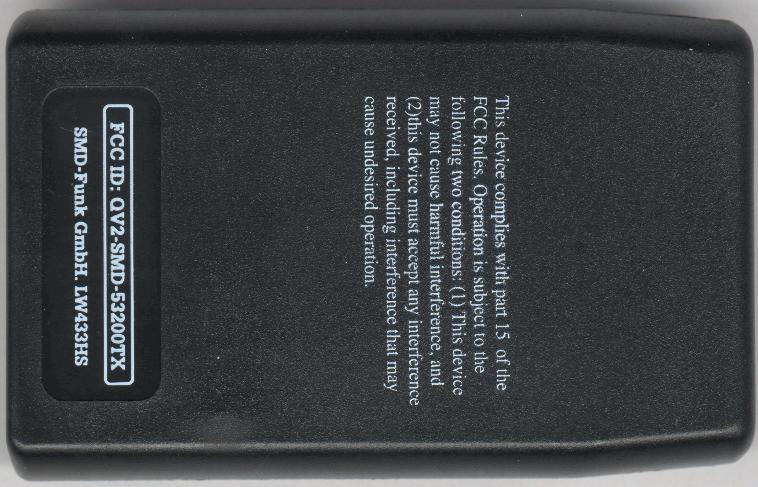

Click to zoom
Application Details
- Equipment Class
- DSC - Part 15 Security/Remote Control Transmitter
- Date of Grant
- Oct 07, 2003
- Application Purpose
- Original Equipment
- Date of Application
- Oct 07, 2003
- Equipment Note
- Remote Control Transmitter
- Frequency Range
- 433.92000000 - 433.92000000
- Company
- SMD-Funksteuerungs GmbH
- Country
- Germany
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
TST FFS1/2/4 manual radio transmitter 433 MHz - AM TST FFS1-B 1- channel transmitter TST FFS2-C 2- channel transmitter TST FFS4-B 4- channel transmitter Remote-controlled opening and closing of industrial doors and barriers Special features: β’ remote control radio transmitters in compact case β’ frequency range AM 433 MHz β’ LED display Technical data dimensions: W x H x D: 95 x 60 x 23 mm Mains voltage: 9V block battery Current consumption: approx. 35 mA Operating frequency: 433,920 MHz Modulation method. AM degree of modulation: min. 95% Transmission power: typical <10 mW Construction: main frequency selection (DIP switches, inside): ON 1 2345 6 7 89 10 jb/vk 07/03 errors and technical changes remain reserved! Distributed by FEIG ELECTRONIC GmbH FCC ID: QV2-SMD-53200TX This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could avoid the user's authorit y to operate the equipment.
Test Report
FCC-ID: QV2-SMD-53200TX Test Report #EMCC-980069VA Page 2 of 18 Issue Date: 2003-MAY-29 TEST OF SMD-FUNK GMBH TYPE LW 433 HS TO 47 CFR PART 15C - INTENTIONAL RADIATORS REPORT_VA.DOC CONTENTS Page 1 GENERAL INFORMATION ...................................................................................................................................................................3 1.1 Purpose..................................................................................................................................................................................3 1.2 Limits and Reservations ......................................................................................................................................................3 1.3 Test Location.........................................................................................................................................................................3 1.4 Manufacturer .........................................................................................................................................................................3 1.5 Dates ......................................................................................................................................................................................3 2 Product Description.............................................................................................................................................................................4 2.1 Equipment Under Test (EUT)...............................................................................................................................................4 2.2 EUT Peripherals ....................................................................................................................................................................4 2.3 Mode of Operation During Testing .....................................................................................................................................4 2.4 Modifications Required for Compliance ............................................................................................................................4 3 Test Results Summary ........................................................................................................................................................................5 4 Antenna Requirement ..........................................................................................................................................................................6 4.1 Regulation .............................................................................................................................................................................6 4.2 Result .....................................................................................................................................................................................6 5 Radiated Emissions TEST...................................................................................................................................................................7 5.1 Regulation .............................................................................................................................................................................7 5.2 Test Equipment .....................................................................................................................................................................8 5.3 Test Procedures....................................................................................................................................................................8 5.4 Calculation of Field Strength Limits ...................................................................................................................................9 5.5 Calculation of Average Correction Factor .........................................................................................................................9 5.6 Field Strength Calculation ...................................................................................................................................................9 5.7 Test Results.........................................................................................................................................................................11 6 Conducted Emissions Tests .............................................................................................................................................................13 6.1 Regulation ...........................................................................................................................................................................13 6.2 Test Equipment ...................................................................................................................................................................13 6.3 Test Procedures..................................................................................................................................................................13 6.4 Test Results.........................................................................................................................................................................13 7 Periodic Operation Characteristics..................................................................................................................................................14 7.1 Periodic Operation..............................................................................................................................................................14 7.1.1 Regulation....................................................................................................................................................................14 7.1.2 Result .................................................β¦
Text truncated - open the document above for the full version.
Test Setup Photos
FCC-ID: QV2-SMD-53200TX RADIO LABORATORIES EMC LABORATORIES TTI-P-G 094/94 TTI-P-G 074/95 EMCC DR. RAΕ EK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 Annex1_VA.doc Telephone: +49-9194-9016 Telefax: +49-9194-8125 Mail: [email protected] Web: http://www.emcc.de PAGE 1 of 4 ANNEX 1 TO TEST REPORT # EMCC-980069VA, 2003-MAY-29 PHOTOGRAPHS OF TEST SETUPS EQUIPMENT UNDER TEST: Type: LW 433 HS Serial No: None Equipment Category: Transmitter Manufacturer: SMD-Funk GmbH Address: Hans-Boeckler-Strasse 5 63110 Rodgau Germany Phone: ++49-6106-6008-0 Fax: ++49-6106-6008-33 RELEVANT STANDARD: 47 CFR Part 15C - Intentional Radiators CONTENTS Page 1 CONDUCTED EMISSIONS TEST ......................................................................................................................... 2 1.1 Photograph: none....................................................................................................................................... 2 2 RADIATED EMISSIONS TEST ............................................................................................................................. 3 2.1 Photograph: EUT LW 433 HS on non conductive stand EUT standing..................................................... 3 2.2 Photograph: EUT LW 433 HS on non conductive stand EUT flat on stand............................................... 4 FCC-ID: QV2-SMD-53200TX Annex 1 to Test Report #EMCC-980069VA Page 2 of 4 Issue Date: 2003-MAY-29 TEST OF SMD-FUNK GMBH TYPE L W 433 HS TO 47 CFR PART 15C - INTENTIONAL RADIATORS ANNEX1_VA.DOC 1 CONDUCTED EMISSIONS TEST 1.1 Photograph: none not applicable FCC-ID: QV2-SMD-53200TX Annex 1 to Test Report #EMCC-980069VA Page 3 of 4 Issue Date: 2003-MAY-29 TEST OF SMD-FUNK GMBH TYPE L W 433 HS TO 47 CFR PART 15C - INTENTIONAL RADIATORS ANNEX1_VA.DOC 2 RADIATED EMISSIONS TEST 2.1 Photograph: EUT LW 433 HS on non conductive stand EUT standing FCC-ID: QV2-SMD-53200TX Annex 1 to Test Report #EMCC-980069VA Page 4 of 4 Issue Date: 2003-MAY-29 TEST OF SMD-FUNK GMBH TYPE L W 433 HS TO 47 CFR PART 15C - INTENTIONAL RADIATORS ANNEX1_VA.DOC 2.2 Photograph: EUT LW 433 HS on non conductive stand EUT flat on stand
Contact Information
Applicant
Ulf Nordlander(Managing Director)
Test Firm
EMCCons Dr. Rasek GmbH & Co. KGWinfried hoffmann
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15.231 | 433.92 MHz - 433.92 MHz | - |
