QV3DA170VEHICLE'S DVD PLAYER

’

Report No. : F690501/LF-EMC000779 Photographs of Product z Front View z Rear View

Report No. : F690501/LF-EMC000779 Label Location and Label z Label Location z Label

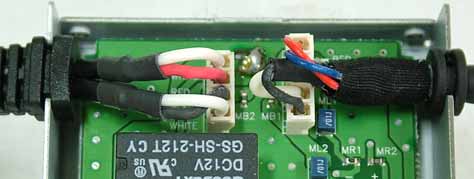

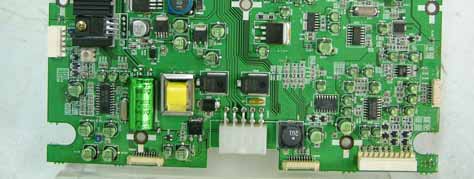

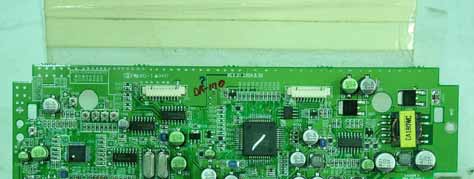

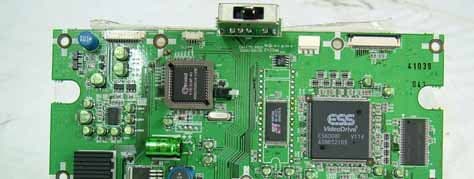

Report No. : F690501/LF-EMC000779 Internal Photos z Inside View z Top View of Main Board Report No. : F690501/LF-EMC000779 z Bottom View of Main Board z Front View of DVD-ROM Report No. : F690501/LF-EMC000779 z Rear View of DVD-ROM z Top View of Display Board Report No. : F690501/LF-EMC000779 z Bottom View of Display Board z Top View of LCD Panel Report No. : F690501/LF-EMC000779 z Bottom View of LCD Panel z Top View of Cable Module Board Report No. : F690501/LF-EMC000779 z Bottom View of Cable Module Board z Front View of Remote Controller Report No. : F690501/LF-EMC000779 z Rear View of Remote Controller

Report No. : F690501/LF-EMC000779 Page : 1 of 13 FCC COMPLIANCE REPORT Order No. : SKA-04-0116/E Reference No. : F690501/LF-EMC000779 Applicant : Daesung Eltec Co., Ltd. Address of Applicant : 371-6, Kasan-Dong, Kumchon-Gu, Seoul, Korea Equipment Under Test (EUT) : Product Name : Vehicle’s DVD Player Model No. : DA-170 FCC ID : QV3DA170 Standards : FCC Part 15, Subpart B, Subpart C ANSI C63.4:2003 Date of Receipt : 18 August 2004 Date of Test : 25 November 2004 Date of Issue : 13 December 2004 Test Result : PASS In the configuration tested, the EUT complied with the standards specified above. Remarks : This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report shall not be reproduced except in full, without the written approval of the laboratory. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Kew-Seung, Lim EMC DIV. Manager SGS KES CO., LTD. EMC Laboratory Report No. : F690501/LF-EMC000779 Page : 2 of 13 Contents 1. General Information 1.1 Manufacturer Information 3 1.2 General Description of EUT 3 1.3 Details of EUT 3 1.4 Description of Support Units 3 1.5 Cable List 4 1.6 System Configuration 4 1.7 Test Set-Up Configuration 5 1.8 Measurement Procedure 5 1.9 Standards Applicable for Testing 5 1.10 Summary of Results 6 2. Radio Disturbance 2.1 Test Results 7 2.2 Frequency Range 7 2.3 Limit Of Radiated Emission 7 2.3.1 Limit Of Radiated Emission Of FCC Part 15.109 Class B 7 2.3.2 Limit Of Radiated Emission Of FCC Part 15.209 Class B 7 2.4 Test of Conducted Emission 8 2.4.1 Test Instruments 8 2.4.2 Test Site 8 2.4.3 Operating Environment 8 2.4.4 Measurement Data 8 2.5 Test of Radiated Emission 9 2.5.1 Test Instruments 9 2.5.2 Test Site 9 2.5.3 Operating Environment 9 2.5.4 Measurement Data 9 3.Photographs of Test 11 4.Measured Emission Bandwith 13 Report No. : F690501/LF-EMC000779 Page : 3 of 13 1. General Information 1.1 Manufacturer Information Manufacturer : Daesung Eltec Co., Ltd. Address : 371-6, Kasan-Dong, Kumchon-Gu, Seoul, Korea 1.2 General Description of EUT Product Name : Vehicle’s DVD Player Model No. : DA-170 Serial No : NONE FCC ID : QV3DA170 1.3 Details of EUT Operating Frequency : 88.1 MHz – 89.5 MHz (FM Modulator Inside of DVD Player) Tested Power Supply : DC 12V Port : VIDEO IN, AUDIO(L/R) IN, DC IN, ANT IN, ANT OUT AUX IN, AUX OUT, REMOCON, DIGITAL OUT, POWER SELECT, DOOR s/w, CEIL GND, CEIL BATT Description of Operating : Connect to DC Power Supply, DVD Player and Play the DVD Player. Modifications to the EUT : None 1.4 Description of Support Units Product Model No. Serial No. Manufacturer DVD Player DVD-5100 P060022 SANYO ELECTRIC DC Power Supply M5P60-10A 864420 TET Electronics Corp. Cable Module N/A N/A N/A Remote Controller N/A N/A N/A Car MP3 Player N/A N/A N/A Speaker SP-Z N/A Logitech Report No. : F690501/LF-EMC000779 Page : 4 of 13 1.5 Cable List Start END Cable Spec Name I/O Port Name I/O Port Lengt h Shield EUT (DVD Player) VIDEO IN DVD Player Video Out 1.8 Shielded AUDIO(L/R) INDVD Player AUDIO(L/ R) OUT 1.8 Shielded FM Out EUT(Cable Module) FM IN 2.5 Unshielded DC IN DC Power Supply DC OUT 1.0 Unshielded EUT (Cable Module) FM IN EUT(DVD Player) FM Out 2.5 Unshielded ANT IN Antenna - 0.5 Shielded ANT OUT Car MP3 PlayerANT 0.5 Shielded DC Power Supply DC OUT EUT(DVD Player) DC IN 1.0 Unshielded AC IN LISN - 1.0 Unshielded Car MP3 Player AUDIO(L) OUTSpeaker - 0.5 Unshielded ANT EUT(FM Module) ANT OUT 0.5 Shielded 1.6 System Configuration Description Model Serial No. Manufacturer MAIN BOARD DA-170 N/A N/A DVD-ROM N/A N/A N/A Display BOARD DA-170 N/A N/A LCD Panel N/A A070FW03 N/A Cable Module Board 5710071001-B N/A N/A Remote Controller N/A N/A N/A Report No. : F690501/LF-EMC000779 Page : 5 of 13 1.7 Test Set-Up Configuration 1.8 Measurment Procedure Conducted Emission Testing was performed according ANSI C63.4:2003 in a shielded room with peripherals placed on a table, 0.8m high over a metal floor. It was located more than required distance away from the shielded room wall. Radiated Emission Testing was performed according to ANSI C63.4:2003 at the open field test site. The EUT was placed in a 0.8m high table along with the peripherals. The turn table was separated from the antenna distance 3 meters. Cables were placed in a position to produce maximum emissions as determined by experimentation, and operation mode was selected for maximum. The frequencies and amplitudes of maximum emission were measured at varying azimuths, antenna heights and antenna polarities. Reported are maximized emission levels. 1.9 Standards Applicable for Testing Table of tests to be carried out under FCC Part 15, Subpart C, Subpart B Test Standards Status FCC Part 15.109 & 15.209 & 15.239 Applicable Deviation from Standard No Deviation Speaker DC Power Supply EUT (Cable Modulato r) DVD Player EUT (DVD Player) Remote Controller Antenna A Car MP3 Player Report No. : F690501/LF-EMC000779 Page : 6 of 13 1.10 Summary of Results The data collected shows that Model DA-170complies with Part 15.109 of FCC Technical Rules. The highest emission level observed was at 432.00 for DVD Player mode radiated emission with a margin of 3.48dB and 216.02MHz for AUX mode radiated emission with a margin of 2.25dB and 88.30MHz for FM mod radiated emission with a margin of 5.97dBThe emission results of other frequencies(88.1MHz to 89.5MHz) are same as the results of the selected frequencies. The emissions from the intentional radiator is confined within a band 200 kHz wide centered on the operating frequency. The 200kHz band lies wholly within the frequency range of 88-108 MHz The field strength of any emissions within the pe…

Text truncated - open the document above for the full version.

Report No. : F690501/LF-EMC000779 Page : 12 of 13 z Front View of Radiated Emission z Rear View of Radiated Emission 4.Measured Emission Band
