QV3DA180VEHICLE'S DVD PLAYER

Owner's Manual FCCThis device complies with se ction 15 of FCC Regulations. Operation is subject to the following two conditions: (1)This device may not cause harmful interference (2) thisdevice is subject to interference, including interference thatmay cause undesired operation.Note : Any changes or modifications in construction of this device which are not expressly approved by the partyresponsible for compliance could void the authority tooperate the equipment.Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuantto section 15 of FCC Regulations. These limits aredesigned to provide reasonable protection against harmfulinterference in a residential area. This equipment generates,uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmfulinterference with radio or television reception, which can bedetermined by turning the equipment off and on, the useris encouraged to try to correct the interference by one ormore of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit, different from that to which the receiver is connected. -Consultthedealeroranexperiencedtechnicianforhelp. CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUCTLUOKAN 1 LASER LAITEKLASS 1 LASER APPARA FCCWARNINGTo reduce the risk of fire or shock hazard, do not exposethis DVD player to rain or moisture.NOTEThis product utilizes a laser. Use of controls oradjustments, or performance of procedures other thanthose specified herein may result in hazardous radiationexposure. Do not open cover and do not personallyattempt repair. Refer servicing to qualified personnel. Contents Precautions ■ Before Operating the Unit ■ Disc ￭ Remote Control Installation ￭ Remote Control ￭ Identification of Controls ■ Main Unit ￭ Remote Control and Buttons ￭ Basic Operation ■ Playing DVD Disc ￭ Playing MP3 Disc ￭ Kodak Picture CD View/Play ￭ FF/RW Search ￭ FF/RW Skip ￭ Slow Motion ￭ Frame Advance ￭ Advanced Operation ■ Display Information / Setup Display ￭ Languages ￭ Subtitles ￭ Repeat Play (Title, Chapter, Track) ￭ Section Repeat Play (A-B) ￭ Play in desired order ￭ Zoom In/Out ￭ Camera Angle ￭ Chapter Selection (GO TO) ￭ Initialization ■ Basic Operation ￭ Common Setup ￭ Audio Setup ￭ Video Setup ￭ Disc Setup ￭ Password Setup ￭ Product Standards ■■Warranty Precautions■ Do not remove the cover To reduce the risk of electric shock and maintainqualityofproduct,pleasedonotremovethecover.Please follow the instructions on the wiring diagram ofthe Installation Guide. ■ Keep small articles out of the reach of children Store small articles (screws etc.) in places notaccessible to children. If swallowed, consult physicianimmediately. ■ Stop using immediately if a problem occurs When problems occur, stop using the systemimmediately and contact the dealer from whom youpurchased the equipment. Some problems which maywarrant immediate attention include a lack of sound,noxious smoke being emitted from the unit, or foreignobjects dropped inside the unit. 1 ■ Do not operate the equipment while driving Do not change settings whi le driving. If operation requiring a prolonged view of the display is required,stop the vehicle in a safe location before attemptingoperation. ■ Do not use this equipment outside vehicle. Do not use this equipment for purposes other thanthose listed for a vehicle. Failure to do so may resultin an electric shock or an injury. ■ Keep foreign objects out of the monitor compartment Keep foreign objects out of the monitor compartment.Also, avoid placing your hands in the area where itmight interfere with the monitor's operation. Precautions■ Stop the vehicle before carrying out any operation that could interfere with your driving If the operation of the unit (such as opening or closingof the monitor, etc.) interferes with your driving, stopthe vehicle in a safe location before attemptingoperation. ■ Maintenance If you have problems, do not attempt to repair the unityourself. Return it to your purchasing dealer. ■ Turning On or Off 1. Pushing the OPEN switch forward will release the TFT-LCD monitor and it will drop down slightly. Pull the monitor downward until a comfortableviewing angle is reached. The internal friction will hold the screen in positionwhile the system is in use. 2 2. Pressing the POWER button on the unit or the remote controlwillturnthesystemonoroffalternately. When in use the internal backlighting will illuminatethe controls. 3. After the unit has been turned on and is displaying a picture, adjust the viewing angle by pivoting thescreen to optimize the picture quality. 4. Remember to turn the unit off and pivot the LCD to the locked position when not in use. ■ Connect Additional AV Input 1. AUX Video Input The unit will accept an audio/video input through theRCA jacks located on the side of the unit. The audio/video device could be a video game system,Video Cassette Recorder(VCR), or other input device. Precautions■ Region Code 1. Both the DVD player and disc are coded by region.2. These Region Code number must match in order for the disc to play. 3. This unit's code number is region number 1. Other Region Codes cannot be played in this unit. If the disc is not Region 1, the unit will display "Invalid Region." 4. Types of Discs your DVD will play : DVD disc - DVD disc which contain video.Audio disc - Audio CD contain musical or soundcontent only. MP3 disc - A disc that contain audio files (for example,a CD-R with MP3 files). VCD disc - VCD disc which contain video. ■ FM Transmitter Mode 1. If this unit has FM Transmitter function, please adjust the FM frequency to hear. 3 Before Operating the UnitDisc Usediscswithoneofth…

Text truncated - open the document above for the full version.

Daesung Eltec Co., Ltd. July. 20. 2004 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outline below. Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Manager Kew-Seung, Lim Tel. 82-31-263-0409 Fax. 82-31-263-0454

Report No. : F690501/LF-EMC000525 Exterior Photographs z Front View z Rear View

Report No. : F690501/LF-EMC000525 Label Location z Label

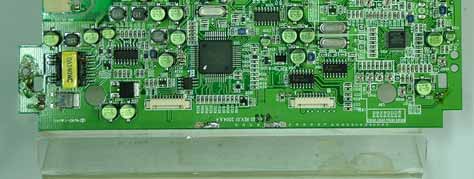

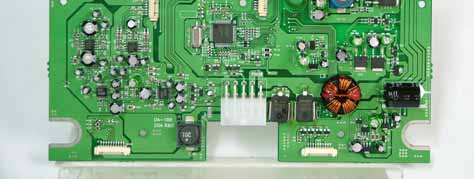

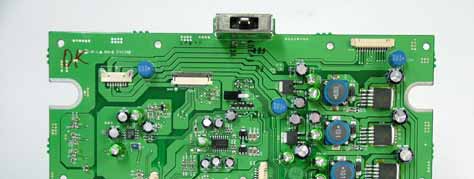

Report No. : F690501/LF-EMC000525 Interior Photographs z Top View of Main Board z Bottom View of Main Board Report No. : F690501/LF-EMC000525 z Front View of DVD-ROM z Rear View of DVD-ROM Report No. : F690501/LF-EMC000525 z Top View of LCD Board z Bottom View of LCD Board Report No. : F690501/LF-EMC000525 z Top View of LCD Panel z Bottom View of LCD Panel Report No. : F690501/LF-EMC000525 z Top View of FM Modulator Board z Bottom View of FM Modulator Board Report No. : F690501/LF-EMC000525 z Top View of Receiver Board z Bottom View of Receiver Board Report No. : F690501/LF-EMC000525 z Front View of Remote Controller z Rear View of Remote Controller Report No. : F690501/LF-EMC000525 z Inside View

Circuit Description As a power line, 12V DC (ACC) can be used. 12V DC power is supplied via power cable to IC3 KA7805 And 5V DC power(A5V) is supplied to TICI after being boosted to 5V. FM Modulator is enabled by FM Mode switch “ON” in the Main Unit. TICI BH1415F, as a wireless Audio Link IC which is manufactured by Rohm, can transmit FM-Stereo via ANT Cable to H/U, If you add the frequency of 7.6MHz X-TAL Clock and O.S.C Circuit to it(TICI BH1415F).

Report No. : F690501/LF-EMC000525 Page : 1 of 13 FCC COMPLIANCE REPORT Order No. : SKA-04-0091/E Reference No. : F690501/LF-EMC000525 Applicant : Daesung Eltec Co., Ltd. Address of Applicant : 371-6, Kasan-Dong, Kumchon-Gu, Seoul, Korea Equipment Under Test (EUT) : Product Name : Vehicle’s DVD Player Model No. : DA-180 FCC ID : QV3DA180 Standards : FCC Part 15, Subpart B, Subpart C ANSI C63.4:2003 Date of Receipt : 24 June 2004 Date of Test : 25 June 2004 Date of Issue : 05 July 2004 Test Result : PASS In the configuration tested, the EUT complied with the standards specified above. Remarks : This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report shall not be reproduced except in full, without the written approval of the laboratory. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Kew-Seung, Lim EMC DIV. Manager SGS KES CO., LTD. EMC Laboratory Report No. : F690501/LF-EMC000525 Page : 2 of 13 Contents 1. General Information 1.1 Manufacturer Information 3 1.2 General Description of EUT 3 1.3 Details of EUT 3 1.4 Description of Support Units 3 1.5 Cable List 4 1.6 System Configuration 4 1.7 Test Set-Up Configuration 5 1.8 Measurement Procedure 5 1.9 Standards Applicable for Testing 5 1.10 Summary of Results 6 2. Radio Disturbance 2.1 Test Results 7 2.2 Frequency Range 7 2.3 Limit Of Radiated Emission 7 2.3.1 Limit Of Radiated Emission Of FCC Part 15.109 Class B 7 2.3.2 Limit Of Radiated Emission Of FCC Part 15.209 Class B 7 2.4 Test of Conducted Emission 8 2.4.1 Test Instruments 8 2.4.2 Test Site 8 2.4.3 Operating Environment 8 2.4.4 Measurement Data 8 2.5 Test of Radiated Emission 9 2.5.1 Test Instruments 9 2.5.2 Test Site 9 2.5.3 Operating Environment 9 2.5.4 Measurement Data 9 3.Photographs of Test 11 4.Measured Emission Bandwith 13 Report No. : F690501/LF-EMC000525 Page : 3 of 13 1. General Information 1.1 Manufacturer Information Manufacturer : Daesung Eltec Co., Ltd. Address : 371-6, Kasan-Dong, Kumchon-Gu, Seoul, Korea 1.2 General Description of EUT Product Name : Vehicle’s DVD Player Model No. : DA-180 Serial No : NONE FCC ID : QV3DA180 1.3 Details of EUT Operating Frequency : 88.1 MHz, 88.3MHz, 88.5MHz, 88.7MHz, 88.9MHz Tested Power Supply : DC 14V Port of DVD Player : VIDEO IN, AUDIO (L/R) IN, AUDIO (L) OUT, AUDIO (R) OUT, DC IN, DC OUT Port of FM Modulator : L, R, DC IN, ANT IN, ANT OUT Description of Operating : Play DVD-ROM and output audio signal through FM Modulator Modifications to the EUT : None 1.4 Description of Support Units Product Model No. Serial No. Manufacturer DVD Player DVD-5100 P0600200 SANYO ELECTRIC DC Power Supply M5P60-10A 864420 TET Electronics Corp. Remote Controller N/A N/A N/A Car MP3 Player N/A N/A N/A Speaker SP-Z N/A Logitech Antenna N/A N/A N/A Report No. : F690501/LF-EMC000525 Page : 4 of 13 1.5 Cable List Start END Cable Spec Name I/O Port Name I/O Port Length Shield EUT VIDEO IN DVD Player VIDEO OUT 1.8 Shielded (DVD Player) AUDIO (L/R) IN DVD Player AUDIO(L/R) OUT 1.8 Shielded AUDIO(L) OUT EUT(FM Stereo Modulator) L 0.5 Unshielded AUDIO(R) OUT EUT(FM Stereo Modulator) R 0.5 Unshielded DC IN DC Power SupplyDC OUT 1.0 Unshielded DC OUT EUT(FM Stereo Modulator) DC IN 0.5 Unshielded EUT L EUT(DVD Player) AUDIO(L) OUT 0.5 Unshielded (FM R EUT(DVD Player) AUDIO(R) OUT 0.5 Unshielded Stereo DC IN EUT(DVD Player)DC OUT 0.5 Unshielded Modulator) ANT IN Antenna - 2.5 Shielded ANT OUT Car MP3 PlayerANT 1.0 Shielded DC Power DC OUT EUT(DVD Player)DC IN 1.0 Unshielded Supply AC IN LISN - 1.0 Unshielded Car MP3 Player AUDIO(L) OUT Speaker - 1.0 Unshielded ANT EUT(FM Stereo Modulator) ANT OUT 1.0 Shielded 1.6 System Configuration Description Model Serial No. Manufacturer Main Board DA-180 N/A DSA R&D DVD-ROM DSV-810 N/A DVS KOREA Co., Ltd. LCD Board DA-180 N/A N/A LCD Panel A070FW03 06J423MI0F-51- G102001 N/A Receiver Board N/A N/A N/A Remote controller N/A N/A N/A FM Modulator Board N/A N/A N/A Report No. : F690501/LF-EMC000525 Page : 5 of 13 1.7 Test Set-Up Configuration 1.8 Measurment Procedure Conducted Emission Testing was performed according ANSI C63.4:2003 in a shielded room with peripherals placed on a table, 0.8m high over a metal floor. It was located more than required distance away from the shielded room wall. Radiated Emission Testing was performed according to ANSI C63.4:2003 at the open field test site. The EUT was placed in a 0.8m high table along with the peripherals. The turn table was separated from the antenna distance 3 meters. Cables were placed in a position to produce maximum emissions as determined by experimentation, and operation mode was selected for maximum. The frequencies and amplitudes of maximum emission were measured at varying azimuths, antenna heights and antenna polarities. Reported are maximized emission levels. 1.9 Standards Applicable for Testing Table of tests to be carried out under FCC Part 15, Subpart C, Subpart B Test Standards Status FCC Part 15.109 & 15.209 & 15.239 Applicable Deviation from Standard No Deviation Speaker DC Power Supply EUT (FM Stereo Modulator )) DVD Player EUT (DVD Player) Remote Controller Antenna A Car MP3 Player Report No. : F690501/LF-EMC000525 Page : 6 of 13 1.10 Summary of Results The data collected shows that Model DA-180 complies with Part 15.109, Part 15.209 and 15.239 of FCC Technical Rules. The highest emission level observed was at 463.17MHz radiated emission with a margin of 2.97dB. The emission results of other frequencies(88.3MHz, 88.5MHz, 88.7MHz and 88.9MHz) are same as the results of the selected frequency of 88.1MHz. So, the only result of 88.1MHz is reported. Emissions from the intentional …
