QV3DA200TFDSCAR DVD - PLAYER

2004-02-17 Operation ManualModel : DA-200 1 Manual102-40214 2004-02-17 Precaution 1. Do not remove the cover. To reduce the risk of electric shock and keep the quality of pr oduct, please do not remove the cover. Please follow up by the instruction of the wiring Diagram of th e Installation Guide. 2. Keep small articles out of the reach of children. Store small articles (screws etc.) in places not accessible to children. If swallowed, consult physician immediately. 3. Stop using immediately if a problem appears. When problems appear, stop using the system immediately and con tact the dealer from whom you purchased the equipment. Some problems which may warrant immediate attention include a l ack of sound, noxious smoke being emitted from the unit, or foreign objects dropped inside the unit. 4. Do not operate the equipment while driving. Do not change setting while driving. If operation requiring a p rolonged view of the display is required, stop the vehicle in a safe 5. Do not insert 3.5 Inch Disc 3.5 Inch Disc will may not be used. 6. Do not use this equipment outside vehicle. Do not use this equipment for purposes other than those listed for a vehicle Failure to do so may result in an electric shock or an injury. 2 Manual102-40214 2004-02-17 7. Keep foreign objects out of the Monitor compartment. Keep foreign objects out of the monitor compartment. Also, avoi d placing your hands in the area where it might interfere with the monitor's operation. 8. Stop the vehicle before carrying out any operation that coul d interferes with your driving. If the operation of the unit (such as opening or closing of the monitor, etc.) interferes with your driving, stop the vehicle in a safe location before attempting operation. 9. Temperature Be sure the temperature inside the vehicle is beween +60°C (+140 °F) and -10°C (+14°F) before turining your unit on. 10. Maintenance If you have problems, do not attempt to repair the unit yoursel f. Return it to your purchasing dealer. 3 Manual102-40214 2004-02-17 Check point before operating. 1.Turning On or Off 1. Pushing the OPEN switch forward will release the TFT-LCD monitor and it will dr op down slightly. Pull the monitor downward until a comfortable viewing angle is reached. The internal friction will hold the screen in position whil e the system is in use. 2. Pressing the POWER button on the unit or the remote control will turn the system ON or OFF alternately. When in use, the internal backlighting will illuminate the controls. 3. After the unit has been turned on and is displayed in a pict ure, adjust the viewing angle by pivoting the screen to optimize the picture quality.4. Remember to turn the unit off and pivot the LCD to the locke d position when not in use. 2.Dome Lights Operation 1.The lights are controlled by a three position slide switch. 2. Sliding the switch to the ON position will turn the lights on. 3. The OFF position will prevent the lights from turning on at all times, 4. The AUTO position will allow the lights to turn on and off with the vehi cle's interior lighting. Note : Refer to the Installation Manual for the wire connectio ns. Do not leave the vehicle unattended with the dome lig ht switch in the ON position, as this could result in a discharged battery. 3.Connect Additional AV Input 1. The audio/video inputs may be connected to Audio/Video devic e directly or through a Junction Box which can connect to a Video cassette Recorder(VCR), video game system, or other audio/video devices. 2. AUX Video Input ( Additional) The unit will accept an audio/video input through the RCA j acks located on the side of the unit. The audio/video device could be a video game system, Video Cassete Recorder (VCR), or other input device. 4 Manual102-40214 2004-02-17 4.Regionl Code 1.Both the DVD player and disc are coded by region.2.These regional code number must match in order for the disc t o play. 3.This unit's code number is region number 1 . Other regional codes cannot be played in this unit. If not, the unit will display "Invalid Region"4.Types of Discs your DVD will play DVD discs - DVDs discs which contain video. Audio discs - Audio CDs contains musical or sound content on ly. MP3 discs - A disc that contains audio files(for example, a CD-R with downloaded MP3 files). VCD discs - VCD discs which contain video. 5.FM Transmitter Mode (Optional) 1.If this unit has FM Transmitter function, please adjust the F M frequency to hear. 2.For details, please refer to page XXXX. 5 Manual102-40214 2004-02-17 General Features 1.Slot Mechanism type DVD Deck2.Flip Down type 10.2 Inch TFT LCD Monitor (Wide Screen)3.Full Function Remote Contol4.FM Transmitter with remote control and OSD (Optional)5.Infrared Transmitter for IR Wireless Headphones6.Two (2) Audio/Video Inputs / One (1) Audio/Video Output7.Remote Sensor8.Dome Lights with Switch ( ON/OFF/AUTO)9.FM Modulater Jack for connection 10.OSD for Control of DVD and Monitor Functions11.TV Tuner (Optional)12.FM Modulator (Optional) 6 Manual102-40214 2004-02-17 Identifications of controls Main Unit Picture 1. DVD disc insert slot.2. Play Button.(In emergeny mode, Direction Left)3. Stop Button.(In emergency mode, Direction Right and Emergenc y Start) 4. Infrared Transmitter and Sensor - Used to transmit audio to wireless headphones.5.Eject Button. (In emergency mode, Enter Button)6. Power Button7.F.SKIP Button (In emergency mode, Direction UP)8.R.SKIPButton (In emergency mode, Direction DOWN)9. Dome Lights - provide additional Interior illumination.10. Three position Dome Light Switch. Auto-The dome lights will turn on automatically in this pos ition. Off-The dome lights will not turn on in this position. On-Turns on the dome lights.11. OPEN Switch -Moves in direction of the arrow to release the drop down screen. 12. Flip Down LCD Panel.13. Auxiliary A Input.14. Auxiliary B Input.15. Memory Card Slot16. Side Remote Sensor Eye - Allows the remote control to operate and control other acces sories in the system. 1 M…

Text truncated - open the document above for the full version.

371-6, Kasan-Dong, Kumchon-Gu, Seoul, Korea 153-023 March 02, 2004 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : DAESUNG ELTEC Co., Ltd. FCC ID : QV3DA200TFDS FCC Part 15 Subpart C Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, DAESUNG ELTEC Co., Ltd. hereby requests confidentiality of the Block diagram, Schematics, Parts list, Operational Description of the attached test report. These documents contain detailed system and equipment description and related information about the product which DAESUNG ELTEC Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, DAESUNG ELTEC Co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, SUNG-MIN OH R&D CENTER DIRECTOR

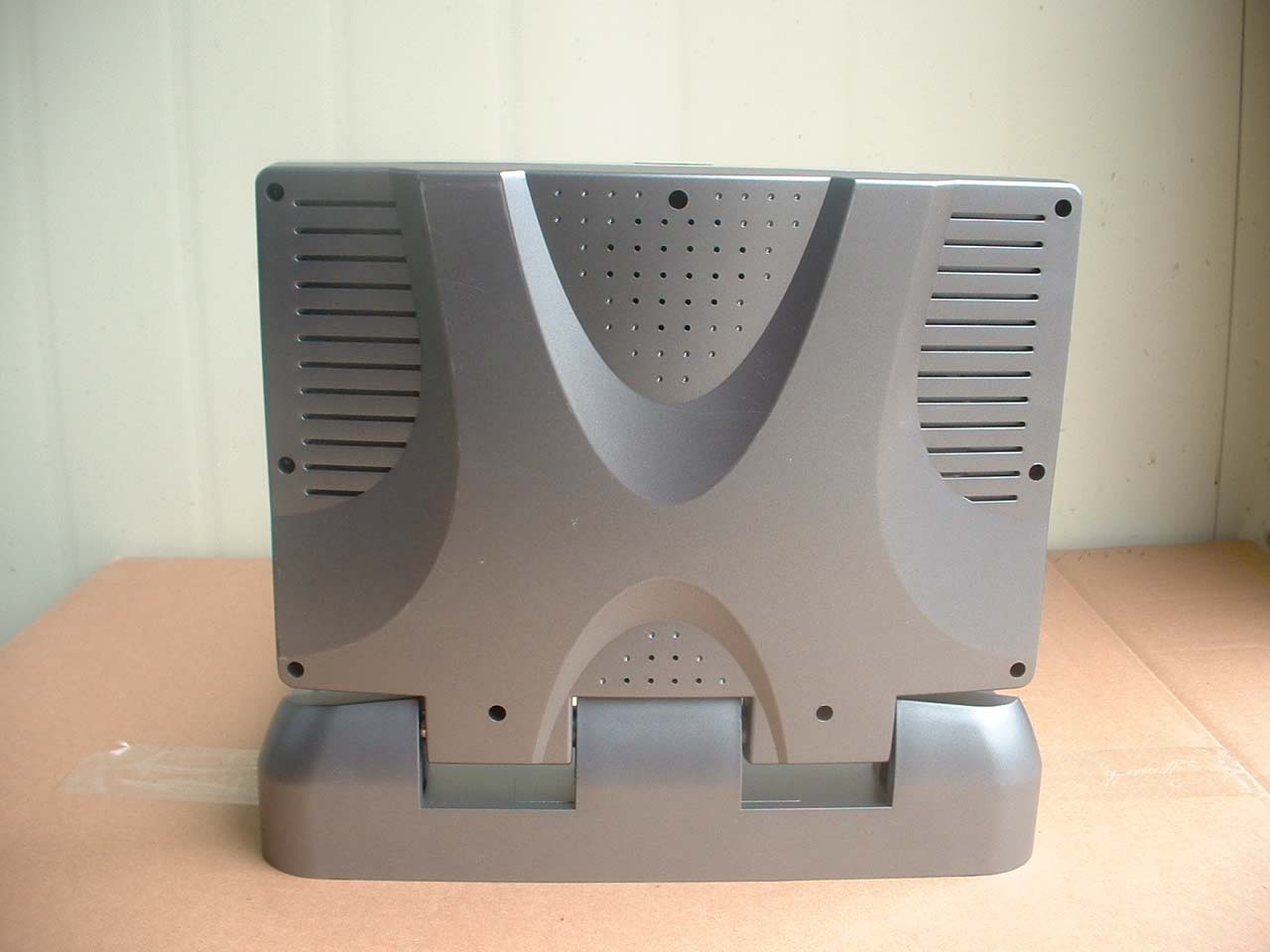

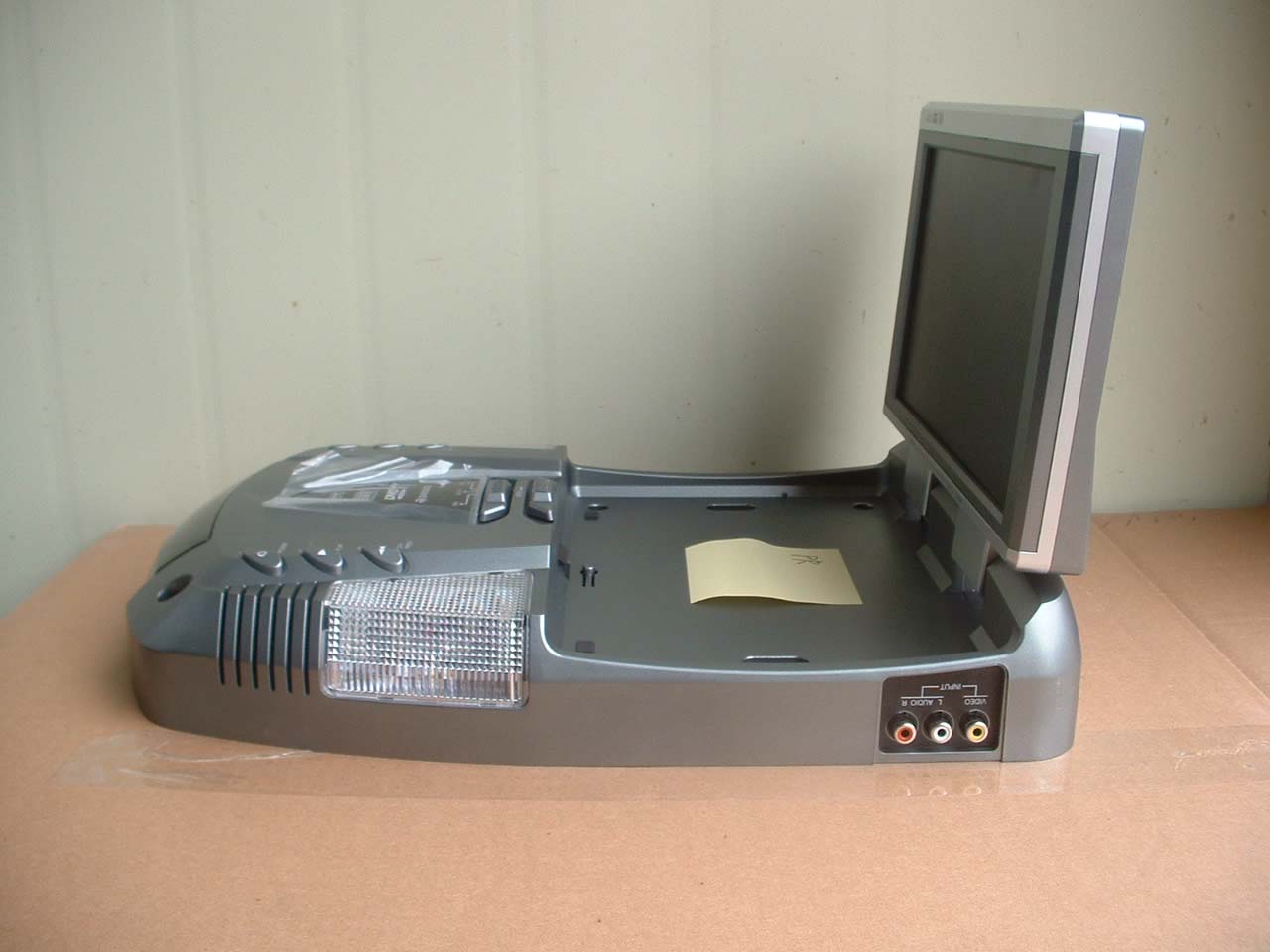

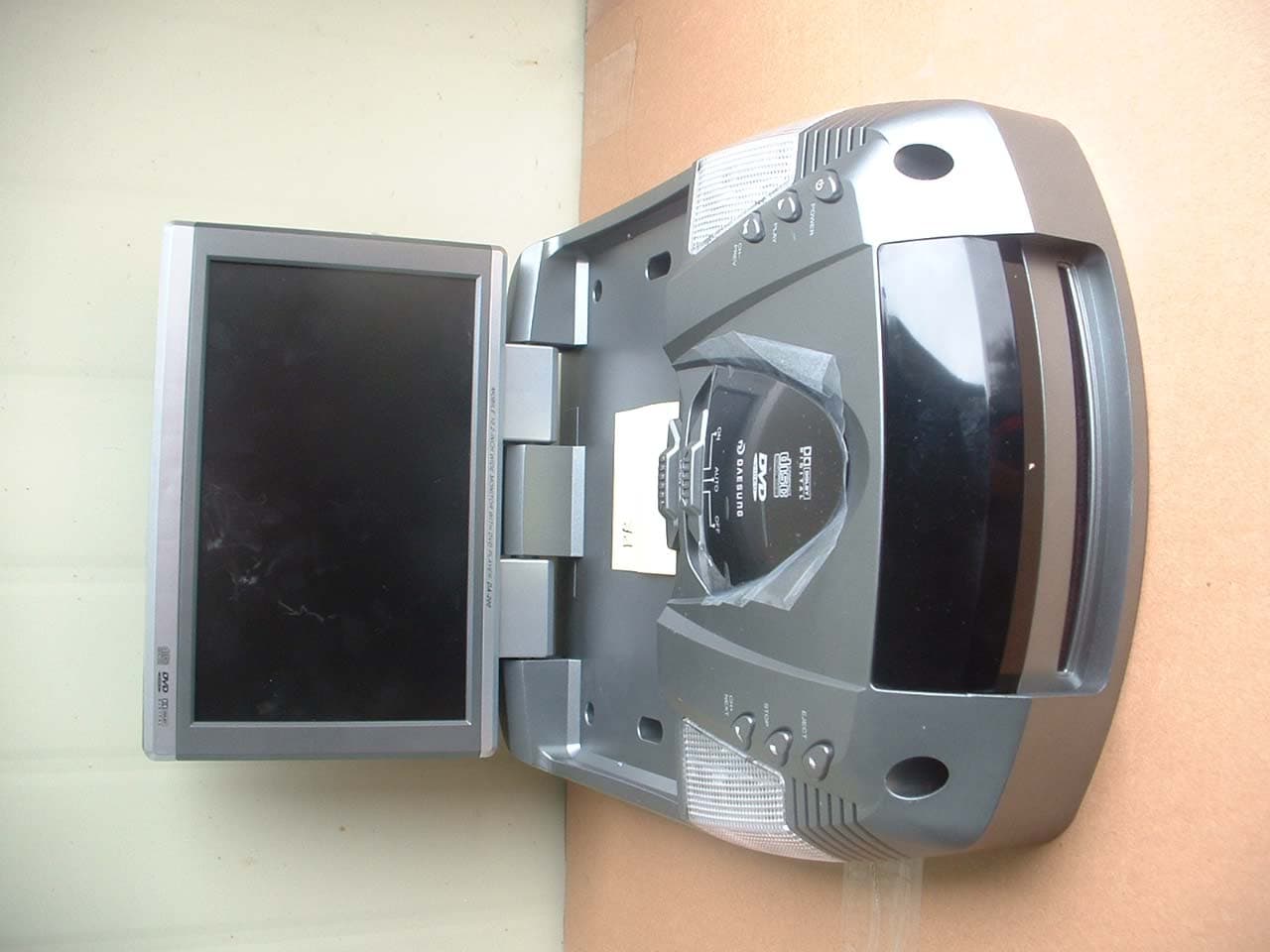

View 1 View 2 View 3

FCC ID: QV3DA200TFDS FCC ID SAMPLE LABEL & LOCATION MODEL NAME: HT-DB390 LABELLING REQUIREMENTS PER­2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase G (SEE NEXT PAGE) FCC ID: QV3DA200TFDS APPENDIX - 1 FCC ID: QV3DA200TFDS Model No.: DA-200 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QV3DA200TFDS MODEL NAME: SWA-1000 LABELLING REQUIREMENTS PER­2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase G (SEE NEXT PAGE) FCC ID: QV3DA200TFDS APPENDIX - 2 FCC ID: A3LHTDB390 Model No.: SWA-1000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

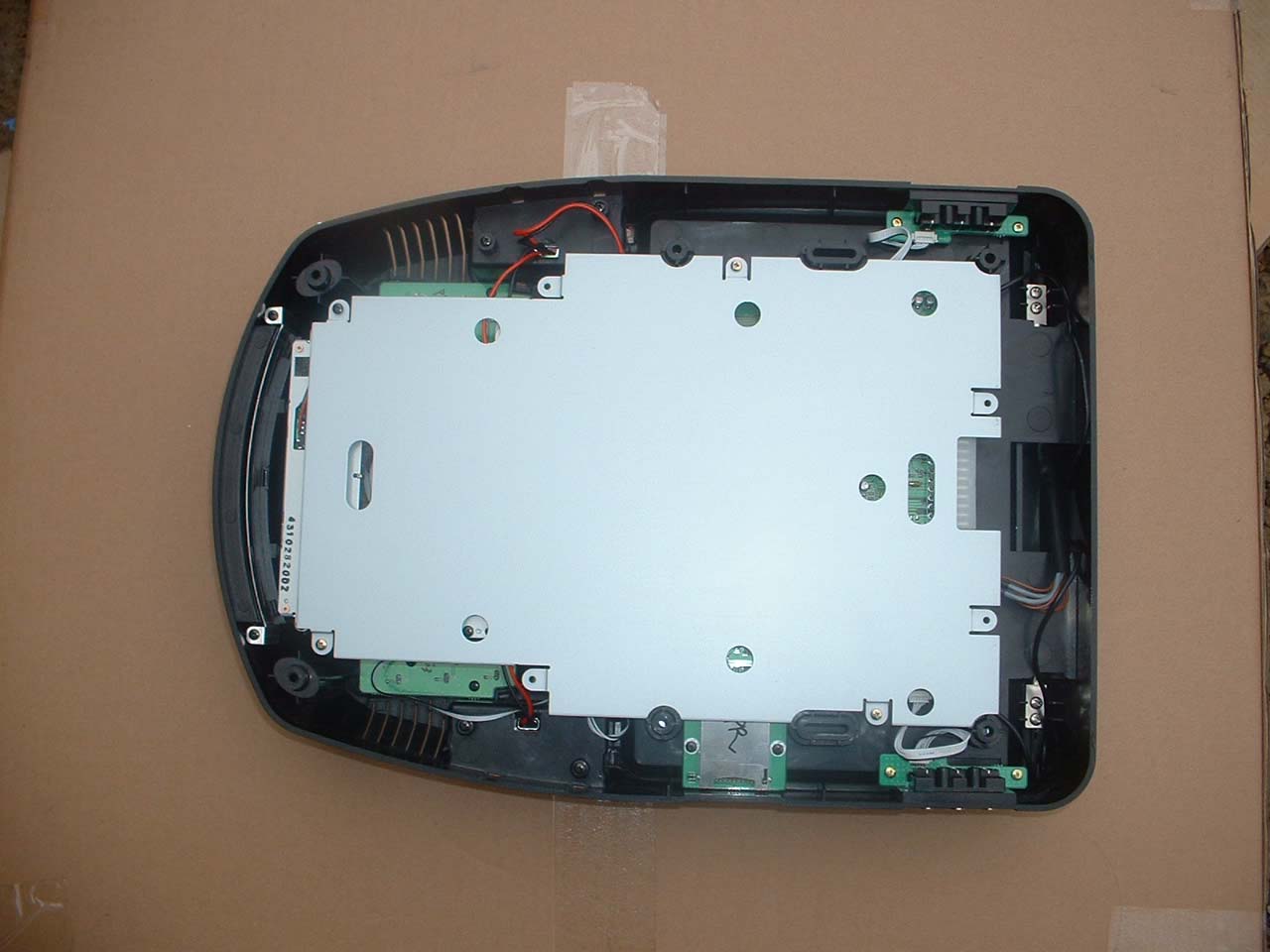

View 1 (Internal) View 2 (DVD Driver) View 3 (Main PCB) View 4 (Front PCB) GG

DEMC#DR50110403A FCC ID: QV3DA200TFDS Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 1 of 22 DIGITAL EMC CO., LTD. 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATION OF COMPLIANCE DAESUNG ELTEC Co., Ltd. 371-6, Kasan-Dong, Kumchon-Gu, Seoul, Korea 153-023 Dates of Tests: March 9~11, 2004 Test Report S/N: DR50110403A Test Site : DIGITAL EMC CO., LTD. FCC ID APPLICANT FCC Classification : Low Power Communication Device Transmitter Device name : CAR DVD-PLAYER Manufacturer : DAESUNG ELTEC Co., Ltd. Model name : DA-200 Test Device Serial number : Identical prototype : FCC Rule Part(s) : FCC Part 15 Subpart C ANSI C-63.4-2001 Frequency Range : 88.1 ~ 89.5 MHz Data of issue : March 5, 2004 I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. QV3DA200TFDS DAESUNG ELTEC Co., Ltd. DEMC#DR50110403A FCC ID: QV3DA200TFDS Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 2 of 22 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TEST REQUIREMENTS ----------------------------------------------------------------------------- 3.2.1 FIELD STRENGTH OF FUNDAMENTAL AND EMISSIONS WITHIN PERMITTED BAND. -- 3.2.2 RADIATED EMISSIONS ----------------------------------------------------------------------------------- 3.2.3 AC CONDUCTED EMISSION ---------------------------------------------------------------------------- 3.2.4 OCCUPIED CHANNEL BANDWIDTH ----------------------------------------------------------------- 3.2.5 ANTENNA REQUIREMENT ------------------------------------------------------------------------------ APPENDIX I MEASUREMETN UNCERTAINTY -------------------------------------------------- APPENDIX II TEST EQUIPMENT USED FOR TESTS --------------------------------------------- APPENDIX III LABEL AND USER'S MANUAL INFORMATION ------------------------------- 3 4 6 6 7 7 8 9 12 14 15 17 20 DEMC#DR50110403A FCC ID: QV3DA200TFDS Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 3 of 22 1. General information’s This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer March 5, 2004 Won -Jong LEE Data Name Signature Report Reviewed By: manager March 5, 2004 Dong -Min JUNG Data Name Signature Ordering party: Company name : DAESUNG ELTEC CO., LTD. Address : 371-6, Kasan-Dong, Kumchon-Gu, Zip code : 153-023, City/town : Seoul, Country : Korea Date of order : March 2, 2004 DEMC#DR50110403A FCC ID: QV3DA200TFDS Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 4 of 22 2. Information’s about test item QV3DA200TFDS 2.1 Equipment information Equipment model name DA-200 Type of equipment CAR DVD-PLAYER Frequency band 88.1 ~ 89.5 MHz Operating Frequencies 88.1, 88.3, 88.5, 88.7, 88.9, 89.1, 89.3, 89.5 MHz Type of antenna PCB Pattern Antenna Power DC 11~ 16 V (30W max) 2.2 Cabling Configuration EUT Shield Length (m) Connection Left Video Input None 1.2 75 ohm termination Left Audio Input(R) None 1.2 open Left Audio Input(L) None 1.2 open Right Video Input None 1.2 75 ohm termination Right Audio Input(R) None 1.2 open Right Audio Input(L) None 1.2 open DC power Cable None 1.5 DC power supply Remote Control Cable None 0.5 open Tuner Cable Shield 1.2 75 ohm termination Video Output None 1.2 75 ohm termination Audio Output (R) None 1.2 open Audio Output (L) None 1.2 open 2.3 Tested environment Temperature : 15 ~ 35 ( o C) Relative humidity content : 20 ~ 75 % Air pressure : 86 ~ 103 kPa Details of power supply : DC 12.0 V (powered by power supply) DEMC#DR50110403A FCC ID: QV3DA200TFDS Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 5 of 22 QV3DA200TFDS 2.4 Tested frequency Frequency TX RX Low frequency 88.1 MHz - High frequency 89.5MHz - Note: Measurements were performed top and bottom location in the frequency range of operation according to the section 15.31(m) 2.5 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing -> none DEMC#DR50110403A FCC ID: QV3DA200TFDS Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 6 of 22 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.239 Field Strength of Fundamental and Emissions within permitted band. < 250 uV @ 3m Radiated C 15.209 Radiated Emission < FCC 15.209 limits Radiated C 15.207 AC Conducted Emissions < FCC 15.207 limits Line Conducted NA 15.239 Occupied channel bandwidth < 200kHz Radiated C 15.203 Antenna Requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: Conducted emission test is not applied, because the power of the EUT is supplied from a Car battery. Note 3: The sample was tested according to the following specification: FCC Parts 15.239; ANSI C-63.4-2001 DEMC#DR50110403A FCC ID: QV3DA200TFDS Copyright ○ c 2004, DIGITAL EMC Co., Ltd. Page 7 of 22 3.2 TEST requirements 3.2.1 Field Strength of Fundamental and Emissions within permitted band. Procedure: The field strength of emissi…
