QV7-GC88752-123SHARK WHEELIE MONSTER

Important safety informationThank you for buying this REVOLT item. To ensure that you operate the vehicle correctly, please read these instructions carefully before first use and store them in a safe place for future reference. Safety information*Keep the smaller-sized accessories out of the reach of children. *Do not store batteries in a hot environment (e.g. near open flames or a heating device).*Children must be supervised by an adult when operating the vehicle. The vehicle should always remain within the line of sight of the driver (or instructor). *Do not recharge non-rechargeable batteries. When installing or changing the batteries, ensure that they are connected in the correct polarity. Do not mix old and new batteries or different types. *Do not short circuit the battery terminals.*If you do not plan to use the vehicle for at least 10 days, discharge the battery to 40%-50% (i.e. if the battery is fully charged, drive the vehicle for half of the total driving time). This helps to *You must only use the charging cable provided. Disconnect the charging cable from the vehicle before cleaning. *Regularly inspect the charging cable's wires, plug socket, out er casing and other accessories to ensure they are not damaged. If there are any signs of damage, discontinue use immediately untilrepaired. *After use, ensure that the vehicle and remote control are switched off and remove the batteries in the remote control.*The packaging and this manual contain important information an d should be kept in a safe place for future reference. Repair and maintenance*Clean the product regularly with a clean, soft cloth.*Avoid exposing the product to direct sunlight or heat.*Although this product is designed to drive on water, do not submerge the product in water, as it may damage the electronic components. *Water may enter the product during play and should be dried throughly afterward. About this product Specifications Remote controlled vehicleWeight 686g (included battery) Dimensions 25.5x20.5x19.5cm Remote control range 15-20mCharging time about 140 mins Operating time 15-20 mins Battery 7.4V 500mAh rechargeble battery (included) Address: NO.2 WEST XINGYE ROAD LAIMEI INDUSTRIAL AREA CHENG HAI, Shantou, China. Sales hotline: 0754-86980668, After-sales hotline: 0754-86395095 The manufacturer the right t RWKH¿QDOLQ terpretation of this instruction manual.  User Manual 2.4GHz Remote control TG1033 PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE. The materials, specifications, parts and packaging mentioned in this manual are for reference purposes only. We are not responsible for any changes made to this print ed material, nor are we able to inform customers of any updates or changes. Please refer to our website: R3VOLT.COM for the latest information. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.Radiation Exposure StatementThe device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules These limits are designed to provide reasonable prote - ction against harmful interference in a residential installatio n. This equipment generates, uses and can radiate radio frequency energ y and, if not / installed and used in accordance with the instructions, may cause harmful interference to radio communications Warning: Changes or modifications to this unit not expressly app-roved by the party responsible for compliance could void the users authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfe-rence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Decoration of Conformity Inserts “Hereby, GuangDong Syma model drone Industrial co, ltd, declare s that this drone is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU ” Remote controlOperating frequency 2.4 GHzBattery Requirements 2xAA 1.5V batteries (not included) prolong the lifespan of the battery. Remote control X1 USB charging cable X1 7.4V battery X1 InstructionManual x 1 Contents RC Truck x 1 Operation Instructions 1. Press button to ride wheelies on the back tyres. 2. Press button to ride wheelies on the front tyres. 3.Push both the left joystick and the right joystick forward simultaneously,and the car will move forward. 4.Push the left and right joysticks backward simultaneously, andthe car will move backward. 5.Press the left joystick forward/backward,and the car will moveforward/backward turning right. 6.Press the right joystick forward/ backward,and the car will moveforward/backward turning left. 6 Press the righ Part Descriptions POWER SWITCH POWER SWITCH Wheelies on back tyres Wheelies on front tyres Right Joystick Left Joystick Battery Installation Battery Installation Remote control 1.Remove the battery cover on the remote control and load the AA batteries into the battery compartment according to the indicated polarity. 2.Replace the battery cover. RC Truck 1. Open the battery compartment cover at the base of the truck.2…

Text truncated - open the document above for the full version.

GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD Covered Equipment Certification Attestation Letter 7/1/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: QV7-GC88752-123 GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Ivan Chen Title: Manager Company Name: GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD Date: 7/1/2026

81,7('67$7(6'(6,*1$7('$*(17/(77(5 'DWH 72)HGHUDO&RPPXQLFDWLRQ&RPPLVVLRQ (TXLSPHQW$XWKRUL]DWLRQ%UDQFK 2DNODQG0LOOV5RDG &ROXPELD0,' $SSOLFDQW86GHVLJQDWHGDJHQW &RPSDQ\1DPH*8$1*'21*6<0$ 02'(/$,5&5$)7 ,1'8675,$/&2/7' &RPSDQ\1DPH3LFXV$GYLVRUV86//& &RQWDFW1DPH,YDQ&KHQ&RQWDFW1DPH,YDQ:DQJ $GGUHVV12:(67;,1*<( 52$'/$,0(, ,1'8675,$/$5($ &+(1*+$O6KDQWRX &KLQD $GGUHVV629(5(,*1'567(% +2867217; 8QLWHG6WDWHV &LW\3URYLQFH=LS&LW\3URYLQFH=LS+2867217; 7HOHSKRQH7HOHSKRQH   (PDLOV\PD#V\PDWR\VFRP(PDLOLYDQZDQJ#SLFXVIL )51)51 $SSOLFDEOH(TXLSPHQW)&&,'49*& $771'LUHFWRURI&HUWLILFDWLRQ :H*8$1*'21*6<0$02'(/$,5&5$)7,1'8675,$/&2/7'!DQG 3LFXV$GYLVRUV86//&!XQGHUVWDQGDQGDFNQRZOHGJHWKHDSSOLFDQWVFRQVHQWDQGWKHGHVLJQDWHG DJHQW¶VREOLJDWLRQWRDFFHSWVHUYLFHRISURFHVVLQWKH8QLWHG6WDWHVIRUPDWWHUVUHODWHGWRWKHDSSOLFDEOH HTXLSPHQWDQGDWWKHSK\VLFDO86DGGUHVVDQGHPDLORIWKHGHVLJQDWHGDJHQWOLVWHGDERYH :H*8$1*'21*6<0$02'(/$,5&5$)7,1'8675,$/&2/7'!DQG 3LFXV$GYLVRUV86//&!DFNQRZOHGJHWKHDSSOLFDQW¶VDFFHSWDQFHRILWVREOLJDWLRQWRPDLQWDLQDQDJHQW IRUVHUYLFHRISURFHVVLQWKH8QLWHG6WDWHVIRUQROHVVWKDQRQH\HDUDIWHUHLWKHUWKHJUDQWHHKDV SHUPDQHQWO\WHUPLQDWHGDOOPDUNHWLQJDQGLPSRUWDWLRQRIWKHDSSOLFDEOHHTXLSPHQWZLWKLQWKH86RUWKH FRQFOXVLRQRIDQ\&RPPLVVLRQUHODWHGDGPLQLVWUDWLYHRUMXGLFLDOSURFHHGLQJLQYROYLQJWKHHTXLSPHQW ZKLFKHYHULVODWHU $SSOLFDQW *8$1*'21*6<0$02'(/$,5&5$)7 ,1'8675,$/&2/7' 86GHVLJQDWHGDJHQW 3LFXV$GYLVRUV86//& 1DPH 3ULQWHG ,YDQ&KHQ1DPH 3ULQWHG ,YDQ:DQJ 7LWOH0DQDJHU7LWOH&(2 6LJQDWXUH 6LJQDWXUH

GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD DATE: 7/1/2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongzhou Testing Co.,Ltd. (1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD (NO.2 WEST XINGYE ROAD LAIMEI INDUSTRIAL AREA CHENG HAI, Shantou, China) <Signature> Name: Ivan Chen Title: Manager Applicant Company: GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD

Date: 7/1/2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Ivan Chen Title: Manager Company: GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD

Date: 7/1/2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: QV7-GC88752-123 Product Name: SHARK WHEELIE MONSTER Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Ivan Chen Title: Manager Company: GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD

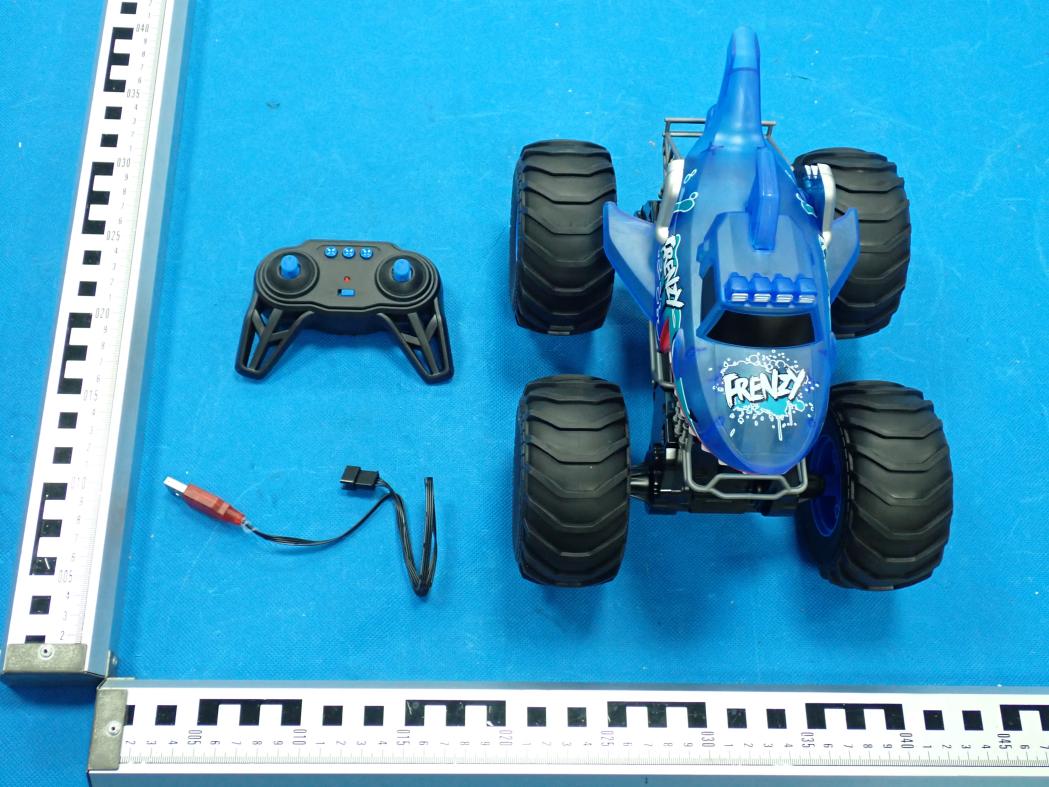

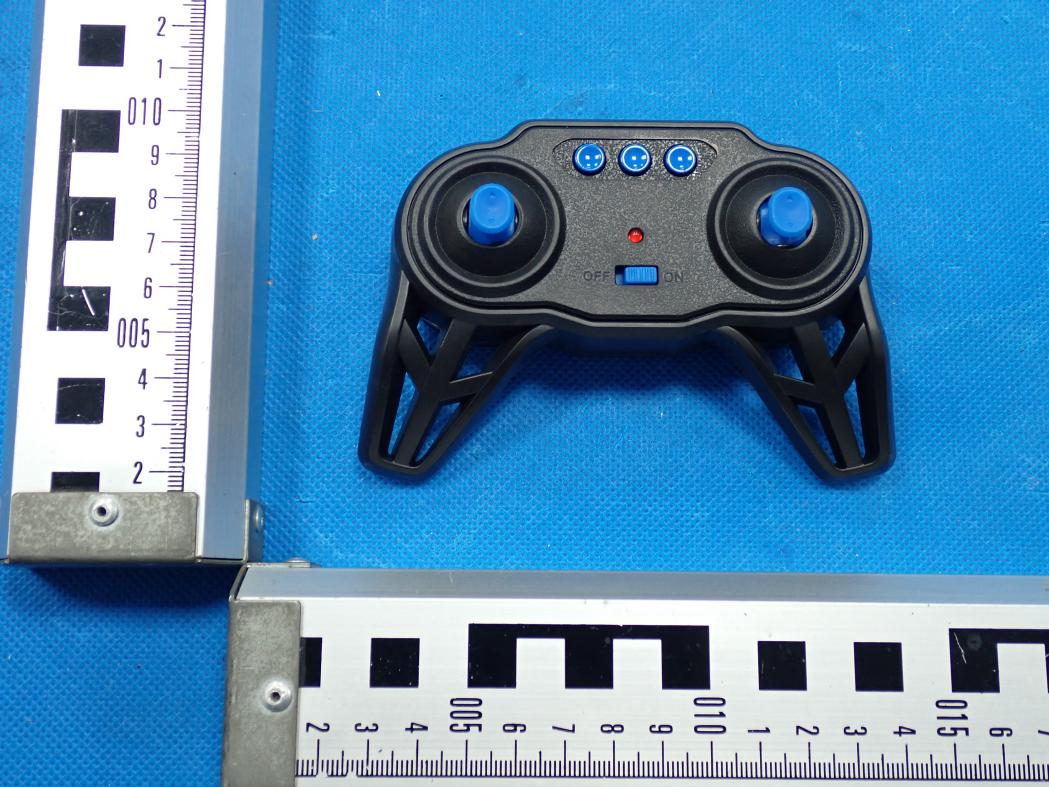

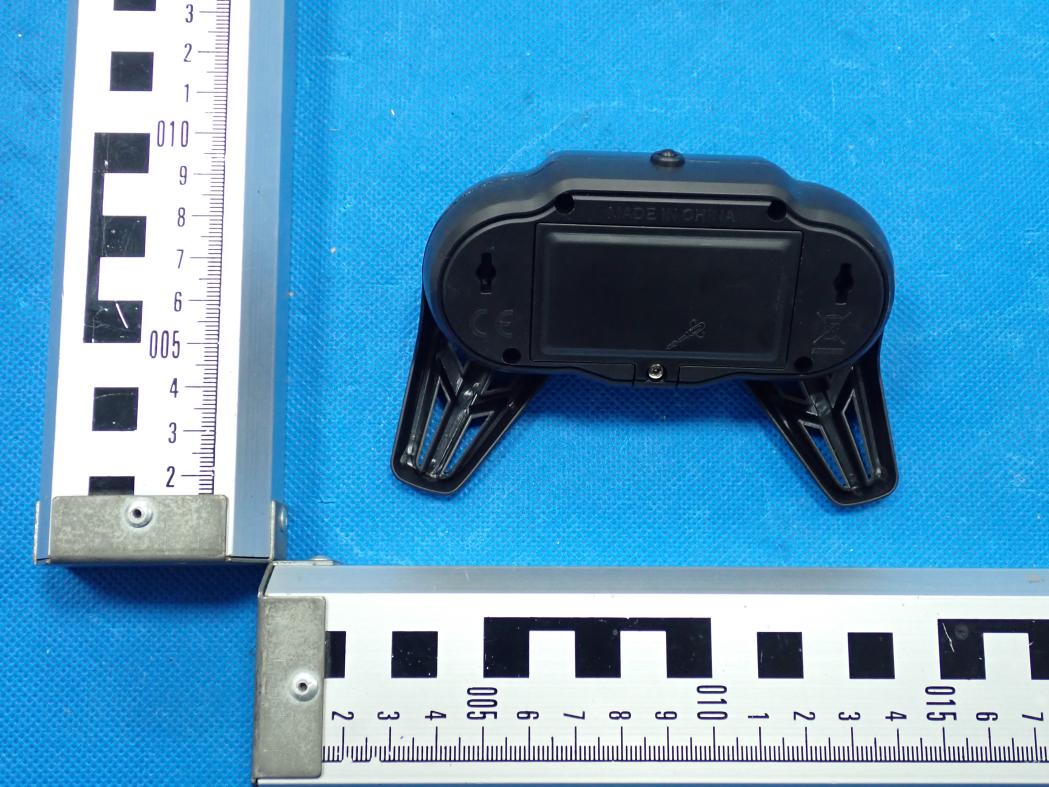

Report No.:TZ0035260557PH02 Page 1 of 4 External Photographs of EUT External Photo 1 External Photo 2 Report No.:TZ0035260557PH02 Page 2 of 4 External Photo 3 External Photo 4 Report No.:TZ0035260557PH02 Page 3 of 4 External Photo 5 External Photo 6 Report No.:TZ0035260557PH02 Page 4 of 4 External Photo 7

The size of the label is 15mm*10mm with White forecolor. The size of the logo is 5mm*5mm. FCC ID: QV7-GC88752-123

Report No.:TZ0035260557PH03 Page 1 of 3 Internal Photographs of EUT Internal Photo 1 Internal Photo 2 Report No.:TZ0035260557PH03 Page 2 of 3 Internal Photo 3 Internal Photo 4 SRD antenna Report No.:TZ0035260557PH03 Page 3 of 3 Internal Photo 5

FCC ID: QV7-GC88752-123 Page 1 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd RADIO FREQUENCY EXPOSURE Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06 4.3.1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.28 The minimum test separation distance defined in 4.1 f) is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified, typically in the SAR measurement or SAR analysis report, by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting are required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops and tablets, etc. a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation31 • The result is rounded to one decimal place for comparison • The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. FCC ID: QV7-GC88752-123 Page 2 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Results RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Conducted Power including Tune Up Calculation Value for 1g SAR Exemption Limit for 1g SAR Target Power [dBm] Tolerance ±[dB] [dBm] [mW] SRD Ant1 2420 5.88 5.5 1 6.5 4.47 1.39 3 SRD Ant1 2440 6.12 5.5 1 6.5 4.47 1.40 3 SRD Ant1 2460 5.39 5 1 6 3.98 1.25 3 Note: 1. Calculation Value = [(max. power of channel, mW) / (min. test separation distance, mm)] ·[√f(GHz)]. Conclusion: The SAR evaluation is not required.

Report No.:TZ0035260557FRF12 Page 1 of 31 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0035260557FRF12 Product Name : SHARK WHEELIE MONSTER Model/Type reference : TG1033 FCC ID : QV7-GC88752-123 Prepared for : GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD. NO.2 WEST XINGYE ROAD LAIMEI INDUSTRIAL AREA CHENG HAI, Shantou, China. Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020 + Cor.1-2023 Date of Test : 2026-06-08 ~ 2026-06-13 Date of Issue : 2026-06-15 Prepared by : Lena Wen Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.:TZ0035260557FRF12 Page 2 of 31 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2026-06-15 Valid Initial release Report No.:TZ0035260557FRF12 Page 3 of 31 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 6 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 7 2. T E S T M E T H O D O L O G Y ............................................................ 8 2.1. EUT Configuration .................................................................................................................. 8 2.2. EUT Exercise ........................................................................................................................... 8 2.3. Test Sample ............................................................................................................................. 8 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 9 3.1. Justification ............................................................................................................................. 9 3.2. EUT Exercise Software ........................................................................................................... 9 3.3. Special Accessories ............................................................................................................... 9 3.4. Block Diagram/Schematics .................................................................................................... 9 3.5. Equipment Modifications ....................................................................................................... 9 3.6. Test Setup ................................................................................................................................ 9 4. S U M M A R Y O F T E S T R E S U L T S ................................................ 10 5. T E S T R E S U L T ..................................................................... 11 5.1. On Time and Duty Cycle ....................................................................................................... 11 5.2. Maximum Peak Conducted Output Power Measurement ................................................. 12 5.3. Power Spectral Density Measurement ................................................................................ 13 5.4. 6 dB Spectrum Bandwidth and Occupied Channel Bandwidth Measurement ............... 14 5.5. Radiated Emissions Measurement ...................................................................................... 15 5.6. Conducted Spurious Emissions and Band Edges Test .................................................... 24 5.8. Band-edge measurements for radiated emissions ........................................................... 26 5.9. Antenna Requirements ......................................................................................................... 29 6. L I S T O F M E A S U R I N G E Q U I P M E N T .......................................... 30 7. T E S T S E T U P P H O T O G R A P H S O F E U T ...................................... 31 8. E X T E R I O R P H O T O G R A P H S O F E U T ......................................... 31 9. I N T E R I O R P H O T O G R A P H S O F E U T .......................................... 31 Report No.:TZ0035260557FRF12 Page 4 of 31 1. G E N E R A L I N F O R M A T I O N 1.1. Client Information Applicant : GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD. Address : NO.2…

Text truncated - open the document above for the full version.

天線規格承認書 Acceptanceofantennaspecifications 制造商： Manufacturer ： 規格 ： Specifications： 產品料號： PartNO.: 汕头市龙湖区科马电子加工场 ShantouLonghuDistrictKomaElectronicProcessing Factory 2.4G天線全長40MM 透明 17芯*0.12*1.38PVC 地址: 汕头市龙湖区新津街道金泰街22号二楼 No.22,JintaiStreet,XinjinSub-district,LonghuDistrict, ShantouCity,SecondFloor Address： 图示： ProductSpecification A.Electrical Characteristics Frequency 2400MHz ~2500MHz VSWR <3.0 Efficiency >20% Impedance 50 Ohm Gain 0.59 dBi Polarization mode: linear polarization B.Material & Mechanical Characteristics Material of Radiator Cu Cable Type 1.4 white Connector Type : NO Dimension C.Environmental Operation Temperature - 30 °C ~ + 80 °C Storage Temperature - 30 °C ~ + 85 °C Test Equipment& Conditions 1.NetworkAnalyzers: Agilent8753D5071B 2. CommunicationsTest Set: AgilentE5515C 3. 3D ChamberTest System Effiency&Gain Freq (MHz) Effi (%) Gain (dBi) 2400 23.660.47 2410 23.190.38 2420 23.030.49 2430 22.410.42 2440 21.670.45 2450 20.240.52 2460 20.610.51 2470 21.410.59 2480 23.890.56 2490 26.460.53 2500 25.730.46 RadiationPattern 70 70 5.00 2450.000MHzE1 5.00 2450.000MHzE2 5.00 2500.000MHz 2500.000MHzH 2.2 1.2 -O.3 -1.8 -3.8 -5.8 -7.8 2500.000MHzE1 2500.000MHzE2 70 g 70 70 9 9 g

Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 1 of 23 Appendix Test Data for SRD (Conducted Measurement) Product Name: SHARK WHEELIE MONSTER Trade Mark: / Test Model: TG1033 FCC ID: QV7-GC88752-123 Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict SRD Ant1 2420 0.760 2419.648 2420.408 0.5 PASS SRD Ant1 2440 0.764 2439.628 2440.392 0.5 PASS SRD Ant1 2460 0.820 2459.604 2460.424 0.5 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 2 of 23 Test Graphs SRD-Ant1-2420-PASS SRD-Ant1-2440-PASS Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 3 of 23 SRD-Ant1-2460-PASS Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 4 of 23 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict SRD Ant1 2420 1.0942 2419.4765 2420.5707 --- --- SRD Ant1 2440 1.0945 2439.4797 2440.5742 --- --- SRD Ant1 2460 1.0871 2459.4810 2460.5681 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 5 of 23 Test Graphs SRD-Ant1-2420 SRD-Ant1-2440 Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 6 of 23 SRD-Ant1-2460 Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 7 of 23 Appendix C: Maximum peak conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict SRD Ant1 2420 5.88 ≤30 PASS SRD Ant1 2440 6.12 ≤30 PASS SRD Ant1 2460 5.39 ≤30 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 8 of 23 Test Graphs Peak SRD-Ant1-2420-PASS SRD-Ant1-2440-PASS Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 9 of 23 SRD-Ant1-2460-PASS Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 10 of 23 Appendix D: Maximum peak power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict SRD Ant1 2420 -10.32 ≤8.00 PASS SRD Ant1 2440 -10.25 ≤8.00 PASS SRD Ant1 2460 -10.84 ≤8.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 11 of 23 Test Graphs SRD-Ant1-2420-PASS SRD-Ant1-2440-PASS Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 12 of 23 SRD-Ant1-2460-PASS Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 13 of 23 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch. Name Frequency [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict SRD Ant1 Low 2420 3.34 -49.03 ≤-16.66 PASS SRD Ant1 High 2460 2.04 -43.51 ≤-17.96 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 14 of 23 Test Graphs SRD-Ant1-2420-PASS SRD-Ant1-2460-PASS Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 15 of 23 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict SRD Ant1 2420 0~Reference 5.35 5.35 --- PASS SRD Ant1 2420 30~1000 5.35 -63.16 ≤-14.65 PASS SRD Ant1 2420 1000~26500 5.35 -37.32 ≤-14.65 PASS SRD Ant1 2440 0~Reference 4.24 4.24 --- PASS SRD Ant1 2440 30~1000 4.24 -62.59 ≤-15.76 PASS SRD Ant1 2440 1000~26500 4.24 -37.59 ≤-15.76 PASS SRD Ant1 2460 0~Reference 4.19 4.19 --- PASS SRD Ant1 2460 30~1000 4.19 -62.52 ≤-15.81 PASS SRD Ant1 2460 1000~26500 4.19 -37.41 ≤-15.81 PASS Note: offset(dB) in Reference test plots = cable loss(dB) + attenuator factor(dB); For spurious emissions plots from 30MHz to 26.5GHz, the cable loss and attenuator factors have been set in the 'Input Correction' of the Spectrum Analyzer during the test. Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 16 of 23 Test Graphs SRD-Ant1-2420-0~Reference-PASS SRD-Ant1-2420-30~1000-PASS Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 17 of 23 SRD-Ant1-2420-1000~26500-PASS SRD-Ant1-2440-0~Reference-PASS Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 18 of 23 SRD-Ant1-2440-30~1000-PASS SRD-Ant1-2440-1000~26500-PASS Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 19 of 23 SRD-Ant1-2460-0~Reference-PASS SRD-Ant1-2460-30~1000-PASS Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 20 of 23 SRD-Ant1-2460-1000~26500-PASS Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 21 of 23 Appendix G: Duty Cycle Test Result Test Mode Antenna Frequency [MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor [dB] SRD Ant1 2420 0.24 22.64 1.06 19.75 SRD Ant1 2440 0.16 22.56 0.71 21.49 SRD Ant1 2460 0.24 22.64 1.06 19.75 Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 22 of 23 Test Graphs NTNV-SRD-Ant1-2420 NTNV-SRD-Ant1-2440 Appendix Test Data of the Report No.:TZ0035260557FRF12 Page 23 of 23 NTNV-SRD-Ant1-2460

Report No.:TZ0035260557PH01 Page 1 of 2 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Report No.:TZ0035260557PH01 Page 2 of 2 RF Conducted Test
