QVL-BT863Contactless Smart card Reader with Optional Keypad, LCD Display and Optional Biometric Sensor

Mounting Hole Dimensions Use the mounting bracket as guide for drilling holes. A1, A2: UK Back Box B1, B2: AU/US Back Box Specifications Output protocols Wiegand 26-199bit, RS485 or custom configuration (Model dependent) Power requirement 7-18V DC Current consumption 63mA (Idle) 168mA (Peak) Read range 20-40mm (0.8”-1.6”) at 12V DC depends on the type of card used Relay Rating 80mA Operating temperature -20’C to +65’C (-4’F to 149’F) Relative humidity 90% max, operating non-condensing Reader dimensions 156mm(L) x 98mm(W) x 50mm(D) (6.14”x3.86”x1.97”) Status LED Green & Red Audible tone Internal and external buzzer control Keypad 3 x 4 Keypad and 4 Function keys, illuminated Colour finish Charcoal & Ivory IP rating IP65 Information obtained in this document is subject to change without notice. For further technical information, visit our website at www.bqtsolutions.com or email [email protected]. Alternatively contact us at one of our global locations AUSTRALIA & PACIFIC BQT Solutions (Australia) Pty Limited Unit 29, 1 Talavera Road North Ryde, NSW 2113, Australia Phone: +61 (0)2 8817 2800 Fax: +61 (0)2 8817 2811 Email: [email protected] EUROPE AND MIDDLE EAST BQT Solutions (UK) Limited Regus, Castle Court, 41 London Road Reigate, RH2 9RJ United Kingdom Phone: +44 (0)17 3773 5071 Fax: +44 (0)17 3773 5072 Email: [email protected] GREATER ASIA BQT Solutions Singapore Office Mediapolis 71 Ayer Rajah Crescent #03-03 Singapore 139951 Phone: +65 6220 7970 Fax: +65 6220 7656 Email: [email protected] Copyright © 2014 BQT Solutions Limited. BQT Solutions and the BQT solutions logo are registered trademarks of BQT Solutions (Australia) Pty Ltd. Wiring diagram Note: • A shielded cable is recommended to be used. The shield is connected to controller 0V reference • Maximum wiegand data cable length: 150 meters (500 feet) • Buzzer and LED are low activated. • RS485 and Relay are only for optional use. • Terminate or insulate all un-used wires Regulatory Information C-Tick: This device is C-Tick complied. CE: The device has passed all relevant tests and obtained CE approval. FCC: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressively approved by BQT Solutions could void the user’s authority to operate this equipment. BT853 INSTALLATION GUIDE Version1.0 Installation The BT853 should be located approximately 165 cm above the floor on the wall surface. Care should be taken to position the unit so as to minimize reflections on the display from external light sources. Fluorescent lights directly overhead and down lights at the unit should be avoided. To mount the BT853, the bracket should be secured to the wall or gang box using the corresponding screw holes, before attaching the unit itself. (See Mounting Hole Dimensions). After the bracket is installed, mount BT853 unit onto bracket (follow the diagram below) and secure the unit with two M4 screws at the bottom of unit. Note: Make sure that you don't drill through the cable. Wire connection Note: Power to the unit is provided from the listed control unit or from a separately UL listed 12V DC power-limited, access control power source. DO NOT supply power during installation. Wiring methods shall be in accordance with the Electrical wiring regulation in your country / region. Check your circuit diagram for the colour coding of the circuit wiring. The device can be damaged beyond repair if the wiring is connected incorrectly. This will void the warranty. 1. Connect the 0V wire to the power 0V line; Note: The 0V line of all power supplies must be connected to a common 0V reference point. 2. Connect the Wiegand data wires; 3. Connect the Buzzer and LED wires; 4. Connect 12V DC wire; 5. Place unit on the wall (Make sure the wires are not crushed. This will void the warranty if damage occurs) 6. Insert and hand tighten the screws; 7. Check that the unit is level before tightening the screws; Note: Excessive tightening of screws may deform the casing, resulting in a damaged unit. This will void the warranty. 8. Turn on the 12V DC power to power up the device. 9. Allow 5 – 10 seconds for the device to finish initialization (depends on the application). Make sure the unit is functioning correctly according to the application specification. External Use • Make sure the wire bundle to the device has an IP rating of at least IP65 Handling • Handle the device with care. DO NOT damage or drop unit before installation. This will void the warranty. • If the case is damaged, the unit may not be to the specified IP rating. Replace the unit if the case is damaged. Maintenance • Once installed the device requires no maintenance. Trou…

Text truncated - open the document above for the full version.

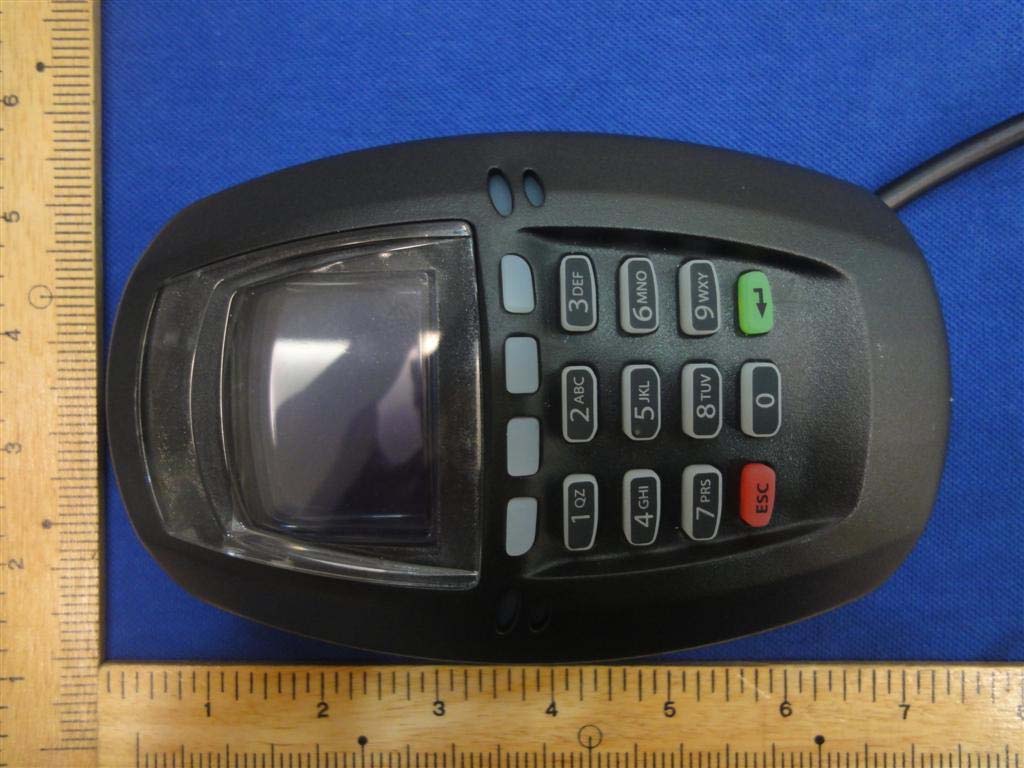

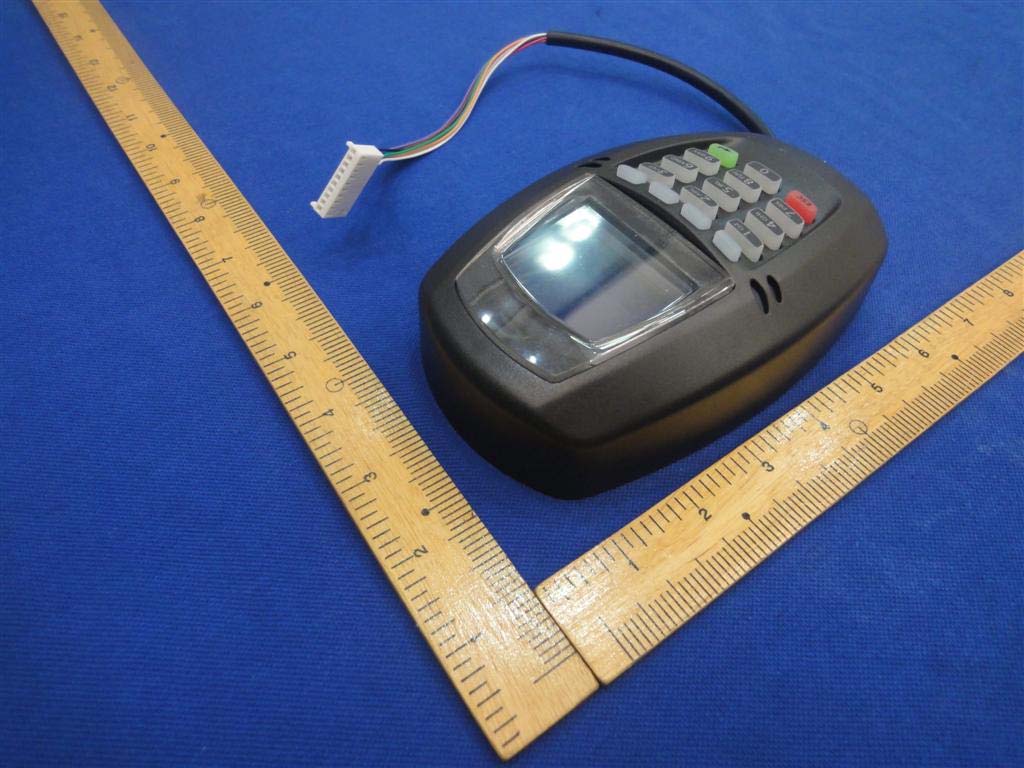

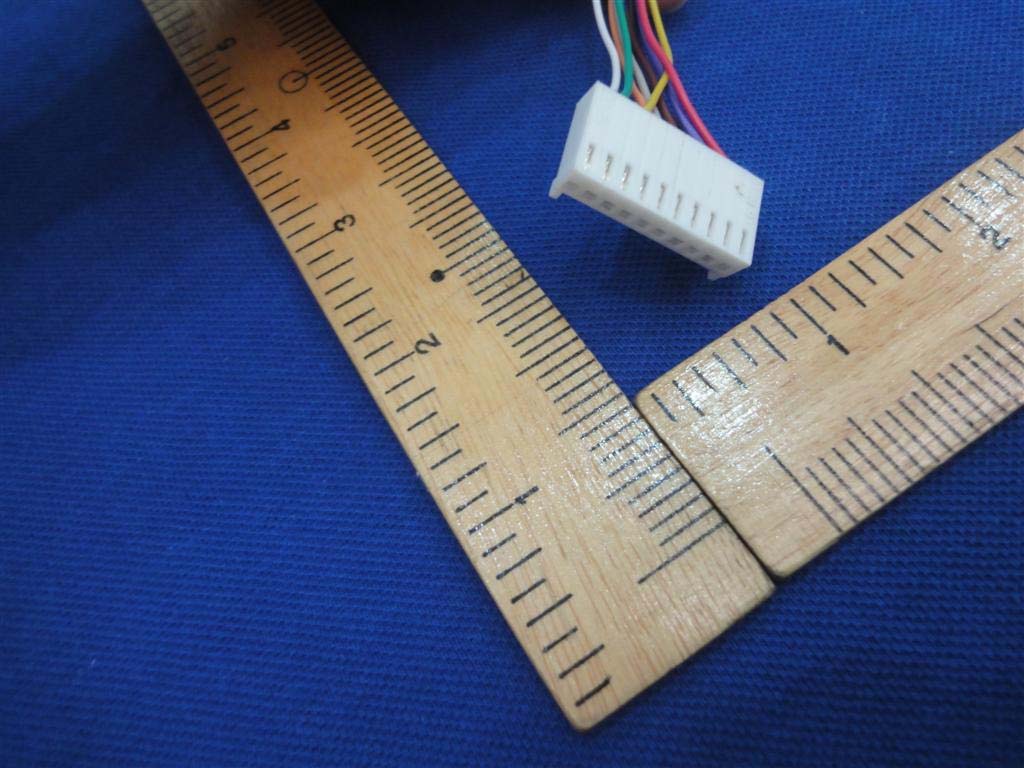

CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Dec 20, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 4 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo (BT863) 2) EUT Photo (BT863) CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Dec 20, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 4 3) EUT Photo (BT863) 4) EUT Photo (BT863) CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Dec 20, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 4 5) EUT Photo (BT853) 6) EUT Photo (BT853) CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Dec 20, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 4 7) EUT Photo (BT853) 8) EUT Photo (BT853)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

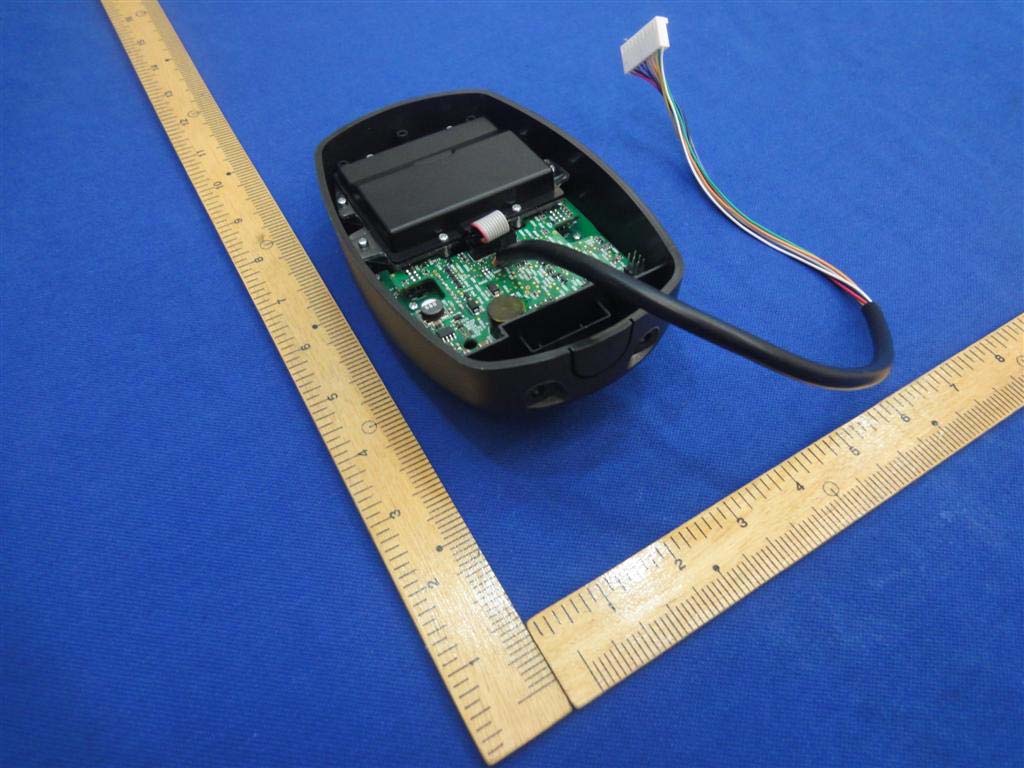

CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Dec 20, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 6 INTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Dec 20, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 6 3) EUT Photo 4) EUT Photo CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Dec 20, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 3 of 6 5) EUT Photo 6) EUT Photo CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Dec 20, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 4 of 6 7) EUT Photo 8) EUT Photo CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Dec 20, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 5 of 6 9) EUT Photo 10) EUT Photo CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Dec 20, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 6 of 6 11) EUT Photo 12) EUT Photo

CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued Date : Dec. 20, 2014 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 24 FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : BQT Solutions（Australia）Pty Ltd. Address : Unit 29,1 Talavera Road,North Ryde,NSW2113, Australia Manufacturer : BQT Solutions（Australia）Pty Ltd. Address : Unit 29,1 Talavera Road,North Ryde,NSW2113, Australia Equipment : Contactless Smart Card Reader with Keypad, LCD Display and optional Biometric Sensor Trade Mark : BQT Model No. : BT863, BT853 FCC ID : QVL-BT863 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology (Suzhou) Co., Ltd. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Rules and Regulations Part 15. The test report has been issued separately. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued Date : Dec. 20, 2014 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 24 Table of Contents 1. Report of Measurements and Examinations.............................................................................................5 2. Test Configuration of Equipment under Test............................................................................................6 2.1. Feature of Equipment under Test .................................................................................................... 6 2.2. Carrier Frequency of Channels ....................................................................................................... 6 2.3. Test Mode & Test Software .............................................................................................................. 7 2.4. Description of Test System .............................................................................................................. 7 2.5. General Information of Test ............................................................................................................. 7 2.6. Measurement Uncertainty ............................................................................................................... 8 3. Antenna Requirements ...............................................................................................................................9 3.1. Standard Applicable ......................................................................................................................... 9 3.2. Limit ................................................................................................................................................. 9 3.3. Antenna Construction ...................................................................................................................... 9 4. Test of Conducted Emission ....................................................................................................................10 4.1. Test Limit........................................................................................................................................ 10 4.2. Test Procedures............................................................................................................................. 10 4.3. Typical Test Setup...........................................................................................................................11 4.4. Measurement Equipment ...............................................................................................................11 4.5. Test Result and Data ..................................................................................................................... 12 5. Out-of-band Emission (15.225 (d), 15.209) Test Limit ............................................................................14 5.1. Test Procedures............................................................................................................................. 15 5.2. Typical Test Setup.......................................................................................................................... 16 5.3. Measurement Equipment .............................................................................................................. 16 5.4. Test Result and Data ..................................................................................................................... 17 6. In-band Emission (15.225 (a))...................................................................................................................20 6.1. Minimum Standard......................................................................................................................... 20 6.2. Measurement Procedure ............................................................................................................... 20 6.3. Test Result ..................................................................................................................................... 21 7. In-band Emission (15.225 (b)(c)) ..............................................................................................................22 7.1. Regulation...................................................................................................................................... 22 7.2. Test Result ..................................................................................................................................... 22 8. Frequency tolerance (15.225 (e))..............................................................................................................24 8.1. Regul…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued Date : Dec. 20, 2014 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 22 FCC TEST REPORT According to FCC CFR Title 47 Part 15 Subpart C Applicant : BQT Solutions（Australia）Pty Ltd. Address : Unit 29,1 Talavera Road,North Ryde,NSW2113, Australia Manufacturer : BQT Solutions（Australia）Pty Ltd. Address : Unit 29,1 Talavera Road,North Ryde,NSW2113, Australia Equipment : Contactless Smart Card Reader with Keypad, LCD Display and optional Biometric Sensor Trade Mark : BQT Model No. : BT863, BT853 FCC ID : QVL-BT863 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology (Suzhou) Co., Ltd. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Rules and Regulations Part 15. The test report has been issued separately. ‚ The test report must not be used by the clients to claim product certification approval by NVLAP or any agency of the Government. CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued Date : Dec. 20, 2014 Tel:86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 22 Table of Contents 1. Report of Measurements and Examinations.............................................................................................5 2. Test Configuration of Equipment under Test............................................................................................6 2.1. Feature of Equipment under Test .................................................................................................... 6 2.2. Carrier Frequency of Channels ....................................................................................................... 6 2.3. Test Mode & Test Software .............................................................................................................. 7 2.4. Description of Test System .............................................................................................................. 7 2.5. General Information of Test ............................................................................................................. 7 2.6. Measurement Uncertainty ............................................................................................................... 8 3. Antenna Requirements ...............................................................................................................................9 3.1. Standard Applicable ......................................................................................................................... 9 3.2. Limit ................................................................................................................................................. 9 3.3. Antenna Construction ...................................................................................................................... 9 4. Test of Conducted Emission ....................................................................................................................10 4.1. Test Limit........................................................................................................................................ 10 4.2. Test Procedures............................................................................................................................. 10 4.3. Typical Test Setup...........................................................................................................................11 4.4. Measurement Equipment ...............................................................................................................11 4.5. Test Result and Data ......................................................................................................................11 5. Out-of-band Emission (15.225 (d), 15.209) Test Limit ............................................................................12 5.1. Test Procedures............................................................................................................................. 13 5.2. Typical Test Setup.......................................................................................................................... 14 5.3. Measurement Equipment .............................................................................................................. 14 5.4. Test Result and Data ..................................................................................................................... 15 6. In-band Emission (15.225 (a))...................................................................................................................18 6.1. Minimum Standard......................................................................................................................... 18 6.2. Measurement Procedure ............................................................................................................... 18 6.3. Test Result ..................................................................................................................................... 19 7. In-band Emission (15.225 (b)(c)) ..............................................................................................................20 7.1. Regulation...................................................................................................................................... 20 7.2. Test Result ..................................................................................................................................... 20 8. Frequency tolerance (15.225 (e))..............................................................................................................22 8.1. Regul…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Dec 20, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 2 TEST SETUP PHOTOGRAPHS OF EUT AC POWER LINE CONDUCTED EMISSION TEST CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1411041 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Dec 20, 2014 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 2 RADEATED EMISSION TEST
