  1. Home/
  2. BQT Solutions (Australia) Pty Ltd/
  3. QVL-BT950-2

QVL-BT950-213.56MHz/125kHz Dual Frequency Contactless SmartCard Reader

BQT Solutions (Australia) Pty Ltd
13.56MHz/125kHz Dual Frequency Contactless SmartCard Reader - FCC ID QVL-BT950-2 - BQT Solutions (Australia) Pty Ltd
Click to zoom

Application Details

Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant
May 10, 2015
Application Purpose
Original Equipment
Date of Application
May 10, 2015
Equipment Note
13.56MHz/125kHz Dual Frequency Contactless SmartCard Reader
Frequency Range
0.12500000 - 0.12500000
Company
BQT Solutions (Australia) Pty Ltd
Country
Australia

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Drilling template • 10mm (0.39”) diameter hole for wire entry • 2 x 3.6mm (0.14”) diameter holes for mounting screws Specifications Output protocols Wiegand or RS485 Power requirement 7 – 18V DC (Nominal operating voltage 12V DC) Model BT950-ST BT950-DT Current Consumption 39mA (Avg) 84mA (Peak) 66mA (Avg) 111mA (Peak) Frequency 13.56MHz 125KHz/13.56MHz Relay Rating 80mA Read range 20-40mm (0.8”-1.6”) at 12V DC depends on the type of card used Operating temperature -25’C to +65’C (-13’F to 149’F) Relative humidity 90% max, operating non-condensing Reader dimensions 119mm(L) x 43mm(W) x 21mm (D) (4.69”x1.69”x0.83”) Status LED Green & Red Audible tone Internal and external buzzer control, Configurable using “Configuration Card” Colour finish Charcoal IP rating IP65 Information obtained in this document is subject to change without notice. For further technical information, visit our website at www.bqtsolutions.com or email [email protected]. Alternatively contact us at one of our global locations AUSTRALIA & PACIFIC BQT Solutions (Australia) Pty Limited Unit 29, 1 Talavera Road North Ryde, NSW 2113, Australia Phone: +61 (0)2 8817 2800 Fax: +61 (0)2 8817 2811 Email: [email protected] EUROPE AND MIDDLE EAST BQT Solutions (UK) Limited Regus, Castle Court, 41 London Road Reigate, RH2 9RJ United Kingdom Phone: +44 (0)17 3773 5071 Fax: +44 (0)17 3773 5072 Email: [email protected] GREATER ASIA BQT Solutions Singapore Office Mediapolis 71 Ayer Rajah Crescent #03-03 Singapore 139951 Phone: +65 6220 7970 Fax: +65 6220 7656 Email: [email protected] Copyright © 2012 BQT Solutions Limited. BQT Solutions and the BQT solutions logo are registered trademarks of BQT Solutions (Australia) Pty Ltd. Wiring diagram Note: • A shielded cable is recommended to be used. The shield is connected to controller 0V reference • Maximum wiegand data cable length: 150 meters (500 feet) • Buzzer and LED are low activated. • RS485 lines and Relay lines are only for optional use • Terminate or insulate all un-used wires Regulatory Information C-Tick: This device is C-Tick complied. CE: The device has passed all relevant tests and obtained CE approval. FCC: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressively approved by BQT Solutions could void the user’s authority to operate this equipment. BT950 INSTALLATION GUIDE Version1.3 Disassemble 1. Use fingers to squeeze the reader cover at the location where the arrows are pointing to 2. Pull the cover from the top of reader Note: DO NOT use a screw driver or other implement to remove cover. Incorrect removal of cover may damage the LED and void the warranty. Mounting 1. If necessary, use the drilling template provided to drill holes. 2. The mounting screw size is #3 gauge. Note: Be careful of cables when drilling For installation on standard electrical gang box, a universal mounting adaptor plate (BQT Part number: BP-BM) can be used. Please contact BQT for further information. Wire connection Note: Power to the unit is provided from the listed control unit or from a separately UL listed 12V DC power-limited, access control power source. DO NOT supply power during installation. Wiring methods shall be in accordance with the Electrical wiring regulation in your country / region. Check your circuit diagram for the colour coding of the circuit wiring. The reader can be damaged beyond repair if the wiring is connected incorrectly. This will void the warranty. 1. Connect the 0V wire to the power 0V line; Note: The 0V line of all power supplies must be connected to a common 0V reference point. 2. Connect the Wiegand data wires; 3. Connect the Buzzer and LED wires; 4. Connect 12V DC wire; 5. Place reader on the wall (Make sure the wires are not crushed. This will void the warranty of damage occurs) 6. Insert and hand tighten the screws; 7. Check that the reader is level before tightening the screws; Note: Excessive tightening of screws may deform the casing, resulting in a damaged unit. This will void the warranty. 8. Turn on the 12V DC power to power up reader. 9. Allow 5 – 10 seconds for reader to finish initialization (depends on the application). Make sure reader is functioning correctly according to the application specification. Cover After checking reader function, attach front cover back to the reader 1. Align the bottom of front cover with the bottom of reader; Note: Make sure LED is aligned to the LED hole on the cover; 2. Push the cover onto reader and a click sound can be heard. External Use • Make sure the wire bundle to the reader has an IP rating of at least IP65 Handling • Handle the reader with care. DO NOT da…

Text truncated - open the document above for the full version.

External Photos

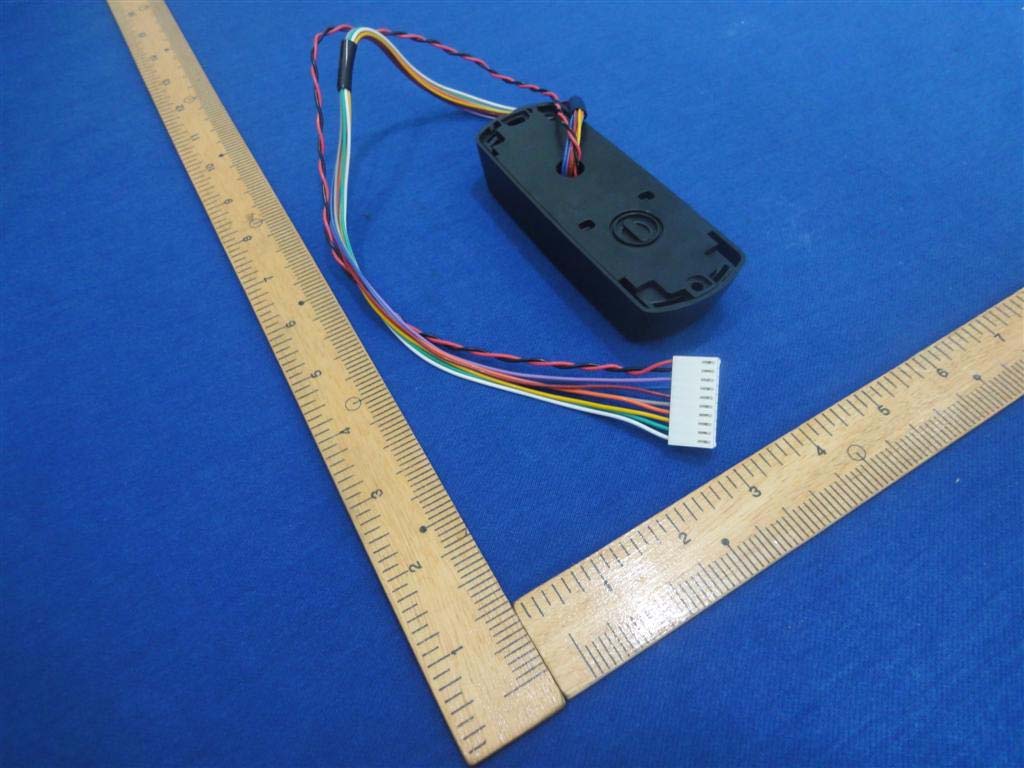

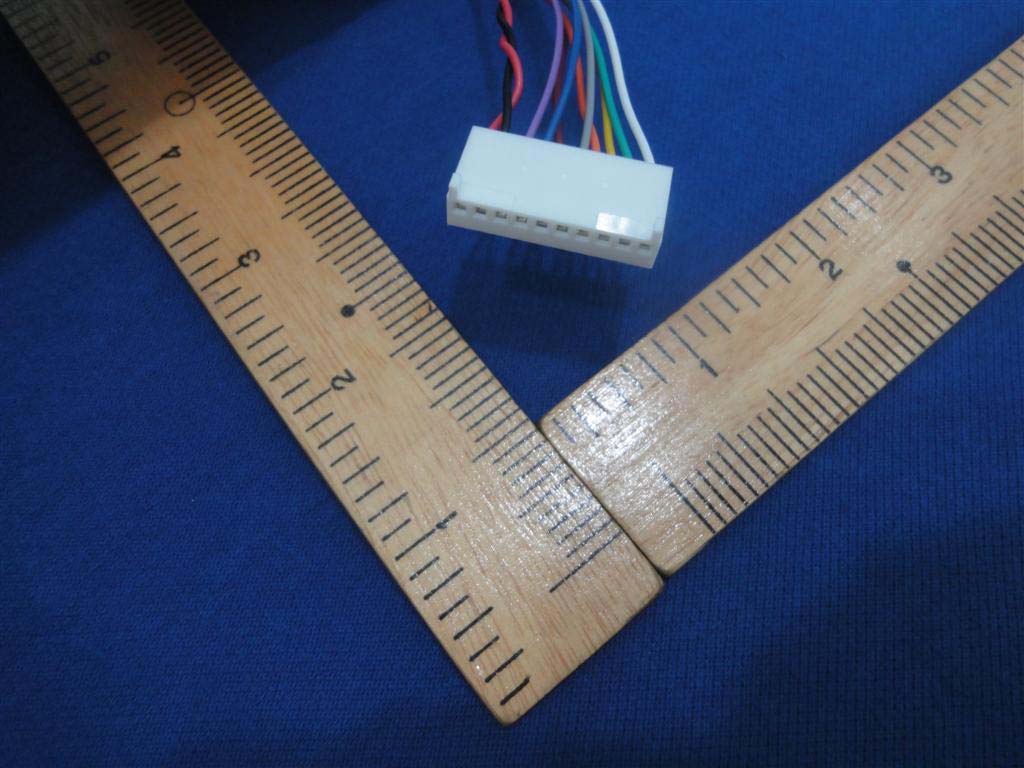

CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1503065 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Apr. 23, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 1 of 2 EXTERNAL PHOTOGRAPHS OF EUT 1) EUT Photo 2) EUT Photo CERPASS TECHNOLOGY (SUZHOU) CO., LTD. Report No.: DEFO1503065 Cerpass Technology (Suzhou) Co., Ltd. Issued date : Apr. 23, 2015 Tel: 86-512-6917-5888 Fax: 86-512-6917-5666 Page No. : 2 of 2 3) EUT Photo
