QVNBTF3XTBTF3XT

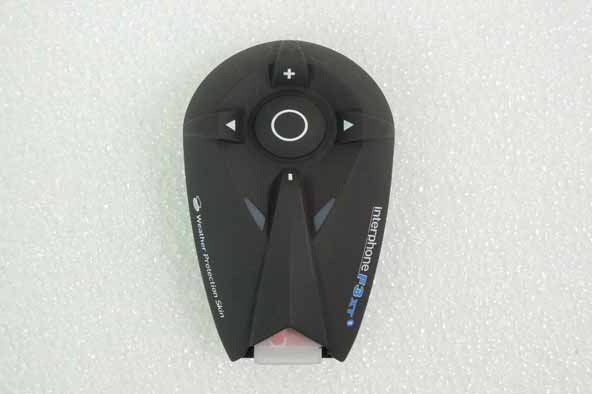

INTERPHONE BTF3XT Bluetooth ® ® Headset PRODUCT OVERVIEW: 1.Center Button (power on & off / pairing / answer / end a call / reject a call) 2.Status Indicator 3.Left Button (Volume Down) 4.Right Button (Volume Up) 5.UP Button (Next) 6.DOWN Button (Previous) 7.Charger Socket Charging: Connect the charger’s plug to the Charger Socket of the BTF3XT. Then connect the charger to an external power source. Charge Indicator (2) Status: Steady Red:Battery Low Steady Orange:Charging Steady Green:Battery Full When fully charged, disconnect the charger. Power On: From Off, press center button for 2 seconds until heard Turn On beep. Then status indicator blinks blue. Power Off: Press center button for about 5 seconds. Status indicator turns red then off. Pairing Mode: From Off, press center button for about 5 seconds. Then status indicator turns blinking red and blue. Pairing to Mobile Phone: From pairing mode, access the Bluetooth menu of your phone then execute a Bluetooth search. Then follow the phone prompts to pair the BTF3XT. After the successful pairing, the status indicator turns blinking blue. Button Functions: Answer Call: Press center button for 1 second to accept the incoming call. End Call: Press center button for 1 second to end the received call. Reject Call: Press center button for 3 seconds to reject the incoming call. Volume UP: Press Front button for 1 second to increase the volume level. A beep will be heard if maximum level is reached. Volume DOWN: Press Back button for 1 second to decrease the volume level. A beep will be heard if minimum level is reached. Transfer Conversation from BTF3XT to phone: Press and hold center button for 3 seconds. A beep will be heard and audio will transfer to phone. Transfer Conversation from phone to BTF3XT: Press and hold center button for 3 seconds. A beep will be heard and audio will transfer to BTF3XT. Erase Pairing: During Pairing mode (Red/blue flashing alternately), Press Back Button for 10 seconds to erase pairings. Music Streaming (A2DP): To play/pause music: Press center button for 2 seconds to play or pause the music streaming. To select next/previous music: Press UP/DOWN button for 1 second to select songs you wanted to play/stream. Note: With some phones, you may need to manually play via Bluetooth on your phone to start streaming music on BTF3XT. FCC/IC statements : Federal Communications Commission (FCC) Statement Industry Canada (IC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC/IC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions : 1)This device may not cause interference and 2)This device must accept any interference, including interference that may cause undesired operation of the device. FCC/IC RF Radiation Exposure Statement : This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. English English Hereby Hereby , , EURO EURO COMMUNICATION COMMUNICATION EQUIPEMENTS EQUIPEMENTS , , represented represented by by Michel Michel MARCHANT MARCHANT , , CEO CEO , , declares declares that that the the Interphone BTF3XT, Interphone BTF3XT, MODEL MODEL BTF3XT, BTF3XT, is is in in compliance compliance with with the the essential essential requirements requirements and and other other relevant relevant provisions provisions of of Directive Directive 1999/5/ 1999/5/ EC EC of of the the European European Parliament Parliament and and of of the the Council Council of of 9 9 March March 1999 1999 on on radio radio equipment equipment and and telecommunications telecommunications terminal terminal equipment equipment and and the the mutual mutual recognition recognition of of their their conformity conformity . . For For the the whole whole declaration declaration please please visit visit : : http http :// :// www www . . SuperTooth SuperTooth .net/ .net/ download download Euro Euro Communication Communication Equipements Equipements Sas Sas Route Route de de Foix Foix D D 117 117 11 500 11 500 NEBIAS NEBIAS FRANCE FRANCE The The Bluetooth Bluetooth ® ® word word mark mark and and logos logos are are registered registered trademarks trademarks owned owned by by Bluetooth Bluetooth SIG SIG , , Inc Inc . . and and any any use use of of such such marks marks by by Euro Euro - - CB CB is is under under license license . . Other Other trademarks trademarks and and trade trade names names are are those those of of their their respective respective owners owners . .

RF_160, Issue 02 Declaration of Authorization We Name: Euro Communication Equipements SAS Address: Route de Foix 11500 Nebias, Quillan, France City: Quillan Country: France Declare that: Name Representative of agent: Willis Chen Agent Company name: SGS Taiwan Ltd. ) Address: 134, Wu Kung Rd, Wuku Industrial Zone City: New Taipei City Country Taiwan is authorized to apply for Certification of the following product(s): Product description: BTF3XT Type designation: BTF3XT Trademark: INTERPHONE on our behalf. Date: 2012/12/22 City: Quillan Name: Michel Marchant Function: President Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosureDate: 22-Dec-12 RF_501, Issue 5Page 1 of 1 Company Name:Euro Communication Equipements SAS Address:Route de Foix 11500 Nebias, Quillan, France City:Quillan Country:France To:Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: QVNF3XT Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2012-12-22Name and signature of applicant: Michel Marchant President Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

FCC ID: QVNBTF3XT IC: 7717A-BTF3XT Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group EXTERNAL PHOTOGRAPHS OF EUT FCC ID: QVNBTF3XT IC: 7717A-BTF3XT Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group All View of EUT Front View of EUT FCC ID: QVNBTF3XT IC: 7717A-BTF3XT Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Back View of EUT Side View of EUT – 1 FCC ID: QVNBTF3XT IC: 7717A-BTF3XT Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Side View of EUT – 2 Side View of EUT – 3 FCC ID: QVNBTF3XT IC: 7717A-BTF3XT Unl…

Text truncated - open the document above for the full version.

FCC ID: QVNBTF3XT IC: 7717A-BTF3XT Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group INTERNAL PHOTOGRAPHS OF EUT FCC ID: QVNBTF3XT IC: 7717A-BTF3XT Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Battery Open View of EUT-1 FCC ID: QVNBTF3XT IC: 7717A-BTF3XT Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Internal View of EUT-1 Internal View of EUT-2

Printed PCB Antenna Design for 2.4 Ghz Model : BTMOTOF5 Features: • Compact and easy design • Cost effective • Omni-directional pattern • Mixed polarisation • Wide bandwidth Application: • WLAN • Bluetooth • Other 2.4 Ghz pcb-integrated antenna Specifications: Frequency range 2.4 – 2.5 GHz Peak gain 2.5 dBi VSVR 2 max Impedance 50 Ohms Return loss S11 - 24 dB 1 / 2 Gain patterns: X-Z cut gain pattern Y-Z cut gain pattern X-Y cut gain pattern 2 / 2

Report No.: EF/2013/10003 FCC ID: QVNBTF3XT Issue Date: Jan. 17, 2013 IC: 7717A-BTF3XT Page: 1 of 57 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT AND INDUSTRY CANADA RSS-210 OF Product Name: BTF3XT Marketing Name: BTF3XT Brand Name: INTERPHONE Model No.: BTF3XT Model Difference: N/A IC: FCC ID: 7717A-BTF3XT QVNBTF3XT Report No.: EF/2013/10003 Issue Date: Jan. 17, 2013 Rule Part: §15.247, Cat: DSS RSS-210 issue 8:2010, Annex 8 Prepared for: Euro Communication Equipements SAS Route de Foix 11500 Nebias, Quillan, France Prepared by: SGS Taiwan Ltd. Electronics & Communication Laboratory No.134, Wu Kun g Road, New Taipei Industrial Park, Wuku District, New Taipei City, Taiwan 24803 Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: EF/2013/10003 FCC ID: QVNBTF3XT Issue Date: Jan. 17, 2013 IC: 7717A-BTF3XT Page: 2 of 57 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group CERTIFICATION OF COMPLIANCE Applicant for : Euro Communication Equipements SAS Route de Foix 11500 Nebias, Quillan, France Product Name: BTF3XT Marketing Name: BTF3XT Brand Name: INTERPHONE IC: FCC ID: 7717A-BTF3XT QVNBTF3XT Model No.: BTF3XT Model Difference: N/A File Number: EF/2013/10003 Date of test: Jan. 02, 2013 ~ Jan. 14, 2013 Date of EUT Received: Jan. 02, 2013 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and RSS-Gen. issue 3:2010, the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15C:2007, §15.247 and RSS-210 issue 8: 2010 Annex 8. The test results of this report relate only to the tested sample identified in this report. Test By: Date: Jan. 17, 2013 Marcus Tseng / Engineer Prepared By: Date: Jan. 17, 2013 Tiffany Kao / Clerk Approved By: Date: Jan. 17, 2013 Jim Chang / Supervisor Report No.: EF/2013/10003 FCC ID: QVNBTF3XT Issue Date: Jan. 17, 2013 IC: 7717A-BTF3XT Page: 3 of 57 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate pa…

Text truncated - open the document above for the full version.

FCC ID: QVNBTF3XT IC: 7717A-BTF3XT Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group PHOTOGRAPHS OF SETUP FCC ID: QVNBTF3XT IC: 7717A-BTF3XT Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Radiated Emission Setup Photos (E2 PLAN) FCC ID: QVNBTF3XT IC: 7717A-BTF3XT Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 說留不 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for elec- tronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or ap- pearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134,WuKungRoad,NewTaipeiIndustrialPark,WukuDistrict,NewTaipeiCity,Taiwan24803/北北路134 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of…

Text truncated - open the document above for the full version.
