QVNBTMOTOF2SInterphone F2S

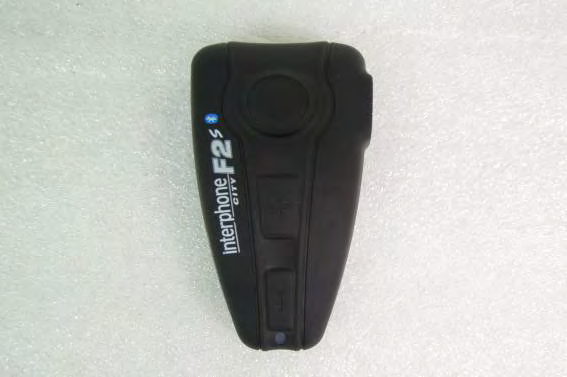

Bluetooth Headset for Motorcycle Features VOX Technology Intercom Technology Multi-Point Connection Auto-Volume Level Adjusting F2S 6 A. BTMOTOF2S PACKAGE: B. PRODUCT DESCRIPTION: BTMOTOF2S is a Bluetooth Headset designed for motorcycle rider or passenger who wishes to have reliable hands-free, wireless and clear communications while driving. This headset is equipped with hi-tech features such as: VOX Technology, Rider to Passenger Intercom, Multi-point Connection, and Auto-Volume Level Adjusting. 1.MFB or Multi-Function Button (power on & off / pairing / answer / hang-up / reject / voice dial / intercom connect / etc.) 2.Headset Plug 3.Volume Up 4.Volume Down 5.Status Indicator 6.Left/Right (L/R) Ear Speaker 7.Microphone (On the flexible boom) 8.Charger and Headset Socket 9.Hook C. CHARGING: 1.When the Status Indicator (5) turns Red, the battery is low. Charge the unit using the provided charger. 2.Connect the charger’s plug to the Charger Socket (8) of the BTMOTOF2S. Then, plug the charger to an external power source. (Note: Status Indicator (5) turns Red when charging). 3. When the Status Indicator (5) turns Green, charging is complete. 4.Disconnect the charger. 2 1 23 4 5 7 9 6 Charger and Headset Socket 8 BTMOTOF2S Headset Headset Clip w/ Fastening Screws Headset Clip w/ double-sided- Adhesive Sticker Spacer for Headset Clip Travel ChargerVelcro Pad Screw Driver D. POWER ON OR OFF: Power On: Press the MFB (1) until Status Indicator (5) turns blue. Or press for approximately 3 seconds, a beep will be heard. Power Off: Press the MFB (1) until Status Indicator (5) turns red. Or press for approximately 5 seconds until 3 rd tone will be heard. E. PAIRING TO YOUR BLUETOOTH MOBILE PHONE: 1.From OFF, press and hold the MFB (1) of the BTMOTOF2S until the Status Indicator (5) turns blinking red/blue. 2.While the headset is in pairing mode, access the Bluetooth menu of your phone. Turn on the Bluetooth function then execute a Bluetooth search. (See your phone’s manual). 3.When the phone displays the list of Bluetooth devices, select BTMOTOF2S then enter 0000 and press ok. Pairing is successful if the alternating red/blue lights of the Status Indicator (5) changes to blinking blue. Note: Some phones do not connect automatically to the kit after pairing. You need to press the MFB (1) (1 st beep) to connect. Or use the menu of your phone: Go back to Bluetooth > Paired devices > highlight the name of this headset (Interphone F2S) > press Options > then press Connect. The INTERPHONE F2S is now ready to use. F. INSTALLATION: a)Installing the Clip Mount IMPORTANT: There are 2 types of Headset Clips included in this package. A Headset Clip with fastening screws and a Headset Clip with double-sided-Adhesive Sticker. Use what suits best for your helmet. 1.Using the Headset Clip with Fastening Screws Take the Headset Clip with fastening screws and find the best location to fix it to the shell of the helmet. Tighten the screws using the provided Screw Driver. Note: A Spacer may be needed to put in between the 2 parts of the Headset Clip (if the helmet’s shell is thick). 3 Spacer 2.Using the Headset Clip with double-sided-Adhesive Sticker Take the Headset Clip with double-sided- Adhesive Sticker and remove the film covering the other side. Find the best location and stick the clip to the outer shell of the helmet. b)Mounting the BTMOTOF2S 1.Take your BTMOTOF2S and slide it down into the slots in the Headset Clip. Make sure that it’s perfectly fitted and locked into place. 2.Stick the Velcro pad to the helmet’s left and right ear pocket. Attach the L/R Ear Speaker(6) to it. Secure the cord of the L/R Ear Speaker(6) inside the helmet. 3.Connect the Headset Plug(2) to the Headset Socket(8). 4.Secure the cord of the Headset Plug(2) inside the helmet. Ensure that only few centimeters of the cord come out. You have successfully mounted the BTMOTOF2S. G. Removing the BTMOTOF2S from your helmet Remove the BTMOTOF2S by pushing down the lock as shown and then take out the BTMOTOF2S in an upward motion. 4 H. BASIC OPERATION: Main MFB Functions: Short Press MFB (1): Phone Related Commands Long Press MFB (1): Intercom Related Commands IMPORTANT: The BTMOTOF2S needs to be ‘paired’ with your Bluetooth mobile phone before you can use the following functions. (See Pairing to your Bluetooth Mobile Phone on section E.) To Make a Call: Dial the number using your phone. Audio will automatically be on the headset. Note: With some phones like Siemens S55 and Panasonic X70, audio is always on the phone during an outgoing call. You will need to press the MFB (1) to transfer the audio to your headset. To Answer a Call: -Assuming the VOX is activated: Accept a call by loudly saying a word within 10 seconds. (Example: When you receive the ring tone, Say loudly ”Ok!”) The call will be answered. Audio will be on the headset. (See VOX Activation / Deactivation on section I.) -You also have the option to answer the call normally by pressing the MFB (1) for 1 second (1 st beep). To End a Call: -Press the MFB (1) for 1 second to end the call (1 st beep). To activate Voice Dial: IMPORTANT: Some phones needs training to activate voice dial function. Record at least one voice tag. (Kindly refer to the procedure in your phone’s manual.) 1.Press the MFB (1) for 1 second (1 st beep) to make a voice dial. A voice dial tone/ beep will be heard on the headset prompting the user to say the voice tag of the contact to call. 2.Say the voice tag. The voice will be played back to you, and then the phone will dial the number automatically. To Reject a Call (For Handsfree Profile Phones only): -Assuming the VOX is activated: Reject a call by being silent for 10 seconds. The call will automatically be rejected. (See VOX Activation / Deactivation on section I.) To Set the Volume: -Press the Volume Up (3) or Down (4) button repeatedly until the desired level is reached. 5 I. ADVANCED FUNCTIONS: a. VOX Activation / Deactivation: -When activated, the user can …
