QVNBTMOTOF5Wireless Handsfree

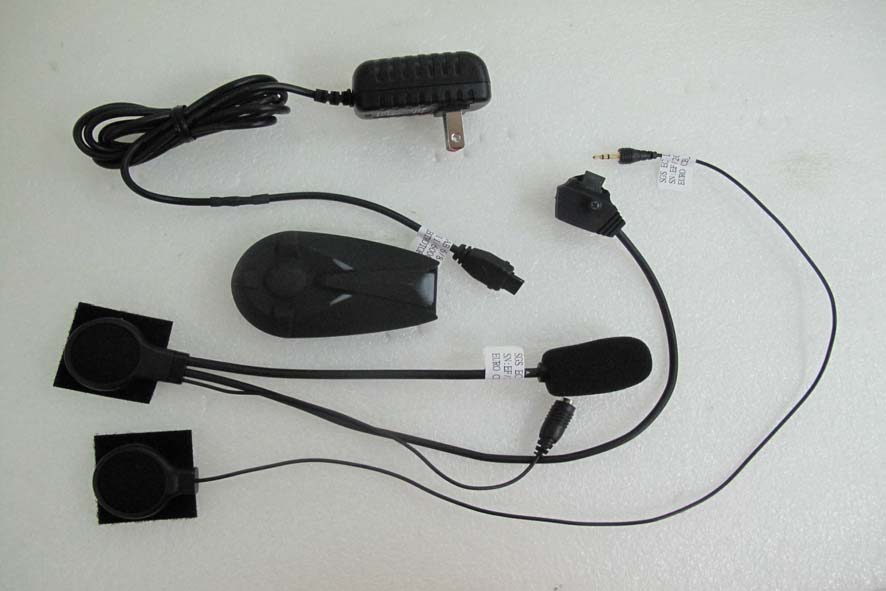

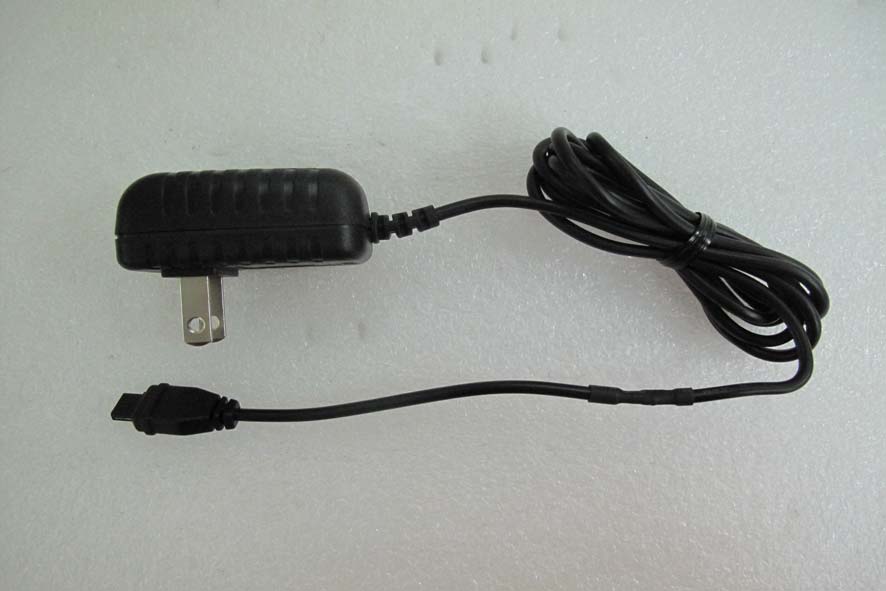

INTERPHONE F5 Bluetooth Headset PRODUCT OVERVIEW: 1.Center Button (power on & off / pairing / answer / end a call / reject a call / activate mode / deactivate mode) 2.Status Indicator 3.Left Button (Volume Down) 4.Right Button (Volume Up) 5.UP Button (Selection Up) 6.DOWN Button (Selection Down) 7.Microphone (On the flexible boom) 8.Charger Socket 9.Left/Right (L/R) Ear Speaker Charging: Connect the charger’s plug to the Charger Socket of the Interphone F5. Then connect the charger to an external power source. Charge Indicator (2) Status: Steady Red:Battery Low Steady Orange:Charging Steady Green:Battery Full When fully charged, disconnect the charger. Power On: From Off, press center button for 3 seconds. Interphone F5 announces “Interphone F5 ready. Battery ‘level’. Phone.” Then status indicator blinks blue. Power Off: Press center button for about 5 seconds. Interphone F5 announces “Interphone F5 Powering Down” then status indicator turns red then off. Pairing Mode: From Off, press center button for about 5 seconds. Interphone F5 announce “British English Selected. From phones Bluetooth menu, search for devices and select Interphone F5. Enter pin code 0000 if requested.” Then status indicator turns blinking red and blue. Pairing to Mobile Phone: From pairing mode, access the Bluetooth menu of your phone then execute a Bluetooth search. Then follow the headset and phone prompts to pair the Interphone F5. After the successful pairing, a voice will announce “Pairing successful to phone”. Pairing Cancel: During pairing mode, press center button for 2 seconds to cancel the pairing process. “Pairing Cancel” will be announced and stops the pairing search. Receiving Incoming Call: Answer Call: Press center button for 1 second to accept the incoming call. End Call: Press center button for 1 second to end the received call. Reject Call: Press center button for 3 seconds to reject the incoming call. “Call Rejected” will be announced on Interphone F5. Volume UP: Press Right button for 1 second to increase the volume level. “Maximum Volume” or a beep will be heard if highest level is reached. Volume DOWN: Press Left button for 1 second to decrease the volume level. A beep will be heard if minimum level is reached. Transfer Conversation from Interphone F5 to phone: Press and hold center button for 3 seconds. A beep will be heard and audio will transfer to phone. Transfer Conversation from phone to Interphone F5: Press and hold center button for 3 seconds. A beep will be heard and audio will transfer to Interphone F5. Menu Selection: Press UP/DOWN button for 1 second to select which menu you wanted to use. You can select Phone, FM, Music Streaming, Auxiliary Input and Set-Up on the menu. Phone Menu: Activate Phone Mode: Press center button for 1 second to activate phone mode. “Phone Mode” will be announced on Interphone F5 Redial: Press UP button for 1 second to redial the last number used on your phone. “redialing last number” announced. Voice Dial: Press DOWN button for 1 second to activate the voice dial saved on your phone. Deactivate Phone Mode: Press center button for 1 second to deactivate Phone mode. “Phone” will be announced and ready to select another menu. FM Menu: Activate FM Mode: Press center button for 1 second to activate FM mode. “FM Active” will be announced on Interphone F5. To scan the stored FM Station: Press UP/DOWN button for 1 second to scan memory up. “Scan UP/Scan DOWN” will be announced on Interphone F5. “Memory 1-8 followed by the FM Station” will be announced on Interphone F5. To scan the FM Station Found: Press UP/DOWN button for 2 seconds to search a new FM station. “Scan UP/Scan DOWN” will be announced on Interphone F5. To Store FM Station to memory: Press center button for 2 seconds to store the current FM station on memory. Use UP/DOWN button to select your desired memory to store the current station, then short press center button to confirm. Interphone F5 announces “FM station stored to memory 1-8”. Deactivate FM Mode: Press center button for 1 second to deactivate FM mode. It will automatically go back to Phone menu. “Phone” will be announced and ready to select another menu. Music Streaming (A2DP) Menu: Activate Music Streaming (A2DP) Mode: Press center button for 1 second to select phone music streaming (A2DP) mode. “Music Streaming Active” will be announced on Interphone F5. To select next/previous music: Press UP/DOWN button for 1 second to select songs you wanted to play/stream. “Next/Previous” will be announced on Interphone F5. To play/pause music: Press center button for 2 seconds to play or pause the music streaming. Automatically play or paused the music streaming. Note: With some phones, you may need to manually play via Bluetooth on your phone to start streaming music on Interphone F5. Deactivate Music Streaming (A2DP) Mode: Press center button for 1 second to deactivate Music Streaming (A2DP) mode. It will automatically go back to phone menu. “Phone” will be announced and ready to select another menu. Auxiliary Input (MP3) Menu: Activate Auxiliary Input (MP3) Mode: Press center button for 1 second to activate auxiliary input mode. “Auxiliary Input Active” will be announced on Interphone F5. Plug in MP3 player and start playing music (audio will be automatically stream through Interphone F5). Deactivate Auxiliary Input (MP3) Mode: Press center button for 1 second to deactivate Auxiliary Input (MP3) mode. It will automatically go back to phone menu. “Phone” will be announced and ready to select another menu. Set-Up Menu: Activate Set-Up Mode: Press center button for 1 second to select Set-Up mode. “Set-UP Active” will be announced on Interphone F5. Then use UP/DOWN button for 1 second to select which function settings you will need to change. You can select RDS setting, Caller ID setting, Automatic Volume control setting, Voice Answer setting and Erase Pairing. RDS On/Off: Press center for 2 seconds to change the RDS settings. “RDS On or Off” will be a…

Text truncated - open the document above for the full version.

RF_160, Issue 01 Euro Communication Equipements sas Route de Foix 11500 Nebias, Quillan, France Tel : +33-4-68208730 Fax: +33-4-68208751 Declaration of Authorization We Name: Euro Communication Equipements SAS Address: Route de Foix 11500 Nebias, Quillan, France City: Quillan Country: France Declare that: Name: SGS Taiwan Ltd. Address: 134, Wu Kung Rd., Wuku Industrial Zone City: Taipei County Country: Taiwan is authorized to apply for Certification of the following product(s): Product description: BTMOTOF5 Type designation: BTMOTOF5 Trademark: INTERPHONE on our behalf. Date: July 5, 2011 City: Quillan Name: Michel E Marchant Signature: ____________________

Euro Communication Equipements sas Route de Foix 11500 Nebias, Quillan, France Tel : +33-4-68208730 Fax: +33-4-68208751 Date: Jul 04, 2011 Federal Communications Commission Authorization and Evaluation Division FCC ID: QVNBTMOTOF5 Confidentiality Request TO WHOM IT MAY CONCERN: Pursuant to Paragraphs §0.457 and 0.459 of the Commission Rules (47 C.F.R.) and the Section §552(b)(4) of the Freedom of Information Act, Euro Communication Equipements sas requests confidential treatment for the documents filed for the above product. Short term Confidentiality: Euro Communication Equipements sas requests that the Commission withhold the following documents for public viewing for ninety (90) days from the date the certification is granted. 1. Test setup Photographs 2. External Photographs 3. Internal Photographs When marketing begins, all exhibits marked short term confidential associated with a specific FCC ID (regardless of model number(s)) should be released. The above exhibits contain Euro Communication Equipements SAS’ trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our Wireless speaker, this material is not customarily available to the general public and we request that it be withheld from public inspection. Permanent confidentiality: Euro Communication Equipements SAS requests that the Commission withhold permanently the following documents for public viewing. 1. Electrical Schematics of the Circuitry 2. Block Diagram 3. Bill of materials 4. Operational Description No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Euro Communication Equipements sas’ trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our Wireless speaker, This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me. Sincerely, _____________________________________ Michel E Marchant / President Euro Communication Equipement SAS

Report No.: EF/2011/60003 FCC ID: QVNBTMOTOF5 IC: 7717A-BTMOTOF5 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsifi- cation of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134, Wu Kung Road, Wuku Industrial Zone, Taipei County, Taiwan /台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group All of EUT Front View of EUT Report No.: EF/2011/60003 FCC ID: QVNBTMOTOF5 IC: 7717A-BTMOTOF5 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsifi- cation of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134, Wu Kung Road, Wuku Industrial Zone, Taipei County, Taiwan /台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Back View of EUT Side view of EUT – 1 Report No.: EF/2011/60003 FCC ID: QVNBTMOTOF5 IC: 7717A-BTMOTOF5 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsifi- cation of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134, Wu Kung Road, Wuku Industrial Zone, Taipei County, Taiwan /台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Side view of EUT - 2 Side view of EUT – 3 Report No.: EF/2011/60003 FCC ID: QVNBTMOTOF5 IC: 7717A-BTMOTOF5 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsifi- cation of the content or appearance o…

Text truncated - open the document above for the full version.

BTMOTOF5 LABEL 22,9 mm 18,8 mm CE / FCC Label (22,9 x 18,8 mm) LABEL POSITION

Report No.: EF/2011/60003 FCC ID: QVNBTMOTOF5 Issue Date: Jun. 21, 2011 IC: 7717A-BTMOTOF5 Page: 1 of 67 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsifi- cation of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134, Wu Kung Road, Wuku Industrial Zone, Taipei County, Taiwan /台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT AND INDUSTRY CANADA RSS-210 OF Product Name: INTERPHONE BTMOTOF5 Marketing Name: SUPERTOOTH Brand Name: INTERPHONE Model Name: BTMOTOF5 Model Difference: N/A IC: FCC ID: 7717A-BTMOTOF5 QVNBTMOTOF5 Report No.: EF/2011/60003 Issue Date: Jun. 21 2011 Rule Part: §15.247, Cat: DSS RSS-210 issue 8:2010, Annex 8 Prepared for: Euro Communication Equipements SAS Route de Foix 11500 Nebias, Quillan, France Prepared by: SGS Taiwan Ltd. Electronics & Communication Laboratory No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: EF/2011/60003 FCC ID: QVNBTMOTOF5 Issue Date: Jun. 21, 2011 IC: 7717A-BTMOTOF5 Page: 2 of 67 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsifi- cation of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134, Wu Kung Road, Wuku Industrial Zone, Taipei County, Taiwan /台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group CERTIFICATION OF COMPLIANCE Applicant: Euro Communication Equipements SAS Route de Foix 11500 Nebias, Quillan, France Product Name: INTERPHONE BTMOTOF5 Marketing Name: SUPERTOOTH Brand Name: INTERPHONE IC: FCC ID: 7717A-BTMOTOF5 QVNBTMOTOF5 Model No.: BTMOTOF5 Model Difference: N/A File Number: EF/2011/60003 Date of test: Jun. 08, 2011 ~ Jun. 21, 2011 Date of EUT Received: Jun. 08, 2011 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and RSS-Gen. issue 3:2010, the energy emitted by the sample EUT tested as de- scribed in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15C:2007, §15.247 and RSS-210 issue 8: 2010 Annex 8. The test results of this report relate only to the tested sample identified in this report. Test By: Date: Jun. 21, 2011 Lion Wang / Engineer Prepared By: Date: Jun. 21, 2011 Cherry Chen / Clerk Approved By: Date: Jun. 21, 2011 Jim Chang / Supervisor Report No.: EF/2011/60003 FCC ID: QVNBTMOTOF5 Issue Date: Jun. 21, 2011 IC: 7717A-BTMOTOF5 Page: 3 of 67 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s fin…

Text truncated - open the document above for the full version.

Report No.: EF/2011/60003 FCC ID: QVNBTMOTOF5 IC: 7717A-BTMOTOF5 Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsifi- cation of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. SGS Taiwan Ltd. No.134, Wu Kung Road, Wuku Industrial Zone, Taipei County, Taiwan /台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3279 f (886-2) 2298-0488 www.tw.sgs.com Member of SGS Group Radiated Emission Setup Photos
