QVNBTMOTOTOBluetooth Headset

MotoTooth Bluetooth Headset Operating Manual Contents _______________________________________________________________________________________________________________ A.Product Overview.............................2 B.Quick Guide ................................2 C.Switching the MotoTooth On/Off......................3 D.Charging........................... ......3 E.Pairing to a Mobile Phone.................. .......4 F.MotoTooth Operations...........................4 G.Functions Matrix for mfb or multi-function button..............6 H.Multi-Pairing....................... .........6 ________________________________________________________________________________________________________________ 1/8 A.Product Overview B.Quick Guide 1 mfb or multifunction button - Power On: Press mfb for 1 second until status indicator turns blue (1 st beep). -Power Off: Press mfb for 5 seconds, until status indicator turns red (3 rd beep). -Pairing: From off, press and hold mfb for about 5 seconds until status indicator turns alternate blinking red/ blue (2 nd beep). -Answer / Hang-Up a Call: Press mfb for 1 second (1 st beep). -Other Functions (See Section F. MotoTooth Operations 2 status indicator -Pairing: Blinking Red/Blue 2/8 -On Call: Steady Blue -Standby: Blinking Blue -Low Battery (At standby): Blinking Red -Low Battery (On Call): Steady Red -Charging: Blinking Red/Green -Fully Charged: Steady Green 3 volume up -Press to increase the volume. 4 volume down -Press to decrease the volume. 5 headset plug input and charger socket 6 ear speaker 7 microphone 8 headset plug Power On: Press mfb for 1 second until status indicator turns blue. (If MotoTooth is already worn, press mfb until 1 st beep.) Power Off: Press mfb for 5 seconds until status indicator turns red (3rd beep). 1. When the status indicator turns red, it means that the battery is low. 2. Charge the unit using the provided charger. (Note: status indicator: Blinking Red/Green when charging) 3. When the status indicator turns steady green, it means that the charging is complete. 4. Disconnect the charger. 3/8 C. Switching the Mototooth On or Off D. Charging Pairing will create the link or connection between the MotoTooth and your Bluetooth mobile phone. First familiarize yourself with the parts, controls and functions of the MotoTooth. (See Section A. Product Overview and Section B. Quick Guide.) 1.From OFF, press and hold the mfb of the MotoTooth for about 5 seconds (or until you hear the 2 nd beep). When the LED turns alternate blinking red/blue, it means that the MotoTooth is in pairing mode. 2.While the headset is in pairing mode, access the Bluetooth menu of your phone. Turn on the Bluetooth function then execute a Bluetooth search, or discover so that it will find your MotoTooth. 3.When the phone displays the list of Bluetooth devices it found, select the name of this headset (MotoTooth). 4.When the phone asks for the passcode, enter 0000. Pairing is successful if the alternating red/blue lights of Bluetooth Indicator change to blinking blue. Normally, the phone would also show briefly on its display if it’s already paired and connected to the MotoTooth or if the pairing failed. Important Note: Some phones do not connect directly after entering 0000. To connect, you need to: Press mfb (until 1 st beep only) to completely connect. Or, (In your phone) Go back to Bluetooth > Paired devices > highlight the name of this headset (MotoTooth) > press Options > then press Connect). The MotoTooth is now ready to use. IMPORTANT: Before using the MotoTooth, familiarize yourself with the parts and functions of the MotoTooth. (See Section A. Product Overview and Section B. Quick Guide.) The MotoTooth also needs to be ‘paired’ with your Bluetooth mobile phone first, before you can use the following functions. (See Section E. Pairing to a Mobile Phone.) 1 Make a Call: Dial the number using your phone. Audio will automatically be on the headset. 4/8 E. Pairing to a Mobile Phone F. MotoTooth Operations Note: With some phones like Siemens S55 and Panasonic X70, audio is always on the phone during an outgoing call. You will need to press mfb to transfer the audio to your headset. 2 Redial (For Handsfree Profile Phones only) : Press mfb for 2 seconds (2 nd beep). The last dialed number will be redialed. Audio will be on the headset. 3 Voice Dial: Important: Be sure the voice dialing function of your phone is activated. Record at least one voice tag. (Kindly refer to the procedure in your phone’s manual.) Note: Voice dialing entries must be stored in the phone’s memory, not on the SIM card! 1.Execute Voice dial: Press mfb for 1 second (1 st beep). 2.Voice dial tone/beep will be heard on the headset prompting the user to say the voice tag of the contact to call. 3.Say the voice tag. The voice will be played back to you (audio on headset) then the phone will dial the number automatically. 4 Audio Transfer (For Handsfree Profile Phones only) : During an ongoing call, audio transfer can be made. From MotoTooth to Phone (MotoTooth initiated): Press the mfb for 2 seconds (2 nd beep). The audio will be transferred to the phone. From Phone to MotoTooth (MotoTooth initiated): Press the mfb for 1 second (1 st beep). The audio will be transferred back to the headset. 5 Answer a Call: Answer the call by pressing mfb for 1 second (1 st beep). 6 Reject a Call (For Handsfree Profile Phones only) : Reject a call by pressing mfb for 2 seconds (2 nd beep). 7 Set the volume: Press volume up or down button until desired level is achieved. One press would increase/decrease volume by 1 level. 5/8 Status Press for 1sec. Press for 2sec.Press for 5sec. Connected / On and Standby Initiates Voice dial Redials last dialled number Turns Off the MotoTooth / Disconnects Off Turns on the MotoTooth Enables Pairing Mode On and Standby but Disconnected Creates connection and activates Voice dial Creates connection Incoming call (ring being generated) Accepts the callRejects the call Active call a…

Text truncated - open the document above for the full version.

Euro Communication Equipements SAS Date: Apr. 07, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: QVNBTMOTOTO Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1.Electrical Schematics of the Circuitry 2.Block Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________________ Mr.Theodorus LAROS / Technical manager Euro Communication Equipements SAS

Printed Inverted-F Antenna Design for 2.4 Ghz Model : BTMOTOTOA1 Features: •Compact and easy design •Cost effective •Omni-directional pattern •Mixed polarisation •Wide bandwidth Application: •WLAN •Bluetooth •Other 2.4 Ghz pcb-integrated antenna Specifications: Frequency range2.4 – 2.5 GHz Peak gain2.5 dBi VSVR2 max Impedance50 Ohms Return loss S11- 24 dB 1 / 2 Gain patterns: X-Z cut gain pattern Y-Z cut gain pattern X-Y cut gain pattern 2 / 2

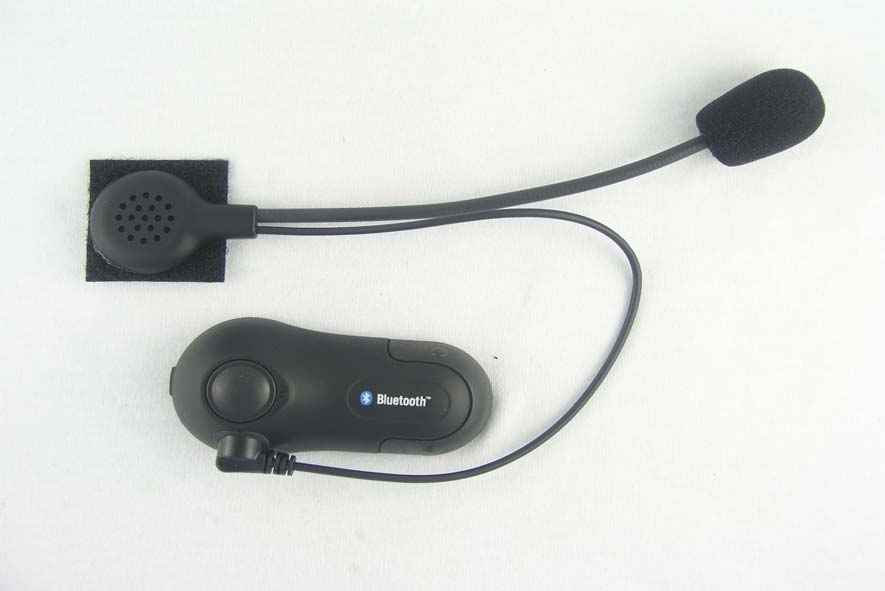

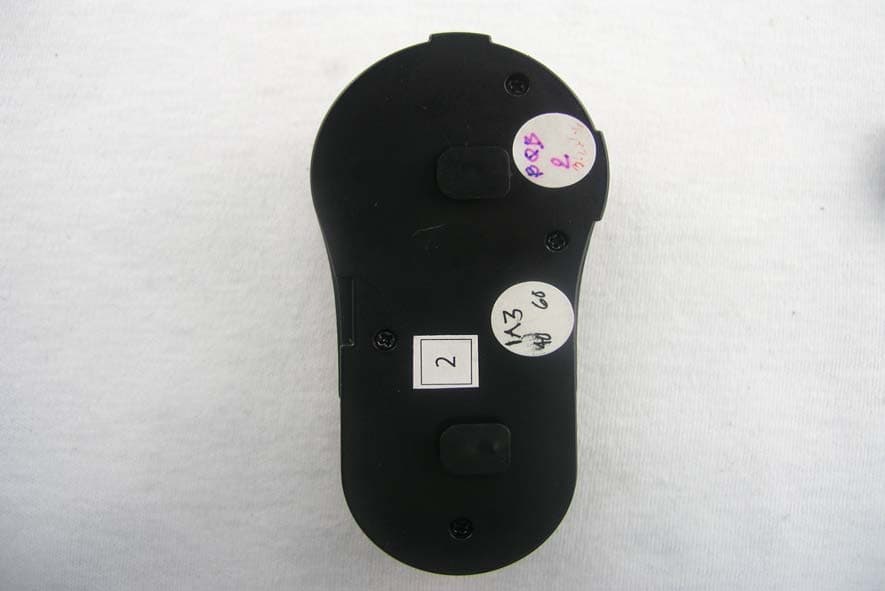

Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 PHOTOGRPHS OF EUT Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All View of EUT Front View of EUT Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Left View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Euro Communication Equipements SAS FCC ID: QVNBTMOTOTO

Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 PHOTOGRPHS OF EUT Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal of EUT – 1 ANT Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 2 Internal of EUT – 3

RF EXPOSURE STATEMENT 1. Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the Max peak output power is 0.93dBm (0.00124W) lower than low threshold 60/fGHz mW (24.48mW), d<2.5cm in general population category. The SAR measurement is not necessary.

Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 Page: 1 of 56 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: SUPERTOOTH MOTO / MOTOTOOTH Brand Name: SUPERTOOTH Model Name: BTMOTOTO FCC ID: QVNBTMOTOTO Report No.: EF/2006/40004 Issue Date: Apr. 17, 2006 FCC Rule Part: §15.247 Prepared for: Euro Communication Equipements SAS Route de Foix 11500 Nebias, Quillan, France Prepared by: SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Euro Communication Equipements SAS Route de Foix 11500 Nebias, Quillan, France Equipment Under Test: SUPERTOOTH MOTO / MOTOTOOTH Brand Name: SUPERTOOTH FCC ID Number: QVNBTMOTOTO Model No.: BTMOTOTO Model Difference: N/A File Number: EF/2006/40004 Date of test: Apr. 07, 2006 ~ Apr. 16, 2006 Date of EUT Received: Apr. 06, 2006 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Apr.. 17, 2006 Danny Yeh Prepared By: Date Apr.. 17, 2006 Gigi Yeh Approved By: Date Apr.. 17, 2006 Vincent Su Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Apr.. 17, 2006 Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 Page: 4 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .........................................................................................................7 1.1. Product Description ............................................................................................................................7 1.2. Related Submittal(s) / Grant (s) ..........................................................................................................7 1.3. Test Methodology ...............................................................................................................................7 1.4. Test Facility.........................................................................................................................................7 1.5. Special Accessories .............................................................................................................................7 1.6. Equipment Modifications....................................................................................................................7 2. SYSTEM TEST CONFIGURATION ............................................................................................8 2.1. EUT Configuration .............................................................................................................................8 2.2. EUT Exercise ......................................................................................................................................8 2.3. Test Procedure.....................................................................................................................................8 2.4. Configuration of Tested System..........................................................................................................9 3. SUMMARY OF TEST RESULTS ...............................................................................................10 4. DESCRIPTION OF TEST MODES ............................................................................................10 5. CONDUCTED EMISSION TEST................................................................................................11 5.1. Standard Applicable ..........................................................................................................................11 5.2. EUT Setup.....................................................................................................................…

Text truncated - open the document above for the full version.

Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photo Report No EF/2006/40004 FCC ID: QVNBTMOTOTO Issue Date: Apr. 17, 2006 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Conducted Emission Set Up Photos
