QVNBTSLBC3SUPERTOOTH LIGHT

Bluetooth Handsfree Kit For Bluetooth Mobile Phones Product Description SUPERTOOTH LIGHT is a Bluetooth handsfree kit that supports headset or handsfree profile phones. Its special features include Full DSP Noise Cancellation/Echo Cancellation, thus, it provides an advanced audio quality. It is designed for easy handsfree operation and superior performance. Don't forget: Drive safely and within the law. Check if the national or local legislation into force in your country does limit the use of mobile phones while driving. It is up to the user of this product to respect the said legislation in the area where he lives. Product Overview 1Accept Button 2End/Reject Button 3Bluetooth Indicator 4Charge Indicator 5Microphone Shaft *Press-and-release to Switch On *Push-in to Switch Off 6Speaker 7Volume Down 8Volume Up 9Charger Port 10Magnets 2 Charging When the Bluetooth Indicator (3) turns red, the battery of the kit is low. Charge the unit. 1.Connect the charger’s plug into the Charger Port (9) of the SUPERTOOTH LIGHT. Connect the charger to an external power source. Charge Indicator (4) Status: Steady red: Charging Steady green: Full Charge 2.When fully charged, disconnect the charger. Power On/Off Power On: Press-and-release the Microphone Shaft (5). Power Off: Push the Microphone Shaft (5) in. Pairing to your Bluetooth Mobile Phone Pair the SUPERTOOTH LIGHT to your Bluetooth mobile phone to create the link or audio connection between the two. This has to be done only at the first connection to a new phone. 1.From OFF, press and hold the Accept Button (1). 2.While holding the Accept Button (1), switch the kit on (Press-and-release the Microphone Shaft (5)). 3.When the Bluetooth Indicator (3) turns blinking red/blue, release the Accept Button (1). The kit is now in pairing mode. 3 4.While the kit is in pairing mode, access the Bluetooth menu of your phone. Turn on the Bluetooth function then execute a Bluetooth search, or discover. (See your phone’s manual.) 5.When the phone displays the list of Bluetooth devices, select ST LIGHT. 6.When the phone asks for the password, enter 0000 and press Ok. Important Note: The kit is paired now. Most phones automatically connect to the kit after pairing. With some phones you need to connect manually after pairing. Go back to Bluetooth > Paired devices > highlight ST LIGHT > press Options > then press Connect. The kit is now ready to use. Installation Fix the metal clip of SUPERTOOTH LIGHT on the sun visor. Attach the magnetic back of SUPERTOOTH LIGHT to the fixed metal clip. The SUPERTOOTH LIGHT must be placed in such way that its microphone is directed to the mouth of the user. Basic Operations IMPORTANT: The kit needs to be ‘paired’ to your Bluetooth mobile phone first, before you can use the following functions. See Pairing to your Bluetooth Mobile Phone on page 3. Make a Call (Normal Dial): Dial the number on your phone. Audio will automatically be on the kit. 4 Answer a Call: During the ring tone, press Accept Button (1) for 1 second to answer the call. End a Call: Press End/Reject Button (2) for 1 second to end the call. Voice Dial: Important: Be sure the voice dialing function of your phone is activated. Record at least one voice tag. (Kindly refer to the procedure in your phone’s manual.) Important: Voice dialing entries must be stored in the phone’s memory, not on the SIM card! 1.Press the Accept Button (1) for 1 second. 2.A voice dial beep will be heard on the kit to prompt the user to say the voice tag of the contact to call. 3.Say the voice tag exactly as how you recorded it. 4.The voice will be played back to you, and then the phone will dial the number automatically. Note: Voice dial deactivation: Pressing Accept Button (1) for 1 second activates voice dial but if you want to deactivate it, just press the same button again for 1 second. The voice dial will be deactivated immediately. Redial (For Handsfree Profile Phones only) : Press Accept Button (1) for 3 seconds. The last dialed number will be redialed. Reject a Call (For Handsfree Profile Phones only) : During the ring tone, press End/Reject Button (2). The incoming call will be rejected. Volume Setting: Increase or decrease the volume by pressing the Volume Up (8) or Volume Down (7) button. Press repeatedly until desired level is reached. Audio Transfer (For Handsfree Profile Phones only) : During an ongoing call, you can transfer the audio. Kit to Phone: Press the Accept Button (1) for 3 seconds. The audio will be transferred to the phone. Phone to Kit: Press the Accept Button (1) for 1 second. The audio will be transferred to kit. 5 Buttons Mapping Buttons Kit Status Accept Button / (Short press/ 1 second) Accept Button / (Long press / 2 seconds) End / Reject Button (Short press) Volume Up / Volume Down (Short Press) Volume Up / Volume Down (Long Press) Connected / On and Standby Initiates Voice dial Redials last dialed number Increases/ Decreases volume by 1 level Volume fast increment/ decrement On and Standby but Disconnected Creates reconnection/ initiates voice dial Incoming call (ring being generated) Answers the call Rejects the call Active call on ST LIGHT Transfers audio to phone Ends the call Active call on Phone Transfers audio to kit Outgoing call being set-up Ends the call 6 SUPERTOOTH LIGHT Specifications Bluetooth Compliance:Bluetooth version 1.2 specifications Supported Bluetooth Profiles:Supports headset and handsfree profiles with automatic detection Operating Range:Up to 10 meters Frequency:2.4 GHz Talk Time:Up to 15 hours Stand-by time:Up to 800 hours Charging Time:3 hours Battery Type:Rechargeable Lithium Ion Special Features: Full Duplex Full DSP Noise Cancellation / Echo Cancellation Digital Volume Control Voice Recognition Dialing (If phone supports) Last Call Redial Reject Incoming Call Can also be charged directly from a PC via USB Cable (not included) Compact Size Installation:Quick fixation on sun visor via magnetic clip Dimensions (mm):18.2 x 60.2 x…

Text truncated - open the document above for the full version.

Euro Communication Equipements SAS Date: September. 26, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: QVN BTSLBC3 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1.Electrical Schematics of the Circuitry 2.Block Diagram 3.Bill of materials 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________________ Mr.Theodorus LAROS / Technical manager Euro Communication Equipements SAS

RF_160, Issue 01 Declaration of Authorization We Name: Euro Communication Equipements SAS. Address: Route de Foix 11500 Nebias,. City: Quillan, Country: France Declare that: Name: SGS Taiwan Ltd. Address: 134, Wu Kung Rd., Wuku Industrial Zone City: Taipei County Country: Taiwan is authorized to apply for Certification of the following product(s): Product description: SUPERTOOTH LIGHT Type designation: BTSLBC3 Trademark: SUPERTOOTH on our behalf. Date: Oct. 13, 2006 City: Quillan, Name: Theodorus LAROS Signature:

Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 PHOTOGRPHS OF EUT Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Front View of EUT Back View of EUT Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Left View of EUT Bottom View of EUT

BTSLBC3 LABEL 16 mm 24 mm CE / FCC Label (16 x 24 mm) LABEL POSITIONS

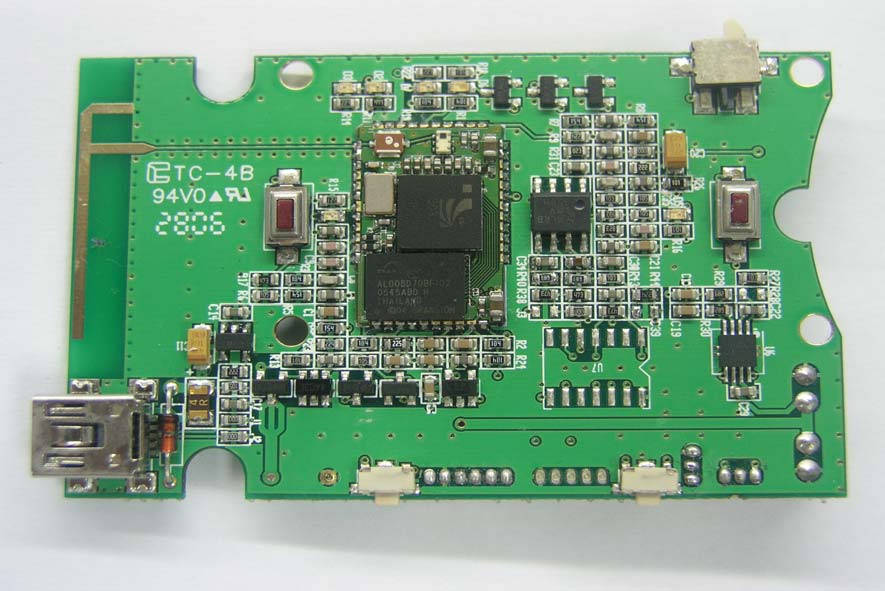

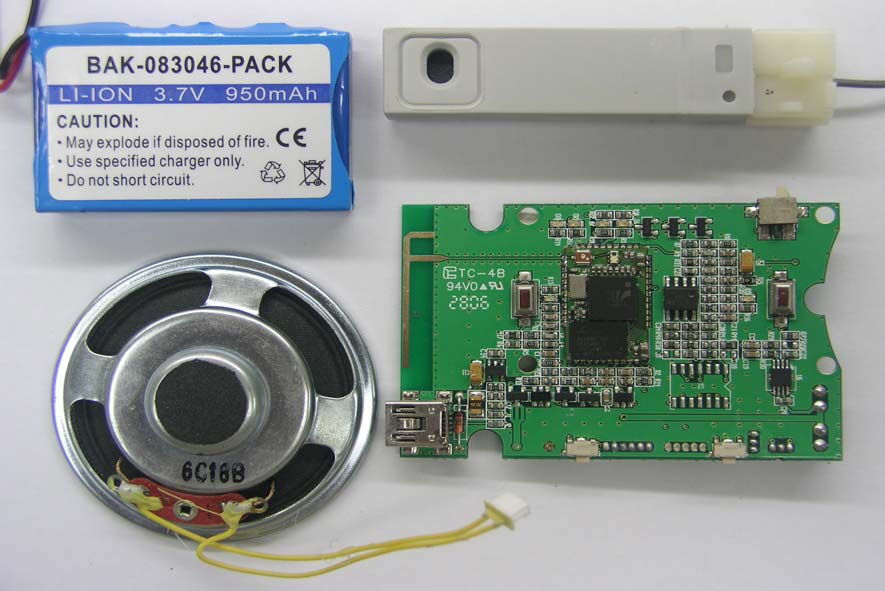

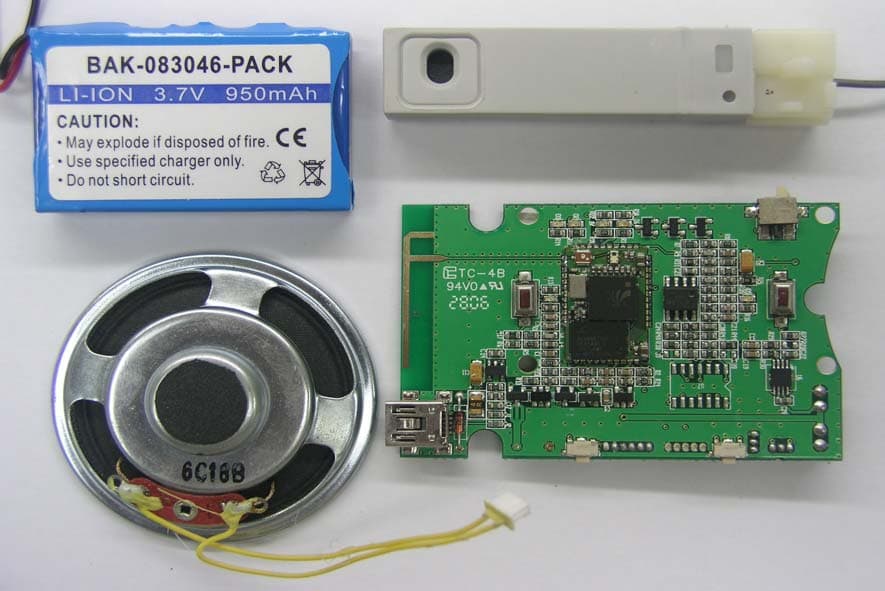

Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 PHOTOGRPHS OF EUT Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT -1 Open View of EUT-2 Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 1 Internal of EUT – 2 Antenna Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 3 Internal of EUT – 4 Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 5

RF EXPOSURE STATEMENT 1. Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the Max peak output power is 2.61dBm (0.00182W) lower than low threshold 60/fGHz mW (24.48mW), d<2.5cm in general population category. The SAR measurement is not necessary.

Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 Page: 1 of 55 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the con- tent or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意 此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面 許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: SUPERTOOTH LIGHT Brand Name: SUPERTOOTH Model Name: BTSLBC3 FCC ID: QVNBTSLBC3 Report No.: EF/2006/A00008 Issue Date: Oct. 26, 2006 FCC Rule Part: §15.247 Prepared for: Euro Communication Equipements SAS Route de Foix 11500 Nebias, Quillan, France Prepared by: SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 Page: 2 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Euro Communication Equipements SAS Route de Foix 11500 Nebias, Quillan, France Equipment Under Test: SUPERTOOTH LIGHT Brand Name: SUPERTOOTH FCC ID Number: QVNBTSLBC3 Model No.: BTSLBC3 Model Difference: N/A File Number: EF/2006/A0008 Date of test: Oct. 13, 2006 ~ Oct. 26, 2006 Date of EUT Received: Oct. 12, 2006 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Oct. 26, 2006 Jason Wu / Sr. Engineer Prepared By: Date Oct. 26, 2006 Gigi Yeh / Clerk Approved By: Date Oct. 26, 2006 Vincent Su / /Manager Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 Page: 3 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Oct. 26, 2006 Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 Page: 4 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION ...........................…

Text truncated - open the document above for the full version.

Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photo Report No EF/2006/A0008 FCC ID: QVNBTSLBC3 Issue Date: Oct. 26, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Conducted Emission Set Up Photos
