QVNBTSLPHOSUPERTOOTH LIGHT

Bluetooth Handsfree Kit For Bluetooth Mobile Phones Operating Manual Contents ______________________________________________________________________________________________________________ Product Overview..............................................2 Charging.............................. ......................3 Power On/Off.................................................3 Pairing to your Bluetooth Mobile Phone.................. ............3 Basic Operations...............................................4 Advanced Functions............................................5 Button Functions Matrix..........................................6 ______________________________________________________________________________________________________________ Product Overview 2 Charging When the Charge Indicator turns red, the battery of the kit is low. Charge the unit. 1.Connect the charger’s plug into the Charger Port of the ST LIGHT. Connect the charger to an external power source. 2.When fully charged, disconnect the charger. Charge Indicator Status: Low Batt: steady red Charging: steady orange Full Charge: steady green Power On/Off Power On: Press-and-release the Mic Shaft. Power Off: Push the Mic Shaft in. Pairing to your Bluetooth Mobile Phone Pair the ST LIGHT to your Bluetooth mobile phone to create the link or audio connection between the two. 1.From OFF, press and hold the Accept Button of the ST LIGHT. 2. While holding the Accept Button, switch the kit on. 3.When the Bluetooth Indicator turns blinking red/blue, release the Accept Button. This means the kit is now in pairing mode. 3 4.While the kit is at pairing mode, access the Bluetooth menu of your phone. Turn on the Bluetooth function then execute a Bluetooth search, or discover. 5.When the phone displays the list of Bluetooth devices it found, select ST LIGHT. 6.When the phone asks for the passcode, enter 0000. The phone will show if pairing and connection is successful. Important Note: The kit is paired now. Most phones automatically connect to the kit after pairing. With some phones you need to connect manually after pairing. Go back to Bluetooth > Paired devices > highlight the name of this kit (ST Light) > press Options > then press Connect. The kit is now ready to use. Basic Operations IMPORTANT: The kit needs to be ‘paired’ to your Bluetooth mobile phone first, before you can use the following functions. Make a Call (Normal Dial): Dial the number on your phone. Audio will automatically be on the kit. Note: With some phones like Siemens S55 and Panasonic X70, audio is always on the phone during an outgoing call. You will need to press the Accept Button for 1 second to transfer the audio to your kit. Redial (For Handsfree Profile Phones only) : Press Accept Button for 3 seconds. The last dialed number will be redialed. Audio will be on the kit. Voice Dial: Important: Be sure the voice dialing function of your phone is activated. Record at least one voice tag. (Kindly refer to the procedure in your phone’s manual.) Note: Voice dialing entries must be stored in the phone’s memory, not on the SIM card! Execute Voice dial: 1.Press the Accept Button for 1 second. 2.A voice dial tone/beep will be heard on the kit, prompting the user to say the voice tag of a contact to call. 3.Say the voice tag exactly as how you recorded it. 4.The voice will be played back to you, and then the phone will dial the number automatically. 4 Answer a Call: During the ring tone, press Accept Button for 1 second to answer the call. End a Call: When conversation is over, press End/Reject Button for 1 second to end the call. Reject a Call (For Handsfree Profile Phones only) : During the ring tone, press End/Reject Button. The incoming call will be rejected. Volume Setting: Increase or decrease the volume by pressing the volume up or volume down button. Press repeatedly until desired level is reached. Audio Transfer (For Handsfree Profile Phones only) : During an ongoing call, you can transfer the audio. Kit to Phone: Push in the microphone shaft (or turn off the kit). The audio will be transferred to the phone. Phone to Kit: Press-and-release the microphone shaft (or turn on the kit). Some phones do not connect automatically to the kit after turning on. With these phones, you need to press Accept Button for 1 second. Then the audio will be transferred to the kit. Advanced Functions Multi-Pairing / Switching Connections Between Phones The ST LIGHT can be paired to 5 Bluetooth phones. An additional pairing will automatically delete the phone that has not been used for the longest time. Thus, maintaining 5 phones in its memory. You can easily switch to any of the paired phones by: 1.Disconnecting the currently used phone using the “Active devices” in the Bluetooth menu of that phone and then; 2.Connect to the wanted phone by using the “Paired devices” in the Bluetooth menu of that wanted phone. Note: Reconnection to a paired phone can also be done by pressing the Accept Button. But when you press the Accept Button, the ST LIGHT will attempt to connect to the last used phone only. It is recommended to connect to the ST LIGHT using your phone. 5 Button Functions Matrix Status Accept Key / (Short press / 1 second) Accept Key / (Long press / 2 seconds) End / Reject Key (Short press) Mic Shaft (Push in) Mic Shaft (Press-and- release) Connected / On and Standby Initiates Voice dial Redials last dialed number Turns Off kit / Disconnects Off Turns On kit / Reconnects On and Standby but Disconnected Creates reconnection/ initiates voice dial Incoming call (ring being generated) Accepts the call Rejects the call Active call on ST LIGHT Ends the call Transfers audio to phone Active call on Phone Transfers audio to kit Outgoing call being set-up Ends the call 6 7 (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wast…

Text truncated - open the document above for the full version.

Euro Communication Equipements SAS Date: May. 12, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: QVN BTSLPHO Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1.Electrical Schematics of the Circuitry 2.Block Diagram 3.Bill of materials 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _____________________________________ Mr.Theodorus LAROS / Technical manager Euro Communication Equipements SAS

RF_160, Issue 01 Declaration of Authorization We Name: Euro Communication Equipements SAS Address: Route de Foix 11500 Nebias City: Quillan Country: France Declare that: Name: SGS Taiwan Ltd. Address: 134, Wu Kung Rd., Wuku Industrial Zone City: Taipei County Country: Taiwan is authorized to apply for Certification of the following product(s): Product description: SUPERTOOTH LIGHT Type designation: BTSLPHO Trademark: SUPERTOOTH on our behalf. Date: Jun. 27, 2006 City: Quillan Name: Theodorus LAROS Signature:

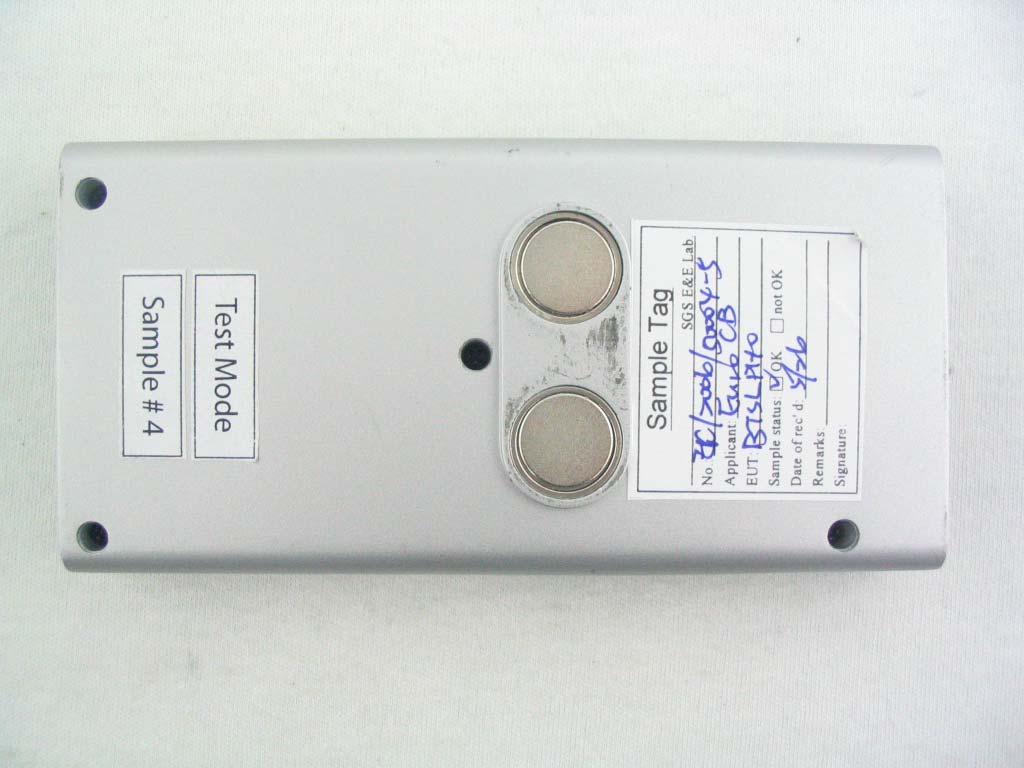

Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 PHOTOGRPHS OF EUT Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All View of EUT Front View of EUT Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Left View of EUT Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Right View of EUT Top View of EUT Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Bottom View of EUT Adaptor (model: PW-31T)

FCC ID LABEL FORMAT AND LOCATION Applicant: Euro Communication Equipements SAS FCC ID: QVNBTSLPHO

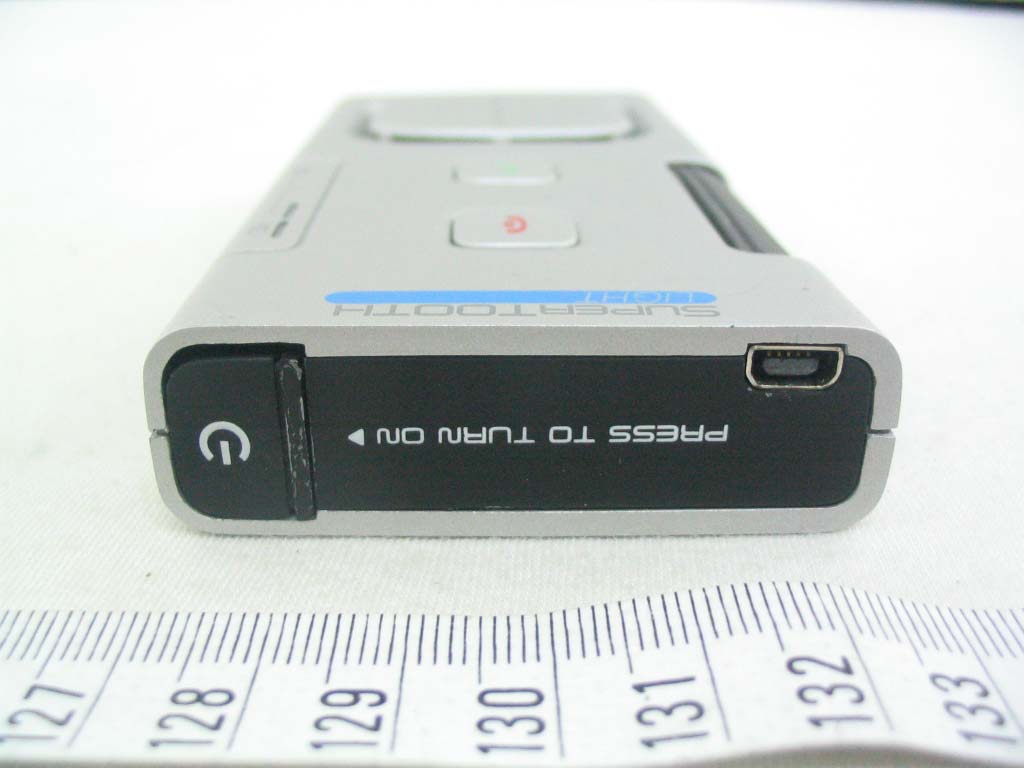

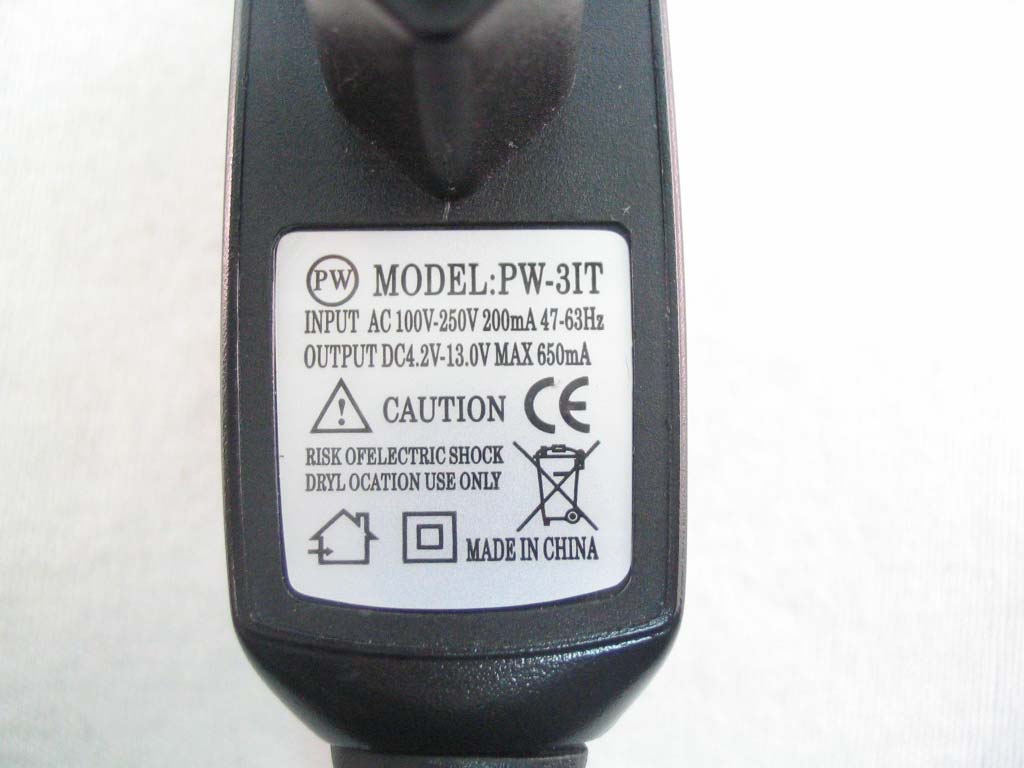

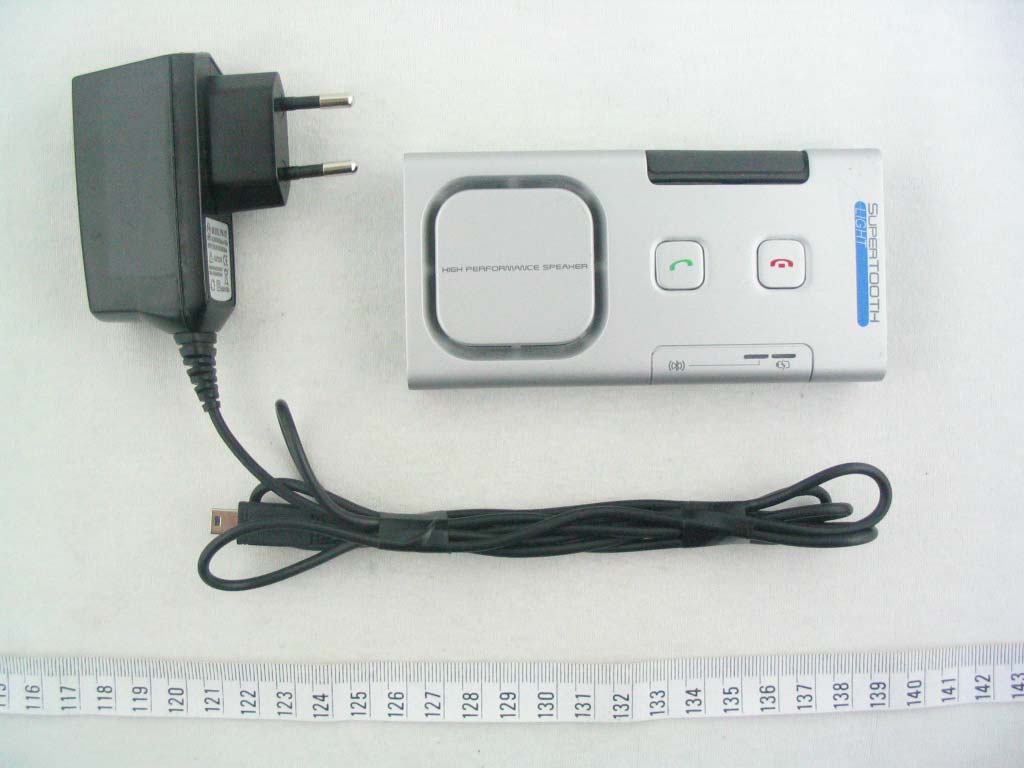

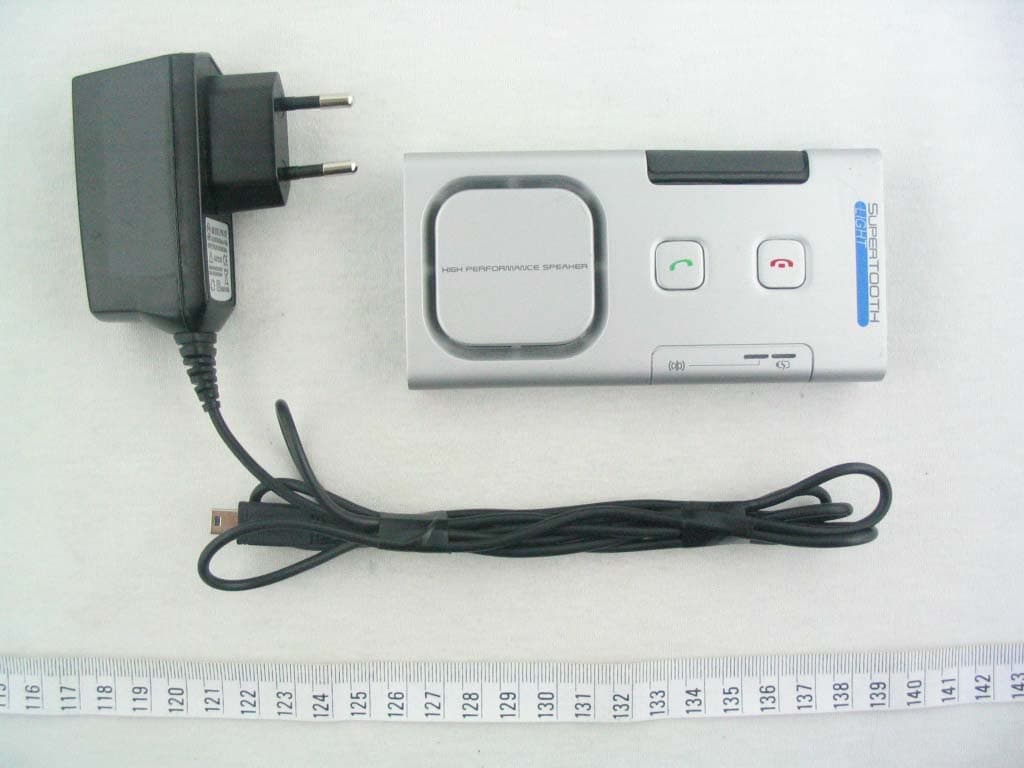

Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 PHOTOGRPHS OF EUT Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal of EUT – 1 Antenna Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 2

RF EXPOSURE STATEMENT 1. Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the Max peak output power is 1.12dBm (0.00129W) lower than low threshold 60/fGHz mW (24.48mW), d<2.5cm in general population category. The SAR measurement is not necessary.

Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 Page: 1 of 55 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the con- tent or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意 此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面 許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: SUPERTOOTH LIGHT Brand Name: SUPERTOOTH Model Name: BTSLPHO FCC ID: QVNBTSLPHO Report No.: EF/2006/50010 Issue Date: Jun. 22, 2006 FCC Rule Part: §15.247 Prepared for: Euro Communication Equipements SAS Route de Foix 11500 Nebias, Quillan, France Prepared by: SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 Page: 2 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Euro Communication Equipements SAS Route de Foix 11500 Nebias, Quillan, France Equipment Under Test: SUPERTOOTH LIGHT Brand Name: SUPERTOOTH FCC ID Number: QVNBTSLPHO Model No.: BTSLPHO Model Difference: N/A File Number: EF/2006/50010 Date of test: May. 19, 2006 ~ Jun. 21, 2006 Date of EUT Received: May. 18, 2006 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Jun. 22, 2006 Danny Yeh Prepared By: Date Jun. 22, 2006 Gigi Yeh Approved By: Date Jun. 22, 2006 Vincent Su Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 Page: 3 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Jun. 22, 2006 Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 Page: 4 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .............................................................…

Text truncated - open the document above for the full version.

Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photo Report No EF/2006/50010 FCC ID: QVNBTSLPHO Issue Date: Jun. 22, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Conducted Emission Set Up Photos
