QVR-SRC3815Universal Remote Control Transceiver

Preface SUR-47 User’s Manual Preface About this manual This manual is designed to make using the SUR-47 Touch Screen Remote Control as easy as possible. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. Copyright © Copyright Sima Products Corporation 2003 This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of Sima Products Corporation. Trademarks All trademarks and registered trademarks are the property of their respective owners. FCC - The Federal Communication Commission Radio Frequency interference Statement includes the following paragraph: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one or more of the following measures: * Reorient or relocate the receiving antenna * Increase separation between the equipment and the receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. * Consult the dealer or an experienced radio/TV technician for help. The user should not modify or change this equipment without written approval from Sima Products Corp. Modification could void authority to use this equipment. 90 Day Limited Warranty Sima Products Corporation warrants this product against defects in materials and workmanship for a period of 90 days from the date of purchase. During the warranty period, the product will be repaired or replaced, at Sima’s option. If you think you need to send your unit in for service, call Sima Customer Service at 800-345-7462. Conditions Ship unit, freight prepaid, including reasonable proof of purchase and description of problem to: Attn: Customer Service Sima Products 140 Pennsylvania Ave., Bldg #5, Oakmont, PA 15139 This warranty is void if any defects are caused by abuse, misuse, negligence or unauthorized repairs. All liability for incidental or consequential damages is specifically excluded. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. ii SUR-47 User’s Manual Table Of Contents Table of Contents Chapter 1 - Introducing the SUR-47................................................................................................................1 SUR-47 Features..............................................................................................................................................1 Unpacking the SUR-47..................................................................................................................................1 Identifying Components..............................................................................................................................2 Chapter 2 - Getting Started.............................................................................................................................4 Installing The Base Unit..................................................................................................................................4 Using the IR blaster cable.............................................................................................................................4 Installing Batteries..........................................................................................................................................4 Battery Indicator......................................................................................................................................4 Battery Tips and Precautions.................................................................................................................5 About the Touch Screen..............................................................................................................................5 Turning the Touch Screen On................................................................................................................5 Touch Screen Precautions.....................................................................................................................5 Touch Screen Buttons.............................................................................................................................5 Using Hard Keys..............................................................................................................................................6 Entering the Setup Menus............................................................................................................................6 Navigating the Setup Menus................................................................................................................6 The Setup menu tree.....................................................................................................................................7 Chapter 3 - Setting Up the SUR-47............................................................................…

Text truncated - open the document above for the full version.

SUR-47 RF remote control block diagram MCU IR OUT IR SENDMODULE RF TRANSCEIVER MODULE Tx_EN RF_CS DATA IN DATA OUT LCD DRIVE LCD DISPLAY KEYBOARD INPUT FLASH MEMORY BACKLIGHT MODULE IR RECEIVER MODULE BATTERY DETECT MODULE BUZZER MODULE

Mike Kuo From: rick Sent: July20 2004 Tuesday 1:13 AM To: Mike Kuo Subject: Re: Sunwave Technology Corp. FCC ID:QVR-SRC3815, AN04T4051 7/20/2004 Dear Mike, Dear Mike, Regarding your questions, please refer to the following: Q#1 : The product of 315.16MHz is not for the State market, please refer to the revised schematics. Q#2 : This is a manually operated transmitter, it will be deactivated the transmitter less than 4 seconds, please see the page 30 of revised test report. with regard to the " During what conditon that this handheld transmitter will transmit RF not IR ?", please refer to the page 10 of user manual. Q#3 : This device is a transceiver, please refer to the page 15-21 of revised test report. Best regards, Rick Hu ----- Original Message ----- Hi Rick : Question #1: Page 2 of schematic diagram listed the transmitter frequency range as 433.92- 434.33MHz and 315.16 to 433.92MHz. Such frequency mapping does not agree with frequency investigated in the test report. Please explain. Question #2: Section 6.2 of test report indicates that " this transmitter is operated by manual and active time is less than 1 second after being release. " During what conditon that this handheld transmitter will transmit RF not IR ? Question #3: Is this device a transmitter or a transceiver ? If this is transceiver device, please provide receiver portion of test data. Best Regards Mike Kuo Compliance Certification Services 561F Monterey Road Morgan Hill CA 95037 Tel: (408)463-0885 x: 105 Fax: (408)463-0888 http://www.ccsemc.com

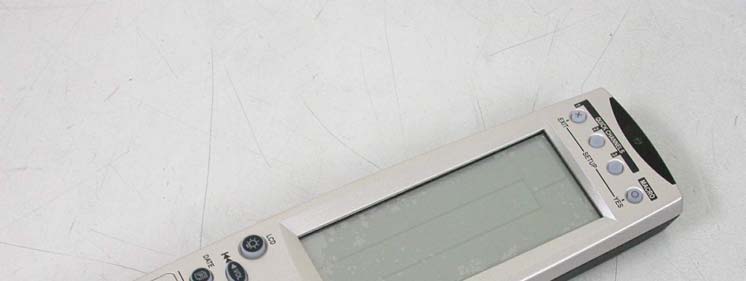

ETC Report No.: ET92S-01-215-02 Page A1 of A1 FCC ID: QVR-SRC3815 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside View 1 of EUT 2. Outside View 2 of EUT

SUNWAVE Technology Corp. Http://www.sun-wave.com Tel:2 6606 7507 Fax:2 6606 7611 4-R1.0 Size : L31.50 x W19.50 mm, R2.0. Color : 100% Black Letter : 100% White Made in Taiwan This device complies with Part 15 of the FCC rules Model SUR-47 Sima Products Corp. 800.345.7462 www.simacorp.com Power: 4xAAA Alkaline Batteries Batch#: FCC ID : QVR-SRC3815

ETC Report No.: ET92S-01-215-02 Page B1 of B4 FCC ID: QVR-SRC3815 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: ET92S-01-215-02 Page B2 of B4 FCC ID: QVR-SRC3815 3. Inside View 3 of EUT 4. Front view of PCB1 ETC Report No.: ET92S-01-215-02 Page B3 of B4 FCC ID: QVR-SRC3815 5. Rear view of PCB1 6. Front view of PCB2 ETC Report No.: ET92S-01-215-02 Page B4 of B4 FCC ID: QVR-SRC3815 7. Rear view of PCB2

ETC Report No. : ET92S-01-215-01Sheet 1 of 30 Sheets FCC ID.: QVR-SEL6000 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: ET92S-01-215-01 Client:SUNWAVE TECHNOLOGY CORP Product:UNIVERSAL REMOTE CONTROL Model:SUR-BU FCC ID:QVR-SEL6000 Manufacturer/supplier:SUNWAVE TECHNOLOGY CORP Date test item received:2003/01/29 Date test campaign completed:2004/07/19 Date of issue:2004/07/20 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 30 pages Total number of pages of photos: External photos 3 pages Internal photos 3 pages Setup photos 2 pages Test EngineerChecked ByApproved By Lee-Ying HsuJoe HsiehWin-Po Tsai ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333 TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 ETC Report No. : ET92S-01-215-01Sheet 2 of 30 Sheets FCC ID.: QVR-SEL6000 Rev. No 1.0 TEST REPORT CERTIFICATION Client: SUNWAVE TECHNOLOGY CORP Address: 6F-5,No. 103.JuiHu St., NeiHu Chiu, Taipei, Taiwan. 114 Manufacturer: SUNWAVE TECHNOLOGY CORP Address: 6F-5,No. 103.JuiHu St., NeiHu Chiu, Taipei, Taiwan. 114 EUT: UNIVERSAL REMOTE CONTROL Trade name: SUNWAVE Model No.: SUR-BU Power Source: Input: 120VAC 60Hz, 6W Output: 5.5VDC, 500mA (Ever Flow Co. M/N:DBU055050) Regulations applied: FCC 47 CFR, Part 15 Subpart C (2003) The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: n ISO9001: TüV Product Service o ISO/IEC 17025: BSMI, CNLA, DGT, NVLAP, CCIBLAC, UL, Compliance p Filing: FCC, Industry Canada, VCCI q MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through CNLA NVLAP Lab Code 200133-0 ETC Report No. : ET92S-01-215-01Sheet 3 of 30 Sheets FCC ID.: QVR-SEL6000 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ...................................................................................................................................... 4 1.1 P RODUCT DESCRIPTION................................................................................................................................................. 4 1.2 C HARACTERISTICS OF DEVICE: ...................................................................................................................................... 4 1.3 T EST METHODOLOGY.................................................................................................................................................... 4 1.4 T EST FACILITY............................................................................................................................................................... 4 2. DEFINITION AND LIMITS ....................................................................................................................................... 5 2.1 D EFINITION.................................................................................................................................................................... 5 2.2 R ESTRICTED BANDS OF OPERATION.............................................................................................................................. 5 2.3 L IMITATION................................................................................................................................................................... 6 2.4 L ABELING REQUIREMENT.............................................................................................................................................. 7 2.5 U SER INFORMATION...................................................................................................................................................... 7 3. RADIATED EMISSION MEASUREMENT ............................................................................................................. 8 3.1 A PPLICABLE STANDARD................................................................................................................................................ 8 3.2 M EASUREMENT PROCEDURE.......................................................................................................................................... 8 3.3 T EST DATA.................................................................................................................................................................. 10 3.4 F IELD STRENGTH CALCULATION................................................................................................................................. 20 3.5 R ADIATED TEST EQUIPMENT....................................................................................................................................... 20 3.6 M EASURING INSTRUMENT SETUP................................................................................................................................21 4. BANDWIDTH OF EMISSION..................................................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:ET92S-01-215-02 Sheet 1 of 3 Sheets FCC ID.: QVR-SRC3815 Radiated Measurement Photos X-axis ETC Report No.:ET92S-01-215-02 Sheet 2 of 3 Sheets FCC ID.: QVR-SRC3815 Y-axis ETC Report No.:ET92S-01-215-02 Sheet 3 of 3 Sheets FCC ID.: QVR-SRC3815 Z-axis
