QWGBHE20HASSNET Mono Headset With Bluetooth

1. Introduction wiREVO Headset BHE20 will lead you to the mobility. BHE20 allows you freedom to make and receive calls while on the move or in the office. The main function of wiREVO BHE20 is as follows; • Wireless Hands-free Read this user’s guide carefully before using the Headset. Bluetooth Wireless Technology wiREVO BHE20 is specially designed for any compatible Bluetooth devices that support the following profiles. (Profile is a set of Bluetooth commands that the devices use to control the headset.) • Hands-free profile • Headset profile The Bluetooth technology makes it possible to connect compatible communication devices without using cables. The Bluetooth connection does not require that the phone and the Headset are in line of sight, but both devices should be 10 meters of each other, although the connection can be subject to interference from obstructions, such as walls, or other electronic devices. BHE20 is compliant with and adopts the Bluetooth Specification 1.2. For more information on the compatibility between wiREVO with other Bluetooth-enabled products, please check with your dealer. (Limited Liability) Neither the Manufacturer, importers nor dealers is responsible for any accidental damage including bodily injury or any damage resulting from misuse or unsuitable operation by you. The information on this manual is prepared with the current headset specifications. The manufacturer, wiREVO, is adding new features to the product and may persistently apply new technologies hereafter. All standards may be changed at any time without notice. 2. Guidelines for your safety Before use, read the warnings and other information in this manual. Please check for any information on RF exposure in usage of Bluetooth headset. When your headset is turned on, it transmits and receives radio frequency electromagnetic fields in the frequency range 2.402 ~ 2.480 GHz. Your headset is designed to operate in compliance with the RF exposure guidelines and limits that are set by national authorities and international health agencies when used with any compatible devices. [Headset] „ Do not touch your headset and power plug with damp hands. „ Do not kink or crease the power cable or place heavy objects on the power cable. „ Firmly plug the adapter into the wall socket. „ Unplug the adaptor during electrical storms. „ Do not overload a single power circuit. „ Use only the supplied adaptor. „ Unplug adapter when it’s not in use. „ Immediately power off the headset and unplug the adapter if water or other liquids are present. „ Immediately power off the headset and unplug the AC adapter if smoke or odors emits from the headset or adaptor. „ Keep the Headset dry. Humidity and all types of liquids or moisture can cause harmful interface with electronic circuits. „ Do not place heavy object on the device. „ Store the Headset at room temperature. Unstable temperature can cause serious damages, such as shortening the life of electronic devices, damaging batteries and other particular plastic substances. „ Do not use harsh chemicals, cleaning solvents, water or strong detergents to clean the Headset. To clean external surfaces, use a clean dampened cloth. „ Do not use excessive force on the buttons or attempt to disassemble the device. „ Do not drop or subject the device to impact. „ Do not paint the Headset. Paint can clog the moving parts and prevent proper operation. „ Keep the headset away from strong magnets. „ Do not disassemble or modify. „ Do not dry the headset with heater or microwave. „ Keep all accessories out of the reach of small children. „ Reduce volume or stop using the headset if your experience a ringing in your ears. [Battery] Your headset is equipped with a high-performance Lithium polymer battery. Observe the maintenance guidelines and your battery should give you a long service life. „ Use batteries and chargers only provided and approved by Hassnet. „ The batteries are consumables and will eventually wear out. „ Avoid charging in strong heat or extreme cold. Ambient room temperature is preferable. The battery has its optimum performance at an ambient temperature (+5 °C to +50°C). „ Never replace the battery by a non-approved battery. „ Never try to open the battery as it contains substances that might be harmful if swallowed or allowed to come into contact with unprotected skin. 1. What’s in the box? 2. Features at a glance FRONT / BACK 3. Putting on the headset 4. Fixing a ear-loop „ Hold the earloop and pull to the direction of arrow to detach it from the body. „ Overturn the detached ear-loop as image. „ Fix the overturned ear-loop to the direction of arrow. 5. Charging Before using the headset for the first time, make sure the headset is fully charged. The indicator light will turn to Blue when the battery is fully charged. This is designed to be used for both ears. In a box, it’s set to be used for a right ear. Before Using the headset „ Plug in the charger to the headset. „ When the battery is fully charged, the indicator light is turned to Blue. „ It takes about 2 hours to fully recharge the battery. Low battery indication „ The headset will generate repeated warning beeps every 10 seconds. „ The indicator blinks three times in Red. „ As soon as you detect the low battery you should charge the headset. „ When you hear the beep during a call, it’s better to transfer the call to your mobile phone as soon as you can. 1. Turning the headset ON/OFF To turn the headset on: „ Press and hold the Power/Talk (그림)button for more than 5 seconds. „ The indicator blinks in blue and you will hear a do-re-mi tone. „ The headset is now turned on. [PARING MODE] When the headset is turned on for the first time, it will automatically be ready for paring: When this happens, the headset indicator light flashes blue every 1 seconds. [CONNECTABLE MODE] Once your headset has a history of paring with your phone, and the headset is turned on, the indicator will flash blue, every 3 seconds. To turn the h…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, HASSNET Inc. requests confidentiality for the following products: FCC ID Number Product Product Name / Model QWGBHE20 HASSNET Mono Headset With Bluetooth wireless Technology / BHE20 For the product stated above, we request that the following information be held confidential: 1) Block Diagram 2) Schematic Diagram 3) Bill of materials (Part List) No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain HASSNET Inc. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Alex Lim / Executive Director, R&D Center emai tol: [email protected] HASSNET, Inc 6fl. Techno Complex Bldg. Korea Univ. 126-16 Anam-Dong, 5-Ka, Seongbuk-Ku, Seoul, 136-701 South Korea TEL: +82-2-927-2680, FAX: +82-2-927-6523

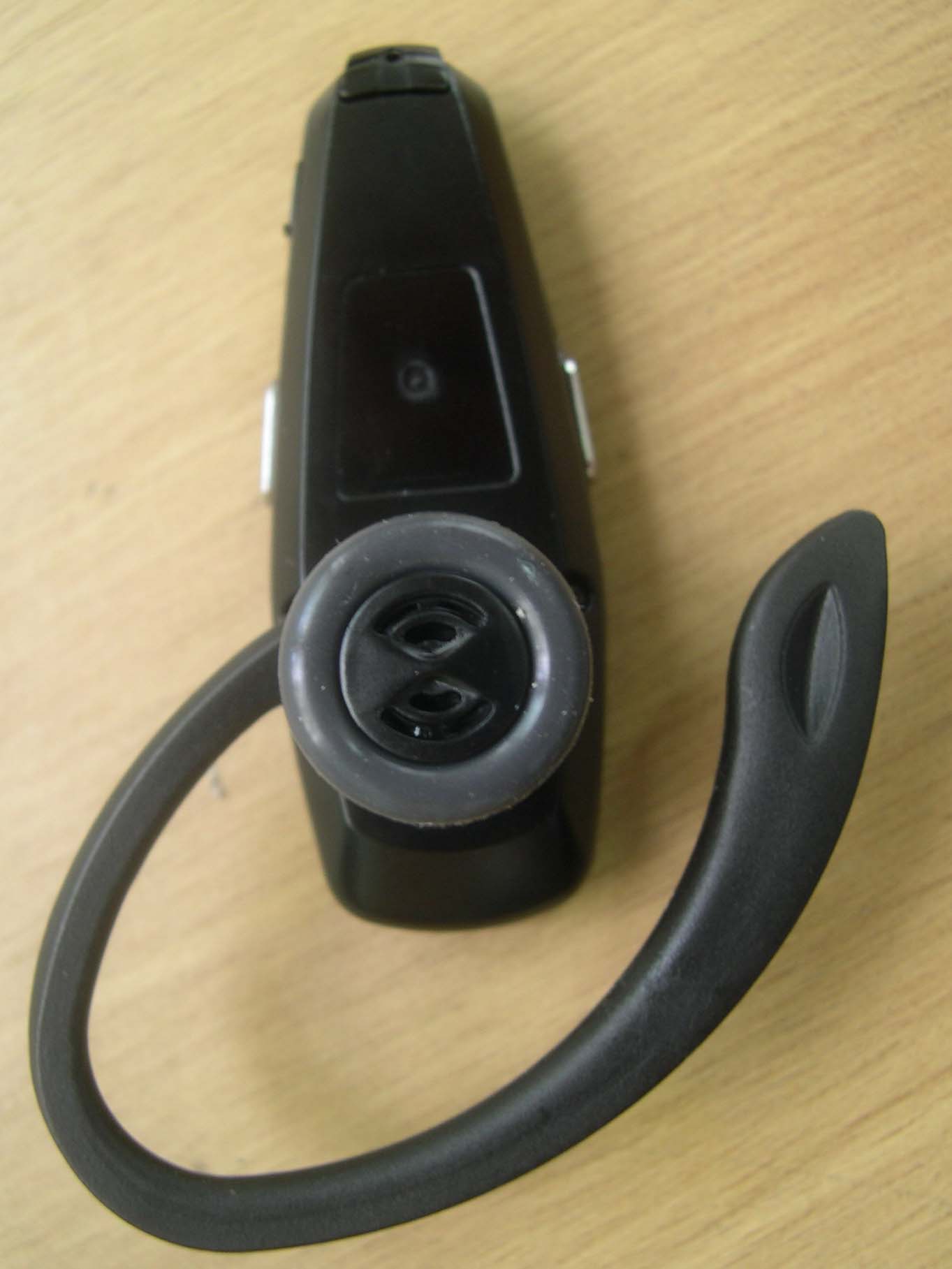

SK TECH CO., LTD. Page 1 of 4 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 External Photographs of EUT <Photograph 1: Front View> SK TECH CO., LTD. Page 2 of 4 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 <Photograph 2: Rear View> SK TECH CO., LTD. Page 3 of 4 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 <Photograph 3: AC/DC Adaptor > SK TECH CO., LTD. Page 4 of 4 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 <Photograph 4: Variants – Side View> The Model BHE20S is electrically identical to the basic model BHE20. Model BHE20S substitutes BELT-CLIP for EAR-LOOP used on the model BHE20. <Photograph 5: Variants – Rear View> Model BHE20S substitutes EARPHONE for EAR-SPEAKER used on the model BHE20.

FCC ID Label Location & Sample LABEL LOCATION: Label is attached on the REAR of the product LABEL Drawing:

SK TECH CO., LTD. Page 1 of 3 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 Internal Photographs of EUT <Photograph 1: Cover removed> SK TECH CO., LTD. Page 2 of 3 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 <Photograph 2: Front View> SK TECH CO., LTD. Page 3 of 3 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 <Photograph 3: Rear View>

Operational Description This product, BHE20, is a Bluetooth headset. The product operates in 2400 to 2483.5 MHz band. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length of 625μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. The control signals and data in the Bluetooth Chipset are modulated and processed and then pass the PA in it. They will be transmitted from ANT through the BALUN FILTER to another Bluetooth device. The RF signal from other Bluetooth devices is received via ANT. And they go through BALUN FILTER into the chip. They are magnified by internal LNA in the chip. The power settings and crystal trim are stored in EEPROM. The product has a SMD chip antenna in it.

SK TECH CO., LTD. Page 1 of 41 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 Certificate of Compliance Test Report No.: SKTTRT-051024-028 NVLAP CODE: 200220-0 Applicant: HASSNET Inc. Applicant Address: 6fl. Techno complex Bldg. Korea Univ. 126-16, Anam-Dong 5-Ka, Seongbuk-Ku, Seoul, 136-701 South Korea Manufacturer: HASSNET Inc. Manufacturer Address: 6fl. Techno complex Bldg. Korea Univ. 126-16, Anam-Dong 5-Ka, Seongbuk-Ku, Seoul, 136-701 South Korea Device Under Test: HASSNET Mono Headset With Bluetooth wireless Technology FCC ID: QWGBHE20 Model No.: BHE20 Receipt No.: SKTEU05-0665 Date of receipt: October 17, 2005 Date of Issue: October 24, 2005 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4, FCC Public Notice DA 00-705 (March 2000) Test Specification: 47CFR, Part 15 Rules Equipment Class: DSS - Part 15 Spread Spectrum Transmitter Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Jong-Soo, Yoon 2005.10.24 Approved by: Jae-Kyung, Bae 2005.10.24 Signature Date Signature Date Other Aspects: External photographs describe the variant, Model BHE20S Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 41 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 >> CONTENTS << 1. GENERAL ············································································································· 4 2. TEST SITE ············································································································ 4 2.1 Location ········································································································· 4 2.2 List of Test and Measurement Instruments ···················································· 5 2.3 Test Date ········································································································ 5 2.4 Test Environment ··························································································· 5 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST ········································· 6 3.1 Rating and Physical Characteristics ······························································ 6 3.2 Equipment Modifications ················································································ 6 3.3 Submitted Documents ···················································································· 6 4. MEASUREMENT CONDITIONS ··········································································· 7 4.1 Description of test configuration ···································································· 7 4.2 List of Peripherals ·························································································· 7 4.3 Uncertainty ····································································································· 7 5. TEST AND MEASUREMENTS ············································································· 8 5.1 ANTENNA REQUIREMENT ·········································································· 8 5.1.1 Regulation ······························································································· 8 5.1.2 Result ······································································································ 8 5.2 MAXIMUM PEAK OUTPUT POWER ···························································· 9 5.2.1 Regulation ······························································································· 9 5.2.2 Test Procedure ························································································ 9 5.2.3 Test Results ····························································································· 9 Table 1: Measured values of the Maximum Peak Output Power (Conducted) ····· 9 Figure 1: Plot of the Maximum Peak Output Power (Conducted) ······················10 5.3 CARRIER FREQUENCY SEPARATION ····················································· 12 5.3.1 Regulation ····························································································· 12 5.3.2 Test Procedure ······················································································ 12 5.3.3 Test Results ··························································································· 12 Table 2: Measured values of the Carrier Frequency Separation (Conducted) ···12 Figure 2: Plot of the Carrier Frequency Separation (Conducted) .....................13 5.4 20dB CHANNEL BANDWIDTH ·································································· 15 5.4.1 Regulation ····························································································· 15 5.4.2 Test Procedure ······················································································ 15 5.4.3 Test Results ··························································································· 15 Table 3: Measured values of the 20dB Channel Bandwidth (Conducted) ··········15 Figure 3: Plot of the 20dB Channel Bandwidth (Conducted) ···························16 SK TECH CO., LTD. Page 3 of 41 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 5.5 NUMBER OF HOPPING CHANNELS ························································ 18 5.5.1 Regulation ····························································································· 18 5.5.2 Test Procedure ···································································…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 5 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 Test set up photos <Conducted RF power measurement> SK TECH CO., LTD. Page 2 of 5 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 <Radiated Emissions – Front View> SK TECH CO., LTD. Page 3 of 5 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 <Radiated Emissions – Rear View> SK TECH CO., LTD. Page 4 of 5 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 <Conducted Emissions: Front View> SK TECH CO., LTD. Page 5 of 5 SKT SKTTRT-051024-028 FCC ID: QWGBHE20 <Conducted Emissions: Rear View>
