QWH-BTM235EBluetooth Module

JIASHI Communication Co.,Ltd. JIASHI Communication Co.,Ltd 1 Proprietary and Confidential JS-BTM235E JIASHI Bluetooth Module Data Sheet Document Type: Bluetooth Module Datasheet Document Version: V1.0 Release Date: November 10, 2025 Copyright 2012 by Fihoenst Communication Co., Ltd. All Rights Reserved. Reproduction of this document, in part of in whole, by any means is prohibited without written permission from JIASHI Communication Co., Ltd. The information contained herein is believed to be accurate as of the date of publication. However, Fihonest is not liable for any damages, including indirect or consequential from the use of software this document represents, or any reliance of the accuracy of this document. JIASHI reserves the right to change the contents of this document at any time without notice. This document contains proprietary confidential trade secrets and may be subject to additional restrictions contained in the licensing agreement under which this document was obtained. JIASHI Communication Co.,Ltd. JIASHI Communication Co.,Ltd 2 Proprietary and Confidential Revision History Date Version Description Author 2025-11-10 V1.0 First release JIASHI Communication Co.,Ltd. JIASHI Communication Co.,Ltd 3 Proprietary and Confidential CONTENT 1. INTRODUCTION................................................................................................... 4 1.1 Block Diagram ............................................................................................................................ 4 1.2 Features ........................................................................................................................................ 5 1.3 Applications .................................................................................................................................. 6 2. GENERAL SPECIFICATION ............................................................................................................. 7 3. PHYSICAL CHARACTERISTIC.....................................................................................................8 3.1 Pin Description........................................................................................................................10 -12 4. ELECTRICAL CHARACTERISTIC ..................................................................................................13 4.1 Absolute maximum ratings ....................................................................................................................... 13 4.2 Recommended power supply ............................................................................................................13 4.3 Regulators maximum output current................................................................................ .................13 4.3.1 Regulators Power Down................................................................................................ .................13 4.3.2 Reference Voltage......................................................................................................... .................14 4.3.3 A/D Converters............................................................................................................... .................14 4.4 Audio ADC Parameters................................................................................................. ..... 14 4.5 Stereo DAC Parameters................................................................................................. 15-16 4.6 RF characteristics...............................................................................................................................16 6. REFLOW PROFILE............................................................................................................17 7. PACKAGING INFORMATION .......................................................................................................... 18 JIASHI Communication Co.,Ltd. JIASHI Communication Co.,Ltd 4 Proprietary and Confidential 1. INTRODUCTION JS-BTM235E is a highly integrated single-chip Bluetooth Audio solution. Positioning at Bluetooth portable stereo speakers, headsets and speakerphones and local MMC/SD Card Audio Playback market, JS-BTM235E satisfies the market requirements with high performance, low cost and low power consumption. JS-BTM235E adopts CPU + DSP dual core architecture. Large capacity RAM is embedded to meet different Bluetooth applications, and support Bluetooth background working while playing high quality music with traditional plug-in card and USB flash disk. JS-BTM235E supports decoding Bluetooth A2DP audio and loading sound effects simultaneously, support Bluetooth handfree calls with dual MIC AEC and noise reduction. JS-BTM235E integrates Bluetooth controller support V6.0 and compliant with V5.4/5.3/5.2/5.0 /4.2/2.1 Bluetooth specification, and supports dual mode (BR/EDR + Low Energy Controllers). The links in BR/EDR and LE can be active simultaneously.JS-BTM235E takes special methods at power optimization, especially for various applications scenarios, including sniff, Bluetooth idle, Bluetooth playing and call modes. Embedded PMU supports power optimization and provide long battery life. The competitive advantages of JS-BTM235E are high music and call qualities with low power and BOM, which lays the foundation for our goal at high-end market. Above all, JS-BTM235E provides a true “ALL-IN-ONE” solution, making it the ideal choice for highly integrated and optimized Bluetooth audio products. 1.1 Block Diagram ATS2835P2 32- bit Risc Crystal (24MHz) PIOs USB Decode Analogue/ SPDIF/I2S Antenna MIC I2C Key LCD/LED UART Line in FLASH (32M bits) JIASHI Communication Co.,Ltd. JIASHI Communication Co.,Ltd 5 Proprietary and Confidential 1.2 Features  Small overall dimension ( 31 * 15 * 2.5 mm )  Supports Dual-mode Bluetooth V6.0 with LE audio  Internal 32M bits 4xIO SPI serial Flash for custom defined software  Internal 32KB CPU ICache for SPI NorFlash …

Text truncated - open the document above for the full version.

Empower Tribe Commercial FZE Covered Equipment Certification Attestation Letter 3/10/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: QWH-BTM235E Empower Tribe Commercial FZE (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Empower Tribe Commercial FZE (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Empower Tribe Commercial FZE (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Kane Xin Title: Innovation Compliance Leader Company Name: Empower Tribe Commercial FZE Date: 3/10/2026

Empower Tribe Commercial FZE * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 3/10/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: QWH-BTM235E FRN of applicant: 0022048235 Per section 2.911(d)(7) of the FCC rules, Empower Tribe Commercial FZE (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Empower Tribe Innovations US Inc. FCC Registration Number (FRN): 0033426594 Physical U.S. Company Address: 901 Grier Dr. Las Vegas, NV, 89119, USA Contact Person: Chase McKnight Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different from Applicant): Signed: Signed: Printed name: Kane Xin Printed name: Chase McKnight Title: Innovation Compliance Leader Title: President Company Name: Empower Tribe Commercial FZE Company Name: Empower Tribe Innovations US Inc. Date: 3/10/2026 Date: 3/10/2026

DATE : 3/11/2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address:Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Empower Tribe Commercial FZE Address: LB181504WS13, Jebel Ali Freezone Dubai, United Arab Emirates <Signature> Name：Kane Xin Title：Innovation Compliance Leader Applicant Company：Empower Tribe Commercial FZE

DATE : 3/11/2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name：Kane Xin Title：Innovation Compliance Leader Company：Empower Tribe Commercial FZE

DATE : 3/11/2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: QWH-BTM235E Product Name: Bluetooth Module Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Kane Xin Title：Innovation Compliance Leader Company：Empower Tribe Commercial FZE

Single Modular approval Declaration letter We, Empower Tribe Commercial FZE applies single modular approval for Product Name: Bluetooth Module Model: JS-BTM235E FCC ID: QWH-BTM235E According to 996369 D01 Module Certification Guide v04r02 and 15.212 requirement: 1) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements; Answer: Yes, shielded. 2) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation; Answer: Yes; All inputs to the modules are buffered through logic or microprocessor inputs. 3) The modular transmitter must have its own power supply regulation; Answer: Yes; A low drop out regulator is used for modular power supply regulation. 4) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable); Answer: Yes; Device is equipped with PCB antenna. (5) The module must demonstrate compliance in a stand-alone configuration; Answer: Yes，distance between modular and all AEs are bigger than 10cm, refer to setup photo. (6) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number (See KDB Publication 784748 about labeling requirements); Answer: Yes; The modular has a permanent fixed label. (7) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements; Answer: Yes; The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8) The module must comply with RF exposure requirements. Answer: Yes; Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual. Please contact me if you have any further questions. Thanks for your attention. Best Regards, <Signature> Name: Kane Xin Title: Innovation Compliance Leader Company: Empower Tribe Commercial FZE

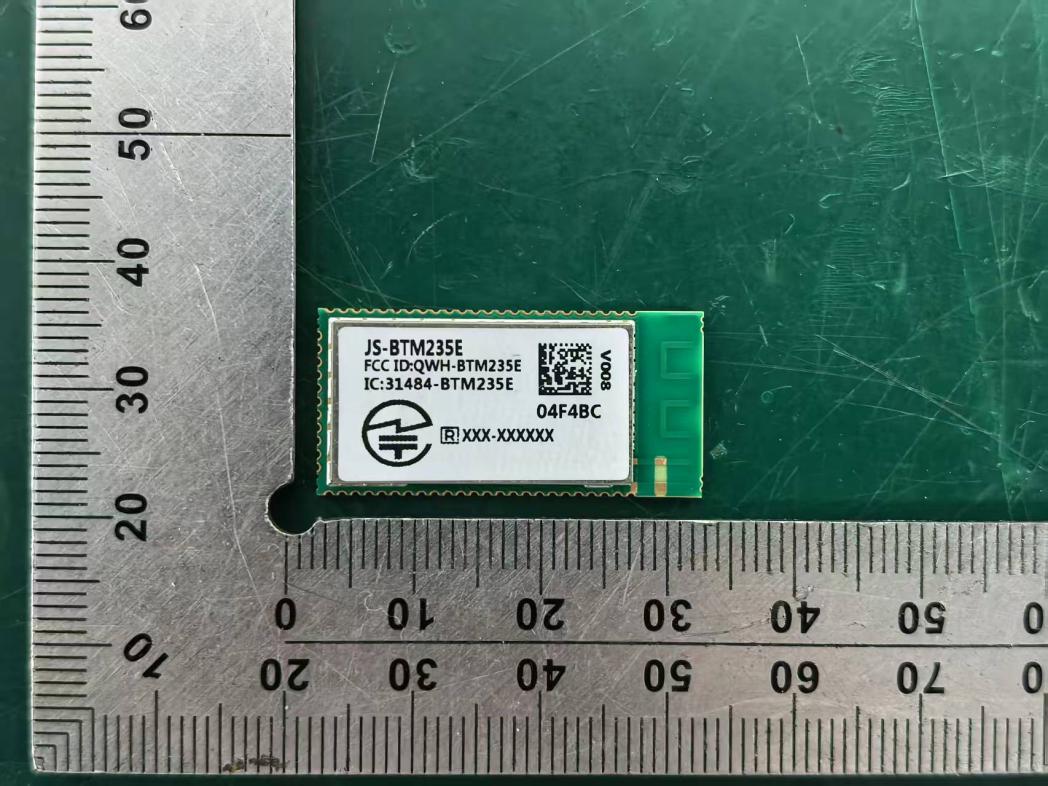

External Photos M/N: JS-BTM235E External Photos M/N: JS-BTM235E External Photos M/N: JS-BTM235E

Label Location

Internal Photos M/N: JS-BTM235E Bluetooth Antenna

Page 1 of 4 Report No. ESTE-R2603064 FCC 47 CFR MPE REPORT Empower Tribe Commercial FZE Bluetooth Module Model Number: JS-BTM235E FCC ID: QWH-BTM235E Applicant: Empower Tribe Commercial FZE Address: LB181504WS13, Jebel Ali Freezone Dubai, United Arab Emirates Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2603064 Date of Test: Feb. 04, 2026 to Mar. 04, 2026 Date of Report: Mar. 09, 2026 Page 2 of 4 Report No. ESTE-R2603064 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 & KDB 447498 D04 V01 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density Page 3 of 4 Report No. ESTE-R2603064 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Page 4 of 4 Report No. ESTE-R2603064 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 9.84 9.638 2441 10.00 10.000 2480 10.46 11.117 π/4-DQPSK 2402 9.75 9.441 2441 10.04 10.093 2480 10.47 11.143 8-DPSK 2402 9.98 9.954 2441 10.30 10.715 2480 10.72 11.803 BLE 1M 2402 9.67 9.268 2440 9.92 9.817 2480 10.39 10.940 BLE 2M 2402 9.63 9.183 2440 9.91 9.795 2480 10.38 10.914 3. Calculated Result and Limit Mode Peak output power (dBm) Target power (dBm) MAX Target power (dBm) Antenna gain Power Density (S) (mW /cm 2 ) Limited of Power Density (S) (mW /cm 2 ) Test Result (dBi) (Linear) 2.4G Band GFSK 10.46 10±1 11 5.86 3.855 0.00965 1 Complies π/4 DQPSK 10.47 10±1 11 5.86 3.855 0.00965 1 Complies 8-DPSK 10.72 10±1 11 5.86 3.855 0.00965 1 Complies BLE 1M 10.39 10±1 11 5.86 3.855 0.00965 1 Complies BLE 2M 10.38 10±1 11 5.86 3.855 0.00965 1 Complies End of Test Report

Page 1 of 79 Report No. ESTE-R2603062 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Empower Tribe Commercial FZE Bluetooth Module Model Number: JS-BTM235E FCC ID: QWH-BTM235E Applicant: Empower Tribe Commercial FZE Address: LB181504WS13, Jebel Ali Freezone Dubai, United Arab Emirates Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2603062 Date of Test: Feb. 04, 2026 to Mar. 04, 2026 Date of Report: Mar. 09, 2026 Page 2 of 79 Report No. ESTE-R2603062 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test mode .......................................................................................................................................... 9 2.7. Channel List ..................................................................................................................................... 10 2.8. Power Setting of Test Software .................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................... 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. 20 DB BANDWIDTH ......................................................................................................................... 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ........................................................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ....................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL ................................................................................................... 16 6.1. Limit ................................................................................................................................................... 16 6.2. Test Setup ........................................................................................................................................ 16 6.3. Spectrum Analyzer Setting…

Text truncated - open the document above for the full version.

Page 52 of 79 Report No. ESTE-R2603062 Appendix D: Time of occupancy Test Result Test Mode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.367 319 0.117 ≤0.4 PASS DH3 Ant1 Hop 1.600 159 0.254 ≤0.4 PASS DH5 Ant1 Hop 2.850 107 0.305 ≤0.4 PASS 2DH1 Ant1 Hop 0.375 319 0.120 ≤0.4 PASS 2DH3 Ant1 Hop 1.610 159 0.256 ≤0.4 PASS 2DH5 Ant1 Hop 2.860 107 0.306 ≤0.4 PASS 3DH1 Ant1 Hop 0.375 319 0.120 ≤0.4 PASS 3DH3 Ant1 Hop 1.620 159 0.258 ≤0.4 PASS 3DH5 Ant1 Hop 2.860 107 0.306 ≤0.4 PASS Page 53 of 79 Report No. ESTE-R2603062 Test Graphs DH1-Ant1-Hop-PASS DH3-Ant1-Hop-PASS Page 54 of 79 Report No. ESTE-R2603062 DH5-Ant1-Hop-PASS Page 55 of 79 Report No. ESTE-R2603062 2DH1-Ant1-Hop-PASS 2DH3-Ant1-Hop-PASS Page 56 of 79 Report No. ESTE-R2603062 2DH5-Ant1-Hop-PASS Page 57 of 79 Report No. ESTE-R2603062 3DH1-Ant1-Hop-PASS 3DH3-Ant1-Hop-PASS Page 58 of 79 Report No. ESTE-R2603062 3DH5-Ant1-Hop-PASS Page 59 of 79 Report No. ESTE-R2603062 Appendix E: Number of hopping channels Test Result Test Mode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Page 60 of 79 Report No. ESTE-R2603062 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Page 61 of 79 Report No. ESTE-R2603062 Appendix F: Band edge measurements Test Result Test Mode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 9.26 -42.10 ≤-10.74 PASS DH5 Ant1 High 2480 9.58 -42.96 ≤-10.42 PASS DH5 Ant1 Low Hop_2402 9.23 -42.31 ≤-10.77 PASS DH5 Ant1 High Hop_2480 10.07 -43.18 ≤-9.93 PASS 2DH5 Ant1 Low 2402 9.03 -43.47 ≤-10.97 PASS 2DH5 Ant1 High 2480 9.77 -43.90 ≤-10.23 PASS 2DH5 Ant1 Low Hop_2402 9.42 -44.96 ≤-10.58 PASS 2DH5 Ant1 High Hop_2480 9.62 -44.53 ≤-10.38 PASS 3DH5 Ant1 Low 2402 9.19 -42.10 ≤-10.81 PASS 3DH5 Ant1 High 2480 9.95 -42.39 ≤-10.05 PASS 3DH5 Ant1 Low Hop_2402 8.76 -43.06 ≤-11.25 PASS 3DH5 Ant1 High Hop_2480 10.08 -42.90 ≤-9.92 PASS Page 62 of 79 Report No. ESTE-R2603062 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Page 63 of 79 Report No. ESTE-R2603062 DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS Page 64 of 79 Report No. ESTE-R2603062 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-2402-PASS Page 65 of 79 Report No. ESTE-R2603062 3DH5-Ant1-2480-PASS 3DH5-Ant1-Hop_2402-PASS 3DH5-Ant1-Hop_2480-PASS Page 66 of 79 Report No. ESTE-R2603062 Appendix G: Conducted Spurious Emission Test Result Test Mode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 9.26 -42.14 ≤-10.74 PASS DH5 Ant1 2441 30~26500 9.36 -41.78 ≤-10.64 PASS DH5 Ant1 2480 30~26500 9.58 -41.63 ≤-10.42 PASS 2DH5 Ant1 2402 30~26500 9.03 -41.64 ≤-10.97 PASS 2DH5 Ant1 2441 30~26500 9.33 -42.16 ≤-10.67 PASS 2DH5 Ant1 2480 30~26500 9.77 -41.81 ≤-10.23 PASS 3DH5 Ant1 2402 30~26500 9.19 -42.24 ≤-10.81 PASS 3DH5 Ant1 2441 30~26500 9.52 -41.93 ≤-10.48 PASS 3DH5 Ant1 2480 30~26500 9.95 -42.38 ≤-10.05 PASS Page 67 of 79 Report No. ESTE-R2603062 Test Graphs DH5-Ant1-2402-30~26500-PASS DH5-Ant1-2441-30~26500-PASS DH5-Ant1-2480-30~26500-PASS Page 68 of 79 Report No. ESTE-R2603062 2DH5-Ant1-2402-30~26500-PASS 2DH5-Ant1-2441-30~26500-PASS 2DH5-Ant1-2480-30~26500-PASS Page 69 of 79 Report No. ESTE-R2603062 3DH5-Ant1-2402-30~26500-PASS 3DH5-Ant1-2441-30~26500-PASS 3DH5-Ant1-2480-30~26500-PASS Page 70 of 79 Report No. ESTE-R2603062 Appendix H: Reference level measurement Test Result Test Mode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2401.84 9.26 DH5 Ant1 2441 2441.16 9.36 DH5 Ant1 2480 2479.85 9.58 2DH5 Ant1 2402 2401.83 9.03 2DH5 Ant1 2441 2440.84 9.33 2DH5 Ant1 2480 2479.84 9.77 3DH5 Ant1 2402 2401.83 9.19 3DH5 Ant1 2441 2440.84 9.52 3DH5 Ant1 2480 2479.83 9.95 Page 71 of 79 Report No. ESTE-R2603062 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 72 of 79 Report No. ESTE-R2603062 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 73 of 79 Report No. ESTE-R2603062 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS Page 74 of 79 Report No. ESTE-R2603062 14. TEST SETUP PHOTO Conducted Test Page 75 of 79 Report No. ESTE-R2603062 Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) Page 76 of 79 Report No. ESTE-R2603062 15.EUT PHOTO External Photos M/N: JS-BTM235E Page 77 of 79 Report No. ESTE-R2603062 External Photos M/N: JS-BTM235E Page 78 of 79 Report No. ESTE-R2603062 External Photos M/N: JS-BTM235E Page 79 of 79 Report No. ESTE-R2603062 Internal Photos M/N: JS-BTM235E End of Test Report

Report No.: Ti-EE26020024-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Empower Tribe Commercial FZE Address: LB181504WS13, Jebel Ali Freezone Dubai, United Arab Emirates Equipment Type: Bluetooth Module Model Name: JS-BTM235E Brand Name: Jiashi Test Standard: IEEE Std 149-2021 Sample Arrival Date: Feb. 02, 2026 Test Date: Feb. 02, 2026 Date of Issue: Mar. 12, 2026 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Xia Long Approved by: Tolan Tu (Technical Director) _______________ _______________ _______________ Report No.: Ti-EE26020024-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 13 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Mar. 12, 2026 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Test Laboratory .................................................................................................................. 3 1.2 Test Location .....................................................................................................…
