QWHULM300RSWireless Microphone System

V 6.0 Quick Start Guide ULTRALINK ULM300MIC/ ULM300M/ULM300RS High-Performance 2.4 GHz Digital Wireless System with Handheld Microphone and Receiver 23Quick Start GuideULM300MIC Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with ¼" TS or twist-locking plugs pre-installed. All other installation or modification should be performed only by qualified personnel. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock. This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual. Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel. Caution To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus. Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel. Warning Please refer to the information on the exterior of bottom enclosure for electrical and safety information before installing or operating the device. 1. Please read and follow all instructions and warnings. 2. Keep the apparatus away from water (except for outdoor products). 3. Clean only with dry cloth. 4. Do not block ventilation openings. Do not install in a confined space. Install only according to manufacturer's instructions. 5. Protect the power cord from damage, particularly at plugs and appliance socket. 6. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. 7. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other (only for USA and Canada). A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 8. Use only attachments and accessories recommended by the manufacturer. 9. Use only specified carts, stands, tripods, brackets, or tables. Use caution to prevent tip-over when moving the cart/apparatus combination. 10. Unplug during storms, or if not in use for a long period. 11. Only use qualified personnel for servicing, especially after damage. 12 . The apparatus with protective earthing terminal shall be connected to a MAINS socket outlet with a protective earthing connection. 13. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. 14 . Avoid installing in confined spaces like bookcases. 15. Do not place naked flame sources, such as lighted candles, on the apparatus. 16. Operating temperature range 5° to 45°C (41° to 113°F). Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Aston Microphones and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2024 All rights reserved. For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty, please see complete details online at community.musictribe. com/support. LEGAL DISCLAIMER Important Safety Instructions Las terminales marcadas con este símbolo transportan corriente eléctrica de magnitud suficiente como para constituir un riesgo de descarga eléctrica. Utilice solo cables de altavoz profesionales y de alta calidad con conectores TS de 6,3 mm o de bayoneta prefijados. Cualquier otra instalación o modificación debe ser realizada únicamente por un técnico cualificado. Este símbolo, siempre que aparece, le advierte de la presencia de voltaje peligroso sin aislar dentro de la caja; este voltaje puede ser suficiente para constituir un riesgo de descarga. Este símbolo, siempre que aparece, le advierte sobre instrucciones operativas y de mantenimiento que aparecen en la documentación adjunta. Por favor, lea el manual. Atención Para reducir el riesgo de descarga eléctrica, no quite la tapa (o la parte posterior). No hay piezas en el interior del equipo que puedan ser reparadas por el usuario. Si es necesario, póngase en contacto con personal cualificado. Atención Para reducir el riesgo de incendio o descarga eléctrica, no exponga este aparato a la lluvia, humedad o alguna otra fuente que pueda salpicar o derramar algún líquido sobre el aparato. No coloque ningún tipo de recipiente para líquidos sobre el aparato. Atención Las instrucciones de servicio deben llevarlas a cabo exclusivamente personal cualificado. Para evitar el riesgo de una descarga eléctrica, no realice reparaciones que no se encuentren descritas en el manual de operaciones. Las reparaciones deben ser realizadas exclusivamente por personal cualificado. Advertencia Consulte la información en el exterior del recinto inferior para obtener información eléctrica y de seguridad antes de instalar u operar el dispositivo. 1. Por favor, lea y siga todas las in…

Text truncated - open the document above for the full version.

Empower Tribe Commercial FZE Covered Equipment Certification Attestation Letter 3/15/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: QWHULM300RS Empower Tribe Commercial FZE (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Empower Tribe Commercial FZE (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Empower Tribe Commercial FZE (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Kane Xin Title: Innovation Compliance Leader Company Name: Empower Tribe Commercial FZE Date: 3/15/2026

Empower Tribe Commercial FZE * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 3/15/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: QWHULM300RS FRN of applicant: 0022048235 Per section 2.911(d)(7) of the FCC rules, Empower Tribe Commercial FZE (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Empower Tribe Innovations US Inc. FCC Registration Number (FRN): 0033426594 Physical U.S. Company Address: 901 Grier Dr. Las Vegas, NV, 89119, USA Contact Person: Chase McKnight Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different from Applicant): Signed: Signed: Printed name: Kane Xin Printed name: Chase McKnight Title: Innovation Compliance Leader Title: President Company Name: Empower Tribe Commercial FZE Company Name: Empower Tribe Innovations US Inc. Date: 3/15/2026 Date: 3/15/2026

DATE : 3/17/2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address:Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Empower Tribe Commercial FZE Address: LB181504WS13, Jebel Ali Freezone Dubai, United Arab Emirates <Signature> Name：Kane Xin Title：Innovation Compliance Leader Applicant Company：Empower Tribe Commercial FZE

DATE : 3/17/2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name：Kane Xin Title：Innovation Compliance Leader Company：Empower Tribe Commercial FZE

DATE : 3/17/2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: QWHULM300RS Product Name: Wireless Microphone System Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Kane Xin Title：Innovation Compliance Leader Company：Empower Tribe Commercial FZE

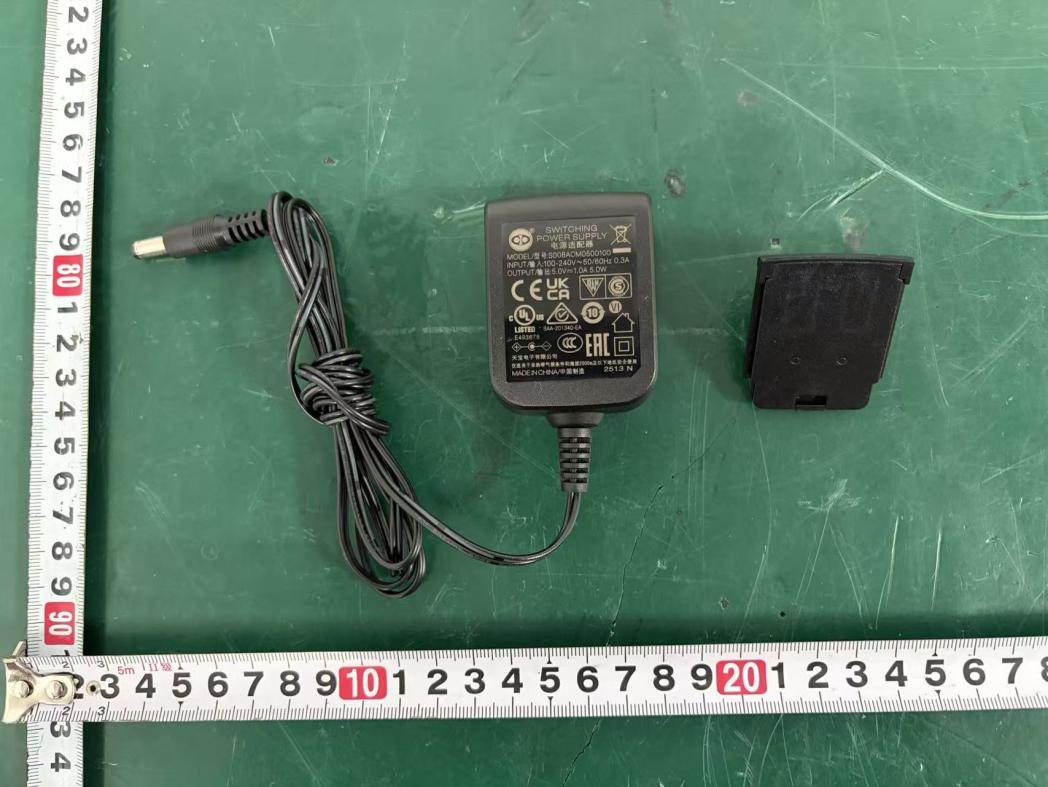

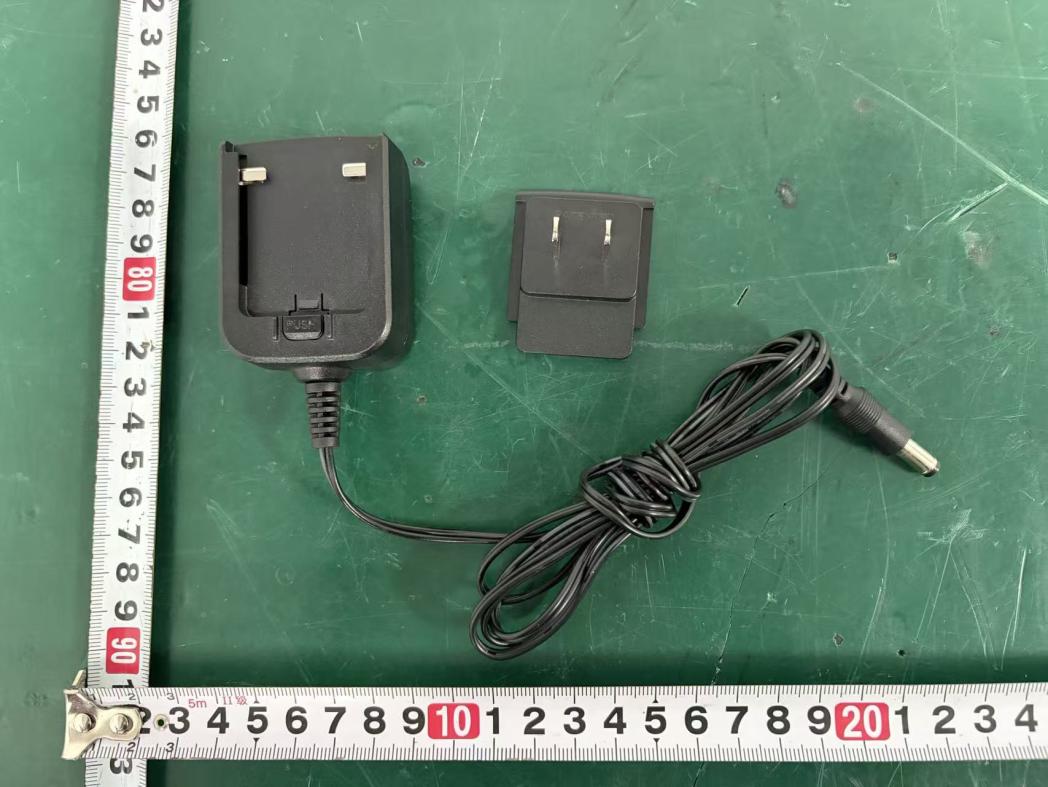

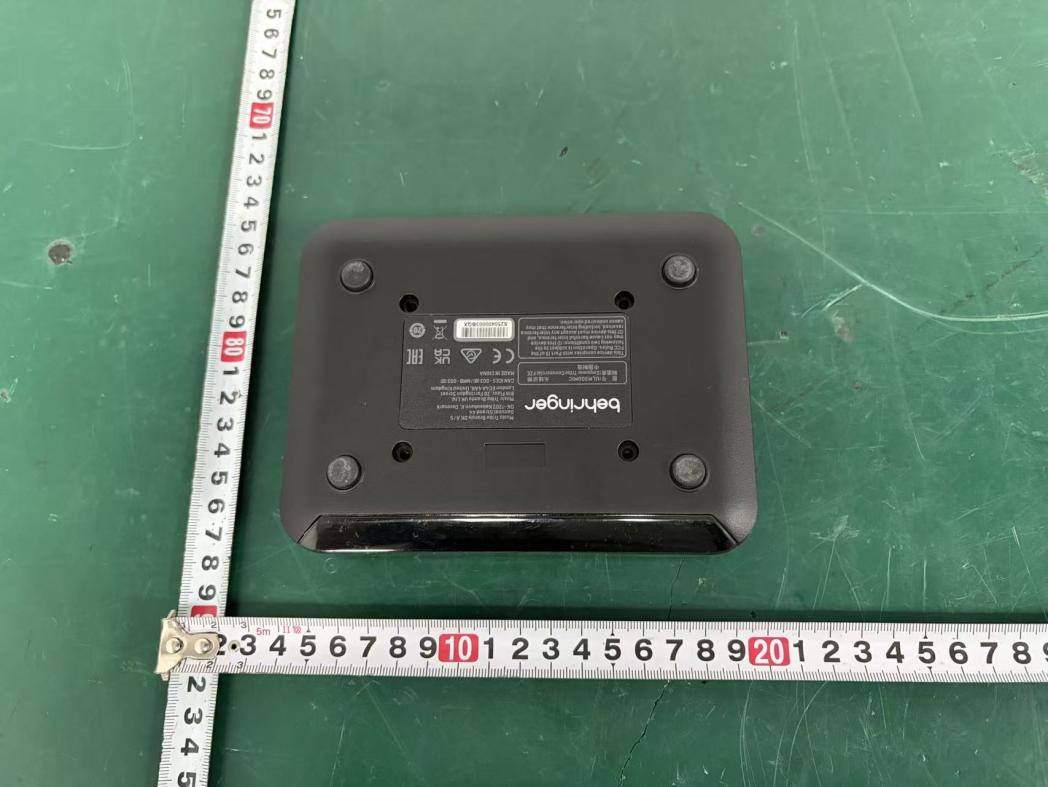

External Photos M/N: ULM300RS External Photos M/N: ULM300RS External Photos M/N: ULM300RS External Photos M/N: ULM300RS External Photos M/N: ULM300RS

Internal Photos M/N: ULM300RS Internal Photos M/N: ULM300RS Internal Photos M/N: ULM300RS Internal Photos M/N: ULM300RS Antenna

Page 1 of 4 Report No. ESTE-R2603148 FCC 47 CFR MPE REPORT Empower Tribe Commercial FZE Wireless Microphone System Model Number: ULM300RS FCC ID: QWHULM300RS Applicant: Empower Tribe Commercial FZE Address: LB181504WS13, Jebel Ali Freezone Dubai, United Arab Emirates Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2603148 Date of Test: Jan. 27, 2026 to Mar. 09, 2026 Date of Report: Mar. 16, 2026 Page 2 of 4 Report No. ESTE-R2603148 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 & KDB 447498 D04 V01 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density Page 3 of 4 Report No. ESTE-R2603148 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Page 4 of 4 Report No. ESTE-R2603148 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 3.51 2.2439 2441 3.22 2.0989 2480 3.37 2.1727 π/4-DQPSK 2402 3.40 2.1878 2441 3.16 2.0701 2480 3.29 2.1330 8-DPSK 2402 3.76 2.3768 2441 3.48 2.2284 2480 3.62 2.3014 3. Calculated Result and Limit Mode Peak output power (dBm) Target power （dBm） MAX Target power （dBm） Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear) 2.4G Band GFSK 3.51 3±1 4 5.24 3.342 0.00167 1 Complies π/4-DQPSK 3.40 3±1 4 5.24 3.342 0.00167 1 Complies 8-DPSK 3.76 3±1 4 5.24 3.342 0.00167 1 Complies End of Test Report

Page 1 of 89 Report No. ESTE-R2603147 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Empower Tribe Commercial FZE Wireless Microphone System Model Number: ULM300RS FCC ID: QWHULM300RS Applicant: Empower Tribe Commercial FZE Address: LB181504WS13, Jebel Ali Freezone Dubai, United Arab Emirates Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2603147 Date of Test: Jan. 27, 2026 to Mar. 09, 2026 Date of Report: Mar. 16, 2026 Page 2 of 89 Report No. ESTE-R2603147 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test mode .......................................................................................................................................... 9 2.7. Channel List ..................................................................................................................................... 10 2.8. Power Setting of Test Software .................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................ ................................... 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. 20 DB BANDWIDTH ......................................................................................................................... 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ................................ ........................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ....................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL ................................................................ ................................... 16 6.1. Limit ................................................................................................................................................... 16 6.2. Test Setup ........................................................................................................................................ 16 6.3. Spectrum Analy…

Text truncated - open the document above for the full version.

Page 53 of 89 Report No. ESTE-R2603147 Appendix D: Time of occupancy Test Result TestMode Antenna Frequency[MHz] BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.370 318 0.118 ≤0.4 PASS DH3 Ant1 Hop 1.600 158 0.253 ≤0.4 PASS DH5 Ant1 Hop 2.850 107 0.305 ≤0.4 PASS 2DH1 Ant1 Hop 0.377 318 0.120 ≤0.4 PASS 2DH3 Ant1 Hop 1.610 159 0.256 ≤0.4 PASS 2DH5 Ant1 Hop 2.860 108 0.309 ≤0.4 PASS 3DH1 Ant1 Hop 0.377 318 0.120 ≤0.4 PASS 3DH3 Ant1 Hop 1.610 159 0.256 ≤0.4 PASS 3DH5 Ant1 Hop 2.870 108 0.310 ≤0.4 PASS Page 54 of 89 Report No. ESTE-R2603147 Test Graphs DH1-Ant1-Hop-PASS Page 55 of 89 Report No. ESTE-R2603147 DH3-Ant1-Hop-PASS Page 56 of 89 Report No. ESTE-R2603147 DH5-Ant1-Hop-PASS Page 57 of 89 Report No. ESTE-R2603147 2DH1-Ant1-Hop-PASS Page 58 of 89 Report No. ESTE-R2603147 2DH3-Ant1-Hop-PASS Page 59 of 89 Report No. ESTE-R2603147 2DH5-Ant1-Hop-PASS Page 60 of 89 Report No. ESTE-R2603147 3DH1-Ant1-Hop-PASS Page 61 of 89 Report No. ESTE-R2603147 3DH3-Ant1-Hop-PASS Page 62 of 89 Report No. ESTE-R2603147 3DH5-Ant1-Hop-PASS Page 63 of 89 Report No. ESTE-R2603147 Appendix E: Number of hopping chan nels Test Result TestMode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Page 64 of 89 Report No. ESTE-R2603147 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Page 65 of 89 Report No. ESTE-R2603147 Appendix F: Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 3.00 -49.99 ≤-17.00 PASS DH5 Ant1 High 2480 2.86 -49.32 ≤-17.14 PASS DH5 Ant1 Low Hop_2402 3.14 -48.83 ≤-16.86 PASS DH5 Ant1 High Hop_2480 2.90 -49.13 ≤-17.10 PASS 2DH5 Ant1 Low 2402 1.82 -49.69 ≤-18.18 PASS 2DH5 Ant1 High 2480 2.65 -50.21 ≤-17.35 PASS 2DH5 Ant1 Low Hop_2402 1.77 -48.85 ≤-18.23 PASS 2DH5 Ant1 High Hop_2480 2.44 -49.30 ≤-17.56 PASS 3DH5 Ant1 Low 2402 2.98 -50.29 ≤-17.02 PASS 3DH5 Ant1 High 2480 2.86 -49.13 ≤-17.14 PASS 3DH5 Ant1 Low Hop_2402 3.17 -49.09 ≤-16.84 PASS 3DH5 Ant1 High Hop_2480 2.88 -49.10 ≤-17.12 PASS Page 66 of 89 Report No. ESTE-R2603147 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Page 67 of 89 Report No. ESTE-R2603147 DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS Page 68 of 89 Report No. ESTE-R2603147 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-2402-PASS Page 69 of 89 Report No. ESTE-R2603147 3DH5-Ant1-2480-PASS 3DH5-Ant1-Hop_2402-PASS 3DH5-Ant1-Hop_2480-PASS Page 70 of 89 Report No. ESTE-R2603147 Appendix G: Conducted Spurious Emission Tes t Result TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 3.00 -42.15 ≤-17.00 PASS DH5 Ant1 2441 30~26500 2.20 -41.98 ≤-17.80 PASS DH5 Ant1 2480 30~26500 2.86 -41.33 ≤-17.14 PASS 2DH5 Ant1 2402 30~26500 1.82 -42.04 ≤-18.18 PASS 2DH5 Ant1 2441 30~26500 2.37 -42.05 ≤-17.63 PASS 2DH5 Ant1 2480 30~26500 2.65 -41.76 ≤-17.35 PASS 3DH5 Ant1 2402 30~26500 2.98 -42.32 ≤-17.02 PASS 3DH5 Ant1 2441 30~26500 2.76 -41.76 ≤-17.24 PASS 3DH5 Ant1 2480 30~26500 2.86 -42.02 ≤-17.14 PASS Page 71 of 89 Report No. ESTE-R2603147 Test Graphs DH5-Ant1-2402-30~26500-PASS DH5-Ant1-2441-30~26500-PASS DH5-Ant1-2480-30~26500-PASS Page 72 of 89 Report No. ESTE-R2603147 2DH5-Ant1-2402-30~26500-PASS 2DH5-Ant1-2441-30~26500-PASS 2DH5-Ant1-2480-30~26500-PASS Page 73 of 89 Report No. ESTE-R2603147 3DH5-Ant1-2402-30~26500-PASS 3DH5-Ant1-2441-30~26500-PASS 3DH5-Ant1-2480-30~26500-PASS Page 74 of 89 Report No. ESTE-R2603147 Appendix H: Reference level measurement Test Result TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2401.81 3.00 DH5 Ant1 2441 2440.79 2.20 DH5 Ant1 2480 2479.81 2.86 2DH5 Ant1 2402 2401.78 1.82 2DH5 Ant1 2441 2440.80 2.37 2DH5 Ant1 2480 2479.81 2.65 3DH5 Ant1 2402 2401.81 2.98 3DH5 Ant1 2441 2440.81 2.76 3DH5 Ant1 2480 2479.81 2.86 Page 75 of 89 Report No. ESTE-R2603147 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 76 of 89 Report No. ESTE-R2603147 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 77 of 89 Report No. ESTE-R2603147 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS Page 78 of 89 Report No. ESTE-R2603147 14.TEST SETUP PHOTO Conducted Test Page 79 of 89 Report No. ESTE-R2603147 Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) Page 80 of 89 Report No. ESTE-R2603147 Radio Spectrum Testing Page 81 of 89 Report No. ESTE-R2603147 15. EUT PHOTO External Photos M/N: ULM300RS Page 82 of 89 Report No. ESTE-R2603147 External Photos M/N: ULM300RS Page 83 of 89 Report No. ESTE-R2603147 External Photos M/N: ULM300RS Page 84 of 89 Report No. ESTE-R2603147 External Photos M/N: ULM300RS Page 85 of 89 Report No. ESTE-R2603147 External Photos M/N: ULM300RS Page 86 of 89 Report No. ESTE-R2603147 Internal Photos M/N: ULM300RS Page 87 of 89 Report No. ESTE-R2603147 Internal Photos M/N: ULM300RS Page 88 of 89 Report No. ESTE-R2603147 Internal Photos M/N: ULM300RS Page 89 of 89 Report No. ESTE-R2603147 Internal Photos M/N: ULM300RS End of Test Report

Report No.: BL-SZ2610007-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 15 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2024-02-22) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Empower Tribe Commercial FZE Address: LB181504WS13, Jebel Ali Freezone Dubai, United Arab Emirates Equipment Type: PCB Antenna Model Name: ULM PCB Antenna Brand Name: Behringer Test Standard: IEEE Std 149-2021 Sample Arrival Date: Jan. 04, 2026 Test Date: Jan. 07, 2026 Date of Issue: Jan. 16, 2026 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Xia Long Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ2610007-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 15 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2024-02-22) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Jan. 16, 2026 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Test Laboratory ................................................................................................................... 3 1.2 Test Location ....................................................................................................................... 3 2 PRODUCT INFORMATION ....................................................................................................... 4 2.1 Applicant Information ........................................................................................................... 4 2.2 Manufacturer Information .................................................................................................... 4 2.3 General Description for Equipment under Test (EUT) ......................................................... 4 2.4 Ancillary Equipment ............................................................................................................. 4 2.5 Technical Information .......................................................................................................... 4 3 SUMMARY OF TEST RESULTS ............................................................................................... 5 3.1 Test Standards .................................................................................................................... 5 3.2 Test Verdict ......................................................................................................................... 5 3.3 Test Uncertainty .................................................................................................................. 5 4 GENERAL TEST CONFIGURATIONS ...................................................................................... 6 4.1 Test Condition ..................................................................................................................... 6 4.2 Test Equipment List ............................................................................................................. 6 4.3 Test Setup ........................................................................................................................... 7 4.4 Test Frequencies ................................................................................................................. 7 ANNEX A TEST RESULTS ........................................................................................................... 8…
