QWHC210BPowered Column Loudspeaker with Battery

Quick Start Guide C210B 160 Watt Powered Column Loudspeaker with Battery, an 8" Subwoofer, 4 High Frequency Drivers, Bluetooth Audio Streaming, LED Lighting and Remote Control A54-XXXXX-XXXXX Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with ¼" TS or twist-locking plugs pre-installed. All other installation or modification should be performed only by qualified personnel. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock. This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual. Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel. Caution To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus. Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Use only attachments/accessories specified by the manufacturer. 12 . Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14 . Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection. 16. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. 17. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service. 18. Do not install in a confined space, such as a book case or similar unit. 19. Do not place naked flame sources, such as lighted candles, on the apparatus. 20. Please keep the environmental aspects of battery disposal in mind. Batteries must be disposed-of at a battery collection point. 21. Use this apparatus in tropical and/ or moderate climates. LEGAL DISCLAIMER Important Safety Instructions 23Quick Start GuideC210B Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Auratone and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2019 All rights reserved. For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty, please see complete details online at musictribe.com/warranty. Las terminales marcadas con este símbolo transportan corriente eléctrica de magnitud suficiente como para constituir un riesgo de descarga eléctrica. Utilice solo cables de altavoz profesionales y de alta calidad con conectores TS de 6,3 mm o de bayoneta prefijados. Cualquier otra instalación o modificación debe ser realizada únicamente por un técnico cualificado. Este símbolo, siempre que aparece, le advierte de la presencia de voltaje peligroso sin aislar dentro de la caja; este voltaje puede ser suficiente para…

Text truncated - open the document above for the full version.

C210B Controls (PT) Passo 2: Controles (1) O jack SD/MMC permite a reprodução de arquivos de áudio digitais armazenados em cartões de memória flash SD (Secure Digital) ou MMC (MultiMedia Card). (2) A entrada USB permite a reprodução de arquivos de áudio armazenados em um pen drive USB. (3) LCD DISPLAY exibe o DSP e configuração de reprodução. (4) SEÇÃO PLAYBACK para USB e SD/MMC fornece os controles de reprodução a seguir: A. PL AY/PAUSE: Aperte para tocar ou pausar. B. MODE: Aperte para comutar entre USB, SD e Bluetooth. C. REPEAT: Aperte para selecionar modos de repetição One, Random, Folder ou All. D. BACK: Aperte uma vez para mudar para a canção anterior. Aperte e segure para diminuir o volume digital. E. FORWARD: Aperte uma vez para mudar para a próxima canção. Aperte e segure para aumentar o volume digital. F. DSP: Aperte para comutar entre presets de equalizador digital de Pop, Rock, Jazz, Classic, Country ou Music. (5) LEVEL é o encoder rotativo que controla o volume DSP final, assim como os níveis de sinal de USB, SD e Bluetooth. Aperte para obter ajustes de grave, agudo, crossover ou equalizador digital. Aperte e segure para habilitar o modo mute. (6) LINE/INST LEVEL controla o nível de entrada do jack combo LINE/INST. (7) O controle de níveis MASTER ajusta o volume de alto-falante final. (8) O LED PWR acende quando o sistema de áudio é conectado à alimentação e ligado. (9) O LED CLIP acende para indicar que o limitador interno está respondendo a picos de sinais. (10) O botão TREBLE ajusta o nível de frequências agudas da unidade alto-falante. (11) O botão BASS ajusta o nível de frequências graves da unidade alto-falante. (12) O jack OUTPUT envia uma cópia do sinal LINE/INST através de cabos balanceados com conectores XLR. (13) Os jacks combo LINE/INST aceitam sinais de entrada usando conectores XLR, TRS de ¼" ou TRS de ¼" não balanceados. (14) O jack IN 2 aceita sinais de microfones através de cabos balanceados com conectores TRS de ¼" . (15) O jack IN 1 aceita sinais de microfone através de cabos balanceados com conectores TRS de ¼". (16) O botão LEVEL 1 controla o nível de entrada do jack IN 1, assim como o microfone wireless Bluetooth. (17) O botão LEVEL 2 controla o nível de entrada do jack IN 2. (18) O botão POWER liga e desliga a unidade. Antes de ligar o sistema de áudio, todos os controles de nível devem estar ajustados no mínimo. Quando o sistema estiver ligado, aumente os níveis de entradas aos poucos para evitar danos ao alto-falante e amplificador. (19) O jack AC INPUT aceita o cabo de alimentação IEC incluso. (20) O interruptor DC POWER (descarga da bateria) liga e desliga a unidade. (21) BAT TERY o indicador de recarga acende uma luz vermelha enquanto está carregando e depois uma luz verde quando a recarga estiver completa. (22) A luz LED POWER liga e desliga a unidade. Controle Remoto (1) O botão POWER liga e desliga a unidade. (2) O botão MODE comuta o DSP entre USB, SD e Bluetooth. (3) O botão U/SD comuta entre USB e SD/MMC para reprodução de arquivos de áudio. (4) O botão REPEAT ativa o modo repeat playback. Aperte para escolher dentre os modos de repetição One, Random, Folder ou All. (5) O anel BACK/FORWARD/ VOLUME controla o volume DSP e back/forward entre canções. (6) O botão PL AY/PAUSE /SC AN inicia e para a reprodução de arquivos de áudio. (7) O botão DSP comuta entre presets de equalizador digitais para Pop, Rock, Jazz, Classic, Country ou Music. (8) O botão MUTE coloca o som em mudo. (9) NUMERIC KEYPAD permite a inserção de valores para as diversas funções. NOTA: O interruptor POWER principal está localizado na parte traseira da unidade e deve ser ligado ou desligado manualmente. O controle remoto não controla a chave POWER principal. ATENÇÃO: Não exponha as pilhas do controle remoto a calor excessivo, como luz do sol, fogo ou fontes de calor similares. ABCDEF (IT) Passo 2: Controlli (1) La presa SD/MMC consente di riprodurre file audio digitali memorizzati su schede di memoria flash SD (Secure Digital) o MMC (MultiMedia Card). (2) L'ingresso USB consente di riprodurre file audio memorizzati su un'unità flash USB. (3) Il DISPLAY LCD mostra le impostazioni DSP e di riproduzione attive. (4) La SEZIONE RIPRODUZIONE per USB e SD / MMC offre i seguenti controlli di riproduzione: A. PL AY/PAUSA: premere per attivare la riproduzione o mettere in pausa o per cercare. B. MODE: premere per alternare tra USB, SD e Bluetooth. C. RIPETI: premere per scegliere le modalità di ripetizione Uno (uno), Casuale (casuale), Cartella (cartella) o Tutto (completo). D. INDIETRO: premere una volta per scorrere fino al brano precedente. Tenere premuto per ridurre il volume digitale. E. AVANTI: premere una volta per scorrere fino al brano successiva. Tenere premuto per aumentare il volume digitale. F. DSP: premere per alternare le impostazioni predefinite dell'equalizzatore digitale Pop, Rock, Jazz, Classic, Country o Music. (5) La manopola LEVEL controlla il volume DSP finale, nonché i livelli del segnale USB, SD e Bluetooth. Premere per regolare i bassi, gli acuti, il punto di separazione o il crossover o l'equalizzatore digitale. Tenere premuto per annullare l'audio (muto). (6) LINE/INST LEVEL controlla il livello di ingresso ricevuto nel jack combo LINE/INST. (7) Il controllo di livello MASTER regola il volume finale dell'altoparlante. (8) La spia PWR si illumina quando il sistema audio è collegato all'alimentazione e in funzione (acceso). (9) La spia CLIP si illumina per indicare che il limitatore interno sta rispondendo ai picchi di segnale. (10) La manopola TREBLE regola il livello delle alte frequenze del diffusore. (11) La manopola BASS regola il livello delle frequenze dei bassi del diffusore. (12) Il jack di uscita OUTPUT emette una copia del segnale LINE / INST attraverso cavi bilanciati con connettori XLR. (13) I jack combinati LINE/INST accettano segnali di ingresso tramite XLR, connettori TRS bilanciati da 6,3 mm o TS non bilanciati da 6,3 mm. (14) La presa IN 2 s…

Text truncated - open the document above for the full version.

June 03, 2020 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EMTEK(SHENZHEN) CO., LTD. (Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with MUSIC Tribe Manufacturing PH Ltd. (17A Brunswick Street, HA HM 10 Bermuda) (Applicant Name and address) Name: Kane Xin Title: Compliance EMC Leader Company: MUSIC Tribe Manufacturing PH Ltd.

June 03, 2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: QWHC210B Product Name: Powered Column Loudspeaker with Battery Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Name: Kane Xin Title: Compliance EMC Leader Company: MUSIC Tribe Manufacturing PH Ltd.

June 03, 2020 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, Name: Kane Xin Title: Compliance EMC Leader Company: MUSIC Tribe Manufacturing PH Ltd.

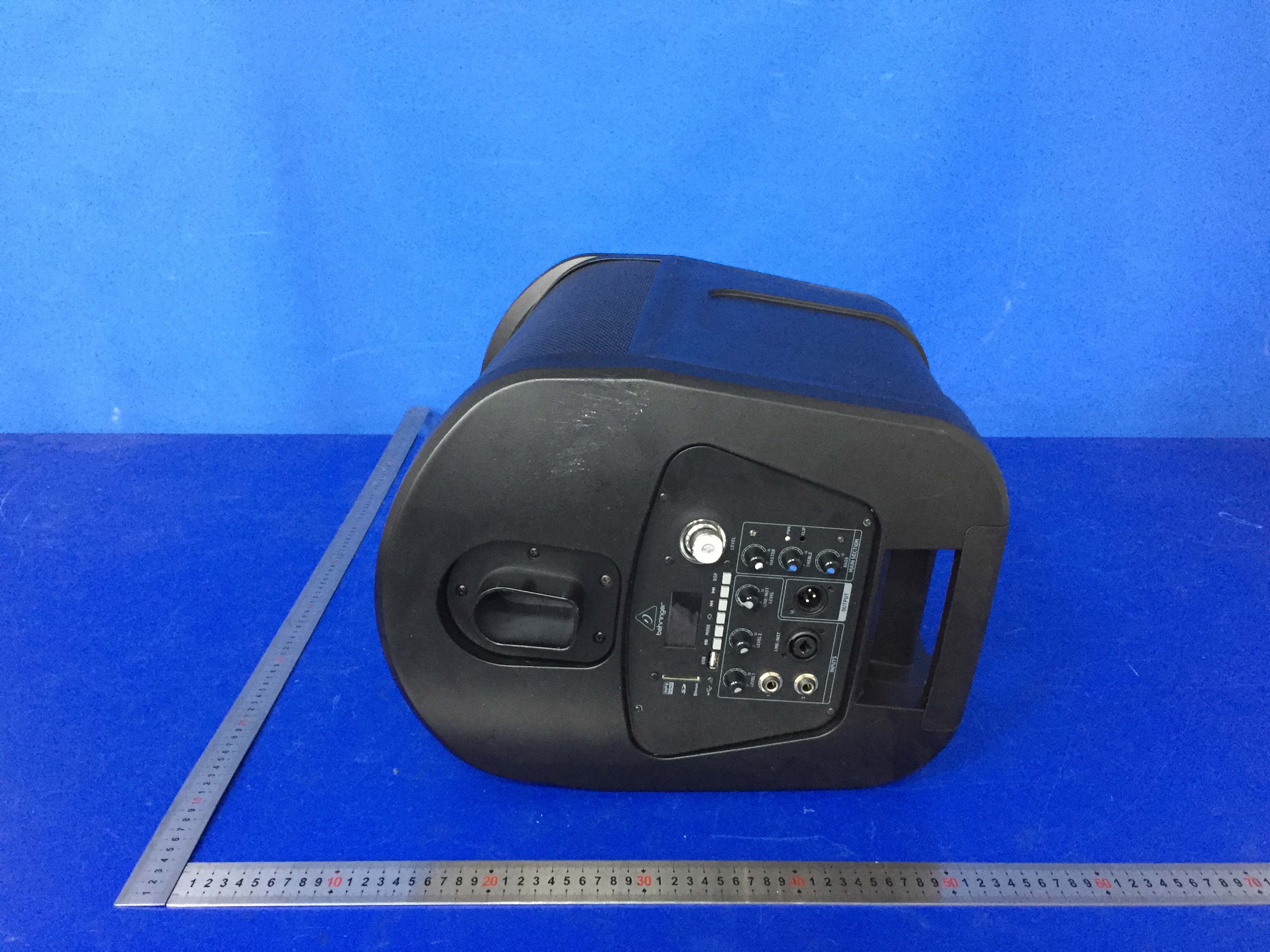

External photos: ---The End---

Location

Internal photos: Antenna ---The End---

FCC ID: QWHC210B RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE,1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. mW = 10^( dBm/10) 11.2 Measurement Result Operation Frequency: 2402MHz-2480MHz; Antenna gain: -2.0dBi; R=20cm Channel Freq. (MHz) modulation Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2) Power density Limits (mW/cm2 ) 2402 GFSK -6.56 -5 to -7 -5 1.58 0.000093053 1 2441 -6.48 -5 to -7 -5 1.58 0.000093053 1 2480 -7.18 -6 to -8 -6 1.58 0.000073914 1 2402 pi/4- DQPSK -7.61 -6 to -8 -6 1.58 0.000073914 1 2441 -7.57 -6 to -8 -6 1.58 0.000073914 1 2480 -8.21 -7 to -9 -7 1.58 0.000058712 1 2402 8DPSK -8.01 -7 to -9 -7 1.58 0.000058712 1 2441 -7.94 -6 to -8 -6 1.58 0.000073914 1 2480 -8.57 -7 to -9 -7 1.58 0.000058712 1
