QWHDX115PROPortable PA Speakers

Quick Start Guide DX Series DX110 PRO, DX112 PRO, DX115 PRO Active 1,000/1,600/1800 Watt 10"/12"/15" PA Speaker System with DSP and 2-Channel Mixer DX18S PRO Active 2400-Watt 18" PA Subwoofer with Built-In Stereo Crossover V 0.0 2DX SeriesQuick Start Guide3 (EN) Safety Instructions Please read these safety instructions carefully and pay close attention to any warning symbols displayed on the product and their related safety information in this instruction. Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with ¼" TS or twist-locking plugs pre-installed. All other installation or modification should be performed only by qualified personnel. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure voltage that may be sufficient to constitute a risk of shock. This symbol, wherever it appears, alerts you to important operating and maintenance instructions. Please read full manual. Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel. Caution To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus. Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel. Warning Please refer to the information on the exterior of bottom enclosure for electrical and safety information before installing or operating the device. Warning To prevent possible hearing damage, do not listen at high volume levels for long periods. As a guide to setting the volume level, check that you can still hear your own voice, when speaking normally while listening with the headphones. 1. Read and keep these instructions. Heed all warnings and follow all instructions. 2. Do not use this apparatus near water (if applicable). Clean only with dry cloth. 3. Do not block ventilation openings (if applicable). Do not install in a confined space. Install only according to manufacturer's instructions. 4. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. Do not place naked flame sources, such as lighted candles, on the apparatus. 5. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other (only for USA and Canada). A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 6. (If applicable) Protect the power cord from being walked on or pinched particularly as plugs, convenience receptacles, and the point where they exit from the apparatus. 7. Use only attachments and accessories recommended by the manufacturer. 8. Use only specified carts, stands, tripods, brackets, or tables specified by the manufacturer, or sold with the apparatus (if applicable). When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 9. Unplug during storms, or if not in use for a long period. 10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 11. (If applicable)The apparatus with protective earthing terminal shall be connected to a MAINS socket outlet with a protective earthing connection. 12. (If applicable)Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. 13. Internal/External Voltage Selectors (if applicable): Internal or external voltage selector switches, if any, should only be reset and re-equipped with proper plug or alternative voltage by a qualified service technician. Do not attempt to alter this yourself. 14. Class II Wiring (if applicable): To reduce the risk of electric shock, the external wiring connected to the terminals with "Class II Wiring" requires Class II wiring installed by an instructed person or the use of ready-made leads or cords. 15. Operating temperature range 5° to 45° C (41° to 113° F). LEGAL DISCLAIMER The information contained in this Quick Start Guide and accompanying manual is provided for general guidance only. While every effort has been made to ensure the accuracy and reliability of the content at the time of publication, Music Tribe Global Brands Ltd. (“Music Tribe”) makes no representations or warranties, express or implied, as to the completeness, accuracy, or suitability of the information, descriptions, illustrations, or technical specifications herein. Music Tribe accepts no liability for any direct, indirect, incidental, or consequential loss or damage arising from reliance on the information contained in this document, including but not limited to loss of data, income, profits, or business opportunities. Use of the product remains the sole responsibility of the user. Product features, design, specifications, and visual representations may be updated or modified without prior notice in the interest of continuous product improvement. All third-party trademarks referenced in this guide are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, T…

Text truncated - open the document above for the full version.

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz) Radio Spectrum Testing

Page 59 of 87 Report No. ESTE-R2601016 Appendix E: Number of hopping channels Test Result Test Mode Antenna Frequency[MHz] Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Page 60 of 87 Report No. ESTE-R2601016 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS 3DH5-Ant1-Hop-PASS Page 61 of 87 Report No. ESTE-R2601016 Appendix F: Band edge measurements Test Result Test Mode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 5.60 -43.07 ≤-14.40 PASS DH5 Ant1 High 2480 4.02 -45.32 ≤-15.98 PASS DH5 Ant1 Low Hop_2402 5.72 -42.75 ≤-14.28 PASS DH5 Ant1 High Hop_2480 4.77 -39.62 ≤-15.23 PASS 2DH5 Ant1 Low 2402 3.92 -42.79 ≤-16.08 PASS 2DH5 Ant1 High 2480 4.08 -48.02 ≤-15.92 PASS 2DH5 Ant1 Low Hop_2402 3.17 -43.16 ≤-16.83 PASS 2DH5 Ant1 High Hop_2480 1.12 -39.99 ≤-18.88 PASS 3DH5 Ant1 Low 2402 5.53 -43.91 ≤-14.47 PASS 3DH5 Ant1 High 2480 1.02 -48.47 ≤-18.98 PASS 3DH5 Ant1 Low Hop_2402 3.73 -42.24 ≤-16.27 PASS 3DH5 Ant1 High Hop_2480 4.68 -40.41 ≤-15.32 PASS Page 62 of 87 Report No. ESTE-R2601016 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS DH5-Ant1-Hop_2402-PASS Page 63 of 87 Report No. ESTE-R2601016 DH5-Ant1-Hop_2480-PASS 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS Page 64 of 87 Report No. ESTE-R2601016 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS 3DH5-Ant1-2402-PASS Page 65 of 87 Report No. ESTE-R2601016 3DH5-Ant1-2480-PASS 3DH5-Ant1-Hop_2402-PASS 3DH5-Ant1-Hop_2480-PASS Page 66 of 87 Report No. ESTE-R2601016 Appendix G: Conducted Spurious Emission Test Result Test Mode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 5.60 -41.86 ≤-14.40 PASS DH5 Ant1 2441 30~26500 5.88 -41.45 ≤-14.12 PASS DH5 Ant1 2480 30~26500 4.02 -33.14 ≤-15.98 PASS 2DH5 Ant1 2402 30~26500 3.92 -41.77 ≤-16.08 PASS 2DH5 Ant1 2441 30~26500 5.37 -41.33 ≤-14.63 PASS 2DH5 Ant1 2480 30~26500 4.08 -41.16 ≤-15.92 PASS 3DH5 Ant1 2402 30~26500 5.53 -40.83 ≤-14.47 PASS 3DH5 Ant1 2441 30~26500 6.06 -41.83 ≤-13.94 PASS 3DH5 Ant1 2480 30~26500 1.02 -41.44 ≤-18.98 PASS Page 67 of 87 Report No. ESTE-R2601016 Test Graphs DH5-Ant1-2402-30~26500-PASS DH5-Ant1-2441-30~26500-PASS DH5-Ant1-2480-30~26500-PASS Page 68 of 87 Report No. ESTE-R2601016 2DH5-Ant1-2402-30~26500-PASS 2DH5-Ant1-2441-30~26500-PASS 2DH5-Ant1-2480-30~26500-PASS Page 69 of 87 Report No. ESTE-R2601016 3DH5-Ant1-2402-30~26500-PASS 3DH5-Ant1-2441-30~26500-PASS 3DH5-Ant1-2480-30~26500-PASS Page 70 of 87 Report No. ESTE-R2601016 Appendix H: Reference level measurement Test Result Test Mode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2402.16 5.60 DH5 Ant1 2441 2441.17 5.88 DH5 Ant1 2480 2480.13 4.02 2DH5 Ant1 2402 2401.98 3.92 2DH5 Ant1 2441 2440.99 5.37 2DH5 Ant1 2480 2480.00 4.08 3DH5 Ant1 2402 2402.16 5.53 3DH5 Ant1 2441 2441.16 6.06 3DH5 Ant1 2480 2479.67 1.02 Page 71 of 87 Report No. ESTE-R2601016 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS DH5-Ant1-2480-PASS Page 72 of 87 Report No. ESTE-R2601016 2DH5-Ant1-2402-PASS 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 73 of 87 Report No. ESTE-R2601016 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS 3DH5-Ant1-2480-PASS Page 74 of 87 Report No. ESTE-R2601016 14. TEST SETUP PHOTO Conducted Test Page 75 of 87 Report No. ESTE-R2601016 Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) Page 76 of 87 Report No. ESTE-R2601016 Radio Spectrum Testing Page 77 of 87 Report No. ESTE-R2601016 15. EUT PHOTO External Photos M/N: DX115 PRO Page 78 of 87 Report No. ESTE-R2601016 External Photos M/N: DX115 PRO Page 79 of 87 Report No. ESTE-R2601016 External Photos M/N: DX115 PRO Page 80 of 87 Report No. ESTE-R2601016 External Photos M/N: DX115 PRO Page 81 of 87 Report No. ESTE-R2601016 Internal Photos M/N: DX115 PRO Page 82 of 87 Report No. ESTE-R2601016 Internal Photos M/N: DX115 PRO Page 83 of 87 Report No. ESTE-R2601016 Internal Photos M/N: DX115 PRO Page 84 of 87 Report No. ESTE-R2601016 Internal Photos M/N: DX115 PRO Page 85 of 87 Report No. ESTE-R2601016 Internal Photos M/N: DX115 PRO Bluetooth Antenna Page 86 of 87 Report No. ESTE-R2601016 Internal Photos M/N: DX115 PRO Page 87 of 87 Report No. ESTE-R2601016 Internal Photos M/N: DX115 PRO End of Test Report

Page 1 of 87 Report No. ESTE-R2601016 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Empower Tribe Commercial FZE Portable PA Speakers Model Number: DX115 PRO Additional Model: DX112 PRO FCC ID: QWHDX115PRO Applicant: Empower Tribe Commercial FZE Address: LB181504WS13, Jebel Ali Freezone Dubai, United Arab Emirates Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2601016 Date of Test: Oct. 09, 2025 to Jan. 06, 2026 Date of Report: Jan. 08, 2026 Page 2 of 87 Report No. ESTE-R2601016 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. Antenna Information ......................................................................................................................... 5 1.3. Information of RF Cable ................................................................................................................... 5 2. SUMMARY OF TEST ........................................................................................................................... 6 2.1. Summary of test result ..................................................................................................................... 6 2.2. Test Facilities ..................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................ 8 2.4. Assistant equipment used for test .................................................................................................. 8 2.5. Block Diagram ................................................................................................................................... 8 2.6. Test mode .......................................................................................................................................... 9 2.7. Channel List ..................................................................................................................................... 10 2.8. Power Setting of Test Software .................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................... 13 3.1. Limit ................................................................................................................................................... 13 3.2. Test Setup ........................................................................................................................................ 13 3.3. Spectrum Analyzer Setting ............................................................................................................ 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ....................................................................................................................................... 13 4. 20 DB BANDWIDTH ......................................................................................................................... 14 4.1. Limit ................................................................................................................................................... 14 4.2. Test Setup ........................................................................................................................................ 14 4.3. Spectrum Analyzer Setting ............................................................................................................ 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ....................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ................................................................................................................................................... 15 5.2. Test Setup ........................................................................................................................................ 15 5.3. Spectrum Analyzer Setting ............................................................................................................ 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ....................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL ................................................................................................... 16 6.1. Limit ................................................................................................................................................... 16 6.2. Test Setup ........................................................................................................................................ 16…

Text truncated - open the document above for the full version.

N c v NOTE: This doc company. The te validation and in MORLA App PRO MO TRA BRA STA REC TES ISS cument is issue est results appl nformation confi AB SHENZ FL1-3, B Block67 plicant ODUCT NA ODEL NAM ADE NAM AND NAM ANDARD(S CEIPT DAT ST DATE SUE DATE ed by MORLAB y only to the pa rmed at our we ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, She TE : AME : ME : E : ME : S) : ATE : : : B, the test repo articular sample bsite. MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon EST SHANGHA MV_BP10 MV_BP10 MVSILICO MVSILICO ANSI/IEEE 2019-08-3 2019-09-0 2019-10-1 Edited Approved rt shall not be e(s) tested and CHNOLOGY Co., Ltd LongChang Road, g Province, P. R. Ch T RE AI MOUNT 0xx PCB An 0 ON ON E Std 149- 30 02 15 d by: by: reproduced exc to the specific d. ina Te l : 8 Http:/ RE EPOR TAIN VIEW ntenna -2008 Chi Sh Andy Yeh cept in full with tests carried o u 86-755-36698555 //www.morlab.cn EPORT No RT W SILICON ide(Rappo h(Technica out prior written ut which is avai Fax: 86-755-3669 E-mail: service@ o.：SZ190 CO,. LTD orteur) l Director) n permission of lable on reques 98525 @morlab.cn Page 1 of 1 080340E01 f the st for 4 1 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 14 REPORT No.：SZ19080340E01 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1. Manufacturer and Factory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2. Equipment Under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 2. Test Results ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2.1. Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2.2. Test Conditions ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2.3. Test Results lists ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 Annex A Photographs ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 Annex B Figures ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 1. 2D Radiation Pattern ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 2. 3D Radiation Pattern ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 3. Return Loss ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 4. VSWR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 11 5. Input Impedance ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 11 Annex C Photographs ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 12 Annex D General Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 1.1 Identification of the Responsible Testing Laboratory ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 1.2 Identification of the Responsible Testing Location ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 1.3 Test Equipments Utilized ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 Change History Version Date Reason for change 1.0 2019-10-15 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 14 REPORT No.：SZ19080340E01 1. Technical Information Note: Provide by manufacturer. 1.1. Manufacturer and Factory Information Applicant: SHANGHAI MOUNTAIN VIEW SILICON CO,. LTD Applicant Address: Suite 4C, Building 3, 1238 Zhangjiang Road, Pudong New District, Shanghai, China Manufacturer: SHANGHAI MOUNTAIN VIEW SILICON CO,. LTD Manufacturer Address: Suite 4C, Building 3, 1238 Zhangjiang Road, Pudong New District, Shanghai, China 1.2. Equipment Under Test (EUT) Description Wireless Type N/A Frequency N/A MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 14 REPORT No.：SZ19080340E01 2. Test Results 2.1. Applied Reference Documents Leading reference documents for testing: No. Identity Document Title 1 ANSI/IEEE Std 149-2008 IEEE Standard Test Procedures for Antennas 2.2. Test Conditions Test Environment Conditions： Relative Humidity: 25 ... 75 % Temperature: +10 °C to +30 °C 2.3. Test Results lists 2.3.1. Gain Frequency Gain(dBi) 2400MHz 2.81 2410MHz 2.74 2420MHz 3.38 2430MHz 2.73 2440MHz 1.01 2450MHz 1.26 2460MHz 1.50 2470MHz 1.49 2480MHz 1.42 2490MHz 0.36 2500MHz 0.33 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 14 REPORT No.：SZ19080340E01 2.3.2. Return Loss/VSWR/Input Impedance Frequency Return Loss (dB) VSWR Input Impedance(Ω) 240…

Text truncated - open the document above for the full version.

Page 1 of 4 Report No. ESTE-R2601017 FCC 47 CFR MPE REPORT Empower Tribe Commercial FZE Portable PA Speakers Model Number: DX115 PRO Additional Model: DX112 PRO FCC ID: QWHDX115PRO Applicant: Empower Tribe Commercial FZE Address: LB181504WS13, Jebel Ali Freezone Dubai, United Arab Emirates Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2601017 Date of Test: Oct. 09, 2025 to Jan. 06, 2026 Date of Report: Jan. 08, 2026 Page 2 of 4 Report No. ESTE-R2601017 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density Page 3 of 4 Report No. ESTE-R2601017 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Page 4 of 4 Report No. ESTE-R2601017 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 2402 6.12 4.0926 2441 6.50 4.4668 2480 4.79 3.0130 π/4-DQPSK 2402 6.03 4.0087 2441 6.41 4.3752 2480 4.71 2.9580 8-DPSK 2402 6.33 4.2954 2441 6.73 4.7098 2480 4.91 3.0974 3. Calculated Result and Limit Mode Peak output power (dBm) Target power (dBm) MAX Target power (dBm) Antenna gain Power Density (S) (mW /cm 2 ) Limited of Power Density (S) (mW /cm 2 ) Test Result (dBi) (Linear) 2.4G Band GFSK 6.50 6±1 7 3.38 2.178 0.00217 1 Complies π/4-DQPSK 6.41 6±1 7 3.38 2.178 0.00217 1 Complies 8-DPSK 6.73 6±1 7 3.38 2.178 0.00217 1 Complies End of Test Report

Internal Photos M/N: DX115 PRO Internal Photos M/N: DX115 PRO Internal Photos M/N: DX115 PRO Internal Photos M/N: DX115 PRO Internal Photos M/N: DX115 PRO Bluetooth Antenna Internal Photos M/N: DX115 PRO Internal Photos M/N: DX115 PRO

Internal Photos M/N: DX112 PRO Internal Photos M/N: DX112 PRO Internal Photos M/N: DX112 PRO Bluetooth Antenna Internal Photos M/N: DX112 PRO Internal Photos M/N: DX112 PRO

Empower Tribe Commercial FZE Covered Equipment Certification Attestation Letter 1/12/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: QWHDX115PRO Empower Tribe Commercial FZE (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Empower Tribe Commercial FZE (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Empower Tribe Commercial FZE (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Kane Xin Title: Innovation Compliance Leader Company Name: Empower Tribe Commercial FZE Date: 1/12/2026

External Photos M/N: DX115 PRO External Photos M/N: DX115 PRO External Photos M/N: DX115 PRO External Photos M/N: DX115 PRO

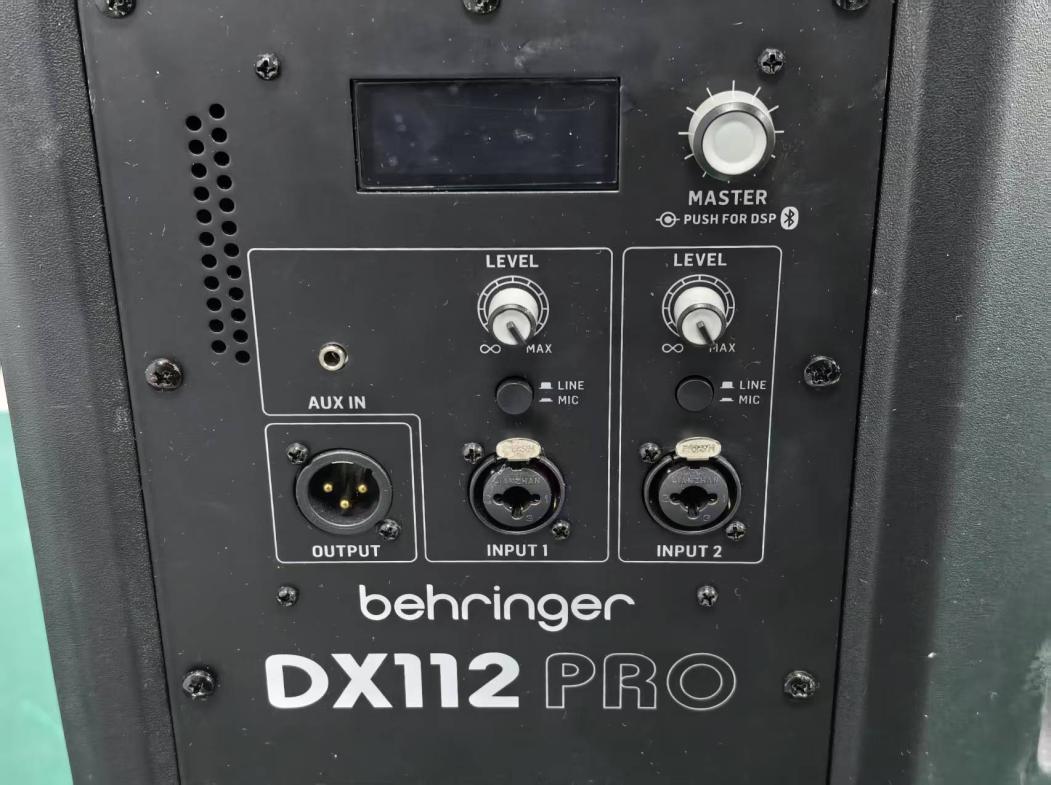

External Photos M/N: DX112 PRO External Photos M/N: DX112 PRO External Photos M/N: DX112 PRO External Photos M/N: DX112 PRO

Empower Tribe Commercial FZE I, the undersigned, Kane Xin: The following models have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction, except the different appearance and size. 1) Model No.: DX115 PRO 2) Model No.: DX112 PRO FCC ID: QWHDX115PRO IC: 31484-DX115PRO Sincerely, Client’s signature : Client’s name / title : Kane Xin / Innovation Compliance Leader Contact information / address : LB181504WS13, Jebel Ali Freezone Dubai, United Arab Emirates Telephone: +971 526477773 Fax No.: +971 526477773

DATE : 1/12/2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: QWHDX115PRO Product Name: Portable PA Speakers Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Kane Xin Title：Innovation Compliance Leader Company：Empower Tribe Commercial FZE

DATE : 1/12/2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address:Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Empower Tribe Commercial FZE Address: LB181504WS13, Jebel Ali Freezone Dubai, United Arab Emirates <Signature> Name：Kane Xi…

Text truncated - open the document above for the full version.
