QWHIX12-15Powered Loudspeaker

iX SERIES 2 iX seriesQuick Start Guide 3 Terminals marked with this symbol carry electrical current of suffi cient magnitude to constitute risk of electric shock. Use only high-quality commercially-available speaker cables with plugs pre-installed. All other installation or modifi cation should be performed only by qualifi ed personnel. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be suffi cient to constitute a risk of shock. This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual. Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualifi ed personnel. Caution To reduce the risk of fi re or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects fi lled with liquids, such as vases, shall be placed on the apparatus. Caution These service instructions are for use by qualifi ed service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualifi ed service personnel. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Use only attachments/accessories specifi ed by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection. 16. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. 17. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effi cient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city offi ce, or your household waste collection service. LEGAL DISCLAIMER MUSIC Group accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifi cations, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. MIDAS, KLARK TEKNIK, TURBOSOUND, BEHRINGER, BUGERA and DDA are trademarks or registered trademarks of MUSIC Group IP Ltd. © MUSIC Group IP Ltd. 201x All rights reserved. LIMITED WARRANTY For the applicable warranty terms and conditions and additional information regarding MUSIC Group’s Limited Warranty, please see complete details online at music-group.com/warranty. Important Safety Instructions Instrucciones de seguridad Las terminales marcadas con este símbolo transportan corriente eléctrica de magnitud sufi ciente como para constituir un riesgo de descarga eléctrica. Utilice solo cables de altavoz de alta calidad con clavijas TS de 6,3 mm pre-instaladas (puede adquirirlos en comercios especializados en audio). Cualquier otra instalación o modifi cación debe ser realizada únicamente por un técnico cualifi cado. Este símbolo, siempre que aparece, le advierte de la presencia de voltaje peligroso sin aislar dentro de la caja; este voltaje puede ser sufi ciente para constituir un riesgo de descarga. Este símbolo, siempre que aparece, le advierte sobre instrucciones operativas y de mantenimiento que aparecen en la documentación adjunta. Por favor, lea el manual. Atención Para reducir el riesgo de descarga eléctrica, no quite la tapa (o la parte posterior). No hay piezas en el interior del equipo que puedan ser reparadas por el usuario. Si es necesario, póngase en contacto con personal cualifi cado. Atención Para reducir el riesgo de incendio o descarga eléctrica, no exponga este aparato a la lluvi…

Text truncated - open the document above for the full version.

MUSIC Group Services PH Corp 25th Floor Ayala Life FGU Center, 6811 Ayala Avenue, Makati City 1209, Philippines Model Differences Declaration Our company MUSIC Group Services PH Corp makes it a declaration as following： The differences of the two models (iX 15 ,iX 12) is： All the models are identical design to each other, only the sizes of passive speaker are different. Date, Signature: Kurt Liang __________________________________ Printed name of CEO

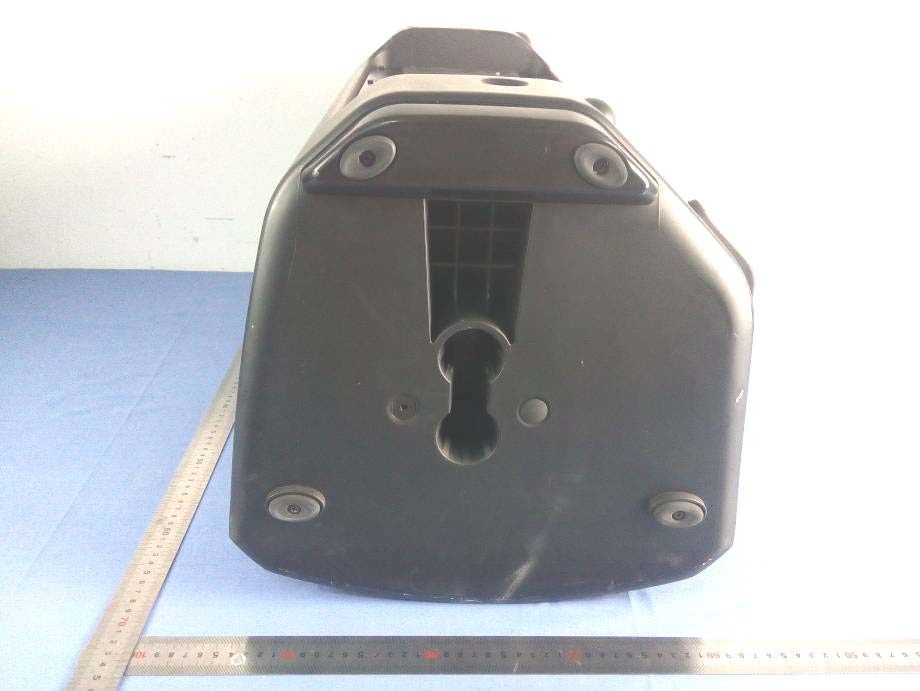

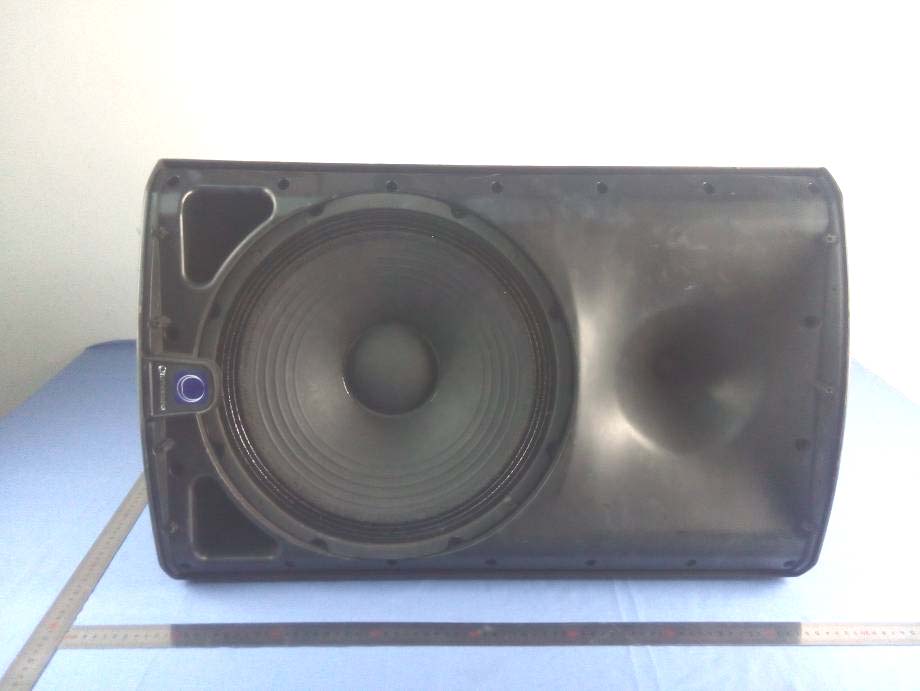

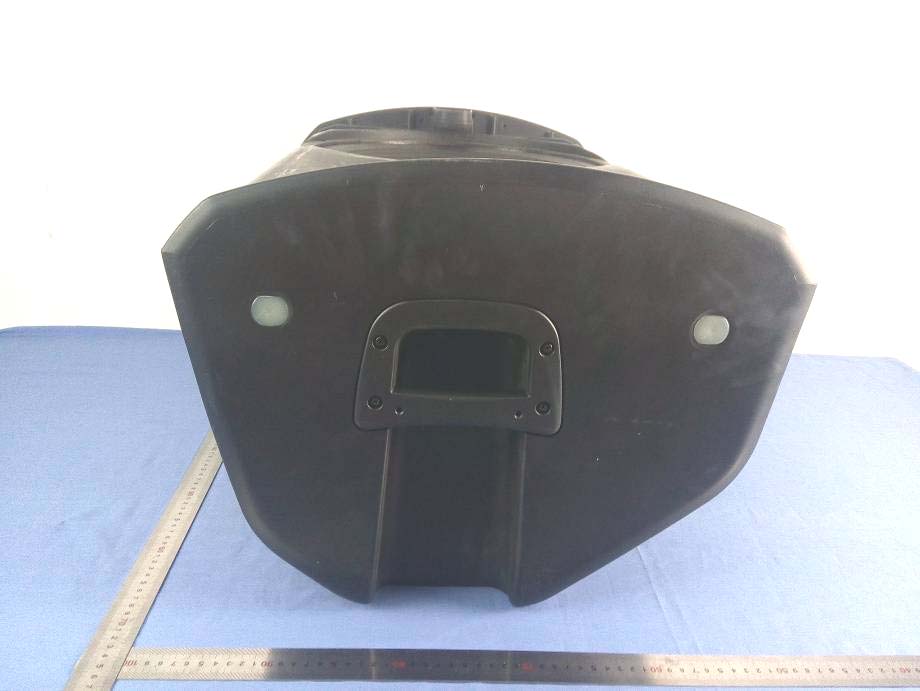

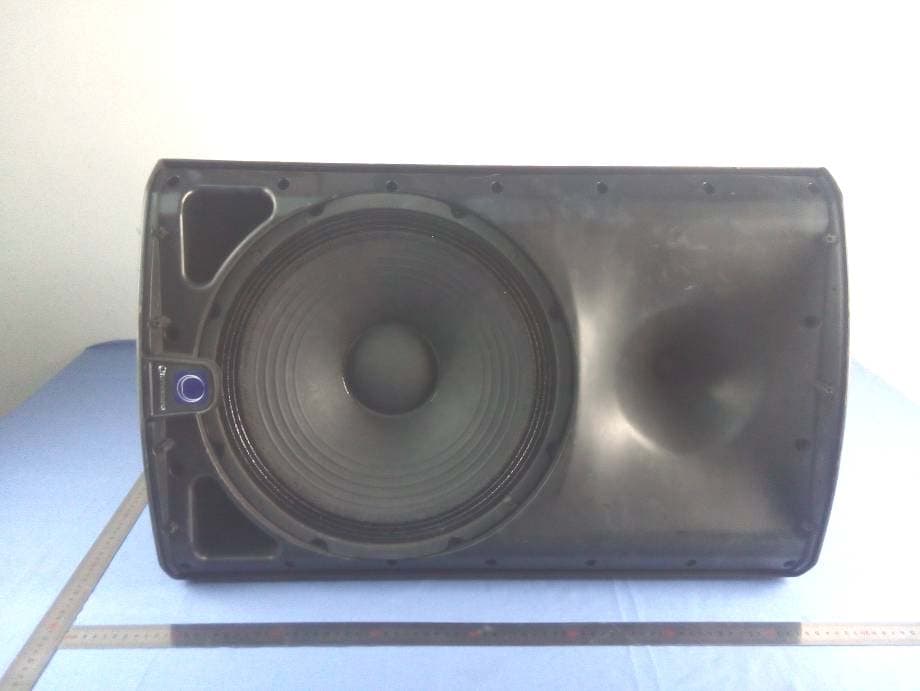

Report No.: C141127Z03 Page 1 / 6 External Photos of EUT iX15 Report No.: C141127Z03 Page 2 / 6 Report No.: C141127Z03 Page 3 / 6 Report No.: C141127Z03 Page 4 / 6 iX12 Report No.: C141127Z03 Page 5 / 6 Report No.: C141127Z03 Page 6 / 6

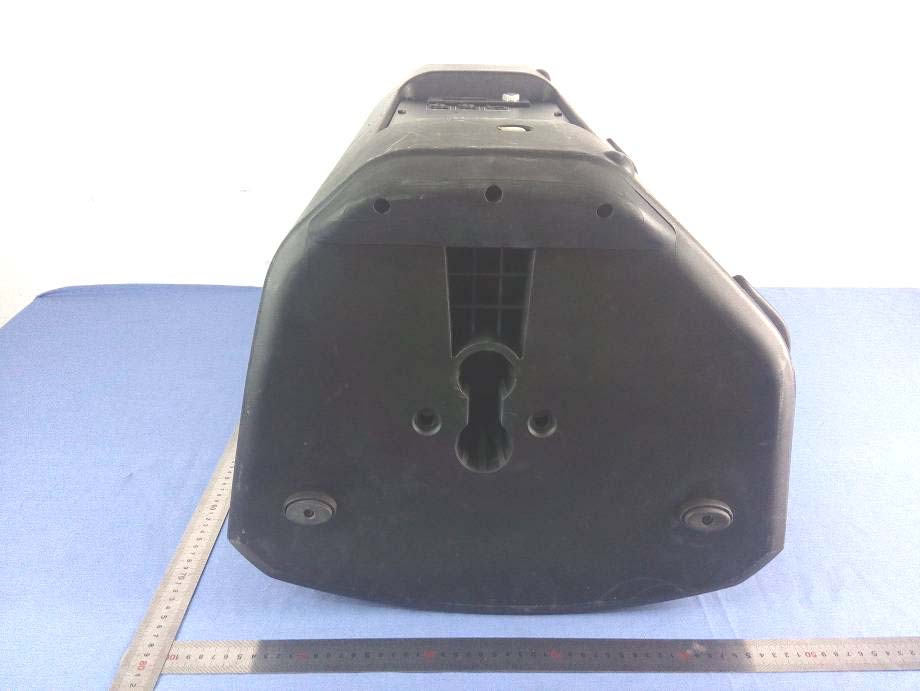

Report No.: C141127Z03 Page 1 / 9 Internal Photos of EUT iX15 Report No.: C141127Z03 Page 2 / 9 Report No.: C141127Z03 Page 3 / 9 iX12 Report No.: C141127Z03 Page 4 / 9 Report No.: C141127Z03 Page 5 / 9 Report No.: C141127Z03 Page 6 / 9 Report No.: C141127Z03 Page 7 / 9 Report No.: C141127Z03 Page 8 / 9 Antenna Report No.: C141127Z03 Page 9 / 9 RF Module

Report No.: C141127Z03-RP1-1 FCC ID: QWHIX12-15 Page 1 / 61 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Powered Loudspeaker Model: iX15, iX12 Brand: Turbosound Test Report Number: C141127Z03-RP1-1 Prepared for MUSIC Group Services PH Corp 25th Floor Ayala Life FGU Center, 6811 Ayala Avenue, Makati City 1209, Philippines Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: April 8, 2015 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST, CNAS or any government agencies. The test result of this report relate only to the tested sample identified in this report. 检 测 CNAS L4818 Report No.: C141127Z03-RP1-1 FCC ID: QWHIX12-15 Page 2 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 April 8, 2015 Initial Issue ALL Nancy Fu Report No.: C141127Z03-RP1-1 FCC ID: QWHIX12-15 Page 3 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION .....................................................................................4 2 EUT DESCRIPTION..........................................................................................................5 3 TEST METHODOLOGY....................................................................................................6 3.1. DESCRIPTION OF TEST MODES ...........................................................................6 4 FACILITIES AND ACCREDITATIONS .............................................................................7 4.1. FACILITIES...............................................................................................................7 4.2. ACCREDITATIONS ..................................................................................................7 4.3. MEASUREMENT UNCERTAINTY ...........................................................................7 5 SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1. SETUP CONFIGURATION OF EUT.........................................................................8 5.2. SUPPORT EQUIPMENT ........................................................................................8 6 FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1. 20dB BANDWIDTH ...................................................................................................9 6.2. ANTENNA GAIN .....................................................................................................14 6.3. PEAK POWER........................................................................................................15 6.4. PEAK POWER SPECTRAL DENSITY ...................................................................17 6.5. BAND EDGES MEASUREMENT ...........................................................................18 6.6. FREQUENCY SEPARATION .................................................................................28 6.7. NUMBER OF HOPPING FREQUENCY .................................................................31 6.8. TIME OF OCCUPANCY (DWELL TIME) ................................................................33 6.9. SPURIOUS EMISSIONS ........................................................................................40 6.10. POWERLINE CONDUCTED EMISSIONS .............................................................58 Report No.: C141127Z03-RP1-1 FCC ID: QWHIX12-15 Page 4 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Product Powered Loudspeaker Model iX15, iX12 Brand Turbosound Tested November 27, 2014~ April 8, 2015 Applicant MUSIC Group Services PH Corp 25th Floor Ayala Life FGU Center, 6811 Ayala Avenue, Makati City 1209, Philippines Manufacturer Zhongshan Eurotec Electronics Ltd. Electronics Inducrialpark, No.1 Junjing Road, Minzhong Town, Zhongshan City, Guang dong Province 528441, P.R. China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of RF Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C141127Z03-RP1-1 FCC ID: QWHIX12-15 Page 5 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product Powered Loudspeaker Model Number iX15, iX12 Brand Turbosound Model Discrepancy All the models are identical design to each other, only the sizes of passive speaker are different. Identify Number C141127Z03-RP1-1 Power Supply 100-240Vac, 50/60Hz Received Date November 27, 2014 Frequency Range 2402 ~ 2480 MHz Transmit Power GFSK : 5.38dBm π/4-DQPSK: 5.6…

Text truncated - open the document above for the full version.

Report No.: C141127Z03-RP1 FCC ID : QWHIX12-15 Page 1 / 2 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Report No.: C141127Z03-RP1 FCC ID : QWHIX12-15 Page 2 / 2 CONDUCTED EMISSION TEST
