QWHPPA2000BTPortable PA System

Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with ¼" TS or twist-locking plugs pre-installed. All other installation or modification should be performed only by qualified personnel. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual. Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel. Caution To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus. Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel. 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11 Use only attachments/accessories specified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13 Unplug this apparatus during lightning storms or when unused for long periods of time. 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15 The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection. 16 Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. LEGAL DISCLAIMER TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURACY IS NOT GUARANTEED. BEHRINGER, KLARK TEKNIK, MIDAS, BUGERA, AND TURBOSOUND ARE PART OF THE MUSIC GROUP (MUSIC-GROUP.COM). ALL TRADEMARKS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. MUSIC GROUP ACCEPTS NO LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED BY ANY PERSON WHO RELIES EITHER WHOLLY OR IN PART UPON ANY DESCRIPTION, PHOTOGRAPH OR STATEMENT CONTAINED HEREIN. COLORS AND SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT. MUSIC GROUP PRODUCTS ARE SOLD THROUGH AUTHORIZED FULLFILLERS AND RESELLERS ONLY. FULLFILLERS AND RESELLERS ARE NOT AGENTS OF MUSIC GROUP AND HAVE ABSOLUTELY NO AUTHORITY TO BIND MUSIC GROUP BY ANY EXPRESS OR IMPLIEDUNDERTAKING OR REPRESENTATION. THIS MANUALIS COPYRIGHTED. NO PART OF THIS MANUAL MAYBE REPRODUCED OR TRANSMITTED IN ANY FORMOR BY ANY MEANS, ELECTRONIC OR MECHANICAL,INCLUDING PHOTOCOPYING AND RECORDING OF ANYKIND, FOR ANY PURPOSE WITHOUT THE EXPRESSWRITTEN PERMISSION OF MUSIC GROUP IP LTD. ALL RIGHTS RESERVED. © 2013MUSIC Group IP Ltd. Trident Chambers, Wickhams Cay, P.O. Box 146,Road Town, Tortola, British Virgin Islands LIMITED WARRANTY For the applicable warranty terms and conditions and additional information regarding MUSIC Group’s Limited Warranty, please see complete details online at www.music-group.com/warranty . EUROPORT PPA2000BT/PPA500BT Set-up Step 1: Hook-Up Debate Centre de débat Podiumsdiskussion Step 2: Set-up 1,Release the top latch beneath the carrying handle 2,Release the side latches by pressing and then lifting them. 3,Remove the speakers and place them in appropriate locations. 4,Stand the mixer upright.(Make sure the include speaker cables can reach both speakers) Step 3: Controls. FX knob determines how much of each channel’s signal goes to the DIGITAL EFFECTS PROCESSOR. EQ KNOBS adjust the high and low frequencies for each channel. PAN knob positions each channel in the stereo field. LEVEL knob adjusts the volume of the individual channel in the overall mix. CLIP LED lights when the input signals overloads the channel. PROGRAM[PUSH] knob controls the effects settings. Rotate this knob to scroll through the effect patches, and push to select a patch. MULTI-FX PROCESSOR unit adds a selected sound effect to any channels which have their EFFECTS knob turned up. Effects include reverb, chorus, delay, and pitch shifter. FX[LEVEL] knob controls the amount of effects added to the main mix. GRAPHIC EQ adjusts specific frequencies in the sound spectrum. EQ button activates the GRAPHIC EQ. FBQ button activates the FBQ detection system. The EQ IN button must also be activated for this feature to work. MAIN LEVEL CONTROL adjusts the overall volume of the main mix…

Text truncated - open the document above for the full version.

MUSIC Group Macao Commercial Offshore Limited Rua De Pequim, No 202-A Macau Finance Centre 9/J, Macau 022311 – 6 Authority to Act as Agent Date: ___2013-12-03_ ____ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______ Compliance Certification Services Inc._____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____December 3, 2013_____ By: _ __ ______ Eric Zhang ___________ (Signature 1 ) (Print name) Title: _____Compliance manager_____________________ On behalf of: _____ MUSIC Group Macao Commercial Offshore Limited _______ (Company Name) Telephone: ____ 852-27908778_______ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

MUSIC Group Macao Commercial Offshore Limited Rua De Pequim, No 202-A Macau Finance Centre 9/J, Macau 022311 – 6 Request for Confidentiality Date: _____2013-12-03___ Subject: Confidentiality Request for: ______(Insert FCC ID )_ QWHPPA2000BT ___ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ___ MUSIC Group Macao Commercial Offshore Limited ______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: _____ Eric Zhang ___ (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

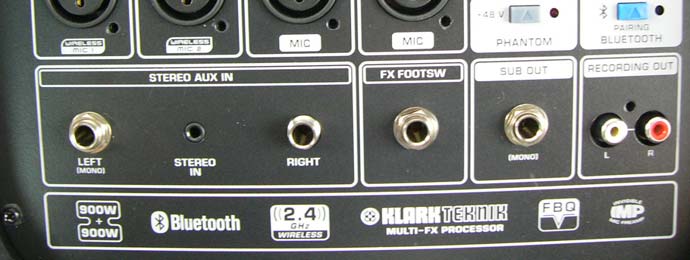

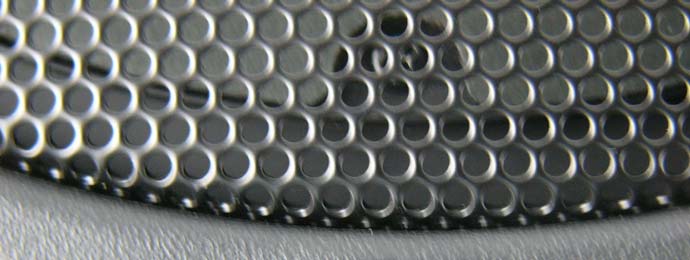

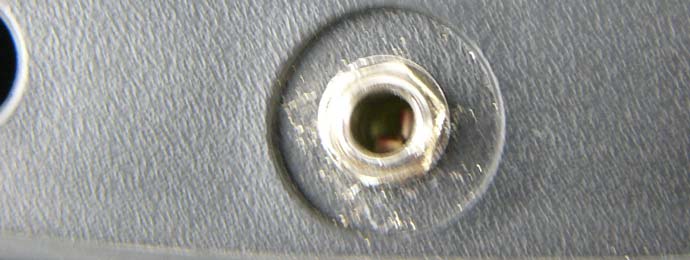

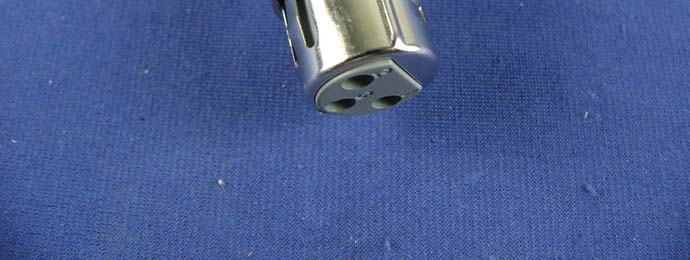

Report No: C131105Z03-RP1 Page 1 / 8 External Photos of EUT Report No: C131105Z03-RP1 Page 2 / 8 Report No: C131105Z03-RP1 Page 3 / 8 Report No: C131105Z03-RP1 Page 4 / 8 Report No: C131105Z03-RP1 Page 5 / 8 Report No: C131105Z03-RP1 Page 6 / 8 Report No: C131105Z03-RP1 Page 7 / 8 Report No: C131105Z03-RP1 Page 8 / 8

Report No: C131105Z03-RP1 Page 1 / 9 Internal Photos of EUT Report No: C131105Z03-RP1 Page 2 / 9 Report No: C131105Z03-RP1 Page 3 / 9 Report No: C131105Z03-RP1 Page 4 / 9 Report No: C131105Z03-RP1 Page 5 / 9 Report No: C131105Z03-RP1 Page 6 / 9 Report No: C131105Z03-RP1 Page 7 / 9 Report No: C131105Z03-RP1 Page 8 / 9 Report No: C131105Z03-RP1 Page 9 / 9

Compliance Certification Services Inc. Report No: C131105Z03-RP1_MPE FCC ID: QWHPPA2000BT Date of Issue: November 18, 2013 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification EUT Portable PA System Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Bluetooth: 2.402GHz~ 2.480GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 1.47dBm (1.40mW) Antenna gain (Max) 2.12dBi (Numeric gain:1.63) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 1.47dBm (1.40mW) at 2441MHz (with 1.63 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. TEST RESULT No non-compliance noted. Compliance Certification Services Inc. Report No: C131105Z03-RP1_MPE FCC ID: QWHPPA2000BT Date of Issue: November 18, 2013 2 Calculation Given 2 4d GP S Π × = Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=1.40mW Numeric antenna gain=1.63 Substituting the MPE safe distance using d=20 cm into Equation 1: Fields The power density S = 1.40 × 1.63/ (4∏ × 400) cm 2 =4.54*e -4 mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)

Report No.: C131105Z03-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. FCC ID: QWHPPA2000BT Page 1 / 76 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Portable PA System Model: PPA2000BT Brand: Test Report Number: C131105Z03-RP1 Prepared for MUSIC Group Macao Commercial Offshore Limited Rua Du Pequim, No 202-A Macau Finance Centre 9/J, Macau Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: November 18, 2013 Report No.: C131105Z03-RP1 FCC ID: QWHPPA2000BT Page 2 of 76 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C131105Z03-RP1 Initial Issue ALL Sinphy Xie Report No.: C131105Z03-RP1 FCC ID: QWHPPA2000BT Page 3 of 76 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.............................................................................................. 4 2. EUT DESCRIPTION..................................................................................................................... 5 3. TEST METHODOLOGY.............................................................................................................. 7 3.1 DESCRIPTION OF TEST MODES ................................................................................7 4. FACILITIES AND ACCREDITATIONS..................................................................................... 8 4.1 FACILITIES....................................................................................................................8 4.2 ACCREDITATIONS .......................................................................................................8 4.3 MEASUREMENT UNCERTAINTY ................................................................................8 5. SETUP OF EQUIPMENT UNDER TEST.................................................................................. 9 5.1 SETUP CONFIGURATION OF EUT .............................................................................9 5.2 SUPPORT EQUIPMENT .............................................................................................9 6. FCC PART 15.247 REQUIREMENTS..................................................................................... 10 6.1 20DB BANDWIDTH .....................................................................................................10 6.2 PEAK POWER.............................................................................................................14 6.3 PEAK POWER SPECTRAL DENSITY ........................................................................19 6.4 BAND EDGES MEASUREMENT ................................................................................20 6.5 FREQUENCY SEPARATION ......................................................................................30 6.6 NUMBER OF HOPPING FREQUENCY ......................................................................33 6.7 TIME OF OCCUPANCY (DWELL TIME) .....................................................................36 6.8 SPURIOUS EMISSIONS .............................................................................................43 6.9 POWERLINE CONDUCTED EMISSIONS ..................................................................74 Report No.: C131105Z03-RP1 FCC ID: QWHPPA2000BT Page 4 of 76 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: Portable PA System Model: PPA2000BT Brand: Tested: November 5~18, 2013 Applicant: MUSIC Group Macao Commercial Offshore Limited Rua Du Pequim, No 202-A Macau Finance Centre 9/J, Macau Manufacture MUSIC Group Macao Commercial Offshore Limited Rua Du Pequim, No 202-A Macau Finance Centre 9/J, Macau Factory Zhongshan Eurotec Electronics Ltd. Eurotec Industrial Park #1 Junjing Rd., Min Zhong Town, Zhongshan, Guangdong 528441 China. APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C131105Z03-RP1 FCC ID: QWHPPA2000BT Page 5 of 76 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product Portable PA System Model Number PPA2000BT Brand Model Discrepancy N/A Identify Number C131105Z03-RP1 Power Supply 100-120Vac, 50/60Hz; MIC cable Unshielded, 4.45m Speaker out Cable Unshielded, 3.00m×2 Received Date November 5, 2013 Frequency Range 2402 ~ 2480 MHz Transmit Power GFSK : 1.47dBm 8DPSK : 0.31dBm Modulation Technique FHSS (GFSK…

Text truncated - open the document above for the full version.

Report No.: C131105Z03-RP1 FCC ID: QWHPPA2000BT Page 1/3 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: C131105Z03-RP1 FCC ID: QWHPPA2000BT Page 2/3 RADIATED EMISSION TEST Below 1GHz Report No.: C131105Z03-RP1 FCC ID: QWHPPA2000BT Page 3/3 Above 1GHz
