QWHSMARTMIC2Wireless Dual Lapel Microphone System with USB-C Receiver

Page 1 V 1.0 (EN) Safety Instruction 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Use only attachments/accessories specified by the manufacturer. 10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 11. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service. 12. Do not install in a confined space, such as a book case or similar unit. 13. Do not place naked flame sources, such as lighted candles, on the apparatus. 14. WARNING Don’t replace a battery that can defeat a safeguard; Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion; Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas; and A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Attention should be drawn to the environmental aspects of battery disposal. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. SMART MIC2 Wireless Dual Lapel Microphone System with USB-C Receiver Operation 1. Connect the receiver to the phone port. 2. Press the microphone switch; the LED turns blue and the power is turned on. 3. The LED of the receiver is always on. Open the phone camera, live App or other Apps, and then to use the microphone to receive sound. 4. There is no battery in the receiver, and no need to recharge it. If the phone is low on power during live operation, it can be recharged directly through the receiver port. (1) Windproof mesh (2) Microphone LED (3) Microphone clip (4) Microphone power button (5) Microphone USB C charging port (6) Receiver USB C port to phone (7) Receiver USB C Charging port for phone (8) Receiver LED (8) (1) (6) (7) (2) (3) (4) (5) Power Button Red LED LED USB C USB C Microphone Power button functions Microphone Power ButtonMicrophone Status Press for 1 secondPower ON Press onceMute / Unmute Press for 3 secondsPower OFF Note: The wireless receiver works with power from the smartphone's Type-C port. The wireless lapel microphones contain a built-in rechargeable battery. The microphones will turn off to save the battery if there is no connection with the receiver for 10 mins. The phone charging rating (via type-C external power) of the receiver is DC 5V / 1A or 5 Watts. A charger is not included. The power delivered by the charger must be between 5V/1A (5W) minimum required by this equipment, and 5V/2A (10W) maximum, in order to achieve the maximum charging speed. This equipment supports the USB Power Delivery charging protocol. Microphone Status LED Microphone StatusMicrophone LED Ready to Pair to Receiver*Red and Blue Flashing Alternately Paired to Receiver*Blue MuteBlue Flashing Low BatteryRed Flashing with Voice Prompt ChargingRed Fully ChargedOff *Note: The wireless receiver and the microphones communicate directly with each other, and do not require Bluetooth from the smartphone. SMART MIC2 • Get high-quality audio on-the-go with our package of 2 wireless lapel microphones and a USB Type-C receiver • Perfect for capturing clear sound during two-way interviews, co-hosted podcasts, collaborative live-streaming, conversational vlogs, virtual classrooms, voice overs, and video production • Digital MEMS microphone design and built-in adaptive noise reduction technology deliver crystal-clear recordings every time • With easy mute buttons and automatic pairing with the receiver, you can focus on your content without worrying about technical difficulties • Innovative receiver design allows your smartphone to charge while recording, making it easy to capture long-form content without worrying about battery life • With Bluetooth* connectivity for exceptional sound quality and up to 20 m (65 ft) of wireless freedom, you can move around with ease • Receiver features an integrated USB Type-C audio output for direct connection to other USB-equipped devices, ensuring seamless audio transfer • With an impressive 20-hour runtime, you can rely on uninterrupted performance during long recording sessions • Customized foam and fur windscreens, along with a carry case, ensure your gear stays protected while on-the-go Accessories • Foam and fur windscreens • Carry case • USB cable Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. Such modifications could void the user authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. CAN ICES-003 (B)/NMB-003(B)…

Text truncated - open the document above for the full version.

Music Tribe Commercial MY Sdn. Bhd. Covered Equipment Certification Attestation Letter 10/19/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: QWHSMARTMIC2 Music Tribe Commercial MY Sdn. Bhd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Kane Xin Title: Innovation Compliance Leader Company Name: Music Tribe Commercial MY Sdn. Bhd. Date: 10/19/2023

Music Tribe Commercial MY Sdn. Bhd. Covered Equipment Certification Attestation Letter 10/19/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: QWHSMARTMIC2 Music Tribe Commercial MY Sdn. Bhd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Signed: Printed name: Kane Xin Title: Innovation Compliance Leader Company Name: Music Tribe Commercial MY Sdn. Bhd. Date: 10/19/2023

Music Tribe Commercial MY Sdn. Bhd. * the applicant must designate a contact located in the United States for purposes of acting as the aSSlicanW¶V agenW foU VeUYice of SUoceVV, UegaUdleVV of ZheWheU Whe aSSlicanW iV a domeVWic oU foUeign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 10/19/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: QWHSMARTMIC2 FRN of applicant: 0022048235 Per section 2.911(d)(7) of the FCC rules, Music Tribe Commercial MY Sdn. Bhd. (³Whe aSSlicanW ́) ceUWifieV WhaW Whe eTXiSmenW foU Zhich aXWhoUi]aWion iV VoXghW iV designated to the following U.S. agent* for service of process: Company Name: Music Tribe Commercial NV Inc. FCC Registration Number (FRN): 0033426594 Physical U.S. Company Address: 122 E. 42nd St.1, 8th Floor NY, NY 10168, United States Contact Person: Chase McKnight Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different from Applicant): Signed: Signed: Printed name: Kane Xin Printed name: Chase McKnight Title: Innovation Compliance Leader Title: President Company Name: Music Tribe Commercial MY Sdn. Bhd. Company Name: Music Tribe Commercial NV Inc. Date: 10/19/2023 Date: 10/19/2023

DATE : 10/19/2023 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address:Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Music Tribe Commercial MY Sdn. Bhd. Address: 1-17- 02, Suntech @ Penang Cybercity, LinTang Mayang Pasir 3, Bayan Baru, Pulau Pinang, Malaysia <Signature> Name：Kane Xin Title：Innovation Compliance Leader Applicant Company：Music Tribe Commercial MY Sdn. Bhd.

DATE : 10/19/2023 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: QWHSMARTMIC2 Product Name: Wireless Dual Lapel Microphone System with USB-C Receiver Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name：Kane Xin Title：Innovation Compliance Leader Company：Music Tribe Commercial MY Sdn. Bhd.

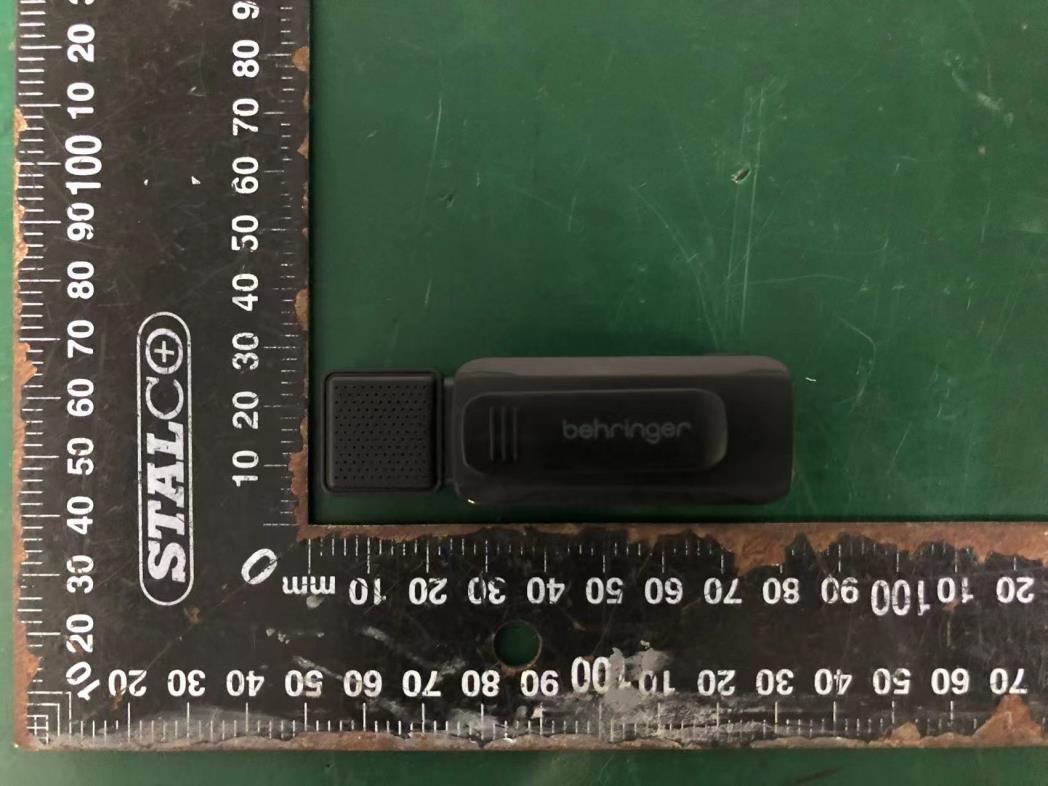

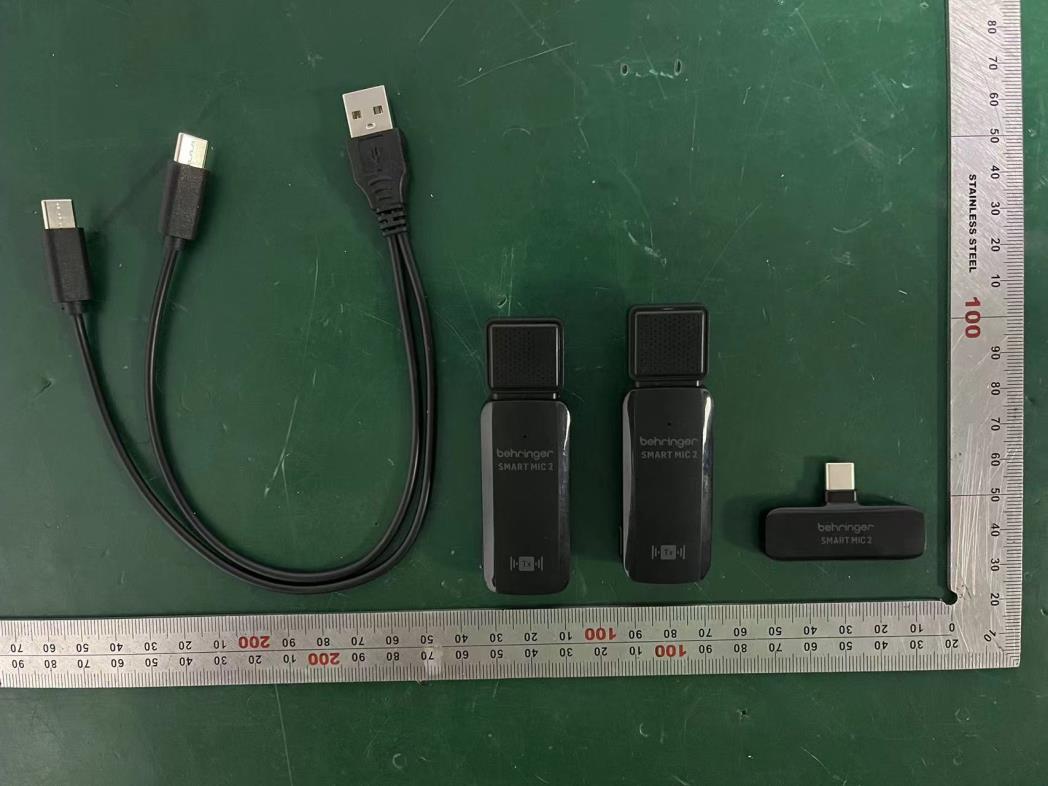

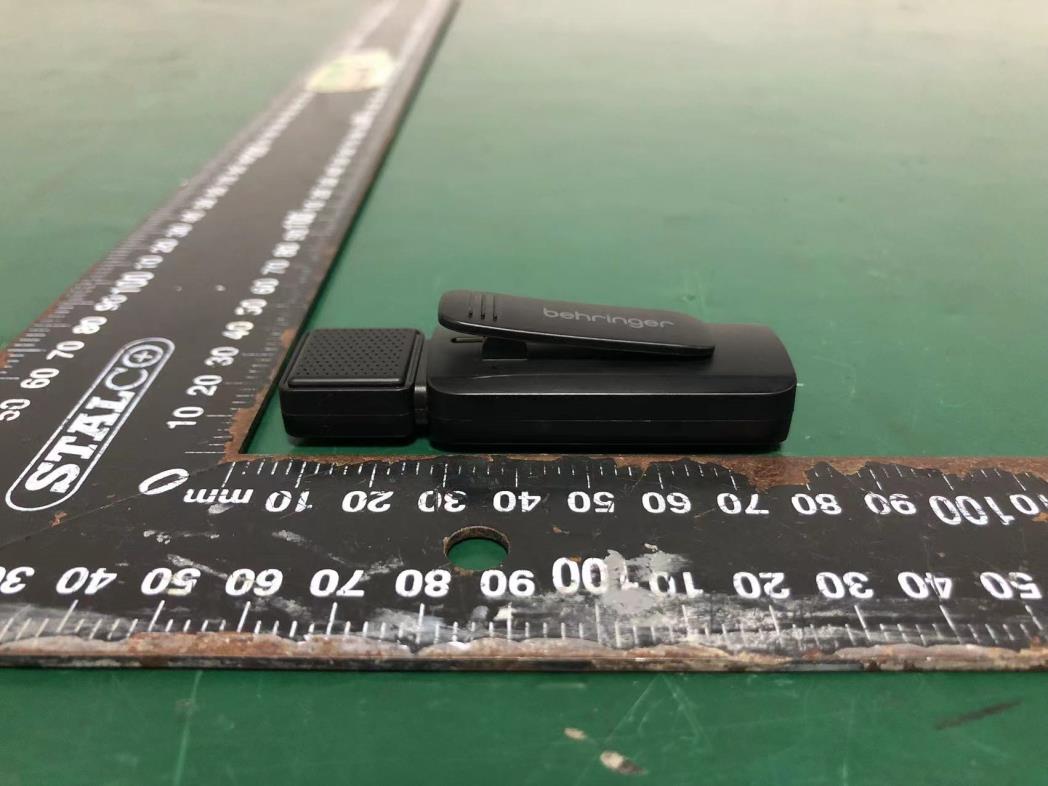

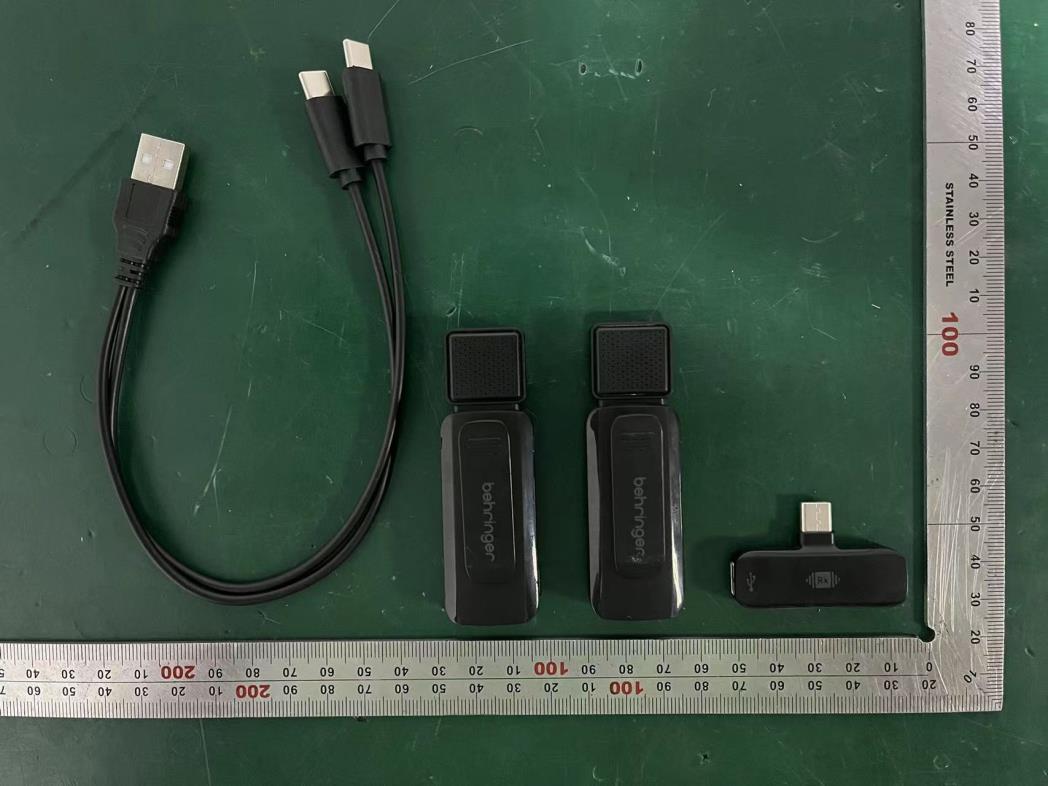

External Photos M/N: SMART MIC 2 External Photos M/N: SMART MIC 2 External Photos M/N: SMART MIC 2 External Photos M/N: SMART MIC 2

Internal Photos M/N: SMART MIC 2 Internal Photos M/N: SMART MIC 2 Antenna Internal Photos M/N: SMART MIC 2

FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310006 Page 1 of 3 FCC RF EXPOSURE REPORT Music Tribe Commercial MY Sdn. Bhd. Wireless Dual Lapel Microphone System with USB-C Receiver Model Number: SMART MIC 2 FCC ID: QWHSMARTMIC2 Applicant: Music Tribe Commercial MY Sdn. Bhd. Address: 1-17-02, Suntech @ Penang Cybercity, LinTang Mayang Pasir 3, Bayan Baru, Pulau Pinang, Malaysia Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2310006 Date of Test: Sep. 08-28, 2023 Date of Report: Oct. 08, 2023 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310006 Page 2 of 3 1. Applicable Standards FCC Part 2(Section 2.1093) FCC KDB 447498 D04 Interim General RF Exposure Guidance v01 2. Exposure Evaluation of Portable or Mobile Devices Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 300 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310006 Page 3 of 3 3. Evaluation Results Mode CH Peak output Power （dBm） Antenna Gain (dBi) effective radiated power （dBm） Target power (dBm) Max. Target power (mW) SAR Test Exemption Limit (mW) GFSK 2402 -11.33 2.58 -10.90 -10±1 0.126 2.72 2441 -12.35 2.58 -11.92 -11±1 0.100 2.72 2480 -13.00 2.58 -12.57 -12±1 0.079 2.72 π/4- DQPSK 2402 -11.17 2.58 -10.74 -10±1 0.126 2.72 2441 -12.33 2.58 -11.90 -11±1 0.100 2.72 2480 -12.81 2.58 -12.38 -12±1 0.079 2.72 Note: 1. Limited=3060*(0.5/20)^x, x=-log(60/(3060*√f)). 2. We choose f=2.48GHz (Highest frequency operate at bluetooth) to calculate MPE limit as higher frequency will have lower MPE limits. 3. SAR Test Exclusion Thresholds is 2.72mW for separation distance 5mm. Therefore, SAR test is not required. End of Test Report

FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 1 of 71 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Music Tribe Commercial MY Sdn. Bhd. Wireless Dual Lapel Microphone System with USB-C Receiver Model Number: SMART MIC 2 FCC ID: QWHSMARTMIC2 Applicant : Music Tribe Commercial MY Sdn. Bhd. Address: 1-17-02, Suntech @ Penang Cybercity, LinTang Mayang Pasir 3, Bayan Baru, Pulau Pinang, Malaysia Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2310005 Date of Test: Sep. 08-28, 2023 Date of Report: Oct. 08, 2023 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 2 of 71 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 1.3. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 13 3.1. Limit ............................................................................................................................................... 13 3.2. Test Setup ....................................................................................................................................... 13 3.3. Spectrum Analyzer Setting ............................................................................................................. 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ....................................................................................................................... 14 4.1. Limit ............................................................................................................................................... 14 4.2. Test Setup ....................................................................................................................................... 14 4.3. Spectrum Analyzer Setting ............................................................................................................. 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ...................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ............................................................................................................................................... 15 5.2. Test Setup ....................................................................................................................................... 15 5.3. Spectrum Analyzer Setting ............................................................................................................. 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ...................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 16 6.1. Limit ............................................................................................................................................... 16 6.2. Test Setup ..................…

Text truncated - open the document above for the full version.

FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 53 of 71 Appendix F: Reference level measurement Test Result Test Mode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2401.94 -12.91 2441 2440.90 -14.28 2480 2479.78 -15.30 2DH5 Ant1 2402 2401.90 -13.13 2441 2440.77 -14.37 2480 2479.75 -15.10 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 54 of 71 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 55 of 71 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 56 of 71 Appendix G: Band edge measurements Test Result Test Mode Antenna Ch Name Freq(MHz) Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -12.91 -51.04 ≤-32.91 PASS High 2480 -15.30 -50.39 ≤-35.30 PASS Low Hop_2402 -13.58 -50.41 ≤-33.58 PASS High Hop_2480 -15.03 -49.29 ≤-35.03 PASS 2DH5 Ant1 Low 2402 -13.13 -50.97 ≤-33.13 PASS High 2480 -15.10 -50.93 ≤-35.10 PASS Low Hop_2402 -16.27 -50.62 ≤-36.27 PASS High Hop_2480 -14.84 -50.45 ≤-34.84 PASS FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 57 of 71 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 58 of 71 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 59 of 71 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 60 of 71 Appendix H: Conducted Spurious Emission Test Result Test Mode Antenna Freq(MHz) Freq Range [MHz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 -12.91 -42.09 ≤-32.91 PASS 2441 30~26500 -14.28 -42.29 ≤-34.28 PASS 2480 30~26500 -15.30 -42.38 ≤-35.30 PASS 2DH5 Ant1 2402 30~26500 -13.13 -41.96 ≤-33.13 PASS 2441 30~26500 -14.37 -43.20 ≤-34.37 PASS 2480 30~26500 -15.10 -42.54 ≤-35.10 PASS FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 61 of 71 Test Graphs DH5_Ant1_2402_30~26500 DH5_Ant1_2441_30~26500 DH5_Ant1_2480_30~26500 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 62 of 71 2DH5_Ant1_2402_30~26500 2DH5_Ant1_2441_30~26500 2DH5_Ant1_2480_30~26500 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 63 of 71 14. TEST SETUP PHOTO Conducted Test FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 64 of 71 Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 65 of 71 15. EUT PHOTO External Photos M/N: SMART MIC 2 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 66 of 71 External Photos M/N: SMART MIC 2 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 67 of 71 External Photos M/N: SMART MIC 2 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 68 of 71 External Photos M/N: SMART MIC 2 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 69 of 71 Internal Photos M/N: SMART MIC 2 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 70 of 71 Internal Photos M/N: SMART MIC 2 FCC ID: QWHSMARTMIC2 EST Technology Co., Ltd Report No. ESTE-R2310005 Page 71 of 71 Internal Photos M/N: SMART MIC 2 End of Test Report

SMDCERAMICANTENNA DataSheet CS-2450-31-D For2400-2484MHz 3.2x1.6mm [EIA1206] TECHNOLOGY SMDCERAMICANTENNA DataSheet 特征Feature ■重量轻，结构紧凑 Lightweight,compact ■宽带，低成本 Widebandwidth,lowcost ■高增益内置天线 Built-inantennawithhighgain ■蓝牙技术Bluetooth ■WLAN2.4GHzIEEE802.11g/b ■Zigbeesystems ■其它etc... LWAH 3.10±0.101.55±0.100.40±0.200.55±0.10 TECHNOLOGY SMDCERAMICANTENNA DataSheet 参数Parameter 规格Specification 单位Units 频带FrequencyBand 2400~2483 MHz 极化Polarization 线极化 *最大增益PeakGain 2.58 dBi *效率Efficiency 72.30 % 阻抗Impendance 50  编码PartNumberingSystem CS Material - 2450 Frequency - 31 Size -D Type 丝印Marking SMDCERAMICANTENNA DataSheet TECHNOLOGY 评价板EvaluationBoard(3CM*6CM) TECHNOLOGY SMDCERAMICANTENNA DataSheet 增益&效率GainPattern&Efficiency Clearance5mm*5mm Clearance5mm*3mm TECHNOLOGY SMDCERAMICANTENNA DataSheet 频率特性FREQUENCYCHARACTERISTICS TECHNOLOGY SMDCERAMICANTENNA DataSheet 推荐回流剖面 RECOMMENDEDREFLOWPROFILE °C °C °C TECHNOLOGY SMDCERAMICANTENNA DataSheet 包装形式PackagingStyle REELDIMENSIONS 胶带尺寸TAPEDIMENSIONS FeatureSpecicationsTolerances W8.00±0.30 P4.00±0.10 E1.75±0.10 F3.50±0.10 P22.00±0.10 D1.50 +0.10 -0.00 Po4.00±0.10 10Po40.00±0.20 数量Quantity:5000piecesper7reel TECHNOLOGY 订货信息Order Information 设备 Device Package 净重 Net Weight 运送式 Carrier 量 Quantity 认证 HSF Status CS-2450 -31-D 3216 Tape & Reel 5000pcs RoHS compliant 版本信息 Revision history 日期/Date 本/Revision 2023-03-09 V1.0 本描述/Description of changes First Version 0.0089g The contents of this data sheet are subject to change without notice. Please confirm the specifications and delivery conditions when placing your order. © Copyright 2015, Keweixin Electronics All rights reserved Chip Antenna

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz)
