QWHULM200M01Wireless Microphone

ULM200USB/ULM202USB Controls ULM200USB/ULM202USB Controls 1. POWER/STATUS LED 2. W VOLUME Button (Mute/volume down) 3. V VOLUME Button (Power on/unmute/volume up) 4. USB connector 5. Wireless Link Status LED ULM200USB/ULM202USB Getting Started 1. Connect the ULM200D wireless receiver to the “WIRELESS ONLY!” USB connector on wireless-enabled BEHRIINGER mixers, powered speakers or other compatible products, or to a USB port on a computer. 2. Press and hold the V button on the ULM200M wireless microphone to connect wirelessly to the ULM200D receiver. The LED on the microphone will fl ash slowly during the connecting sequence and will light solid once connected. If the ULM200M wireless microphone cannot connect to a receiver, the microphone will automatically power down after 10 seconds. 3. Once connected, the ULM200M microphone will be set at a medium volume. Use the V and W buttons to adjust the volume 4. A long press of the W button will put the ULM200M microphone into mute. The mute condition is indicated by rapid fl ashing of the LED. If the user does not unmute within 60 seconds, the ULM200M microphone will power down to save battery life. 5. A short press of the V button will unmute the ULM200M microphone. If the ULM200M microphone is unmuted more than 10 seconds after muting, it will return to the previous volume level, if unmuted after less than 10 seconds it will be set to the minimum volume level. 6. Unplug the ULM200D wireless receiver to power down. The ULM200M wireless microphone will power down 10 seconds after the ULM200D wireless receiver is unplugged. 7. The LED in the ULM200M wireless microphone will indicate when the battery is low by regular brief fl ashes. 8. Should the ULM200M wireless microphone become unpaired with the ULM200D wireless receiver, the microphone can be re-paired from the powered down state by simultaneously pressing the V and W buttons and moving the microphone to within 10 cm (4 inches) of the ULM200D wireless receiver. The LED on the microphone will fl ash slowly during the pairing sequence and will light solid once connected. If the ULM200M wireless microphone cannot pair to the receiver it will automatically power down after 10 seconds. (1) (2)(3) (5)(4) Model: ULM200D Type of product: Wireless Microphone Model: ULM200M Specifi cation RF output <100 mW / +20 dBm Operating range 120 m (Line of Sight)* Dynamic range 92 dB, A-weighted** Equivalent input noise -112 dBu Frequency Response 20 Hz - 20 kHz, ±1 dB (Wireless Link) Sampling rate 48 kHz Resolution 24-bit Encoding 232 kbps SLAC (Slightly Lossy Audio Codec) Latency 14.5 ms RF frequency 2.4 GHz ISM band (2406 MHz - 2474 MHz), 18 channels Power Supply current 70 mA @ +5 VDC Battery type 2 x AA (LR6) Alkaline cells Battery life >30 hours Dimensions (W x D x H) 45.7 x 45.7 x 243.8 mm (1.8 x 1.8 x 9.6") Weight 0.4 kg (0.9 lbs) *Achievable range will be dependent on nearby sources of RF inter ference and/ or line of sight obstacles. **Measured from analog input to analog output, unity gain operation without wireless compression. ULM200USB/ULM202USB Controles ULM200USB/ULM202USB Controles 1. Piloto de encendido/estado POWER/STATUS 2. Botón W VOLUME (anulación/reducción de volumen) 3. Botón V VOLUME (Encendido/aumento de volumen) 4. Conector USB 5. Piloto de estado de enlace inalámbrico ULM200USB/ULM202USB Puesta en marcha 1. Connect the ULM200D wireless receiver to the “WIRELESS ONLY!” USB connector on wireless-enabled BEHRIINGER mixers, powered speakers or other compatible products, or to a USB port on a computer. 2. Press and hold the V button on the ULM200M wireless microphone to connect wirelessly to the ULM200D receiver. The LED on the microphone will fl ash slowly during the connecting sequence and will light solid once connected. If the ULM200M wireless microphone cannot connect to a receiver, the microphone will automatically power down after 10 seconds. 3. Once connected, the ULM200M microphone will be set at a medium volume. Use the V and W buttons to adjust the volume 4. A long press of the W button will put the ULM200M microphone into mute. The mute condition is indicated by rapid fl ashing of the LED. If the user does not unmute within 60 seconds, the ULM200M microphone will power down to save battery life. 5. A short press of the V button will unmute the ULM200M microphone. If the ULM200M microphone is unmuted more than 10 seconds after muting, it will return to the previous volume level, if unmuted after less than 10 seconds it will be set to the minimum volume level. 6. Unplug the ULM200D wireless receiver to power down. The ULM200M wireless microphone will power down 10 seconds after the ULM200D wireless receiver is unplugged. 7. The LED in the ULM200M wireless microphone will indicate when the battery is low by regular brief fl ashes. 8. Should the ULM200M wireless microphone become unpaired with the ULM200D wireless receiver, the microphone can be re-paired from the powered down state by simultaneously pressing the V and W buttons and moving the microphone to within 10 cm (4 inches) of the ULM200D wireless receiver. The LED on the microphone will fl ash slowly during the pairing sequence and will light solid once connected. If the ULM200M wireless microphone cannot pair to the receiver it will automatically power down after 10 seconds. Tipo de producto: Micrófono inalámbrico (1) (2)(3) (5)(4) Model: ULM200D Model: ULM200M ULM200USB/ULM202USB Réglages ULM200USB/ULM202USB Réglages 1. Témoin Led d ’ÉTAT/ALIMENTATION 2. Bouton W VOLUME (couper/diminuer le volume) 3. Bouton V VOLUME (mise sous tension/augmenter le volume) 4. Connecteur USB 5. Témoin Led d’état de la liaison sans fi l ULM200USB/ULM202USB Mise en œuvre 1. Connect the ULM200D wireless receiver to the “WIRELESS ONLY!” USB connector on wireless-enabled BEHRIINGER mixers, powered speakers or other compatible products, or to a USB port on a computer. 2. Press and hold the V button on the ULM200M wireless microphone to connect w…

Text truncated - open the document above for the full version.

FCC INFORMATION (additional) RF EXPOSURE: The highest measured SAR value (1g) is: 0.774 W/kg

MUSIC Croup Macao Commercial Offshore Limited Rua Du Pequim, No 202-A Macau Finance Centre 9/J, Macau FCC Authorization Letter Number:CF304 Version:V01 Date: 01-02-2010 We, (the approval holder) Company name MUSIC Group Macao Commercial Offshore Limited Address Rua Du Pequim, No 202-A Macau Finance Centre 9/J, Macau City Countr y declare that the following representative (agent): Name (person) Ruby zhang Function Supervisor Company name Compliance Certification Services (Shenzhen) Inc. Addresss No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Wireless Microphones Type or Model(s) ULM200M Tradename or Brand(s) Behringer We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date:Name: (this must be a person) Function:Signature: (or official company stamp) Macau 2015-01-05 Mr Eric ZhangCompliance Manager

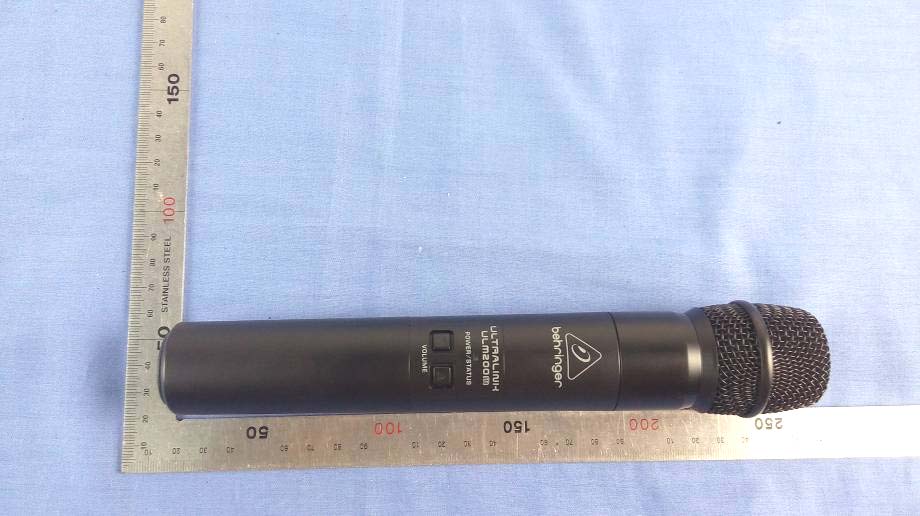

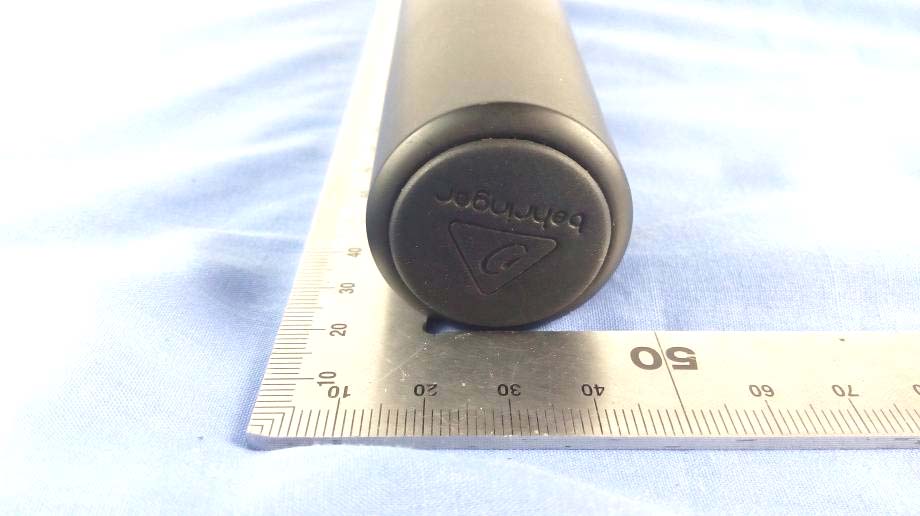

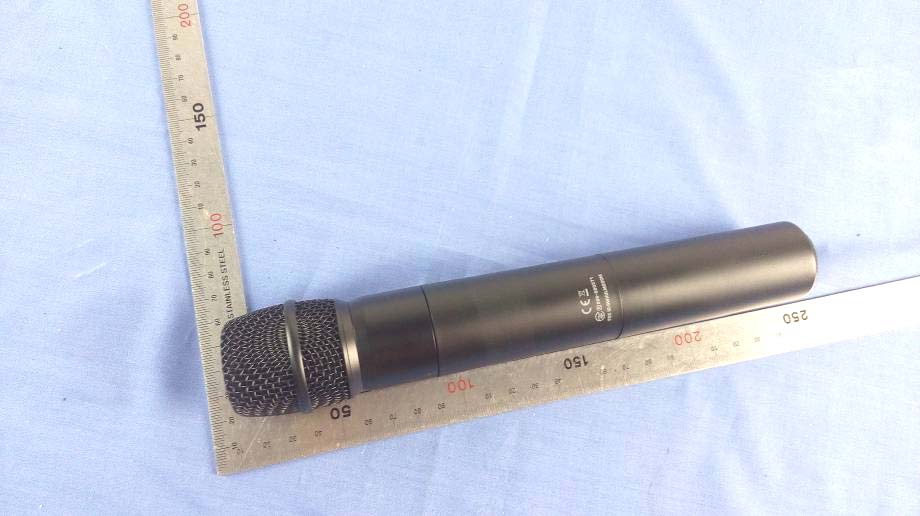

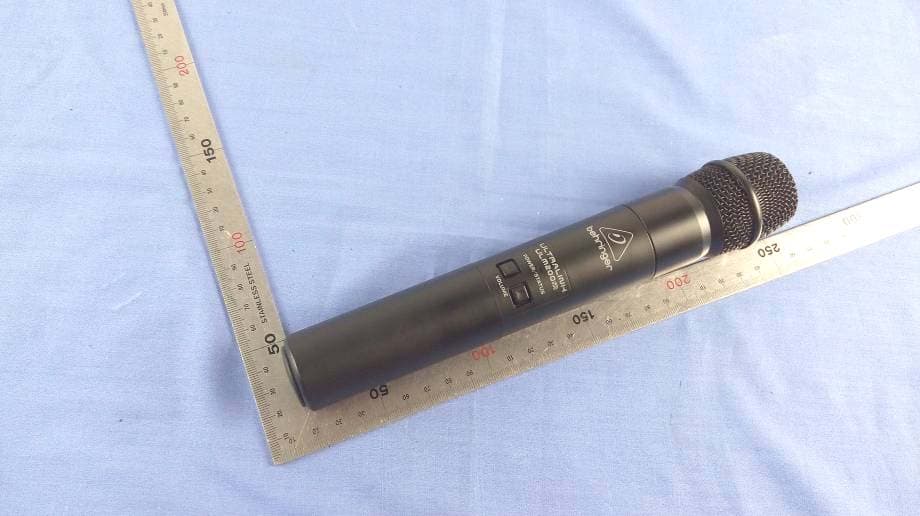

Report No: C140923Z01-RP1-1 Page 1 / 4 External Photos of EUT Report No: C140923Z01-RP1-1 Page 2 / 4 Report No: C140923Z01-RP1-1 Page 3 / 4 Report No: C140923Z01-RP1-1 Page 4 / 4

Report No.: C140923Z01 Page 1/5 Internal Photos of EUT Report No.: C140923Z01 Page 2/5 Report No.: C140923Z01 Page 3/5 Report No.: C140923Z01 Page 4/5 Report No.: C140923Z01-RP1-1 Page 5/5 RF Module Antenna

Compliance Certification Services Inc. Report No: C141124S03-SF FCC ID: QWHULM200D01 Date of Issue :January 29, 2015 Page 1 of 67 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62；FCC 47 CFR Part 2 ( 2.1093) FCC SAR TEST REPORT For Product Name : Wireless Microphone Brand Name : Model No. : ULM200M Series Model : N/A Test Report Number : C141124S03-SF Issued for MUSIC Group Macao Commercial Offshore Limited Rua Du Pequim, No 202-A Macau Finance Centre 9/J, Macau Issued by Compliance Certification Services Inc. Kun shan Laboratory No.10 Weiye Rd., Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China TEL: 86-512-57355888 FAX: 86-512-57370818 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by A2LA or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No: C141124S03-SF FCC ID: QWHULM200D01 Date of Issue :January 29, 2015 Page 2 of 67 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Revision REPORT NO. Date Page Revised Contents Original C141124S03-SF January 7, 2015 N/A N/A 01 C141124S03-SF January 29, 2015 All reportAdd Z-axis plot Compliance Certification Services Inc. Report No: C141124S03-SF FCC ID: QWHULM200D01 Date of Issue :January 29, 2015 Page 3 of 67 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ........................................................... 4 2. EUT DESCRIPTION....................................................................................................................5 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC................................ 6 4. TEST METHODOLOGY.............................................................................................................. 6 5. TEST CONFIGURATION ............................................................................................................ 6 6. DOSIMETRIC ASSESSMENT SETUP........................................................................................ 7 6.1 MEASUREMENT SYSTEM DIAGRAM ...........................................................................................................8 6.2 SYSTEM COMPONENTS...............................................................................................................................9 7. EVALUATION PROCEDURES ................................................................................................. 12 8. MEASUREMENT UNCERTAINTY............................................................................................ 16 9. EXPOSURE LIMIT .................................................................................................................... 17 10. EUT ARRANGEMENT .............................................................................................................. 18 10.1 ANTHROPOMORPHIC HEAD PHANTOM .................................................................................................18 10.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION...................................................................................19 10.3 DEFINITION OF THE “TILTED” POSITION ................................................................................................20 10.4 BODY TEST ................................................................................................................................................21 11. MEASUREMENT RESULTS..................................................................................................... 22 11.1 TEST LIQUIDS CONFIRMATION ...............................................................................................................22 11.2 LIQUID MEASUREMENT RESULTS ..........................................................................................................23 11.3 SYSTEM PERFORMANCE CHECK...........................................................................................................24 11.4 EUT TUNE-UP PROCEDURES AND TEST MODE....................................................................................26 11.5 SAR TEST CONFIGURATIONS..................................................................................................................27 11.6 EUT SETUP PHOTOS ................................................................................................................................28 11.7 SAR MEASUREMENT RESULTS...............................................................................................................29 11.8 REPEATED SAR MEASUREMENT ............................................................................................................30 12. EUT PHOTO ............................................................................................................................. 31 13. EQUIPMENT LIST & CALIBRATION STATUS........................................................................ 33 14. FACILITIES............................................................................................................................... 34 15. REFERENCES.......................................................................................................................... 34 16. ATTACHMENTS ............................................................................................................…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: C141124S03-SF FCC ID: QWHULM200D01 Date of Issue :January 29, 2015 Page 1 of 2 Test Laboratory: Compliance Certification Services Inc. Date: 12/21/2014 2.4G FSK-Body Low CH1 DUT: Wireless Microphone; Type: ULM200M; Communication System: UID 0, GFSK (0); Communication System Band: ISM 2.4Ghz Band; Frequency: 2406 MHz;Duty Cycle: 1:1 Medium parameters used (extrapolated): f = 2406 MHz; σ = 1.948 S/m; ε r = 52.177; ρ = 1000 kg/m 3 Room Ambient Temperature: 22°C; Liquid Temperature: 21.5°C Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY Configuration: • Probe: EX3DV4 - SN3798; ConvF(6.82, 6.82, 6.82); Calibrated: 7/28/2014; • Sensor-Surface: 2mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 7/22/2014 • Phantom: ELI v4.0; Type: QDOVA001BB; Serial: TP:1102 • DASY52 52.8.8(1222); • SEMCAD X Version 14.6.10 (7331) FSK 2.4G/Body Low CH1/Area Scan (11x17x1): Measurement grid: dx=12mm, dy=12mm Info: Extrapolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.01 W/kg FSK 2.4G/Body Low CH1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.89 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 1.63 W/kg SAR(1 g) = 0.746 W/kg; SAR(10 g) = 0.334 W/kg Info: Extrapolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.01 W/kg 0 dB = 1.01 W/kg = 0.04 dBW/kg Compliance Certification Services Inc. Report No: C141124S03-SF FCC ID: QWHULM200D01 Date of Issue :January 29, 2015 Page 2 of 2

Report No.: C140923Z01-RP1-1 FCC ID: QWHULM200M01 Page 1 / 41 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Microphones Model: ULM200M Brand: Behringer Test Report Number: C140923Z01-RP1-1 Prepared for MUSIC Group Macao Commercial Offshore Limited Rua Du Pequim, No 202-A Macau Finance Centre 9/J, Macau Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: November 25, 2014 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. 检 测 CNAS L4818 Report No.: C140923Z01-RP1-1 FCC ID: QWHULM200M01 Page 2 of 41 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 25, 2014 Initial Issue ALL Sabrina Wang Report No.: C140923Z01-RP1-1 FCC ID: QWHULM200M01 Page 3 of 41 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .....................................................................................4 2. EUT DESCRIPTION..........................................................................................................5 3. TEST METHODOLOGY....................................................................................................5 3.1 DESCRIPTION OF TEST MODES ................................................................................6 4. FACILITIES AND ACCREDITATIONS .............................................................................7 4.1 FACILITIES....................................................................................................................7 4.2 ACCREDITATIONS .......................................................................................................7 4.3 MEASUREMENT UNCERTAINTY ................................................................................7 5. SETUP OF EQUIPMENT UNDER TEST ..........................................................................8 5.1 SETUP CONFIGURATION OF EUT .............................................................................8 5.2 SUPPORT EQUIPMENT .............................................................................................8 6. FCC PART 15.247 REQUIREMENTS ..............................................................................9 6.1 20dB BANDWIDTH........................................................................................................9 6.2 PEAK POWER.............................................................................................................12 6.3 PEAK POWER SPECTRAL DENSITY ........................................................................13 6.4 BAND EDGES MEASUREMENT ................................................................................15 6.5 FREQUENCY SEPARATION ......................................................................................21 6.6 NUMBER OF HOPPING FREQUENCY ......................................................................22 6.7 TIME OF OCCUPANCY (DWELL TIME) .....................................................................24 6.8 SPURIOUS EMISSIONS .............................................................................................28 6.9 POWERLINE CONDUCTED EMISSIONS ..................................................................36 Report No.: C140923Z01-RP1-1 FCC ID: QWHULM200M01 Page 4 of 41 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: Wireless Microphones Model: ULM200M Brand: Behringer Tested: September 23~November 25, 2014 Applicant: MUSIC Group Macao Commercial Offshore Limited Rua Du Pequim, No 202-A Macau Finance Centre 9/J, Macau Manufacturer: Zhongshan Eurotec Electronics Ltd. Eurotec Industrial Park #1 Junjing Rd., Min Zhong Town, Zhongshan, Guangdong 528441 China. APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: C140923Z01-RP1-1 FCC ID: QWHULM200M01 Page 5 of 41 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product Wireless Microphones Model Number ULM200M Brand Behringer Model Discrepancy N/A Identify Number C140923Z01-RP1-1 Power Supply DC3V power supplied by the battery Received Date September 23, 2014 Frequency Range 2406 ~ 2474 MHz Transmit Power 15.97dBm Modulation Technique FSK Number of Channels 18 Channels Antenna Specification Printed antenna with -2.0dBi gain (Max) Temperature Range -10°C ~ +70°C Hardware Version PCB430101REVG_02 Softw…

Text truncated - open the document above for the full version.

Report No.: C140923Z01-RP1-1 FCC ID : QWHULM200M01 Page 1 / 1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
