QWL-M-106XCREDIT CARD TRANSACTION TERMINAL W/ DUAL-BAND CDMA

Commerciant L.P.

Click to zoom

Application Details

Equipment Class: PCT - PCS Licensed Transmitter worn on body
Date of Grant: Mar 08, 2006
Application Purpose: Original Equipment
Date of Application: Mar 08, 2006
Equipment Note: CREDIT CARD TRANSACTION TERMINAL W/ DUAL-BAND CDMA
Frequency Range: 824.70000000 - 848.31000000
Company: Commerciant L.P.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

M M P P o o w w e e r r i i n n g g W W i i r r e e l l e e s s s s C C o o m m m m e e r r c c e e U U s s e e r r G G u u i i d d e e TM TM MobileScape TM User Guide Commerciant | M Powering Wireless Commerce Revision 2.5 2 Welcome page.... Welcome – you’ve made the right choice! The MobileScape TM System was designed to be user friendly and efficient while giving you the power to do mobile credit card processing anytime anywhere. We know you are eager to start using your MobileScape TM terminal right away and this guide is designed to help you do just that. To start using your MobileScape TM terminal immediately, see the sections marked “Getting to know your new MobileScape TM terminal” and “Basic functions”. These two sections were designed to be a quick start guide to using your MobileScape TM terminal. For a more in-depth guide to using your MobileScape TM terminal see the section labeled “Advanced functions”. This section was designed to go into detail about using all of the functions of your new MobileScape TM terminal. The remaining parts of the guide will give you information about caring for your new MobileScape TM terminal, accessories and more. You may contact customer service for assistance at 1 (866) 414-5600. MobileScape TM User Guide Commerciant | M Powering Wireless Commerce Revision 2.5 3 Table of contents... Welcome Letter 2 Getting To Know Your New MobileScape TM Terminal 5 Display Indicators 7 What’s in the box 8 Menus explained - navigation Basic Functions 9 Turning Your MobileScape TM Terminal On And Off 9 Using The Stylus 9 Charging The Battery 9 Capturing An Electronic Signature 9 Printer Door Operation 10 Paper Loading 10 FCC Statement 11 Swiped Credit Card Transaction 12 Advanced Functions 13 Swiped Credit Card Transaction 13 Manual Entry Credit Card Transaction 14 Void Transaction 15 Credit Return 16 Pre-Authorization 17 Force 18 Caring For Your MobileScape TM Terminal 19 General Considerations 19 Battery Considerations 19 MobileScape TM User Guide Commerciant | M Powering Wireless Commerce Revision 2.5 4 Performance and safety 20 Signal Strength 20 Understanding Sleep Mode 20 Following Safety Guidelines 20 Troubleshooting 21 My Terminal Keeps Turning Off 21 My Screen Is Frozen Or Not Responding 21 My Screen Is Blank 22 My Screen Is Not Responding Properly To Touch 22 My Signature Is Not Working 22 My Wireless Signal Is Weak Or Not Working 23 My Printer Is Not Working Properly 23 My Magnetic Stripe Reader Is Not Working 23 Important Numbers 24 Commerciant Customer Service 24 American Express 24 Discover 24 Diner’s Club 24 JCB International 24 Menu Explanation And Navigation Chart 25 Accessories 28 Hardware Specifications 29 Index 30 MobileScape TM User Guide Commerciant | M Powering Wireless Commerce Revision 2.5 5 G G e e t t t t i i n n g g t t o o k k n n o o w w y y o o u u r r n n e e w w M M o o b b i i l l e e S S c c a a p p e e T T M M t t e e r r m m i i n n a a l l ... ... 1. 2. 3. 6. 4. 12. 11. 8. 9. 5. 10. “Top View” “Bottom/Back View” “Side View 2” “Side View 1” 7. MobileScape TM User Guide Commerciant | M Powering Wireless Commerce Revision 2.5 6 1. Printer Compartment: Compartment for your thermal paper roll for printing receipts. See Page 10 for proper paper installation. 2. Magnetic Card Reader Slot: Slot for swiping credit cards. Swipe credit card through this slot with the magnetic strip down and toward the printer compartment. 3. LCD Touch Screen: Display and touch screen for menu navigation and writing signature. Note: Only use the stylus when navigating or writing on the touch screen. 4. Power Light: Lights up green when unit is powered on. 5. Power Button: Depress to turn your MobileScape TM terminal on. 6. Signal Light: When blinking, this light indicates that the MobileScapeTM terminal is attempting to make a connection to the cellular network. 7. External Antenna Connection: Not used. 8. Docking Connector: Debug port for connecting to a PC during factory testing. 9. Reset Button: The reset button performs a hard reset to the MobileScape TM terminals in case of system lockup. Depress this button with the tip of the stylus, and then press the power button to restart the terminal. 10. Stylus: Serves as pointing and writing device for navigating through menus and writing signatures. To use the stylus, slide it out of its storage slot and hold it as you would a pencil. The stylus is specialized plastic and should be the only device used on the touch screen. 11. Audio Connector: For Future Use. 12. Car and Wall Charger Connector: Connector to plug your supplied car or wall charger in for recharging the battery. MobileScape TM User Guide Commerciant | M Powering Wireless Commerce Revision 2.5 7 D D i i s s p p l l a a y y i i n n d d i i c c a a t t o o r r s s ... ... D D i i f f f f e e r r e e n n t t i i n n d d i i c c a a t t o o r r s s a a r r e e d d i i s s p p l l a a y y e e d d a a t t t t h h e e b b o o t t t t o o m m o o f f t t h h e e L L C C D D s s c c r r e e e e n n . . R R e e f f e e r r t t o o t t h h e e f f o o l l l l o o w w i i n n g g c c h h a a r r t t f f o o r r a a d d e e s s c c r r i i p p t t i i o o n n o o f f e e a a c c h h i i n n d d i i c c a a t t o o r r . . I I n n d d i i c c a a t t e e s s w w h h e e n n y y o o u u h h a a v v e e e e x x t t e e r r n n a a l l p p o o w w e e r r p p l l u u g g g g e e d d i i n n t t o o y y o o u u r r t t e e r r m m i i n n a a l l . . I I n n d d i i c c a a t t e e s s y y o o u u r r b b a a t t t t e e r r y y v v o o l l t t a a g g e e . . S S y y m m b b o o l l c c h h a a n n g g e e s s a a s s b b a a t t t t e e r r y y l l i i f f e e g g o o e e s s u u p p o o r r d d o o w w n n . . M M e e a a s s u u r r e e s s y y o o u u r r c c u u r r r r e e n n t t s s i i g g n n a a l l s s t t r r e e n n g g t t h h . . T T h h e e m m o o r r e e b b a a r r s s d d i i s s p p l l a a y y e e d d m m e e a a n n s s b b e e t t t…

Text truncated - open the document above for the full version.

Cover Letter(s)

Celltech Labs Inc. 1955 Moss Court, Kelowna, B.C. Canada V1Y 9L3 Tel. 250-448-7047 • Fax. 250-448-7046 • e-mail: [email protected] www.celltechlabs.com March 03, 2006 Timco Engineering, Inc. Telecommunication Certification Body 849 NW State Road 45 Newberry, FL 32669 SUBJECT: COMMERCIANT, L.P. FCC ID: QWL-M-106X Part 24(E) - Certification On behalf of Commerciant L.P. is an application for FCC Part 24(E) Certification of Model: M-106X Wireless Credit Card Transaction Terminal with internal Dual-Band CDMA-2000 Modem (Model: Q2438F manufactured by Wavecom Inc.), utilizing an internal antenna. Model: M-106X Device Classification: PCS Licensed Transmitter (PCB) Device Description: Wireless Portable Credit Card Transaction Terminal Internal Transmitter(s): Wavecom Q2243F Dual-Band PCS/Cellular CDMA-2000 Modem RF Exposure Category: General Population / Uncontrolled Exposure Transmit Frequency Range(s): 1851.25 - 1908.75 MHz (PCS CDMA) 824.70 - 848.31 MHz (Cellular CDMA) Max. RF Conducted Power Measured: 24.38 dBm (0.274 Watts) PCS CDMA 25.00 dBm (0.316 Watts) Cellular CDMA Max. ERP/EIRP Level(s) Measured: 0.157 Watts (21.96 dBm) EIRP - PCS CDMA 0.172 Watts (22.36 dBm) ERP - Cellular CDMA Max. SAR Level(s) Measured: Body: 0.485 W/kg - 1g average (PCS CDMA) Body: 0.697 W/kg - 1g average (Cellular CDMA) Antenna Type(s) Tested: Internal Body-worn Accessory Tested: Nylon Holster (no metallic components) Power Source(s) Tested: AC Power Adapter, Lithium-ion Battery Submitted within this application is the TCB Form 731, applicant’s confidentiality request, applicant’s attestation letter, FCC Parts 24(E) and 22(H) EMC measurement report data and test setup photographs, SAR RF exposure measurement report data and test setup photographs, FCC ID label and location, internal and external device photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list (confidential), tune-up procedure (confidential), and the user manual. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes General Manager Celltech Labs Inc. cc: Commerciant, L.P.

External Photos

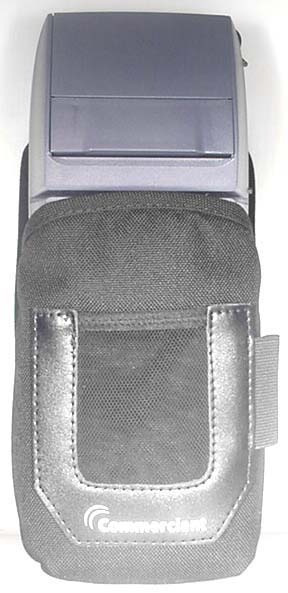

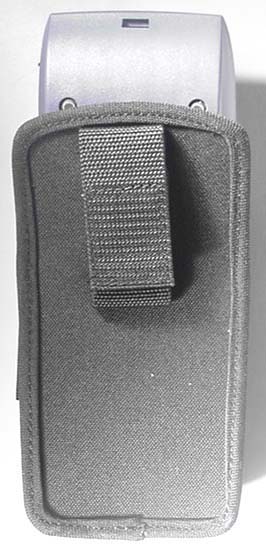

© 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 Front Side of DUT Back Side of DUT EXTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 Left Side of DUT Right Side of DUT Top end of DUT Bottom end of DUT EXTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 Nylon Holster Accessory (P/N: AC0002002) EXTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 Front of Nylon Holster with DUT Back of Nylon Holster with DUT EXTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 Left Side of DUT in Nylon Holster Right Side of DUT in Nylon Holster Top end of DUT with Holster Bottom end of DUT with Holster EXTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 EXTERNAL DUT PHOTOGRAPHS

ID Label/Location Info

© 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 LABELING REQUIREMENTS PER §2.925 The label(s) shall be permanently affixed at a conspicuous location on the device. FCC ID LABEL & LOCATION

Internal Photos

© 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 INTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 INTERNAL DUT PHOTOGRAPHS DUT Battery © 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 3.7V Lithium Ion Battery Pack (P/N: UBBP01) INTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 INTERNAL DUT PHOTOGRAPHS Wavecom Q2438F Dual-Band CDMA Modem Wavecom Q2438F Dual-Band CDMA PCMCIA Modem © 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 INTERNAL DUT PHOTOGRAPHS Wavecom Q2438F Dual-Band CDMA Modem © 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 INTERNAL DUT PHOTOGRAPHS © 2006 Celltech Labs Inc. Commerciant L.P. FCC ID: QWL-M-106X (Model: M-106X) Wireless Credit Card Transaction Terminal with Dual-Band CDMA Celltech Project No.: 716 DUT Back Cover INTERNAL DUT PHOTOGRAPHS Internal Antenna

RF Exposure Info

Applicant: Commerciant, L.P. Model: M-106XFCC ID: QWL-M-106X DUT Type: Portable Credit Card Transaction Terminal with internal Dual-Band CDMA-2000 Modem 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 1 of 37 Test Report Serial No.: 013006QWL-T716-S24C Report Issue No.: S716C-030106-R0 Dates of Evaluation: February 02-03, 2006 Report Issue Date: March 01, 2006 Type of Evaluation: RF Exposure SARFCC 47 CFR §2.1093 IC RSS-102 Issue 2 Test Report Prepared By: Cheri Frangiadakis Test Report Writer Celltech Labs Inc. Test Report Approved By: Jonathan Hughes General Manager Celltech Labs Inc. RF EXPOSURE EVALUATION SPECIFIC ABSORPTION RATE SAR TEST REPORT FOR COMMERCIANT, L.P. PORTABLE CREDIT CARD TRANSACTION TERMINAL WITH DUAL-BAND CELLULAR/PCS CDMA-2000 MODEM MODEL: M-106X FCC ID: QWL-M-106X Test Report Serial Number 013006QWL-T716-S24C Test Report Issue No. S716C-030106-R0 Test Lab Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Applicant: Commerciant, L.P. Model: M-106XFCC ID: QWL-M-106X DUT Type: Portable Credit Card Transaction Terminal with internal Dual-Band CDMA-2000 Modem 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 2 of 37 Test Report Serial No.: 013006QWL-T716-S24C Report Issue No.: S716C-030106-R0 Dates of Evaluation: February 02-03, 2006 Report Issue Date: March 01, 2006 Type of Evaluation: RF Exposure SARFCC 47 CFR §2.1093 IC RSS-102 Issue 2 Celltech Labs Inc. declares under its sole responsibility that this wireless device was compliant with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and Industry Canada RSS-102 Issue 2 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information COMMERCIANT, L.P. 2901 Wilcrest, Suite 250 Houston, Texas 77042 United States FCC IDENTIFIER: QWL-M-106X Model(s): M-106X SAR Test Requirement(s): FCC 47 CFR §2.1093; Health Canada Safety Code 6 SAR Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) Industry Canada RSS-102 Issue 2 FCC Device Classification: PCS Licensed Transmitter (PCB) IC Device Classification: 2 GHz Personal Communication Services (RSS-133 Issue 3) 800 MHz Cellular Telephones Employing New Technologies (RSS-132 Issue 2) Device Description: Portable Wireless Credit Card Transaction Terminal Internal Transmitter: Dual-Band PCS/Cellular CDMA-2000 Modem Transmit Frequency Range(s): 1851.25 - 1908.75 MHz (PCS Band) 824.70 - 848.31 MHz (Cellular Band) Max. RF Output Power Tested: 24.33 dBm (0.271 Watts) Conducted (PCS CDMA) 24.98 dBm (0.315 Watts) Conducted (Cellular CDMA) Power Source(s) Tested: Lithium Ion 3.7 V, 1800 mAh (P/N: UBBP01) Antenna Type(s) Tested: Internal Configuration(s) Tested: Back of DUT - with Body-worn accessory Back of DUT - Touch position (without Body-worn accessory) Body-Worn Accessories: Nylon Holster with Belt-Strap (P/N: AC0002002) Max. SAR Level(s) Evaluated: Body: 0.485 W/kg (1g average) - PCS Band Body: 0.697 W/kg (1g average) - Cellular Band Tested By: Sean Johnston Compliance Technologist Celltech Labs Inc. Reviewed By: Spencer Watson Senior Compliance Technologist Celltech Labs Inc. Applicant: Commerciant, L.P. Model: M-106XFCC ID: QWL-M-106X DUT Type: Portable Credit Card Transaction Terminal with internal Dual-Band CDMA-2000 Modem 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 3 of 37 Test Report Serial No.: 013006QWL-T716-S24C Report Issue No.: S716C-030106-R0 Dates of Evaluation: February 02-03, 2006 Report Issue Date: March 01, 2006 Type of Evaluation: RF Exposure SARFCC 47 CFR §2.1093 IC RSS-102 Issue 2 TABLE OF CONTENTS 1.0 INTRODUCTION____________________________________________________________________4 2.0 DESCRIPTION of DEVICE UNDER TEST (DUT) __________________________________________4 3.0 SAR MEASUREMENT SYSTEM _______________________________________________________5 4.0 MEASUREMENT SUMMARY __________________________________________________________6 MEASUREMENT SUMMARY (Cont.) _______________________________________________________7 5.0 DETAILS OF SAR EVALUATION ______________________________________________________8 6.0 EVALUATION PROCEDURES _________________________________________________________8 7.0 SYSTEM PERFORMANCE CHECK _____________________________________________________9 8.0 SIMULATED EQUIVALENT TISSUES __________________________________________________10 9.0 SAR SAFETY LIMITS _______________________________________________________________10 10.0 ROBOT SYSTEM SPECIFICATIONS__________________________________________________11 11.0 PROBE SPECIFICATION (ET3DV6) __________________________________________________12 12.0 PLAN…

Text truncated - open the document above for the full version.

Test Report

Test Report Serial No.: 013006QWL-T716-E24C Report Issue No.: E716C-030206-R0 Test Date(s): 02Feb06 - 27Feb06 Report Issue Date: March 02, 2006 Test Standard(s): FCC 47 CFR §2, §22H, §24E IC RSS-133 Issue 3, RSS-132 Issue 2 Lab Registration(s): FCC Registration No.: 714830 Industry Canada Lab File No.: 3874 ELECTROMAGNETIC COMPATIBILITY EMC TEST REPORT FOR COMMERCIANT, L.P. PORTABLE CREDIT CARD TRANSACTION TERMINAL WITH DUAL-BAND CELLULAR/PCS CDMA-2000 MODEM MODEL: M-106X FCC ID: QWL-M-106X Test Report Serial Number 013006QWL-T716-E24C Test Report Issue No. E716C-030206-R0 Test Lab Celltech Compliance Testing & Engineering Lab (Celltech Labs Inc.) 1955 Moss Court Kelowna, BC Canada V1Y 9L3 Test Report Serial No.: 013006QWL-T716-E24C Report Issue No.: E716C-030206-R0 Test Date(s): 02Feb06 - 27Feb06 Report Issue Date: March 02, 2006 Test Standard(s): FCC 47 CFR §2, §22H, §24E IC RSS-133 Issue 3, RSS-132 Issue 2 Lab Registration(s): FCC Registration No.: 714830 Industry Canada Lab File No.: 3874 Applicant: Commerciant, L.P. FCC ID: QWL-M-106X 1851.25-1908.75 MHz DUT Type: Portable Credit Card Transaction Terminal Model: M-106X Freq. Range(s): 824.70-848.31 MHz 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 67 DECLARATION OF COMPLIANCE Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Applicant COMMERCIANT, L.P. 2901 Wilcrest, Suite 250 Houston, Texas 77042 United States Phone: 250-448-7047 Fax: 250-448-7048 e-mail: [email protected] web site: www.celltechlabs.com Lab Registration No.(s): FCC: 714830 IC: 3874 Rule Part(s): FCC: §2 §22H §24E IC: RSS-133 Issue 3 RSS-132 Issue 2 FCC: PCS Licensed Transmitter (PCB) Device Classification: IC: 2 GHz Personal Communication Services (RSS-133 Issue 3) 800 MHz Cellular Telephones Employing New Technologies (RSS-132 Issue 2) Device Identification: FCC ID: QWL-M-106X DUT Description: Model: M-106X Device Description: Portable Wireless Credit Card Transaction Terminal Internal Transmitter(s): Wavecom Q2438F Dual-Band CDMA-2000 Modem Transmit Freq. Range(s): Cellular CDMA 824.70 - 848.31 MHz PCS CDMA 1851.25 - 1908.75 MHz 24.96 dBm 24.98 dBm 25.00 dBm Cellular CDMA Ch. 1013 0.313 W Ch. 384 0.315 W Ch. 777 0.316 W 24.08 dBm 24.33 dBm 24.38 dBm Maximum RF Conducted Output Power Levels Measured: PCS CDMA Ch. 25 0.256 W Ch. 600 0.271 W Ch. 1175 0.274 W Max. ERP Measured: 22.36 dBm 0.172 W 848.31 MHz Channel 777 Cellular CDMA Band Max. EIRP Measured: 21.96 dBm 0.157 W 1880.00 MHz Channel 600 PCS CDMA Band Emission Designator: 1M25F9W Antenna Type(s): Internal PCB antenna Stationary: AC Power Adapter (Model: HK-A114-U07) Input: 100-120 VAC 50/60 Hz 0.45 A, Output: 7 VDC 2 A Power Source(s): 3.7 V Internal Lithium-ion Battery, 1800 mAh (Model: Ultralife UBBPO1) This wireless portable device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Rule Parts 2, 22H, 24E; Industry Canada RSS-132 Issue 2, RSS-133 Issue 3; and ANSI TIA/EIA-603-C-2004. I attest to the accuracy of the data. All measurements reported herein were performed by me or were under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Tested By: Spencer Watson Senior Compliance Technologist Celltech Labs Inc. Reviewed By: _____________________________ Duane M. Friesen EMC Manager Celltech Labs Inc. Test Report Serial No.: 013006QWL-T716-E24C Report Issue No.: E716C-030206-R0 Test Date(s): 02Feb06 - 27Feb06 Report Issue Date: March 02, 2006 Test Standard(s): FCC 47 CFR §2, §22H, §24E IC RSS-133 Issue 3, RSS-132 Issue 2 Lab Registration(s): FCC Registration No.: 714830 Industry Canada Lab File No.: 3874 Applicant: Commerciant, L.P. FCC ID: QWL-M-106X 1851.25-1908.75 MHz DUT Type: Portable Credit Card Transaction Terminal Model: M-106X Freq. Range(s): 824.70-848.31 MHz 2006 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 3 of 67 TABLE OF CONTENTS 1.0 SCOPE ................................................................................................................................................................ 6 2.0 REFERENCES .................................................................................................................................................... 6 2.1 Normative References ......................................................................................................................................... 6 3.0 TERMS AND DEFINITIONS................................................................................................................................ 7 4.0 FACILITIES AND ACCREDITATIONS ................................................................................................................ 7 5.0 GENERAL INFORMATION ................................................................................................................................. 8 5.1 Applicant Information ........................................................................................................................................... 8 5.2 DUT Description .................................................................................................................................................. 8 5.3 Co-Located Equipment ............................................................................................................…

Text truncated - open the document above for the full version.

Test Report

PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240428269-R1.O9E Test Dates: April 28-29, 2004 EUT Type: Tri-Mode Dual-Band Wireless Evaluation Kit FCC ID: O9EQ2438F Page 12 of 19 © 2004 PCTEST ENGINEERING LABORATORY, INC. 5.1 Test Data 5.4 FREQUENCY STABILITY (CDMA) OPERATING FREQUENCY: 835,890,006Hz CHANNEL: 363 REFERENCE VOLTAGE: 3.7 VDC DEVIATION LIMIT: ± 0.00025% or 2.5 ppm VOLTAGEPOWERTEMPFREQ.Deviation (%)(VDC) (ºC) (Hz)(%) 100 %3.70 + 20 (Ref)835,890,0060.000000 100 %- 30835,889,9220.000010 100 %- 20835,889,9140.000011 100 %- 10835,889,9310.000009 100 % 0835,889,9390.000008 100 %+ 10835,889,9560.000006 100 %+ 20835,890,0060.000000 100 %+ 25835,889,9560.000006 100 % + 30835,889,9310.000009 100 %+ 40835,890,090-0.000010 100 %+ 50835,890,098-0.000011 100 %+ 60835,890,098-0.000011 85 %3.17+ 20835,890,0060.000000 115 %4.26+ 20835,890,0060.000000 BATT. ENDPOINT3.15+ 20835,890,0060.000000 PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240428269-R1.O9E Test Dates: April 28-29, 2004 EUT Type: Tri-Mode Dual-Band Wireless Evaluation Kit FCC ID: O9EQ2438F Page 13 of 19 © 2004 PCTEST ENGINEERING LABORATORY, INC. 5.1 Test Data (Continued) 5.5 FREQUENCY STABILITY (CDMA) Frequency Stability -3.5 -2.5 -1.5 -0.5 0.5 1.5 2.5 3.5 -20 - 30- 20- 10 0 + 10+ 20+ 25 + 30 + 40+ 50+ 60+ 20+ 20+ 20 Temperature (°C) Deviation (ppm) PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240428269-R1.O9E Test Dates: April 28-29, 2004 EUT Type: Tri-Mode Dual-Band Wireless Evaluation Kit FCC ID: O9EQ2438F Page 14 of 19 © 2004 PCTEST ENGINEERING LABORATORY, INC. 5.1 Test Data (Continued) 5.6 FREQUENCY STABILITY (PCS CDMA) OPERATING FREQUENCY: 1,880,000,002Hz CHANNEL: 600 REFERENCE VOLTAGE: 3.7VAC DEVIATION LIMIT: ± 0.00025% or 2.5 ppm VOLTAGEPOWERTEMPFREQ.Deviation (%)(VDC) (ºC) (Hz)(%) 100 %3.70 + 20 (Ref)1,880,000,0020.000000 100 %- 301,879,999,7950.000011 100 %- 201,879,999,8140.000010 100 %- 101,879,999,7950.000011 100 % 01,879,999,8330.000009 100 %+ 101,879,999,8700.000007 100 %+ 201,880,000,0020.000000 100 %+ 251,879,999,9460.000003 100 % + 301,880,000,040-0.000002 100 %+ 401,880,000,077-0.000004 100 %+ 501,880,000,152-0.000008 100 %+ 601,880,000,190-0.000010 85 %3.17+ 201,880,000,0020.000000 115 %4.26+ 201,880,000,0020.000000 BATT. ENDPOINT3.03+ 201,880,000,0020.000000 PCTEST PT. 22/24 REPORT FCC MEASUREMENT REPORT Reviewed By: Quality Manager Test Report S/N: 22/24.240428269-R1.O9E Test Dates: April 28-29, 2004 EUT Type: Tri-Mode Dual-Band Wireless Evaluation Kit FCC ID: O9EQ2438F Page 15 of 19 © 2004 PCTEST ENGINEERING LABORATORY, INC. 5.1 Test Data (Continued) 5.7 FREQUENCY STABILITY (PCS CDMA) Frequency Stability -3.5 -2.5 -1.5 -0.5 0.5 1.5 2.5 3.5 -20 - 30- 20- 10 0 + 10+ 20+ 25 + 30 + 40+ 50+ 60+ 20+ 20+ 20 Temperature (°C) Deviation (ppm)

Test Setup Photos

Text truncated - open the document above for the full version.

Contact Information

Applicant

Daniel T Motsinger(Engineering Product Manager)

[email protected]713-735-5515Fax: 713-735-5585

Test Firm

Celltech Labs Inc.Ben Hewson

[email protected]250-765-7650Fax: 250-765-7645

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	22H	824.7 MHz - 848.31 MHz	172.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term
