QWU-08FWireless 802.11 abgn Device

Quick Start Guide Check Package Contents Verify that your package includes the following contents: SonicWALL NSA 220 or NSA 220W Series Appliance Ethernet Cable Standard Power Adaptor and Cord DB9 -> RJ45 (CLI) Cable * Wireless Antennas (3) included with NSA 220W only 3 Connect the SonicWALL NSA 220 series appliance to the network using standard Ethernet cables as shown in the illustration. 4 In a Web browser, navigate to http://www.mysonicwall.com/. If you do not have a MySonicWALL account, click the Not a Registered User? link to create an account. Under the Quick Register section of your MySonicWALL account, enter the Activation Key or Serial Number of the SonicWALL NSA series appliance you are registering. Conrm your serial number, enter a friendly name for your appliance, and enter your authentication code in the Quick Register > Add New Product section. Click Register. 2 Using the computer connected to the LAN port of the SonicWALL NSA 220 series appliance, navigate to http://192.168.168.168/ in a Web browser. The Setup Wizard takes you through several basic steps to get your SonicWALL NSA series appliance congured for your network. Power cords are included with units in North America only. 1 Connect the SonicWALL NSA Appliance Register Configure the Management Host & Setup Wizard SonicWALL NSA Series Appliances Registration MUST be completed prior to connecting to the appliance. http://www.mysonicwall.com http://192.168.168.168/ After the Setup Wizard, the appliance may reboot. Please wait a few minutes while the appliance reboots to save the updated settings. * wan X1 lan X0 lanwan Internet router or modem Internet Service Provider Connect the included power cable and adaptor, and plug into an appropriate outlet. lan 120V AC (U.S.) The NSA 220 series appliance powers on and the orange “test” LED blinks during the boot sequence. Continue to Step 4 when the “test” LED is no longer lit. This process may take up to 2 minutes. 2 min http://192.168.168.168/ http://192.168.168.168/ With your computer connected to the X0 port on the SonicWALL appliance, congure your IP with an address on the 192.168.168.0/24, such as 192.168.168.20. security on/act wlan 10/100/act 1000/act lanwan X3X4X5X6 X2 X1 X0W0 U0/U1 Network Security Appliance 10/100/1000 NSA 220 wireless-N security on/act wlan 10/100/act 1000/act lanwan X3X4X5X6 X2 X1 X0W0 U0/U1 Network Security Appliance 10/100/1000 NSA 220 wireless-N security on/act wlan 10/100/act 1000/act lanwan X3X4X5X6 X2 X1 X0W0 U0/U1 Network Security Appliance 10/100/1000 NSA 220 wireless-N C M Y CM MY CY CMY K 232-002003-50_Rev_A_SonicWALL_NSA_220_Series_Quick_Start_Poster_Inside.pdf 1 9/20/2011 7:50:50 PM Network Security Series 5 Navigate to http://www.mysonicwall.com in your Web browser and login. Click Downloads. From the Download Center, select “SonicWALL NSA 220 Firmware” from the Software Type list. Click the Add To My Downloads button of the rmware you wish to install for your SonicWALL NSA 220 series appliance. Choose Save File to save the le locally, then click OK. Log into the SonicWALL NSA series appliance, and navigate to the System > Settings page. Click the Upload New Firmware button. Click the Choose File button to select the rmware you just downloaded. Then, click Upload. The SonicWALL online library is located at : http://www.sonicwall.com/us/support/3643.html Quick Start Guide Get the Latest Firmware Related Support Technical Documentation SonicWALL NSA 220/220W Series Quick Start Guide SonicWALL NSA Series Appliances A valid support contract is required to download the latest firmware. SonicWALL UTM Appliance LED Reference Guide SonicWALL NSA Expansion Modules Installation Guide SonicOS Administrator’s Guide SonicOS Route Based VPN Feature Guide SonicOS WAN Acceleration Feature Guide SonicOS Global Bandwidth Management Feature Guide SonicOS Log Events Reference Guide SonicOS Release Notes http://www.mysonicwall.com http://www.mysonicwall.com Copyright Notice © 2011 SonicWALL, Inc. All rights reserved. Under the copyright laws, this manual or the software described within cannot be copied, in whole or part, without the written consent of the manufacturer, except in the normal use of the software to make a backup copy. The same proprietary and copyright notices must be afxed to any permitted copies as were afxed to the original. This exception does not allow copies to be made for others, whether or not sold, but all of the material purchased (with all backup copies) can be sold, given, or loaned to another person. Under the law, copying includes translating into another language or format. Safety Information / Sicherheit Informationen Regulatory Model/Type Product Name APL24-08E NSA 220 APL24-08F NSA 220W Mounting the SonicWALL - Mount in a location away from direct sunlight and sources of heat. A maximum ambient temperature of 104º F (40º C) is recommended. - Route cables away from power lines, fluorescent lighting fixtures, and sources of noise such as radios, transmitters, and broadband amplifiers. - The included power cord is intended for use in North America only. For European Union (EU) customers, a power cord is not included. - Ensure that no water or excessive moisture can enter the unit. - Allow unrestricted airflow around the unit and through the vents on the side of the unit. A minimum of 1 inch (25.44mm) clearance is recommended. - Consideration must be given to the connection of the equipment to the supply circuit. The effect of overloading the circuits has minimal impact on overcurrent protection and supply wiring. Appropriate consider- ation of equipment nameplate ratings must be used when addressing this concern. Lithium Battery Warning The Lithium Battery used in the SonicWALL security appliance may not be replaced by the user. Return the SonicWALL security appliance to a SonicWALL-authorized service center for replacement with the same or equivalent type recommended by the manufacturer. If, for any reason, the ba…

Text truncated - open the document above for the full version.

Declaration for no non-US channel operation We, SonicWALL, Inc. declare that the device does not support any non-US channels in all the operational mode(s) for the following product. FCC ID: QWU-08F If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- Sonicwall, Inc. Rick Linford/ Regulatory Engineer TEL: 408.962.8798 FAX: 408.745.9300 E-mail: [email protected]

Date:2011/10/18 FCC ID: QWU-08F Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------------------------- Sonicwall, Inc. Rick Linford/ Regulatory Engineer TEL: 408.962.8798 FAX: 408.745.9300 E-mail: [email protected]

Date: 2011/10/18 FCC ID: QWU-08F AGENCY AUTHORIZATION LETTER We, the undersigned Sonicwall, Inc., hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part 15 and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ----------------------------------------------------- Sonicwall, Inc. Rick Linford/ Regulatory Engineer TEL: 408.962.8798 FAX: 408.745.9300 E-mail: [email protected]

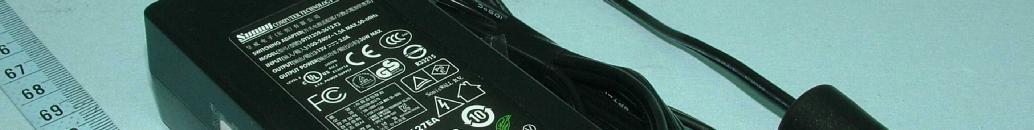

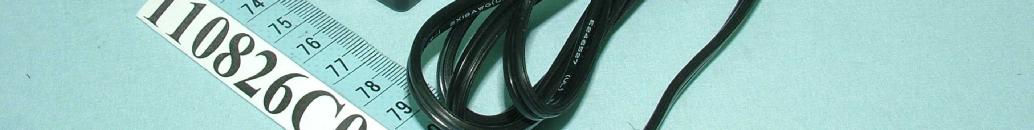

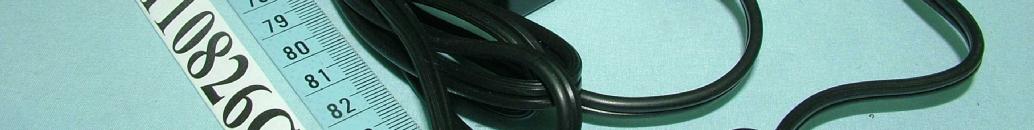

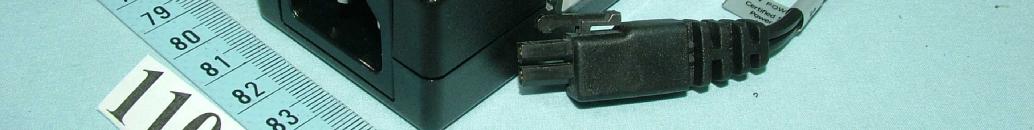

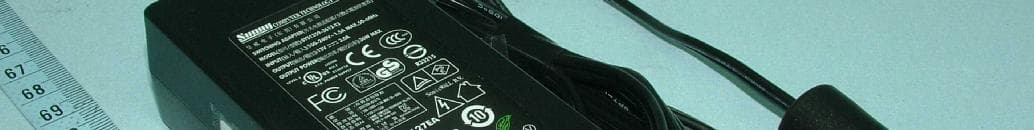

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15

FCC ID: QWU-08F Report No.: RF110826C07 Operational Description This device is a Wireless 802.11 a/b/g/n Device, which operates in both of the 5GHz and 2.4GHz bands; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 12Vdc adapter. The antenna is Dipole antenna with RTNC and RSMA antenna connectors. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA110826C07 Report Format Version 4.0.0 1 RF EXPOSURE REPORT APPLICANT: SonicWALL, Inc. ADDRESS: 2001 Logic Drive San Jose, CA 95124, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 8 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement. The test results in the report only apply to the tested sample. REPORT NO.: SA110826C07 MODEL NO.: APL24-08F FCC ID: QWU-08F RECEIVED: Aug. 26, 2011 TESTED: Oct. 05, 2011 ISSUED: Oct. 18, 2011 Report No.: SA110826C07 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT..............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. ANTENNA GAIN.......................................................................................................5 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...........................6 Report No.: SA110826C07 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA110826C07 Original release Oct. 18, 2011 Report No.: SA110826C07 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: Wireless 802.11 abgn Device BRAND NAME: SonicWALL MODEL NO.: APL24-08F TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: SonicWALL, Inc. TESTED: Oct. 05, 2011 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: APL24-08F) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Oct. 18, 2011 ( Claire Kuan, Specialist ) APPROVED BY : , DATE: Oct. 18, 2011 ( May Chen, Deputy Manager ) Report No.: SA110826C07 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. ANTENNA GAIN The antennas used in this EUT are listed as below table: GAIN (dBi) Transmitter Circuit ANTENNA TYPE ANTENNA CONNECTOR 2.4GHz BAND 5.0GHz BAND Chain 0 Dipole RTNC 2.5 2.5 Chain 1 Dipole RSMA 3.0 3.0 Chain 2 Dipole RTNC 2.5 2.5 Report No.: SA110826C07 Report Format Version 4.0.0 6 6. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For 15.247(2.4GHz): 802.11b: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 154.8 7.4 20 0.169 1.00 Directional gain = 10 log[(10 G1/20 + 10 G2/20 + 10 G3/20 ) 2 / 3] Effective Legacy Gain (dBi) = 7.4 802.11g: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 500.4 7.4 20 0.547 1.00 Directional gain = 10 log[(10 G1/20 + 10 G2/20 + 10 G3/20 ) 2 / 3] Effective Legacy Gain (dBi) = 7.4 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 474.6 3 20 0.188 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2422-2452 722.4 3 20 0.287 1.00 Report No.: SA110826C07 Report Format Version 4.0.0 7 For 15.247(5GHz): 802.11a: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 426.5 7.4 20 0.466 1.00 Directional gain = 10 log[(10 G1/20 + 10 G2/20 + 10 G3/20 ) 2 / 3] Effective Legacy Gain (dBi) = 7.4 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5745 ~ 5825 481.2 3 20 0.191 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5755 ~ 5795 504.7 3 20 0.200 1.00 Report No.: SA110826C07 Report Format Version 4.0.0 8 For 15.407(5GHz): 802.11a: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 19.3 7.4 20 0.021 1.00 Directional gain = 10 log[(10 G1/20 + 10 G2/20 + 10 G3/20 ) 2 / 3] Effective Legacy Gain (dBi) = 7.4 802.11n(20MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 5180-5240 29.0 3 20 0.012 1.00 802.11n(40MHz): FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 51…

Text truncated - open the document above for the full version.

Report No.: RF110826C07 1 Report Format Version 4.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF110826C07 MODEL NO.: APL24-08F FCC ID: QWU-08F RECEIVED: Aug. 26, 2011 TESTED: Oct. 03 to 12, 2011 ISSUED: Oct. 18, 2011 APPLICANT: SonicWALL, Inc. ADDRESS: 2001 Logic Drive San Jose, CA 95124, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 120 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110826C07 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................5 1. CERTIFICATION....................................................................................................6 2. SUMMARY OF TEST RESULTS............................................................................7 2.1 MEASUREMENT UNCERTAINTY..........................................................................9 3. GENERAL INFORMATION...................................................................................10 3.1 GENERAL DESCRIPTION OF EUT.....................................................................10 3.2 DESCRIPTION OF TEST MODES.......................................................................13 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................14 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................17 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................18 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................19 4. TEST TYPES AND RESULTS (2400 ~ 2483.5MHz Band)....................................20 4.1 CONDUCTED EMISSION MEASUREMENT........................................................20 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................20 4.1.2 TEST INSTRUMENTS..........................................................................................20 4.1.3 TEST PROCEDURES..........................................................................................21 4.1.4 DEVIATION FROM TEST STANDARD.................................................................21 4.1.5 TEST SETUP.......................................................................................................22 4.1.6 EUT OPERATING CONDITIONS.........................................................................22 4.1.7 TEST RESULTS (MODE 1)..................................................................................23 4.1.8 TEST RESULTS (MODE 2)..................................................................................25 4.2 RADIATED EMISSION MEASUREMENT.............................................................27 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................27 4.2.2 TEST INSTRUMENTS..........................................................................................28 4.2.3 TEST PROCEDURES..........................................................................................29 4.2.4 DEVIATION FROM TEST STANDARD.................................................................29 4.2.5 TEST SETUP.......................................................................................................30 4.2.6 EUT OPERATING CONDITIONS.........................................................................30 4.2.7 TEST RESULTS...................................................................................................31 4.3 6dB BANDWIDTH MEASUREMENT....................................................................60 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT..................................................60 4.3.2 TEST INSTRUMENTS..........................................................................................60 4.3.3 TEST PROCEDURE.............................................................................................60 4.3.4 DEVIATION FROM TEST STANDARD.................................................................60 4.3.5 TEST SETUP.......................................................................................................60 4.3.6 EUT OPERATING CONDITIONS.........................................................................60 4.3.7 TEST RESULTS...................................................................................................61 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................65 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................65 4.4.2 INSTRUMENTS....................................................................................................65 Report No.: RF110826C07 3 Report Format Version 4.0.0 4.4.3 TEST PROCEDURES..........................................................................................65 4.4.4 DEVIATION FROM TEST STANDARD.................................................................65 4.4.5 TEST SETUP.......................................................................................................65 4.4.6 EUT OPERATING CONDITIONS.........................................................................65 4.4.7 TEST RESULTS................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF10826C07-1 1 Report Format Version 4.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF110826C07-1 MODEL NO.: APL24-08F FCC ID: QWU-08F RECEIVED: Aug. 26, 2011 TESTED: Oct. 03 to 12, 2011 ISSUED: Oct. 18, 2011 APPLICANT: SonicWALL, Inc. ADDRESS: 2001 Logic Drive San Jose, CA 95124, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 79 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF10826C07-1 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.......................12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................15 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................16 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................17 4. TEST TYPES AND RESULTS..............................................................................18 4.1 CONDUCTED EMISSION MEASUREMENT........................................................18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................18 4.1.2 TEST INSTRUMENTS..........................................................................................18 4.1.3 TEST PROCEDURES..........................................................................................19 4.1.4 DEVIATION FROM TEST STANDARD.................................................................19 4.1.5 TEST SETUP.......................................................................................................20 4.1.6 EUT OPERATING CONDITIONS.........................................................................20 4.1.7 TEST RESULTS (MODE 1)..................................................................................21 4.1.8 TEST RESULTS (MODE 2)..................................................................................23 4.2 RADIATED EMISSION MEASUREMENT.............................................................25 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...........................................25 4.2.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS..........26 4.2.3 TEST INSTRUMENTS..........................................................................................27 4.2.4 TEST PROCEDURES..........................................................................................28 4.2.5 DEVIATION FROM TEST STANDARD.................................................................28 4.2.6 TEST SETUP.......................................................................................................29 4.2.7 EUT OPERATING CONDITION............................................................................29 4.2.8 TEST RESULTS...................................................................................................30 4.3 OUTPUT TRANSMIT POWER MEASUREMENT.................................................51 4.3.1 LIMITS OF OUTPUT TRANSMIT POWER MEASUREMENT...............................51 4.3.2 TEST INSTRUMENTS..........................................................................................51 4.3.3 TEST PROCEDURE.............................................................................................52 4.3.4 DEVIATION FROM TEST STANDARD.................................................................52 4.3.5 TEST SETUP.......................................................................................................52 4.3.6 EUT OPERATING CONDITIONS.........................................................................52 4.3.7 TEST RESULTS...................................................................................................53 4.4 PEAK POWER EXCURSION MEASUREMENT...................................................59 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT.................................59 Report No.: RF10826C07-1 3 Report Format Version 4.0.0 4.4.2 TEST INSTRUMENTS..........................................................................................59 4.4.3 TEST PROCEDURE.............................................................................................59 4.4.4 DEVIATION FROM TEST STANDARD.................................................................59 4.4.5 TEST SETUP.......................................................................................................60 4.4.6 EUT OPERATING CONDITIONS.........................................................................60 4.4.7 TEST RESULTS........…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (MODE 1) 2 CONDUCTED EMISSION TEST (MODE 2) 3 RADIATED EMISSION TEST
