QWU-09CWireless 802.11bgn Access Point

http://192.168.168.168/ http://192.168.168.168/ Quick Start Guide / Comience rápidamente / Schneller Einstieg / Check Package Contents Verify that your package includes the following contents: SonicWALL TZ 100 or TZ 200 series appliance Antennas (TZ Wireless-N only) Ethernet cable Power adapter Power cord (North America only) Verificar el Contenido Compruebe que el paquete incluye el siguiente contenido: Aparato SonicWALL serie TZ 100 o TZ 200 Antenas (únicamente para el modelo TZ Wireless) Cable Ethernet Adaptador de energía Cable de alimentación (América del Norte solamente) Überprüfen Sie den der Inhalt Stellen Sie sicher, das die folgenden Komponenten vorliegen haben: TZ 100 / TZ 200 Gerät Antennen (nur bei der TZ Wireless-N) Ethernet-Kabel Netzteil Netzkabel (Nur Nordamerika) 2 If using a 3G/4G USB device, insert the device into the SonicWALL’s USB port. Connect an Ethernet cable from the LAN (X0) port on the SonicWALL to the Ethernet port of the computer. Connect an Ethernet cable from the WAN (X1) port on the SonicWALL to the Ethernet/LAN port on your Internet router or modem. Connect the power cables together, and then from the power port on the SonicWALL to a grounded power outlet. Si está utilizando un USB 3G/4G, insertelo dentro del Puerto USB del equipo SonicWALL. Conectar cables Ethernet de la LAN (X0) en el puerto de SonicWALL al puerto Ethernet del ordenador. Conectar la WAN (X1) del de SonicWALL al Puerto Ethernet LAN del router o módem de Internet. Conectar los cables de alimentación, y luego desde el puerto de Alimentación del SonicWALL a una toma de corriente con tierra física. Wenn Sie ein 3G/4G USB-Gerät benutzen möchten, muss es am SonicWALL USB Anschluss eingesteckt werden. Verbinden Sie Ihren Rechner (Ethernet-Port) mit dem LAN (X0)-Anschluss mit einem Ethernet-Kabel. Verbinden Sie die SonicWall auf dem WAN (X1)-Anschluss mit dem Ethernet/LAN Anschluss Ihres Internet Routers oder Modem mit einem Ethernet-Kabel Schließen Sie das Netzteil an die SonicWall an. Stecken Sie in das Netzteil einen Kaltgerätestecker und dessen Stecker in eine geerdete Steckdose. 3 With the computer connected to the SonicWALL LAN (X0) port, open a Web browser and navigate to http://192.168.168.168/ (the default LAN IP address of the SonicWALL appliance). If the computer cannot connect to the default IP address, you may need to restart the SonicWALL or the computer. The Setup Wizard displays and guides you through basic setup of the Sonic- WALL appliance. Con el ordenador conectado a la LAN de SonicWALL (X0) puerto, abra un navegador Web y vaya a http://192.168.168.168/ (la dirección IP por defecto del dispositivo SonicWALL). El Asistente de Conguración le muestra y le guía a través de la conguración básica del aparato SonicWALL. Mit dem Computer, der an der SonicWALL LAN (X0)-Port, öffnen Sie einen Web-Browser und navigieren Sie zu http://192.168.168.168/ (die Standard-IP- Adresse der SonicWALL Appliance). Der Setup-Assistent zeigt und führt Sie durch grundlegende Einrichten der SonicWALL Appliance. Before running the Setup Wizard, disable any Web browser pop-up blocking features. Deshabilite cualquier navegador Web de bloqueo pop-up antes de continuar. Deaktivieren Sie alle Web-Browser Pop-up-Blocker-Funktionen, bevor Sie fortfahren. 4 In a Web browser, navigate to the LAN IP address of the SonicWALL. Log into the SonicWALL with your username and password. Click the Register button at the top of the page to begin the process. If you have never registered a SonicWALL appliance, you will be prompted to rst create a MySonicWALL account. Restart your SonicWALL using System > Restart after registration is complete. En un explorador Web, vaya a la LAN de la dirección IP de SonicWALL. Inicie sesión en el SonicWALL con su nombre de usuario y contraseña. Haga clic en el Registro en la parte superior de la página para iniciar el proceso. Si nunca ha registrado un dispositivo de SonicWALL, se le pedirá que creen en primer lugar una cuenta en MySonicWALL. Reinicie el SonicWALL utilizando System > Restart después de esto la inscrip- ción se ha completado. Navigieren Sie mit einem Web-Browser zu der LAN IP-Adresse der SonicWALL. Melden Sie sich bei der SonicWALL mit Ihrem Benutzernamen und Passwort an. Klicken Sie auf den „Register“-Link oben auf der Seite um den Registrier- ungsprozess zu starten.Wenn Sie noch nie eine SonicWALL registriert haben, werden Sie zunächst aufgefordert, einen MySonicWALL-Account zu erstellen Starten Sie Ihren SonicWALL mit System > Restart nach der Registrierung abgeschlossen ist. SonicWALL LAN IP http://192.168.168.168/ Power cord is included with units in North America only. Cable de alimentación está incluido en Norte América solamente. Das beigefügte Netzkabel ist nur für den Gebrauch in Nordamerika vorgesehen. 1 3G/4G cualquier dispositivo USB insertarse antes de la alimentación en el SonicWALL. Any 3G/4G USB device must be inserted prior to powering on the SonicWALL. Ein 3G/4G USB-Gerät muß vor dem Einschalten der SonicWALL angeschlossen werden. Connect Devices Conectar Dispositivos Verbinden Sie die Geräte Run the Setup Wizard Acceder a la Setup Wizard Rufen Sie die Setup Wizard Register Registro Registrieren Registration MUST be completed prior to uploading new rmware in the next step. Registro debe ser completado antes de cargar el nuevo rmware en el próximo paso. Die Registrierung muss abgeschlossen werden bevor Sie die Firmware installieren. You may need to restart your computer when the Setup Wizard is complete. Es posible que tenga que reiniciar el equipo cuando el Asistente para la instalación está completa. Möglicherweise müssen Sie den Computer neu zu starten, wenn der Setup-Assistent abgeschlossen ist. wan X1 lan X0 LAN / Ethernet 100-240V AC 3G/4G USB (TZ 200) Internet Modem / Router Internet SonicWALL TZ 100 / 200 Series * * * * * SonicWALL LAN IP (TZ Wireless-N) C M Y CM MY CY CMY K 232-001659-51_TZ_100_TZ_200_Quick_Start_Poster.pdf 1 3/9/2011 3:48:…

Text truncated - open the document above for the full version.

Declaration for no non-US channel operation We, SonicWALL, Inc. declare that the device does not support any non-US channels in all the operational mode(s) for the following product. FCC ID: QWU-09C If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- Sonicwall, Inc. Rick Linford/ Regulatory Engineer TEL: 408.962.8798 FAX: 408.745.9300 E-mail: [email protected]

Date:2012/1/18 FCC ID: QWU-09C Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------------------------- Sonicwall, Inc. Rick Linford/ Regulatory Engineer TEL: 408.962.8798 FAX: 408.745.9300 E-mail: [email protected]

Date: 2012/1/18 FCC ID: QWU-09C AGENCY AUTHORIZATION LETTER We, the undersigned Sonicwall, Inc., hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part 15 and any communication needed with the national authority for our model APL22-09C. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ----------------------------------------------------- Sonicwall, Inc. Rick Linford/ Regulatory Engineer TEL: 408.962.8798 FAX: 408.745.9300 E-mail: [email protected]

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5

This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1) This device may not cause harmful interference, and2) this device must accept any interference received,including interference that may cause undesired operation. 0560 RoHS 2002/95/EC COMPATIBLE ™ N11597 R ICES-003 CLASS ANMB-003 CLASSE A Assembly: 101-500216-50 Rev. XX Model/Type : APL22-09C D-09012 TZ 105W SONICWALL Serial Number: Authentication Code: XXXX-XXXX 341-000314-63 FCC ID: QWU-09C IC:4408A-09C Made in Taiwan Input: 12 V 1.5 A CMIIT ID: 2009DJ45xx CCAI09LP1080XX 201 WW 112151xx201 XW 112151xx201 YW 112151xx 電波法により 5GHz は屋内使用に限ります 201 GZ 112151xx

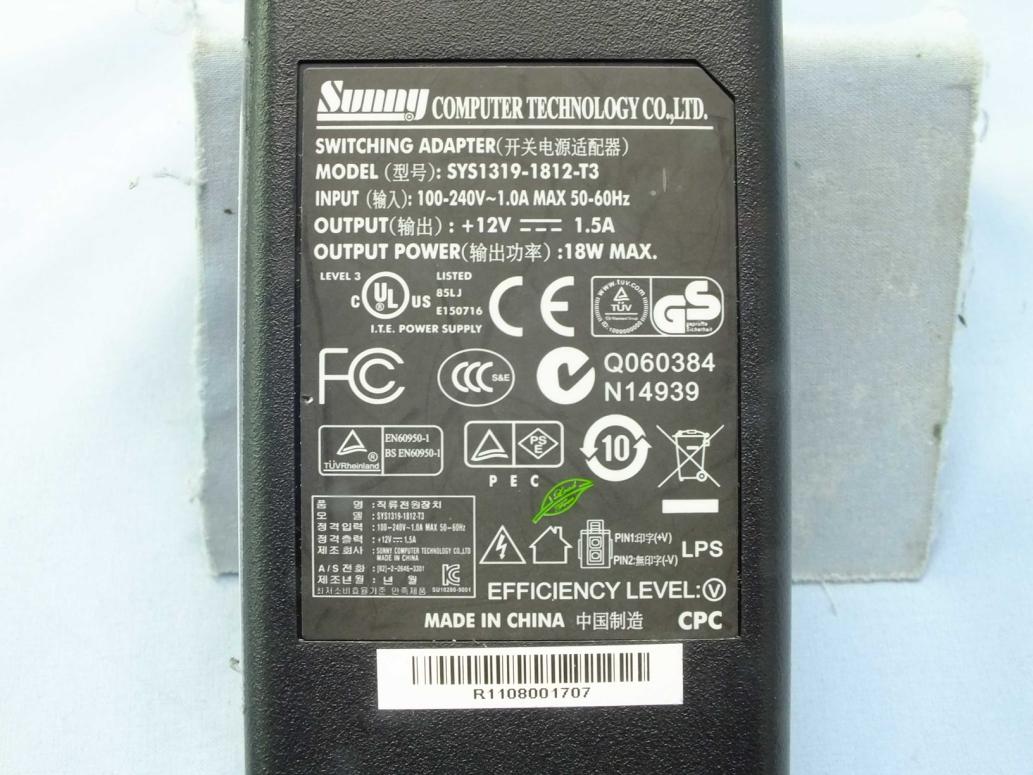

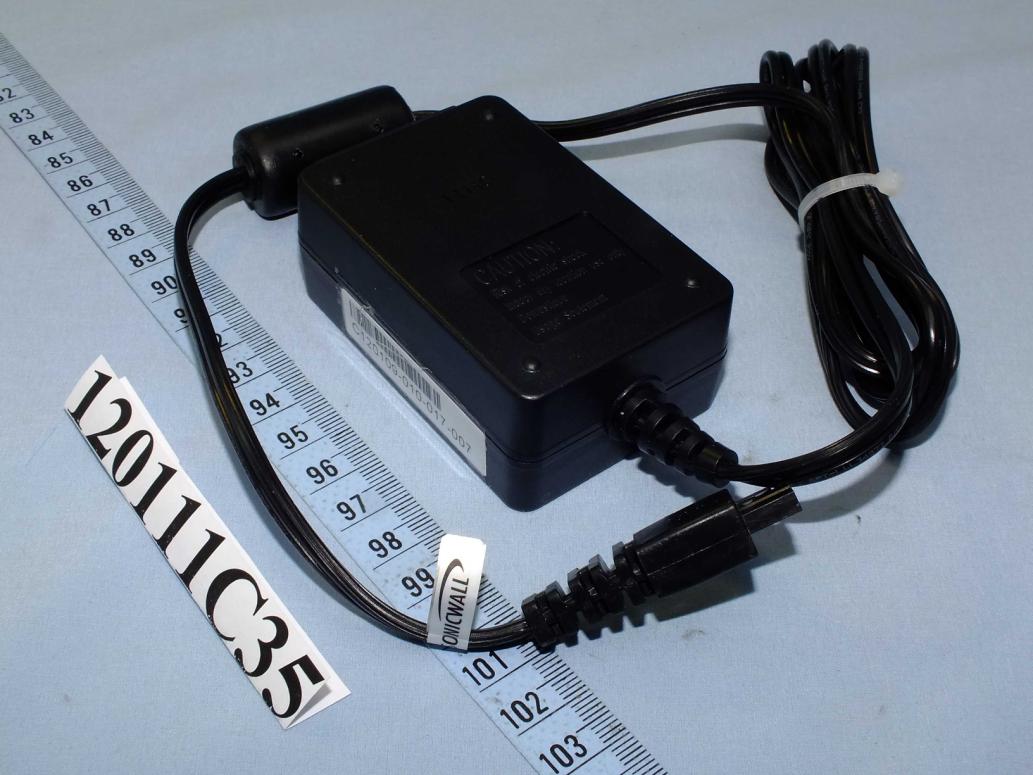

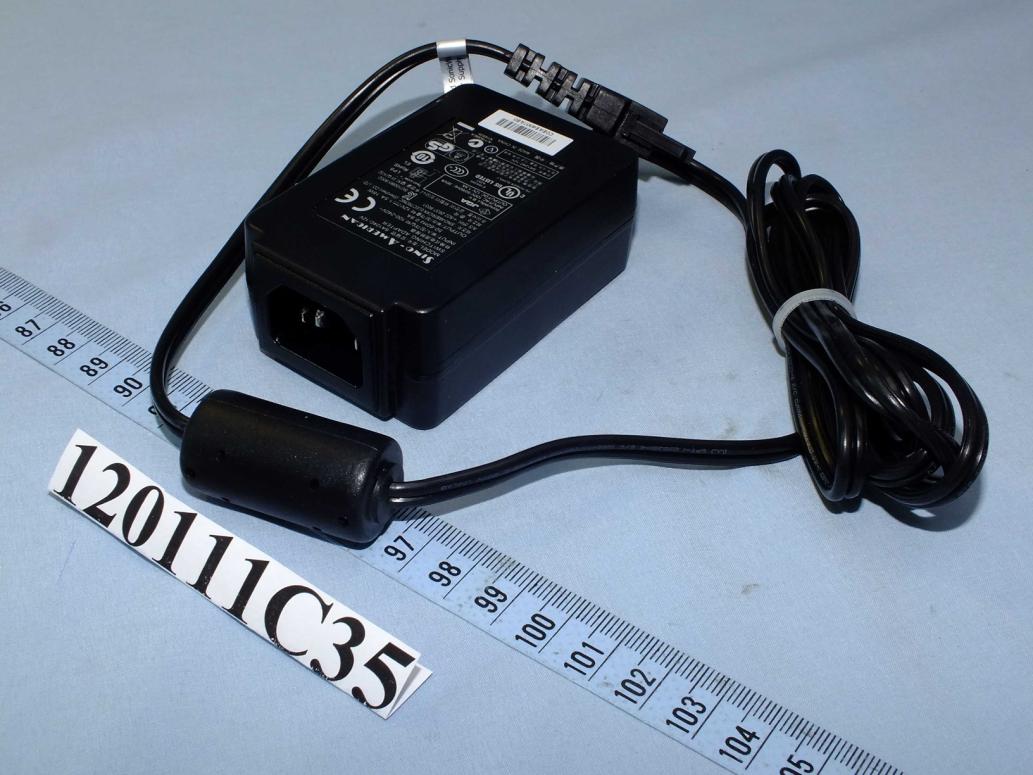

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: QWU-09C Report No.: RF120111C35 Operational Description This device is a Wireless 802.11bgn Access Point, which operates in 2.4GHz band; the maximum data rate could be up to 300Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 300Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 12Vdc AC Adapter. The antenna is Dipole antenna with RSMA antenna connector. The other instruction, please have a look at the users manual.

Report No.: SA120111C35 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA120111C35 MODEL NO.: APL22-09C FCC ID: QWU-09C RECEIVED: Jan. 11, 2012 TESTED: Jan. 15 ~ Jan. 30, 2012 ISSUED: Feb. 02, 2012 APPLICANT: SonicWALL, Inc. ADDRESS: 2001 Logic Drive San Jose, CA 95124, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 6 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval, or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA120111C35 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................. 4 2. RF EXPOSURE............................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE)......................................... 5 2.2 MPE CALCULATION FORMULA .................................................................................... 5 2.3 CLASSIFICATION ........................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER.................................. 6 Report No.: SA120111C35 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED Original release NA Feb. 02, 2012 Report No.: SA120111C35 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: Wireless 802.11bgn Access Point MODEL: APL22-09C BRAND: SonicWALL APPLICANT: SonicWALL, Inc. TESTED: Jan. 15 ~ Jan. 30, 2012 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: APL22-09C) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Feb. 02, 2012 Joanna Wang / Senior Specialist APPROVED BY : , DATE :Feb. 02, 2012 Gary Chang / Technical Manager Report No.: SA120111C35 Report Format Version 4.0.0 5 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120111C35 Report Format Version 4.0.0 6 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER MODULATION MODE MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 802.11b 24.8 7 20 0.301 1 802.11g 28.2 7 20 0.659 1 802.11n (20MHz) 28.3 4 20 0.338 1 802.11n (40MHz) 26.1 4 20 0.206 1 NOTE: For 802.11b/g: Directional gain = 4dBi + 10log(2) = 7dBi

Report No.: RF120111C35 1 Report Format Version 4.1.0 FCC TEST REPORT REPORT NO.: RF120111C35 MODEL NO.: APL22-09C FCC ID: QWU-09C RECEIVED: Jan. 11, 2012 TESTED: Jan. 15 ~ Jan. 30, 2012 ISSUED: Feb. 02, 2012 APPLICANT: SonicWALL, Inc. ADDRESS: 2001 Logic Drive San Jose, CA 95124, USA ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C ) TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 54 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF120111C35 2 Report Format Version 4.1.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ......................................................................................... 4 1. CERTIFICATION ...................................................................................................... 5 2. SUMMARY OF TEST RESULTS ............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY .......................................................................... 6 3. GENERAL INFORMATION ...................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 7 3.2 DESCRIPTION OF TEST MODES .......................................................................... 8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ..................................................... 9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ........................ 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ....................................... 13 3.4 DESCRIPTION OF SUPPORT UNITS .................................................................. 10 4. TEST TYPES AND RESULTS ............................................................................... 14 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................ 14 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ............. 14 4.1.2 TEST INSTRUMENTS .......................................................................................... 15 4.1.3 TEST PROCEDURES ........................................................................................... 16 4.1.4 DEVIATION FROM TEST STANDARD ................................................................. 16 4.1.5 TEST SETUP ........................................................................................................ 17 4.1.6 EUT OPERATING CONDITIONS .......................................................................... 17 4.1.7 TEST RESULTS .................................................................................................... 18 4.2 CONDUCTED EMISSION MEASUREMENT ........................................................ 32 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...................................... 32 4.2.2 TEST INSTRUMENTS .......................................................................................... 32 4.2.3 TEST PROCEDURES ........................................................................................... 33 4.2.4 DEVIATION FROM TEST STANDARD ................................................................. 33 4.2.5 TEST SETUP ........................................................................................................ 34 4.2.6 EUT OPERATING CONDITIONS .......................................................................... 34 4.2.7 TEST RESULTS .................................................................................................... 35 4.3 6dB BANDWIDTH MEASUREMENT .................................................................... 39 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT .................................................. 39 4.3.2 TEST SETUP ........................................................................................................ 39 4.3.3 TEST INSTRUMENTS .......................................................................................... 39 4.3.4 TEST PROCEDURE ............................................................................................. 39 4.3.5 DEVIATION FROM TEST STANDARD ................................................................. 39 4.3.6 EUT OPERATING CONDITIONS .......................................................................... 39 4.3.7 TEST RESULTS .................................................................................................... 40 Report No.: RF120111C35 3 Report Format Version 4.1.0 4.4 CONDUCTED OUTPUT POWER ......................................................................... 41 4.4.1 LIMITS OF CONDUCTED OUTPUT POWER MEASUREMENT .......................... 41 4.4.2 TEST SETUP ........................................................................................................ 41 4.4.3 TEST INSTRUMENTS .......................................................................................... 41 4.4.4 TEST PROCEDURES ........................................................................................... 41 4.4.5 DEVIATION FROM TEST STANDARD ................................................................. 41 4.4.6 EUT OPERATING CONDITIONS .......................................................................... 41 4.4.7 TEST RESULTS .................................................................................................... 42 4.5 POWER SPECTRAL DENSITY MEASUREMENT ................................................ 43 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMEN…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST TEST MODE A 2 CONDUCTED EMISSION TEST TEST MODE B 3 RADIATED EMISSION TEST TEST MODE A 4 RADIATED EMISSION TEST TEST MODE B
