QXO-AP3000Access Point

ExtremeWireless 802.11ax Wi-Fi 6E AP3000 Indoor Access Point AP3000 Overview The AP3000 access point is an indoor model 802.11ax Wi-Fi 6E access point. The AP3000 comes with internal antennas, built-in dual-band radios, two band-locked radios, four dual-band WiFi internal antennas, and one Bluetooth Low Energy (BLE) antenna. The AP3000 can be mounted on a flat surface such as a wall, solid flat ceiling, to a junction box or a gang box, and can be installed on a suspended ceiling or a drop ceiling. The AP3000 access point has the following features: • Radios: – Two 802.11ax radios (2X2 2.4GHz, 2X2 6 GHz radio, and 2X2 5 GHz radio) – One IoT Radio (2.4 GHz) • Console port: Micro USB • Two Ethernet ports (Eth0 and Eth1) – Eth0: 2500/1000/100 Mbps auto-negotiation Ethernet port, RJ45, Power over Ethernet (PoE) at 802.3at – Eth1: 1000/100/10 Mbps, RJ45 • One multicolor status light • One reset button • One Kensington lock • One USB 2.0 type A connector • Power: PoE 802.3af and 802.3at (see Table 1 for details) • Antennas: Four Wi-Fi internal antennas and one BLE internal antenna • Temperature: 0°C to +50°C (32°F to +122°F) • Enclosure: Plastic Table 1 AP3000 Power source Figure 1 Top view of AP3000 Figure 2 AP3000 access point hardware components Table 2 Side ports on the AP3000 access point Power sourceDescription Power over Ethernet (PoE) Power is provided through the 2.5G Ethernet port of AP3000, compliant to be powered with 802.3af and 802.3at to provide full functionality. For reduced functionality, use 802.3af. External 12V DC power supply (optional; ordering part #37215- PWR 12VDC/2A, 2.5mm x 5.5mm connector) Power is provided through an external DC power supply plugged into an AC source. CalloutDescription 1Console port 2USB port 3Reset button 4Kensington security slot Status LED Activity Description The AP3000 access point has one status light on top of the chassis. The status light conveys operational states for system power, firmware updates, Ethernet and wireless interface activity, and major alarms. • Steady white: The device has successfully established a Control And Provisioning of Wireless Access Points (CAPWAP) connection to ExtremeCloud IQ and is operating normally. • Slow-blinking white: The device has a CAPWAP connection to ExtremeCloud IQ, but is operating on 802.3af power instead of 802.3at power. • Steady amber: The device is initializing, rebooting, or is running without a CAPWAP connection. • Slow-blinking amber: The device has no CAPWAP connection to ExtremeCloud IQ, and is operating on 802.3af power instead of 802.3at power. • Fast-blinking amber: The device is upgrading its IQ Engine firmware. • Dark: power is off . AP3000 Box Contents Ensure that the following items are available: All optional brackets and accessories are sold separately. For detailed installation instructions about all mounting procedures, refer to the ExtremeWireless Access Point AP3000 Installation Guide in the Extreme Networks Documentation Support site. Install the Access Point Use these instructions as guidelines for mounting and connecting the AP3000 access point easily and safely. The AP3000 comes with the AH-ACC-BKT-AX-TB mounting bracket that can be used to mount the access point on flat surfaces such as solid flat ceilings or wood walls. Install the Access Point on a Wall or a Flat Ceiling Use the AH-ACC-BKT-AX-TB mounting bracket for flat surface wall or solid ceiling installation. Pre-installation checklist: The following hardware is required for installing the AH-ACC-BKT-AX-TB accessory on a wall or a solid ceiling: • An AP3000 access point • One AH-ACC-BKT-AX-TB mounting bracket • Two M3.5 pan head wood screws • Two screw-in anchors 1 Using the AH-ACC-BKT-AX-TB mounting bracket as a template, mark and drill two mounting holes. 2 Attach the bracket to the wall using two M3.5 pan head wood screws. Use push-in anchors or screw-in anchors for drywall or plastic board installations on vertical walls. 3 Attach the access point to the bracket by aligning the red dot on the bracket and the access point. 4 Press and rotate the access point 1/8 turn clockwise until it clicks into place on the accessory. 5 Attach the Cat5e RJ45 cable to the ETH0 port on the access point. Table 3 Contents of the AP3000 Box QuantityItem 1AP3000 access point 1AP3000 Quick Reference 1AH-ACC-BKT-AX-TB mounting bracket 2Phillips pan head wood screws 2Screw-in anchors Electrical Hazard: Only qualified personnel should perform installation procedures. Note: The mounting procedures for installing the access point to non-standard ceilings are covered in the ExtremeWireless Access Point AP3000 Installation Guide. Note: The wood screws and screw-in anchors come in a separate plastic bag. Note: Screw-in anchors must be used for ceiling installations. Note: For wall installation, the ‘E’ logo must be on the left side of the access point as shown in Figure 1. Install the Access Point on a Non-Standard Ceiling Grid or a Wall For detailed non-standard ceiling grid installation or wall installation instructions, refer to the Wi-Fi 6 802.11ax Access Points Accessories Guide. The access point can be installed on a non-standard ceiling grid using the following accessories: Table 4 Non-standard ceiling grid and wall accessories information Bracket part numberDescription AH-ACC-BKT-AX-TB Mounting bracket for Prelude ceilings (15/16 in. ceiling grid), Suprafine ceilings (9/16 in. ceiling grid), and walls. The ceiling tile sides must be flat AH-ACC-BKT-AX-IL Mounting bracket for Interlude (9/16 wide T-bar with protrusion) ceilings AH-ACC-BKT-AX-SL Mounting bracket for Silhouette ceilings (ceiling grid with 1/8 in. or 1/4 in. bottom opening) ACC-BKT-AX-JB Junction box or wall mounting for indoor access points ACC-BKT-AX-BEAM Beam mounting for indoor access points AH-ACC-BKT-AX-WL Mounting bracket for direct-to-wall installations when a 1.25 inches of space is desired between the wall and the access point Note: The default bracket for w…

Text truncated - open the document above for the full version.

ExtremeWireless 802.11ax Wi-Fi 6E AP3000X Indoor Access Point AP3000X Overview The AP3000X access point is an indoor model 802.11ax Wi-Fi 6E access point with external antennas. Out of the four external antennas on the unit, two 6G external antennas come built-in attached to the unit and cannot be removed. The other two 2.4G/ 5G antennas are in the box. For information on antennas that can be purchased separately, see “External Antenna Information” . The AP3000X can be mounted on a flat surface such as a wall, solid flat ceiling, to a junction box or a gang box, and can be installed on a suspended ceiling or a drop ceiling. The AP3000X access point has the following features: • Radios: – Two 802.11ax radios (one 2X2 2.4GHz and 6 GHz radio, and one 2X2 5 GHz radio) – One IoT Radio (2.4 GHz) • Console port: Micro USB • Two Ethernet ports (Eth0 and Eth1) – Eth0: 2500/1000/100 Mbps auto-negotiation Ethernet port, RJ45, Power over Ethernet (PoE) at 802.3at – Eth1: 1000/100/10 Mbps, RJ45 • One multicolor status light • One reset button • One Kensington lock • One USB 2.0 type A connector • Power: PoE 802.3af and 802.3at (see Table 1 for details) • Antennas: two external omnidirectional 2.4G/5G dual-band antennas, two 6G non- removable antennas, and one Bluetooth Low Energy (BLE) antenna • Temperature: -20°C to +55°C (-4°F to +131°F) • Enclosure: Plastic Table 1 AP3000X Power source Figure 1 Top view of AP3000X Figure 2 AP3000X access point hardware components Table 2 Side ports on the AP3000X access point Status LED Activity Description The AP3000X access point has one status light on top of the chassis. The status light conveys operational states for system power, firmware updates, Ethernet and wireless interface activity, and major alarms. • Steady white: The device has successfully established a Control And Provisioning of Wireless Access Points (CAPWAP) connection to ExtremeCloud IQ and is operating normally. • Slow-blinking white: The device has a CAPWAP connection to ExtremeCloud IQ, but is operating on 802.3af power instead of 802.3at power. • Steady amber: The device is initializing, rebooting, or is running without a CAPWAP connection. • Slow-blinking amber: The device has no CAPWAP connection to ExtremeCloud IQ, and is operating on 802.3af power instead of 802.3at power. • Fast-blinking amber: The device is upgrading its IQ Engine firmware. • Dark: power is off . Power sourceDescription Power over Ethernet (PoE) Power is provided through the 2.5G Ethernet port of AP3000X, compliant to be powered with 802.3af and 802.3at to provide full functionality. For reduced functionality, use 802.3af. External 12V DC power supply (optional; ordering part #37215- PWR 12VDC/2A, 2.5mm x 5.5mm connector) Power is provided through an external DC power supply plugged into an AC source. CalloutDescription 1Console port 2USB port 3Reset button 4Kensington security slot AP3000X Box Contents Ensure that the following items are available: All optional brackets and accessories are sold separately. For detailed installation instructions about all mounting procedures, refer to the ExtremeWireless Access Point AP3000X Installation Guide in the Extreme Networks Documentation Support site. Install the Access Point Use these instructions as guidelines for mounting and connecting the AP3000X access point easily and safely. The AP3000X comes with the AH-ACC-BKT-AX-TB mounting bracket that can be used to mount the access point on flat surfaces such as solid flat ceilings or wood walls. Install the Access Point on a Wall or a Flat Ceiling Use the AH-ACC-BKT-AX-TB mounting bracket for flat surface wall or solid ceiling installation. Pre-installation checklist: The following hardware is required for installing the AH-ACC-BKT-AX-TB accessory on a wall or a solid ceiling: • An AP3000X access point • One AH-ACC-BKT-AX-TB mounting bracket • Two M3.5 pan head wood screws • Two screw-in anchors 1 Using the AH-ACC-BKT-AX-TB mounting bracket as a template, mark and drill two mounting holes. 2 Attach the bracket to the wall using two M3.5 pan head wood screws. Use push-in anchors or screw-in anchors for drywall or plastic board installations on vertical walls. 3 Attach the access point to the bracket by aligning the red dot on the bracket and the access point. 4 Press and rotate the access point 1/8 turn clockwise until it clicks into place on the accessory. 5 Attach the Cat5e RJ45 cable to the ETH0 port on the access point. Install the Access Point on a Non-Standard Ceiling Grid or a Wall For detailed non-standard ceiling grid installation or wall installation instructions, refer to the Wi-Fi 6 802.11ax Access Points Accessories Guide. The access point can be installed on a non-standard ceiling grid using the following accessories: Table 4 Non-standard ceiling grid and wall accessories information Table 3 Contents of the AP3000X Box QuantityItem 1AP3000X access point 1AP3000X Quick Reference 1AH-ACC-BKT-AX-TB mounting bracket 2Phillips pan head wood screws 2Screw-in anchors 22.4 GHz/5 GHz external antennas Electrical Hazard: Only qualified personnel should perform installation procedures. Note: The mounting procedures for installing the access point to non-standard ceilings are covered in the ExtremeWireless Access Point AP3000X Installation Guide. Note: The wood screws and screw-in anchors come in a separate plastic bag. Note: Screw-in anchors must be used for ceiling installations. Note: For wall installation, the ‘E’ logo must be on the left side of the access point as shown in Figure 1. Bracket part numberDescription AH-ACC-BKT-AX-TB Mounting bracket for Prelude ceilings (15/16 in. ceiling grid), Suprafine ceilings (9/16 in. ceiling grid), and walls. The ceiling tile sides must be flat Lock the Access Point after Installation Secure the access point by using the Kensington lock on the side of the access point. The security feature is used to prevent the access point from being removed from the mounting accessory. External …

Text truncated - open the document above for the full version.

Date: October 12, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: declaration of composite/rated equipment for FCC ID: QXO-AP3000 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as Class B personal computers and peripherals has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : Extreme Networks, Inc. Address : 2121 RDU Center Drive, Morrisville, North Carolina 27560, United States Signature : _________________________________ Name and Job Title. : John Ballew, Senior Regulatory Compliance Manager E-mail : [email protected] Tel. : +1-603-952-5862

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: October 12, 2022 Subject: Letter of Declaration on LPI Operation FCC ID: QXO-AP3000 Product Name: Access Point To whom it may concern: We the undersigned, hereby attest that this device complies with the following requirements of Part 15E of the FCC’s rules for the 6GHz bands: a.) An IEEE 802.11ax Access Point’s Transmit Power Envelope element has information fields for power limits for connecting client/subordinate devices. The TPE information is contained in this device signals and used by connecting client/subordinate to ensure that it knows the regulatory TX powers it is allowed to transmit at. There is a regulatory info field in this device beacon and probe response frames which details this device type when the client/subordinate associates to this device. b.) The statement acknowledging device restrictions: i. This AP is power from a wired connection, has an integrated antenna, is not battery powered, and does not have a weatherized enclosure. ii. This AP will not be allowed on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. iii. This AP is prohibited for control of or communications with unmanned aircraft systems, including drones. Sincerely, Applicant : Extreme Networks, Inc. Address : 2121 RDU Center Drive, Morrisville, North Carolina 27560, United States Signature : _________________________________ Name and Job Title. : John Ballew, Senior Regulatory Compliance Manager E-mail : [email protected] Tel. : +1-603-952-5862

Confidentiality Request Letter Date: October 12, 2022 Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: QXO-AP3000 To whom it may concern: Short-term Confidentiality pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we are request the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180 days after the grant date. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description / Software Security For U-NII Devices It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant : Extreme Networks, Inc. Address : 2121 RDU Center Drive, Morrisville, North Carolina 27560, United States Signature : _________________________________ Name and Job Title. : John Ballew, Senior Regulatory Compliance Manager E-mail : [email protected] Tel. : +1-603-952-5862

Date: October 12, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Professional Installation Attestation FCC ID: QXO-AP3000 Product Name: Access Point To whom it may concern: We, the undersigned, hereby declares that the device will be distributed through a controlled distribution channels. This device is not intended for sale to the general public. Professional training and support is provided as part of the Authorized Partner programs. Applicant : Extreme Networks, Inc. Address : 2121 RDU Center Drive, Morrisville, North Carolina 27560, United States Signature : ________________________________ Name and Job Title. : John Ballew, Senior Regulatory Compliance Manager E-mail : [email protected] Tel. : +1-603-952-5862

Letter of Authorization Date: October 12, 2022 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: QXO-AP3000 Product Name: Access Point To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Name : Leo Huang Job Title : Director e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Extreme Networks, Inc. Address : 2121 RDU Center Drive, Morrisville, North Carolina 27560, United States Signature : _______________________________ Name and Job Title. : John Ballew, Senior Regulatory Compliance Manager E-mail : [email protected] Tel. : +1-603-952-5862

PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 1 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 External PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 2 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 3 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 4 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 5 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 6 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 20 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 Antenna 1 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 21 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 22 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 Antenna 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 23 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 24 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 Antenna 3 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 25 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 26 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 Antenna 4 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 27 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 28 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 29 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 Antenna 5 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 30 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 31 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 Internal PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 32 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 33 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 34 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 35 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 36 of 63 Report Template No.: SE Ver 1.0_EP Issued Date : Sep. 20, 2022 Report Version : 2

2121 RDU Center Drive Morrisville, NC 27560, USA 130954-00r01 P/N: AP3000-WW MAC: XXXXXXXXXXXX IP: XXX:XXX:XX:XX Rev.XX MADE IN TAIWAN P/N: AP3000X-WW S/N: HA02YYWWY-10001 S/N: HA01YYWWY-10001 MAC: XXXXXXXXXXXX IP: XXX:XXX:XX:XX Rev.XX MADE IN TAIWAN 2121 RDU Center Drive Morrisville, NC 27560, USA MADE IN TAIWAN (台灣製造/台湾制造) Extreme Networks, Inc. (製造商/制造商) INPUT RATING(輸入/输入) 54 Vdc 0.6A 12 Vdc 2A MADE IN TAIWAN (台灣製造/台湾制造) Extreme Networks, Inc. (製造商/制造商) INPUT RATING(輸入/输入) 54 Vdc 0.6A 12 Vdc 2A MODEL (型號/型号) : AP3000 產品名稱 / 产品名称 : Access Point (無線接入點/无线接入点) MODEL (型號/型号) : AP3000 產品名稱 / 产品名称 : Access Point (無線接入點/无线接入点) 130955-00r01 IC: 4141B-AP3000 HVIN : AP3000r1 ICES-003 (B) / NMB-003 (B) D33194 RoHS R-NZ 272536 CCXXxxYYyyyZzW RXXX-000001 D33194 RoHS R-NZ 272536 CCXXxxYYyyyZzW RXXX-000001 IC: 4141B-AP3000 HVIN : AP3000Xr1 ICES-003 (B) / NMB-003 (B) FCC ID: QXO-AP3000 (1) Operation shall be limited to indoor use only. (2) Operation on oil platforms, cars, trains, boats and aircraft shall be prohibited except for on large aircraft flying above 10,000 ft. (1) Operation shall be limited to indoor use only. (2) Operation on oil platforms, cars, trains, boats and aircraft shall be prohibited except for on large aircraft flying above 10,000 ft. FCC ID: QXO-AP3000 PN : AP3000X-WW PN : AP3000-WW QR Code rule : PROG#:HA01YYWWY-10001;DESCRIPTION:AP3000-WW; PART#:AP3000-WW;MAC:241FBD61A800; QR Code rule : PROG#:HA02YYWWY-10001;DESCRIPTION:AP3000X-WW; PART#:AP3000X-WW;MAC:241FBD61A800; - Dimension: 98*98 mm - Material: #50 Silver Polyester Label - Coa�ng: #25 Ma� film - Outside handle: with adhesive backing - Color: Black ink - Tolerance: +/-0.1mm - 面材型號 Code : HTLSMI50 - Dimension: 65*19 mm - Material: #50 White Polyester Label - Outside handle: with adhesive backing - Tolerance: +/-0.1mm - 面材型號 Code : POB8 Agency label - 6710A8543000 SKU label - 6710A4243030 2022/09/20 6710A8543000 / 6710A4243030 Aril Abbie Model : AP3000/AP3000X Barcode for reference only and will be printed by factory Scale：100 %

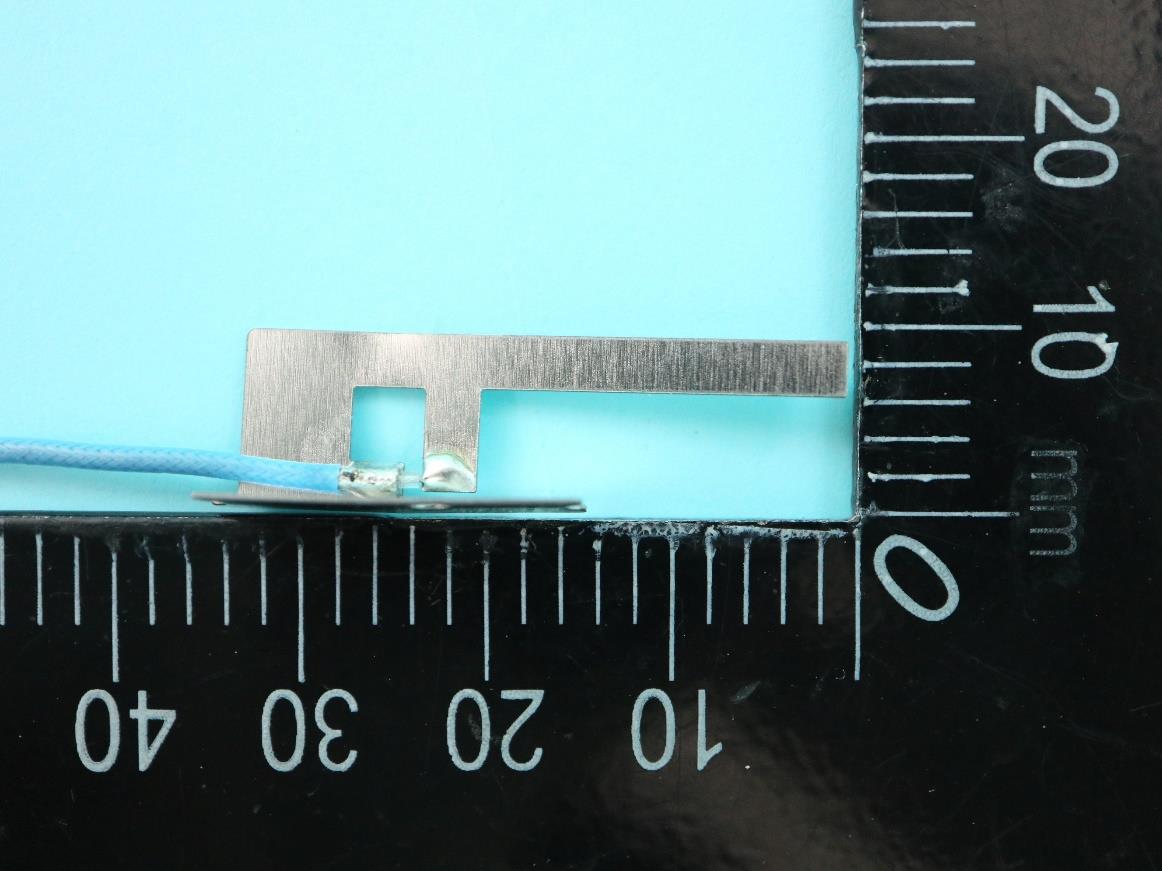

PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 7 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 Ant.8 6E Ant.9 6E Ant.4 5G+2.4G Ant.3 5G+2.4G Ant.5 BT+802.15.4 External PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 8 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 9 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 10 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 11 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 12 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 13 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 14 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 15 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 16 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 17 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 18 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 19 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 20 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 Antenna 3, 4 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 21 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 Antenna 8, 9 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 22 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 Antenna 10 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 23 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 24 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 Internal PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 30 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 31 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 32 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 33 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 34 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 35 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 36 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 37 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 38 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 39 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 40 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 41 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 Ant.5 BT+802.15.4 Ant.1 5G+2.4G Ant.2 5G+2.4G Ant.4 6E Ant.3 6E PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 42 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 Antenna 1 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 43 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 44 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 45 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 Antenna 2 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 46 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 47 of 56 Report Template No.: SE Ver 1.0_EP Issued Date : Jan. 06, 2023 Report Version : 03 Antenna 3 PHOTOGRAPHS OF EUT EP232478 Sporton International Inc. Page No. : 48 of 56 Report Te…
