QXO-AP305CNBWireless Access Point

AP305CandAP305CXHardwareUser Guide Read about and view specifications and compliance information for the AP305C and AP305CX in this topic. Install the AP305C and AP305CX using this topic. The AP305C andAP305CX are high-performance 802.11axdual band access points. Bothare designedfor indoor high-density environments that require HD video streaming andlarge file transfers. The AP305CX has external antennas (soldseparately), andanextended temperature range for industrial envir- onments. These devices support IEEE 802.11axOrthogonal Frequency-DivisionMultiple Access (OFDMA) multi-user access. For regulatoryand compliance information, see "RegulatoryCompliance Statements". SafetyGuidelines Safety Guidelines The safetyinformationinthis section applies to AP305C and AP305CX devices. The following safety icons are usedinthese guidelines to identify the type of precaution: This iconindicates a general caution. Failure to comply withacaution notificationcanres- ult indamage to equipment. This iconindicates anelectrical caution. Failure to comply withanelectrical notification canresult in serious injury or death, and extensive damage to equipment. This iconindicates a laser caution. Failure to comply witha laser cautioncan result inser- ious injury. The following table lists the safety precautions you should follow wheninstalling your AP305C andAP305CX devices. Extreme Networks devices must be installed by aprofessional installer who is certified to install these types of devices and to ensure that theyare properly groundedand meet applicable local and national electrical codes. These devices are intendedfor indoor use only. Do not install the device in an environment where the operating ambient temperature might exceedthe recommendedranges. Warning : This is aClass A product. Inadomestic environment this product may cause radio interference in which case the user maybe requiredto take adequate measures. AP305C and AP305CX Hardware Guide1 For products available inthe USA/Canadamarket, for the 2.4GHz band, only channels 1-11 canbe operated. Selectionof other channels is not possible. Changes or modifications made to this device that are not expressly approvedby the partyresponsible for compliance couldvoidthe user's authorityto operate the equip- ment. Use onlyattachments and accessories specified by Extreme Networks. These devices are not intendedfor use by persons (including children) with reduced phys- ical, sensory, or mental capabilities, or with lack of experience of knowledge unless they are given supervisionor instructionconcerning use of the devices byaperson who is responsible for their safety. Children should be supervised to ensure that they do not play with the devices. Electrostatic discharge (ESD) candamage equipment andimpair electrical circuitry. ESD damage occurs when electronic components are improperly handledand canresult in complete or intermittent failures. Be sure to followESD-prevention procedures whenhand- ling electronic components andequipment. During operation, the surfaces of the AP305C and AP305CX canbecome hot. Use caution whenhandling. To meet federal radiationexposure requirements, these devices should be installed at a minimum distance of 8" (20cm) from people or animals. InstalltheAP You canmount the AP305C andAP305CX onaflat surface or wall, or on the rails of a standard droppedceiling grid. There is also anaccessory mounting bracket that allows you to install the device in Armstrong-style dropped ceilings (orderedseparately). The following sections describe howto install your AP305C andAP305CX devices and connect them to the net- work. Shipping CartonContents The AP305C andAP305CX shipping cartoncontains the following items: AP305C or AP305CX chassis Mounting bracket ReadMe card Install the AP on aCeiling Track The AP305C andAP305CX ship withamounting bracket that lets you easily install them onthe rail of a standard droppedceiling grid. The following illustrationshows howto attach the bracket to the ceiling rail, and theninstall the AP on the bracket. This illustration shows anAP305C but the procedures are the same for bothmodels. AP305C and AP305CX Hardware Guide2 Once the bracket is secure, install the AP using the following steps: AP305C and AP305CX Hardware Guide3 1. Alignthe reddot onthe bottom of the AP withthe red dot onthe bracket. 2. Lift the AP straight up andkeepthe reddots aligneduntil the bracket is seated inthe round depression on the bottom of the device. 3. Rotate the AP clockwise until it clicks into place onthe bracket. Mount the AP on aWall Use the holes in the bracket as a template to mark the wall. Drill holes in the wall and attach the bracket to the wall using wall screws and wall anchors if necessary. Attach the AP to the bracket in the same manner as shown in the previous section. Install external antennas on AP305CX devices. Order antennas from Extreme Networks (AH-ACC-ANT-KT). Lock the AP You can secure the AP using a Kensington ® lock in the lock slot on the side of the device, or you can use a secur-ity bracket and a crosshead screw or a security screw. Security brackets and screws can be ordered separately from Extreme Networks (not available in Brazil). Extreme Networks recommends a variety of Kensington locks. For more information, contact your sales rep- resentative. Connect the AP to the Network Follow these steps to connect your AP305C or AP305CX to a standard AC wall socket and to the network. 1. Plug the AC power supply into the 12Vport onthe device andinto a standard wall socket. 2. Connect an Ethernet cable to the RJ45port and to amodem or other network device. 3. After the AP receives power, it automatically tries to get network settings andcontact HiveManager. This process takes about five minutes. Whenyou see the AP listed on the Devices page inthe Monitor sectionof the HiveManager GUI, the initial setupis complete and you canbeginmanaging the AP with HiveManager. HardwareComponents Status Light The status light conveys…

Text truncated - open the document above for the full version.

RF_160, Issue 04 Extreme Networks, Inc Declaration of Authorization We Name: <Extreme Networks, Inc> Address: 2121 RDU Center Drive Morrisville North Carolina 27560 United States City: Morrisville. Country: United States. Declare that: Name Representative of agent: ...Rachel Hua.......... (1) Agent Company name:  DEKRA Testing and Certification (Suzhou) Co., Ltd. . Address: No.99 Hongye Road Industrial Park, Suzhou, China.. City: Suzhou.. Country China. is authorized to apply for Certification of the following product(s): Product description:  Wireless Access Point . Type designation:  AP305C . Trademark:  Extreme Networks . Validity/ expiry date on our behalf. Date: 7/5/2022.. City:  Morrisville .. Name:  John Ballew .. (2) Function: ......Senior Regulatory Compliance Manager......................... Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Extreme Networks, Inc. Address: 2121 RDU Center Drive Morrisville North Carolina 27560 United States City: Morrisville Country: United States To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: QXO-AP305CNB Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: 7/5/2022 Name and signature of applicant: John Ballew Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

Page: 1 of 3 (1) EUT Photo(AP305C) (2) EUT Photo(AP305C) Page: 2 of 3 (3) EUT Photo(AP305C) (4) EUT Photo(AP305C) Page: 3 of 3 (5) EUT Photo(AP305C) (6) EUT Photo(AP305C)

white PET AP305CLabel/Extreme 1 1 2021.06.01 1 1. MATERIAL: WHITE MATTE PET, T=0.1 ADHESIVE: ACRYLIC 2. FINISH: FINISH: ,T=0.025 3. COLOR: ORIGINAL MATERIAL COLOR : BLACK, 4. UL APPROVED, PGJI2,PRINTED,. 5. 6.TEMPERATURE RESISTANT= 120 ̊ C 7.:30mm±0.2mm,30~120mm±0.3mm,120~315mm±0.5mm,315±0.8mm 8. ,3±0.5mm, 3±0.3mm 9. 10.TEST REQUIREMENTS NOTE: TEST ITEMTEST SPECTEST CONDITIONCRITERIA 1 附著力測試 ISO Class.: 1 ASTM Class.: 4 B ASTM D3359-02/ ISO 2409:2007 Detach ment of small flake s of the co ating at the interse ct ions of the cu ts. A cr oss-cu t area not si gnifica ntly greater than 5% is affect ed. CONSOLE CONSOLE CONSOLE 510210 Rev. A -FCC FCC ID: QXO-AP305CNB -CAN IC: 4141B-AP305C ICES-3 (B) / NMB-3 (B) -WR See manual before use Extreme Networks, Inc. 2121 RDU Center Drive, Morrisville, NC 27560 USA Patents Pending 510210 Rev. A Patents: www.extremenetworks.com/patents This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 201-190727 5GHz R-C-EXR-AP305C CCAH19XXXXXXXXX D33194 RoHS 37-57V Complies with IMDA Standards DA106976 65933/SDPPI/2020 6677 RCPEXAP20-0140 CCAH19LP9410T4 ESD-2202147C 03083-20-02482 CMIIT ID: 2020AJ6616 C-26272 Model/型号/型號: AP305C Product/产品名称/產品名稱: Wireless Access Point/ 无线接入点/無線接入點 Made in China/中国制造/ 中國製造 C US

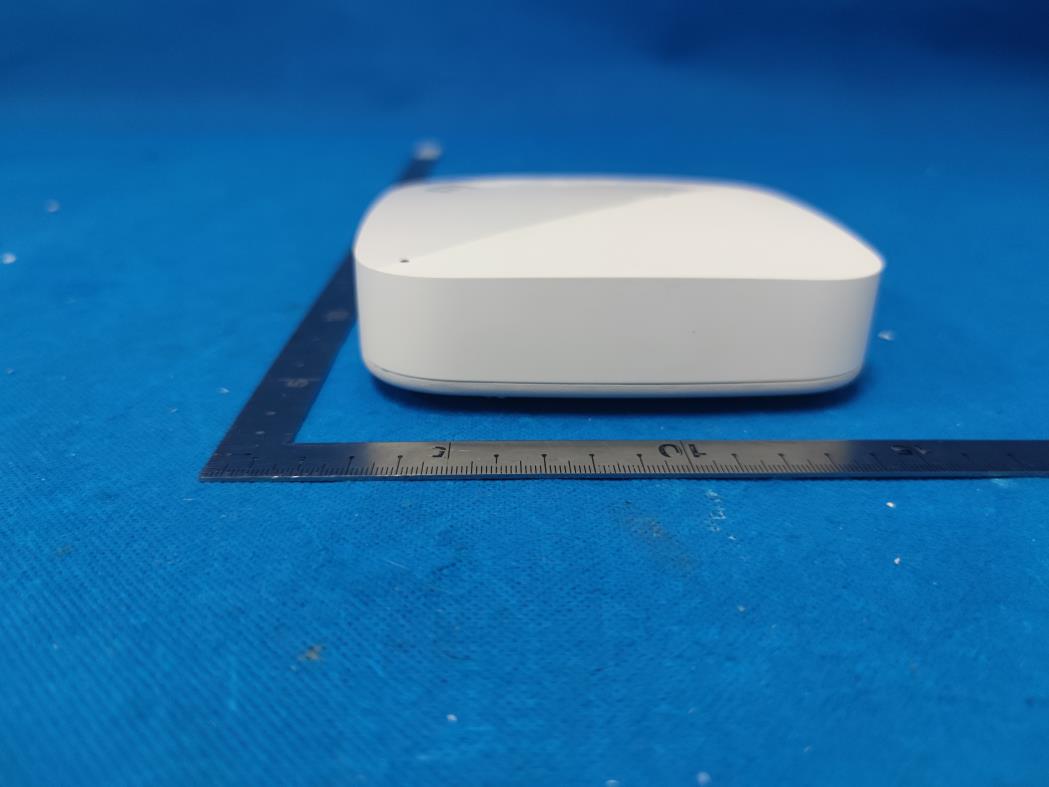

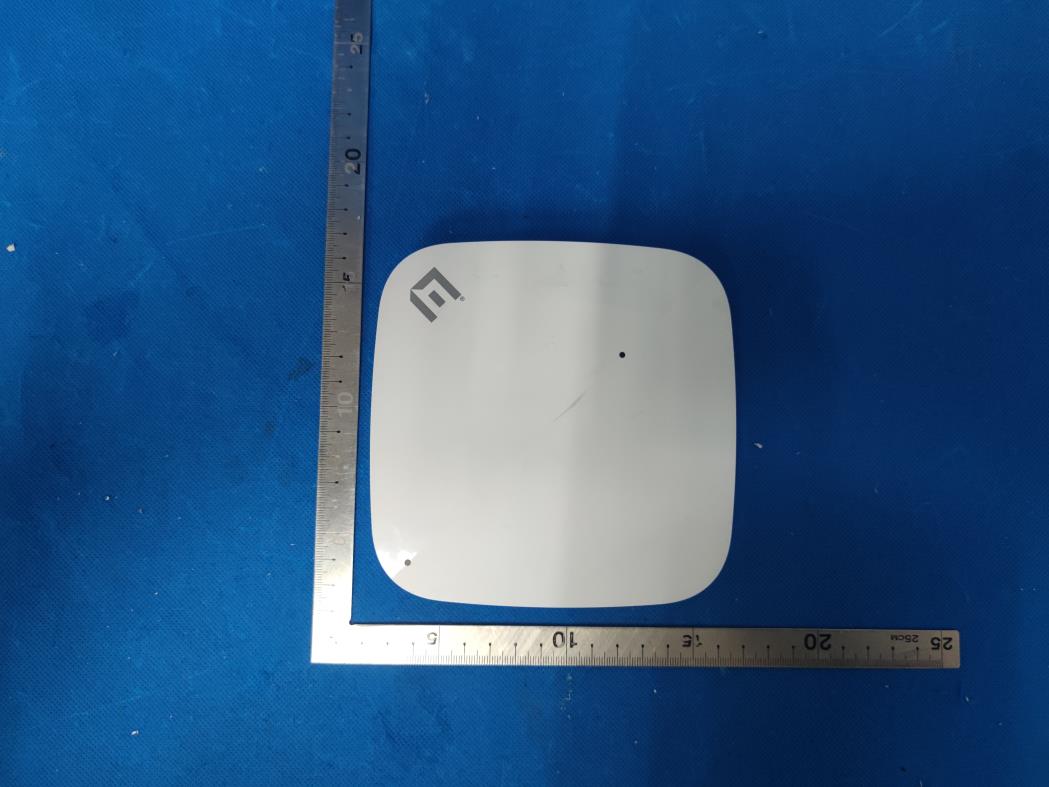

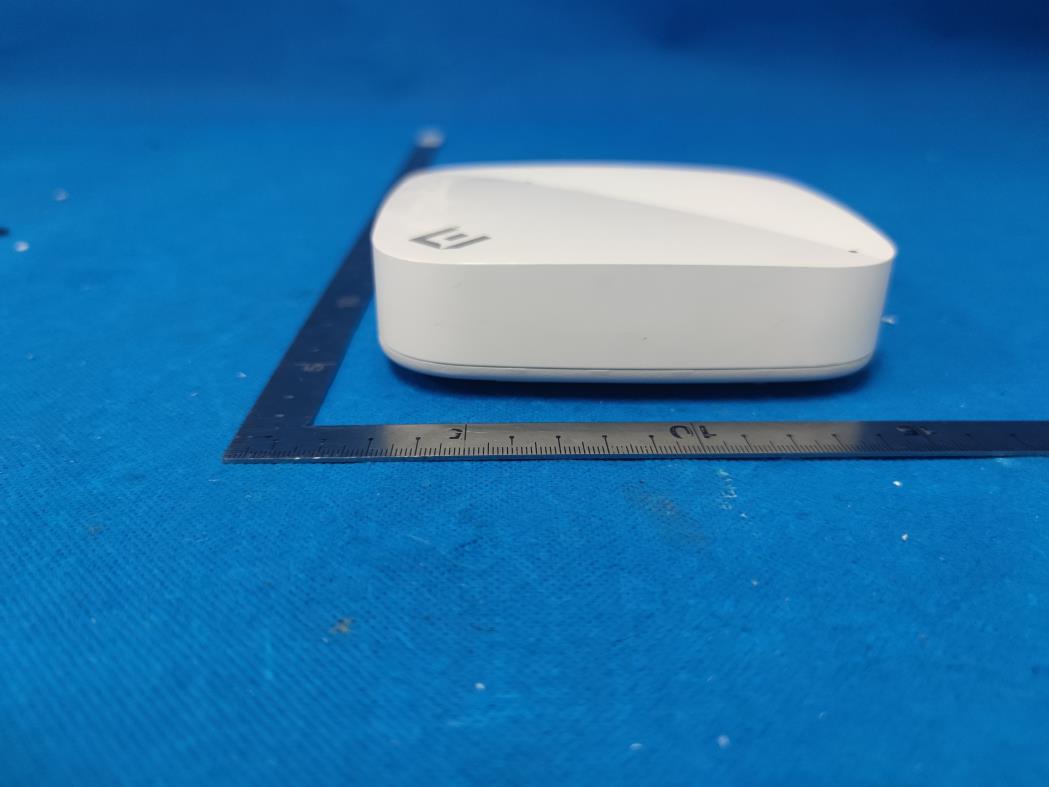

(1) EUT Photo(AP305C) (2) EUT Photo(AP305C) (3) EUT Photo(AP305C) (4) EUT Photo(AP305C) (5) EUT Photo(AP305C) (6) EUT Photo(AP305C) (7) EUT Photo(AP305C) (8) EUT Photo(AP305C) (9) EUT Photo(AP305C)

RF Exposure Evaluation Declaration Product Name : Wireless Access Point Model No. : AP305C FCC ID : QXO-AP305CNB Applicant : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Date of Receipt : Apr. 11, 2022 Test Date : Apr. 12, 2022 ~ Apr. 27, 2022 Issued Date : May. 19, 2022 Report No. : 2230990R-RF-US-P20V02 NOTE: The EUT used in this report and the 1962097R-RF-US-P20V02report are the same model. The difference is that the EUT used this time removes the BLE chip. The output power test results are not worse than 1962097R-RF-US-P20V02, so the test data in this report refer to the data of 1962097R-RF-US-P20V02. The test results presented in this report relate only to the object tested. The measurement result is considered in conformance with the requirement if it is within the prescribed limit, It is not necessary to account the uncertainty associated with the measurement result, unless the specification, standard or customer have special requirements This report shall not be reproduced, except in full, without the written approval of the Issuing CB Testing Laboratory This report is not used for social proof in China (or Mainland China) market. Report No: 2230990R-RF-US-P20V02 Page: 2 of 7 Te s t R e p o r t C e r t i f i c a t i o n Issued Date: May. 19, 2022 Report No.: 2230990R-RF-US-P20V02 Product Name : Wireless Access Point Applicant : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Manufacturer : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Model No. : AP305C Brand : Extreme Networks FCC ID : QXO-AP305CNB EUT Voltage : DC37-57V Applicable Standard : KDB 447498D01V06 FCC Part1.1310 Test Result : Complied Performed Location : DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Designation Number: CN1199 Documented By : (Project Engineer: Tim Cao) Approved By : ( Engineer Supervisor: Jack Zhang ) Report No: 2230990R-RF-US-P20V02 Page: 3 of 7 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 2230990R-RF-US-P20V02 Page: 4 of 7 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : Wireless Access Point Test Item : RF Exposure Evaluation Test Site : AC-6 Antenna Information: 2.4G: AP305C: Antenna Model No. N/A Antenna Manufacturer N/A Antenna Delivery 1*TX+1*RX 2*TX+2*RX 3*TX+3*RX Antenna Technology SISO MIMO Basic methodology Sectorized antenna systems Cross-polarized antennas Unequal antenna gains, with equal transmit powers Spatial Multiplexing Cyclic Delay Diversity (CDD) Antenna Type PIFA Antenna Gain Antenna Technology Ant Gain(eth1) (dBi) SISO Ant1 2.67 Ant2 2.37 CDD 2.67dBi for Power; 5.67dBi for PSD Beam-forming 5.67dBi for Power; 5.67dBi for PSD Report No: 2230990R-RF-US-P20V02 Page: 5 of 7 5G: AP305C: Antenna Model No. N/A Antenna Manufacturer N/A Antenna Delivery 1*TX+1*RX 2*TX+2*RX 3*TX+3*RX Antenna Technology SISO MIMO Basic methodology Sectorized antenna systems Cross-polarized antennas Unequal antenna gains, with equal transmit powers Spatial Multiplexing Cyclic Delay Diversity (CDD) Antenna Type PIFA Antenna Gain Antenna Technology Ant Gain(eth1) (dBi) SISO Ant1 3.97 Ant2 3.45 CDD 3.97dBi for Power; 6.97dBi for PSD Beam-forming 6.97dBi for Power; 6.97dBi for PSD Antenna Technology Ant Gain(eth2) (dBi) SISO Ant3 3.75 Ant4 2.95 CDD 3.75dBi for Power; 6.75dBi for PSD Beam-forming 6.75dBi for Power; 6.75dBi for PSD Report No: 2230990R-RF-US-P20V02 Page: 6 of 7 Power Density Standalone modes: AP305C: Test Mode Frequency Band (MHz) Maximum EIRP (dBm) Power Density at R = 20cm (mW/cm2) Power Density Limit at R = 20 cm (mW/cm2) 802.11b/g/n/ac/ax 2400 ~ 2483.5 28.23 0.132 1.0 802.11a/n/ac/ax(Eth1) 5150 ~ 5350 29.40 0.173 1.0 802.11a/n/ac/ax(Eth2) 5150 ~ 5350 5470 ~ 5850 29.86 0.193 1.0 Report No: 2230990R-RF-US-P20V02 Page: 7 of 7 Simultaneous transmission: AP305C: Wireless Configure Frequency Range (MHz) Maximum EIRP (dBm) Limit of Power Density S(mW/cm2) Power Density S at R = 20 cm (mW/cm2) Rate Limit WIFI(Eth1) 5150 ~ 5350 29.40 1.0 0.173 0.366 1 WIFI(Eth2) 5470 ~ 5850 29.86 1.0 0.193 The EUT support simultaneously transmit with WIFI 2.4G+5G, WIFI 5G+WIFI 5G. The worst combination should be shown in the report. The simultaneously safety distance is 20cm for installed for Wireless Access Point without any other radio equipment. The End

Dynamic Frequency Selection (DFS) Test Report FCC Part15 Subpart E Product Name : Wireless Access Point Model No. : AP305C FCC ID : QXO-AP305CNB Applicant : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Date of Receipt : Apr. 11, 2022 Test Date : Apr. 12, 2022~ Apr. 27, 2022 Issued Date : May. 19, 2022 Report No. : 2230990R-DFS-US-P08V01 Report Version : V1.1 NOTE: The EUT and 1962097R-DFS-US-P08V01 reports used in this report are the same model. The difference is that the EUT used this time removes the BLE chip. Therefore, this version of the report is based on the 1962097R-DFS-US-P08V01 update report. The test results presented in this report relate only to the object tested. The measurement result is considered in conformance with the requirement if it is within the prescribed limit, It is not necessary to account the uncertainty associated with the measurement result, unless the specification, standard or customer have special requirements This report shall not be reproduced, except in full, without the written approval of the Issuing CB Testing Laboratory This report is not used for social proof in China (or Mainland China) market. 2230990R-DFS-US-P08V01 Page: 2 of 71 DFS Test Report Issued Date: May. 19, 2022 Report No. : 2230990R-DFS-US-P08V01 Product Name : Wireless Access Point Applicant : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Manufacturer : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Model No. : AP305C FCC ID : QXO-AP305CNB EUT Voltage : DC37-57V Brand Name : Extreme Networks Applicable Standard : RSS-Gen Issue 5; RSS-247 Issue 2; ANSI C63.10:2013; Test Result : Pass Performed Location : DEKRA Testing & Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098; FCC Designation Number: CN1199; ISED Lab Code: 4075B Operation Mode (5250~5350MHz 5470~5725MHz) : Master device Slaver device with radar detection function Slaver device without radar detection function Documented By : (Project Engineer: Tim Cao) Approved By : (Engineer Supervisor: Jack Zhang ) 2230990R-DFS-US-P08V01 Page: 3 of 71 TABLE OF CONTENTS Items Page 1. General Information .................................................................................................... 4 2. Test Equipment ........................................................................................................... 7 3. DFS Detection Threshold and Response Requirement .............................................. 8 4. Radar Wave Parameters............................................................................................. 9 5. Test Setup ................................................................................................................. 13 6. Radar Waveform Calibration ..................................................................................... 14 7. Channel Loading ....................................................................................................... 26 8. Test Procedures ........................................................................................................ 29 8.1. U-NII Detection Bandwidth .................................................................................... 29 8.2. Channel Availability Check .................................................................................... 29 8.3. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period ............................................................................................. 32 8.4. Statistical Performance Check .............................................................................. 33 9. Test Result ................................................................................................................ 35 9.1. Detection Bandwidth ............................................................................................. 35 9.2. Channel Available Check ...................................................................................... 41 9.2.1. Test result with a radar burst at the beginning of the Channel Availability Check Time .............................................................................................................................. 42 9.2.2. Test result with radar burst at the end of the Channel Availability Check Time ..... 44 9.3. In-Service Monitoring for Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period ............................................................................................. 46 9.3.1. Channel Move Time and Closing Transmission Time ........................................... 46 9.3.2. Non-Occupancy Period ......................................................................................... 48 9.4. Statistical Performance Check .............................................................................. 50 2230990R-DFS-US-P08V01 Page: 4 of 71 1. General Information Product Name Wireless Access Point Model No. AP305C EUT Voltage DC37-57V Type of Modulation OFDM-BPSK, QPSK, 16QAM, 64QAM, 128QAM, 256QAM, 1024QAM Data Rate 802.11a: 6/9/12/18/24/36/48/54Mbps 802.11n: up to 300Mbps 802.11ac: up to 866.6Mbps 802.11ax: up to 1.2Gbps Channel Control Auto Transmit modes 802.11a 802.11n(20MHz) 802.11n(40MHz) 802.11ac(20MHz) 802.11ac(40MHz) 802.11ac(80MHz) 802.11ax(20MHz) 802.11ax(40MHz) 802.11ax(80MHz) 802.11ax(160MHz) Support Bands 5150MHz~5250MHz Outdoor AP Indoor AP Fixed point-to-point AP Mobile and Portable Client 5250MHz~5350MHz 5470MHz~5725MHz （For FCC） With TDWR Channels Without TDWR Channels 5470MHz~5600MHz, 5650MHz~5725MHz(For ISED) 5725MHz~5850MHz Note1: The device contains two 5GHz modules, and called eth1 and eth2, eth2 can work separately and eth1 can only transmit with eth2 which at 5150~5350MHz and eth2 work at 5470~5850MHz. Note2: The device contains two 5GHz modules,…

Text truncated - open the document above for the full version.

FCC Test Report FCC Part15 Subpart E Product Name : Wireless Access Point Model No. : AP305C FCC ID : QXO-AP305CNB Applicant : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Date of Receipt : Apr. 11, 2022 Test Date : Apr. 12, 2022 ~ Apr. 27, 2022 Issued Date : May. 19, 2022 Report No. : 2230990R-RF-US-P09V02 Report Version : V1.1 NOTE: The EUT used in this report and the 1962097R-RF-US-P09V02 report are the same model. The difference is that the EUT used this time removes the BLE chip. We evaluated the worst channel test for power output and radiated emission, and the test results are not worse than 1962097R-RF-US-P09V02, so the test data in this report refers to the data of 1962097R-RF-US-P09V02. The test results presented in this report relate only to the object tested. The measurement result is considered in conformance with the requirement if it is within the prescribed limit, It is not necessary to account the uncertainty associated with the measurement result, unless the specification, standard or customer have special requirements This report shall not be reproduced, except in full, without the written approval of the Issuing CB Testing Laboratory This report is not used for social proof in China (or Mainland China) market. Report No: 2230990R-RF-US-P09V02 Page: 2 of 1198 Te s t R e p o r t C e r t i f i c a t i o n Issued Date : May. 19, 2022 Report No. : 2230990R-RF-US-P09V02 Product Name : Wireless Access Point Applicant : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Manufacturer : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Model No. : AP305C Brand : Extreme Networks FCC ID : QXO-AP305CNB EUT Voltage : DC37-57V Test Voltage : AC 120V/60Hz Applicable Standard : FCC CFR Title 47 Part 15 Subpart E ANSI C63.10:2013; 789033 D02 General UNII Test Procedures New Rules v02r01 KDB 662911 D01 Multiple Transmitter Output v02r01 Test Result : Complied Performed Location : DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou,215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Designation Number: CN1199; Documented By : (Project Engineer: Tim Cao) Approved By : (Engineer Supervisor: Jack Zhang ) Report No: 2230990R-RF-US-P09V02 Page: 3 of 1198 TABLE OF CONTENTS Description Page 1. General Information ....................................................................................................... 7 1.1. EUT Description ......................................................................................................... 7 1.2. Antenna information ................................................................................................... 8 1.3. Working Frequency of Each Channel: ........................................................................ 9 1.4. Mode of Operation.................................................................................................... 10 1.5. Tested System Details .............................................................................................. 11 1.6. Configuration of Tested System................................................................................ 12 1.7. EUT Exercise Software ............................................................................................ 13 2. Technical Test .............................................................................................................. 14 2.1. Summary of Test Result ........................................................................................... 14 2.2. Test Frequency configuration: .................................................................................. 14 2.3. Power vs Data Rate ................................................................................................. 15 2.4. Duty Cycle ................................................................................................................ 18 2.5. Test Environment...................................................................................................... 23 2.6. Uncertainty ............................................................................................................... 23 3. Conducted Emission .................................................................................................... 24 3.1. Test Equipment ........................................................................................................ 24 3.2. Test Setup ................................................................................................................ 24 3.3. Limit.......................................................................................................................... 25 3.4. Test Procedure ......................................................................................................... 25 3.5. Test Result ............................................................................................................... 26 4. Radiated Emission ....................................................................................................... 28 4.1. Test Equipment ........................................................................................................ 28 4.2. Test Setup ................................................................................................................ 29 4.3. Limit.......................................................................................................................... 30 4.4. Test Procedure ......................................................................................................... 33 4.5. EUT test Axis definition ............................................................................................ 34 Report No: 2230990R-RF-US-P09V02 Page: 4 of 1198 4.6. Test Result ............................................................................................................... 35 5. Emission band…

Text truncated - open the document above for the full version.

Report No: 2230990R-RF-US-P09V02 Page: 151 of 1198 Profile: 1962097R Page No.: 301 Engineer: Simon Site: AC5 Time: 2019/07/17 - 06:12 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_00167055(1-18GHz) Polarity: Horizontal EUT: Wireless Access Point Power: AC 120V/60Hz Note: Mode 7:Transmit at 5240MHz by 802.11ax（20MHz） ANT 1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 10480.000 44.139 31.867 -29.861 74.000 12.272 PK 2 * 15720.000 48.538 30.501 -25.462 74.000 18.038 PK Report No: 2230990R-RF-US-P09V02 Page: 152 of 1198 Profile: 1962097R Page No.: 302 Engineer: Simon Site: AC5 Time: 2019/07/17 - 06:12 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_00167055(1-18GHz) Polarity: Vertical EUT: Wireless Access Point Power: AC 120V/60Hz Note: Mode 7:Transmit at 5240MHz by 802.11ax（20MHz） ANT 1 No Mark Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 1 10480.000 44.242 31.970 -29.758 74.000 12.272 PK 2 * 15720.000 49.427 31.390 -24.573 74.000 18.038 PK Report No: 2230990R-RF-US-P09V02 Page: 153 of 1198 Profile: 1962097R Page No.: 303 Engineer: Simon Site: AC5 Time: 2019/07/17 - 06:12 Limit: FCC_Part15.209_R…

Text truncated - open the document above for the full version.
