QXO-AP3715E802.11abgn Module

Enterasys Networks, Inc. PRODUCT DESCRIPTION The WS-AP3715e is a 2.4/5G dual band concurrent 3T3R PCIe module base on AR9590 commercial grade solution. PRODUCT SPECIFICATION RF Specification Radio 0 Support 2.4GHz Frequency Band 802.11b/g/n U.S., Europe and Japan product covering 2.400 to 2.484 GHz Data rate 450 Mbps per radio Receive Sensitivity (Typical) (Combined) 802.11n (2.4GHz_HT20) -90dBm @ MCS0/8/16 -73dBm @ MCS7/15/23 802.11n (2.4GHz_HT40) -88dBm @ MCS0/8/16 -70dBm @ MCS7/15/23 802.11g -92dBm @ 6Mbps -76dBm @ 54Mbps 802.11b -93dBm @ 1Mbps -90dBm @ 11Mbps Radio 1 Support 5GHz Frequency Band 802.11a/n 5.150 - 5.250 GHz, 5.725 - 5.850 GHz Data rate 450 Mbps per radio Receive Sensitivity (Typical) 802.11n (5GHz_HT20) -88dBm @ MCS0/8/16 -76dBm @ MCS7/15/23 802.11n (5GHz_HT40) -86dBm @ MCS0/8/16 -72dBm @ MCS7/15/23 802.11a -90dBm @ 6Mbps -77dBm @ 54Mbps Enterasys Networks, Inc. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. Enterasys Networks, Inc. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: QXO-AP3715E”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Enterasys Networks, Inc. Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. This device is intended only for OEM integrators under the following conditions: …

Text truncated - open the document above for the full version.

FCC ID: QXO-AP3715E Report No.: RF130424C30 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch May 21, 2013 Dear Application Examiner, Enterasys Networks, Inc., FCC ID: QXO-AP3715E would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9590B. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is AR9590B. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: QXO-AP3715E Report No.: RF130424C30 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Robert Huang Senior Engineer Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

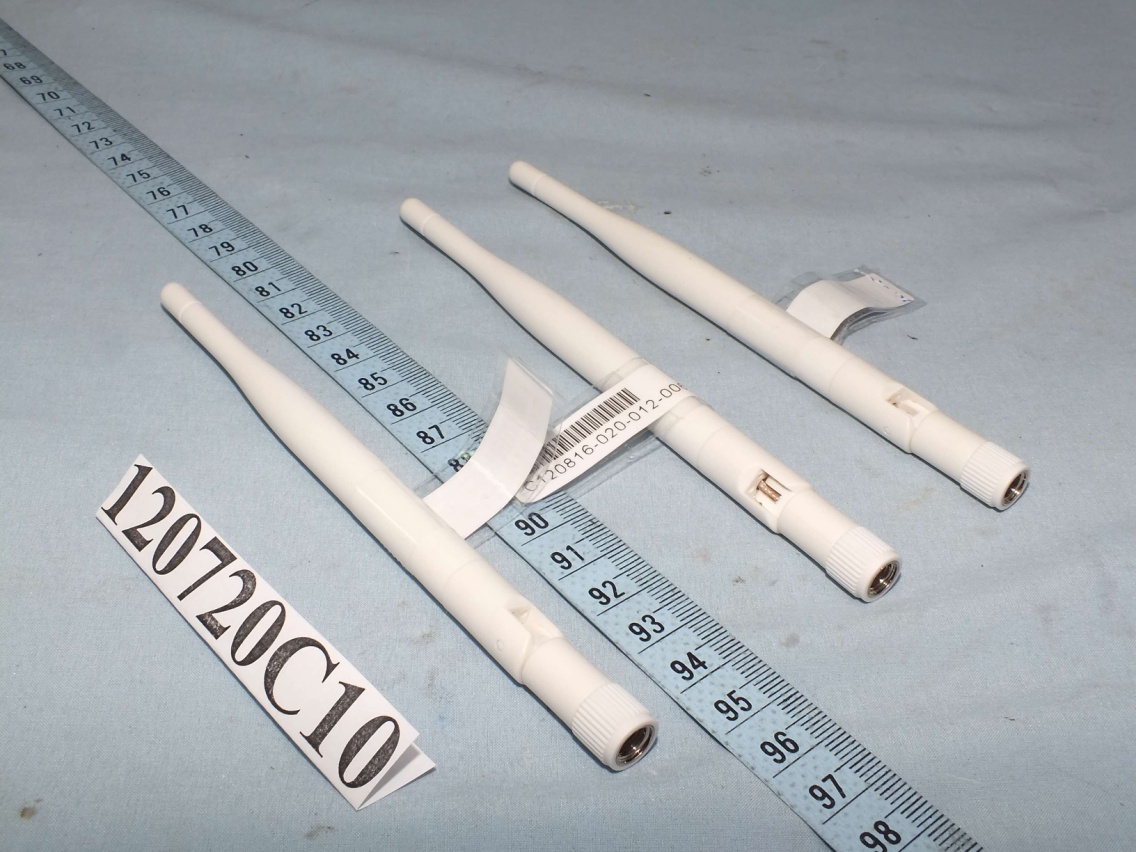

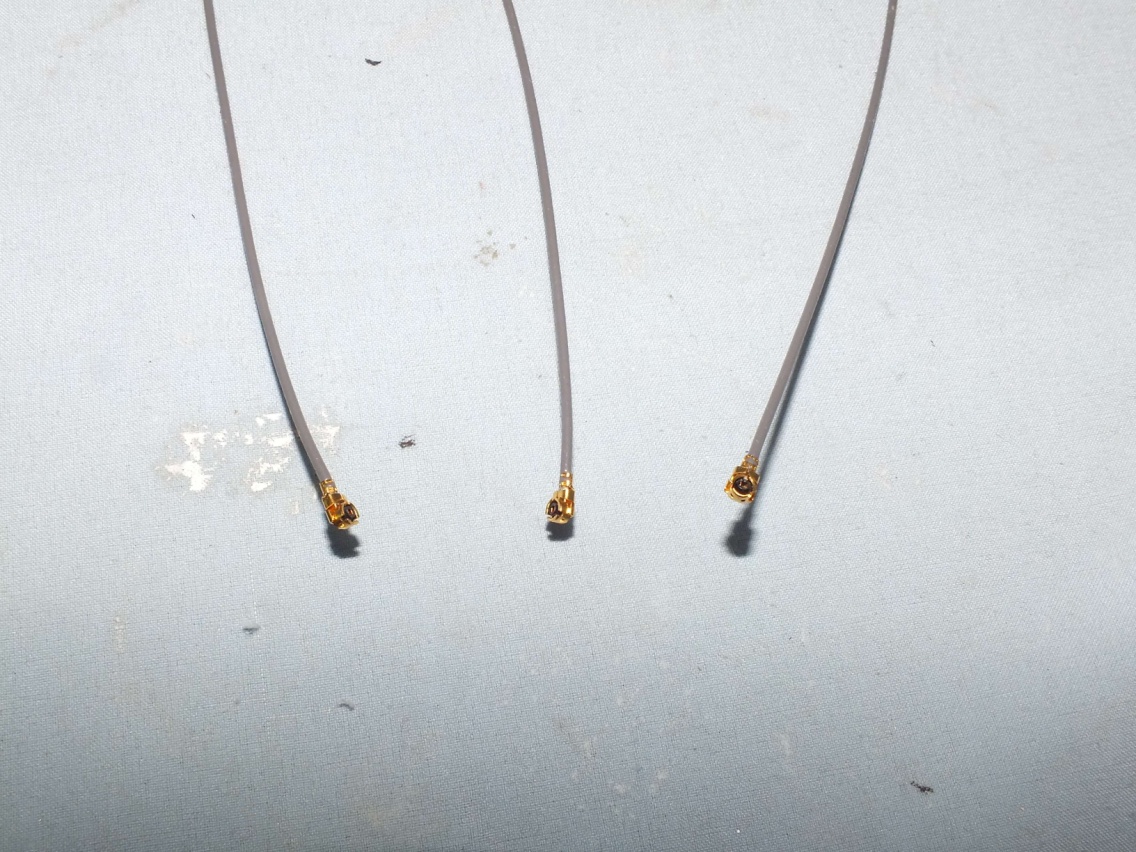

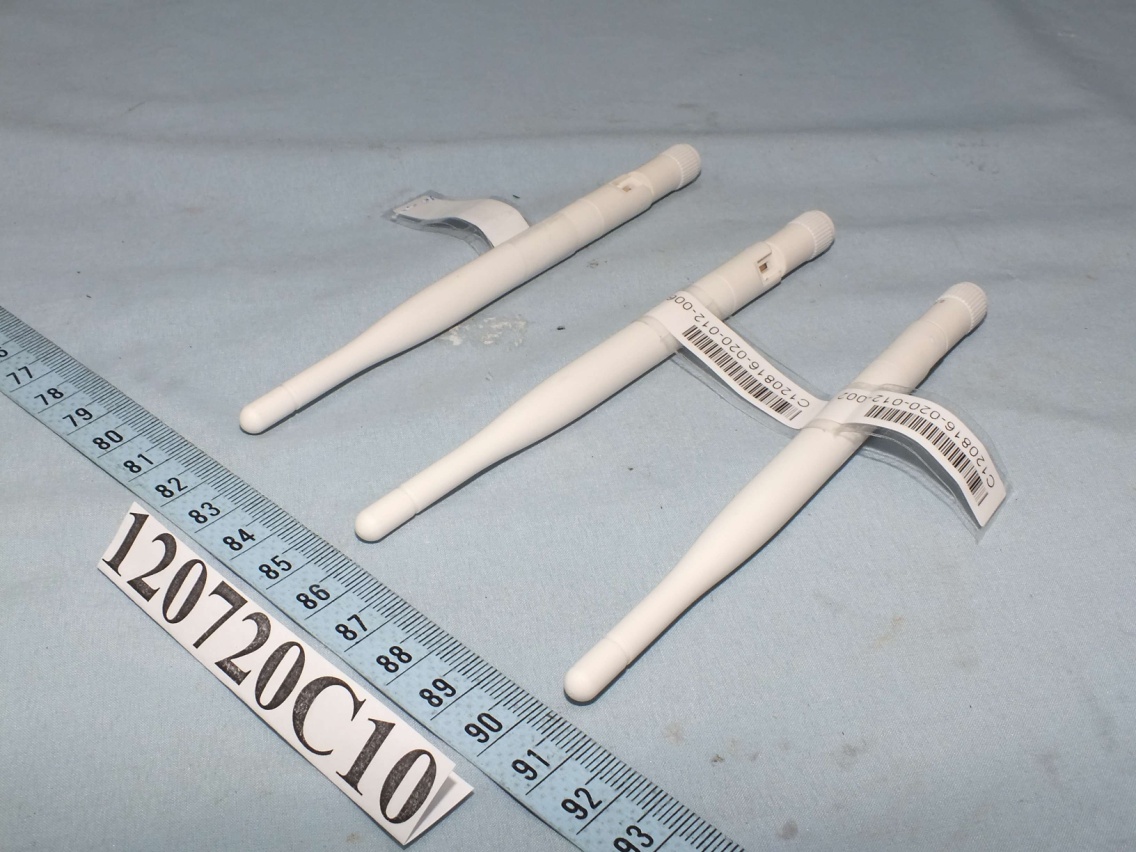

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Model: WS-AP3715e S/N: 125244446 MAC: 00026FD83BDA FCC ID: QXO-AP3715E IC : 4138A-AP3715E Model: WS-AP3715i S/N: 125244446 MAC: 00026FD83BDA FCC ID: QXO-AP3715I IC : 4138A-AP3715I

Page 5 Page 6

FCC ID: QXO-AP3715E Report No.: RF130424C30 Operational Description This device is a Wireless 802.11 abgn Router, which operates in both 2.4GHz and 5GHz bands; the maximum data rate could be up to 450Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 450Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 5Vdc by host equipment . The antenna is Dipole antenna with RSMA antenna connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA120720C10E 1 of 6 Report Format Version 5.0.0 Reference No.: 120720C10, 130424C30 RF EXPOSURE REPORT REPORT NO.: SA120720C10E MODEL NO.: WS-AP3715e FCC ID: QXO-AP3715E RECEIVED: Jul. 16, 2012 TESTED: Aug. 20, 2012 ~ Jan. 11, 2013 ISSUED: Apr. 26, 2013 APPLICANT: Enterasys Networks, Inc. ADDRESS: 9 Northeastern Blvd. Salem, NH 03079 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. Report No.: SA120720C10E 2 of 6 Report Format Version 5.0.0 Reference No.: 120720C10, 130424C30 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 3 1. CERTIFICATION .......................................................................................................................... 4 2. RF EXPOSURE ........................................................................................................................... 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ..................................................... 5 2.2 MPE CALCULATION FORMULA ................................................................................................ 5 2.3 CLASSIFICATION ....................................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .............................................. 6 Report No.: SA120720C10E 3 of 6 Report Format Version 5.0.0 Reference No.: 120720C10, 130424C30 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120720C10E Original release Apr. 26, 2013 Report No.: SA120720C10E 4 of 6 Report Format Version 5.0.0 Reference No.: 120720C10, 130424C30 1. CERTIFICATION PRODUCT: Wireless 802.11 abgn Router MODEL NO.: WS-AP3715e BRAND: Enterasys APPLICANT: Enterasys Networks, Inc. TESTED: Aug. 20, 2012 ~ Jan. 11, 2013 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: WS-AP3715e) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Apr. 26, 2013 Ivy Lin / Specialist APPROVED BY : , DATE :Apr. 26, 2013 Ken Liu / Senior Manager Report No.: SA120720C10E 5 of 6 Report Format Version 5.0.0 Reference No.: 120720C10, 130424C30 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120720C10E 6 of 6 Report Format Version 5.0.0 Reference No.: 120720C10, 130424C30 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MODULATION MODE MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 802.11b 23.83 7.77 20 0.288 1 802.11g 21.27 7.77 20 0.159 1 802.11n (20MHz) 21.15 7.77 20 0.155 1 802.11n (40MHz) 16.49 7.77 20 0.053 1 5180-5240 802.11a (1TX) 14.21 3 20 0.010 1 802.11a (3TX) 9.21 7.77 20 0.010 1 802.11n (20MHz) 9.44 7.77 20 0.010 1 802.11n (40MHz) 12.14 7.77 20 0.019 1 5745-5825 802.11a (1TX) 18.82 3 20 0.030 1 802.11a (3TX) 21.57 7.77 20 0.171 1 802.11n (20MHz) 21.39 7.77 20 0.164 1 802.11n (40MHz) 20.93 7.77 20 0.147 1 NOTE: For 2.4GHz Band: Directional gain = 3dBi + 10log(3) = 7.77dBi For 5.0GHz Band: Directional gain = 3dBi + 10log(3) = 7.77dBi CONCULSION: Both of the WLAN 2.4G & 5.0G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density 1. WLAN 2.4G + WLAN 5.0G = 0.288 + 0.171 = 0.459 Th…

Text truncated - open the document above for the full version.

Report No.: RF120720C10E-2 1 of 33 Report Format Version 5.0.0 Reference No.: 120720C10, 130424C30 FCC TEST REPORT (CO-LOCATED) REPORT NO.: RF120720C10E-2 MODEL NO.: WS-AP3715e FCC ID: QXO-AP3715E RECEIVED: Jul. 16, 2012 TESTED: Aug. 27, 2012 ~ Jan. 21, 2013 ISSUED: Apr. 26, 2013 APPLICANT: Enterasys Networks, Inc. ADDRESS: 9 Northeastern Blvd. Salem, NH 03079 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120720C10E-2 2 of 33 Report Format Version 5.0.0 Reference No.: 120720C10, 130424C30 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 3 1. CERTIFICATION .......................................................................................................................... 4 2. SUMMARY OF TEST RESULTS ................................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY .............................................................................................. 5 3. GENERAL INFORMATION .......................................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................ 6 3.2 DESCRIPTION OF TEST MODES .............................................................................................. 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................................ 10 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................................... 12 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................................... 12 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 13 4. TEST TYPES AND RESULTS ................................................................................................... 14 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................................... 14 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT................................. 14 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ............................ 14 4.1.3 TEST INSTRUMENTS ............................................................................................................... 15 4.1.4 TEST PROCEDURES ............................................................................................................... 16 4.1.5 DEVIATION FROM TEST STANDARD ..................................................................................... 16 4.1.6 TEST SETUP ............................................................................................................................. 17 4.1.7 EUT OPERATING CONDITIONS .............................................................................................. 17 4.1.8 TEST RESULTS ........................................................................................................................ 18 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................................ 24 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ......................................................... 24 4.2.2 TEST INSTRUMENTS ............................................................................................................... 24 4.2.3 TEST PROCEDURES ............................................................................................................... 25 4.2.4 DEVIATION FROM TEST STANDARD ..................................................................................... 25 4.2.5 TEST SETUP ............................................................................................................................. 26 4.2.6 EUT OPERATING CONDITIONS .............................................................................................. 26 4.2.7 TEST RESULTS ............................................................................................................ ............ 27 5. PHOTOGRAPHS OF THE TEST CONFIGURATION ............................................................... 31 6. INFORMATION ON THE TESTING LABORATORIES ........................................…

Text truncated - open the document above for the full version.

Report No.: RF120720C10E 1 of 117 Report Format Version 5.1.0 Reference No.: 120720C10, 130424C30 FCC TEST REPORT (15.247) REPORT NO.: RF120720C10E MODEL NO.: WS-AP3715e FCC ID: QXO-AP3715E RECEIVED: Jul. 16, 2012 TESTED: Aug. 20, 2012 ~ Jan. 11, 2013 ISSUED: Apr. 26, 2013 APPLICANT: Enterasys Networks, Inc. ADDRESS: 9 Northeastern Blvd. Salem, NH 03079 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120720C10E 2 of 117 Report Format Version 5.1.0 Reference No.: 120720C10, 130424C30 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 5 1. CERTIFICATION .......................................................................................................................... 6 2. SUMMARY OF TEST RESULTS ................................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY .............................................................................................. 7 3. GENERAL INFORMATION .......................................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................ 8 3.2 DESCRIPTION OF TEST MODES ............................................................................................ 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................................ 11 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................................... 15 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................................... 15 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 16 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................................ 17 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................................... 17 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT................................. 17 4.1.2 TEST INSTRUMENTS ............................................................................................................... 18 4.1.3 TEST PROCEDURES ............................................................................................................... 19 4.1.4 DEVIATION FROM TEST STANDARD ..................................................................................... 19 4.1.5 TEST SETUP ............................................................................................................................. 20 4.1.6 EUT OPERATING CONDITIONS .............................................................................................. 20 4.1.7 TEST RESULTS ........................................................................................................................ 21 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................................ 34 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ......................................................... 34 4.2.2 TEST INSTRUMENTS ............................................................................................................... 34 4.2.3 TEST PROCEDURES ............................................................................................................... 35 4.2.4 DEVIATION FROM TEST STANDARD ..................................................................................... 35 4.2.5 TEST SETUP ............................................................................................................................. 35 4.2.6 EUT OPERATING CONDITIONS .............................................................................................. 35 4.2.7 TEST RESULTS ........................................................................................................................ 36 4.3 6dB BANDWIDTH MEASUREMENT ........................................................................................ 38 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................................... 38 4.3.2 TEST SETUP .........................................................…

Text truncated - open the document above for the full version.

Report No.: RF120720C10E-1 1 of 51 Report Format Version 5.1.0 Reference No.: 120720C10, 130424C30 FCC TEST REPORT (15.407) REPORT NO.: RF120720C10E-1 MODEL NO.: WS-AP3715e FCC ID: QXO-AP3715E RECEIVED: Jul. 16, 2012 TESTED: Aug. 21, 2012 ~ Jan. 11, 2013 ISSUED: Apr. 26, 2013 APPLICANT: Enterasys Networks, Inc. ADDRESS: 9 Northeastern Blvd. Salem, NH 03079 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account…

Text truncated - open the document above for the full version.
