QXO-AP3715E1Wireless 802.11 abgn PCIe Module

Enterasys Networks • 9 Northeastern Blvd. • Salem, NH • 03079 • +1-603-952-5000 • www.enterasys.com Enterasys Networks, Inc. 9 Northeastern Bvld, Salem, New Hampshire, United States, 03079 D E C L A R A T I O N L E T T E R Date: 2013/07/16 To whom it may concern: We, Enterasys Networks, Inc., declare that the device does not support any non- US channels in all the operational mode(s) for the following product. FCC ID: QXO-AP3715E1 If you have any questions regarding the authorization, please do not hesitate to contact us. Thank you! Sincerely yours, ----------------------------------------------------- Thomas Whissel / Regulatory Compliance Manager Telephone Number: 603-952-5861 Fax Number: 603-952-5861 e-mail Address: [email protected]

Enterasys Networks • 9 Northeastern Blvd. • Salem, NH • 03079 • +1-603-952-5000 • www.enterasys.com Enterasys Networks, Inc. 9 Northeastern Bvld, Salem, New Hampshire, United States, 03079 Professional Installation Attestation 16 July 2013 FCC ID: QXO-AP3715E1 To Whom It May Concern: Please be advised that due to the unique Market and function targeted by this product, this product will need special trained professional in configuring and installing the product. We hereby declare that the product will be distributed through controlled distribution channel which has special trained professional to install this product and will not be sold directly to the general public through retail store. Thank you for your attention. Yours sincerely, ----------------------------------------------------- Thomas Whissel / Regulatory Compliance Manager Telephone Number: 603-952-5861 Fax Number: 603-952-5861 e-mail Address: [email protected]

Enterasys Networks • 9 Northeastern Blvd. • Salem, NH • 03079 • +1-603-952-5000 • www.enterasys.com Enterasys Networks, Inc. 9 Northeastern Bvld, Salem, New Hampshire, United States, 03079 Date: 07/16/2013 FCC ID: QXO-AP3715E1 F e d e r a l C o m m u n i c a t i o n s C o m m i s s i o n Authorization and Evaluation Division C o n f i d e n t ia l i t y R e q u e s t Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------------------------------- Thomas Whissel / Regulatory Compliance Manager Telephone Number: 603-952-5861 Fax Number: 603-952-5861 e-mail Address: [email protected]

FCC ID: QXO-AP3715E1 Report No.: RF130424C30 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch July 25, 2013 Dear Application Examiner, Enterasys Networks, Inc., FCC ID: QXO-AP3715E1 would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9590B. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is AR9590B. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: QXO-AP3715E1 Report No.: RF130424C30 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Robert Huang Senior Engineer Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

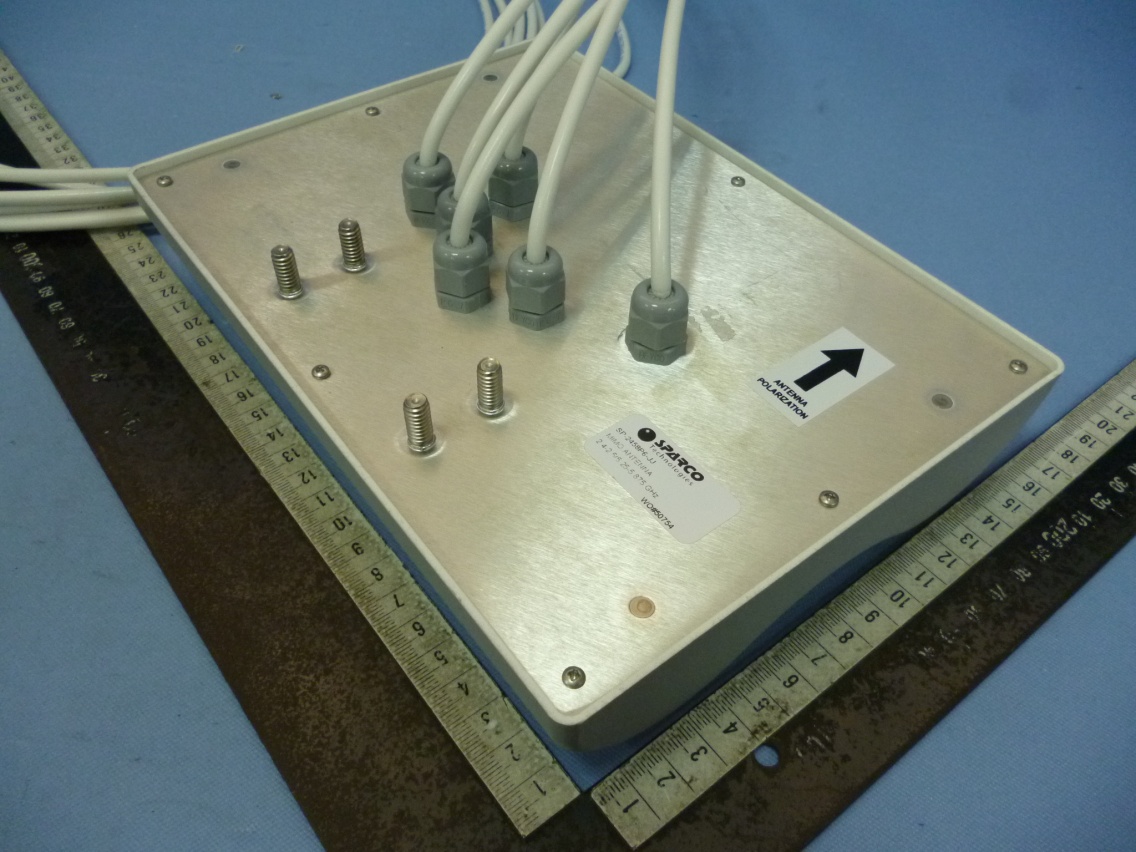

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Antenna 1 Page 3 Antenna 2 Page 4 Antenna 3 Page 5 Antenna 4 Page 6 Antenna 5

Model: WS-AP3715e S/N: 125244446 MAC: 00026FD83BDA FCC ID: QXO-AP3715E IC : 4138A-AP3715E Model: WS-AP3715i S/N: 125244446 MAC: 00026FD83BDA FCC ID: QXO-AP3715I IC : 4138A-AP3715I

Page 7 Page 8

FCC ID: QXO-AP3715E1 Report No.: RF130424C30 Operational Description This device is a Wireless 802.11 abgn Router, which operates in both 2.4GHz and 5GHz bands; the maximum data rate could be up to 450Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 450Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 5Vdc by host equipment. The antennas are list as below. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA120720C10G 1 of 8 Report Format Version 5.0.0 Reference No.: 130503C08 RF EXPOSURE REPORT REPORT NO.: SA120720C10G MODEL NO.: WS-AP3715e FCC ID: QXO-AP3715E1 RECEIVED: May 03, 2013 TESTED: May 20 ~ Jun. 18, 2013 ISSUED: Jun. 20, 2013 APPLICANT: Enterasys Networks, Inc. ADDRESS: 9 Northeastern Blvd. Salem, NH 03079 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. Report No.: SA120720C10G 2 of 8 Report Format Version 5.0.0 Reference No.: 130503C08 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................ 4 2. RF EXPOSURE .............................................................................................................. 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................ 5 2.2 MPE CALCULATION FORMULA ................................................................................... 5 2.3 CLASSIFICATION .......................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................................. 6 Report No.: SA120720C10G 3 of 8 Report Format Version 5.0.0 Reference No.: 130503C08 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA120720C10G Original release Jun. 20, 2013 Report No.: SA120720C10G 4 of 8 Report Format Version 5.0.0 Reference No.: 130503C08 1. CERTIFICATION PRODUCT: Wireless 802.11 abgn Router MODEL NO.: WS-AP3715e BRAND: Enterasys APPLICANT: Enterasys Networks, Inc. TESTED: May 20 ~ Jun. 18, 2013 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: WS-AP3715e) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY :, DATE :Jun. 20, 2013 Celine Chou / Specialist APPROVED BY : , DATE :Jun. 20, 2013 Ken Liu / Senior Manager Report No.: SA120720C10G 5 of 8 Report Format Version 5.0.0 Reference No.: 130503C08 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 21cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA120720C10G 6 of 8 Report Format Version 5.0.0 Reference No.: 130503C08 2.4 Calculation result of maximum conducted power Antenna 1 FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 27.97 3 21 0.249 1 5180-5240 12.14 3 21 0.006 1 5745-5825 26.43 3 21 0.174 1 NOTE: 2.4GHz: Directional gain = 3dBi 5.0GHz: Directional gain = 3dBi CONCULSION: Both of the WLAN 2.4G & 5.0G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density 2.4G + 5G combo Module: WLAN 2.4G + WLAN 5.0G = 0.249 + 0.174 = 0.423 Therefore, the maximum calculation of this situation is 0.423, which is less than the “1” limit. Antenna 2 FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 28.44 6.5 21 0.563 1 5180-5240 15.78 5.5 21 0.024 1 5745-5825 26.53 5.5 21 0.288 1 NOTE: 2.4GHz: Directional gain = 12.5 - 6 (internal attenuator) =6.5dBi 5.0GHz: Directional gain = 11.5 - 6 (internal attenuator) =5.5dBi CONCULSION: Both of the WLAN 2.4G & 5.0G can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 …

Text truncated - open the document above for the full version.

Report No.: RF120720C10G-2 1 of 73 Report Format Version 5.0.0 Reference No.: 130503C08 FCC TEST REPORT (CO-LOCATED) REPORT NO.: RF120720C10G-2 MODEL NO.: WS-AP3715e FCC ID: QXO-AP3715E1 RECEIVED: May 03, 2013 TESTED: Jun. 28 ~ Jun. 29, 2013 ISSUED: Jul. 01, 2013 APPLICANT: Enterasys Networks, Inc. ADDRESS: 9 Northeastern Blvd. Salem, NH 03079 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120720C10G-2 2 of 73 Report Format Version 5.0.0 Reference No.: 130503C08 TABLE OF CONTENTS RELEASE CONTROL RECORD .............................................................................................................. 3 1. CERTIFICATION .......................................................................................................................... 4 2. SUMMARY OF TEST RESULTS ................................................................................................. 5 2.1 MEASUREMENT UNCERTAINTY .............................................................................................. 5 3. GENERAL INFORMATION .......................................................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................ 6 3.2 DESCRIPTION OF TEST MODES .............................................................................................. 8 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................................. 9 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................................... 12 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................................... 12 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................... 13 4. TEST TYPES AND RESULTS ................................................................................................... 14 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................................... 14 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT................................. 14 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ............................ 14 4.1.3 TEST INSTRUMENTS ............................................................................................................... 15 4.1.4 TEST PROCEDURES ............................................................................................................... 16 4.1.5 DEVIATION FROM TEST STANDARD ..................................................................................... 16 4.1.6 TEST SETUP ............................................................................................................................. 17 4.1.7 EUT OPERATING CONDITIONS .............................................................................................. 17 4.1.8 TEST RESULTS ........................................................................................................................ 18 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................................ 48 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ......................................................... 48 4.2.2 TEST INSTRUMENTS ............................................................................................................... 48 4.2.3 TEST PROCEDURES ............................................................................................................... 49 4.2.4 DEVIATION FROM TEST STANDARD ..................................................................................... 49 4.2.5 TEST SETUP ............................................................................................................................. 50 4.2.6 EUT OPERATING CONDITIONS .............................................................................................. 50 4.2.7 TEST RESULTS ............................................................................................................ ............ 51 5. PHOTOGRAPHS OF THE TEST CONFIGURATION ............................................................... 71 6. INFORMATION ON THE TESTING LABORATORIES .............................................................. 72 7…

Text truncated - open the document above for the full version.

Report No.: RF120720C10G 1 of 320 Report Format Version 5.2.0 Reference No.: 130503C08 FCC TEST REPORT (15.247) REPORT NO.: RF120720C10G MODEL NO.: WS-AP3715e FCC ID: QXO-AP3715E1 RECEIVED: May 03, 2013 TESTED: May 20 ~ Jun. 18, 2013 ISSUED: Jun. 20, 2013 APPLICANT: Enterasys Networks, Inc. ADDRESS: 9 Northeastern Blvd. Salem, NH 03079 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the com pliance or non-compliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF120720C10G 2 of 320 Report Format Version 5.2.0 Reference No.: 130503C08 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................. 5 1. CERTIFICATION .......................................................................................................... 6 2. SUMMARY OF TEST RESULTS ................................................................................. 7 2.1 MEASUREMENT UNCERTAINTY ............................................................................... 7 3. GENERAL INFORMATION .......................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................ 8 3.2 DESCRIPTION OF TEST MODES ............................................................................ 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ............................ 11 3.3 DESCRIPTION OF SUPPORT UNITS ...................................................................... 16 3.3.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................... 16 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................... 17 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) ................................................ 18 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT .................................... 18 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................. 18 4.1.2 TEST INSTRUMENTS ............................................................................................... 19 4.1.3 TEST PROCEDURES ............................................................................................... 20 4.1.4 DEVIATION FROM TEST STANDARD...................................................................... 20 4.1.5 TEST SETUP ............................................................................................................. 21 4.1.6 EUT OPERATING CONDITIONS .............................................................................. 21 4.1.7 TEST RESULTS ........................................................................................................ 22 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................ 87 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT .......................................... 87 4.2.2 TEST INSTRUMENTS ............................................................................................... 87 4.2.3 TEST PROCEDURES ............................................................................................... 88 4.2.4 DEVIATION FROM TEST STANDARD...................................................................... 88 4.2.5 TEST SETUP ............................................................................................................. 88 4.2.6 EUT OPERATING CONDITIONS .............................................................................. 88 4.2.7 TEST RESULTS ........................................................................................................ 89 4.3 6dB BANDWIDTH MEASUREMENT ......................................................................... 99 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................... 99 4.3.2 TEST SETUP ............................................................................................................. 99 4.3.3 TEST INSTRUMENTS ............................................................................................... 99 4.3.4 TEST PROCEDURE .................................................................................................. 99 4.3.5 DEVIATION FROM TEST STANDARD...................................................................... 99 4.3.6 EUT OPERATING CONDITIONS .................................................................…

Text truncated - open the document above for the full version.

Report No.: RF120720C10G 191 of 320 Report Format Version 5.2.0 Reference No.: 130503C08 5. TEST TYPES AND RESULTS (FOR 5.0GHz BAND) 5.1 RADIATED EMISSION MEASUREMENT 5.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT Radiated emissions which fall in the restricted bands must comply with the radiated emission limits specified as below table. Other emissions shall be at least 20dB below the highest level of the desired power: FREQUENCIES (MHz) FIELD STRENGTH (microvolts/meter) MEASUREMENT DISTANCE (meters) 0.009 ~ 0.490 2400/F(kHz) 300 0.490 ~ 1.705 24000/F(kHz) 30 1.705 ~ 30.0 30 30 30 ~ 88 100 3 88 ~ 216 150 3 216 ~ 960 200 3 Above 960 500 3 NOTE: 1. The lower limit shall apply at the transition frequencies. 2. Emission level (dBuV/m) = 20 log Emission level (uV/m). 3. For frequencies above 1000MHz, the field strength limits are based on average detector, however, the peak field strength of any emission shall not exceed the maximum permitted average limits, specified above by more than 20dB under any condition of modulation. Report No.: RF120720C10G 192 of 320 Report Format Version 5.2.0 Reference No.: 130503C08 5.1.2 TEST INSTRUMENTS Same as item 4.1.2. 5.1.3 TEST PROCEDURES Same as item 4.1.3. 5.1.4 DEVIATION FROM TEST STANDARD No deviation. 5.1.5 TEST SETUP Same as item 4.1.5. 5.1.6 EUT OPERATING CONDITIONS Same as item 4.1.6. Report No.: RF120720C10G 193 of 320 Report Format Version 5.2.0 Reference No.: 130503C08 5.1.7 TEST RESULTS ABOVE 1GHz DATA： TEST MODE A 802.11a EUT TEST CONDITION MEASUREMENT DETAIL CHANNEL Channel 149 FREQUENCY RANGE 1 ~ 40GHz INPUT POWER (SYSTEM) 120Vac, 60Hz DETECTOR FUNCTION Peak (PK) Average (AV) ENVIRONMENTAL CONDITIONS 25deg. C, 65%RH TESTED BY Chris Lin ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1 #5725.00 65.0 PK 79.1 -14.1 1.00 H 56 26.20 38.80 2 #5725.00 53.4 AV 67.5 -14.1 1.00 H 56 14.60 38.80 3 *5745.00 99.1 PK 1.00 H 56 60.30 38.80 4 *5745.00 87.5 AV 1.00 H 56 48.70 38.80 5 11490.00 60.0 PK 74.0 -14.0 1.05 H 136 9.90 50.10 6 11490.00 48.4 AV 54.0 -5.6 1.05 H 136 1.70 50.10 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1 #5725.00 79.9 PK 93.0 -13.1 1.34 V 346 41.10 38.80 2 #5725.00 67.8 AV 80.9 -13.1 1.34 V 346 29.00 38.80 3 *5745.00 113.0 PK 1.05 V 152 74.20 38.80 4 *5745.00 100.9 AV 1.05 V 152 62.10 38.80 5 11490.00 59.6 PK 74.0 -14.4 1.04 V 125 9.50 50.10 6 11490.00 47.5 AV 54.0 -6.5 1.04 V 125 -2.60 50.10 REMARKS: 1. Emission level (dBuV/m) = Raw Value (dBuV) + Correction Factor (dB/m). 2. Correction Factor (dB/m) = Antenna Factor (dB/m) + Cable Factor (dB). 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. “ * “: Fundamental frequency. 6. The limit value is defined as per 15.247. 7. "#":The radiated frequency is out the restricted band. Report No.: RF120720C10G 194 of 320 Report Format Version 5.2.0 Reference No.: 130503C08 EUT TEST CONDITION MEASUREMENT DETAIL CHANNEL Channel 157 FREQUENCY RANGE 1 ~ 40GHz INPUT POWER (SYSTEM) 120Vac, 60Hz DETECTOR FUNCTION Peak (PK) Average (AV) ENVIRONMENTAL CONDITIONS 25deg. C, 65%RH TESTED BY Chris Lin ANTENNA POLARITY & TEST DISTANCE: HORIZONTAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1 *5785.00 100.5 PK 1.00 H 306 61.60 38.90 2 *5785.00 89.1 AV 1.00 H 306 50.20 38.90 3 11570.00 58.3 PK 74.0 -15.7 1.06 H 136 8.30 50.00 4 11570.00 45.6 AV 54.0 -8.4 1.06 H 136 -4.40 50.00 5 #17355.00 64.4 PK 80.5 -16.1 1.12 H 153 11.30 53.10 6 #17355.00 51.2 AV 69.1 -17.9 1.12 H 153 -1.90 53.10 ANTENNA POLARITY & TEST DISTANCE: VERTICAL AT 3 M NO. FREQ. (MHz) EMISSION LEVEL (dBuV/m) LIMIT (dBuV/m) MARGIN (dB) ANTENNA HEIGHT (m) TABLE ANGLE (Degree) RAW VALUE (dBuV) CORRECTION FACTOR (dB/m) 1 *5785.00 115.4 PK 1.01 V 80 76.50 38.90 2 *5785.00 102.9 AV 1.01 V 80 64.00 38.90 3 11570.00 59.0 PK 74.0 -15.0 1.01 V 125 9.00 50.00 4 11570.00 46.3 AV 54.0 -7.7 1.01 V 125 -3.70 50.00 5 #17355.00 63.9 PK 95.4 -31.5 1.10 V 135 10.80 53.10 6 #17355.00 51.1 AV 82.9 -31.8 1.10 V 135 -2.00 53.10 REMARKS: 1. Emission level (dBuV/m) = Raw Value (dBuV) + Correction Factor (dB/m). 2. Correction Factor (dB/m) = Antenna Factor (dB/m) + Cable Factor (dB). 3. The other emission levels were very low against the limit. 4. Margin value = Emission level – Limit value. 5. “ * “: Fundamental frequency. 6. The limit value is defined as per 15.247. 7. "#":The radiated frequency is out the restricted band. Report No.: RF120720C10G 195 of 320 Report Format Version 5.2.0 Reference No.: 130503C08 EUT TEST …
