QXO-AP3825E11ac 5G radio module

802.11 a/n/ac Module QXO-AP3825E User’s Manual - 1 - PRODUCT DESCRIPTION The QXO-AP3825E is a 5G dual band concurrent 3T3R PCIe module base on QCA989 0 sol ution. PRODUCT SPECIFICATION RF Specification Radio 1 Support 5GHz Interface 64-bit PCI-E Operating Voltage 3.3V Antenna Connectors I-PEX Frequency Band 802.11a/n/ac 5.190~5.795GHz Data rate 1300Mbps Receive Sensitivity (Typical) 802.11a ≤ -94dBm@6Mbps ≤ -76dBm@54Mbps 802.11a/ n_HT20 ≤ -93dBm @ MCS0/8/16 ≤ -74dBm @ MCS7/15/23 802.11n_HT40 ≤ -92dBm @ MCS0/8/16 ≤ -72dBm @ MCS7/15/23 802.11ac_HT80 ≤ -89dBm@MCS0 ≤ -64dBm@MCS9 PRODUCT Pin Define - 2 - List of certificated antennas Type Model Connector 5150~5250MHz 5725~5850MHz PIFA NA U.FL 6 6 PIFA ANT-PIFA7262AG U.FL 5.5 5.5 Dipole WS-ANT-5DIP-3 RPSMA 3 3 Panel WS-AI-DX07025 RPSMA 5.5 5.5 Panel WS-AI-DX10055 RPSMA 6 6 Omni WS-AI-DX02360 RPSMA 2 2 Sector WS-AI-DT05120 RPSMA 5 5 Note: The EUT has three antennas. (3TX/3RX) Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the IC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. IC statement is required to be available in the users manual: This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. - 3 - Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. - 4 - This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. - 5 - End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: QXO-AP3825E”. - 6 - Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. - 7 - Industry Canada statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Caution: (i) the device for operation in the band 5…

Text truncated - open the document above for the full version.

Extreme Networks, Inc. 9 Northeastern Blvd, Salem, NH 03079 Date: January 8, 2014 Subject: Ad Hoc Mode Function Declaration To Whom it may concern, We, Extreme Networks, Inc. declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. FCC ID: QXO-AP3825E Regards, Mr. Thomas. R. Whissel / Regulatory Compliance Manager Extreme Networks, Inc. 9 Northeastern Blvd, Salem, NH 03079 Tel: 603-952-5861 FAX: 603-952-5861 E-mail: [email protected]

International Certification Corp. (全球檢測股份有限公司) Te l：886-3-271-8666 Fax : 886-3-318-0155 No.3-1, Lane 6, Wen 33rd Rd., Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Subject: Modular approval request FCC ID: QXO-AP3825E Date: March 17, 2014 Dear reviewer: The modular would like to have authorization as a modular approval. The requirements of section 15.212 have been met and shown on the following statements 1) The radio elements of the modular transmitter must have their own shielding The modular has shielding. Please refer to external photo. 2) The modular transmitter must have buffered modulation/da ta inputs The buffer is integrated withQCA9890 3) The modular transmitter must have its own power supply regulation The part No. of regulator is RT8010 4) The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204 (c). No external amplifier is used for this module. 15.203 requirements does not apply to this module since this module is professionally installed. 5) The modular transmitter must be tested in a stand-alone configuration The modular is tested in a stand-alone configuration via an extender. Please refer to test setup photo. 6) The modular transmitter must be equipped with either a permanently affixed label or must be cap able of electronically displaying its FCC identification number. The modular complies with the requirement. Please refer to label location and label sample exhibit. 7) The modular transmitter must comply with any specific rules or operating requirements The modular complies with the requirement. Detail information please refer to user manual 8) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The modular complies with the requirement for mobile and fixed installation. Please refer to RF exposure exhibit Please contact me if you have any questions about this l e t t e r. Best regards Gary Chang , Manager Report & Certification department Tel:+886-3-271-8628 Email:[email protected]

Extreme Networks, Inc. 9 Northeastern Blvd, Salem, NH 03079 Confidentiality Request Letter Date: 2014/1/8 Federal Communications Commission Authorization and Evaluation Division FCC ID：QXO-AP3825E Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Mr. Thomas. R. Whissel / Regulatory Compliance Manager Extreme Networks, Inc. 9 Northeastern Blvd, Salem, NH 03079 Tel: 603-952-5861 FAX: 603-952-5861 E-mail: [email protected]

Extreme Networks, Inc. 9 Northeastern Blvd, Salem, NH 03079 Professional Installation Attestation 08 January 2014 To Whom It May Concern: Please be advised that due to the unique Market and function targeted by this product (FCC ID: QXO-AP3825E) will need special trained professional in configuring and installing the product. We hereby declare that the product will be distributed through controlled distribution channel which has special trained professional to install this product and will not be sold directly to the general public through retail store. Thank you for your attention. Yours sincerely, __________________ Mr. Thomas. R. Whissel / Regulatory Compliance Manager Extreme Networks, Inc. 9 Northeastern Blvd, Salem, NH 03079 Tel: 603-952-5861 FAX: 603-952-5861 E-mail: [email protected]

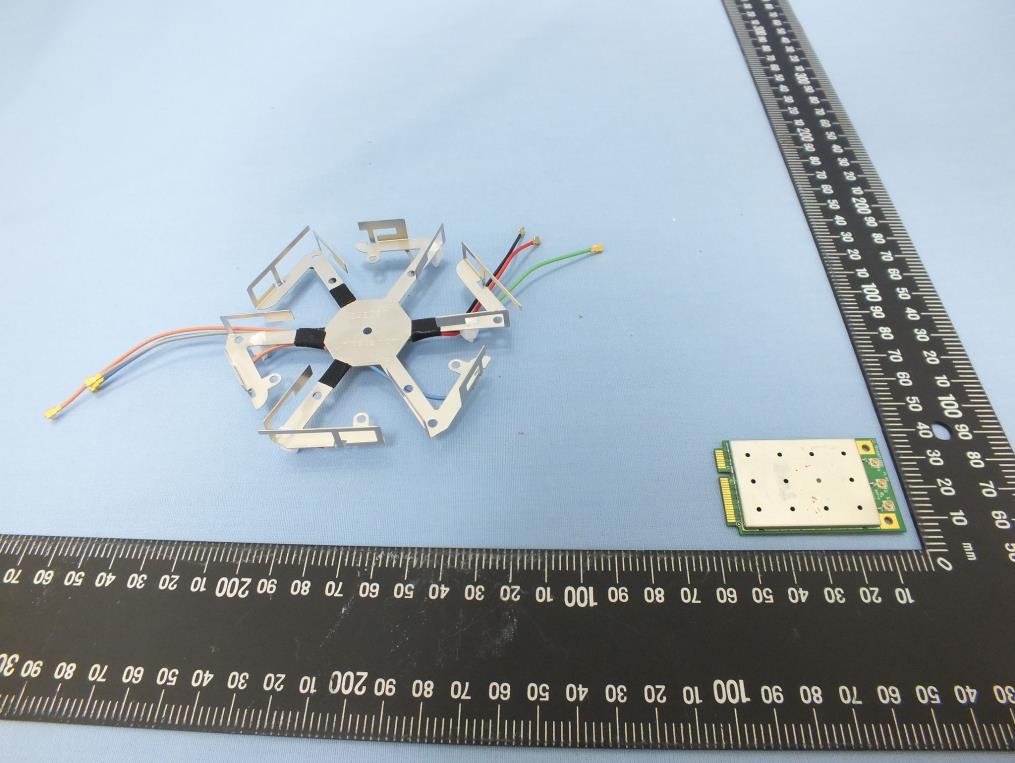

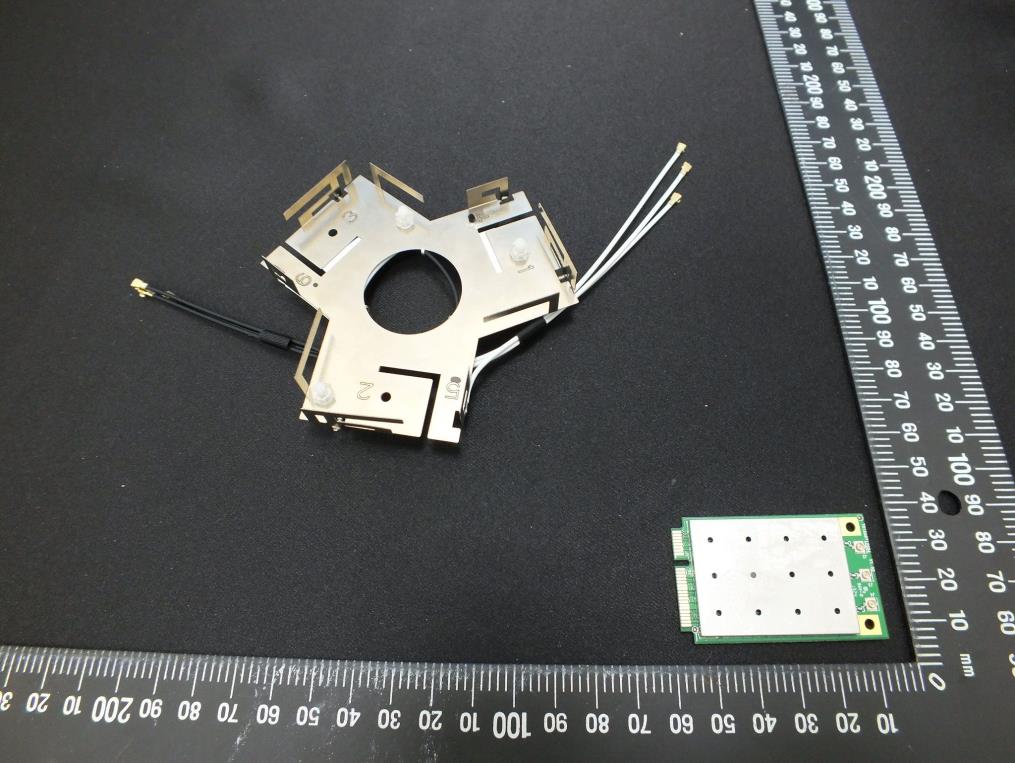

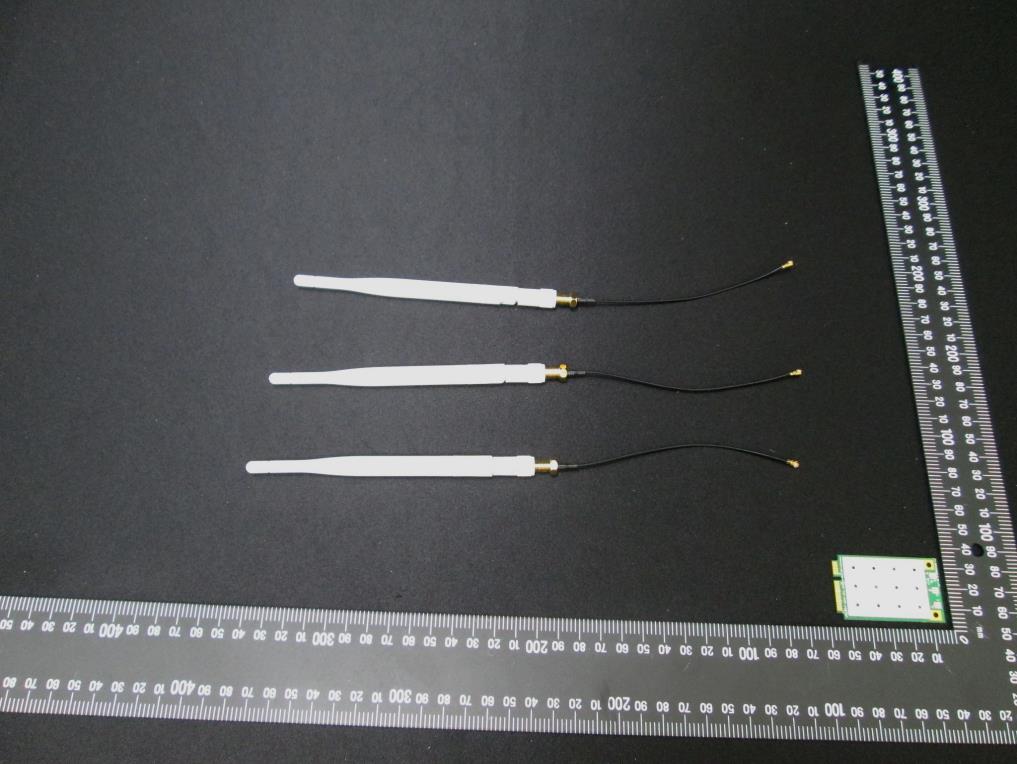

Project No.: EP382401 Page No. : 1 of 25 Photographs of EUT EUT with 3 dBi Dipole antenna EUT with 5.5 dBi PIFA antenna Project No.: EP382401 Page No. : 2 of 25 EUT with 6 dBi PIFA antenna EUT with 5.5dBi Panel antenna Project No.: EP382401 Page No. : 3 of 25 EUT with 6dBi Panel antenna EUT with 2dBi Omni antenna Project No.: EP382401 Page No. : 4 of 25 EUT with 5dBi Sector antenna Project No.: EP382401 Page No. : 5 of 25 Project No.: EP382401 Page No. : 6 of 25

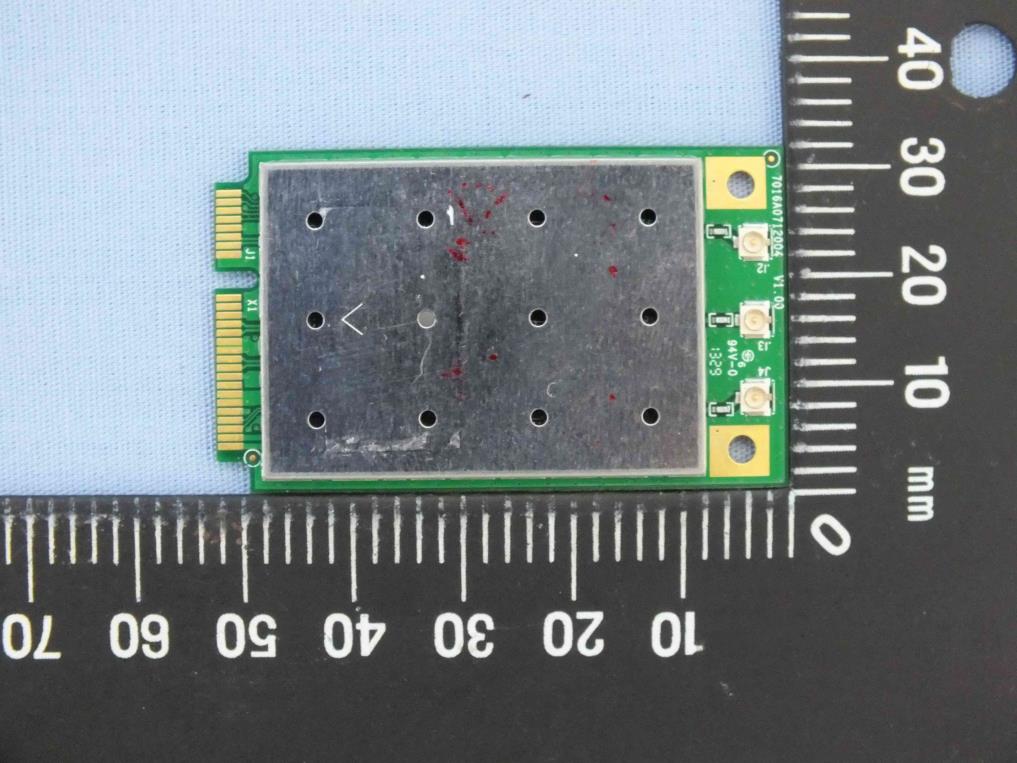

Back side of EUT Label location

Project No.: EP382401 Page No. : 7 of 25 Project No.: EP382401 Page No. : 8 of 25 Project No.: EP382401 Page No. : 9 of 25 EUT with 3 dBi Dipole antenna Project No.: EP382401 Page No. : 10 of 25 Project No.: EP382401 Page No. : 11 of 25 EUT with 5.5 dBi PIFA antenna Project No.: EP382401 Page No. : 12 of 25 EUT with 6 dBi PIFA antenna Project No.: EP382401 Page No. : 13 of 25 Project No.: EP382401 Page No. : 14 of 25 EUT with 5.5dBi Panel antenna Project No.: EP382401 Page No. : 15 of 25 Project No.: EP382401 Page No. : 16 of 25 EUT with 6dBi Panel antenna Project No.: EP382401 Page No. : 17 of 25 Project No.: EP382401 Page No. : 18 of 25 Project No.: EP382401 Page No. : 19 of 25 EUT with 2dBi Omni antenna Project No.: EP382401 Page No. : 20 of 25 Project No.: EP382401 Page No. : 21 of 25 Project No.: EP382401 Page No. : 22 of 25 EUT with 5dBi Sector antenna Project No.: EP382401 Page No. : 23 of 25 Project No.: EP382401 Page No. : 24 of 25 Project No.: EP382401 Page No. : 25 of 25

Report No.: FA382401 Page : 1 of 6 Report Version: Rev. 02 FCC RF Exposure Report FCC ID : QXO-AP3825E Equipment : 11ac 5G radio module Model No. : PCE4551AH-ETS Brand Name : Extreme Networks Applicant : Extreme Networks, Inc. Address : 9 Northeastern Blvd., Salem, New Hampshire, United States, 03079 Manufacturer : Extreme Networks, Inc. Address : 9 Northeastern Blvd., Salem, New Hampshire, United States, 03079 Standard : 47 CFR FCC Part 2.1091 Received Date : Jul. 27, 2013 Tested Date : Jul. 27 ~ Sep. 13, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA382401 Page : 2 of 6 Report Version: Rev. 02 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA382401 Page : 3 of 6 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FA382401 Rev. 01 Initial issue Mar. 17, 2014 FA382401 Rev. 02 Changed manufacturer Mar. 26, 2014 Report No.: FA382401 Page : 4 of 6 Report Version: Rev. 02 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance Report No.: FA382401 Page : 5 of 6 Report Version: Rev. 02 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Antenna Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 5180~5240 Dipole 16.58 3 20 0.018 1 5180~5240 PIFA 16.41 6 20 0.035 1 5180~5240 Panel 16.41 5.5 20 0.031 1 5180~5240 Panel 15.8 6 20 0.030 1 5180~5240 Omni 16.58 2 20 0.014 1 5180~5240 Sector 16.58 5 20 0.029 1 5745~5825 Dipole 26.96 3 20 0.197 1 5745~5825 PIFA 24.74 6 20 0.236 1 5745~5825 Panel 26.96 5.5 20 0.351 1 5745~5825 Panel 26.96 6 20 0.393 1 5745~5825 Omni 26.96 2 20 0.157 1 5745~5825 Sector 26.96 5 20 0.312 1 Report No.: FA382401 Page : 6 of 6 Report Version: Rev. 02 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Tel: 886-3-271-8666 Tel: 886-3-271-8666 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR382401AN Page : 1 of 184 Report Version: Rev. 02 FCC Test Report FCC ID : QXO-AP3825E Equipment : 11ac 5G radio module Model No. : PCE4551AH-ETS Brand Name : Extreme Networks Applicant : Extreme Networks, Inc. Address : 9 Northeastern Blvd., Salem, New Hampshire, United States, 03079 Manufacturer : Extreme Networks, Inc. Address : 9 Northeastern Blvd., Salem, New Hampshire, United States, 03079 Standard : 47 CFR FCC Part 15.407 Received Date : Jul. 27, 2013 Tested Date : Jul. 27 ~ Oct. 30, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR382401AN Page : 2 of 184 Report Version: Rev. 02 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Testing Applied Standards ..................................................................................................................... 9 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 12 3 TRANSMITTER TEST RESULTS ........................................................................................................ 13 3.1 Conducted Emissions ........................................................................................................................... 13 3.2 Emission Bandwidth ............................................................................................................................. 26 3.3 RF Output Power .................................................................................................................................. 33 3.4 Peak Power Spectral Density ............................................................................................................... 40 3.5 Peak Excursion..................................................................................................................................... 47 3.6 Transmitter Radiated and Band Edge Emissions ................................................................................ 60 3.7 Frequency Stability ............................................................................................................................. 182 4 TEST LABORATORY INFORMATION ............................................................................................. 184 Report No.: FR382401AN Page : 3 of 184 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FR382401AN Rev. 01 Initial issue Mar. 17, 2014 FR382401AN Rev. 02 Changed manufacturer Mar. 26, 2014 Report No.: FR382401AN Page : 4 of 184 Report Version: Rev. 02 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 3.840MHz 31.96 (Margin -14.04dB) - AV Pass 15.407(b)(1)(2)(3) 15.209 Radiated Emissions [dBuV/m at 3m]: 5150.00MHz 52.95 (Margin -1.05dB) - AV Pass 15.407(a)(1)(2)(3) Emission Bandwidth Meet the requirement of limit Pass 15.407(a)(1)(2)(3) RF Output Power Power [dBm]: 5150~5250 MHz: 16.58 Pass 15.407(a)(1)(2)(3) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(a)(6) Peak Excursion Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR382401AN Page : 5 of 184 Report Version: Rev. 02 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information IEEE Std. 802.11 Frequency Range (MHz) Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS a 5150-5250 5180-5240 36-48 [4] 3 6-54 Mbps n (HT20) 5150-5250 5180-5240 36-48 [4] 3 MCS 0-23 n (HT40) 5150-5250 5190-5230 38-46 [2] 3 MCS 0-23 ac (VHT20) 5150-5250 5180-5240 36-48 [4] 3 MCS 0-9 ac (VHT40) 5150-5250 5190-5230 38-46 [2] 3 MCS 0-9 ac (VHT80) 5150-5250 5210 42 [1] 3 MCS 0-9 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. Note 3: IEEE802.11ac is draft version. 1.1.2 Antenna Details Ant. No. Model Ant. Type Connector Gain (dBi) Application 1 WS-ANT-5DIP-3 Dipole RPSMA 3 P to MP 2 N/A PIFA UFL 6 P to MP ANT-PIFA7262AG PIFA UFL 5.5 P to MP 3 WS-AI-DX07025 Panel RPSMA 5.5 P to MP 4 WS-AI-DX10055 Panel RPSMA 6 P to MP 5 WS-AI-DX02360 Omni RPSMA 2 P to MP 6 WS-AI-DT05120 Sector RPSMA 5 P to MP Note: 1. The antennas are professionally installed. 2. Two PIFA antennas with the same …

Text truncated - open the document above for the full version.

Report No.: FR382401 Page: : 1 of 24 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test _ Configuration 1 Report No.: FR382401 Page: : 2 of 24 Report Version: Rev. 01 Report No.: FR382401 Page: : 3 of 24 Report Version: Rev. 01 Conducted Emission Test _ Configuration 2 Report No.: FR382401 Page: : 4 of 24 Report Version: Rev. 01 Report No.: FR382401 Page: : 5 of 24 Report Version: Rev. 01 Conducted Emission Test _ Configuration 3 Report No.: FR382401 Page: : 6 of 24 Report Version: Rev. 01 Report No.: FR382401 Page: : 7 of 24 Report Version: Rev. 01 Conducted Emission Test _ Configuration 4 Report No.: FR382401 Page: : 8 of 24 Report Version: Rev. 01 Report No.: FR382401 Page: : 9 of 24 Report Version: Rev. 01 Conducted Emission Test _ Configuration 5 Report No.: FR382401 Page: : 10 of 24 Report Version: Rev. 01 Report No.: FR382401 Page: : 11 of 24 Report Version: Rev. 01 Conducted Emission Test _ Configuration 6 Report No.: FR382401 Page: : 12 of 24 Report Version: Rev. 01 Report No.: FR382401 Page: : 13 of 24 Report Version: Rev. 01 Radiated Emission Test _ Configuration 1 Report No.: FR382401 Page: : 14 of 24 Report Version: Rev. 01 Report No.: FR382401 Page: : 15 of 24 Report Version: Rev. 01 Radiated Emission Test _ Configuration 2 Report No.: FR382401 Page: : 16 of 24 Report Version: Rev. 01 Report No.: FR382401 Page: : 17 of 24 Report Version: Rev. 01 Radiated Emission Test _ Configuration 3 Report No.: FR382401 Page: : 18 of 24 Report Version: Rev. 01 Report No.: FR382401 Page: : 19 of 24 Report Version: Rev. 01 Radiated Emission Test _ Configuration 4 Report No.: FR382401 Page: : 20 of 24 Report Version: Rev. 01 Report No.: FR382401 Page: : 21 of 24 Report Version: Rev. 01 Radiated Emission Test _ Configuration 5 Report No.: FR382401 Page: : 22 of 24 Report Version: Rev. 01 Report No.: FR382401 Page: : 23 of 24 Report Version: Rev. 01 Radiated Emission Test _ Configuration 6 Report No.: FR382401 Page: : 24 of 24 Report Version: Rev. 01
