QXO-AP460CWireless Access Point

AP460C HardwareUserGuide Readabout andviewspecificationsandcomplianceinformation fortheAP460Cdevicesin thistopic.InstalltheAP460Cdevicesusingthistopic. The AP460C isaTriRadio 802.11axaccesspoint basedon advancedradio technology andisIP67 ratedforharsh andextreme outdoorenvir- onments, with an extendedtemperature range (-40 C - +60 C). The AP460C tri-radio design delivers802.11ax2x2:2 and4x4:4 dataratescon- currently on the 2.4 and5 GHz radios, andhasathirdradio foradedicateddual-bandsensor. Forregulatory andcompliance information, see "Regulatory Compliance Statements". Important! Change the Country Code Ifyouraccesspoint isconfiguredforthe WorldRegulatory Domain, it isimportant to set the country code to the country in which the AP willbe deployedto meet regulatory requirementsandforoptimalwirelessoperation. To do this, follow these steps: Thecountrycodeselection isforWorldmodelsonlyandisnot availabletoFCC,CAN,andothercountry-specificmodels.PerFCCreg- ulations,allWi-Fiproductsmarketedin theUnitedStatesmust beset toU.S.channelsonly. 1. Poweron the APandallow it to findandconnect to ExtremeCloud IQ. Once the AP isconnectedit appearsin the table ofdeviceson the Manage>Devicespage. 2. Select the checkboxnext to the AP, andthen chooseAssign Country Codefrom theActionsdrop-down list. In the dialogbox, select the appropriate country from the drop-down list, andthen clickSave. 3. Uploadyourchangesto the device. Safety Guidelines Safety Guidelines The information in thissection appliesto AP460C devices. The followingsafety iconsare usedin these guidelinesto identify the type ofprecaution: AP60C Hardware Guide1 AP460C Hardware Guide1 Thisicon indicatesageneralcaution. Failure to comply with acaution notification can result in damage to equipment. Thisicon indicatesan electricalcaution. Failure to comply with an electricalnotification can result in seriousinjury or death, andextensive damage to equipment. Thisicon indicatesalasercaution. Failure to comply with alasercaution can result in seriousinjury. The followingtable liststhe safety precautionsyoushouldfollow when installingyourAP460C devices. Extreme Networksdevicesmust be installedby aprofessionalinstallerwho iscertifiedto installthese typesofdevices andto ensure that they are properly groundedandmeet applicable localandnationalelectricalcodes. These devicesare intendedforindooruse only. Warning: ThisisaClassA product. In adomestic environment thisproduct may cause radio interference in which case the usermay be requiredto take adequate measures. Do not installthe device in an environment where the operatingambient temperature might exceedthe recom- mendedranges. Forproductsavailable in the USA/Canadamarket, forthe 2.4 GHz band, only channels1-11 can be operated. Selec- tion ofotherchannelsisnot possible. Changesormodificationsmade to thisdevice that are not expressly approvedby the party responsible forcom- pliance couldvoidthe user'sauthority to operate the equipment. Use only attachmentsandaccessoriesspecifiedby Extreme Networks. These devicesare not intendedforuse by persons(includingchildren) with reducedphysical, sensory, ormentalcap- abilities, orwith lackofexperience ofknowledge unlessthey are given supervision orinstruction concerninguse ofthe devicesby aperson who isresponsible fortheirsafety. Children shouldbe supervisedto ensure that they do not play with the devices. Electrostatic discharge (ESD) can damage equipment andimpairelectricalcircuitry. ESD damage occurswhen elec- tronic componentsare improperly handledandcan result in complete orintermittent failures. Be sure to follow ESD-pre- vention procedureswhen handlingelectronic componentsandequipment. Duringoperation, the surfacesofthe AP460C device can become hot. Use caution when handling. To meet federal radiation exposure requirements, these devices should be installed at aminimum distance of 12" (30 cm) from people or animals. Install the AP The followingsectionsdescribe how to mount yourAPin an outdoorlocation on apole orflat surface. Shipping Carton Contents The AP460C shippingcartonscontain the followingitems: lAP460C chassiswith two installedM20 cable glandassembliesandplugs, two installedM25 sealcaps. lHardware bagcontaininggroundinghardware (M4 screw, split washer, andlockwasher) lReadMe card. AP60C Hardware Guide2 AP460C Hardware Guide2 To meet Canadian radiation exposure requirements, these devices should be installed at aminimum distance of 14" (35 cm) from people or animals. Mount the AP460C horizontally orvertically on apole usingthe built-in bracketson the hardware, oron asolidflat surface usingan accessory bracket (see "Accessories"). These devicescan be installedin even the most extreme outdoorenvironments. The followingsectionsdescribe the installation process. Required Tools To installyourAP460C device horizontally orvertically on apole, youwillneedthe followingitems: lTwo hose clampsthat accommodate the diameterofthe pole to which youare mountingthe device. lA slottedscrewdriverto tighten the hose clamps. Installthe Device Before youinstallthe device, make sure that youhave allthe materialsandtoolsnecessary, andfamiliarize yourselfwith the safety andsite haz- ardwarnings. Forbest performance,deployAP460Cdevicesin relativelyopen areasat least 100'(30.5m)apart fromeach other. Install the Device on a Vertical or Horizontal Pole Use the followingstepsto installthe device on averticalorhorizontalpole. 1. Threadtwo hose strapsofthe correct diameterforthe pole through the slotsin on the backofthe device andaroundthe pole. Hose straps shouldbe 1/2"(12 or13 mm) wide andmade ofstainlesssteel. 2. While holdingthe device against the pole, use aslottedscrewdriverto tighten first the topandthen the bottom hose strapsuntilthe device issecure. Make sure that the LAN glandsare facingdown (earth) to eliminate the chance ofwaterenteringthe chassis. Ifyouare installingthe device to sit on topofahorizontalpole, make sure the topofthe device facesup(sky) with the LAN glandsare…

Text truncated - open the document above for the full version.

6480 Via Del Oro / San Jose, CA 95119 / +1-408-579-2800 / ExtremeNetworks.com Professional Installation Declaration Date: March 26, 2020 FCC Grant Number: QXO-AP460C ISED Registration Number: 4141B – AP460C To Whom It May Concern: Please be advised that due to the unique Market and function targeted by this product, this product will need special trained professional in configuring and installing the product. We hereby declare that the product will be distributed through controlled distribution channel that has special trained professional to install this product and will not be sold directly to the general public through retail store. The product can be operated after connecting to the service provider. Then the service provider would control the available bands according to the install location of the product. Function Support Type Support Band AP Master WLAN 2.4GHz/Bluetooth/Thread/WLAN 5GHz Band 1~4 Client Slave without Radar Detection (Sensor Mode) WLAN 2.4GHz/Bluetooth/Thread/WLAN 5GHz Band 1+4 Bridge Master WLAN 2.4GHz/Bluetooth/Thread/WLAN 5GHz Band 1+4 Mesh Master WLAN 2.4GHz/Bluetooth/Thread/WLAN 5GHz Band 1+4 Note 1: The above information was declared by manufacturer. Note 2: FCC for 5GHz, it supports B1~B4 indoor and outdoor Note 3: ISED for 5GHz, it supports B1~B4 indoor and B2~B4 outdoor. Sincerely, Applicant’s company name : Extreme Networks, Inc. Applicant’s company address : 6480 Via Del Oro, San Jose, CA 95119 United States Of America Name and Job Title : Tim Wakeley / Regulatory Compliance Manager E-Mail : [email protected] Tel : 916-712-1474

6480 Via Del Oro / San Jose, CA 95119 / +1-408-579-2800 / ExtremeNetworks.com Declaration Of Authorization Date: 2020-04-02 We Name: Extreme Networks, Inc Address: 6480 Via Del Oro, San Jose, CA 95119 City: San Jose Country: United States Declare that: Agent Company name: DEKRA Testing and Certification (Suzhou) Co., Ltd. Address: No.99 Hongye Rd., Suzhou Industrial Park, 215006 City: Suzhou Country China is authorized to apply for Certification of the following product(s): Product description: Wireless Access Point Type designation: AP460C Trademark: Extreme Networks FCC ID: QXO-AP460C IC: 4141B-AP460C on our behalf. Sincerely, Timothy Wakeley / Compliance Manager Extreme Networks, Inc Notes: (1): Required for FCC &IC application (2): For it must be the Grantee Code “owner” or the authorized agent.

6480 Via Del Oro / San Jose, CA 95119 / +1-408-579-2800 / ExtremeNetworks.com FCC Confidentiality Long Term Letter Date：2020-04-02 Federal Communications Commission Authorization and Evaluation Division FCC ID: QXO-AP460C Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Diagram Block Diagram Operational Description SW SECURITY DESCRIPTION The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Sincerely, Timothy Wakeley / Compliance Manager Extreme Networks, Inc

6480 Via Del Oro / San Jose, CA 95119 / +1-408-579-2800 / ExtremeNetworks.com Non-SDR-Statement Date: 2020-04-02 Federal Communications Commission Authorization and Evaluation Division ATTESTATION FCC ID: QXO-AP460C Product: Wireless Access Point Model: AP460C Regarding the SDR application guide (KDB442812 D01 SDR Apps Guide v02r03), our answer to the following five questions can be used for determining our device is not an SDR: 1. Can the RF parameters of the device be altered through software? YES 2. Can third parties not permitted by the Commission through specific filings modify, configure, or load different software, or make configuration settings to operate the device or host hardware radio frequency parameters (frequency range, modulation type, maximum output power or other radio parameters) in any other way than granted (or expected to be granted)? NO 3. Is the device capable of operating in any other in any other way than granted, or will be, granted? NO 4. Is this a Part 15 client device as defined in Section 15.202 (as opposed to a master device)? NO 5. Does the manufacturer elect SDR? NO Sincerely, Name/ Title: Timothy Wakeley/ Compliance Manager Company: Extreme Networks, Inc

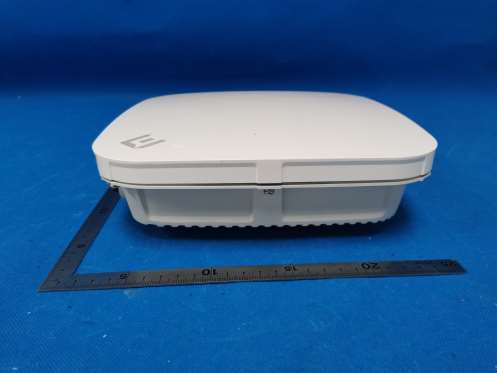

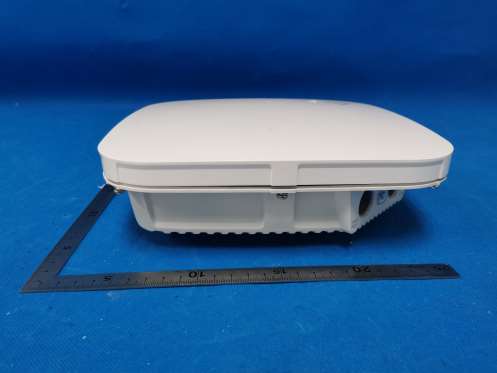

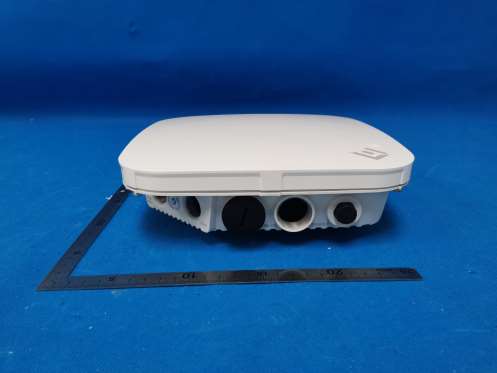

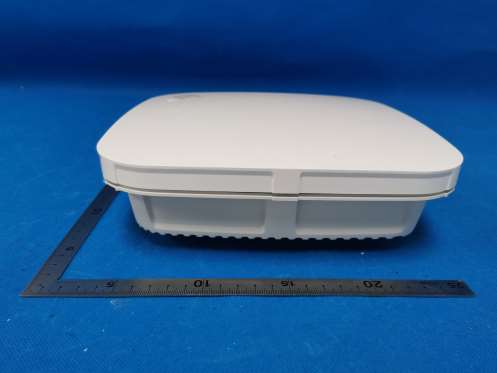

Report No: 19A2144R-RF-US (1) EUT Photo(AP460C) (2) EUT Photo(AP460C) Report No: 19A2144R-RF-US (3) EUT Photo(AP460C) (4) EUT Photo(AP460C) Report No: 19A2144R-RF-US (5) EUT Photo(AP460C) (6) EUT Photo(AP460C)

图 40 63 1. MATERIAL: WHITE MATTE PET, T=0.1 ADHESIVE: ACRYLIC 2. FINISH: FINISH: ,T=0.025 3. COLOR: ORIGINAL MATERIAL COLOR:Pantone420C : BLACK, 4. UL APPROVED, PGJI2,PRINTED,. 5. 7.:30mm±0.2mm,30~120mm±0.3mm,120~315mm±0.5mm,315±0.8mm 8. ,3±0.5mm, 3±0.3mm 9. 10.TEST REQUIREMENTS NOTE: TEST ITEMTEST SPECTEST CONDITIONCRITERIA 1 ISO Class.: 1 ASTM Class.: 4 B ASTM D3359-02/ ISO 2409:2007 Detach ment of small flake s of the co ating at the interse ct ions of the cu ts. A cr oss-cu t area not si gnifica ntly greater than 5% is affect ed. *40.69 *64.13 2.0 0.8 R 2.0, 4PLS See manual before use AP460C -FCC FCC ID: QXO-AP460C -CAN IC:4141B-AP460C ICES-3(B)/NMB-3(B) -WR D33194 RoHS R-C-EXR-AP460C Patents Pending Made in China 510176 Rev. A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful int erference, and (2)this device must accept any int erference received, including int erference that may cause undesired operation. Complies with IMDA Standards DA106976 Extreme Networks Inc. 6480 Via Del Oro, San Jose, CA 95119, USA Patents: www.extremenetworks.com/patents Label Location

Report No: 19A2144R-RF-US (1) EUT Photo(AP460C) (2) EUT Photo(AP460C) Report No: 19A2144R-RF-US (3) EUT Photo(AP460C) (4) EUT Photo(AP460C) Report No: 19A2144R-RF-US (5) EUT Photo(AP460C) (6) EUT Photo(AP460C) Report No: 19A2144R-RF-US (7) EUT Photo(AP460C) (8) EUT Photo(AP460C) Report No: 19A2144R-RF-US (9) EUT Photo(AP460C) (10) EUT Photo(AP460C)

RF Exposure Evaluation Declaration Product Name : Wireless Access Point Model No. : AP460C FCC ID : QXO-AP460C Applicant : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Date of Receipt : Sep. 20, 2019 Issued Date : Mar. 17, 2020 Report No. : 19A2144R-RF-US-P20V01 Report Version : V1.0 The test results presented in this report relate only to the object tested. The measurement result is considered in conformance with the requirement if it is within the prescribed limit, It is not necessary to account the uncertainty associated with the measurement result, unless the specification, standard or customer have special requirements This report shall not be reproduced, except in full, without the written approval of the Issuing CB Testing Laboratory This report is not used for social proof in China (or Mainland China) market. Report No: 1992128R-RF-US-P20V01 Page: 2 of 9 Te s t R e p o r t C e r t i f i c a t i o n Issued Date: Mar. 17, 2020 Report No.: 19A2144R-RF-US-P20V01 Product Name : Wireless Access Point Applicant : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Manufacturer : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Model No. : AP460C Brand : Extreme Networks FCC ID : QXO-AP460C EUT Voltage : DC 37~57V Applicable Standard : KDB 447498D01V06 FCC Part1.1310 Test Result : Complied Performed Location : DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Designation Number: CN1199 Documented By : (Project Assistant: Kitty Li ) Reviewed By : (Senior Engineer: Frank He ) Approved By : ( Engineer Supervisor: Jack Zhang ) Report No: 1992128R-RF-US-P20V01 Page: 3 of 9 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No: 1992128R-RF-US-P20V01 Page: 4 of 9 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. 1.3. Test Result of RF Exposure Evaluation Product : Wireless Access Point Test Item : RF Exposure Evaluation Test Site : AC-6 Antenna Information: BLE 2.4GHz: Antenna Model No. N/A Antenna Manufacturer N/A Antenna Delivery 1*TX+1*RX 2*TX+2*RX 3*TX+3*RX Antenna Technology SISO MIMO Basic methodology Sectorized antenna systems Cross-polarized antennas Unequal antenna gains, with equal transmit powers Spatial Multiplexing Cyclic Delay Diversity (CDD) Antenna Type PIFA Antenna Gain 3.20dBi Report No: 1992128R-RF-US-P20V01 Page: 5 of 9 WLAN 2.4GHz: Antenna Model No. N/A Antenna Manufacturer N/A Antenna Delivery 1*TX+1*RX 2*TX+2*RX 3*TX+3*RX Antenna Technology SISO MIMO Basic methodology Sectorized antenna systems Cross-polarized antennas Unequal antenna gains, with equal transmit powers Spatial Multiplexing Cyclic Delay Diversity (CDD) Antenna Type PIFA Antenna Gain(Radio 1) Antenna Technology Ant Gain (dBi) Ant 4(Radio 1) 3.74 Antenna Gain(Radio 2) Antenna Technology Ant Gain (dBi) SISO Ant1 (Radio 2) 2.94 Ant2 (Radio 2) 3.24 CDD 3.24dBi for Power; 6.25dBi for PSD Beam-forming 6.25dBi for Power; 6.25dBi for PSD Report No: 1992128R-RF-US-P20V01 Page: 6 of 9 WLAN 5GHz: Antenna Model No. N/A Antenna Manufacturer N/A Antenna Delivery 1*TX+1*RX 2*TX+2*RX 3*TX+3*RX 4*TX+4*RX Antenna Technology SISO MIMO Basic methodology Sectorized antenna systems Cross-polarized antennas Unequal antenna gains, with equal transmit powers Spatial Multiplexing Cyclic Delay Diversity (CDD) Antenna Type PIFA Antenna Gain(Radio 1) Antenna Technology Ant Gain (dBi) Ant 4(Radio 1) 3.42 Antenna Gain(Radio 2) Antenna Technology Ant Gain (dBi) SISO Ant1 (Radio 2) 3.56 Ant2 (Radio 2) 3.51 CDD 3.56dBi for Power; 6.57dBi for PSD Beam-forming 6.57dBi for Power; 6.57dBi for PSD Report No: 1992128R-RF-US-P20V01 Page: 7 of 9 Antenna Gain(Radio 3) Antenna Technology Ant Gain (dBi) SISO Ant3 (Radio 3) 4.19 Ant5 (Radio 3) 3.22 Ant6 (Radio 3) 3.96 Ant7 (Radio 3) 4.21 2*2 CDD 4.21dBi for Power; 7.22dBi for PSD 2*2 Beam-forming 7.22dBi for Power; 7.22dBi for PSD 4*4 CDD 4.21dBi for Power; 10.23dBi for PSD 4*4 Beam-forming 10.23dBi for Power; 10.23dBi for PSD Note: The device supports 3 radios, radio 1(1*1 2.4GHz & 1*1 5GHz full band); radio 2(2*2 2.4GHz & 2*2 5GHz low band); radio 3(4*4 5GHz full band & 1*1 BLE), and radio 2 & 3 can works with Dual 2.4GHz & 5GHz mode and Dual 5GHz mode. As the 5GHz high band filter is different between two modes, additional Radio 3 5GHz high band mode is tested for compliance. Dual 2.4GHz & 5GHz mode: Radio 2(2.4GHz 2*2) + Radio 3(5GHz full band 4*4) Dual 5GHz mode: Radio 2(5GHz low band 2*2) + Radio 3(5GHz high band 4*4) Report No: 1992128R-RF-US-P20V01 Page: 8 of 9 Power Density Standalone modes: AP460C: Wireless Radio Test Mode Frequency Band (MHz) Maximum EIRP (dBm) Power Density at R = 30cm (mW/cm2) Power Density Limit at R = 30 cm (mW/cm2) Ra…

Text truncated - open the document above for the full version.

Test Report FCC Part15 Subpart E Product Name : Wireless Access Point Model No. : AP460C FCC ID : QXO-AP460C Applicant : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Date of Receipt : Oct. 28, 2019 Test Date : Sep. 20, 2019 ~ Mar. 12, 2020 Issued Date : Mar. 12, 2020 Report No. : 19A2144R-RF-US-P09V01 Report Version : V1.0 The test results presented in this report relate only to the object tested. The measurement result is considered in conformance with the requirement if it is within the prescribed limit, It is not necessary to account the uncertainty associated with the measurement result, unless the specification, standard or customer have special requirements This report shall not be reproduced, except in full, without the written approval of the Issuing CB Testing Laboratory This report is not used for social proof in China (or Mainland China) market. Report No: 19A2144R-RF-US-P09V01 Page: 2 of 152 Te s t R e p o r t C e r t i f i c a t i o n Issued Date : Mar. 12, 2020 Report No. : 19A2144R-RF-US-P09V01 Product Name : Wireless Access Point Applicant : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Manufacturer : Extreme Networks, Inc Address : 6480 Via Del Oro, San Jose, CA 95119 Model No. : AP460C Brand : Extreme Networks FCC ID : QXO-AP460C EUT Voltage : DC 37~57V Test Voltage : AC 120V/60Hz Applicable Standard : FCC CFR Title 47 Part 15 Subpart E ANSI C63.10:2013; 789033 D02 General UNII Test Procedures New Rules v02r01 KDB 662911 D01 Multiple Transmitter Output v02r01 Test Result : Complied Performed Location : DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou,215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Designation Number: CN1199; Documented By : (Adm. Specialist: Kitty Li ) Reviewed By : (Technical Supervisor: Frank He) Approved By : (Engineer Supervisor: Jack Zhang ) Report No: 19A2144R-RF-US-P09V01 Page: 3 of 152 TABLE OF CONTENTS Description Page 1. General Information ....................................................................................................... 7 1.1. EUT Description ......................................................................................................... 7 1.2. Antenna information ................................................................................................... 8 1.3. Working Frequency of Each Channel: ...................................................................... 10 1.4. Mode of Operation.................................................................................................... 11 1.5. Tested System Details .............................................................................................. 12 1.6. Configuration of Tested System................................................................................ 13 1.7. EUT Exercise Software ............................................................................................ 14 2. Technical Test .............................................................................................................. 15 2.1. Summary of Test Result ........................................................................................... 15 2.2. Test Frequency configuration: .................................................................................. 15 2.3. Power vs Data Rate ................................................................................................. 16 2.4. Duty Cycle ................................................................................................................ 22 2.5. Test Environment...................................................................................................... 25 2.6. Uncertainty ............................................................................................................... 25 3. Conducted Emission .................................................................................................... 26 3.1. Test Equipment ........................................................................................................ 26 3.2. Test Setup ................................................................................................................ 26 3.3. Limit.......................................................................................................................... 27 3.4. Test Procedure ......................................................................................................... 27 3.5. Test Result ............................................................................................................... 28 4. Radiated Emission ....................................................................................................... 30 4.1. Test Equipment ........................................................................................................ 30 4.2. Test Setup ................................................................................................................ 31 4.3. Limit.......................................................................................................................... 32 4.4. Test Procedure ......................................................................................................... 35 4.5. EUT test Axis definition ............................................................................................ 36 Report No: 19A2144R-RF-US-P09V01 Page: 4 of 152 4.6. Test Result ............................................................................................................... 37 5. Emission bandwidth and occupied bandwidth.............................................................. 40 5.1. Test Equipment ........................................................................................................ 42 5.2. Test Setup ....................................................................................................…

Text truncated - open the document above for the full version.

1 Appendix 3: 5GHz Radiated spurious emission Radio 1: Profile: 19A2144RPage No.: 81 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:21 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Vertical EUT: AP460CPower: AC 120V/60Hz Note: Mode 1:Transmit at 5180MHz by 802.11a NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 110360.00045.60533.847-28.39574.00011.757PK 2*15540.00051.23233.761-22.76874.00017.471PK 2 Profile: 19A2144RPage No.: 82 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:21 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Horizontal EUT: AP460CPower: AC 120V/60Hz Note: Mode 1:Transmit at 5180MHz by 802.11a NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 110360.00045.00233.244-28.99874.00011.757PK 2*15540.00051.07733.606-22.92374.00017.471PK 3 Profile: 19A2144RPage No.: 83 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:21 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Vertical EUT: AP460CPower: AC 120V/60Hz Note: Mode 1:Transmit at 5220MHz by 802.11a NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 110440.00044.67032.319-29.33074.00012.351PK 2*15660.00049.37231.845-24.62874.00017.527PK 4 Profile: 19A2144RPage No.: 84 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:21 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Horizontal EUT: AP460CPower: AC 120V/60Hz Note: Mode 1:Transmit at 5220MHz by 802.11a NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 110440.00043.95731.606-30.04374.00012.351PK 2*15660.00049.23031.703-24.77074.00017.527PK 5 Profile: 19A2144RPage No.: 85 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:21 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Vertical EUT: AP460CPower: AC 120V/60Hz Note: Mode 1:Transmit at 5240MHz by 802.11a NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 110480.00044.46532.398-29.53574.00012.068PK 2*15720.00049.76531.614-24.23574.00018.152PK 6 Profile: 19A2144RPage No.: 86 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:21 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Horizontal EUT: AP460CPower: AC 120V/60Hz Note: Mode 1:Transmit at 5240MHz by 802.11a NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 110480.00043.54931.482-30.45174.00012.068PK 2*15720.00049.95431.803-24.04674.00018.152PK 7 Profile: 19A2144RPage No.: 87 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:21 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Vertical EUT: AP460CPower: AC 120V/60Hz Note: Mode 1:Transmit at 5745MHz by 802.11a NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 111490.00046.09732.166-27.90374.00013.931PK 2*17235.00052.58832.307-21.41274.00020.281PK 8 Profile: 19A2144RPage No.: 88 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:21 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Horizontal EUT: AP460CPower: AC 120V/60Hz Note: Mode 1:Transmit at 5745MHz by 802.11a NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 111490.00046.32932.398-27.67174.00013.931PK 2*17235.00051.96431.683-22.03674.00020.281PK 9 Profile: 19A2144RPage No.: 89 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:21 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Vertical EUT: AP460CPower: AC 120V/60Hz Note: Mode 1:Transmit at 5785MHz by 802.11a NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 111570.00046.10431.890-27.89674.00014.214PK 2*17355.00051.73231.969-22.26874.00019.762PK 10 Profile: 19A2144RPage No.: 90 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:21 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Horizontal EUT: AP460CPower: AC 120V/60Hz Note: Mode 1:Transmit at 5785MHz by 802.11a NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 111570.00046.78232.568-27.21874.00014.214PK 2*17355.00052.00832.245-21.99274.00019.762PK 11 Profile: 19A2144RPage No.: 91 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:21 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Vertical EUT: AP460CPower: AC 120V/60Hz Note: Mode 1:Transmit at 5825MHz by 802.11a NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 111650.00047.26132.684-26.73974.00014.577PK 2*17475.00051.48931.580-22.51174.00019.909PK 12 Profile: 19A2144RPage No.: 92 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:22 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Horizontal EUT: AP460CPower: AC 120V/60Hz Note: Mode 1:Transmit at 5825MHz by 802.11a NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor (dB) Type 111650.00047.69433.117-26.30674.00014.577PK 2*17475.00052.28632.377-21.71474.00019.909PK 13 Profile: 19A2144RPage No.: 93 Engineer: YULIU Site: AC5Time: 2019/12/18 - 15:22 Limit: FCC_Part15.209_RE(3m)Margin: 0 Probe: Horn_3117_00167055(1-18GHz)Polarity: Vertical EUT: AP460CPower: AC 120V/60Hz Note: Mode 2:Transmit at 5180MHz by 802.11n(20MHz) NoMarkFrequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Fact…
