QXO-AP5050Access Point

ExtremeWireless 802.11ax Wi-Fi 6E Outdoor AP5050U Access Point Overview of AP5050U The AP5050U access point is a cloud-ready, stadium-optimized Wi-Fi 6E outdoor access point. It is 802.11ax outdoor rated with internal antenna and supports high density of users and devices. The AP5050U access point can be mounted under a seat or under a bench with the EIO- 04 mounting kit (sold separately). It can also be mounted on a wall or to a pole. For more information, see Extreme Wireless 802.11ax Wi-Fi 6E Outdoor AP5050U Access Point Installation Guide. AP5050U Box Contents Ensure that the following items came with the access point: The access point ships with two black gaskets in the box for use with Category 6 (CAT 6) Ethernet cables with a cable diameter from 6.0mm to 9.2mm. This includes unshielded twisted-pair (UTP) Cat 6 cables. Store these gaskets in a safe place if you do not use them right away. The access point has light-gray gaskets pre-installed in the access point glands. The light- gray gasket handles all CAT 5 and CAT 5E cables, with a cable diameter range from 4.5mm to 6.0mm. Features The AP5050U access point has the following features: • Radios: 3 radios (2.4GHz, 5.0 GHz, and 6 GHz); 1 IoT Radio (BLE/802.15.4) • One micro USB console port - You can order a micro USB console adapter for the access point using the part number ACC-WIFI-MICRO-USB • Two Ethernet ports (ETH0 and ETH1): – ETH0 is 1 x 100/1000/2500/5000 Mpbs auto-negotiation Ethernet port, RJ45 (PoE) – ETH1 is 1 x 100/1000/2500 Mpbs auto-negotiation Ethernet port, RJ45 (PSE) • Dimensions: 11.3 in. x 10.0 in. x 2.9 in. (288 mm x 254 mm x 75 mm) • One dual LED - For LED activity description • 3 mm diameter safety hanger provision • Power: PoE 802.3at with 4x4x4 - For complete power profile information, refer to the ExtremeWireless AP5050U Access Point Installation Guide at the Extreme Networks Documentation Site. • Antenna: – One omni-directional internal antenna • Temperature: – -40°C to +60°C (-40°F to +140°F) operating temperature – -40 °C to +70 °C (-40 °F to +158 °F) storage temperature Enclosure: Plastic top enclosure and aluminum bottom Figure 1 AP5050U access point Mounting Options The AP5050U access point is used with the EIO-04 under-seat mounting kit for the following installations: • Slope • Flat surface such as stadium floor Table 1 AP5050U box contents QuantityItem 1AP5050U access point. 1Quick Reference Guide. 2Black gaskets for use with a CAT6 and CAT6A cable. CalloutDescription 1ETH1 (PSE) port 2ETH0 (PoE) port 3Console port Note: The AP5050U cannot be installed without the mounting brackets. The mounting brackets are purchased separately. For more information, see Extreme Wireless 802.11ax Wi-Fi 6E Outdoor AP5050U Access Point Installation Guide.https://www.extremenetworks.com/products/ extremewireless.. Note: The best practice is to install the EIO-04 under-seat mounting kit horizontally. The EIO-04 under-seat mounting kit can also be installed vertically on a slope or on a flat surface vertically if it is being installed on a stadium riser. The following table lists the mounting options available. Available Accessories The following accessories are available. Install the EIO-04 Under-Seat Mounting Kit With the AP5050U Access Point on a Slope Attach the conduit cable through the conduit holes on the metal sloping bracket, then attach the metal L bracket to the access point, and install the access point on a slope. Install the EIO-04 Under-Seat Mounting Kit With the AP5050U Access Point on a Slope Attach the conduit cable through the conduit holes on the metal sloping bracket, then attach the metal L bracket to the access point, and install the access point on a slope. Install the metal sloping bracket on a slope: 1 Using the metal sloping bracket as a template, mark and drill two holes on the concrete. 2 Insert the anchors without the nuts and washers. 3 Place the metal sloping bracket, attach the nuts and washers to the exposed threads, and torque them to 60 in-lbs. Install the AP5050U access point on the slope: 1 Attach the conduit couplers to the conduit. Mounting bracket and part number Wall installPole install Under- seat install Notes EIO-04 under-seat housing NoNoYes The access point can be installed under a seat on a slope or a flat surface such as stadium floor. KT-147407-02 bracket; comes with three bracket parts YesYesNo Micro USB cable Used for troubleshooting issues. KT-150173-01; extension arm; used with KT- 147407-02 bracket parts Yes; place the KT-150173-01 extension arm on top of the 1-axis KT- 147407-02 tilt part Yes; attach the KT-147407-02 pole part to the extension arm No - MBO-ART02 YesYesNo The articulating mounting bracket is paired with the POLE01 bracket for pole installations. For wall installations, the wall must be strong enough to support the access point during inclement weather. 30520(WS- MBO-POLE01 bracket) No Yes (must be used with the MBO-ART02 bracket) No If the pole diameter is <= 1.0 in. (25.4 mm), use small cable clamp. If the pole diameter is between 5.0 in. - 7.0 in. (178.0 mm), use large cable clamp. For any other pole diameter, provide your own stainless steel cable clamp. The band must be 0.5 in. (12.7 mm) wide. The POLE01 bracket can be used only when paired with the MBO- ART02 bracket. ItemDescription ACC-CAT6- LAN-GSKT A black gasket. For use with a CAT6 and CAT6A cable. ACC-WIFI- MICRO-USB Micro USB cable Used for troubleshooting issues. EIO-03-SP A wireless access point service panel. Protects the LAN gland side of the access point. EIO-04 An under-seat mounting solution. EIO-GASKET Spacer for use in stadiums. KT-147407-02 A stainless steel hardware kit for mounting access points outdoors. KT-150173-01 A A 12-inch extension arm for pole and wall mounting. 30520 (WS-MBO- POLE01) .A pole mounting bracket. 2 Remove the locking nut. For the conduit hole that is not used, insert a blank conduit cover over the conduit hole in the slope. 3 If you are using the lef…

Text truncated - open the document above for the full version.

ExtremeWireless 802.11ax Wi-Fi 6E Outdoor AP5050D Access Point Overview of AP5050D The AP5050D is a 802.11ax stadium-optimized overhead Wi-Fi 6E outdoor access point. It supports high density of users and devices. The AP5050D access point offers flexible deployment options and can be mounted to a wall or to a pole using the KT-147407-02, KT-150173-01, and MBO-ART02 mounting brackets, thereby ensuring exceptional mobile experience throughout the stadium. For more information, see Extreme Wireless 802.11ax Wi-Fi 6E Outdoor AP5050D Access Point Installation Guide. AP5050D Box Contents Ensure that the following items are available: The access point ships with two black gaskets in the box for use with Category 6 (CAT 6) Ethernet cables with a cable diameter from 6.0mm to 9.2mm. This includes unshielded twisted-pair (UTP) Cat 6 cables. Store these gaskets in a safe place if you do not use them right away. The access point has light-gray gaskets pre-installed in the access point glands. The light- gray gasket handles all CAT 5 and CAT 5E cables, with a cable diameter range from 4.5mm to 6.0mm. Features The AP5050D access point has the following features: • Radios: 3 radios (2.4GHz, 5.0 GHz, and 6 GHz); 1 IoT Radio (BLE/802.15.4) • One micro USB console port - You can order a micro USB console adapter for the access point using the part number ACC-WIFI-MICRO-USB • Two Ethernet ports: – ETH0 is 1 x 100/1000/2500/5000 Mpbs auto-negotiation Ethernet port, RJ45 (PoE) – ETH1 is 1 x 100/1000/2500 Mpbs auto-negotiation Ethernet port, RJ45 (PSE) • Dimensions: 11.3 in. x 18.9 in. x 3.5 in. (288 mm x 481 mm x 88 mm) • One dual LED For LED activity description, see “Status LED Activity Description” • 3 mm diameter safety hanger provision • Power: PoE 802.3at with 4x4x4 For complete power profile information, refer to the ExtremeWireless AP5050D Access Point Installation Guide at the Extreme Networks Documentation Site. • Antennas: – Two software selectable internal antennas (30 degree and 70 degree directional antennas) • Temperature: – -40°C to +60°C (-40°F to +140°F) operating temperature – -40°C to +70°C (-40°F to +158°F) storage temperature • Enclosure: Radome plastic with an aluminum base. The service panel can be used on wall or pole mount using EIO-03-SP to protect the Glands or hide them for aesthetics. You need to order EIO-03-SP. This is not required. Figure 1 AP5050D side ports Status LED Activity Description The access point has one status light on top of the chassis. The status light conveys operational states for system power, firmware updates, Ethernet and wireless interface activity, and major alarms. IQ Engine Status LED Activity • Dark: Power is off. • Solid white: The device power is on and the access point is ready to use. The device has successfully established a Control And Provisioning of Wireless Access Points (CAPWAP) connection to ExtremeCloud IQ and is operating normally. • Slow-blinking white: The device has a CAPWAP connection to ExtremeCloud IQ, but is operating on 802.3at power instead of 802.3bt power. QuantityItem 1AP5050D access point. 1Quick Reference Guide. 1 EIO-03-SP hardware bag containing the following hardware components: • One plastic service panel base. • One plastic service panel top with one captive screw. • Four 75 mm service panel shoulder screws. 2Black gaskets for use with a CAT6 and CAT6A cable. CalloutDescription 1ETH1 (PSE) port 2ETH0 (PoE) port 3Console port • Solid amber: The device power is on and the access point is in boot up mode, or is running without a CAPWAP connection. • Slow-blinking amber: The device has no CAPWAP connection to ExtremeCloud IQ, and is operating on 802.3at power instead of 802.3bt power. • Fast-blinking amber: The device is updating its IQ Engine firmware. ExtremeCloud IQ Controller Status LED Activity • Dark: Power is off or the LED has been turned off. • Solid white: The device is booting or already taken over by the controller. • Slow-blinking white: The device is in the process of being taken over by the controller or has failed to be taken over by the controller. • Flashing fading white: Configuration pushes down to access point from controller helping an user to locate the access point location using visual inspection. • Solid amber: The access point is upgrading its firmware. • Fast-blinking amber: The access point is acquiring DHCP IP. Mounting Accessories AP5050D can be mounted to a wall or to a pole by using a mounting kit that can be purchased separately, which is described in the following table. The following table lists the mounting options available. For complete installation information and installation using other compatible brackets and accessories, refer to the ExtremeWireless AP5050D Access Point Installation Guide at the Extreme Networks Documentation Site. The KT-147407-02 bracket has three parts: • Flat part with holes on the metal surface • 1-axis tilt part • Boxed pole part with step edge Available Accessories The following accessories are available. Mounting bracket Wall installPole installNotes KT-147407-02 bracket; comes with three bracket parts YesYes Micro USB cable Used for troubleshooting issues. KT-150173-01; extension arm; used with KT- 147407-02 bracket parts Yes; place the KT-150173-01 extension arm on top of the 1-axis KT- 147407-02 tilt part Yes; attach the KT-147407-02 pole part to the extension arm - MBO-ART02 YesYes The articulating mounting bracket is paired with the POLE01 bracket for pole installations. For wall installations, the wall must be strong enough to support the access point during inclement weather. 30520(WS- MBO-POLE01 bracket) No Yes (must be used with the MBO-ART02 bracket) If the pole diameter is <= 1.0 in. (25.4 mm), use small cable clamp. If the pole diameter is between 5.0 in. - 7.0 in. (178.0 mm), use large cable clamp. For any other pole diameter, provide your own stainless steel cable clamp. The band must be 0.5 in. (12.7 mm) wide. The POLE01 bracket can be used o…

Text truncated - open the document above for the full version.

ExtremeWireless™ 802.11ax Wi-Fi 6E Outdoor AP5050U Access Point Installation Guide 9037682-00 Rev AA December 2022 Copyright © 2022 Extreme Networks, Inc. All rights reserved. Legal Notice Extreme Networks, Inc. reserves the right to make changes in specifications and other information contained in this document and its website without prior notice. The reader should in all cases consult representatives of Extreme Networks to determine whether any such changes have been made. The hardware, firmware, software or any specifications described or referred to in this document are subject to change without notice. Trademarks Extreme Networks and the Extreme Networks logo are trademarks or registered trademarks of Extreme Networks, Inc. in the United States and/or other countries. All other names (including any product names) mentioned in this document are the property of their respective owners and may be trademarks or registered trademarks of their respective companies/owners. For additional information on Extreme Networks trademarks, see: www.extremenetworks.com/ company/legal/trademarks Open Source Declarations Some software files have been licensed under certain open source or third-party licenses. End-user license agreements and open source declarations can be found at: https:// www.extremenetworks.com/support/policies/open-source-declaration/ Table of Contents Preface......................................................................................................................................................... 5 Text Conventions.......................................................................................................................................................... 5 Documentation and Training.................................................................................................................................. 6 Help and Support......................................................................................................................................................... 7 Subscribe to Product Announcements.....................................................................................................7 Send Feedback.............................................................................................................................................................. 7 AP5050U Overview....................................................................................................................................9 AP5050U Features...................................................................................................................................................... 9 Supported Accessories............................................................................................................................................. 11 Power Profile.................................................................................................................................................................. 11 Micro USB Console Port Information................................................................................................................ 12 AP5050U Status LED Activity Description....................................................................................................12 AP5050U Purchase Order Information............................................................................................................13 AP5050U order information......................................................................................................................... 13 EIO-04 under-seat mounting kit order information......................................................................... 14 KT-147407-02 bracket order information.............................................................................................. 14 KT-150173-01 extension arm order information................................................................................... 15 MBO-ART02 bracket order information................................................................................................. 15 WS-MBO-POLE01 bracket order information...................................................................................... 16 Install the Access Point.............................................................................................................................17 Installation Do's and Don'ts................................................................................................................................... 18 Installation Don'ts:..............................................................................................................................................18 Installation Do's:.................................................................................................................................................. 19 Access Point Bracket Usage and Mounting Options............................................................................... 20 Install the Access Point Under-Seat...................................................................................................................21 Install the EIO-04 Under-Seat Slope Bracket and the Access Point....................................... 22 Install the Access Point on a Flat Surface Using EIO-04 Brackets........................................... 25 Install the Access Point on a Wall...................................................................................................................... 26 Install the Access Point on a Wall or Flat Surface Using the KT-147407-02 Bracket Parts......................................................................................................................................................................... 27 Install the Access Point Using KT-147407-02 Bracket Parts and KT-150173-01 Extension Arm..............................................................................…

Text truncated - open the document above for the full version.

ExtremeWireless™ 802.11ax Wi-Fi 6E Outdoor AP5050D Access Point Installation Guide 9037683-00 Rev AA December 2022 Copyright © 2022 Extreme Networks, Inc. All rights reserved. Legal Notice Extreme Networks, Inc. reserves the right to make changes in specifications and other information contained in this document and its website without prior notice. The reader should in all cases consult representatives of Extreme Networks to determine whether any such changes have been made. The hardware, firmware, software or any specifications described or referred to in this document are subject to change without notice. Trademarks Extreme Networks and the Extreme Networks logo are trademarks or registered trademarks of Extreme Networks, Inc. in the United States and/or other countries. All other names (including any product names) mentioned in this document are the property of their respective owners and may be trademarks or registered trademarks of their respective companies/owners. For additional information on Extreme Networks trademarks, see: www.extremenetworks.com/ company/legal/trademarks Open Source Declarations Some software files have been licensed under certain open source or third-party licenses. End-user license agreements and open source declarations can be found at: https:// www.extremenetworks.com/support/policies/open-source-declaration/ Table of Contents Preface......................................................................................................................................................... 5 Text Conventions.......................................................................................................................................................... 5 Documentation and Training.................................................................................................................................. 6 Help and Support......................................................................................................................................................... 7 Subscribe to Product Announcements.....................................................................................................7 Send Feedback.............................................................................................................................................................. 7 AP5050D Overview....................................................................................................................................9 AP5050D Features...................................................................................................................................................... 9 Power Profile.................................................................................................................................................................. 11 Micro USB Console Port Information................................................................................................................. 11 Supported Accessories............................................................................................................................................ 12 AP5050D Status LED Activity Description....................................................................................................12 IQ Engine Status LED Activity..................................................................................................................... 12 ExtremeCloud IQ Controller Status LED Activity...............................................................................13 AP5050D Purchase Order Information............................................................................................................13 AP5050D Order Information........................................................................................................................13 KT-147407-02 Bracket Order Information............................................................................................. 13 KT-150173-01 Extension Arm Order Information.................................................................................15 MBO-ART02 Bracket Order Information................................................................................................ 15 WS-MBO-POLE01 Bracket Order Information..................................................................................... 15 Install the Access Point............................................................................................................................ 16 Installation Do's and Don'ts....................................................................................................................................17 Installation Don'ts...............................................................................................................................................18 Installation Do's:.................................................................................................................................................. 18 Access Point Bracket Usage and Mounting Options.................................................................................19 Install the Access Point on a Wall......................................................................................................................20 Install the Access Point on a Wall or Flat Surface Using the KT-147407-02 Bracket Parts.......................................................................................................................................................................... 21 Install the Access Point Using KT-147407-02 Bracket Parts and KT-150173-01 Extension Arm.................................................................................................................................................... 24 Install the Access Point Using KT-150173-01 Extension Arm....................................................... 25 Install the Access Point on a Wall …

Text truncated - open the document above for the full version.

Extreme Networks, Inc. 2121 RDU Center Drive Morrisville North Carolina United States 27560 Professional Installation Declaration Date: 2022/8/3 FCC ID：QXO-AP5050 To Whom It May Concern: Please be advised that due to the unique Market and function targeted by this product, this product will need special trained professional in configuring and installing the product. We hereby declare that the product will be distributed through controlled distribution channel which has special trained professional to install this product and will not be sold directly to the general public through retail store. Respectfully, Applicant’s company name : Extreme Networks, Inc. Applicant’s company address : 2121 RDU Center Drive Morrisville North Carolina United States 27560 Signature : Name and Job Title : John Ballew / Senior Regulatory Compliance Manager E-Mail : [email protected] Te l : +1-603-952-5862 Fax : 1-603-952-5862

Extreme Networks, Inc. 2121 RDU Center Drive Morrisville North Carolina United States 27560 Power of Attorney Date: 2022/8/3 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Hsinchu Laboratory Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. FCC ID: QXO-AP5050 Respectfully, Applicant’s company name : Extreme Networks, Inc. Applicant’s company address : 2121 RDU Center Drive Morrisville North Carolina United States 27560 Signature : Name and Job Title : John Ballew / Senior Regulatory Compliance Manager E-Mail : [email protected] Te l : +1-603-952-5862 Fax : 1-603-952-5862

Extreme Networks, Inc. 2121 RDU Center Drive Morrisville North Carolina United States 27560 Product Family Description Date: 2022/11/1 FCC ID：QXO‐AP5050 To Whom It May Concern: All devices are identical to each other in all aspects except for the following table: Model Antenna (Differences) Description AP5050U Internal Antenna 1. AP5050U and AP5050D both have same radios ‐ one 2.4GHz DTS, one 5 GHz UNII, one IoT DTS and two ethernet ports. 2. AP5050U is a stadium‐optimized access point that has one omni‐directional internal antenna. It can be mounted under a seat or under a bench. 3. AP5050D is a stadium‐optimized access point that has two software selectable internal antennae, 30 degree and 70‐degree directional antenna. It can be mounted on a wall or on a pole. AP5050D Narrow beam/ Wide beam Applicant’s company name : Extreme Networks, Inc. Applicant’s company address : 2121 RDU Center Drive Morrisville North Carolina United States 27560 Signature : Name and Job Title : John Ballew / Senior Regulatory Compliance Manager E‐Mail : [email protected] Tel : +1‐603‐952‐5862 Fax : 1‐603‐952‐5862

Extreme Networks, Inc. 2121 RDU Center Drive Morrisville North Carolina United States 27560 Confidential Letter Date: 2022/8/3 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：QXO-AP5050 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description ● Bills of Materials The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ● External Photos ● Internal Photos ● Test Setup photos ● Users Manuals Respectfully, Applicant’s company name : Extreme Networks, Inc. Applicant’s company address : 2121 RDU Center Drive Morrisville North Carolina United States 27560 Signature : Name and Job Title : John Ballew / Senior Regulatory Compliance Manager E-Mail : [email protected] Te l : +1-603-952-5862 Fax : 1-603-952-5862

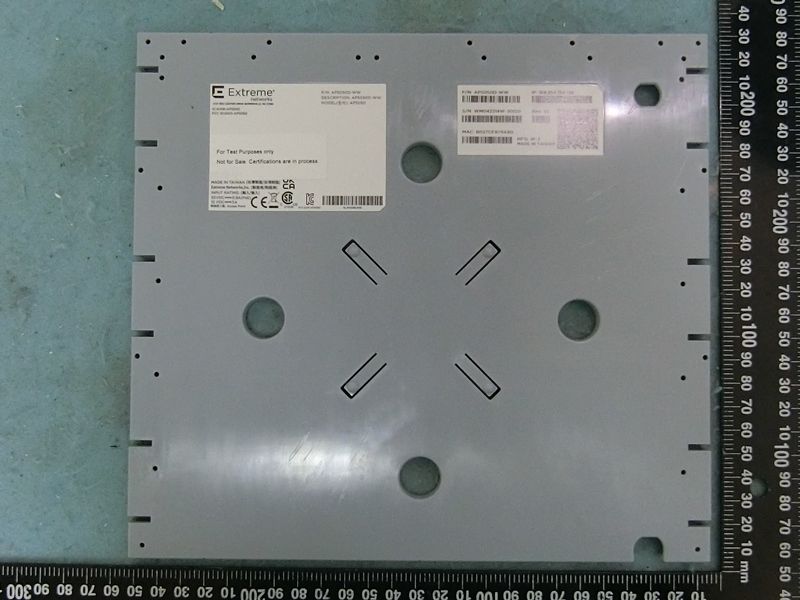

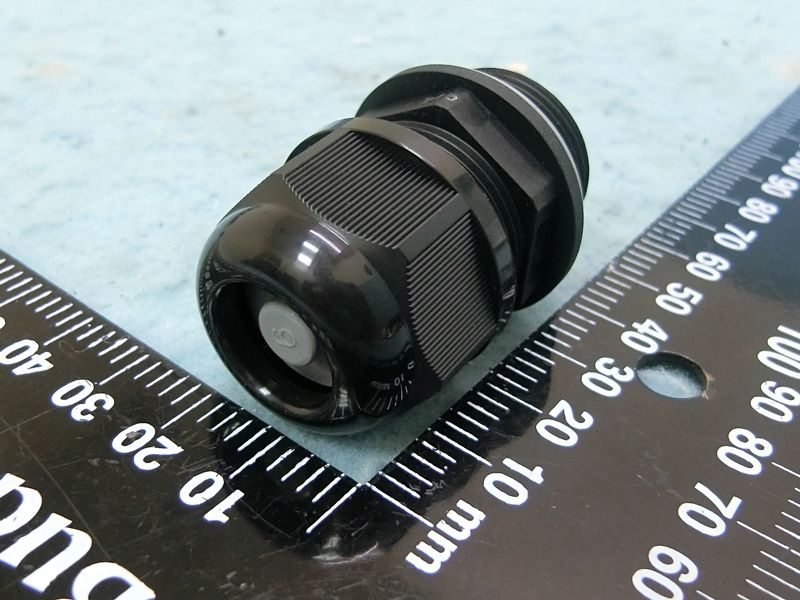

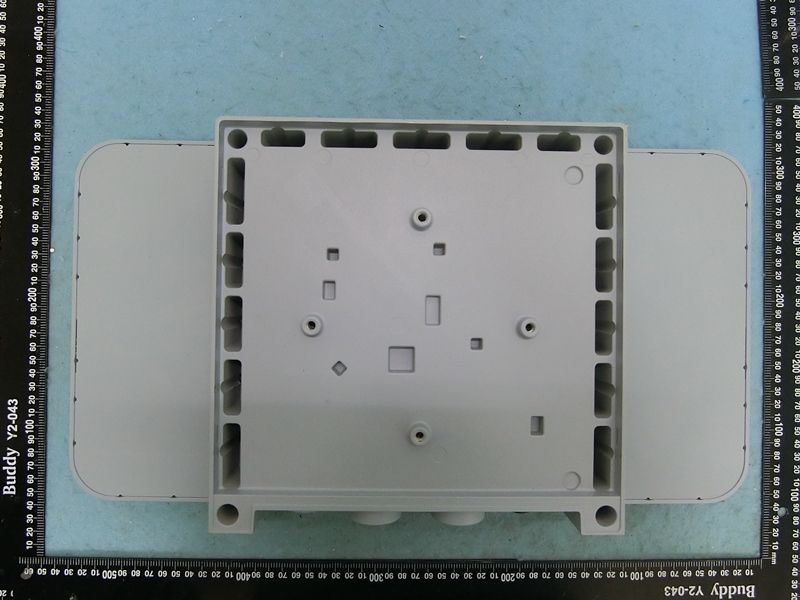

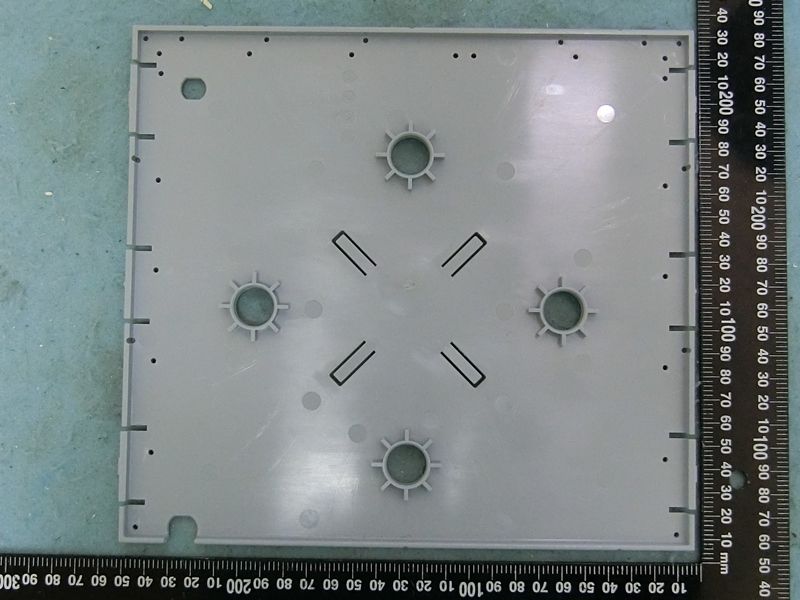

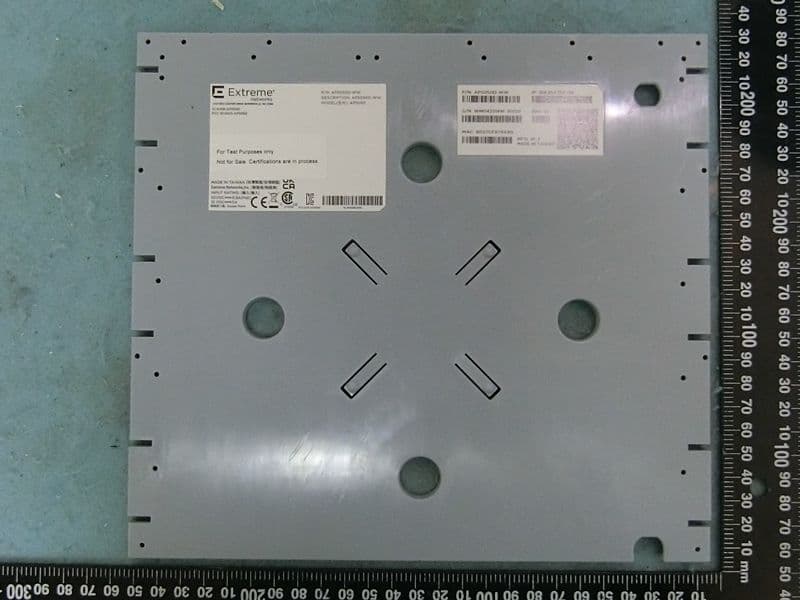

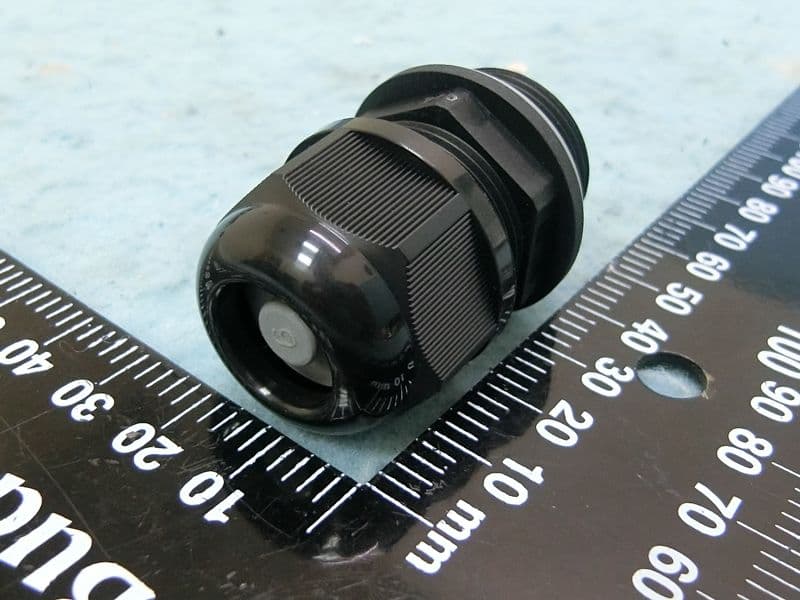

PHOTOGRAPHS OF EUT EP251735 Sporton International Inc. Page No. : 1 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Oct. 31, 2022 Report Version : 01 Brand Name: Extreme Networks Model Name: AP5050U PHOTOGRAPHS OF EUT EP251735 Sporton International Inc. Page No. : 2 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Oct. 31, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP251735 Sporton International Inc. Page No. : 3 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Oct. 31, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP251735 Sporton International Inc. Page No. : 4 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Oct. 31, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP251735 Sporton International Inc. Page No. : 5 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Oct. 31, 2022 Report Version : 01 Bracket PHOTOGRAPHS OF EUT EP251735 Sporton International Inc. Page No. : 6 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Oct. 31, 2022 Report Version : 01 Sealing Collar

PHOTOGRAPHS OF EUT EP251735 Sporton International Inc. Page No. : 1 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : Oct. 31, 2022 Report Version : 01 Brand Name: Extreme Networks Model Name: AP5050D PHOTOGRAPHS OF EUT EP251735 Sporton International Inc. Page No. : 2 of 6 Report Template No.: SE Ver 1.0_EP Issued Dat…
