QXO-OAP36AHiPath Wireless Outdoor Access Point

Installing the Enterasys Wireless Outdoor AP3660 For complete installation instructions and information about the Enterasys Wireless Outdoor AP3660, see the Enterasys Wireless Outdoor AP3660 Installation Guide at http:/ /www.enterasys.com/support/manuals. Overview of the Enterasys Wireless Outdoor AP3660 The Enterasys Wireless Outdoor AP enables you to extend your Wireless LAN beyond the boundaries of indoor locations. They are resistant to harsh outdoor conditions and extreme temperatures. Using the advanced wireless distribution mesh feature of Enterasys Wireless LAN, the Enterasys Wireless Outdoor AP3660 can extend your Wireless LAN to outdoor locations without Ethernet cabling. A mounting bracket is available to enable quick and easy mounting of the Enterasys Wireless Outdoor APs to walls and poles. Figure 1 Enterasys Wireless Outdoor AP3660 The Enterasys Wireless Outdoor AP3660 supports the 902.11n, 802.11a, 802.11g, and full backward compatibility with legacy 802.11b devices. The Enterasys Wireless Outdoor AP3660 with external antenna connectors supports a variety of antennas, providing range and coverage versatility. The Enterasys Wireless Outdoor AP3660 interoperates fully with Enterasys Wireless LAN, including support for VoWLAN, branch office mode, guest services, RTLS, availability and mobility features. Unpacking the Enterasys Wireless Outdoor AP3660 Unpack the AP from its carton. The following components are supplied with the Enterasys Wireless Outdoor AP3660 package •1 mounting bracket •2 stainless steel tie back straps that support pole diameters up to 4 inches •4 M6 screws •4 washers Electrical Hazard: Only qualified personnel should perform installation procedures. Antenna Connectors •4 spring washers •1 ground screw •RJ45 waterproof connector assembly •A printed copy of the Enterasys Wireless Outdoor Access Point Quick Reference ‐ AP3660 Mounting and Connecting the Enterasys Wireless Outdoor AP3660 Mounting and connecting the Enterasys Wireless Outdoor AP3660 can be accomplished easily and safely by following the instructions in the full Enterasys Wireless Outdoor Access Point AP3660 Installation Guide. The installation of the Outdoor AP should be performed by a professional installer to ensure proper operation and compliance with safety guidelines. Mounting the Outdoor AP3660: 1. Attach the mounting bracket to the AP3660 using four M6 screws and washers. You can attach the bracket to the AP in either the vertical or horizontal position as shown in Figures 2 and 3. Figure 2 Mounting Bracket - Vertical Position Figure 3 Mounting Bracket - Horizontal Position 2. You can mount the AP3660 to either a pole or a wall: a. To mount the AP3660 with the attached mounting bracket to a pole, use the supplied stainless steel tie back straps. You can mount the AP3660 to a pole in one of three possible configurations, as shown in Figures 4, 5, and 6. Note: Before you start mounting the Enterasys Wireless Outdoor AP3660, read the Safety Guidelines below. Figure 4 AP3660 - Pole Mount Option 1 Figure 5 AP3660 - Pole Mount Option 2 Figure 6 AP3660 - Pole Mount Option 3 b.Mount the AP3660 and the attached mounting bracket to a wall using four wood/gyprock screws as shown in Figure 7. Figure 7 AP3660 - Wall Mount 3.Install the external antenna intended for area coverage. For information about antenna selection and installation, refer to the External Antenna Site Preparation and Installation Guide. 4.Attach the external antenna cables to the RP‐N connectors on the AP. Connecting and powering the AP You can power up the AP in one of the following ways: •Power over Ethernet: Adding PoE injector You can provide power to the Ethernet cable with a PoE injector. The PoE injector must be 802.3at compliant. The PoE injector is not provided with the AP. A waterproof RJ45 connector is provided to connect the PoE injector to the AP3660. You must connect the RJ45 connector to the RJ45 cable. For instructions, refer to the full Enterasys Wireless Outdoor Access Point AP3660 Installation Guide. •Power by external power supply: You can purchase an external power supply unit (WS‐ PS3660‐MR) to power the AP. See your Enterasys sales representative for details. For power supply installation instructions, refer to the Enterasys Wireless Outdoor Access Point AP3660 Installation Guide. Regulatory and Compliance information Federal Communications Commission (FCC) Notice: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada Notice: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations for the Canadian Department of Communications. Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class B prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. Refer to the HiPath Wireless Controller, Access Points, and Convergence Software User Guide Installation Guide, Appendix B, ʺRegulatory information,ʺ for complete regulatory information. Warning: Changes or modifications made to this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment 17x11 bleed template; DragonNotice; large text Safety Guidelines This section contains notices that you have to adhere to ensure your personal safety and to prevent any damage to the equipment. Qualified Personnel: Grounding Warning: Lightning Protection Warning: Electrical Hazard: Only qualified personnel should perform installation procedures. Within the context of the safety notes in this documentation qualified persons are defined as pe…

Text truncated - open the document above for the full version.

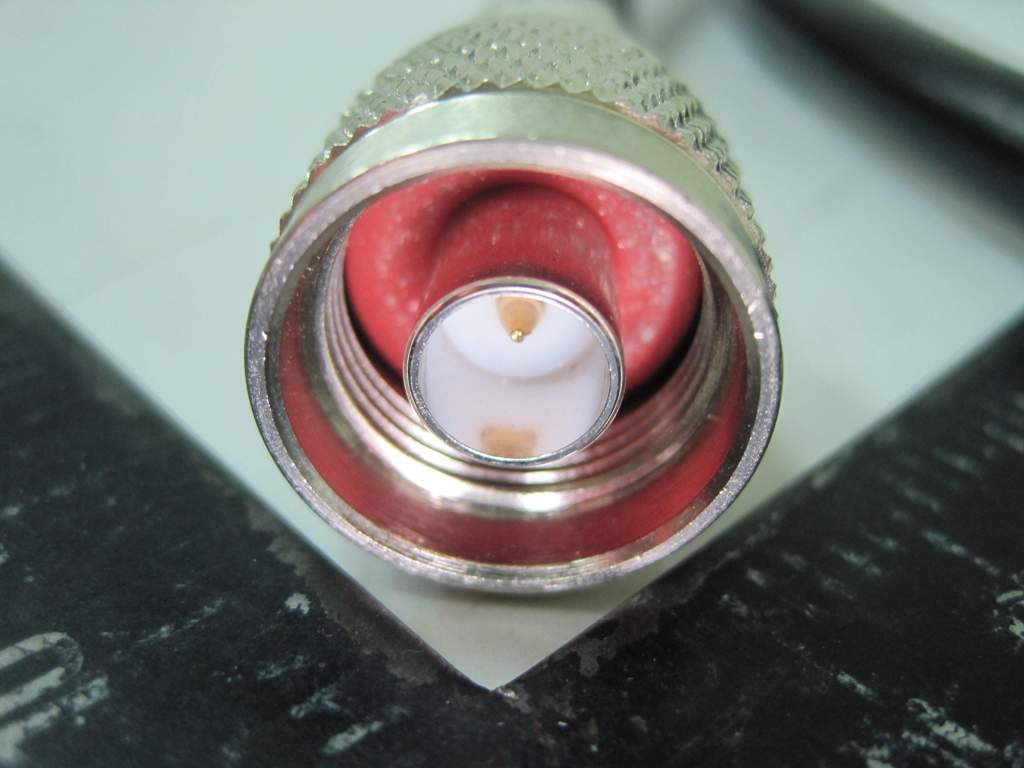

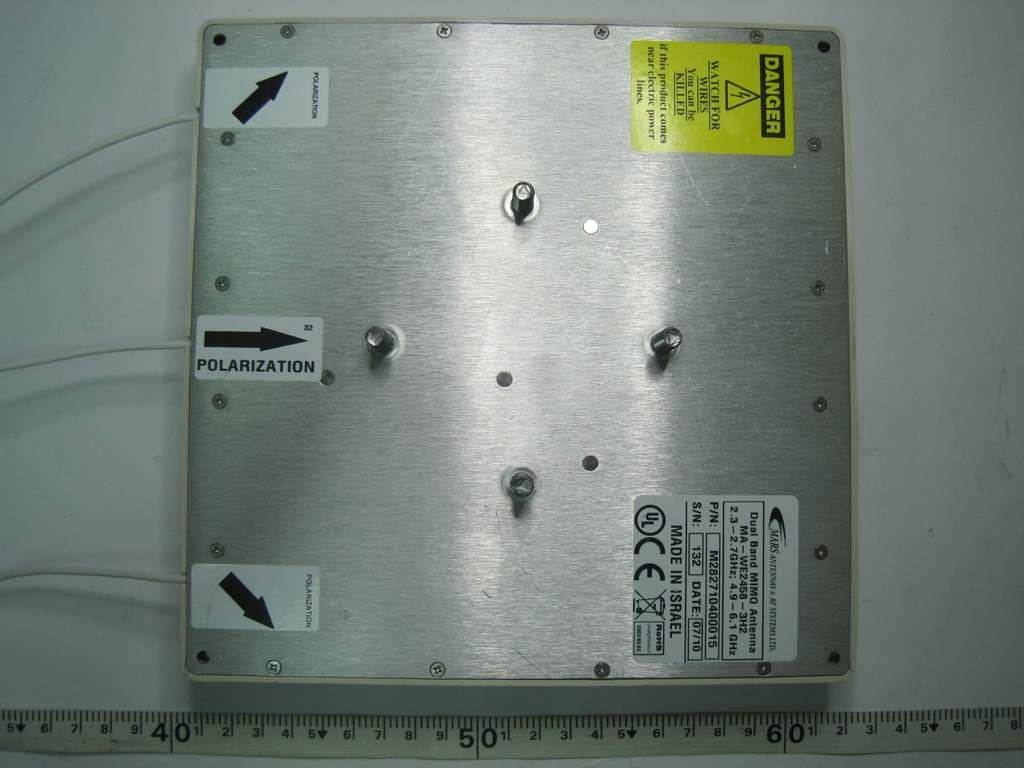

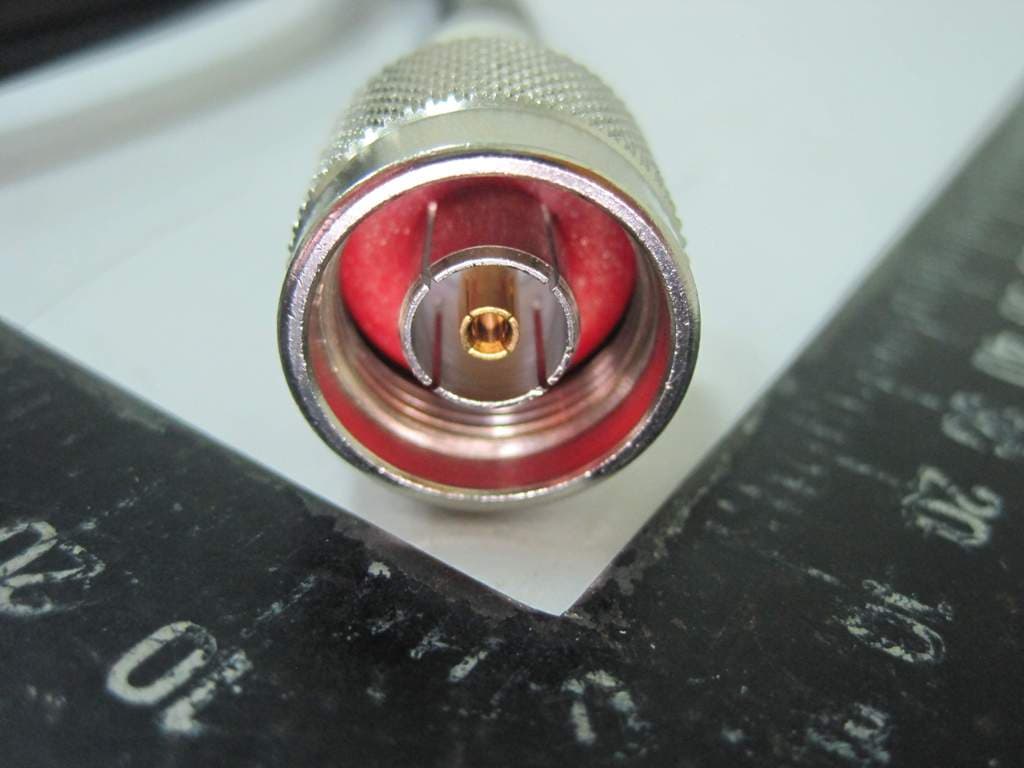

SPORTON International Inc. PAGE NUMBER : A1 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 Ant. 1 SPORTON International Inc. PAGE NUMBER : A3 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 Ant. 2 SPORTON International Inc. PAGE NUMBER : A4 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 Ant. 3 SPORTON International Inc. PAGE NUMBER : A6 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 Ant. 4 SPORTON International Inc. PAGE NUMBER : A7 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 Ant. 5 SPORTON International Inc. PAGE NUMBER : A10 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 Ant. 6 SPORTON International Inc. PAGE NUMBER : A11 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 Ant. 7 SPORTON International Inc. PAGE NUMBER : A12 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 Cable SPORTON International Inc. PAGE NUMBER : A13 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A16 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255

75.00mm 35.00mm

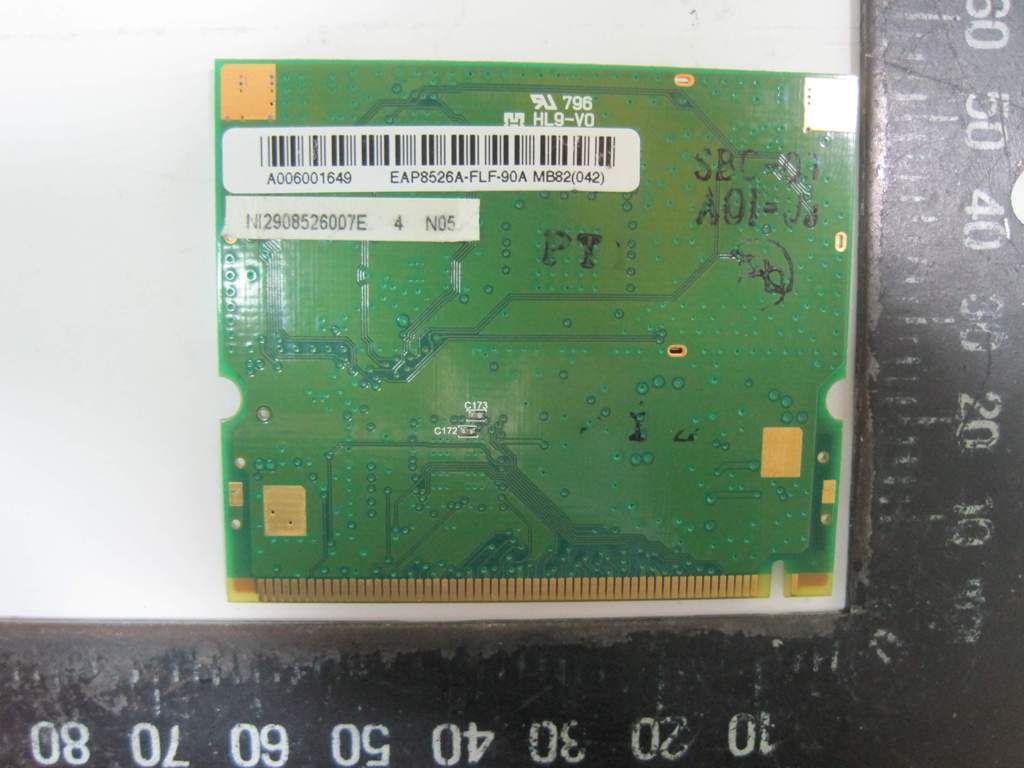

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 06, 2010 FAX : 886-2-2696-2255

Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : C1 of C6 Appendix C. Maximum Permissible Exposure Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : C2 of C6 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=1m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : C3 of C6 1.3. Calculated Result and Limit 1.3.1. For 5GHz Band <For Mode 1 (Ant. 1)>: For 5GHz UNII Band: (15.407) Antenna Type : Sector Antenna Max Conducted Power for IEEE 802.11an MCS8 20MHz J2+J4: 14.92 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 15.00 31.6228 14.9155 31.0137 0.007808 1 Complies For 5GHz ISM Band: (15.247) Antenna Type : Sector Antenna Max Conducted Power for IEEE 802.11an MCS8 20MHz J2+J4: 20.59 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 15.00 31.6228 20.5863 114.4548 0.028817 1 Complies <For Mode 2 (Ant. 2)>: For 5GHz UNII Band: (15.407) Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a J2+J4: 7.87 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 22.00 158.4893 7.8711 6.1251 0.007729 1 Complies For 5GHz ISM Band: (15.247) Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11an MCS8 20MHz J2+J4: 27.56 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 22.00 158.4893 27.5615 570.3548 0.719707 1 Complies Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : C4 of C6 <For Mode 4 (Ant. 4)>: For 5GHz UNII Band: (15.407) Antenna Type : Sector Antenna Max Conducted Power for IEEE 802.11a J2+J3+J4: 23.75 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.00 2.5119 23.7460 236.9203 0.004738 1 Complies For 5GHz ISM Band: (15.247) Antenna Type : Sector Antenna Max Conducted Power for IEEE 802.11a J2+J3+J4: 28.60 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.00 2.5119 28.6017 724.7165 0.014494 1 Complies <For Mode 6 (Ant. 6)>: For 5GHz ISM Band: (15.247) Antenna Type : Omni Antenna Max Conducted Power for IEEE 802.11an MCS8 20MHz J2+J3+J4: 25.48 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 9.00 7.9433 25.4765 352.9023 0.022318 1 Complies <For Mode 7 (Ant. 7)>: For 5GHz UNII Band: (15.407) Antenna Type : Omni Antenna Max Conducted Power for IEEE 802.11an MCS8 20MHz J2+J3+J4: 23.97 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.00 2.5119 23.9735 249.6606 0.004993 1 Complies For 5GHz ISM Band: (15.247) Antenna Type : Omni Antenna Max Conducted Power for IEEE 802.11an MCS8 20MHz J2+J3+J4: 28.22 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.00 2.5119 28.2166 663.2264 0.013264 1 Complies Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : C5 of C6 1.3.2. For 2.4GHz Band <For Mode 3 (Ant. 3)>: Antenna Type : Panel Antenna Max Conducted Power for IEEE 802.11b J2+J3+J4: 25.44 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 17.5 56.2341 25.4425 350.1489 0.156770 1 Complies <For Mode 4 (Ant. 4)>: Antenna Type : Sector Antenna Max Conducted Power for IEEE 802.11n MCS8 20MHz J2+J3+J4: 28.90 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.5 2.8184 28.9018 776.5653 0.017426 1 Complies <For Mode 5 (Ant. 5)>: Antenna Type : Omni Antenna Max Conducted Power for IEEE 802.11n MCS8 20MHz J2+J3+J4: 25.03 dBm A…

Text truncated - open the document above for the full version.

Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : D1 of D6 Appendix D. Co-location Report Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : D2 of D6 1.1. Co-Location Measurement 1.1.1. Limit The emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 1.1.2. Measuring Instruments and Setting Please refer to section 5 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 40 GHz RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 1MHz / 1MHz for peak Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : D3 of D6 1.1.3. Test Procedures 1. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The horn antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 6. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 7. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : D4 of D6 1.1.4. Test Setup Layout For radiated emissions above 1000MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade form 3m to 1.5m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1.5m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [6 dB]. 1.1.5. Test Deviation There is no deviation with the original standard. 1.1.6. EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1.5m Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : D5 of D6 2. Results of Radiated Emissions for Co-located Temperature 26°C Humidity 60% Test Engineer Johnson Chang Configurations Ant. 2 (5GHz Band)+Ant. 3 (2.4GHz Band) TX Horizontal Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : D6 of D6 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Enterasys Networks Applicant Address 50 Minuteman Road Andover MA 01810 FCC ID QXO-OAP36A Manufacturer’s company Accton Technology Corporation Manufacturer Address No. 1 Creation Rd., III, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Product Name HiPath Wireless Outdoor Access Point Brand Name Enterasys Model Name WS-AP3660 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Jul. 20, 2010 Final Test Date Sep. 03, 2010 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n, IEEE 802.11b/g part and IEEE 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR072010 Report Format Version: 01 Page No. : i of ii FCC ID: QXO-OAP36A Issued Date : Sep. 06, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................7 3.3. Table for Filed Antenna.......................................................................................................................................................................8 3.4. Table for Carrier Frequencies ...........................................................................................................................................................10 3.5. Table for Test Modes .........................................................................................................................................................................11 3.6. Table for Testing Locations................................................................................................................................................................16 3.7. Table for Supporting Units .................................................................................................................................................................16 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................17 3.9. Test Configurations ...........................................................................................................................................................................22 4. TEST RESULT ................................................................................................................................................... 33 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................33 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................39 4.3. Power Spectral Density Measurement ............................................................................................................................................128 4.4. 6dB Spectrum Bandwidth Measurement ........................................................................................................................................160 4.5. Radiated Emissions Measurement ..................................................................................................................................................216 4.6. Band Edge Emissions Measurement ...............................................................................................................................................312 4.7. Antenna Requirements ...................................................................................................................................................................360 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 361 6. TEST LOCATION............................................................................................................................................ 363 7. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 364 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A19 APPENDIX B. TEST PHOTOS........................................................................................................................ B1 ~ B15 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE...............…

Text truncated - open the document above for the full version.

Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 1 of 15 Appendix B. Test Photos Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 2 of 15 1. Photographs of AC Power Line Conducted Emissions Test Configuration <For Mode 2 (Ant. 2)><5GHz Antenna>: FRONT VIEW REAR VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 3 of 15 <For Mode 3 (Ant. 3)><2.4GHz Antenna>: FRONT VIEW REAR VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 4 of 15 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 5 of 15 Test Configuration: 30MHz~1GHz <For Mode 2 (Ant. 2)><5GHz Antenna>: FRONT VIEW REAR VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 6 of 15 Test Configuration: 30MHz~1GHz <For Mode 3 (Ant. 3)><5GHz Antenna>: FRONT VIEW REAR VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 7 of 15 Test Configuration: Above 1GHz <For Mode 1 (Ant. 1)><5GHz Antenna>: FRONT VIEW REAR VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 8 of 15 Test Configuration: Above 1GHz <For Mode 2 (Ant. 2)><5GHz Antenna>: FRONT VIEW REAR VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 9 of 15 Test Configuration: Above 1GHz <For Mode 3 (Ant. 3)><2.4GHz Antenna>: FRONT VIEW REAR VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 10 of 15 Test Configuration: Above 1GHz <For Mode 4 (Ant. 4)><2.4GHz / 5GHz Antenna>: FRONT VIEW REAR VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 11 of 15 Test Configuration: Above 1GHz <For Mode 5 (Ant. 5)><2.4GHz Antenna>: FRONT VIEW REAR VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 12 of 15 Test Configuration: Above 1GHz <For Mode 6 (Ant. 6)><5GHz Antenna>: FRONT VIEW REAR VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 13 of 15 Test Configuration: Above 1GHz <For Mode 7 (Ant. 7)><2.4GHz / 5GHz Antenna>: FRONT VIEW REAR VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 14 of 15 SIDE VIEW Report No.: FR072010 FCC ID: QXO-OAP36A Page No. : 15 of 15 Test Configuration: Co-Location Function <Ant. 2 (5GHz Band)+Ant. 3 (2.4GHz Band)>: FRONT VIEW REAR VIEW
