RoamAbout ® Wireless Networking RBT-4102-LIC Access Point Installation Guide P/N 9034249 i Notice Enterasys Networks reserves the right to make changes in specifications and other information contained in this document and its web site without prior notice. The reader should in all cases consult Enterasys Networks to determine whether any such changes have been made. The hardware, firmware, or software described in this document is subject to change without notice. IN NO EVENT SHALL ENTERASYS NETWORKS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS DOCUMENT, WEB SITE, OR THE INFORMATION CONTAINED IN THEM, EVEN IF ENTERASYS NETWORKS HAS BEEN ADVISED OF, KNEW OF, OR SHOULD HAVE KNOWN OF, THE POSSIBILITY OF SUCH DAMAGES. Enterasys Networks, Inc. 50 Minuteman Road Andover, MA 01810 © 2006 Enterasys Networks, Inc. All rights reserved. Part Number: 9034249 January 2006 ENTERASYS, ENTERASYS NETWORKS, ENTERASYS ROAMABOUT, ENTERASYS MATRIX, LANVIEW, MATRIX, NETSIGHT, WEBVIEW, and any logos associated therewith, are trademarks or registered trademarks of Enterasys Networks, Inc., in the United States and other countries. All other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies. Documentation URL: http://www.enterasys.com/support/manuals Electrical Hazard: Only qualified personnel should perform installation procedures. Riesgo Electrico: Solamente personal calificado debe realizar procedimientos de instalacion. Elektrischer Gefahrenhinweis: Installationen sollten nur durch ausgebildetes und qualifiziertes Personal vorgenommen werden. ii RBT-4102-LIC Compliances Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected •Consult the dealer or an experienced radio/TV technician for help FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the userʹs authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware‐limited to channels 1 through 11. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 70 centimeters (27.5 inches) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Wireless 5 GHz Band Statements: As the Access Point can operate in the 5150-5250 MHz frequency band it is limited by the FCC to indoor use only so as to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users (meaning they have priority) of the 5250-5350 MHz and 5650-5850 MHz bands. These radars could cause interference and /or damage to the access point when used in Canada. Wireless 4.9 GHz Band Statement: Installation and operartion requires an approved license from the FCC. iii Safety Compliance Power Cord Safety Please read the following safety information carefully before installing the access point: •The unit must be connected to an earthed (grounded) outlet to comply with international safety standards. •Do not connect the unit to an A.C. outlet (power supply) without an earth (ground) connection. •The appliance coupler (the connector to the unit and not the wall plug) must have a configuration for mating with an EN 60320/IEC 320 appliance inlet. •The socket outlet must be near to the unit and easily accessible. You can only remove power from the unit by disconnecting the power cord from the outlet. •This unit operates under SELV (Safety Extra Low Voltage) conditions according to IEC 60950. The conditions are only maintained if the equipment to which it is connected also operates under SELV conditions. Important! Before making connections, make sure you have the correct cord set. Check it (read the label on the cable) against the following: Warning: Installation and removal of the unit must be carried out by qualified personnel only. Power Cord Set U.S.A. The cord set must be UL‐approved and CSA certified. •The minimum specifications for the flexible cord are: •No. 18 AWG – not longer than 2 meters, or 16 AWG. •Type SV or SJ •3‐conductor The cord set must have a rated current capacity of at least 10 A The attachment plug must be an earth‐grounding type with NEMA 5‐15P (15 A, 125 V) or NEMA 6‐15P (15 A, 250 V) configuration. iv Enterasys Networks, Inc. Firmware License Agreement BEFORE OPENING OR UTILIZING THE ENCLOSED PRODUCT, CAREFULLY READ THIS LICENSE AG…

Text truncated - open the document above for the full version.

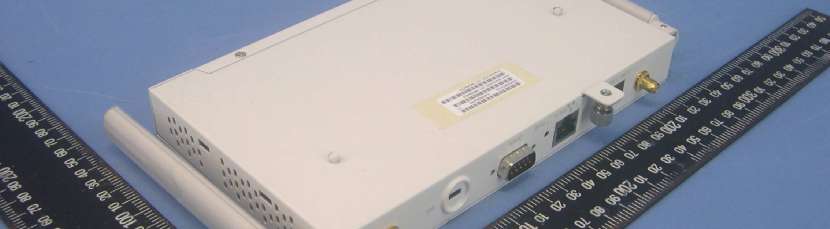

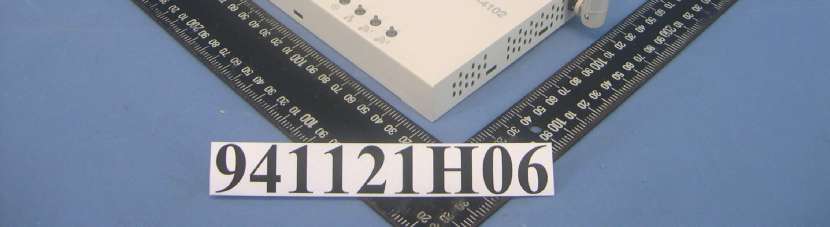

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: QXO-RBT4102LIC FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Model : RBTES-AW-S1590M Page 9 Page 10 Page 11 Antenna: RBT4K-AG-IA Page 12 Page 13 Antenna: RBTES-AH-P23M Page 14 Page 15 Page 16 Antenna: RBTES-AH-M10M Page 17 Page 18 Page 19 Page 20

4.9G PA output power 5V output current Power = 0 dbm 126mA Power = 1 dbm 128mA 圖一 PA 電路圖 圖二 PA 5V 電壓產生電路圖 Power = 2 dbm 128mA Power = 3 dbm 134mA Power = 4 dbm 136mA Power = 5 dbm 138mA Power = 6 dbm 139.6mA Power = 7 dbm 144mA Power = 8 dbm 145mA Power = 9 dbm 150mA Power = 10 dbm 159mA Power = 11 dbm 168mA Power = 12 dbm 173.5mA Power = 13 dbm 182mA Power = 14 dbm 194mA Power = 15 dbm 202mA Power = 16 dbm 218mA Power = 17 dbm 241mA Power = 18 dbm 263mA Power = 19 dbm 289mA Power = 20 dbm 338mA Power = 21 dbm 378mA Power = 22 dbm 426mA

FCC ID: QXO-RBT4102LIC Report No. RF940804H03B Operational Description This device is a Multi-Channel Access Point, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. The transmitter rate could be 54/48/36/24/18/12/9/6Mbps. The transmitter of the EUT (Multi-Channel Access Point) is powered by power adapter or POE. The antenna type used in this product is as following: SPEC No.Model No.Product Description Antenna Gain RemarkConnector 8910620 RBTES-AW- S1590M 4.9 GHz -6 GHz Adjustable Sector Antenna Assy Outdoor Antenna 16 dBi at 60° 15 dBi at 90° 1. Point to point 2. Directional 3. Reverse N Connector RPSMA The other instruction, please have a look at the users manual.

FCC ID: QXO-RBT4102LIC Report No.: SA940804H03B1Issued: Dec. 22, 2005 RF EXPOSURE REPORT REPORT NO.: SA940804H03B MODEL NO.: RBT-4102-LIC ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Enterasys Networks, Inc. ADDRESS:50 Minuteman Road Andover, MA 01810 ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: QXO-RBT4102LIC Report No.: SA940804H03B2Issued: Dec. 22, 2005 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: QXO-RBT4102LIC Report No.: SA940804H03B3Issued: Dec. 22, 2005 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 25cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: QXO-RBT4102LIC Report No.: SA940804H03B4Issued: Dec. 22, 2005 5. Classification The antennas (except the below antennas) of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. The antenna (RBTES-BG-P18M) of this product, under normal use condition, is at least 40cm away from the body of the user. Warning statement to the user for keeping at least 40cm or more separation distance with the antenna should be included in users manual. The antenna (RBTES-BG-PAR24M) of this product, under normal use condition, is at least 68cm away from the body of the user. Warning statement to the user for keeping at least 68cm or more separation distance with the antenna should be included in users manual. The antenna (RBTES-AW-S1590M) of this product, under normal use condition, is at least 28cm away from the body of the user. Warning statement to the user for keeping at least 28cm or more separation distance with the antenna should be included in users manual. The antenna (RBTES-AH-P23M) of this product, under normal use condition, is at least 61cm away from the body of the user. Warning statement to the user for keeping at least 61cm or more separation distance with the antenna should be included in users manual. The antenna (RBTES-AW-S1590M) of this product, under normal use condition, is at least 25cm away from the body of the user. Warning statement to the user for keeping at least 25cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: QXO-RBT4102LIC Report No.: SA940804H03B5Issued: Dec. 22, 2005 6 Test Results 6.1 Antenna Gain For 2.4GHz Antenna 1: The maximum Gain of the antenna is 2.0dBi. For 5GHz Operated in 5150 ~ 5250MHz, 5250MHz ~ 5350MHz, 5725MHz ~ 5825MHz band: (15.407) Antenna 1: The maximum Gain of the antenna is 4.0dBi. Operated in 5725 ~ 5850MHz band: (15.247) Antenna 1: The maximum Gain of the antenna is 4.0dBi. Antenna 2: The maximum Gain of the antenna is 23.0dBi. Antenna 3: The maximum Gain of the antenna is 10.0dBi. For 4.9GHz Operated in 4955 ~ 4975MHz Antenna 1: The maximum Gain of the antenna is 16dBi. For 802.11b/g(2400 ~ 2483.5MHz) ItemSPEC No.Model No.Product Description Antenna Gain RemarkConnector 1NARBT4K-AG-IA2.4-4.9/5.8 GHz, 8ft of cable RPSMA Indoor Antenna. 2dBiOmniRPSMA For 802.11a (5725 ~ 5850MHz band) ItemSPEC No.Model No.Product Description Antenna Gain RemarkConnector 1NARBT4K-AG-IA2.4-4.9/5.8 GHz, 8ft of cable RPSMA Indoor Antenna. 4dBiOmniRPSMA 28910605RBTES-AH-P23M5.8GHz GHz Directional Antenna Assy Outdoor Antenna.. 23 dBi Point to point Directional Reverse N 38910606RBTES-AH-M10M5.8GHz GHz Omni Antenna Assy Outdoor Antenna. 10 dBiOmniReverse N FCC ID: QXO-RBT4102LIC Report No.: SA940804H03B6Issued: Dec. 22, 2005 For 802.11a (5150 ~ 5350MHz band) ItemSPEC No.Model No.Product Description Antenna Gain RemarkConnector 1NARBT4K-AG-IA2.4-4.9/5.8 GHz, 8ft of cable RPSMA Indoor Antenna. 4dBiOmniRPSMA For 802.11j (4955 ~ 4975MHz band) ItemSPEC No.Model No.Product Description Antenna Gain RemarkConnector 18910620RBTES-AW-S1590M 4.9 GHz -6 GHz Adjustable Se…

Text truncated - open the document above for the full version.

FCC ID: QXO-RBT4102LIC Report No.: RF940804H03B1Report Format Version 2.0.4 Reference No.:941121H06 FCC TEST REPORT (15.247) REPORT NO.: RF940804H03B MODEL NO.: RBT-4102-LIC RECEIVED: Aug. 03, 2005 TESTED: Aug. 25 to Sep.30, 2005 ISSUED: Oct. 07, 2005 APPLICANT:Enterasys Networks, Inc. ADDRESS:50 Minuteman Road Andover, MA 01810 ISSUED BY:Advance Data Technology Corporation TEST LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 124 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536No. 2177-01 ILAC MRA FCC ID: QXO-RBT4102LIC Report No.: RF940804H03B2Report Format Version 2.0.4 Reference No.:941121H06 Table of Contents 1.CERTIFICATION.....................................................................................................5 2.SUMMARY OF TEST RESULTS.............................................................................6 3.GENERAL INFORMATION .....................................................................................8 3.1GENERAL DESCRIPTION OF EUT........................................................................8 3.2DESCRIPTION OF TEST MODES........................................................................12 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:........................13 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................15 3.4DESCRIPTION OF SUPPORT UNITS..................................................................16 3.5CONFIGURATION OF SYSTEM UNDER TEST...................................................17 4.TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band)...............19 4.1CONDUCTED EMISSION MEASUREMENT........................................................19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT......................................19 4.1.2 TEST INSTRUMENTS ..........................................................................................19 4.1.3 TEST PROCEDURES ..........................................................................................20 4.1.4 DEVIATION FROM TEST STANDARD .................................................................20 4.1.5 TEST SETUP........................................................................................................21 4.1.6 EUT OPERATING CONDITIONS..........................................................................21 4.1.7 TEST RESULTS ...................................................................................................22 4.2RADIATED EMISSION MEASUREMENT .............................................................26 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...........................................26 4.2.2 TEST INSTRUMENTS ..........................................................................................27 4.2.3 TEST PROCEDURES ..........................................................................................28 4.2.4 DEVIATION FROM TEST STANDARD .................................................................28 4.2.5 TEST SETUP........................................................................................................29 4.2.6 EUT OPERATING CONDITIONS..........................................................................29 4.2.7 TEST RESULTS ...................................................................................................30 4.36dB BANDWIDTH MEASUREMENT ....................................................................38 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................................38 4.3.2 TEST INSTRUMENTS ..........................................................................................38 4.3.3 TEST PROCEDURE.............................................................................................39 4.3.4 DEVIATION FROM TEST STANDARD .................................................................39 4.3.5 TEST SETUP........................................................................................................39 4.3.6 EUT OPERATING CONDITIONS..........................................................................39 4.3.7 TEST RESULTS ...................................................................................................40 4.4MAXIMUM PEAK OUTPUT POWER ....................................................................46 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .....................46 4.4.2 INSTRUMENTS....................................................................................................46 4.4.3 TEST PROCEDURES ..........................................................................................47 4.4.4 DEVIATION FROM TEST STANDARD .................................................................47 FCC ID: QXO-RBT4102LIC Report No.: RF940804H03B3Report Format Version 2.0.4 Reference No.:941121H06 4.4.5 TEST SETUP........................................................................................................47 4.4.6 EUT OPERATING CONDITIONS..........................................................................47 4.4.7 TEST RESULTS ...................................................................................................48 4.5POWER SPECTRAL DENSITY MEASUREMENT ................................................50 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT..............................50 4.5.2 TEST INSTRUMENTS ..........................................................................................50 4.5.3 TEST PROCEDURE......................…

Text truncated - open the document above for the full version.

FCC ID: QXO-RBT4102LIC Report No.: RF940804H03B46Report Format Version 2.0.4 Reference No.: 941121H06 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST (With adapter) FCC ID: QXO-RBT4102LIC Report No.: RF940804H03B47Report Format Version 2.0.4 Reference No.: 941121H06 RADIATED EMISSION TEST (With POE)
